What's New in Oxygen XML Editor 21.0
February 22, 2019
Related version: 21.1
The release of version 21 of Oxygen XML Editor adds numerous new features, updates, and improvements to the already robust, industry-leading XML editing application. The primary focus for this major release was to evaluate user requests for improvements and additions, implement as many of them as possible, while preserving the reliability, stability, and performance requirements that the XML community has come to expect from the Oxygen suite of products.
This major release includes numerous productivity improvements for DITA authors, the CSS-based PDF Publishing support and the Oxygen PDF Chemistry engine were enhanced with many new possibilities for improving PDF output, a major effort was put into making the JSON editing support as robust as the other built-in document types, various features were added for XSLT and XQuery developers, as well as updates to add-ons, new API entry points, component updates, performance improvements, and much more.
Collaboration for your XML documentation review process is now readily available since the Oxygen Content Fusion connector add-on is already installed in Oxygen XML Editor.
There are changes in:
DITA Authoring
Improvements to DITA Reusable Components View
The DITA Reusable Components view received more improvements. The
default display mode for the Keys tab now has a tiles
style of layout and additional filtering and sorting options were added to help you search
for keys. Also, a new action was added in the Settings menu of the
Components tab to force a re-indexing of the reusables.
Quick Fix to Correct Capitalization in Paths
A quick fix was added that can be used to correct capitalization problems in
file paths. For example, instances where you have an image or an
xref with an href attribute pointing to a resource and
the path to the resource is correct, but not properly capitalized
(C:\temp\myfolder instead of
C:\temp\myFolder).
Validate and Check for Completeness Gathers Keys from Root Map
The Validate and Check for Completeness operation now gathers
keys from the map specified in the Root Map combo box. This means that
you can now validate submaps (for example, to check for broken links), but the keys will
be gathered from the root map.
Preview Image Before Inserting It
When inserting images in DITA topics, the Insert Image dialog
box now includes a preview box so that you can see the selected image before clicking
Insert.
Key Reference to Image Presents Preview Thumbnail
If you have a key defined for an image in a DITA map, when you reference it in
a DITA topic, you now have the ability to see a preview thumbnail of the image in the
in-place attributes editor or the Attributes view.
Support for Profiling Conditional Attribute Groups
You now have the ability to define profiling
attribute groups to organize the attribute values into hierarchical conditions.
This is intended to support situations where an attribute applies to multiple specialized
subcategories. The same support for single profiling attributes is available for groups.
For example, you can configure the colors and styles for group values, defined groups are
listed in the content completion window, and the groups are presented in all the same
locations in the application.
DITA Maps Automatically Indexed
When opening a DITA map in the DITA Maps Manager, its index will automatically
be refreshed by default. There is a new option in the Open/Find Resource
preferences page where you can disable this feature.
DITA Maps Metrics Report Improved
The DITA Map Metrics Report transformation scenario was
improved to also list all @outputclass attribute values gathered from the
DITA project.
Better Support for Editing DITA-OT Plugin Configuration Files
When editing a DITA-OT plugin.xml configuration file, placing
the cursor inside the value of an extension attribute and invoking the
content completion will present a list of possible extension points with links to the
DITA-OT documentation.
Open Next Document that Contains Review Items
When navigating items in the Review view, if you reach the last/first review
item in the document, clicking the navigation button again will open a dialog box asking
if you want to open the next/previous document (from the current DITA map hierarchy) that
contains review items. You can also configure this behavior with a new option in the DITA
preferences page.
DITA CSS-based PDF Publishing
Add an Edit Link in the PDF Output for CSS-Based PDF Transformations
It is now possible to add an "Edit"
link next to the topic title in the PDF output. When a user clicks the link, the
topic is opened in Oxygen XML Web Author where they can offer suggestions
or make changes that can be saved to a file server.
Control How Tracked Changes and Comments are Presented
It is possible to control how the
tracked changes and comments are presented. They can be shown as PDF annotations
or as footnotes. PDF Annotations are specially handled by PDF viewers, such as Adobe
Acrobat Reader. The annotations contain information about the author, comment, part of the
affected content, the date, and replies.
Navigation Title Used for Bookmark Labels
You can use the navtitle element in a topic or a topic
reference in a map to adjust the labels for the PDF bookmarks. PDF Bookmarks are used to
generate a hierarchical structure similar to a table of contents in a specialized view of
your PDF Reader.
Generate List of Tables and Figures from a Bookmap
Support was added for generating a list of tables or figures when using a DITA
bookmap. They can be defined inside a 'booklist' element in the frontmatter or backmatter
of a bookmap. For more information about this and other ways to control content using a
bookmap, see Controlling
the Publication Content.
Alter Styles Through Custom Parameters
You can activate parts of your CSS by using custom transformation parameters.
These parameters are recognized by the publishing pipeline and are forwarded as synthetic
attributes on the root element of the merged map. For more information, see Styling Through Custom
Parameters.
Fixed Various DITA-OT Transformation Parameters
The args.gen.task.lbl, args.figurelink.style,
and args.tablelink.style DITA-OT parameters now work properly when
generating PDF output based on CSS and HTML5.
Hazard Statement Icons Updated
When the DITA hazardstatement element is used, the icon that
appears in Author mode and the output was updated according to the ISO-3864
standard.
Parameter to Control Numbering
A new parameter (args.css.param.numbering) can be used to
control the way numbering is implemented. When set to shallow, only the
first-level topics (the chapters) are numbered. When set to deep, all the
chapters and subsections are numbered. For more information, see How to Switch Between
Shallow and Deep Numbering.
DITA to Responsive WebHelp
Topic Path Breadcrumb is Displayed in Search Results Page
In the Search Results page, you can now see a breadcrumb of the path of all of
the topics that contain the search results. It makes it easier to visualize where the
topic exists in the hierarchy and you can click any of the topics in the breadcrumb to
open that particular page.
WebHelp Compatible with DITA-OT 3.x
Oxygen WebHelp has been tested and is compatible with the latest DITA Open
Toolkit version 3.x.
XML Refactoring Operation to Migrate HTML Page Layout Files to Version 21
For custom publishing templates that were created in version 20.1 and that
include custom HTML page layout files, a conversion procedure is required for the template
to be compatible with version 21. A new XML Refactoring operation was added to make this
conversion very easy. For details, see Converting Old Templates with
HTML Page Layout Files to Version 21.
JSON
Outline View Redesigned for JSON Documents
The Outline view was redesigned for JSON documents. For example,
it is now available for more types of JSON constructs (such as arrays), it's available
even if the JSON document is not well formed, and its functionality is now more similar to
the Outline view for XML documents. Also, an error icon is now displayed
for validation problems and you can hover over the icon to see a tooltip with details
about the problem.
Content Completion Assistance for JSON, Based on JSON Schema
Content
completion support was added for JSON documents, proposing code constructs that
are valid at the current location, based upon the associated JSON schema. This makes it
easier and faster to edit JSON documents. Also, it now presents documentation from the
associated schema to help you understand how the property or value is used.
Content Completion for JSON Schema
Depending on the version of the JSON schema, the Content Completion
Assistant offers proposals based upon the JSON Meta-schema.

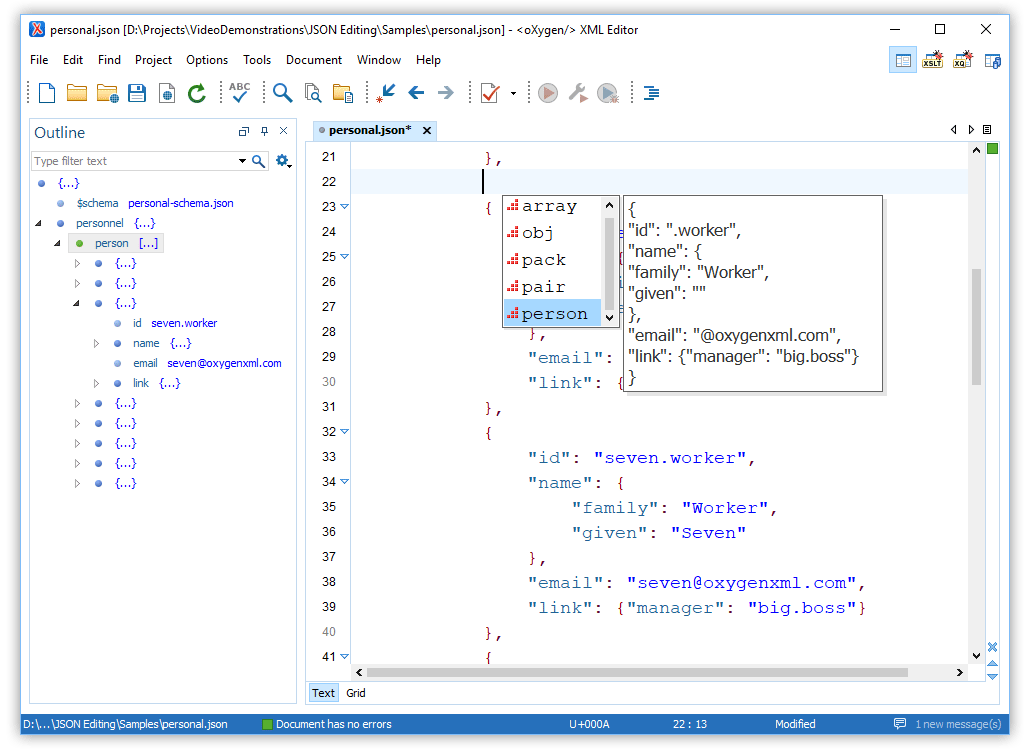

Define Code Templates for JSON
You now have the ability to define your own code templates that will appear in
the content completion list of proposals. For example, you can define a custom JSON code
construct that doesn't already appear in the content completion by default. For details
see Content
Completion Assistant in JSON.
Associate JSON Schema Directly in JSON Documents
When editing JSON documents, you now have the ability to associate
a JSON schema directly in the document. The benefits are that the JSON schemas
will be used for automatic validation, content completion, and for a new Go to
definition action that navigates to the definition of the current
property.
Execute XPath Expressions over Multiple JSON Files
Support was added to execute XPath expressions over multiple JSON files from
the XPath/XQuery Builder view and the XPath toolbar. XPath 1.0, 2.0, and 3.0 expressions
are supported.
New Actions for Getting the XPath at the Cursor Location
The Copy XPath contextual menu action now also works for JSON
properties and it copies the XPath expression for the current property to the system
clipboard. Also, an XPath update on cursor move option was added to the
Settings menu on the XPath toolbar and in the XPath Builder
view.
Transform JSON Documents
New XSLT document templates and samples are now available for transforming JSON
document into various outputs, such as HTML or XML. They appear in the
Framework templates > XSLT folder in the new document wizard. You can
also transform JSON documents using XQuery.
JSON Validator Supports Multiple Compositors
The JSON validator now supports multiple compositors (allOf,
anyOf, oneOf) for the JSON Schema.
Copy JSON Pointer to Clipboard
A new contextual menu action is available in Text mode called
Copy JSON Pointer and it can be used to create a JSON
Pointer at the current cursor location and copies the expression that denotes
the JSON pointer to the clipboard.
Open Associated Schema Action
The Open Associated Schema toolbar action now also works with
JSON documents. It detects and opens the JSON Schema associated with the current JSON
document either through a validation scenario or directly in the document.
XSLT
XSLT 3.0 Improvements
The support for XSLT 3.0 was improved. For example, more proposals were added
to the content completion list, more namespaces were added (for XPath functions, maps, and
arrays), and functions were added specifically for JSON (json-to-xml,
xml-to-json). Support was also added for setting static
parameters.
Easily Change Initial Mode and Initial Template Options
If the Saxon-specific initial mode (-im) or
initial template (-it) options have values specified
in the Advanced Saxon settings page (accessed from and XSLT transformation scenario), they
now take precedence over the same options set in a configuration file. This makes it
easier to change the initial mode or template.
Content Completion for Attribute and Element Functions
The content completion in XSLT and XPath now provides proposals for
attribute() and element() functions. The content
completion window also provides documentation for these functions.

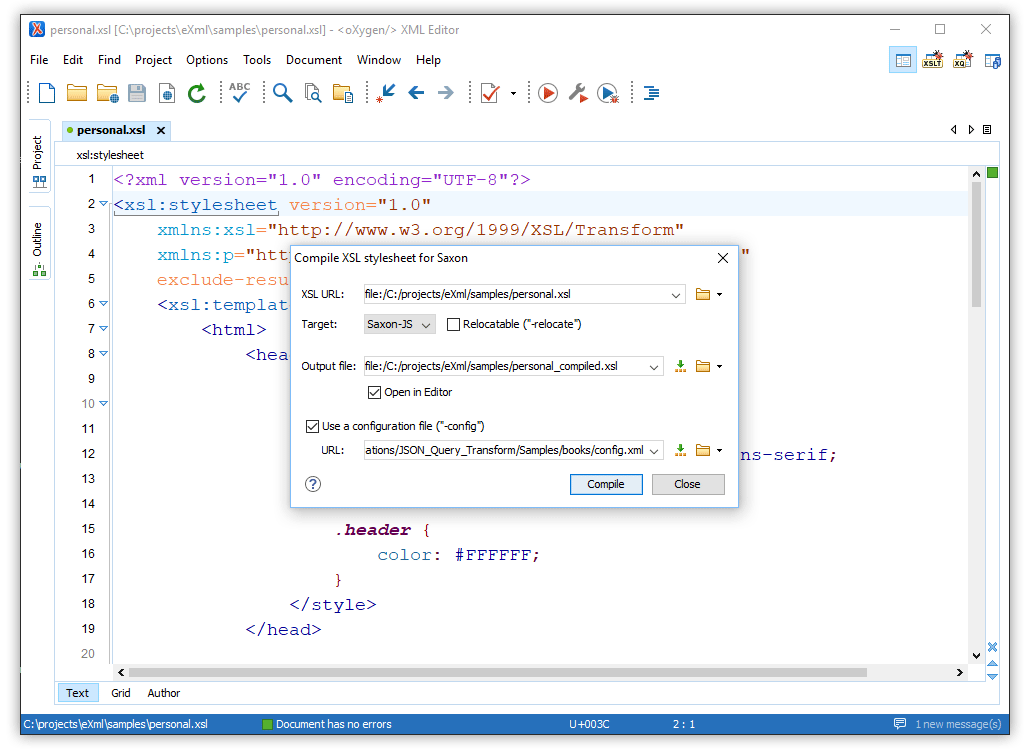

Compile XSL Stylesheet for Saxon Tool Improvements
The Compile XSL Stylesheet for Saxon tool can now be set to use a
Saxon configuration file.
XQuery
Validate XQuery Modules
XQuery modules (libraries of functions that can be imported and used from an
XQuery document) are now validated automatically as you type, or manually by invoking the
Validate action.
XQuery 3.0 Improvements
The support for XQuery 3.0 was improved. For example, more proposals were added
to the content completion list for functions and arguments, including XPath 3.1
functions.
Other
Automatically Recover Documents
An option is now available to automatically save the
currently modified documents to backup files. This makes it possible to recover
content after system crashes or other problems. By default, the option is enabled and it
saves the content of each modified file to the backup file every 5 minutes, but this can
be configured in the Save preferences page. In the event of a crash, when you
restart the application or open a document that was being edited before the crash, a
dialog box is displayed with options for how to handle the auto-recovered
information.

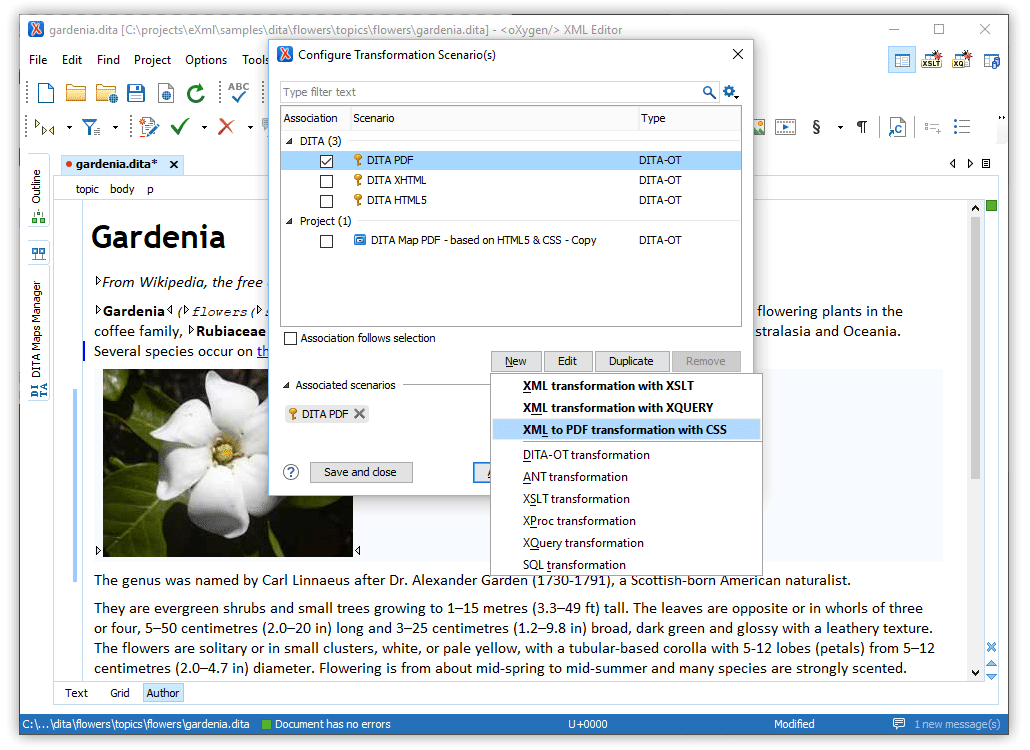

New Built-in Transformation Scenario Type for CSS-Based PDF Output
You now have the option to create transformation scenarios based on a new
scenario type called XML to PDF Transformation with CSS. It uses the
Oxygen PDF Chemistry processing engine to obtain PDF output by applying
CSS styling to an XML document.
Open Resource in Console (Terminal)
A new contextual menu action was added in the Project view
that can be used to open a command console at the location of the selected physical
resource. If the selected resource is a file, the console will open at the parent
directory.
Filter Review View to Show Items in Current Document Only
A new filter was added in the Review view called Show
reviews in read-only content. You can deselect this filter to only show review
items in the current document and exclude review items from content referenced in a
conref or conkeyref.

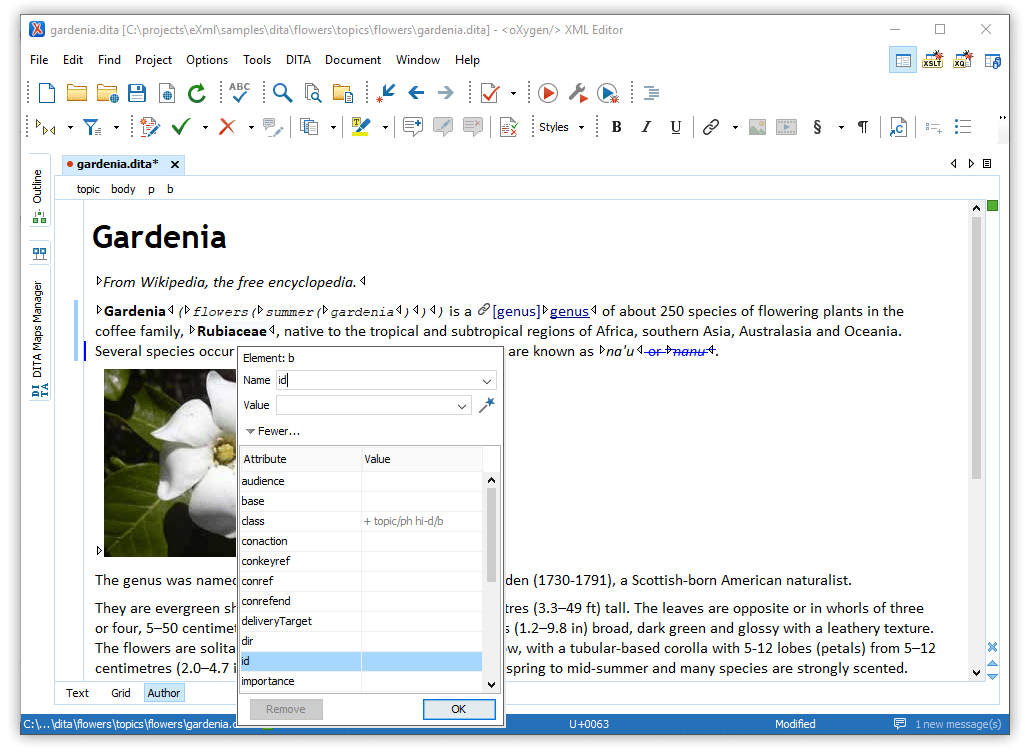

Automatically Generate IDs in Attributes View
When using the Attributes view or the in-place attributes
editor for any of the built-in frameworks, if the selected attribute is named
id, a Generate Unique ID Value button is available.
Clicking this button will automatically generate a unique ID value for the selected
element.
Learn Words Directly from Results Panel
When misspelled words are reported in the Results panel after
using the Check Spelling in Files action, you now have the ability to
choose to Learn words using a contextual menu action directly in the
Results panel.
Replace Content Without Finding the Next Instance
When using the Find/Replace dialog box, the
Replace button now only replaces the current match without advancing to
the next instance. There is now an additional button (Replace/Find) that
can be used for that purpose.
Show Unreferenced Resources in System Explorer
When using the Find Unreferenced Resources action on a DITA
map, any resources found and listed in the Results panel can be previewed
by selecting Show in Explorer from the contextual menu.
Bookmark Shortcuts Automatically Open Closed Documents
Bookmark navigation shortcuts (CTRL+1 through
CTRL+9) now work even if the document where the bookmark was inserted
has been closed. In this case, using the shortcut will automatically re-open the
document.

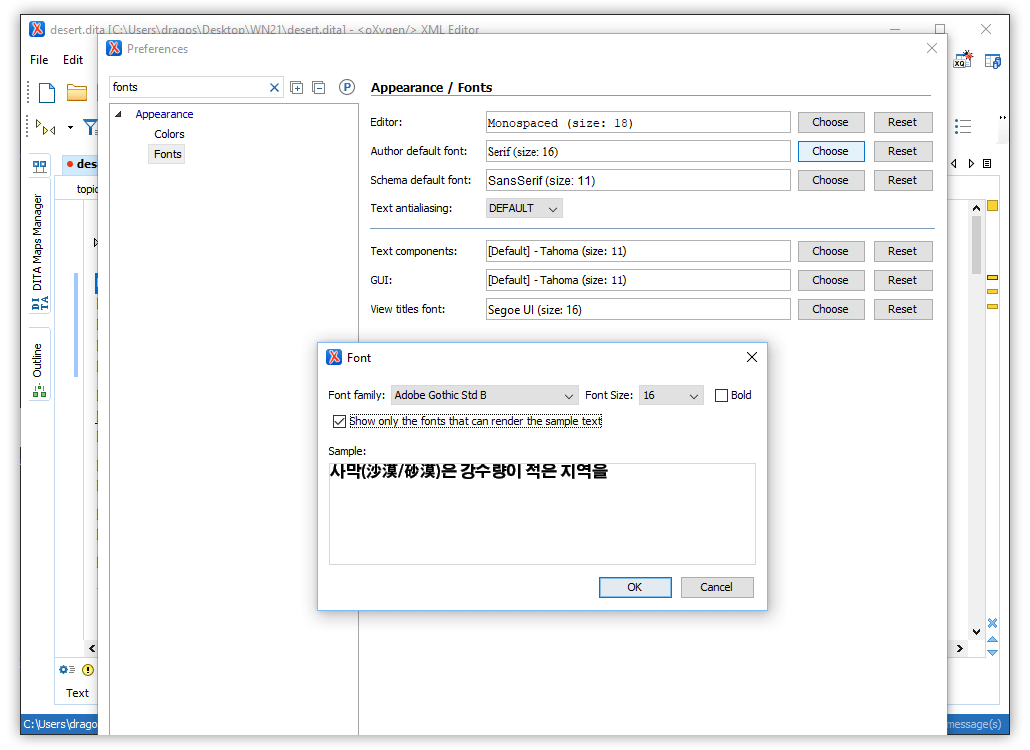

Automatically Detect Fonts for Certain Character Sets in the Fonts Preferences Page
When choosing a font for various UI components in the Fonts
preferences page, the font chooser dialog box now includes an option to
Show only the fonts that can render the sample text. If you select this
option and paste content in the Sample area, Oxygen will detect fonts
that can render the particular character set and filter the fonts that can be selected
accordingly. This is helpful is you're trying to determine the font to use for a character
set with special characters (for example, Asian languages).
Huge File Editor Improved
The huge file
editor now supports editing files that have Windows-1252/CP-1252 or ISO 8859-1
encoding.
MathML and SVG Graphics Improved for Retina/HiDPI
The quality of the rendering of MathML and SVG images was improved for
Retina/HiDPI displays.
Exist 4.5 Officially Supported
Exist 4.5 was tested and is now officially supported.
XLiff 2.1 Supported
Added support to create, edit, and validate XLiff 2.1 documents.
Documentum xDB (XHive) Support Removed
Support for the Documentum xDB (XHive) database was entirely
removed.
API
Insert XML Fragment
New API method for Text mode, TextDocumentController.insertXMLFragment(String, int), can be used to insert an
XML fragment inside an element. If the element is empty, it attempts to expand the element
(for example, </a> to <a></a>).
Customize Default Rendered Topicref Title
New API DITAMapNodeRendererCustomizer.customizeRenderedTopicrefTitle(AuthorNode, String)
is useful if, for example, you want to add numbers to the topicrefs displayed in the
DITA Maps Manager view, based on depth.
Create an Anchor at a Certain Offset
New API method WSTextBasedEditorPage.createAnchor(int) can be used to create an anchor at a
certain offset in the content.
Get Offset of an Anchor
New API method WSTextBasedEditorPage.getOffsetForAnchor(Anchor) can be used to get the offset
corresponding to an anchor that was previously created.
Serialize Persistent Object to an XML String
New API method GlobalOptionsStorage.serializePersistentObject(Object) can be used to serialize
a persistent object to an XML string.
De-serialize Persistent Object
New API method GlobalOptionsStorage.deserializePersistentObject(String) can be used to
de-serialize a persistent object that was previously serialized as XML.
Move Keyboard Focus to Current Editing Mode
New API WSEditorPage.requestFocus() can be used to move the keyboard focus to any of the
editing modes.
Get Key Definition for a Target URL
New API method KeyDefinitionManager.getKeyDefinitionForTarget(URL, URL) can be used to get the
key definition corresponding to a target URL (rather than the current map or
topic).
Add-on Updates
Batch Converter Add-on Now Includes Excel to DITA
The Batch Converter add-on now includes an option to convert
multiple MS Excel documents to DITA.
Oxygen Content Fusion Connector Add-on Pre-installed
The Oxygen Content Fusion Connector add-on now comes
pre-installed with Oxygen.
Git Client Add-on Includes JGit 5.2.1
Updated the Git Client
add-on to include JGit version 5.2.1.
Saxon Transformer Add-on Updates
Updated the 9.9 version of the Saxon transformer
add-on to support Saxon version 9.9.1.1. The 9.8 version of the add-on was also
updated to use Saxon 9.8.0.15.
XSpec Helper View Add-on Includes XSpec 1.1
Updated the XSpec Helper View
add-on to include XSpec 1.1.
Component Updates
Apache Batik 1.10.x
Updated the Apache Batik SVG toolkit to version 1.10.x.
Apache FOP 2.3
Updated Apache FOP to version 2.3.
Calabash 1.1.24
Updated the Calabash engine to version 1.1.24.
Chemistry PDF Processor 21.0
Updated the bundled Chemistry PDF processor to version 21. For a full list of
new features and improvements, see What's
New in Oxygen PDF Chemistry 21.0.
DITA Open Toolkit 3.2.1
Updated the bundled DITA Open Toolkit publishing engine to version
3.2.1.
EPUBCheck 4.1.1
The EPUBCheck tool that is used to validate EPUB files was updated to version
4.1.1.
Eclipse 4.9 and 4.10
The Oxygen Eclipse plugin was updated to officially support the latest
Eclipse versions 4.9 (2018-09) and 4.10 (2018-12).
focheck 0.7.1
The bundled focheck framework (https://github.com/AntennaHouse/focheck) developed by Antenna House, Inc and
used in Oxygen to offer enhanced XSL-FO validation, was updated to version
0.7.1.
JSON Everit Library and Validation Engine 1.9.2
Updated the JSON Everit library and validation engine to version
1.9.2.
SVNKit 1.8.15
Updated the bundled SVN client to use SVNKit 1.8.15.
TEI Schemas 3.5 and TEI Stylesheets 7.47
Updated the bundled TEI schemas to version 3.5 and the TEI stylesheets to
version 7.47.
XSpec 1.2
Updated the XSpec version to 1.2.
