Oxygen XML Editor 16.1

October 7, 2014

Version 16.1 of Oxygen XML Editor adds improvements to both the XML development and XML authoring functionality.

Fixes for validation issues, such as adding a missing attribute or deleting an unexpected element are offered automatically by the Quick Fixes support.

The XSLT support helps you better understand what each XSLT instruction does by presenting associated annotations with the description of the instruction and links to the specification.

The XML authoring mode received a number of improvements to the table support, track changes functionality, generic editing, as well as to the DITA specific actions.

You can find patterns within an EPUB, OOXML, ODF or any ZIP archive by running XPath queries on all the documents from ZIP-based archives.

The Eclipse plugin version of Oxygen XML Editor was updated to support Eclipse 4.4, the SVN support was updated to work with Apache Subversion 1.8, and many component libraries were updated to their latest stable versions.

XML

XML Quick Fixes

The Quick Fix support helps you resolve different errors that appear in an XML document by proposing automatic fixes for common problems such as missing required attributes or invalid elements. This feature is only available for XML documents validated against an XML Schema.

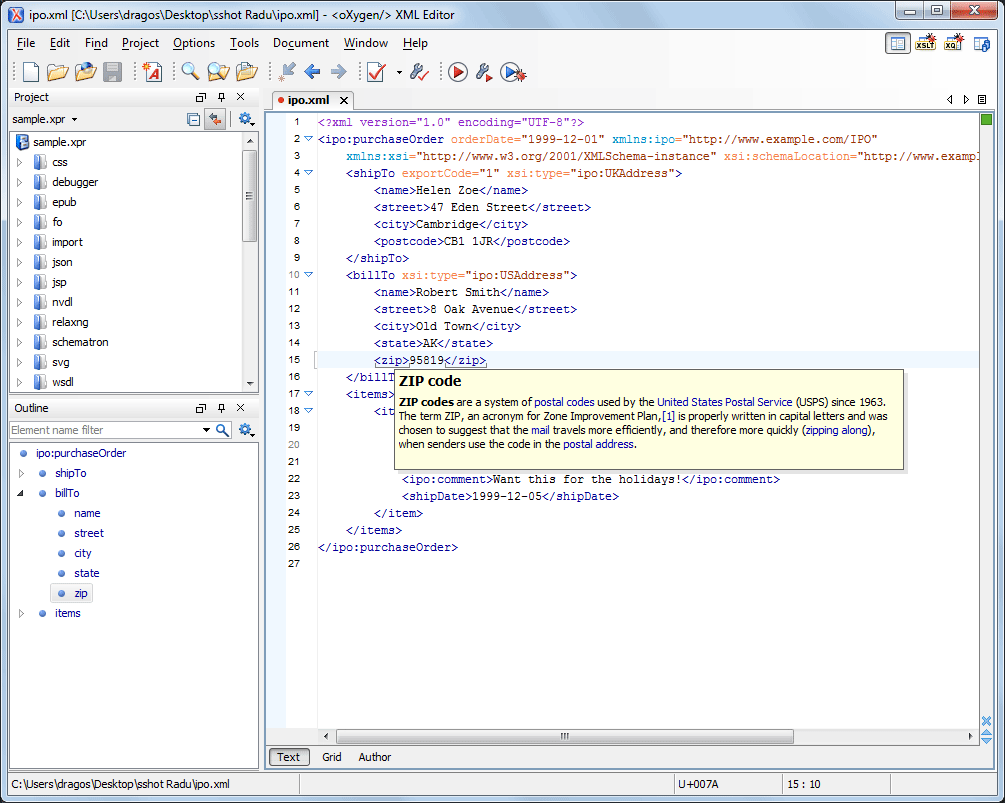

Display Annotations Using HTML

You can use HTML styling in the annotations you add in an XML Schema or Relax NG schema. This improves the visual appearance and readability of the documentation and tooltip windows displayed when editing XML documents validated against such a schema.

Execute XPath Expressions over Files Inside Archives

XPath expressions can be executed over files inside archives (including EPUB and Docx). The archive can be open in the Archive Browser view or referenced from the currently selected scope.

Improved External Validation Engines Error Reporting

The recognized format of messages received from an external validation engine supports new parameters that allow more accurate highlighting of the place in the XML content where the error is located.

CSS

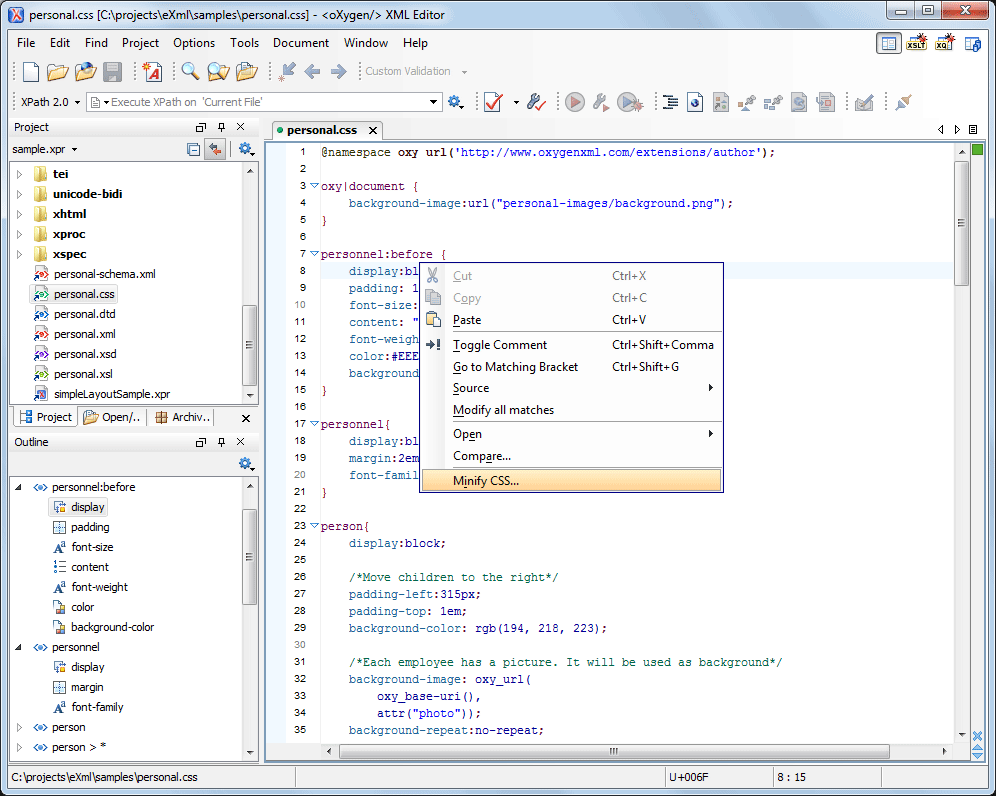

CSS Minification Tool

Oxygen includes a minification tool that allows you to compress and minimize the CSS stylesheets you are developing for deployment on a web server.

XSLT

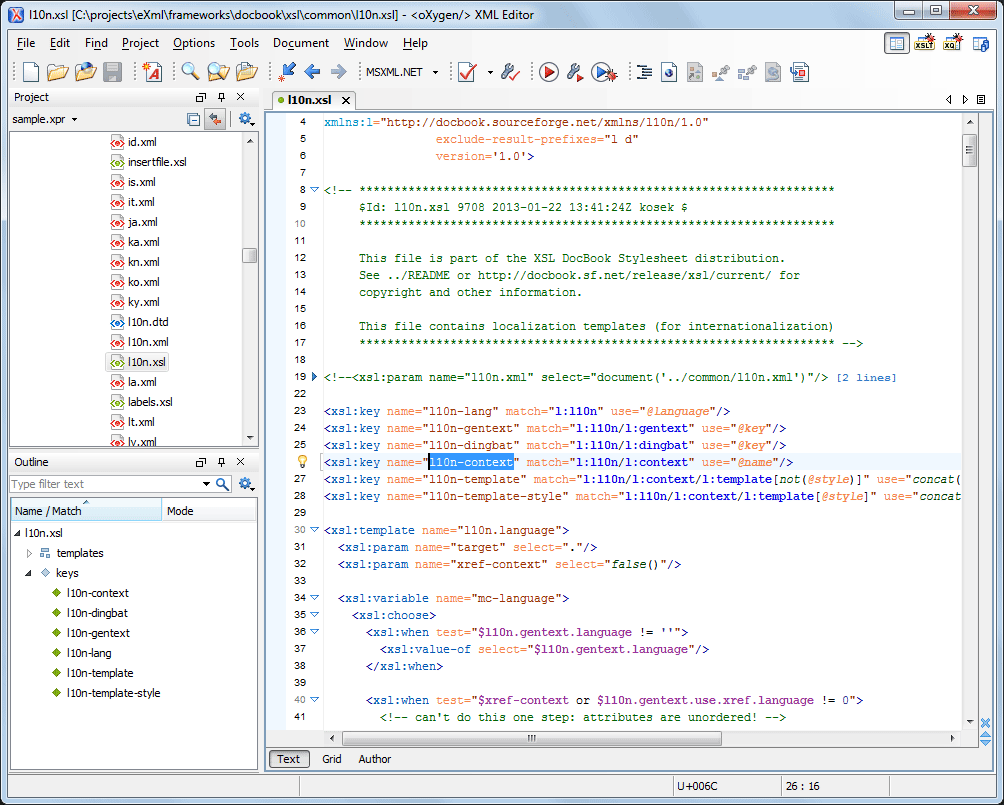

XSLT Outline Displays xsl:key and xsl:output Components

The Outline view collects and displays information about the xsl:key and xsl:output components when you are editing an XSLT document.

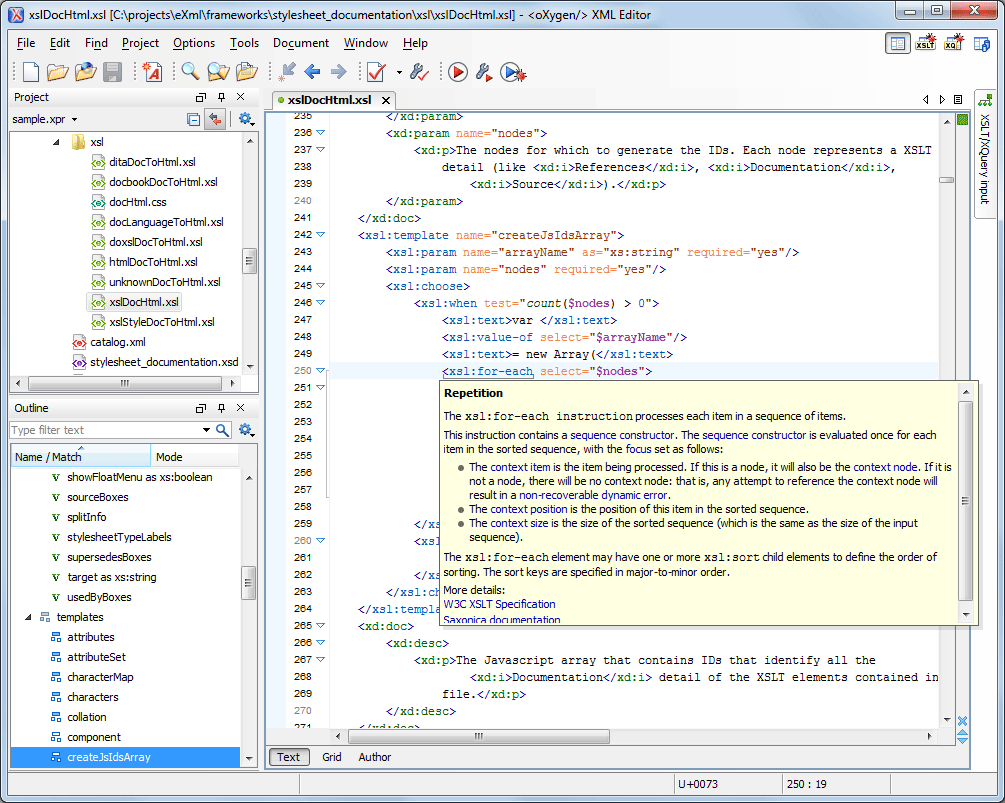

Improved Documentation for XSLT Components

The documentation for XSLT components (elements, attributes and functions) has been reviewed and improved. The documentation is now displayed using a more readable HTML format with navigation links to the specification.

SharePoint Integration

SharePoint Browser View

The SharePoint Browser has been promoted as a dedicated view, allowing you to interact with SharePoint repositories through a set of specific actions.

Visual XML Editing

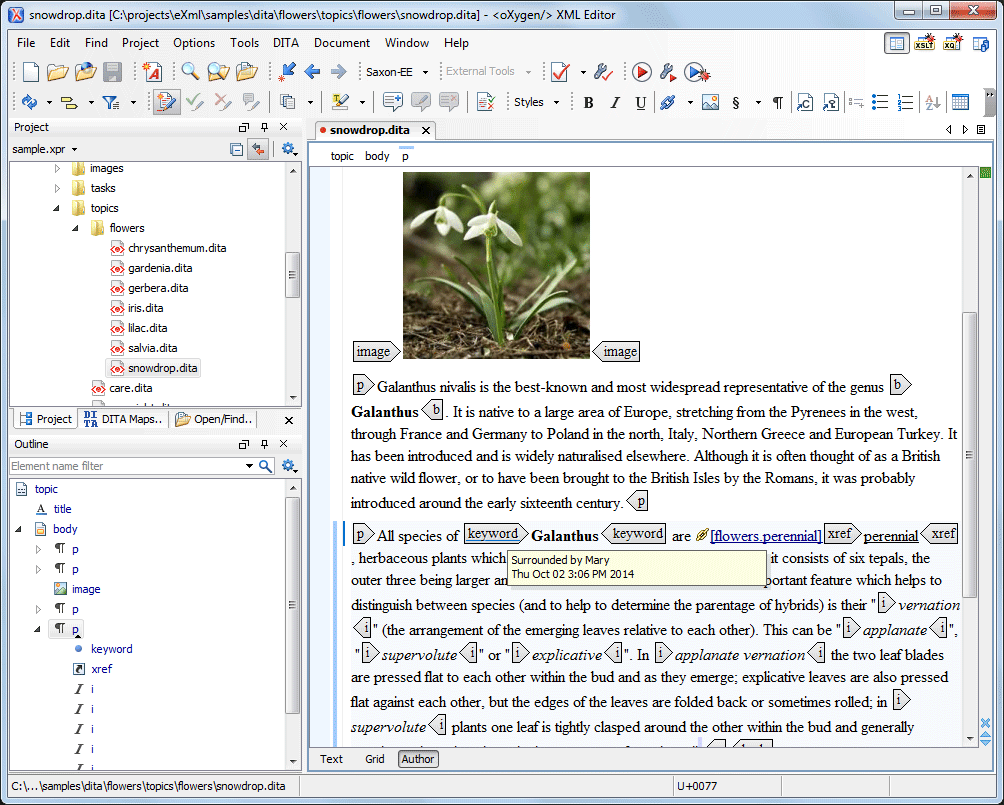

Track Surround Changes

If Change Tracking support is enabled, all content surround operations are marked as changes.

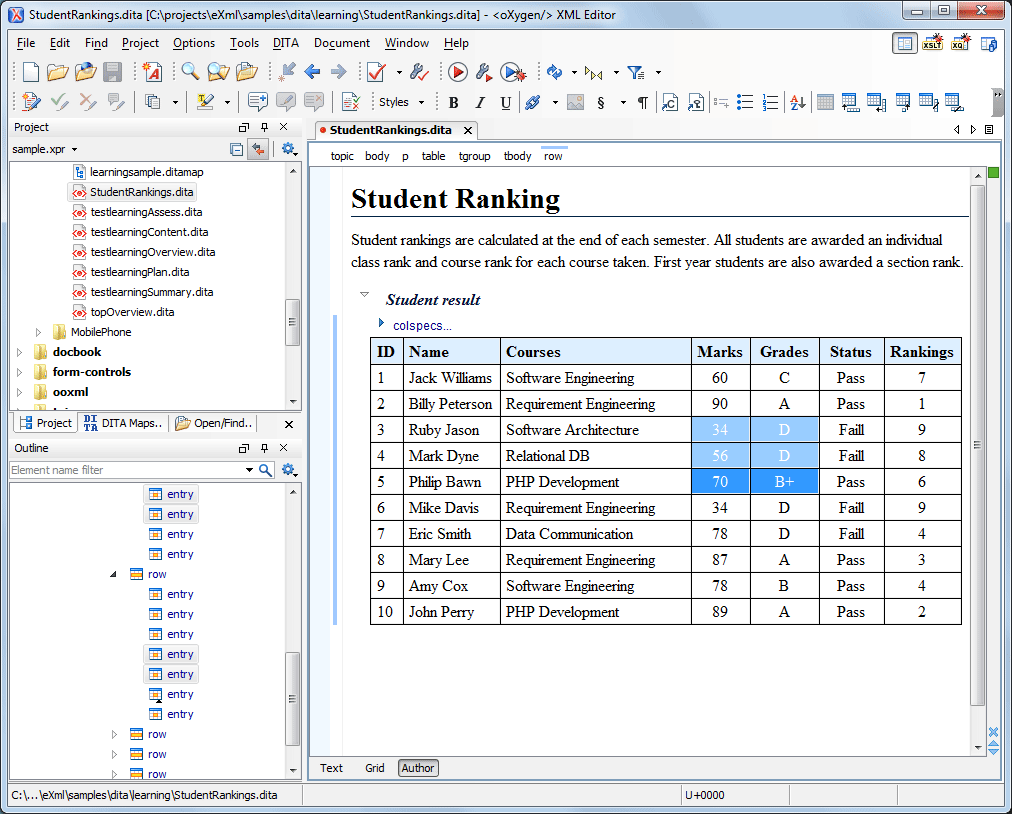

Rectangular Selection in Tables

You can select rectangular blocks of cells in tables. You can then use this selection to edit properties or delete the content of the selected cells.

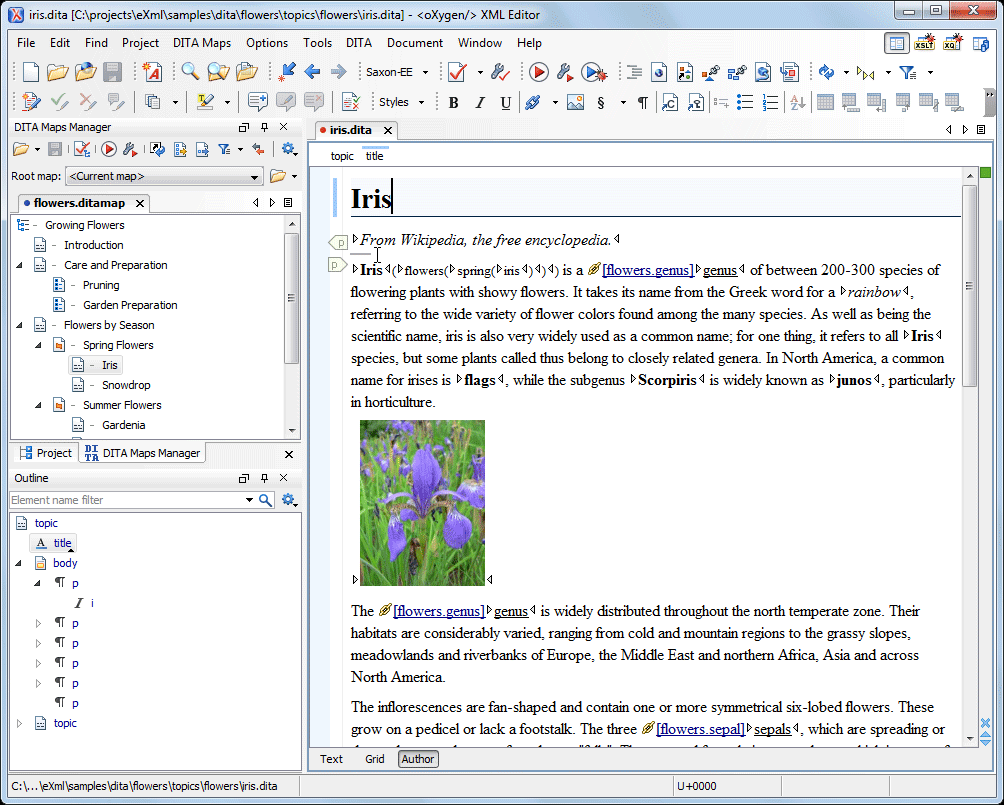

Show Location Tooltip on Mouse Move

When editing XML documents in a visual environment you might find it difficult to position the cursor between certain tags that do not have a visual representation. To help you, Oxygen displays a semi-transparent preview of the Position Information Tooltip when hovering between two elements.

'Media' Rules for Windows High Contrast Themes

Two application-specific 'media' rules allow you to add specific styles for white-background and black-background high contrast Windows themes when editing in the Author visual editing mode.

Paste as Text Action

The Paste as Text action pastes the clipboard content, ignoring any structure or styling markup.

Insert Symbols in a Form Control

You can use the Characters Map dialog box to insert symbols in embedded form controls.

The Width Property is Available for a Number of Form Controls

The width property is now supported by the text field, text area, URL chooser, date picker, combo box and pop-up form controls. You can specify the width of any of these form controls by setting them to absolute, relative or percentage values to achieve a better looking final layout.

Enable Button Form Controls in Read-Only Context

You can use the enableReadOnlyContext to enable buttons or groups of buttons in read-only contexts. This allows you, for example, to execute a utility action that does not modify the context.

WebHelp

WebHelp Pages Use HTML5 Elements

WebHelp pages generated by the Oxygen transformations from DITA XML and DocBook XML content start with an HTML5 DOCTYPE declaration. A video from a source XML document is translated to the HTML5 video element.

DITA Support

Option to Batch Validate Referenced DITA Resources

An option in the Validate and Check for Completeness action allows you to batch validate DITA files referenced in the DITA map. This means that DITA files can be validated using schemas from the associated validation scenarios.

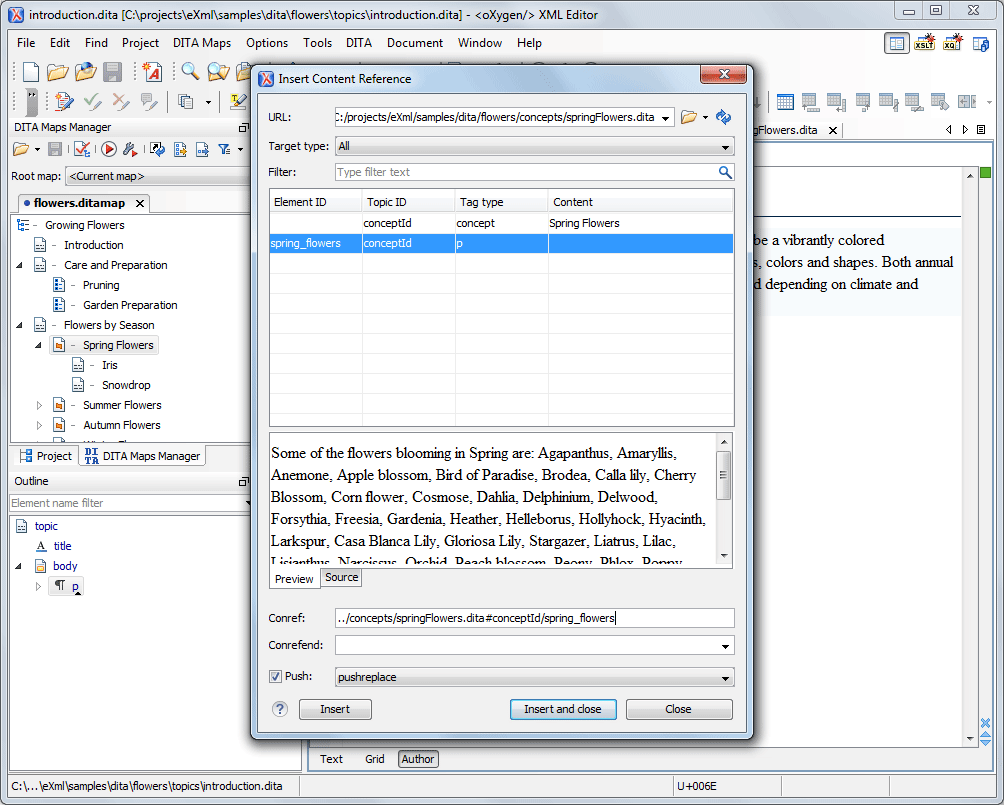

Easier Way to Perform a Conref Push

The Insert Content Reference dialog box provides an easier way to mark or replace referenced content.

Reorganized DITA Maps Manager Contextual Menu

The DITA Maps Manager view offers a simplified and more ergonomic contextual menu.

Navref Element Support

The DITA Maps Manager view provides a dedicated action for inserting navref elements, plus a specific icon for rendering them in the DITA Map tree.

Action to Insert New Topic in a DITA Map Edited in Author Mode

When editing DITA Maps in Author mode, an action is available to create and insert a new topic at the cursor position.

Eclipse Plugin

Support for Eclipse 4.4

The Oxygen XML Eclipse plugin now officially supports Eclipse 4.4.

Deprecated Support for Eclipse 3.4 and 3.5

Note that this is the last version of Oxygen which supports Eclipse 3.4 and 3.5. Support for these older versions will be removed starting with the next version of Oxygen.

Other

Editor Variables to Find the Framework's Location

Two additional editor variables (framework(fr_name) and frameworkDir(fr_name)) allow you to find the location of a particular framework, both as URL and file path.

Single Sign-on Authentication

Oxygen supports single sign-on authentication based on the Kerberos protocol by enabling a custom system property.

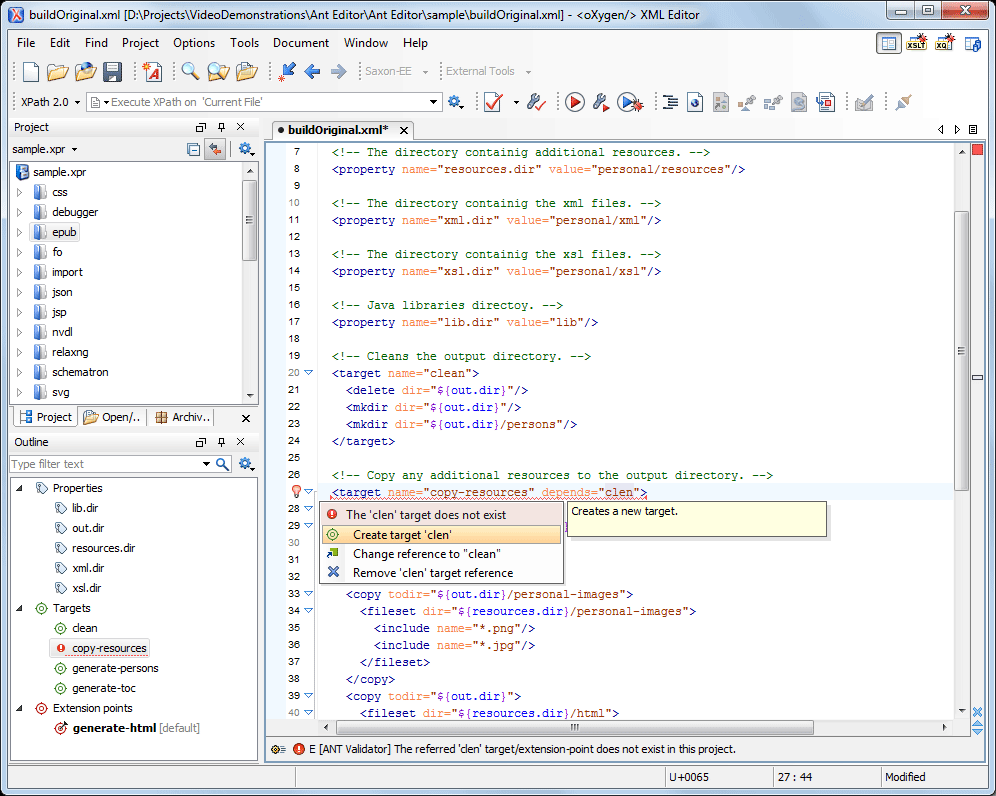

Ant Quick Fixes

Added Quick Fix support for missing target references in Ant build documents.

Configurable Stop Words List

To improve search performance, the indexing process skips some common short English words (so-called stop words). However, you can configure this list of words to adapt it to your authoring team's needs.

Improved Search Results

Keywords found in DITA and DocBook titles are promoted higher in the search result list, thus increasing the chance of finding a relevant topic much faster.

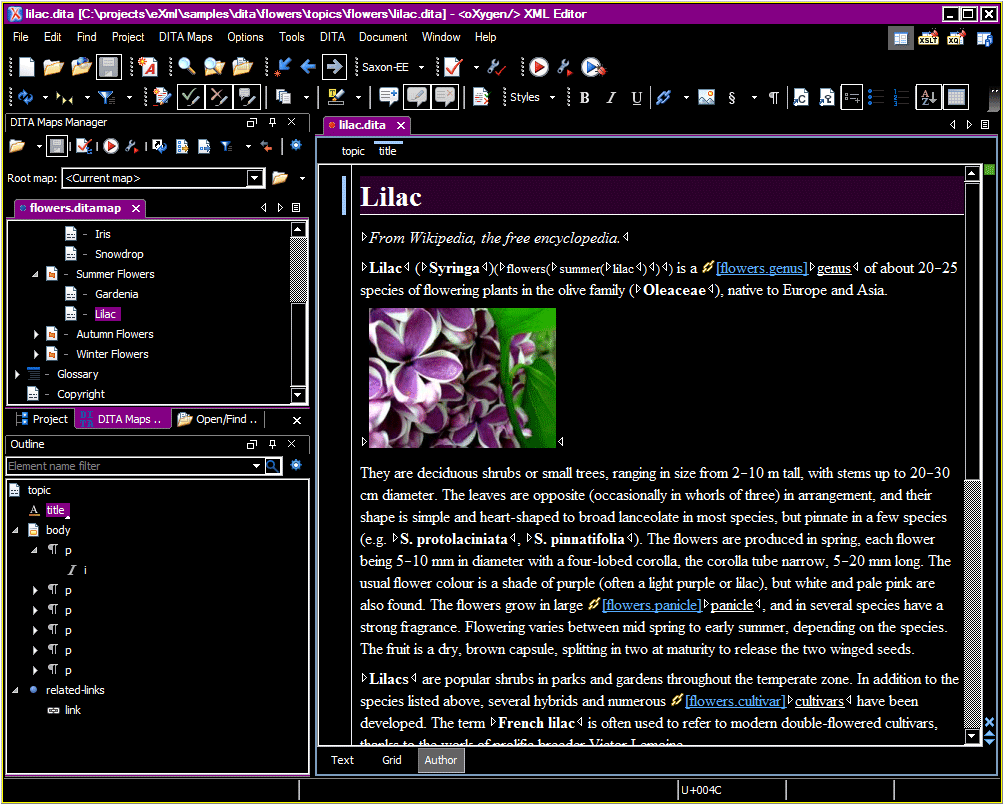

High Contrast Themes Inheritance

On Windows operating systems, Oxygen inherits colors set in the high contrast themes.

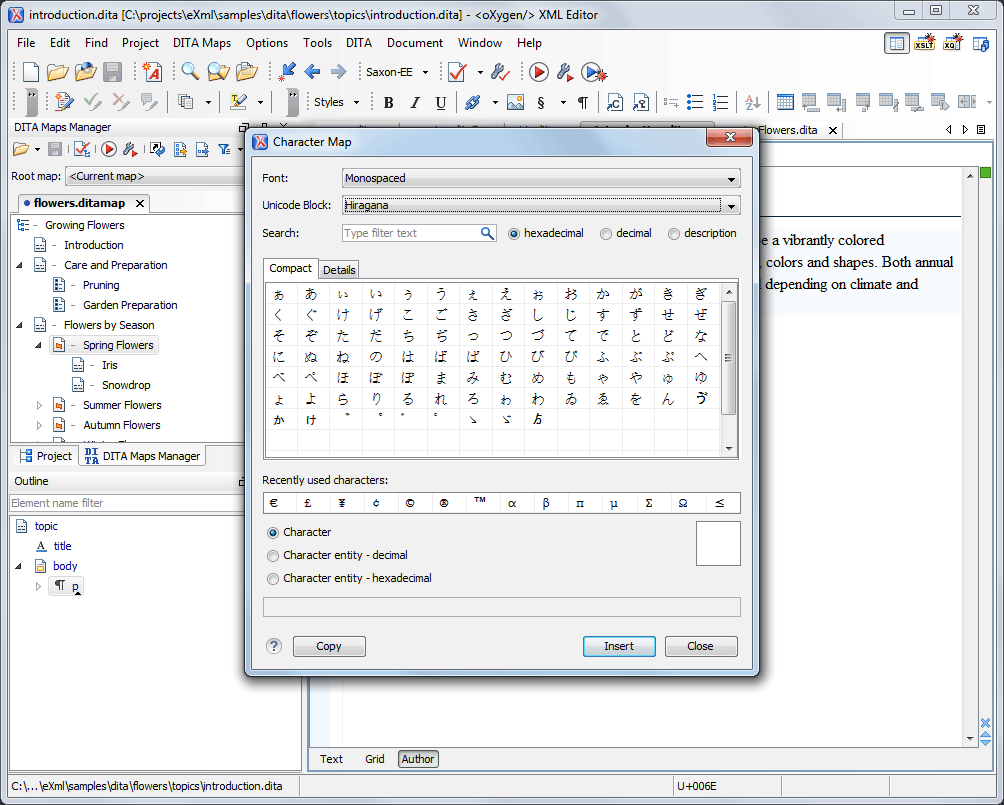

Allow Filtering by Unicode Blocks

The Character Map dialog box allows you to view all characters available in a certain Unicode block range for a specific font.

Improved Modularization Support for ISO Schematron Schema

Improved the inclusion mechanism when working with ISO Schematron modules by adding support for iso:extends element. This element allows you to include all the components defined in a Schematron schema (such as patterns or phases) as opposed to the standard inclusion mechanism defined in ISO Schematron (iso:include element) that allows you to include the root element of the included Schematron module.

Add-ons Packager Plugin

The Add-ons Packager plugin allows you to package frameworks or plugins as add-ons.

SVN Client

Support for Subversion 1.8

Oxygen now supports Subversion 1.8 working copies and also SVN 1.8 FSFS-backed repositories accessed through the file:// protocol. Starting with this version, SVN 1.6 and older working copies are no longer supported, unless using an older version of Syncro SVN Client.

Improved Merge Support

The Merge support has been improved with ease-of-use in mind, bringing a more user-friendly and less error-prone interface. Also, it supports additional Merge options and it is more compliant with the svn merge command.

Improvements and Bug Fixes

Oxygen includes various improvements and bug fixes regarding external items, memory management, operations performance, and the user interface.

Component Updates

Saxon 9.5.1.7

The Saxon XSLT, XQuery and XML Schema processor from Saxonica has been updated to version 9.5.1.7.

DITA OT 1.8.5

The DITA Open Toolkit has been updated to version 1.8.5.

Updated TEI Schemas and Stylesheets

The TEI schema has been updated to version 2.7.0 and TEI XSL stylesheets to version 7.24.0.

Calabash 1.0.20

The bundled Calabash XProc engine has been updated to version 1.0.20.

HTTP Client 4.3.3

The Apache HTTP Client libraries have been updated to version 4.3.3.

API

Plugins Can Generically Reference Multiple Libraries Located in the Same Folder

The librariesFolder element in the plugin.xml can be used to point to multiple libraries located in the specified folder.

Custom Editor Variables Expander

The API UtilAccess.addCustomEditorVariablesResolver method allows you to add a custom editor variable resolver to the application.

Rename Element Operation

The RenameElementOperation allows you to build a custom framework-level action to handle element renaming.

Move Element Operation

The MoveElementOperation allows you to build a custom framework-level action to handle moving elements from one context to another.

Operation to Set or Delete Multiple Pseudo Class Values of Nodes Identified by XPath Expressions

The ChangePseudoClassesOperation operation allows you to set multiple pseudo class values to nodes identified by an XPath expression and to remove multiple values from nodes identified by an XPath expression.

Method for Creating an Author Toolbar

The WSAuthorComponentEditorPage.createAuthorToolbar() method returns an Author Toolbar containing the Refresh, Change Element Tags, and Profiling Sets actions.

Method to Insert an XML Fragment in Text Mode

The TextDocumentController.insertXMLFragment() API method allows you to insert an XML fragment in Text editing mode. The insert position is specified by an XPath expression.

Interface for Managing a Color Theme

The ColorThemeUtilities interface provides more information about the color theme currently used by Oxygen. It also provides an image color inverter utility class.

Method to Reject the Switch Between Editing Modes

The WSEditorPageChangedListener.pageAboutToBeChangedVeto callback method allows you to exercise the right to veto against switching between editing modes (for example, between Author and Text mode) before the actual switch takes place.

Custom Form Control API for Callbacks from the Character Map Dialog Box

The API InplaceEditor.insertContent() method allows a custom form control to receive input from the Characters Map dialog box.

Dynamic Width for Form Controls

The AuthorInplaceContext.getPropertyEvaluator() method allows you to evaluate the width property of a form control.

Method to Get the XPath Expression of a Node Identified by its Offset

The AuthorDocumentController.getXPathExpression(int offset) method allows you to get the XPath expression of the node identified by the given offset.

Method for Delaying the Process of Setting Values to Form Controls

If you add form controls from a styles filter you can use the ro.sync.ecss.extensions.api.editor.LazyValue interface to delay the evaluation of its possible values until they are actually needed.

Method to Refresh the Content of a Form Control

The InplaceEditor.refresh() method allows you to synchronize the content of a form control when the document is modified from a source other than the form control.
