Can't get custom CSS to work with CODEBLOCKs

[rwmm415]

Hi All,
We have been able to successfully customize the style of tags in PDF(Chemistry) output -- tags such as P, PH, and table ENTRY and ROW using the OUTPUTCLASS attribute and specifying our own CSS. However, I've had little or no success customizing CODEBLOCKs via this same mechanism. CSS such as that shown below doesn't take effect. Initially, I tried the class specifiers "topic/codeblock" and "pre/codeblock" but found they have no effect at all. The specifier shown has a limited effect -- green text is displayed but the rest of the settings are ignored. Any thoughts on how to make this work?

Code: Select all

*[class ~= "pr-d/codeblock"][outputclass="greenblock"] {
    color: #40F040;
    font-weight: 500;
    background-color: #FCFCFC;
    border: 1px solid lightgray;
}

Thanks, Bob M.

[julien_lacour]

Hello,

I think the problem is the following: you have a language selected for your codeblock, for example Python, so the element will have the outputclass="language-python" attribute set.
With your custom outputclass, the final attribute value will be outputclass="language-python greenblock".
In your rule you are using the equal symbol on the attribute selector outputclass="greenblock" which means "outputclass exactly equal to greenblock".
If you want have both language and greenblock in your codeblocks you can use ~= in your selector like this:

Code: Select all

*[class ~= "pr-d/codeblock"][outputclass ~= "greenblock"] {
  color: #40F040;
  font-weight: 500;
  background-color: #FCFCFC;
  border: 1px solid lightgray;
}

This means "outputclass with a whitespace-separated list of values, one of which is exactly greenblock".
For more information you can check MDN Attribute selectors topic.

Best regards,
Julien

[rwmm415]

Unfortunately, I don't think this is the cause of the problem. The references in the codeblock tags are simply 'outputclass="greenblock"'. And, there's no program code present in this documentation project, Python or otherwise. I did try your suggestion just to see if it had any effect, but alas it did not.

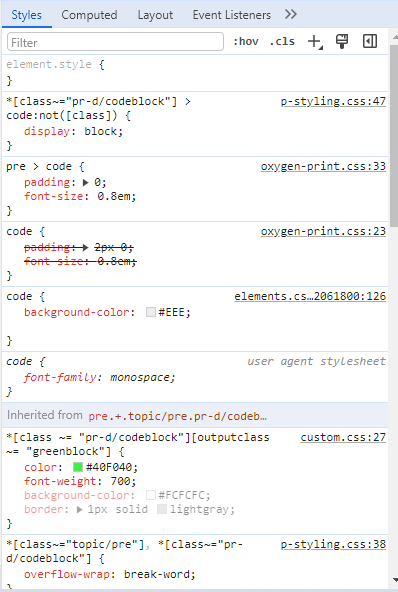

The problem is that something is inserting itself in the cascade downstream from my CSS and overriding my customization. I can see this by viewing the "merged html" that Chemistry produces and using the CSS inspector on one of the code blocks. After my CSS is applied, a number of CSS files from the framework come in and override some of my settings, notably line 126 in elements.css and line 47 in p-styling.css. You can see my custom.css at the bottom of the screencap.



Could someone shed light on why this happens or how to prevent it?
