How to get two booktitlealt on two different lines in PDF output

[Sangeeta]

Hi,

I am working on a plugin with customized PDf styles. We have two booktitlealt in our DITAMap. In the PDF output, I want these booktitlealt on two different rows. However, in my output they are in one line without any space between them. Can you please help?
_____________________________________________________________________________________________________________________________
front-matter.xsl

Code: Select all

<xsl:template name="createFrontMatter_1.0">

        <fo:page-sequence master-reference="front-matter" xsl:use-attribute-sets="__force__page__count">

            <xsl:call-template name="insertFrontMatterStaticContents"/>

            <fo:flow flow-name="xsl-region-body">

                <fo:block xsl:use-attribute-sets="__frontmatter">

			    <fo:external-graphic src="url(Customization/OpenTopic/common/artwork/ptc_header.png)" width="100%" height="100%" content-width="scale-to-fit" content-height="scale-to-fit" scaling="uniform" />

                </fo:block>

				    <!-- set the title -->

                    <fo:block xsl:use-attribute-sets="__frontmatter__title">

                        <xsl:choose>

                            <xsl:when test="$map/*[contains(@class,' topic/title ')][1]">

                                <xsl:apply-templates select="$map/*[contains(@class,' topic/title ')][1]"/>

                            </xsl:when>

                            <xsl:when test="$map//*[contains(@class,' bookmap/mainbooktitle ')][1]">

                                <xsl:apply-templates select="$map//*[contains(@class,' bookmap/mainbooktitle ')][1]"/>

                            </xsl:when>

                            <xsl:when test="//*[contains(@class, ' map/map ')]/@title">

                                <xsl:value-of select="//*[contains(@class, ' map/map ')]/@title"/>

                            </xsl:when>

                            <xsl:otherwise>

                                <xsl:value-of select="/descendant::*[contains(@class, ' topic/topic ')][1]/*[contains(@class, ' topic/title ')]"/>

                            </xsl:otherwise>

                        </xsl:choose>



                    <!-- set the subtitle -->

                   				   <fo:block xsl:use-attribute-sets="__frontmatter__subtitle">

					<xsl:apply-templates select="$map//*[contains(@class,' bookmap/booktitlealt ')]"/>



					</fo:block>



					</fo:block>

	 </fo:flow>

        </fo:page-sequence>

        <xsl:if test="not($retain-bookmap-order)">

          <xsl:call-template name="createNotices"/>

        </xsl:if>

    </xsl:template>


___________________________________________________________________________________________________________________________
front-matter-aatr.xsl

Code: Select all

<xsl:attribute-set name="__frontmatter__title" use-attribute-sets="common.title">

        <xsl:attribute name="space-before">3in</xsl:attribute>

        <xsl:attribute name="space-before.conditionality">retain</xsl:attribute>

        <xsl:attribute name="font-size">24pt</xsl:attribute>

        <xsl:attribute name="font-weight">bold</xsl:attribute>

        <xsl:attribute name="line-height">140%</xsl:attribute>

		<xsl:attribute name="text-align">right</xsl:attribute>

		<xsl:attribute name="margin-left">2in</xsl:attribute>

   <xsl:attribute name="color">#3D4647</xsl:attribute>

    </xsl:attribute-set>



<xsl:attribute-set name="__frontmatter__subtitle" use-attribute-sets="common.title">

	<xsl:attribute name="font-size">14pt</xsl:attribute>

        <xsl:attribute name="font-weight">bold</xsl:attribute>

        <xsl:attribute name="line-height">140%</xsl:attribute>

		<xsl:attribute name="text-align">right</xsl:attribute>

		<xsl:attribute name="color">#3D4647</xsl:attribute>

    </xsl:attribute-set>

[cosmin_andrei]

Hi Sangeeta,

I could not reproduce the issue you reported.
A DITA code such as:

Code: Select all

...

<booktitle>

    <mainbooktitle>Main Book Title</mainbooktitle>

    <booktitlealt>Alt Title 1</booktitlealt>

    <booktitlealt>Alt Title 2</booktitlealt>

</booktitle>

...

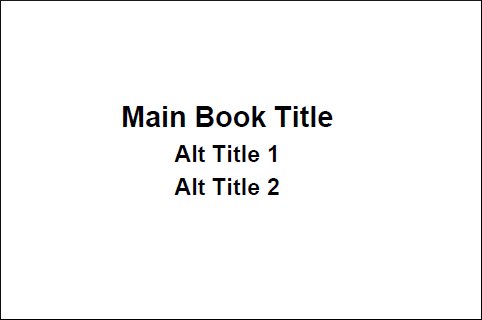

transformed with the default DITA Map PDF transformation scenario produced a PDF output that looks like this:
files/AltTitle.jpg

This means that most likely the problem originates somewhere in your customization.

[Sangeeta]

Hi Radu,

Can you please point me to the probable tags/elements where I should check in my customization? I have no clue what could have gone wrong
The code i sent you is only piece i customized for titles.

Best regards,
Sangeeta

[Sangeeta]

My bad Cosmin , got the wrong name

[Radu]

Hi,

Maybe if the DITA Map contains multiple booktitlealt's your XSLT customization instead of doing this:

Code: Select all

        <fo:block xsl:use-attribute-sets="__frontmatter__subtitle">

            <xsl:apply-templates select="$map//*[contains(@class,' bookmap/booktitlealt ')]"/>

        </fo:block>

you could add a fo:block for each booktitlealt:

Code: Select all

        <xsl:for-each select="$map//*[contains(@class,' bookmap/booktitlealt ')]">

            <fo:block xsl:use-attribute-sets="__frontmatter__subtitle">

                <xsl:apply-templates select="."/>

            </fo:block>

        </xsl:for-each>

although in the base PDF plugin "front-matter.xsl" there should already be a template which matches the booktitlealt and creates a fo:block:

Code: Select all

    <xsl:template match="*[contains(@class, ' bookmap/booktitlealt ')]" priority="2">

        <fo:block xsl:use-attribute-sets="__frontmatter__subtitle">

            <xsl:apply-templates/>

        </fo:block>

    </xsl:template>

Regards,
Radu

[Sangeeta]

Hi Radu,

Thank you so so much! Worked like magic ...
SO in the template with "select", we are reapplying the subtitle style to booktitlealt elements?

Best regards,
Sangeeta
