Images within steps

Images that support a procedural step can be included within a stepxmp or an info element.

Images can be used to support documentation of task steps, as image elements within the cmd element, or as image elements within the stepxmp or info elements.

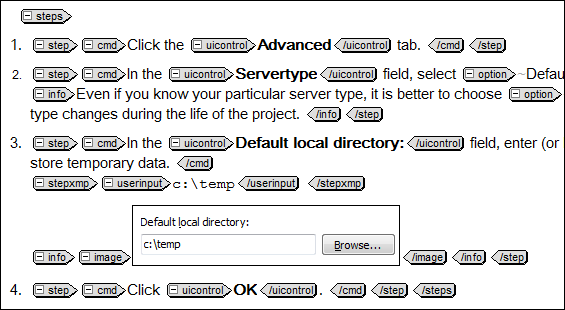

Screen capture of task topic in DITA editor showing semantic elements — Figure 1. Task topic steps structure showing image within a step

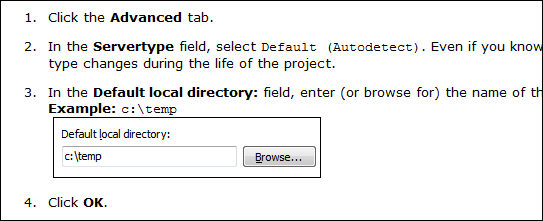

Screen capture showing the rendered result of steps mark-up — Figure 2. Typical rendered result of steps mark-up
