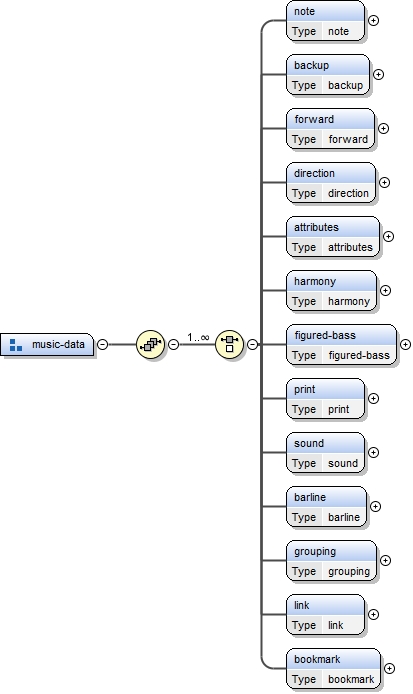

Schema documentation for component music-data

Showing:

Attributes

Diagrams

Instances

Properties

Source

Used by

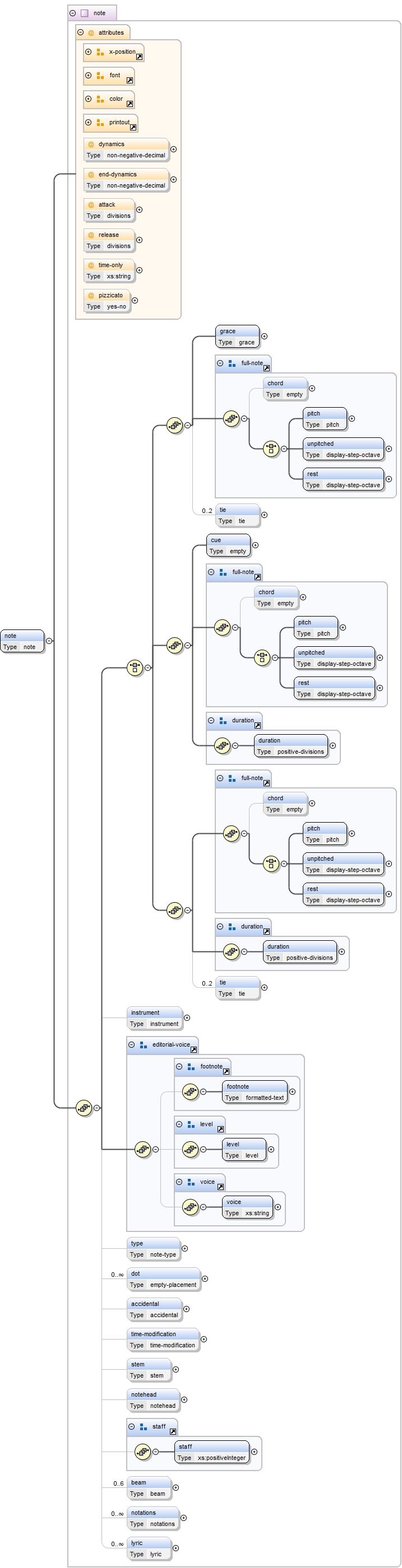

Element music-data/note

Namespace

No namespace

Diagram

Type

note

Properties

content:

complex

Model

((grace , chord{0,1} , (pitch | unpitched | rest) , tie{0,2}) | (cue , chord{0,1} , (pitch | unpitched | rest) , duration) | (chord{0,1} , (pitch | unpitched | rest) , duration , tie{0,2})) , instrument{0,1} , footnote , level , voice , type{0,1} , dot* , accidental{0,1} , time-modification{0,1} , stem{0,1} , notehead{0,1} , staff , beam{0,6} , notations* , lyric*

Children

accidental, beam, chord, cue, dot, duration, footnote, grace, instrument, level, lyric, notations, notehead, pitch, rest, staff, stem, tie, time-modification, type, unpitched, voice

Instance

<note attack="" color="" default-x="" default-y="" dynamics="" end-dynamics="" font-family="" font-size="" font-style="" font-weight="" pizzicato="" print-dot="" print-lyric="" print-object="" print-spacing="" relative-x="" relative-y="" release="" time-only="">
  <grace make-time="" slash="" steal-time-following="" steal-time-previous="">{1,1}</grace>
  <tie type="">{0,2}</tie>
  <instrument id="">{0,1}</instrument>
  <type size="">{0,1}</type>
  <dot color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" placement="" relative-x="" relative-y="">{0,unbounded}</dot>
  <accidental bracket="" cautionary="" color="" default-x="" default-y="" editorial="" font-family="" font-size="" font-style="" font-weight="" parentheses="" relative-x="" relative-y="" size="">{0,1}</accidental>
  <time-modification>{0,1}</time-modification>
  <stem color="" default-x="" default-y="" relative-x="" relative-y="">{0,1}</stem>
  <notehead color="" filled="" font-family="" font-size="" font-style="" font-weight="" parentheses="">{0,1}</notehead>
  <beam color="" fan="" number="1" repeater="">{0,6}</beam>
  <notations>{0,unbounded}</notations>
  <lyric color="" default-x="" default-y="" justify="" name="" number="" placement="" relative-x="" relative-y="">{0,unbounded}</lyric>
</note>

Attributes

QName	Type	Use
attack	divisions	optional
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
dynamics	non-negative-decimal	optional
end-dynamics	non-negative-decimal	optional
font-family	comma-separated-text	optional
font-size	font-size	optional
font-style	font-style	optional
font-weight	font-weight	optional
pizzicato	yes-no	optional
print-dot	yes-no	optional
print-lyric	yes-no	optional
print-object	yes-no	optional
print-spacing	yes-no	optional
relative-x	tenths	optional
relative-y	tenths	optional
release	divisions	optional
time-only	xs:string	optional

Source

<xs:element name="note" type="note"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

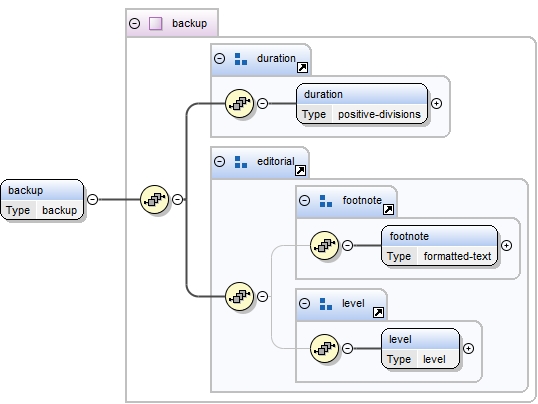

Element music-data/backup

Namespace

No namespace

Diagram

Type

backup

Properties

content:

complex

Model

duration , footnote , level

Children

duration, footnote, level

Instance

<backup>
  <duration>{1,1}</duration>
</backup>

Source

<xs:element name="backup" type="backup"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

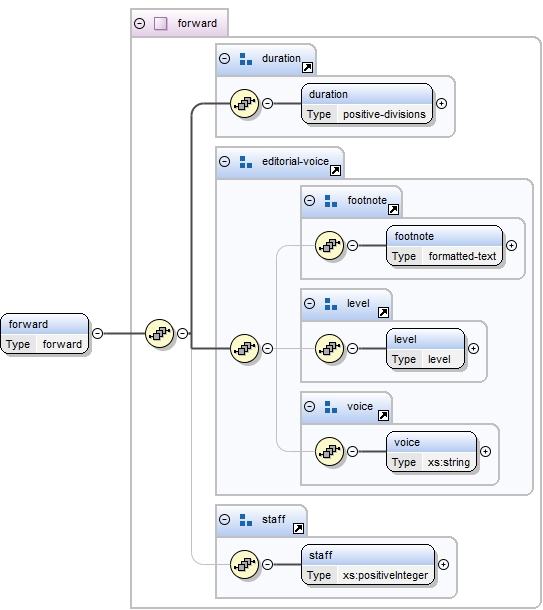

Element music-data/forward

Namespace

No namespace

Diagram

Type

forward

Properties

content:

complex

Model

duration , footnote , level , voice , staff

Children

duration, footnote, level, staff, voice

Instance

<forward>
  <duration>{1,1}</duration>
</forward>

Source

<xs:element name="forward" type="forward"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

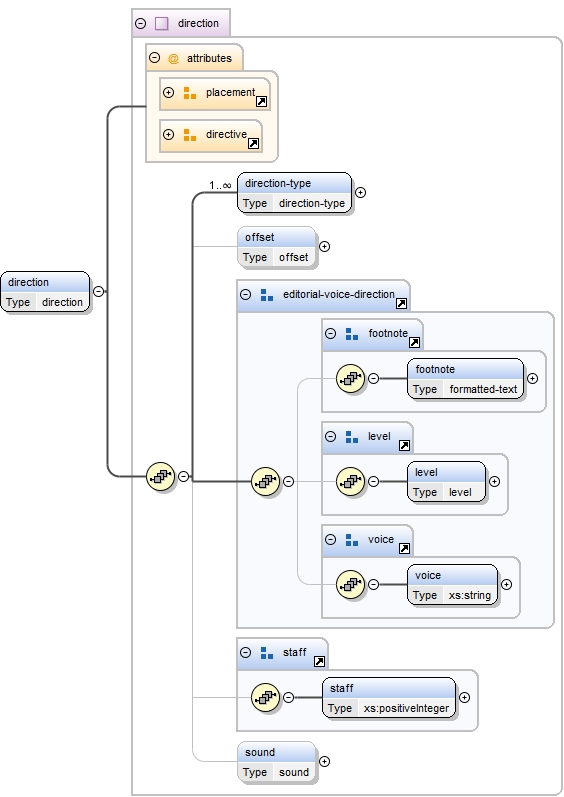

Element music-data/direction

Namespace

No namespace

Diagram

Type

direction

Properties

content:

complex

Model

direction-type+ , offset{0,1} , footnote , level , voice , staff , sound{0,1}

Children

direction-type, footnote, level, offset, sound, staff, voice

Instance

<direction directive="" placement="">
  <direction-type>{1,unbounded}</direction-type>
  <offset sound="">{0,1}</offset>
  <sound coda="" dacapo="" dalsegno="" damper-pedal="" divisions="" dynamics="" elevation="" fine="" forward-repeat="" pan="" pizzicato="" segno="" soft-pedal="" sostenuto-pedal="" tempo="" time-only="" tocoda="">{0,1}</sound>
</direction>

Attributes

QName	Type	Fixed	Default	Use	Annotation
directive	yes-no			optional
placement	above-below			optional

Source

<xs:element name="direction" type="direction"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

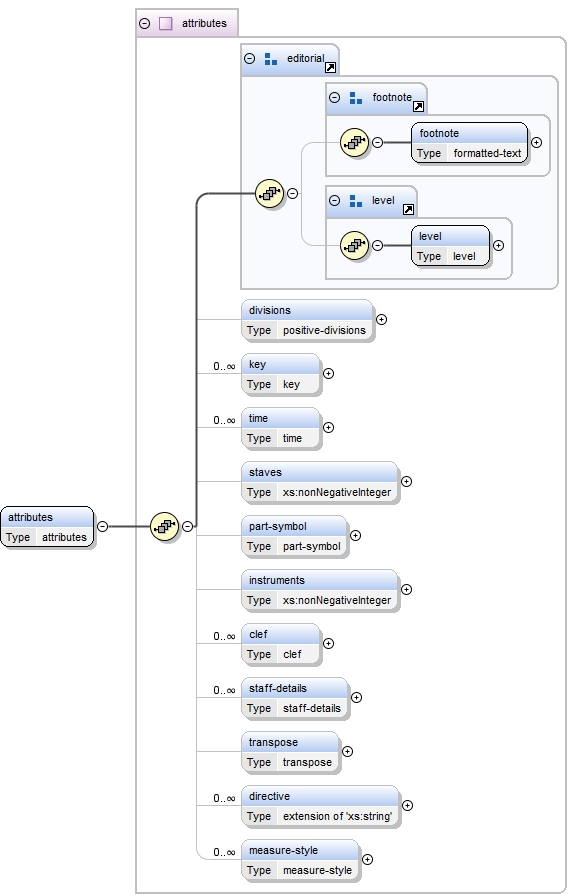

Element music-data/attributes

Namespace

No namespace

Diagram

Type

attributes

Properties

content:

complex

Model

footnote , level , divisions{0,1} , key* , time* , staves{0,1} , part-symbol{0,1} , instruments{0,1} , clef* , staff-details* , transpose{0,1} , directive* , measure-style*

Children

clef, directive, divisions, footnote, instruments, key, level, measure-style, part-symbol, staff-details, staves, time, transpose

Instance

<attributes>
  <footnote color="" default-x="" default-y="" dir="" enclosure="" font-family="" font-size="" font-style="" font-weight="" halign="" justify="" lang="" letter-spacing="" line-height="" line-through="" overline="" relative-x="" relative-y="" rotation="" underline="" valign="">{1,1}</footnote>
  <divisions>{0,1}</divisions>
  <key color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" number="" print-object="" relative-x="" relative-y="">{0,unbounded}</key>
  <time color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" number="" print-object="" relative-x="" relative-y="" symbol="">{0,unbounded}</time>
  <staves>{0,1}</staves>
  <part-symbol bottom-staff="" color="" default-x="" default-y="" relative-x="" relative-y="" top-staff="">{0,1}</part-symbol>
  <instruments>{0,1}</instruments>
  <clef additional="" color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" number="" print-object="" relative-x="" relative-y="" size="">{0,unbounded}</clef>
  <staff-details number="" print-object="" print-spacing="" show-frets="">{0,unbounded}</staff-details>
  <transpose>{0,1}</transpose>
  <directive color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" lang="" relative-x="" relative-y="">{0,unbounded}</directive>
  <measure-style color="" font-family="" font-size="" font-style="" font-weight="" number="">{0,unbounded}</measure-style>
</attributes>

Source

<xs:element name="attributes" type="attributes"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

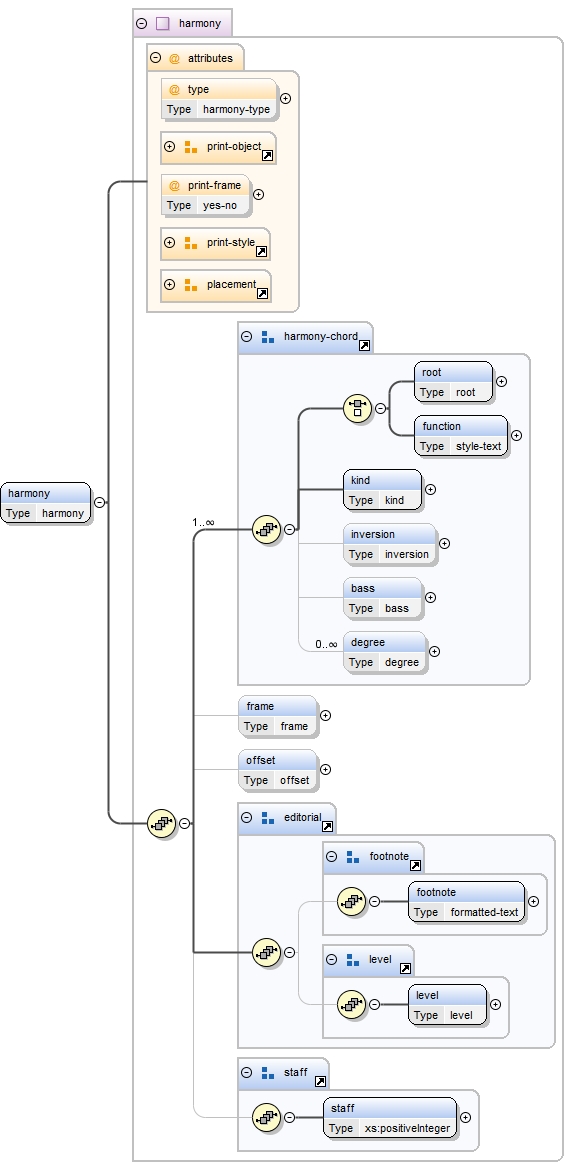

Element music-data/harmony

Namespace

No namespace

Diagram

Type

harmony

Properties

content:

complex

Model

(root | function) , kind , inversion{0,1} , bass{0,1} , degree* , frame{0,1} , offset{0,1} , footnote , level , staff

Children

bass, degree, footnote, frame, function, inversion, kind, level, offset, root, staff

Instance

<harmony color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" placement="" print-frame="" print-object="" relative-x="" relative-y="" type="">
  <root>{1,1}</root>
  <function color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="">{1,1}</function>
  <kind bracket-degrees="" color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" halign="" parentheses-degrees="" relative-x="" relative-y="" stack-degrees="" text="" use-symbols="" valign="">{1,1}</kind>
  <inversion color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="">{0,1}</inversion>
  <bass>{0,1}</bass>
  <degree print-object="">{0,unbounded}</degree>
  <frame color="" default-x="" default-y="" halign="" height="" relative-x="" relative-y="" valign="" width="">{0,1}</frame>
  <offset sound="">{0,1}</offset>
</harmony>

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
font-family	comma-separated-text	optional
font-size	font-size	optional
font-style	font-style	optional
font-weight	font-weight	optional
placement	above-below	optional
print-frame	yes-no	optional
print-object	yes-no	optional
relative-x	tenths	optional
relative-y	tenths	optional
type	harmony-type	optional

Source

<xs:element name="harmony" type="harmony"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Element music-data/figured-bass

Namespace

No namespace

Diagram

Type

figured-bass

Properties

content:

complex

Model

figure+ , duration , footnote , level

Children

duration, figure, footnote, level

Instance

<figured-bass color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" parentheses="" print-dot="" print-lyric="" print-object="" print-spacing="" relative-x="" relative-y="">
  <figure>{1,unbounded}</figure>
</figured-bass>

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
font-family	comma-separated-text	optional
font-size	font-size	optional
font-style	font-style	optional
font-weight	font-weight	optional
parentheses	yes-no	optional
print-dot	yes-no	optional
print-lyric	yes-no	optional
print-object	yes-no	optional
print-spacing	yes-no	optional
relative-x	tenths	optional
relative-y	tenths	optional

Source

<xs:element name="figured-bass" type="figured-bass"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

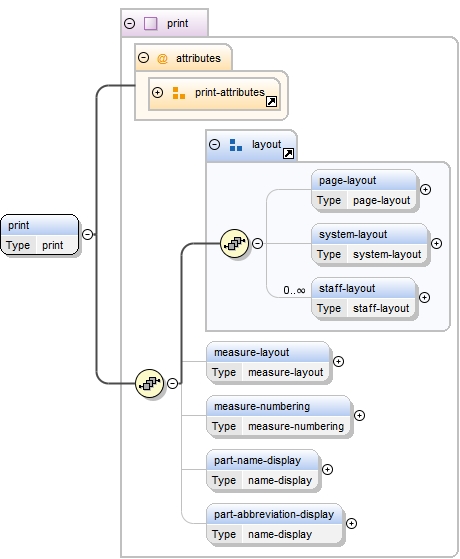

Element music-data/print

Namespace

No namespace

Diagram

Type

print

Properties

content:

complex

Model

page-layout{0,1} , system-layout{0,1} , staff-layout* , measure-layout{0,1} , measure-numbering{0,1} , part-name-display{0,1} , part-abbreviation-display{0,1}

Children

measure-layout, measure-numbering, page-layout, part-abbreviation-display, part-name-display, staff-layout, system-layout

Instance

<print blank-page="" new-page="" new-system="" page-number="" staff-spacing="">
  <page-layout>{0,1}</page-layout>
  <system-layout>{0,1}</system-layout>
  <staff-layout number="">{0,unbounded}</staff-layout>
  <measure-layout>{0,1}</measure-layout>
  <measure-numbering color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="">{0,1}</measure-numbering>
  <part-name-display print-object="">{0,1}</part-name-display>
  <part-abbreviation-display print-object="">{0,1}</part-abbreviation-display>
</print>

Attributes

QName	Type	Use
blank-page	xs:positiveInteger	optional
new-page	yes-no	optional
new-system	yes-no	optional
page-number	xs:token	optional
staff-spacing	tenths	optional

Source

<xs:element name="print" type="print"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

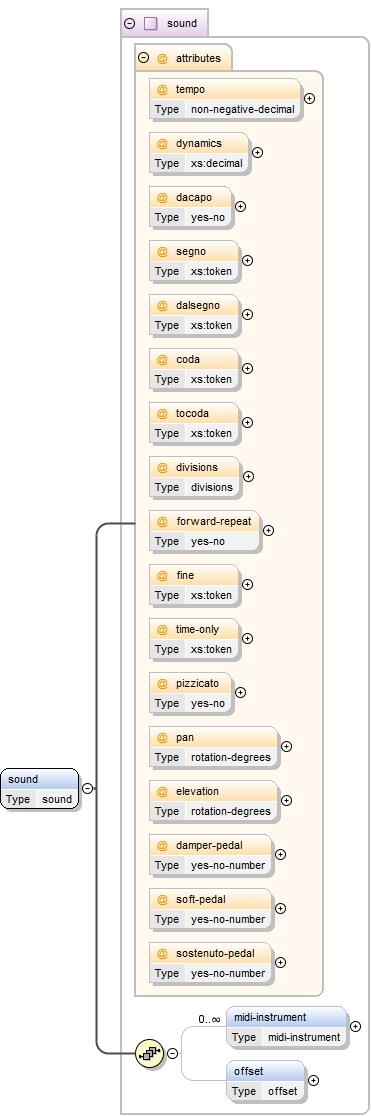

Element music-data/sound

Namespace

No namespace

Diagram

Type

sound

Properties

content:

complex

Model

midi-instrument* , offset{0,1}

Children

midi-instrument, offset

Instance

<sound coda="" dacapo="" dalsegno="" damper-pedal="" divisions="" dynamics="" elevation="" fine="" forward-repeat="" pan="" pizzicato="" segno="" soft-pedal="" sostenuto-pedal="" tempo="" time-only="" tocoda="">
  <midi-instrument id="">{0,unbounded}</midi-instrument>
  <offset sound="">{0,1}</offset>
</sound>

Attributes

QName	Type	Use
coda	xs:token	optional
dacapo	yes-no	optional
dalsegno	xs:token	optional
damper-pedal	yes-no-number	optional
divisions	divisions	optional
dynamics	xs:decimal	optional
elevation	rotation-degrees	optional
fine	xs:token	optional
forward-repeat	yes-no	optional
pan	rotation-degrees	optional
pizzicato	yes-no	optional
segno	xs:token	optional
soft-pedal	yes-no-number	optional
sostenuto-pedal	yes-no-number	optional
tempo	non-negative-decimal	optional
time-only	xs:token	optional
tocoda	xs:token	optional

Source

<xs:element name="sound" type="sound"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

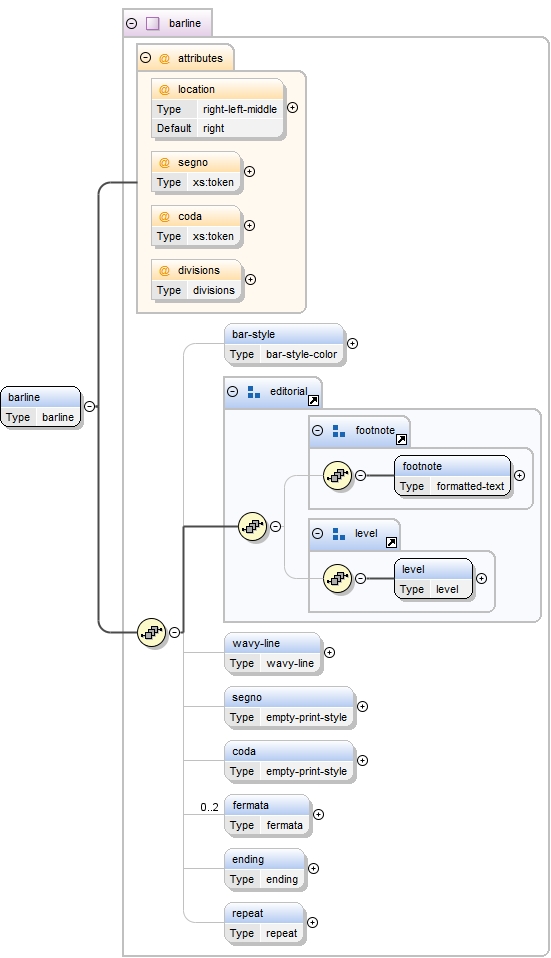

Element music-data/barline

Namespace

No namespace

Diagram

Type

barline

Properties

content:

complex

Model

bar-style{0,1} , footnote , level , wavy-line{0,1} , segno{0,1} , coda{0,1} , fermata{0,2} , ending{0,1} , repeat{0,1}

Children

bar-style, coda, ending, fermata, footnote, level, repeat, segno, wavy-line

Instance

<barline coda="" divisions="" location="right" segno="">
  <bar-style color="">{0,1}</bar-style>
  <wavy-line accelerate="" beats="" color="" default-x="" default-y="" last-beat="" number="" placement="" relative-x="" relative-y="" second-beat="" start-note="" trill-step="" two-note-turn="" type="">{0,1}</wavy-line>
  <segno color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="">{0,1}</segno>
  <coda color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="">{0,1}</coda>
  <fermata color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="" type="">{0,2}</fermata>
  <ending color="" default-x="" default-y="" end-length="" font-family="" font-size="" font-style="" font-weight="" number="" print-object="" relative-x="" relative-y="" text-x="" text-y="" type="">{0,1}</ending>
  <repeat direction="" times="">{0,1}</repeat>
</barline>

Attributes

QName	Type	Default	Use
coda	xs:token		optional
divisions	divisions		optional
location	right-left-middle	right	optional
segno	xs:token		optional

Source

<xs:element name="barline" type="barline"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

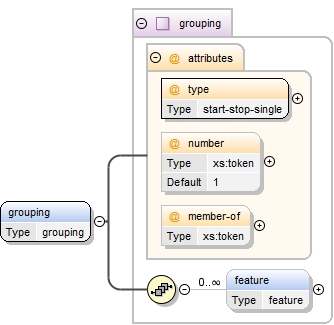

Element music-data/grouping

Namespace

No namespace

Diagram

Type

grouping

Properties

content:

complex

Model

feature*

Children

feature

Instance

<grouping member-of="" number="1" type="">
  <feature type="">{0,unbounded}</feature>
</grouping>

Attributes

QName	Type	Default	Use
member-of	xs:token		optional
number	xs:token	1	optional
type	start-stop-single		required

Source

<xs:element name="grouping" type="grouping"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

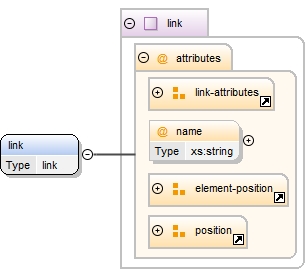

Element music-data/link

Namespace

No namespace

Diagram

Type

link

Properties

content:

complex

Attributes

QName	Type	Fixed	Default	Use
default-x	tenths			optional
default-y	tenths			optional
element	xs:NMTOKEN			optional
name	xs:string			optional
position	xs:NMTOKEN			optional
relative-x	tenths			optional
relative-y	tenths			optional
type		simple		optional
xlink:actuate	restriction of xs:NMTOKEN		onRequest	optional
xlink:href	xs:anyURI			required
xlink:role	xs:token			optional
xlink:show	restriction of xs:NMTOKEN		replace	optional
xlink:title	xs:token			optional

Source

<xs:element name="link" type="link"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Element music-data/bookmark

Namespace

No namespace

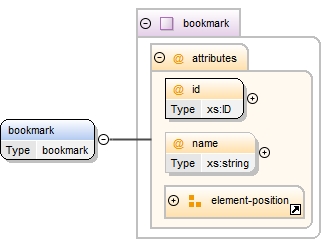

Diagram

Type

bookmark

Properties

content:

complex

Attributes

QName	Type	Use
element	xs:NMTOKEN	optional
id	xs:ID	required
name	xs:string	optional
position	xs:NMTOKEN	optional

Source

<xs:element name="bookmark" type="bookmark"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Element Group music-data

Namespace

No namespace

Diagram

Used by

Elements

score-partwise/part/measure, score-timewise/measure/part

Model

Children

attributes, backup, barline, bookmark, direction, figured-bass, forward, grouping, harmony, link, note, print, sound

Source

<xs:group name="music-data">
  <xs:annotation>
    <xs:documentation>The music-data group contains the basic musical data that is either associated with a part or a measure, depending on whether the partwise or timewise hierarchy is used.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:choice maxOccurs="unbounded">
      <xs:element name="note" type="note"/>
      <xs:element name="backup" type="backup"/>
      <xs:element name="forward" type="forward"/>
      <xs:element name="direction" type="direction"/>
      <xs:element name="attributes" type="attributes"/>
      <xs:element name="harmony" type="harmony"/>
      <xs:element name="figured-bass" type="figured-bass"/>
      <xs:element name="print" type="print"/>
      <xs:element name="sound" type="sound"/>
      <xs:element name="barline" type="barline"/>
      <xs:element name="grouping" type="grouping"/>
      <xs:element name="link" type="link"/>
      <xs:element name="bookmark" type="bookmark"/>
    </xs:choice>
  </xs:sequence>
</xs:group>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
