Complex Type backup
Namespace No namespace
Annotations
The backup and forward elements are required to coordinate multiple voices in one part, including music on multiple staves. The backup type is generally used to move between voices and staves. Thus the backup element does not include voice or staff elements. Duration values should always be positive, and should not cross measure boundaries.

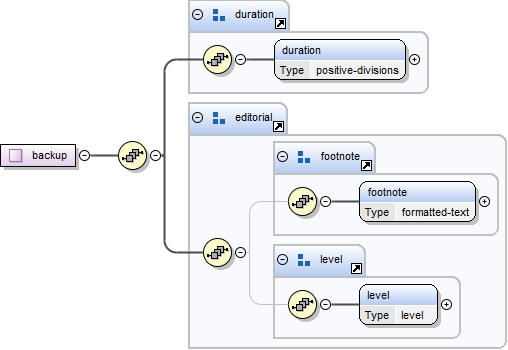

Diagram
Diagram musicxml139.tmp#id659 musicxml139.tmp#id658 musicxml39.tmp#id263 musicxml39.tmp#id262 musicxml44.tmp#id265 musicxml44.tmp#id264 musicxml103.tmp#id261
Used by
Model duration , footnote , level
Children duration, footnote, level
Source
<xs:complexType name="backup">
  <xs:annotation>
    <xs:documentation>The backup and forward elements are required to coordinate multiple voices in one part, including music on multiple staves. The backup type is generally used to move between voices and staves. Thus the backup element does not include voice or staff elements. Duration values should always be positive, and should not cross measure boundaries.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="duration"/>
    <xs:group ref="editorial"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
