Element layout/page-layout

Namespace

No namespace

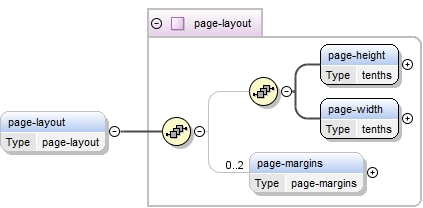

Diagram

Type

page-layout

Properties

content:	complex
minOccurs:	0

Model

page-height , page-width , page-margins{0,2}

Children

page-height, page-margins, page-width

Instance

<page-layout>
  <page-height>{1,1}</page-height>
  <page-width>{1,1}</page-width>
  <page-margins type="">{0,2}</page-margins>
</page-layout>

Source

<xs:element name="page-layout" type="page-layout" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Element layout/system-layout

Namespace

No namespace

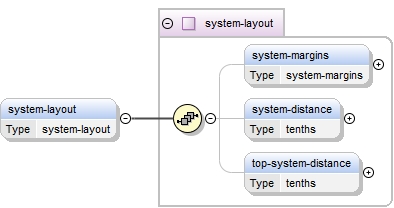

Diagram

Type

system-layout

Properties

content:	complex
minOccurs:	0

Model

system-margins{0,1} , system-distance{0,1} , top-system-distance{0,1}

Children

system-distance, system-margins, top-system-distance

Instance

<system-layout>
  <system-margins>{0,1}</system-margins>
  <system-distance>{0,1}</system-distance>
  <top-system-distance>{0,1}</top-system-distance>
</system-layout>

Source

<xs:element name="system-layout" type="system-layout" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Element layout/staff-layout

Namespace

No namespace

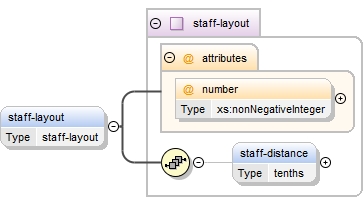

Diagram

Type

staff-layout

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

staff-distance{0,1}

Children

staff-distance

Instance

<staff-layout number="">
  <staff-distance>{0,1}</staff-distance>
</staff-layout>

Attributes

QName	Type	Fixed	Default	Use	Annotation
number	xs:nonNegativeInteger			optional

Source

<xs:element name="staff-layout" type="staff-layout" minOccurs="0" maxOccurs="unbounded"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Element Group layout

Namespace

No namespace

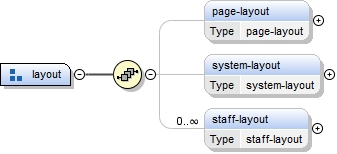

Diagram

Used by

Complex Types

defaults, print

Model

page-layout{0,1} , system-layout{0,1} , staff-layout*

Children

page-layout, staff-layout, system-layout

Source

<xs:group name="layout">
  <xs:annotation>
    <xs:documentation>The layout group specifies the sequence of page, system, and staff layout elements that is common to both the defaults and print elements.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="page-layout" type="page-layout" minOccurs="0"/>
    <xs:element name="system-layout" type="system-layout" minOccurs="0"/>
    <xs:element name="staff-layout" type="staff-layout" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
