Schema documentation for component score-header

Showing:

Attributes

Diagrams

Instances

Properties

Source

Used by

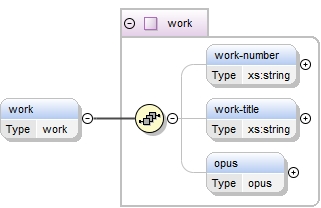

Element score-header/work

Namespace

No namespace

Diagram

Type

work

Properties

content:	complex
minOccurs:	0

Model

work-number{0,1} , work-title{0,1} , opus{0,1}

Children

opus, work-number, work-title

Instance

<work>
  <work-number>{0,1}</work-number>
  <work-title>{0,1}</work-title>
  <opus xlink:actuate="onRequest" xlink:href="" xlink:role="" xlink:show="replace" xlink:title="" type="simple">{0,1}</opus>
</work>

Source

<xs:element name="work" type="work" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Element score-header/movement-number

Namespace

No namespace

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="movement-number" type="xs:string" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Element score-header/movement-title

Namespace

No namespace

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="movement-title" type="xs:string" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

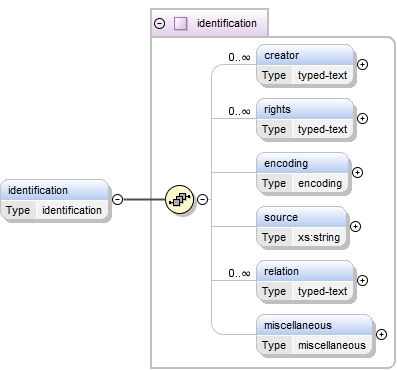

Element score-header/identification

Namespace

No namespace

Diagram

Type

identification

Properties

content:	complex
minOccurs:	0

Model

creator* , rights* , encoding{0,1} , source{0,1} , relation* , miscellaneous{0,1}

Children

creator, encoding, miscellaneous, relation, rights, source

Instance

<identification>
  <creator type="">{0,unbounded}</creator>
  <rights type="">{0,unbounded}</rights>
  <encoding>{0,1}</encoding>
  <source>{0,1}</source>
  <relation type="">{0,unbounded}</relation>
  <miscellaneous>{0,1}</miscellaneous>
</identification>

Source

<xs:element name="identification" type="identification" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Element score-header/defaults

Namespace

No namespace

Diagram

Type

defaults

Properties

content:	complex
minOccurs:	0

Model

scaling{0,1} , page-layout{0,1} , system-layout{0,1} , staff-layout* , appearance{0,1} , music-font{0,1} , word-font{0,1} , lyric-font* , lyric-language*

Children

appearance, lyric-font, lyric-language, music-font, page-layout, scaling, staff-layout, system-layout, word-font

Instance

<defaults>
  <scaling>{0,1}</scaling>
  <appearance>{0,1}</appearance>
  <music-font font-family="" font-size="" font-style="" font-weight="">{0,1}</music-font>
  <word-font font-family="" font-size="" font-style="" font-weight="">{0,1}</word-font>
  <lyric-font font-family="" font-size="" font-style="" font-weight="" name="" number="">{0,unbounded}</lyric-font>
  <lyric-language lang="" name="" number="">{0,unbounded}</lyric-language>
</defaults>

Source

<xs:element name="defaults" type="defaults" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

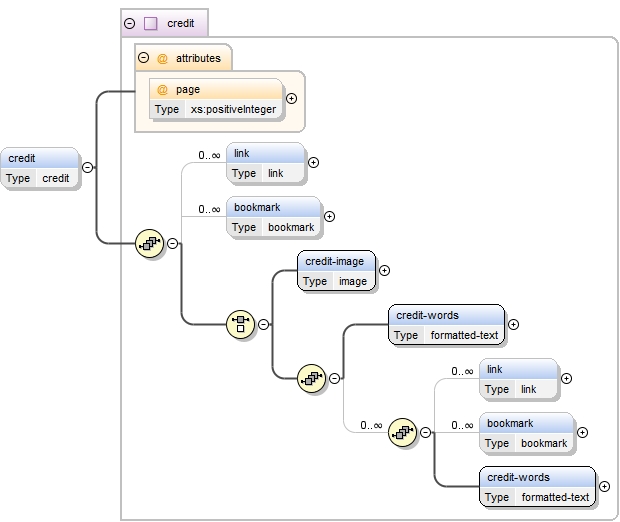

Element score-header/credit

Namespace

No namespace

Diagram

Type

credit

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

link* , bookmark* , (credit-image | (credit-words , link* , bookmark* , credit-words))

Children

bookmark, credit-image, credit-words, link

Instance

<credit page="">
  <link xlink:actuate="onRequest" default-x="" default-y="" element="" xlink:href="" name="" position="" relative-x="" relative-y="" xlink:role="" xlink:show="replace" xlink:title="" type="simple">{0,unbounded}</link>
  <bookmark element="" id="" name="" position="">{0,unbounded}</bookmark>
</credit>

Attributes

QName	Type	Fixed	Default	Use	Annotation
page	xs:positiveInteger			optional

Source

<xs:element name="credit" type="credit" minOccurs="0" maxOccurs="unbounded"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

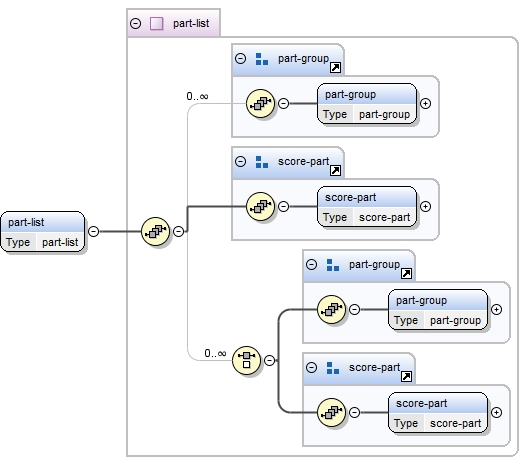

Element score-header/part-list

Namespace

No namespace

Diagram

Type

part-list

Properties

content:

complex

Model

part-group , score-part , ((part-group) | (score-part))

Children

part-group, score-part

Instance

<part-list>
  <part-group number="1" type="">{1,1}</part-group>
</part-list>

Source

<xs:element name="part-list" type="part-list"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

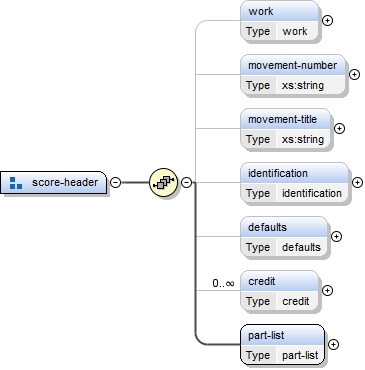

Element Group score-header

Namespace

No namespace

Diagram

Used by

Elements

score-partwise, score-timewise

Model

work{0,1} , movement-number{0,1} , movement-title{0,1} , identification{0,1} , defaults{0,1} , credit* , part-list

Children

credit, defaults, identification, movement-number, movement-title, part-list, work

Source

<xs:group name="score-header">
  <xs:annotation>
    <xs:documentation>The score-header group contains basic score metadata about the work and movement, score-wide defaults for layout and fonts, credits that appear on the first or following pages, and the part list.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="work" type="work" minOccurs="0"/>
    <xs:element name="movement-number" type="xs:string" minOccurs="0"/>
    <xs:element name="movement-title" type="xs:string" minOccurs="0"/>
    <xs:element name="identification" type="identification" minOccurs="0"/>
    <xs:element name="defaults" type="defaults" minOccurs="0"/>
    <xs:element name="credit" type="credit" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="part-list" type="part-list"/>
  </xs:sequence>
</xs:group>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
