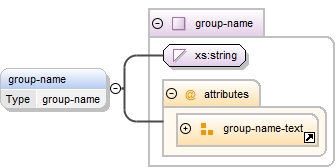

Element part-group/group-name
Namespace No namespace
Diagram
Diagram musicxml20.tmp#id196 musicxml107.tmp#id862
Type group-name
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
justify left-center-right optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="group-name" type="group-name" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

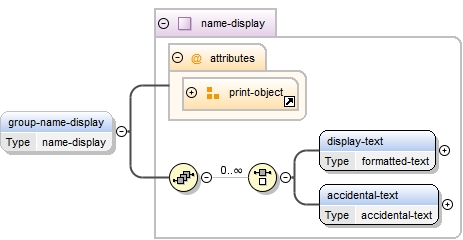

Element part-group/group-name-display
Namespace No namespace
Annotations

Formatting specified in the group-name-display element overrides formatting specified in the group-name element.
Diagram
Diagram musicxml4.tmp#id138 musicxml5.tmp#id252 musicxml5.tmp#id253 musicxml5.tmp#id251
Type name-display
Properties
content: complex
minOccurs: 0
Model (display-text | accidental-text)
Children accidental-text, display-text
Instance

<group-name-display print-object="">
  <display-text color="" default-x="" default-y="" dir="" enclosure="" font-family="" font-size="" font-style="" font-weight="" halign="" justify="" lang="" letter-spacing="" line-height="" line-through="" overline="" relative-x="" relative-y="" rotation="" underline="" valign="">{1,1}</display-text>
  <accidental-text>{1,1}</accidental-text>
</group-name-display>
Attributes
QName Type Fixed Default Use Annotation
print-object yes-no optional
Source

<xs:element name="group-name-display" type="name-display" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Formatting specified in the group-name-display element overrides formatting specified in the group-name element.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

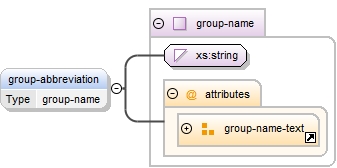

Element part-group/group-abbreviation
Namespace No namespace
Diagram
Diagram musicxml20.tmp#id196 musicxml107.tmp#id862
Type group-name
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
justify left-center-right optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="group-abbreviation" type="group-name" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

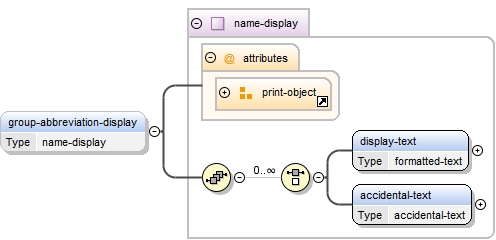

Element part-group/group-abbreviation-display
Namespace No namespace
Annotations

Formatting specified in the group-abbreviation-display element overrides formatting specified in the group-abbreviation element.
Diagram
Diagram musicxml4.tmp#id138 musicxml5.tmp#id252 musicxml5.tmp#id253 musicxml5.tmp#id251
Type name-display
Properties
content: complex
minOccurs: 0
Model (display-text | accidental-text)
Children accidental-text, display-text
Instance

<group-abbreviation-display print-object="">
  <display-text color="" default-x="" default-y="" dir="" enclosure="" font-family="" font-size="" font-style="" font-weight="" halign="" justify="" lang="" letter-spacing="" line-height="" line-through="" overline="" relative-x="" relative-y="" rotation="" underline="" valign="">{1,1}</display-text>
  <accidental-text>{1,1}</accidental-text>
</group-abbreviation-display>
Attributes
QName Type Fixed Default Use Annotation
print-object yes-no optional
Source

<xs:element name="group-abbreviation-display" type="name-display" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Formatting specified in the group-abbreviation-display element overrides formatting specified in the group-abbreviation element.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

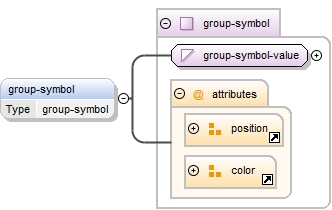

Element part-group/group-symbol
Namespace No namespace
Diagram
Diagram musicxml32.tmp#id88 musicxml31.tmp#id133 musicxml2.tmp#id102 musicxml228.tmp#id863
Type group-symbol
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="group-symbol" type="group-symbol" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

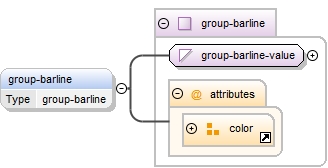

Element part-group/group-barline
Namespace No namespace
Diagram
Diagram musicxml98.tmp#id87 musicxml2.tmp#id102 musicxml99.tmp#id861
Type group-barline
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
color color optional
Source

<xs:element name="group-barline" type="group-barline" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element part-group/group-time
Namespace No namespace
Annotations

The group-time element indicates that the displayed time signatures should stretch across all parts and staves in the group.
Diagram
Diagram musicxml53.tmp#id207
Type empty
Properties
content: complex
minOccurs: 0
Source

<xs:element name="group-time" type="empty" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The group-time element indicates that the displayed time signatures should stretch across all parts and staves in the group.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

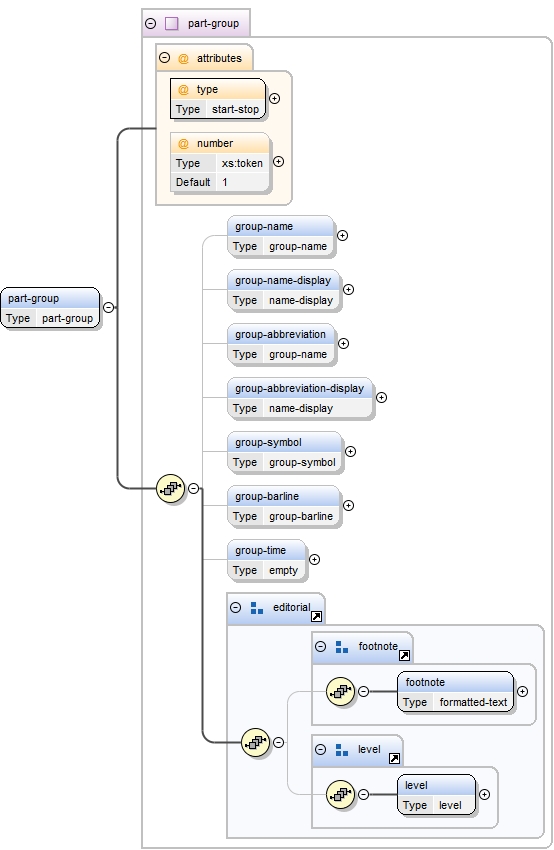

Element part-group/part-group
Namespace No namespace
Diagram
Diagram musicxml26.tmp#id875 musicxml26.tmp#id876 musicxml26.tmp#id868 musicxml26.tmp#id869 musicxml26.tmp#id870 musicxml26.tmp#id871 musicxml26.tmp#id872 musicxml26.tmp#id873 musicxml26.tmp#id874 musicxml39.tmp#id263 musicxml39.tmp#id262 musicxml44.tmp#id265 musicxml44.tmp#id264 musicxml103.tmp#id261 musicxml26.tmp#id867
Type part-group
Properties
content: complex
Model group-name{0,1} , group-name-display{0,1} , group-abbreviation{0,1} , group-abbreviation-display{0,1} , group-symbol{0,1} , group-barline{0,1} , group-time{0,1} , footnote , level
Children footnote, group-abbreviation, group-abbreviation-display, group-barline, group-name, group-name-display, group-symbol, group-time, level
Instance

<part-group number="1" type="">
  <group-name color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" justify="" relative-x="" relative-y="">{0,1}</group-name>
  <group-name-display print-object="">{0,1}</group-name-display>
  <group-abbreviation color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" justify="" relative-x="" relative-y="">{0,1}</group-abbreviation>
  <group-abbreviation-display print-object="">{0,1}</group-abbreviation-display>
  <group-symbol color="" default-x="" default-y="" relative-x="" relative-y="">{0,1}</group-symbol>
  <group-barline color="">{0,1}</group-barline>
  <group-time>{0,1}</group-time>
</part-group>
Attributes
QName Type Fixed Default Use Annotation
number xs:token 1 optional
type start-stop required
Source

<xs:element name="part-group" type="part-group">
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

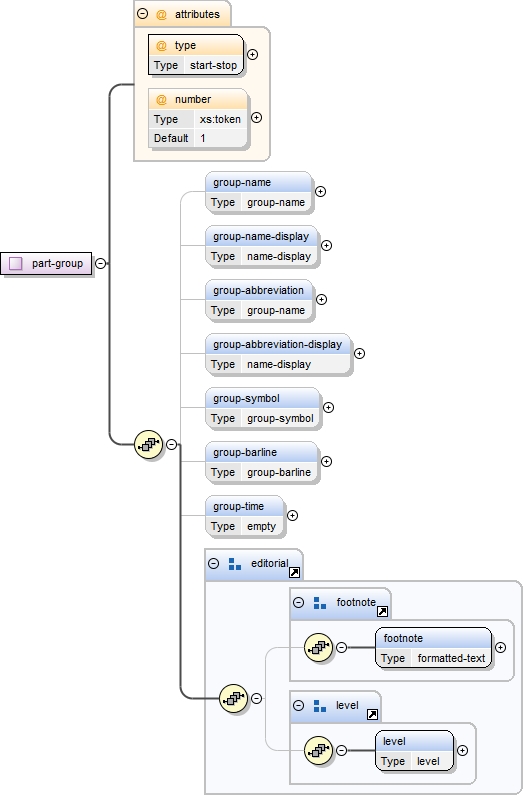

Complex Type part-group
Namespace No namespace
Annotations

The part-group element indicates groupings of parts in the score, usually indicated by braces and brackets. Braces that are used for multi-staff parts should be defined in the attributes element for that part. The part-group start element appears before the first score-part in the group. The part-group stop element appears after the last  score-part in the group.

The number attribute is used to distinguish overlapping and nested part-groups, not the sequence of groups. As with parts, groups can have a name and abbreviation. Values for the child elements are ignored at the stop of a group.

A part-group element is not needed for a single multi-staff part. By default, multi-staff parts include a brace symbol and (if appropriate given the bar-style) common barlines. The symbol formatting for a multi-staff part can be more fully specified using the part-symbol element.
Diagram
Diagram musicxml26.tmp#id875 musicxml26.tmp#id876 musicxml26.tmp#id868 musicxml26.tmp#id869 musicxml26.tmp#id870 musicxml26.tmp#id871 musicxml26.tmp#id872 musicxml26.tmp#id873 musicxml26.tmp#id874 musicxml39.tmp#id263 musicxml39.tmp#id262 musicxml44.tmp#id265 musicxml44.tmp#id264 musicxml103.tmp#id261
Used by
Model group-name{0,1} , group-name-display{0,1} , group-abbreviation{0,1} , group-abbreviation-display{0,1} , group-symbol{0,1} , group-barline{0,1} , group-time{0,1} , footnote , level
Children footnote, group-abbreviation, group-abbreviation-display, group-barline, group-name, group-name-display, group-symbol, group-time, level
Attributes
QName Type Fixed Default Use Annotation
number xs:token 1 optional
type start-stop required
Source

<xs:complexType name="part-group">
  <xs:annotation>
    <xs:documentation>The part-group element indicates groupings of parts in the score, usually indicated by braces and brackets. Braces that are used for multi-staff parts should be defined in the attributes element for that part. The part-group start element appears before the first score-part in the group. The part-group stop element appears after the last score-part in the group. The number attribute is used to distinguish overlapping and nested part-groups, not the sequence of groups. As with parts, groups can have a name and abbreviation. Values for the child elements are ignored at the stop of a group. A part-group element is not needed for a single multi-staff part. By default, multi-staff parts include a brace symbol and (if appropriate given the bar-style) common barlines. The symbol formatting for a multi-staff part can be more fully specified using the part-symbol element.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="group-name" type="group-name" minOccurs="0"/>
    <xs:element name="group-name-display" type="name-display" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Formatting specified in the group-name-display element overrides formatting specified in the group-name element.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="group-abbreviation" type="group-name" minOccurs="0"/>
    <xs:element name="group-abbreviation-display" type="name-display" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Formatting specified in the group-abbreviation-display element overrides formatting specified in the group-abbreviation element.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="group-symbol" type="group-symbol" minOccurs="0"/>
    <xs:element name="group-barline" type="group-barline" minOccurs="0"/>
    <xs:element name="group-time" type="empty" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The group-time element indicates that the displayed time signatures should stretch across all parts and staves in the group.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:group ref="editorial"/>
  </xs:sequence>
  <xs:attribute name="type" type="start-stop" use="required"/>
  <xs:attribute name="number" type="xs:token" default="1"/>
</xs:complexType>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Attribute part-group/@type
Namespace No namespace
Type start-stop
Properties
use: required
Facets
enumeration start, stop
Used by
Complex Type part-group
Source

<xs:attribute name="type" type="start-stop" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Attribute part-group/@number
Namespace No namespace
Type xs:token
Properties
default: 1
Used by
Complex Type part-group
Source

<xs:attribute name="number" type="xs:token" default="1"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element Group part-group
Namespace No namespace
Diagram
Diagram musicxml26.tmp#id879
Used by
Complex Type part-list
Model part-group
Children part-group
Source

<xs:group name="part-group">
  <xs:annotation>
    <xs:documentation>The part-group element is defined within a group due to its multiple uses within the part-list element.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="part-group" type="part-group">
    </xs:element>
  </xs:sequence>
</xs:group>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
