[oXygen-user] Understanding @colsep and @rowsep

Wed Apr 12 10:44:16 CDT 2023

@colsep is allowed on the <colspec>, <entry>, <table>, and <tgroup> elements; and @rowsep is allowed on the <colspec>, <entry>, <row>, <table>, and <tgroup> elements. However, the meaning of setting those attributes to “1” on some elements is unclear (e.g., what should <colspec rowsep="1"> produce?), and different applications may not interpret them the same way. Setting the attributes on each <entry> may be tedious but should be unambiguous.

--
Michael R. Boudreau
Electronic Publishing Technology Manager
The University of Chicago Press
1427 E. 60th Street
Chicago, IL 60637
www.journals.uchicago.edu

From: oXygen-user <oxygen-user-bounces at oxygenxml.com> on behalf of Frank Dissinger <frank.dissinger at cgs-oris.com>
Date: Wednesday, April 12, 2023 at 10:19 AM
To: Oxygen User Mailing List <oxygen-user at oxygenxml.com>
Subject: [oXygen-user] Understanding @colsep and @rowsep

Thank you!

Hm... These attributes were set on <table> and <tgroup> in my DITA files, but not on <entry>, and the attribute value was sometimes = "0", sometimes = "1". Nevertheless the tables rendered correctly, but perhaps only because I have set up the CSS and MiramoPDF styles to create frames for all table cells for all <table> elements. I'll have to investigate this...

So perhaps, to keep my DITA data portable and to ensure they are rendered correctly with other transformations, it would be safer to also set @colsep and @rowsep to "1". But really for each <entry>? Wouldn't it be enough for <table>?

Frank

________________________________

Am 12.04.2023 um 16:36 schrieb Michael Boudreau:
For a CALS table, @frame="all" draws a border around all four outside edges of the table; it does not affect the interior lines. See https://dtd.nlm.nih.gov/options/OASIS/tag-library/19990315/index.html<https://urldefense.com/v3/__https:/dtd.nlm.nih.gov/options/OASIS/tag-library/19990315/index.html__;!!BpyFHLRN4TMTrA!9LJkNBvzzhYkZ6RRgxHc8PptvwXf7D7kYS-jj9SAKAY5g_nHNLp8IWWqZGMsIfkLU7yYIjRNkhmrYvkw5bqxOtPBtXXMCZlB$>

To indicate a table with all the grid lines visible, CALS requires @frame="all" as well as @colsep="1" and @rowsep="1" on all <entry> elements (you can omit colsep on the rightmost cells and rowsep on the finalrow).

--
Michael R. Boudreau
Electronic Publishing Technology Manager
The University of Chicago Press
1427 E. 60th Street
Chicago, IL 60637
www.journals.uchicago.edu<http://www.journals.uchicago.edu>

From: oXygen-user <oxygen-user-bounces at oxygenxml.com><mailto:oxygen-user-bounces at oxygenxml.com> on behalf of Frank Dissinger <frank.dissinger at cgs-oris.com><mailto:frank.dissinger at cgs-oris.com>
Date: Wednesday, April 12, 2023 at 9:26 AM
To: Oxygen User Mailing List <oxygen-user at oxygenxml.com><mailto:oxygen-user at oxygenxml.com>
Subject: [oXygen-user] Understanding @colsep and @rowsep

Hi all,

Can someone shed some light on how the @colsep and @rowsep attributes are used for CALS tables? The information I found is not clear and detailed enough for me.

I understand that these attributes create separator lines for colums and rows. Do I only need these attributes when I do not set @frame="all" to create lines for particular rows or columns only?

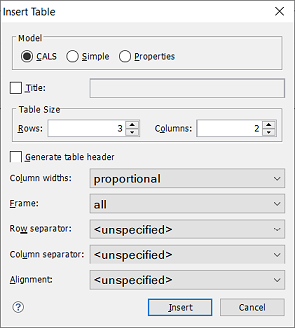

For a normal CALS table with lines for all rows and columns (i.e. like a grid), is enough to set @frame="all" or do I additionally need these attributes? The code that Oxygen creates (see below) with these settings (i.e. without these attributes) ...

[cid:part1.8Uz34ycG.FJSg3NFf at cgs-oris.com]

does not have these @colsep and @rowsep attributes, only @frame="all", and is rendered as desired with my CHM and PDF transformations.

I have several tables with @colsep/@rowsep="0" or ="1". These attributes may have been added by FrameMaker when I converted unstructured content to DITA. Can I safely remove all of these attributes when I just want a CALS table with row and line separators every (like a grid)?

Regards,

Frank

--

Frank Dissinger

Documentation Manager

....................................................................

CGS Publishing Technologies International GmbH

Email frank.dissinger at cgs-oris.com<mailto:frank.dissinger at cgs-oris.com> | Web www.cgs-oris.com<https://urldefense.com/v3/__http:/www.cgs-oris.com/__;!!BpyFHLRN4TMTrA!9LJkNBvzzhYkZ6RRgxHc8PptvwXf7D7kYS-jj9SAKAY5g_nHNLp8IWWqZGMsIfkLU7yYIjRNkhmrYvkw5bqxOtPBtchIV37A$>

Address Kettelerstr. 24 | D-63512 Hainburg | Germany

Phone +49 6182 9626-27 | Fax +49 6182 9626-99

Commercial register Offenbach, HRB no. 21495

Managing directors Bernd Rückert, Christoph Thommessen
