[oXygen-user] Understanding @colsep and @rowsep

[Frank Dissinger]

Thank you!


Hm... These attributes were set on <table> and <tgroup> in my DITA
files, but not on <entry>, and the attribute value was sometimes = "0",
sometimes = "1". Nevertheless the tables rendered correctly, but perhaps
only because I have set up the CSS and MiramoPDF styles to create frames
for all table cells for all <table> elements. I'll have to investigate
this...


So perhaps, to keep my DITA data portable and to ensure they are
rendered correctly with other transformations, it would be safer to also
set @colsep and @rowsep to "1". But really for each <entry>? Wouldn't it
be enough for <table>?


Frank


------------------------------------------------------------------------


Am 12.04.2023 um 16:36 schrieb Michael Boudreau:
>
> For a CALS table, *@frame=**"**all"*draws a border around all four
> outside edges of the table; it does not affect the interior lines. See
> https://dtd.nlm.nih.gov/options/OASIS/tag-library/19990315/index.html
>
> To indicate a table with all the grid lines visible, CALS requires
> *@frame=**"**all"*as well as *@colsep=**"**1"*and *@rowsep=**"**1"*on
> all <entry> elements (you can omit colsep on the rightmost cells and
> rowsep on the finalrow).
>
> --
>
> Michael R. Boudreau
>
> Electronic Publishing Technology Manager
>
> The University of Chicago Press
>
> 1427 E. 60^th Street
>
> Chicago, IL 60637
>
> www.journals.uchicago.edu
>
> *From: *oXygen-user <oxygen-user-bounces at oxygenxml.com> on behalf of
> Frank Dissinger <frank.dissinger at cgs-oris.com>
> *Date: *Wednesday, April 12, 2023 at 9:26 AM
> *To: *Oxygen User Mailing List <oxygen-user at oxygenxml.com>
> *Subject: *[oXygen-user] Understanding @colsep and @rowsep
>
> Hi all,
>
> Can someone shed some light on how the *@colsep* and*@rowsep*
> attributes are used for CALS tables? The information I found is not
> clear and detailed enough for me.
>
> I understand that these attributes create separator lines for colums
> and rows. Do I only need these attributes when I do not set
> *@frame="all"* to create lines for particular rows or columns only?
>
> For a normal CALS table with lines for all rows and columns (i.e. like
> a grid), is enough to set *@frame="all"* or do I additionally need

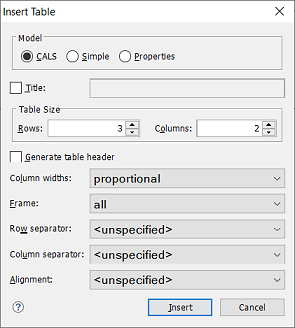

> these attributes? The code that Oxygen creates (see below) with these
> settings (i.e. without these attributes) ...
>
> does not have these *@colsep* and*@rowsep* attributes, only
> *@frame="all"*, and is rendered as desired with my CHM and PDF
> transformations.
>
> I have several tables with *@colsep*/*@rowsep="0" *or*="1"*. These
> attributes may have been added by FrameMaker when I converted
> unstructured content to DITA. Can I safely remove all of these
> attributes when I just want a CALS table with row and line separators
> every (like a grid)?
>
> Regards,
>
> Frank
>
>
> --
>
> *Frank Dissinger*
>
> Documentation Manager
>
> ....................................................................
>
> *CGS Publishing Technologies International GmbH*
>
> *Email *frank.dissinger at cgs-oris.com | *Web* www.cgs-oris.com
> <http://www.cgs-oris.com/>
>
> *Address* Kettelerstr. 24 | D-63512 Hainburg | Germany
>
> *Phone* +49 6182 9626-27 | *Fax* +49 6182 9626-99
>
> *Commercial register* Offenbach, HRB no. 21495
>
> *Managing directors* Bernd Rückert, Christoph Thommessen
>
>
> https://www.cgs-oris.com/Signatur.png <https://www.cgs-oris.com/signatur>
