[oXygen-user] Understanding @colsep and @rowsep
dvint
dvint at dvint.com
Wed Apr 12 10:44:46 CDT 2023
If you are trying to determine if your files are portable, I'd run your content through the standard OT plugins for pdf and html to test your results.I'd also suggest that rather than trying to use the framemaker converted files I'd start building some test content that you build directly with oxygen. It doesn't have to be big and complicated, just enough to verify your questions and concerns. You might want to use your content for examples but build a 2 col 3 row table and see what happens when you apply the different attributes at different levels. Start simple and where you would like to mange the rules, process and see what you get. Once you get the sample table the way you want compare it with the framemaker version and strip out or add markup as needed.Collect all of these samples together in an organized manner and now you have a minimal test document that you can test with rather than trying to find examples in the larger content body. This format sample will help you as you add tools or switch vendors an approaches. You will now have a small sample you can quickly run or import into these tools to understand how well they work or changes you will have to make.Sent from my Verizon, Samsung Galaxy smartphone
-------- Original message --------From: Frank Dissinger <frank.dissinger at cgs-oris.com> Date: 4/12/23 8:18 AM (GMT-08:00) To: Oxygen User Mailing List <oxygen-user at oxygenxml.com> Subject: [oXygen-user] Understanding @colsep and @rowsep
Thank you!
Hm... These attributes were set on <table> and
<tgroup> in my DITA files, but not on <entry>, and the
attribute value was sometimes = "0", sometimes = "1". Nevertheless
the tables rendered correctly, but perhaps only because I have set
up the CSS and MiramoPDF styles to create frames for all table
cells for all <table> elements. I'll have to investigate
this...
So perhaps, to keep my DITA data portable and to ensure they are
rendered correctly with other transformations, it would be safer
to also set @colsep and @rowsep to "1". But really for each
<entry>? Wouldn't it be enough for <table>?
Frank
Am 12.04.2023 um 16:36 schrieb Michael
Boudreau:
@font-face
{font-family:"Cambria Math";
panose-1:2 4 5 3 5 4 6 3 2 4;}@font-face
{font-family:Calibri;
panose-1:2 15 5 2 2 2 4 3 2 4;}@font-face
{font-family:Verdana;
panose-1:2 11 6 4 3 5 4 4 2 4;}@font-face
{font-family:"Times New Roman \(Body CS\)";
panose-1:2 11 6 4 2 2 2 2 2 4;}p.MsoNormal, li.MsoNormal, div.MsoNormal
{margin:0in;
font-size:11.0pt;
font-family:"Calibri",sans-serif;}a:link, span.MsoHyperlink
{mso-style-priority:99;
color:blue;
text-decoration:underline;}span.EmailStyle21
{mso-style-type:personal-reply;
font-family:"Calibri",sans-serif;
color:windowtext;
font-weight:normal;
font-style:normal;}.MsoChpDefault
{mso-style-type:export-only;
font-size:10.0pt;}div.WordSection1
{page:WordSection1;}
For a CALS
table, @frame="all" draws a border around all four
outside edges of the table; it does not affect the interior
lines. See
https://dtd.nlm.nih.gov/options/OASIS/tag-library/19990315/index.html
To indicate
a table with all the grid lines visible, CALS requires
@frame="all" as well as
@colsep="1" and
@rowsep="1" on all <entry> elements (you
can omit colsep on the rightmost cells and rowsep on the
finalrow).
--
Michael
R. Boudreau
Electronic
Publishing Technology Manager
The
University of Chicago Press
1427 E.
60th Street
Chicago,
IL 60637
www.journals.uchicago.edu
From:
oXygen-user
<oxygen-user-bounces at oxygenxml.com> on behalf of
Frank Dissinger <frank.dissinger at cgs-oris.com>
Date: Wednesday, April 12, 2023 at 9:26 AM
To: Oxygen User Mailing List
<oxygen-user at oxygenxml.com>
Subject: [oXygen-user] Understanding @colsep and
@rowsep
Hi all,
Can someone shed some light on how the @colsep and
@rowsep attributes are used for CALS tables? The
information I found is not clear and detailed enough for me.
I understand that these attributes create separator lines for
colums and rows. Do I only need these attributes when I do not
set
@frame="all" to create lines for particular rows or
columns only?
For a normal CALS table with lines for all rows and columns
(i.e. like a grid), is enough to set
@frame="all" or do I additionally need these

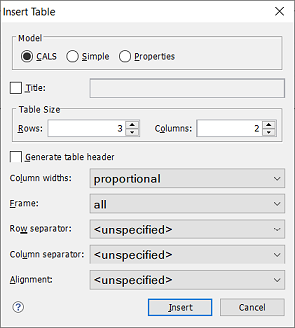

attributes? The code that Oxygen creates (see below) with
these settings (i.e. without these attributes) ...
does not have these @colsep and @rowsep
attributes, only @frame="all", and is rendered as
desired with my CHM and PDF transformations.
I have several tables with @colsep/@rowsep="0" or
="1". These attributes may have been added by FrameMaker
when I converted unstructured content to DITA. Can I safely
remove all of these attributes when I just want a CALS table
with row and line separators every (like a grid)?
Regards,
Frank
--
div.signature {font-family: Verdana, sans-serif; font-size: 10pt; color: #7F8C8D; padding-top: 0.4em;}
div.name {padding-bottom: 0.8em; padding-top: 0.8em}
div.contact {padding-bottom: 0.8em;}
p {margin: 0;}
span.separator {border-top-style: dotted; border-top-width: 2px; padding-top: 0.6em;}
a {color: inherit}
Frank Dissinger
Documentation Manager
....................................................................
CGS Publishing Technologies International GmbH
Email frank.dissinger at cgs-oris.com
| Web www.cgs-oris.com
Address Kettelerstr. 24 | D-63512
Hainburg | Germany
Phone +49 6182 9626-27 | Fax
+49 6182 9626-99
Commercial register Offenbach, HRB no.
21495
Managing directors Bernd Rückert,
Christoph Thommessen
