Element footnote/footnote
Namespace No namespace

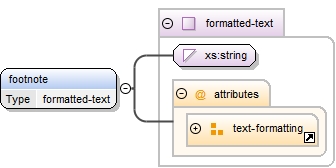

Diagram
Diagram musicxml130.tmp#id152 musicxml131.tmp#id239
Type formatted-text
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
dir text-direction optional
enclosure enclosure optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
halign left-center-right optional
justify left-center-right optional
lang optional
letter-spacing number-or-normal optional
line-height number-or-normal optional
line-through number-of-lines optional
overline number-of-lines optional
relative-x tenths optional
relative-y tenths optional
rotation rotation-degrees optional
underline number-of-lines optional
valign valign optional
Source

<xs:element name="footnote" type="formatted-text"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element Group footnote
Namespace No namespace
Diagram
Diagram musicxml39.tmp#id263
Used by
Model footnote
Children footnote
Source

<xs:group name="footnote">
  <xs:annotation>
    <xs:documentation>The footnote element specifies editorial information that appears in footnotes in the printed score. It is defined within a group due to its multiple uses within the MusicXML schema.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="footnote" type="formatted-text"/>
  </xs:sequence>
</xs:group>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
