Complex Type formatted-text
Namespace No namespace
Annotations
The formatted-text type represents a text element with text-formatting attributes.

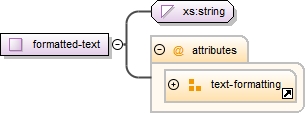

Diagram
Diagram musicxml130.tmp#id152
Type extension of xs:string
Used by
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
dir text-direction optional
enclosure enclosure optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
halign left-center-right optional
justify left-center-right optional
lang optional
letter-spacing number-or-normal optional
line-height number-or-normal optional
line-through number-of-lines optional
overline number-of-lines optional
relative-x tenths optional
relative-y tenths optional
rotation rotation-degrees optional
underline number-of-lines optional
valign valign optional
Source
<xs:complexType name="formatted-text">
  <xs:annotation>
    <xs:documentation>The formatted-text type represents a text element with text-formatting attributes.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="xs:string">
      <xs:attributeGroup ref="text-formatting"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
