Element direction-type/rehearsal
Namespace No namespace

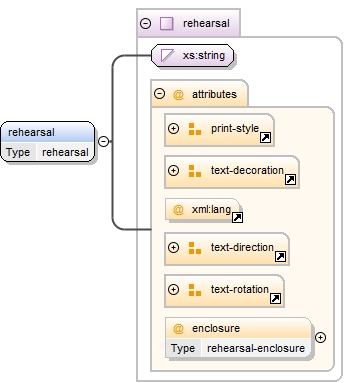

Diagram
Diagram musicxml6.tmp#id142 musicxml13.tmp#id146 musicxml14.tmp#id150 musicxml15.tmp#id155 musicxml16.tmp#id417 musicxml16.tmp#id416
Type rehearsal
Properties
content: complex
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
dir text-direction optional
enclosure rehearsal-enclosure optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
lang optional
line-through number-of-lines optional
overline number-of-lines optional
relative-x tenths optional
relative-y tenths optional
rotation rotation-degrees optional
underline number-of-lines optional
Source

<xs:element name="rehearsal" type="rehearsal" maxOccurs="unbounded"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element direction-type/segno
Namespace No namespace
Annotations

The segno element is the visual indicator of a segno sign. A sound element is needed to guide playback applciations reliably.
Diagram
Diagram musicxml6.tmp#id142 musicxml29.tmp#id232
Type empty-print-style
Properties
content: complex
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="segno" type="empty-print-style" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The segno element is the visual indicator of a segno sign. A sound element is needed to guide playback applciations reliably.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

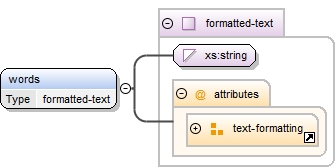

Element direction-type/words
Namespace No namespace
Annotations

The words element specifies a standard text direction. Left justification is assumed if not specified. Language is Italian ("it") by default. Enclosure is none by default.
Diagram
Diagram musicxml130.tmp#id152 musicxml131.tmp#id239
Type formatted-text
Properties
content: complex
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
dir text-direction optional
enclosure enclosure optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
halign left-center-right optional
justify left-center-right optional
lang optional
letter-spacing number-or-normal optional
line-height number-or-normal optional
line-through number-of-lines optional
overline number-of-lines optional
relative-x tenths optional
relative-y tenths optional
rotation rotation-degrees optional
underline number-of-lines optional
valign valign optional
Source

<xs:element name="words" type="formatted-text" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The words element specifies a standard text direction. Left justification is assumed if not specified. Language is Italian ("it") by default. Enclosure is none by default.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element direction-type/coda
Namespace No namespace
Annotations

The coda element is the visual indicator of a coda sign. A sound element is needed to guide playback applciations reliably.
Diagram
Diagram musicxml6.tmp#id142 musicxml29.tmp#id232
Type empty-print-style
Properties
content: complex
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="coda" type="empty-print-style" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The coda element is the visual indicator of a coda sign. A sound element is needed to guide playback applciations reliably.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

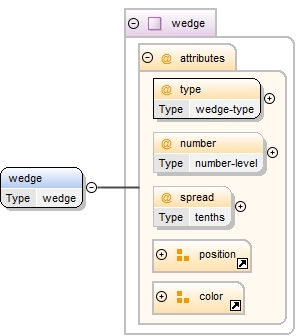

Element direction-type/wedge
Namespace No namespace
Diagram
Diagram musicxml254.tmp#id423 musicxml254.tmp#id424 musicxml254.tmp#id425 musicxml31.tmp#id133 musicxml2.tmp#id102 musicxml254.tmp#id422
Type wedge
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
number number-level optional
relative-x tenths optional
relative-y tenths optional
spread tenths optional
type wedge-type required
Source

<xs:element name="wedge" type="wedge"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

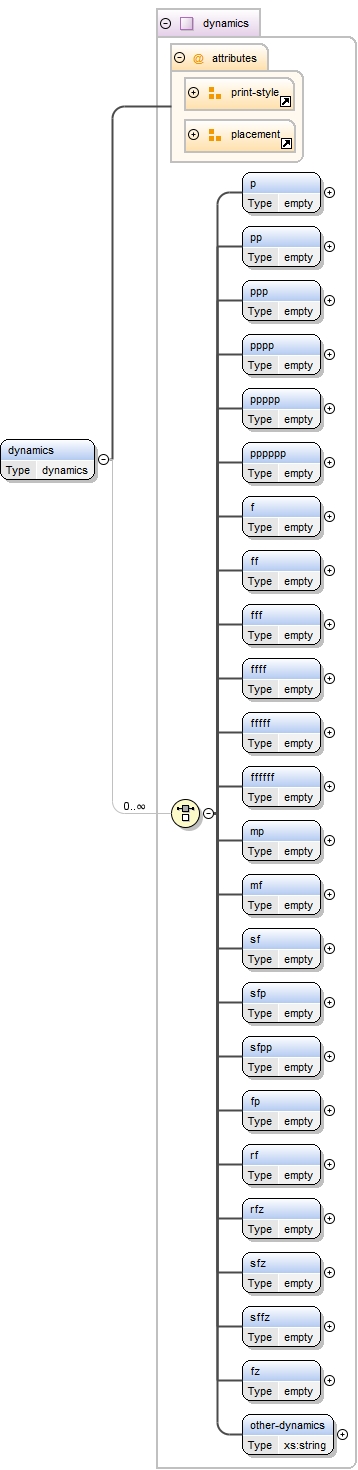

Element direction-type/dynamics
Namespace No namespace
Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml125.tmp#id206 musicxml125.tmp#id208 musicxml125.tmp#id209 musicxml125.tmp#id210 musicxml125.tmp#id211 musicxml125.tmp#id212 musicxml125.tmp#id213 musicxml125.tmp#id214 musicxml125.tmp#id215 musicxml125.tmp#id216 musicxml125.tmp#id217 musicxml125.tmp#id218 musicxml125.tmp#id219 musicxml125.tmp#id220 musicxml125.tmp#id221 musicxml125.tmp#id222 musicxml125.tmp#id223 musicxml125.tmp#id224 musicxml125.tmp#id225 musicxml125.tmp#id226 musicxml125.tmp#id227 musicxml125.tmp#id228 musicxml125.tmp#id229 musicxml125.tmp#id230 musicxml125.tmp#id205
Type dynamics
Properties
content: complex
Model p | pp | ppp | pppp | ppppp | pppppp | f | ff | fff | ffff | fffff | ffffff | mp | mf | sf | sfp | sfpp | fp | rf | rfz | sfz | sffz | fz | other-dynamics
Children f, ff, fff, ffff, fffff, ffffff, fp, fz, mf, mp, other-dynamics, p, pp, ppp, pppp, ppppp, pppppp, rf, rfz, sf, sffz, sfp, sfpp, sfz
Instance

<dynamics color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" placement="" relative-x="" relative-y="">
  <p>{1,1}</p>
  <pp>{1,1}</pp>
  <ppp>{1,1}</ppp>
  <pppp>{1,1}</pppp>
  <ppppp>{1,1}</ppppp>
  <pppppp>{1,1}</pppppp>
  <f>{1,1}</f>
  <ff>{1,1}</ff>
  <fff>{1,1}</fff>
  <ffff>{1,1}</ffff>
  <fffff>{1,1}</fffff>
  <ffffff>{1,1}</ffffff>
  <mp>{1,1}</mp>
  <mf>{1,1}</mf>
  <sf>{1,1}</sf>
  <sfp>{1,1}</sfp>
  <sfpp>{1,1}</sfpp>
  <fp>{1,1}</fp>
  <rf>{1,1}</rf>
  <rfz>{1,1}</rfz>
  <sfz>{1,1}</sfz>
  <sffz>{1,1}</sffz>
  <fz>{1,1}</fz>
  <other-dynamics>{1,1}</other-dynamics>
</dynamics>
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="dynamics" type="dynamics"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element direction-type/dashes
Namespace No namespace
Diagram
Diagram musicxml201.tmp#id400 musicxml201.tmp#id401 musicxml31.tmp#id133 musicxml2.tmp#id102 musicxml201.tmp#id399
Type dashes
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
number number-level optional
relative-x tenths optional
relative-y tenths optional
type start-stop required
Source

<xs:element name="dashes" type="dashes"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

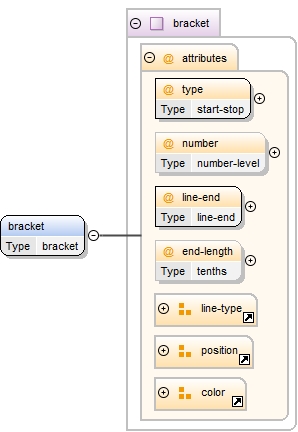

Element direction-type/bracket
Namespace No namespace
Diagram
Diagram musicxml185.tmp#id395 musicxml185.tmp#id396 musicxml185.tmp#id397 musicxml185.tmp#id398 musicxml70.tmp#id127 musicxml31.tmp#id133 musicxml2.tmp#id102 musicxml185.tmp#id394
Type bracket
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
end-length tenths optional
line-end line-end required
line-type line-type optional
number number-level optional
relative-x tenths optional
relative-y tenths optional
type start-stop required
Source

<xs:element name="bracket" type="bracket"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element direction-type/pedal
Namespace No namespace

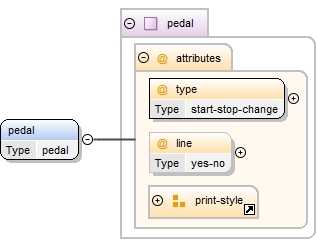

Diagram
Diagram musicxml227.tmp#id431 musicxml227.tmp#id432 musicxml6.tmp#id142 musicxml227.tmp#id430
Type pedal
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
line yes-no optional
relative-x tenths optional
relative-y tenths optional
type start-stop-change required
Source

<xs:element name="pedal" type="pedal"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

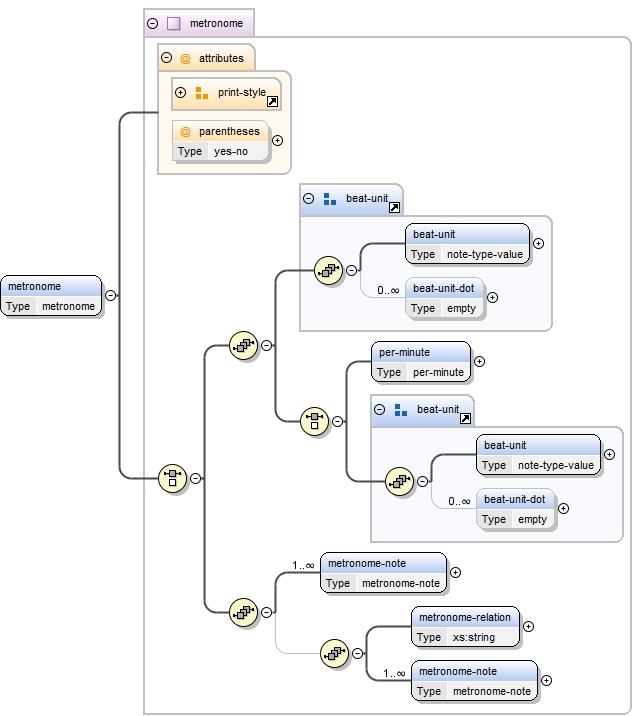

Element direction-type/metronome
Namespace No namespace
Diagram
Diagram musicxml6.tmp#id142 musicxml132.tmp#id458 musicxml133.tmp#id436 musicxml133.tmp#id436 musicxml133.tmp#id437 musicxml133.tmp#id437 musicxml133.tmp#id435 musicxml132.tmp#id438 musicxml133.tmp#id436 musicxml133.tmp#id436 musicxml133.tmp#id437 musicxml133.tmp#id437 musicxml133.tmp#id435 musicxml132.tmp#id440 musicxml132.tmp#id457 musicxml132.tmp#id434
Type metronome
Properties
content: complex
Model (beat-unit , beat-unit-dot* , (per-minute | (beat-unit , beat-unit-dot*))) | (metronome-note+ , metronome-relation , metronome-note+)
Children beat-unit, beat-unit-dot, metronome-note, metronome-relation, per-minute
Instance

<metronome color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" parentheses="" relative-x="" relative-y="">
  <beat-unit>{1,1}</beat-unit>
  <beat-unit-dot>{0,unbounded}</beat-unit-dot>
</metronome>
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
parentheses yes-no optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="metronome" type="metronome"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element direction-type/octave-shift
Namespace No namespace

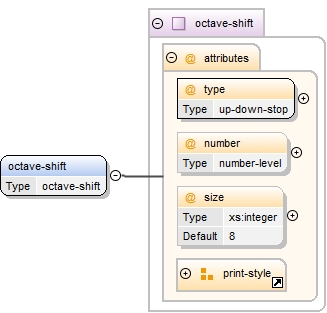

Diagram
Diagram musicxml86.tmp#id461 musicxml86.tmp#id462 musicxml86.tmp#id463 musicxml6.tmp#id142 musicxml86.tmp#id460
Type octave-shift
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
number number-level optional
relative-x tenths optional
relative-y tenths optional
size xs:integer 8 optional
type up-down-stop required
Source

<xs:element name="octave-shift" type="octave-shift"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element direction-type/harp-pedals
Namespace No namespace

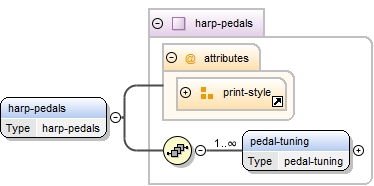

Diagram
Diagram musicxml6.tmp#id142 musicxml180.tmp#id466 musicxml180.tmp#id465
Type harp-pedals
Properties
content: complex
Model pedal-tuning+
Children pedal-tuning
Instance

<harp-pedals color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="">
  <pedal-tuning>{1,unbounded}</pedal-tuning>
</harp-pedals>
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="harp-pedals" type="harp-pedals"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element direction-type/damp
Namespace No namespace
Annotations

The damp element specifies a harp damping mark.

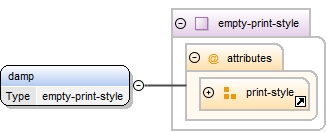

Diagram
Diagram musicxml6.tmp#id142 musicxml29.tmp#id232
Type empty-print-style
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="damp" type="empty-print-style">
  <xs:annotation>
    <xs:documentation>The damp element specifies a harp damping mark.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element direction-type/damp-all
Namespace No namespace
Annotations

The damp-all element specifies a harp damping mark for all strings.
Diagram
Diagram musicxml6.tmp#id142 musicxml29.tmp#id232
Type empty-print-style
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="damp-all" type="empty-print-style">
  <xs:annotation>
    <xs:documentation>The damp-all element specifies a harp damping mark for all strings.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

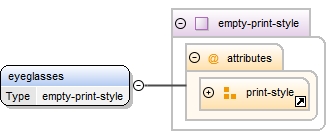

Element direction-type/eyeglasses
Namespace No namespace
Annotations

The eyeglasses element specifies the eyegalsses symbol, common in commercial music.
Diagram
Diagram musicxml6.tmp#id142 musicxml29.tmp#id232
Type empty-print-style
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="eyeglasses" type="empty-print-style">
  <xs:annotation>
    <xs:documentation>The eyeglasses element specifies the eyegalsses symbol, common in commercial music.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

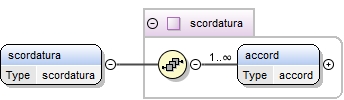

Element direction-type/scordatura
Namespace No namespace
Diagram
Diagram musicxml25.tmp#id475 musicxml25.tmp#id474
Type scordatura
Properties
content: complex
Model accord+
Children accord
Instance

<scordatura>
  <accord string="">{1,unbounded}</accord>
</scordatura>
Source

<xs:element name="scordatura" type="scordatura"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

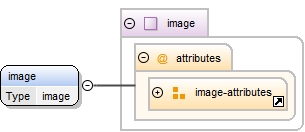

Element direction-type/image
Namespace No namespace
Diagram
Diagram musicxml236.tmp#id178 musicxml240.tmp#id477
Type image
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
default-x tenths optional
default-y tenths optional
halign left-center-right optional
relative-x tenths optional
relative-y tenths optional
source xs:anyURI required
type xs:token required
valign valign-image optional
Source

<xs:element name="image" type="image"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

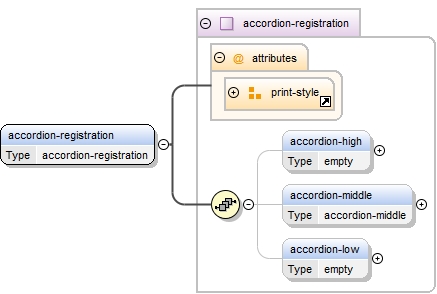

Element direction-type/accordion-registration
Namespace No namespace
Diagram
Diagram musicxml6.tmp#id142 musicxml187.tmp#id382 musicxml187.tmp#id383 musicxml187.tmp#id384 musicxml187.tmp#id381
Type accordion-registration
Properties
content: complex
Model accordion-high{0,1} , accordion-middle{0,1} , accordion-low{0,1}
Children accordion-high, accordion-low, accordion-middle
Instance

<accordion-registration color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="">
  <accordion-high>{0,1}</accordion-high>
  <accordion-middle>{0,1}</accordion-middle>
  <accordion-low>{0,1}</accordion-low>
</accordion-registration>
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="accordion-registration" type="accordion-registration"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

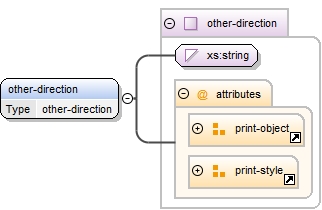

Element direction-type/other-direction
Namespace No namespace
Diagram
Diagram musicxml4.tmp#id138 musicxml6.tmp#id142 musicxml182.tmp#id480
Type other-direction
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
print-object yes-no optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:element name="other-direction" type="other-direction"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

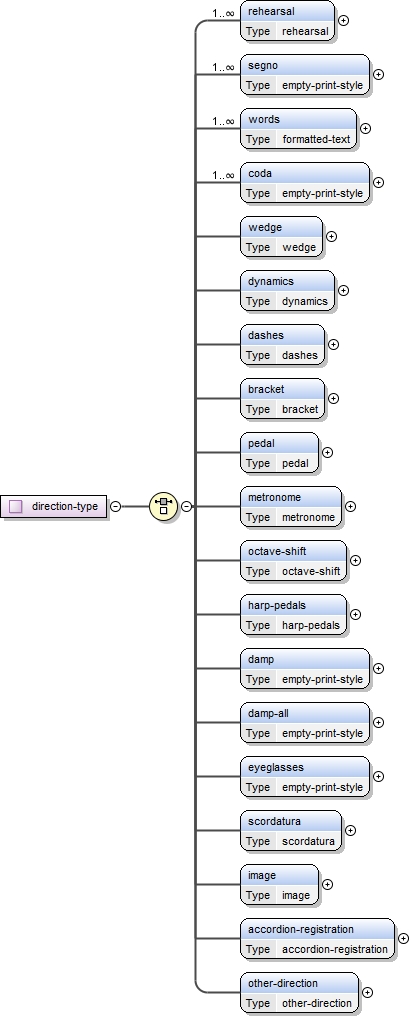

Complex Type direction-type
Namespace No namespace
Annotations

Textual direction types may have more than 1 component due to multiple fonts. The dynamics element may also be used in the notations element. Attribute groups related to print suggestions apply to the individual direction-type, not to the overall direction.
Diagram
Diagram musicxml194.tmp#id415 musicxml194.tmp#id418 musicxml194.tmp#id419 musicxml194.tmp#id420 musicxml194.tmp#id421 musicxml194.tmp#id426 musicxml194.tmp#id427 musicxml194.tmp#id428 musicxml194.tmp#id429 musicxml194.tmp#id433 musicxml194.tmp#id459 musicxml194.tmp#id464 musicxml194.tmp#id470 musicxml194.tmp#id471 musicxml194.tmp#id472 musicxml194.tmp#id473 musicxml194.tmp#id476 musicxml194.tmp#id478 musicxml194.tmp#id479
Used by
Model rehearsal+ | segno+ | words+ | coda+ | wedge | dynamics | dashes | bracket | pedal | metronome | octave-shift | harp-pedals | damp | damp-all | eyeglasses | scordatura | image | accordion-registration | other-direction
Children accordion-registration, bracket, coda, damp, damp-all, dashes, dynamics, eyeglasses, harp-pedals, image, metronome, octave-shift, other-direction, pedal, rehearsal, scordatura, segno, wedge, words
Source

<xs:complexType name="direction-type">
  <xs:annotation>
    <xs:documentation>Textual direction types may have more than 1 component due to multiple fonts. The dynamics element may also be used in the notations element. Attribute groups related to print suggestions apply to the individual direction-type, not to the overall direction.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="rehearsal" type="rehearsal" maxOccurs="unbounded"/>
    <xs:element name="segno" type="empty-print-style" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>The segno element is the visual indicator of a segno sign. A sound element is needed to guide playback applciations reliably.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="words" type="formatted-text" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>The words element specifies a standard text direction. Left justification is assumed if not specified. Language is Italian ("it") by default. Enclosure is none by default.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="coda" type="empty-print-style" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>The coda element is the visual indicator of a coda sign. A sound element is needed to guide playback applciations reliably.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="wedge" type="wedge"/>
    <xs:element name="dynamics" type="dynamics"/>
    <xs:element name="dashes" type="dashes"/>
    <xs:element name="bracket" type="bracket"/>
    <xs:element name="pedal" type="pedal"/>
    <xs:element name="metronome" type="metronome"/>
    <xs:element name="octave-shift" type="octave-shift"/>
    <xs:element name="harp-pedals" type="harp-pedals"/>
    <xs:element name="damp" type="empty-print-style">
      <xs:annotation>
        <xs:documentation>The damp element specifies a harp damping mark.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="damp-all" type="empty-print-style">
      <xs:annotation>
        <xs:documentation>The damp-all element specifies a harp damping mark for all strings.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eyeglasses" type="empty-print-style">
      <xs:annotation>
        <xs:documentation>The eyeglasses element specifies the eyegalsses symbol, common in commercial music.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="scordatura" type="scordatura"/>
    <xs:element name="image" type="image"/>
    <xs:element name="accordion-registration" type="accordion-registration"/>
    <xs:element name="other-direction" type="other-direction"/>
  </xs:choice>
</xs:complexType>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
XML Schema documentation generated by ® XML Editor.
