Element ornaments/trill-mark
Namespace No namespace
Annotations
The trill-mark element represents the trill-mark symbol.

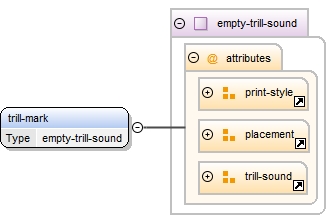

Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml66.tmp#id158 musicxml74.tmp#id233
Type empty-trill-sound
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
accelerate yes-no optional
beats non-negative-decimal optional
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
last-beat percent optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
second-beat percent optional
start-note start-note optional
trill-step trill-step optional
two-note-turn two-note-turn optional
Source
<xs:element name="trill-mark" type="empty-trill-sound">
  <xs:annotation>
    <xs:documentation>The trill-mark element represents the trill-mark symbol.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

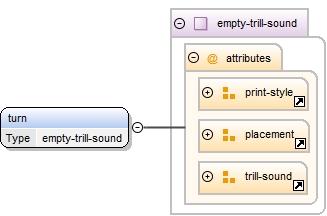

Element ornaments/turn
Namespace No namespace
Annotations
The turn element is the normal turn shape which goes up then down.
Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml66.tmp#id158 musicxml74.tmp#id233
Type empty-trill-sound
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
accelerate yes-no optional
beats non-negative-decimal optional
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
last-beat percent optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
second-beat percent optional
start-note start-note optional
trill-step trill-step optional
two-note-turn two-note-turn optional
Source
<xs:element name="turn" type="empty-trill-sound">
  <xs:annotation>
    <xs:documentation>The turn element is the normal turn shape which goes up then down.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element ornaments/delayed-turn
Namespace No namespace
Annotations
The delayed-turn element indicates a normal turn that is delayed until the end of the current note.

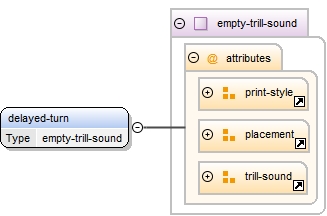

Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml66.tmp#id158 musicxml74.tmp#id233
Type empty-trill-sound
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
accelerate yes-no optional
beats non-negative-decimal optional
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
last-beat percent optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
second-beat percent optional
start-note start-note optional
trill-step trill-step optional
two-note-turn two-note-turn optional
Source
<xs:element name="delayed-turn" type="empty-trill-sound">
  <xs:annotation>
    <xs:documentation>The delayed-turn element indicates a normal turn that is delayed until the end of the current note.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element ornaments/inverted-turn
Namespace No namespace
Annotations
The inverted-turn element has the shape which goes down and then up.
Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml66.tmp#id158 musicxml74.tmp#id233
Type empty-trill-sound
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
accelerate yes-no optional
beats non-negative-decimal optional
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
last-beat percent optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
second-beat percent optional
start-note start-note optional
trill-step trill-step optional
two-note-turn two-note-turn optional
Source
<xs:element name="inverted-turn" type="empty-trill-sound">
  <xs:annotation>
    <xs:documentation>The inverted-turn element has the shape which goes down and then up.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element ornaments/shake
Namespace No namespace
Annotations
The shake element has a similar appearance to an inverted-mordent element.

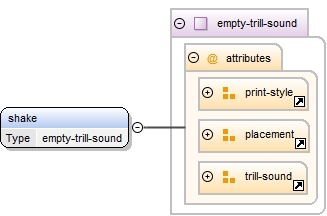

Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml66.tmp#id158 musicxml74.tmp#id233
Type empty-trill-sound
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
accelerate yes-no optional
beats non-negative-decimal optional
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
last-beat percent optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
second-beat percent optional
start-note start-note optional
trill-step trill-step optional
two-note-turn two-note-turn optional
Source
<xs:element name="shake" type="empty-trill-sound">
  <xs:annotation>
    <xs:documentation>The shake element has a similar appearance to an inverted-mordent element.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element ornaments/wavy-line
Namespace No namespace

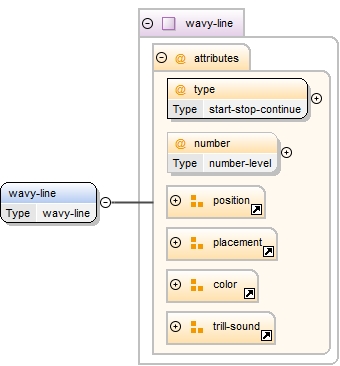

Diagram
Diagram musicxml65.tmp#id258 musicxml65.tmp#id259 musicxml31.tmp#id133 musicxml7.tmp#id131 musicxml2.tmp#id102 musicxml66.tmp#id158 musicxml65.tmp#id257
Type wavy-line
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
accelerate yes-no optional
beats non-negative-decimal optional
color color optional
default-x tenths optional
default-y tenths optional
last-beat percent optional
number number-level optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
second-beat percent optional
start-note start-note optional
trill-step trill-step optional
two-note-turn two-note-turn optional
type start-stop-continue required
Source
<xs:element name="wavy-line" type="wavy-line"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

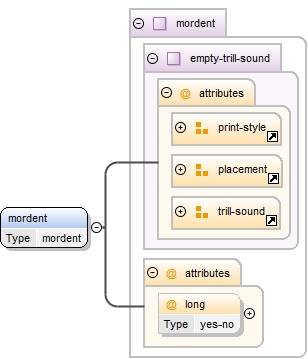

Element ornaments/mordent
Namespace No namespace
Annotations
The mordent element represents the sign with the vertical line. The long attribute is "no" by default.
Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml66.tmp#id158 musicxml74.tmp#id233 musicxml75.tmp#id718 musicxml75.tmp#id717
Type mordent
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
accelerate yes-no optional
beats non-negative-decimal optional
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
last-beat percent optional
long yes-no optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
second-beat percent optional
start-note start-note optional
trill-step trill-step optional
two-note-turn two-note-turn optional
Source
<xs:element name="mordent" type="mordent">
  <xs:annotation>
    <xs:documentation>The mordent element represents the sign with the vertical line. The long attribute is "no" by default.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element ornaments/inverted-mordent
Namespace No namespace
Annotations
The inverted-mordent element represents the sign without the vertical line. The long attribute is "no" by default.

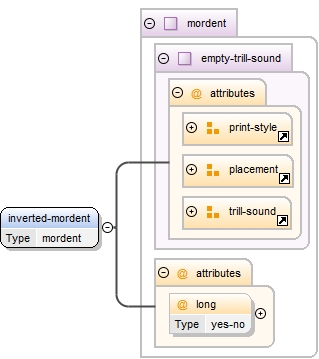

Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml66.tmp#id158 musicxml74.tmp#id233 musicxml75.tmp#id718 musicxml75.tmp#id717
Type mordent
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
accelerate yes-no optional
beats non-negative-decimal optional
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
last-beat percent optional
long yes-no optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
second-beat percent optional
start-note start-note optional
trill-step trill-step optional
two-note-turn two-note-turn optional
Source
<xs:element name="inverted-mordent" type="mordent">
  <xs:annotation>
    <xs:documentation>The inverted-mordent element represents the sign without the vertical line. The long attribute is "no" by default.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

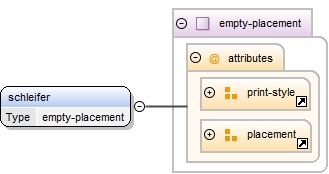

Element ornaments/schleifer
Namespace No namespace
Annotations
The name for this ornament is based on the German, to avoid confusion with the more common slide element defined earlier.
Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml23.tmp#id231
Type empty-placement
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
Source
<xs:element name="schleifer" type="empty-placement">
  <xs:annotation>
    <xs:documentation>The name for this ornament is based on the German, to avoid confusion with the more common slide element defined earlier.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element ornaments/tremolo
Namespace No namespace
Annotations
While using repeater beams was the original method for indicating tremolos, often playback and display are not well-enough integrated in an application to make that feasible. The tremolo ornament can be used to indicate either single-note or double-note tremolos.

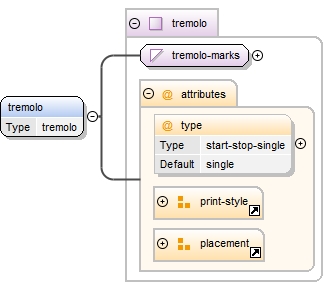

Diagram
Diagram musicxml63.tmp#id86 musicxml64.tmp#id765 musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml64.tmp#id764
Type tremolo
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
type start-stop-single single optional
Source
<xs:element name="tremolo" type="tremolo">
  <xs:annotation>
    <xs:documentation>While using repeater beams was the original method for indicating tremolos, often playback and display are not well-enough integrated in an application to make that feasible. The tremolo ornament can be used to indicate either single-note or double-note tremolos.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element ornaments/other-ornament
Namespace No namespace
Annotations
The other-ornament element is used to define any ornaments not yet in the MusicXML format. This allows extended representation, though without application interoperability.

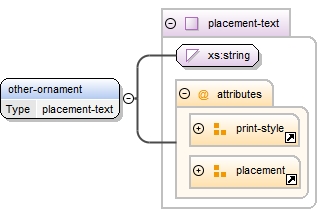

Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml62.tmp#id656
Type placement-text
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
Source
<xs:element name="other-ornament" type="placement-text">
  <xs:annotation>
    <xs:documentation>The other-ornament element is used to define any ornaments not yet in the MusicXML format. This allows extended representation, though without application interoperability.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

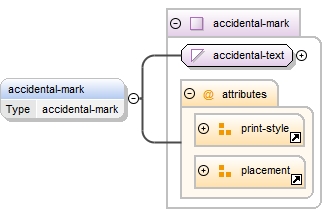

Element ornaments/accidental-mark
Namespace No namespace
Diagram
Diagram musicxml93.tmp#id75 musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml259.tmp#id632
Type accidental-mark
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
Source
<xs:element name="accidental-mark" type="accidental-mark" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

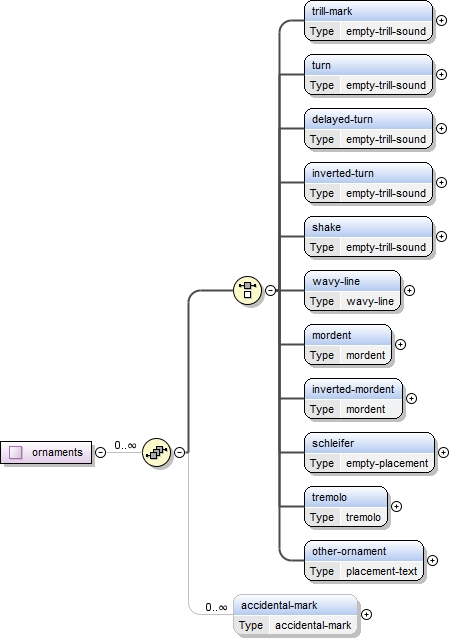

Complex Type ornaments
Namespace No namespace
Annotations
Ornaments can be any of several types, followed optionally by accidentals. The accidental-mark element's content is represented the same as an accidental element, but with a different name to reflect the different musical meaning.
Diagram
Diagram musicxml203.tmp#id754 musicxml203.tmp#id755 musicxml203.tmp#id756 musicxml203.tmp#id757 musicxml203.tmp#id758 musicxml203.tmp#id759 musicxml203.tmp#id760 musicxml203.tmp#id761 musicxml203.tmp#id762 musicxml203.tmp#id763 musicxml203.tmp#id766 musicxml203.tmp#id767
Used by
Model (trill-mark | turn | delayed-turn | inverted-turn | shake | wavy-line | mordent | inverted-mordent | schleifer | tremolo | other-ornament) , accidental-mark*
Children accidental-mark, delayed-turn, inverted-mordent, inverted-turn, mordent, other-ornament, schleifer, shake, tremolo, trill-mark, turn, wavy-line
Source
<xs:complexType name="ornaments">
  <xs:annotation>
    <xs:documentation>Ornaments can be any of several types, followed optionally by accidentals. The accidental-mark element's content is represented the same as an accidental element, but with a different name to reflect the different musical meaning.</xs:documentation>
  </xs:annotation>
  <xs:sequence minOccurs="0" maxOccurs="unbounded">
    <xs:choice>
      <xs:element name="trill-mark" type="empty-trill-sound">
        <xs:annotation>
          <xs:documentation>The trill-mark element represents the trill-mark symbol.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="turn" type="empty-trill-sound">
        <xs:annotation>
          <xs:documentation>The turn element is the normal turn shape which goes up then down.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="delayed-turn" type="empty-trill-sound">
        <xs:annotation>
          <xs:documentation>The delayed-turn element indicates a normal turn that is delayed until the end of the current note.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="inverted-turn" type="empty-trill-sound">
        <xs:annotation>
          <xs:documentation>The inverted-turn element has the shape which goes down and then up.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="shake" type="empty-trill-sound">
        <xs:annotation>
          <xs:documentation>The shake element has a similar appearance to an inverted-mordent element.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="wavy-line" type="wavy-line"/>
      <xs:element name="mordent" type="mordent">
        <xs:annotation>
          <xs:documentation>The mordent element represents the sign with the vertical line. The long attribute is "no" by default.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="inverted-mordent" type="mordent">
        <xs:annotation>
          <xs:documentation>The inverted-mordent element represents the sign without the vertical line. The long attribute is "no" by default.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="schleifer" type="empty-placement">
        <xs:annotation>
          <xs:documentation>The name for this ornament is based on the German, to avoid confusion with the more common slide element defined earlier.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="tremolo" type="tremolo">
        <xs:annotation>
          <xs:documentation>While using repeater beams was the original method for indicating tremolos, often playback and display are not well-enough integrated in an application to make that feasible. The tremolo ornament can be used to indicate either single-note or double-note tremolos.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="other-ornament" type="placement-text">
        <xs:annotation>
          <xs:documentation>The other-ornament element is used to define any ornaments not yet in the MusicXML format. This allows extended representation, though without application interoperability.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:choice>
    <xs:element name="accidental-mark" type="accidental-mark" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
