Complex Type mordent
Namespace No namespace
Annotations

The mordent type is used for both represents the mordent sign with the vertical line and the inverted-mordent sign without the line. The long attribute is "no" by default.

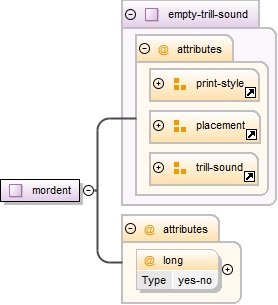

Diagram
Diagram musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml66.tmp#id158 musicxml74.tmp#id233 musicxml75.tmp#id718
Type extension of empty-trill-sound
Type hierarchy
Used by
Attributes
QName Type Fixed Default Use Annotation
accelerate yes-no optional
beats non-negative-decimal optional
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
last-beat percent optional
long yes-no optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
second-beat percent optional
start-note start-note optional
trill-step trill-step optional
two-note-turn two-note-turn optional
Source

<xs:complexType name="mordent">
  <xs:annotation>
    <xs:documentation>The mordent type is used for both represents the mordent sign with the vertical line and the inverted-mordent sign without the line. The long attribute is "no" by default.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="empty-trill-sound">
      <xs:attribute name="long" type="yes-no"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Attribute mordent/@long
Namespace No namespace
Type yes-no
Properties
content: simple
Facets
enumeration yes, no
Used by
Complex Type mordent
Source

<xs:attribute name="long" type="yes-no"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
