XML Schema Quick Assist Support

The Quick Assist support improves the development work flow, offering fast access to the most commonly used actions when you edit XML Schema documents.

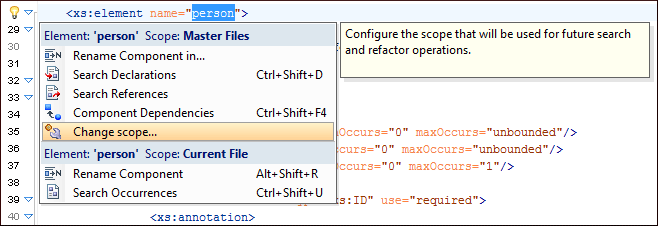

Quick Assist is activated automatically when the cursor is positioned over the name of a component. It is accessible via a yellow bulb help marker placed on the cursor line, in the editor line number stripe. Also, you can invoke the quick assist menu if you press Alt + 1 keys (Meta + Alt + 1 on Mac OS X) on your keyboard.

Quick Assist Support

The quick assist support offers direct access to the following actions:
Rename Component in...
Renames the component and all its dependencies.
Search Declarations
Searches the declaration of the component in a predefined scope. It is available only when the context represents a component name reference.
Search References
Searches all references of the component in a predefined scope.
Component Dependencies
Searches the component dependencies in a predefined scope.
Change Scope...
Configures the scope that will be used for future search or refactor operations.
Rename Component
Allows in-place editing of the current component. When you use in-place editing, the component and all its references in the document are decorated with a thin border. All the changes you make to the component at caret position are updated in real time to all component's occurrences. To exit in-place editing, press either the Esc or Enter key on your keyboard.
Search Occurrences
Searches all occurrences of the component within the current file.

To watch our video demonstration about improving schema development using the Quick Assist action set, go to http://oxygenxml.com/demo/Quick_Assist.html.
