MarkLogic Database Connections (Deprecated)

Oxygen XML Developer Enterprise edition includes support for MarkLogic database connections. Once you configure a MarkLogic connection, you can use the Data Source Explorer view to display all the application servers that are configured on the MarkLogic server. You can expand each application server and view all of its configured modules, and the Data Source Explorer view allows you to open and edit these modules.

Note:

To browse modules located in a database, directory properties must be associated with them. These directory properties are generated automatically if the directory creation property of the database is set to automatic. If this property is set to manual or manual-enforced, add the directory properties of the modules manually, using the XQuery function xdmp:directory-create(). For example, for two documents with the /code/modules/main.xqy and /code/modules/imports/import.xqy IDs, run the following query:

(xdmp:directory-create('/code/modules/'), xdmp:directory-create('/code/modules/imports/'))

For more information about directory properties, go to: http://blakeley.com/blogofile/2012/03/19/directory-assistance/.

MarkLogic and XQuery

MarkLogic connections can be used in conjunction with XQuery scripts to debug and solve problems with XQuery transformations. XQuery modules can also be validated using a MarkLogic server to allow to you to spot possible issues without the need of actually executing the XQuery script.

When debugging XQuery files with MarkLogic, you can use the Data Source Explorer view to open the files from the application server that is involved in the debugging process. By using the Data Source Explorer view, any imported modules are better identified by the MarkLogic server. You can also use step actions and breakpoints in the modules to help identify problems.

Modules Container

For each Application server (for example: Bill (HTTP port:8060)), you have access to the XQuery modules that are visible to that server. When editing, executing, or debugging XQuery it is recommended to open the XQuery files from this

Modules container.

Note:

You can also manage resources for a MarkLogic database through a WebDAV connection, although it is not recommended if you work with XQuery files since imported modules may not be resolved correctly.

Requests Container

Each MarkLogic application server includes a Requests container. In this container, Oxygen XML Developer displays both queries that are stopped for debugging purposes and queries that are still running. To clean up the entire Requests container at the end of your session, right-click it and use the Cancel all requests action.

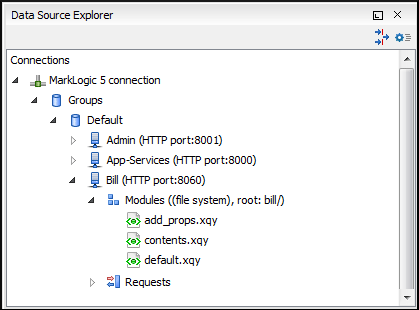

Figure 1. MarkLogic Connection in Data Source Explorer
