Web Author Mermaid Plugin
A free plugin is available to edit Mermaid diagrams and charts embedded in your XML documents. Mermaid renders Markdown-inspired text definitions for dynamically creating and modifying diagrams.
The rendering support is implemented as a custom form control with the
renderer class com.oxygenxml.webapp.mermaid.WebappMermaidRenderer.
By default, it is added on elements with
outputclass="mermaid-diagram" or
outputclass="embed-mermaid-diagram".
To add it on another element, you can add a CSS rule in your framework
that is similar to
this:
my-diagram-element {
visibility: -oxy-collapse-text;
content: oxy_editor(
webappRendererClassName, "com.oxygenxml.webapp.mermaid.WebappMermaidRenderer"
edit, "custom");

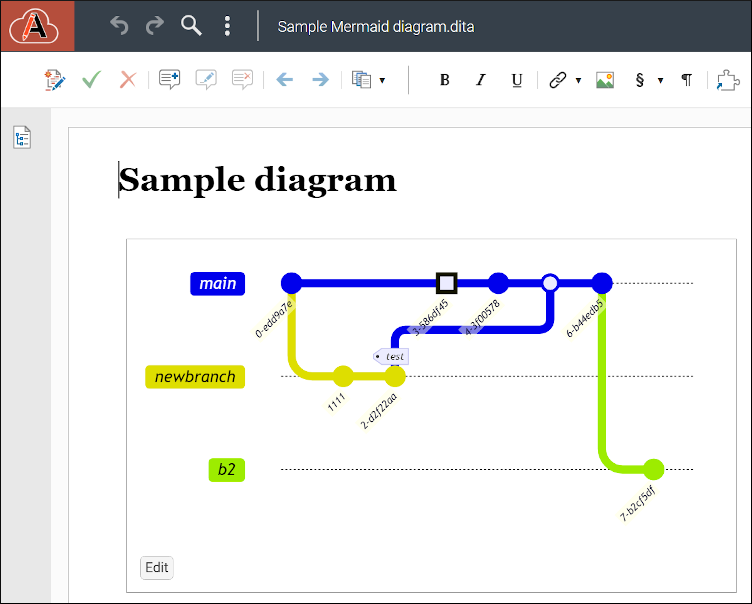

}To edit the diagram, the user needs to click the Edit button located in the bottom-left corner of the diagram.

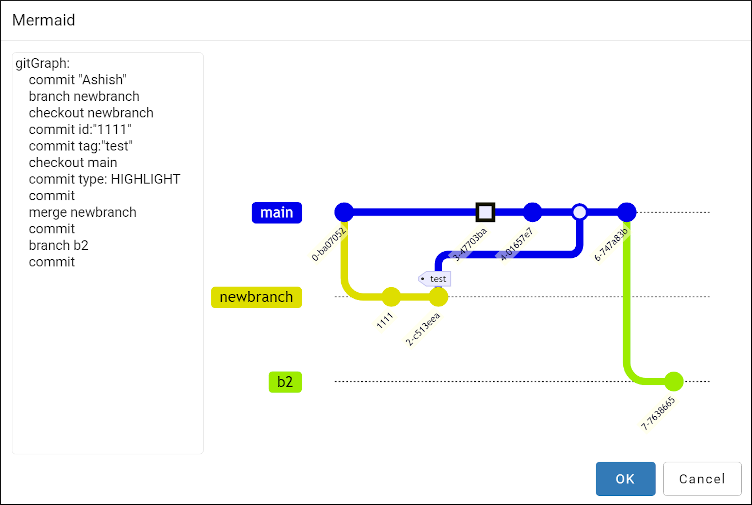

A pane is revealed in the left side of the diagram where you can make edits and the result will be reflected in the diagram preview simultaneously.
