Purpose - Define the transaction exchanges needed for delivery of Fault information for requesting and reporting faults; under the TransactionGroup - FLTS.Details - The "Fault Info Request" transaction allows a Retailer or service provider to request fault information about a premise or vicinity from an LNSP.The "Fault Outage Advice" transaction allows an LNSP to pass fault information to a Retailer or service provider in response to the "Fault Info Request" transaction.The "Fault Notification" transaction is to be used by an a Retailer to notify an LNSP of a fault where the FaultOutageAdvice was returned as "unknown", thus the Retailer has more information about a fault and must report it to the LNSP.
Timestamp indicating when the informant advised of the fault.
Diagram
Type
xsd:dateTime
Properties
content:
simple
Source
<xsd:element name="TimeOfCall" type="xsd:dateTime"><xsd:annotation><xsd:documentation>Timestamp indicating when the informant advised of the fault.</xsd:documentation></xsd:annotation></xsd:element>
Timestamp indicating when the fault first occurred.
Diagram
Type
xsd:dateTime
Properties
content:
simple
minOccurs:
0
Source
<xsd:element name="TimeOfOccurrence" type="xsd:dateTime" minOccurs="0"><xsd:annotation><xsd:documentation>Timestamp indicating when the fault first occurred.</xsd:documentation></xsd:annotation></xsd:element>
ACR tripped, Area street lights out, Car hit pole, Dim lights, Damage to u/ground pillar, Electric shock, Explosion reports,
Fuse down, Fire, Glow reports, High voltage injection, Hot water 16h boost, Intermittent supply, Insufficient hot water, Light/s
out found by patrol, Loss of supply - complete, Loss of supply - partial, Meter/timeswitch faulty, No hot water, Not listed,
Other, Pole Down, Pole Fire, Urgent Public Hazard Report , Urgent Public Hazard Report - fire, Planned Outage, Street lights
out, Sparks Reports, Tree Near Wire, Tree On Wire, TV Interference, Underground Cable, Unknown, Voltage complaints, Wires
down - pole to house, Wires down - pole to pole, Watchman Light Out, Wildlife report
Source
<xsd:element name="Symptom" maxOccurs="4"><xsd:annotation><xsd:documentation/></xsd:annotation><xsd:simpleType><xsd:restriction base="xsd:string"><xsd:enumeration value="ACR tripped"/><xsd:enumeration value="Area street lights out"/><xsd:enumeration value="Car hit pole"/><xsd:enumeration value="Dim lights"/><xsd:enumeration value="Damage to u/ground pillar"/><xsd:enumeration value="Electric shock"/><xsd:enumeration value="Explosion reports"/><xsd:enumeration value="Fuse down"/><xsd:enumeration value="Fire"/><xsd:enumeration value="Glow reports"/><xsd:enumeration value="High voltage injection"/><xsd:enumeration value="Hot water 16h boost"/><xsd:enumeration value="Intermittent supply"/><xsd:enumeration value="Insufficient hot water"/><xsd:enumeration value="Light/s out found by patrol"/><xsd:enumeration value="Loss of supply - complete"/><xsd:enumeration value="Loss of supply - partial"/><xsd:enumeration value="Meter/timeswitch faulty"/><xsd:enumeration value="No hot water"/><xsd:enumeration value="Not listed"/><xsd:enumeration value="Other"/><xsd:enumeration value="Pole Down"/><xsd:enumeration value="Pole Fire"/><xsd:enumeration value="Urgent Public Hazard Report "/><xsd:enumeration value="Urgent Public Hazard Report - fire"/><xsd:enumeration value="Planned Outage"/><xsd:enumeration value="Street lights out"/><xsd:enumeration value="Sparks Reports"/><xsd:enumeration value="Tree Near Wire"/><xsd:enumeration value="Tree On Wire"/><xsd:enumeration value="TV Interference"/><xsd:enumeration value="Underground Cable"/><xsd:enumeration value="Unknown"/><xsd:enumeration value="Voltage complaints"/><xsd:enumeration value="Wires down - pole to house"/><xsd:enumeration value="Wires down - pole to pole"/><xsd:enumeration value="Watchman Light Out"/><xsd:enumeration value="Wildlife report"/></xsd:restriction></xsd:simpleType></xsd:element>

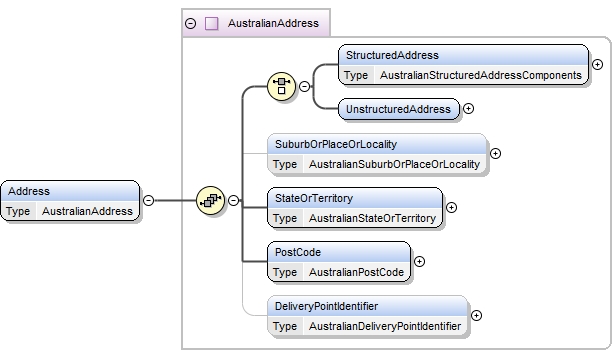

<xsd:element name="Address" type="AustralianAddress"><xsd:annotation><xsd:documentation>The actual address that the public lighting is opposite (in front of)</xsd:documentation></xsd:annotation></xsd:element>
Date by which the public lighting will (must) be fixed
Diagram
Type
xsd:date
Properties
content:
simple
Source
<xsd:element name="FixedByDate" type="xsd:date"><xsd:annotation><xsd:documentation>Date by which the public lighting will (must) be fixed</xsd:documentation></xsd:annotation></xsd:element>
Timestamp indicating the start of the fault as recognised by the LNSP.
Diagram
Type
xsd:dateTime
Properties
content:
simple
minOccurs:
0
Source
<xsd:element name="TimeOfOccurrence" type="xsd:dateTime" minOccurs="0"><xsd:annotation><xsd:documentation>Timestamp indicating the start of the fault as recognised by the LNSP.</xsd:documentation></xsd:annotation></xsd:element>
Animal or bird damage, Associated to work on a nearby outage, Associated with planned outage, Damage caused by tree, False
call, No access, No identified cause, OK on arrival, Pollution buildup, Problem in zone substation, Problem on customer's
property, Problem with overhead cable or equipment, Problem with underground cable, Problem with underground equipment, Reconnection
/ restoration, Storm damage, Third party damage
Application - To be used to request fault information when a retail customer has called with a faultTransactionExchange - Initial transaction from a Retailer or service provider to an LNSPTransactionGroup - FLTSPriority - HighPurpose - Used for requesting fault information about a premise or locationDetail -

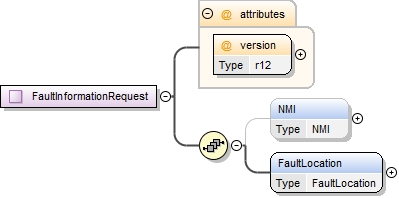

<xsd:complexType name="FaultInformationRequest"><xsd:annotation><xsd:documentation>Application - To be used to request fault information when a retail customer has called with a fault TransactionExchange - Initial transaction from a Retailer or service provider to an LNSP TransactionGroup - FLTS Priority - High Purpose - Used for requesting fault information about a premise or location Detail -</xsd:documentation></xsd:annotation><xsd:sequence><xsd:element name="NMI" type="NMI" minOccurs="0"/><xsd:element name="FaultLocation" type="FaultLocation"/></xsd:sequence><xsd:attribute name="version" type="r12" use="required"/></xsd:complexType>

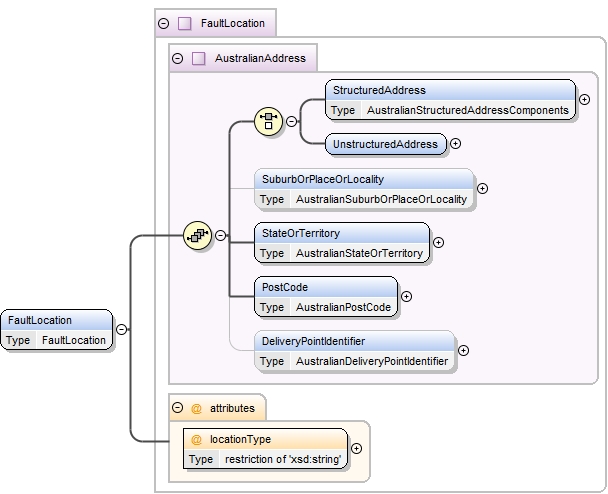

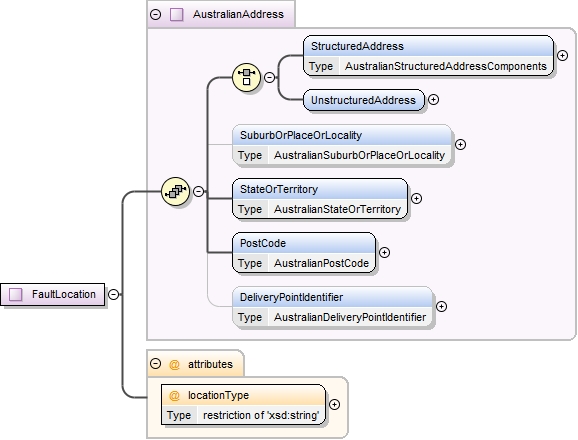

<xsd:complexType name="FaultLocation"><xsd:annotation><xsd:documentation>Location of the fault i.e. vicinty if not strcitly at a premise, otherwise premise</xsd:documentation></xsd:annotation><xsd:complexContent><xsd:extension base="AustralianAddress"><xsd:attribute name="locationType" use="required"><xsd:simpleType><xsd:restriction base="xsd:string"><xsd:enumeration value="Premise"/><xsd:enumeration value="Vicinity"/></xsd:restriction></xsd:simpleType></xsd:attribute></xsd:extension></xsd:complexContent></xsd:complexType>
Application - To be used by an a Retailer to notify an LNSP of a fault where the FaultOutageAdvice was returned as "unknown", thus the Retailer has more information about a fault and must report it to the LNSP.TransactionExchange - This tranaction would follow a FaultOutageAdvice if returned as unknown.TransactionGroup - FLTSPriority - HighPurpose - For a Retailer to notify an LNSP of a fault in the even that the Retailer has more information about the fault.Detail -

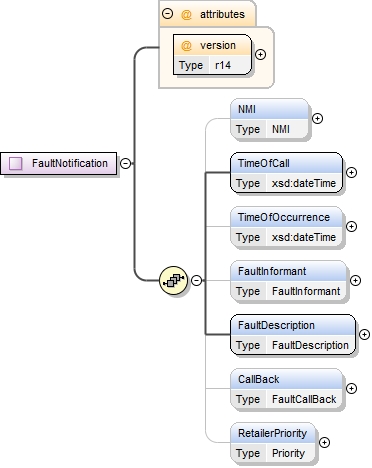

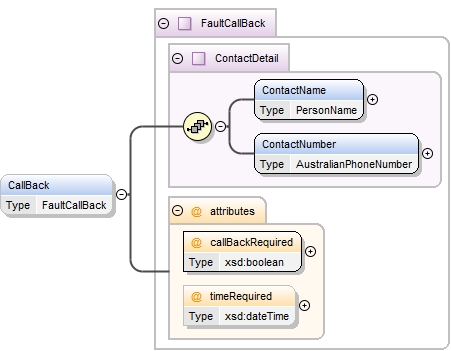

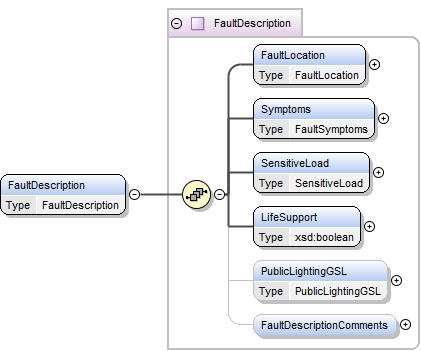

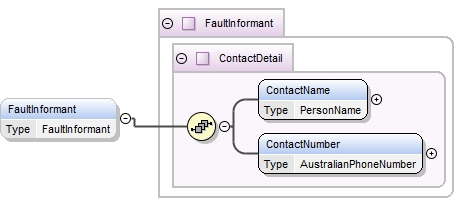

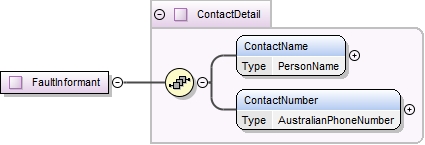

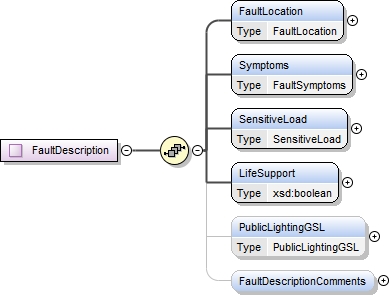

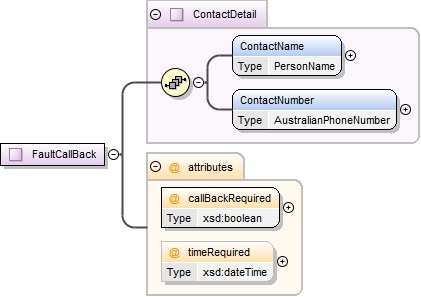

<xsd:complexType name="FaultNotification"><xsd:annotation><xsd:documentation>Application - To be used by an a Retailer to notify an LNSP of a fault where the FaultOutageAdvice was returned as "unknown", thus the Retailer has more information about a fault and must report it to the LNSP. TransactionExchange - This tranaction would follow a FaultOutageAdvice if returned as unknown. TransactionGroup - FLTS Priority - High Purpose - For a Retailer to notify an LNSP of a fault in the even that the Retailer has more information about the fault. Detail -</xsd:documentation></xsd:annotation><xsd:sequence><xsd:element name="NMI" type="NMI" minOccurs="0"/><xsd:element name="TimeOfCall" type="xsd:dateTime"><xsd:annotation><xsd:documentation>Timestamp indicating when the informant advised of the fault.</xsd:documentation></xsd:annotation></xsd:element><xsd:element name="TimeOfOccurrence" type="xsd:dateTime" minOccurs="0"><xsd:annotation><xsd:documentation>Timestamp indicating when the fault first occurred.</xsd:documentation></xsd:annotation></xsd:element><xsd:element name="FaultInformant" type="FaultInformant" minOccurs="0"/><xsd:element name="FaultDescription" type="FaultDescription"/><xsd:element name="CallBack" type="FaultCallBack" minOccurs="0"/><xsd:element name="RetailerPriority" type="Priority" minOccurs="0"/></xsd:sequence><xsd:attribute name="version" type="r14" use="required"/></xsd:complexType>

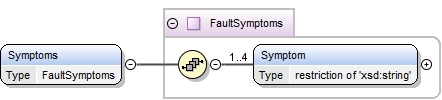

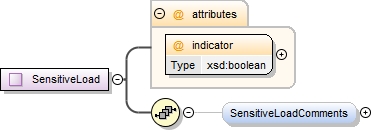

<xsd:complexType name="FaultSymptoms"><xsd:annotation><xsd:documentation>Symptom/s of the fault</xsd:documentation></xsd:annotation><xsd:sequence><xsd:element name="Symptom" maxOccurs="4"><xsd:annotation><xsd:documentation/></xsd:annotation><xsd:simpleType><xsd:restriction base="xsd:string"><xsd:enumeration value="ACR tripped"/><xsd:enumeration value="Area street lights out"/><xsd:enumeration value="Car hit pole"/><xsd:enumeration value="Dim lights"/><xsd:enumeration value="Damage to u/ground pillar"/><xsd:enumeration value="Electric shock"/><xsd:enumeration value="Explosion reports"/><xsd:enumeration value="Fuse down"/><xsd:enumeration value="Fire"/><xsd:enumeration value="Glow reports"/><xsd:enumeration value="High voltage injection"/><xsd:enumeration value="Hot water 16h boost"/><xsd:enumeration value="Intermittent supply"/><xsd:enumeration value="Insufficient hot water"/><xsd:enumeration value="Light/s out found by patrol"/><xsd:enumeration value="Loss of supply - complete"/><xsd:enumeration value="Loss of supply - partial"/><xsd:enumeration value="Meter/timeswitch faulty"/><xsd:enumeration value="No hot water"/><xsd:enumeration value="Not listed"/><xsd:enumeration value="Other"/><xsd:enumeration value="Pole Down"/><xsd:enumeration value="Pole Fire"/><xsd:enumeration value="Urgent Public Hazard Report "/><xsd:enumeration value="Urgent Public Hazard Report - fire"/><xsd:enumeration value="Planned Outage"/><xsd:enumeration value="Street lights out"/><xsd:enumeration value="Sparks Reports"/><xsd:enumeration value="Tree Near Wire"/><xsd:enumeration value="Tree On Wire"/><xsd:enumeration value="TV Interference"/><xsd:enumeration value="Underground Cable"/><xsd:enumeration value="Unknown"/><xsd:enumeration value="Voltage complaints"/><xsd:enumeration value="Wires down - pole to house"/><xsd:enumeration value="Wires down - pole to pole"/><xsd:enumeration value="Watchman Light Out"/><xsd:enumeration value="Wildlife report"/></xsd:restriction></xsd:simpleType></xsd:element></xsd:sequence></xsd:complexType>

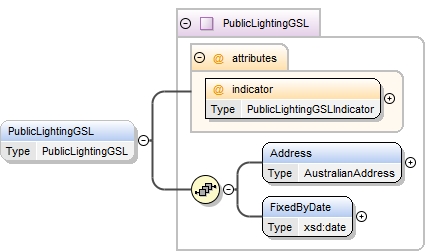

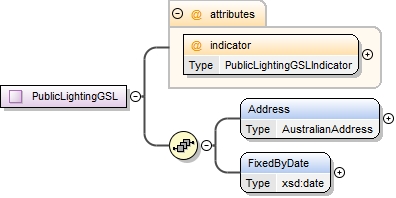

<xsd:complexType name="PublicLightingGSL"><xsd:annotation><xsd:documentation>Public lighting guaranteed service level type fault information</xsd:documentation></xsd:annotation><xsd:sequence><xsd:element name="Address" type="AustralianAddress"><xsd:annotation><xsd:documentation>The actual address that the public lighting is opposite (in front of)</xsd:documentation></xsd:annotation></xsd:element><xsd:element name="FixedByDate" type="xsd:date"><xsd:annotation><xsd:documentation>Date by which the public lighting will (must) be fixed</xsd:documentation></xsd:annotation></xsd:element></xsd:sequence><xsd:attribute name="indicator" type="PublicLightingGSLIndicator" use="required"/></xsd:complexType>
Application - To be used by an LNSP to pass fault information to a Retailer.TransactionExchange - The reponse transaction to a "FaultInfoRequest".TransactionGroup - FLTSPriority - HighPurpose -Detail -

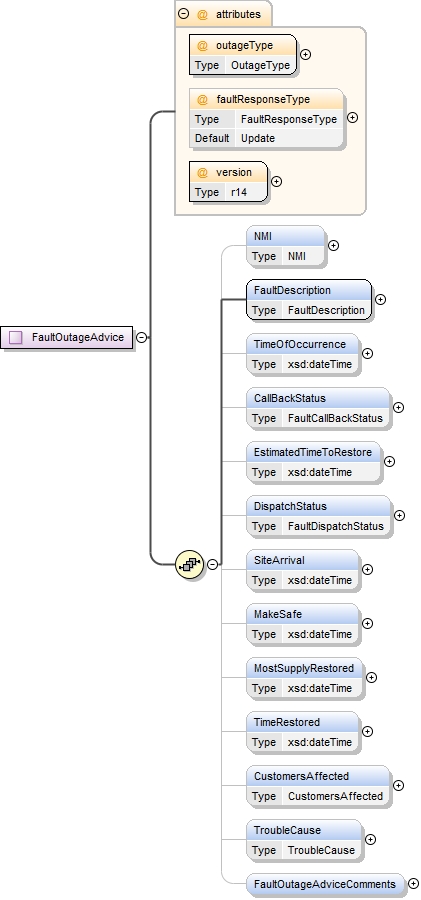

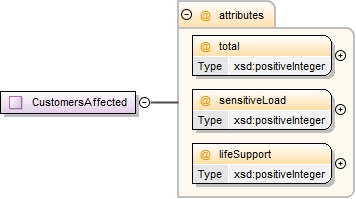

<xsd:complexType name="FaultOutageAdvice"><xsd:annotation><xsd:documentation>Application - To be used by an LNSP to pass fault information to a Retailer. TransactionExchange - The reponse transaction to a "FaultInfoRequest". TransactionGroup - FLTS Priority - High Purpose - Detail -</xsd:documentation></xsd:annotation><xsd:sequence><xsd:element name="NMI" type="NMI" minOccurs="0"/><xsd:element name="FaultDescription" type="FaultDescription"/><xsd:element name="TimeOfOccurrence" type="xsd:dateTime" minOccurs="0"><xsd:annotation><xsd:documentation>Timestamp indicating the start of the fault as recognised by the LNSP.</xsd:documentation></xsd:annotation></xsd:element><xsd:element name="CallBackStatus" type="FaultCallBackStatus" minOccurs="0"/><xsd:element name="EstimatedTimeToRestore" type="xsd:dateTime" minOccurs="0"><xsd:annotation><xsd:documentation/></xsd:annotation></xsd:element><xsd:element name="DispatchStatus" type="FaultDispatchStatus" minOccurs="0"><xsd:annotation><xsd:documentation/></xsd:annotation></xsd:element><xsd:element name="SiteArrival" type="xsd:dateTime" minOccurs="0"><xsd:annotation><xsd:documentation/></xsd:annotation></xsd:element><xsd:element name="MakeSafe" type="xsd:dateTime" minOccurs="0"><xsd:annotation><xsd:documentation/></xsd:annotation></xsd:element><xsd:element name="MostSupplyRestored" type="xsd:dateTime" minOccurs="0"><xsd:annotation><xsd:documentation/></xsd:annotation></xsd:element><xsd:element name="TimeRestored" type="xsd:dateTime" minOccurs="0"><xsd:annotation><xsd:documentation/></xsd:annotation></xsd:element><xsd:element name="CustomersAffected" type="CustomersAffected" minOccurs="0"/><xsd:element name="TroubleCause" type="TroubleCause" minOccurs="0"/><xsd:element name="FaultOutageAdviceComments" minOccurs="0"><xsd:complexType><xsd:sequence><xsd:element name="Line" type="CommentLine" maxOccurs="10"/></xsd:sequence></xsd:complexType></xsd:element></xsd:sequence><xsd:attribute name="outageType" type="OutageType" use="required"/><xsd:attribute name="faultResponseType" type="FaultResponseType" use="optional" default="Update"/><xsd:attribute name="version" type="r14" use="required"/></xsd:complexType>

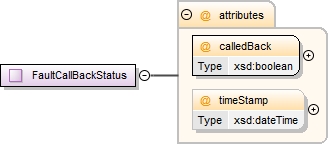

<xsd:complexType name="FaultCallBackStatus"><xsd:annotation><xsd:documentation>Status of the call back, ie has the person been contacted.</xsd:documentation></xsd:annotation><xsd:attribute name="calledBack" type="xsd:boolean" use="required"/><xsd:attribute name="timeStamp" type="xsd:dateTime" use="optional"/></xsd:complexType>

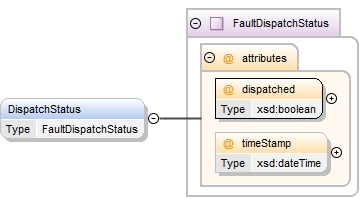

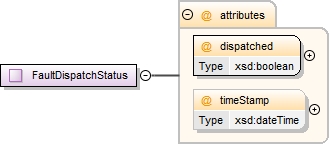

<xsd:complexType name="FaultDispatchStatus"><xsd:annotation><xsd:documentation>Indication if the fault has been dispatched or not</xsd:documentation></xsd:annotation><xsd:attribute name="dispatched" type="xsd:boolean" use="required"/><xsd:attribute name="timeStamp" type="xsd:dateTime" use="optional"/></xsd:complexType>

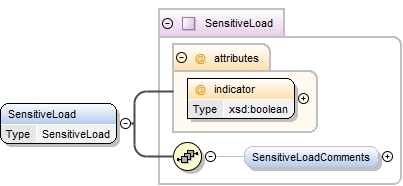

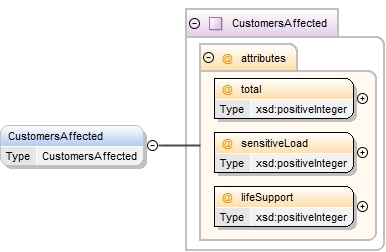

Animal or bird damage, Associated to work on a nearby outage, Associated with planned outage, Damage caused by tree, False
call, No access, No identified cause, OK on arrival, Pollution buildup, Problem in zone substation, Problem on customer's
property, Problem with overhead cable or equipment, Problem with underground cable, Problem with underground equipment, Reconnection
/ restoration, Storm damage, Third party damage
<xsd:simpleType name="TroubleCause"><xsd:annotation><xsd:documentation>Cause of the fault</xsd:documentation></xsd:annotation><xsd:restriction base="xsd:string"><xsd:enumeration value="Animal or bird damage"/><xsd:enumeration value="Associated to work on a nearby outage"/><xsd:enumeration value="Associated with planned outage"/><xsd:enumeration value="Damage caused by tree"/><xsd:enumeration value="False call"/><xsd:enumeration value="No access"/><xsd:enumeration value="No identified cause"/><xsd:enumeration value="OK on arrival"/><xsd:enumeration value="Pollution buildup"/><xsd:enumeration value="Problem in zone substation"/><xsd:enumeration value="Problem on customer's property"/><xsd:enumeration value="Problem with overhead cable or equipment"/><xsd:enumeration value="Problem with underground cable"/><xsd:enumeration value="Problem with underground equipment"/><xsd:enumeration value="Reconnection / restoration"/><xsd:enumeration value="Storm damage"/><xsd:enumeration value="Third party damage"/></xsd:restriction></xsd:simpleType>
<xsd:simpleType name="FaultResponseType"><xsd:annotation><xsd:documentation>The type of response provided by a Fault Advice</xsd:documentation></xsd:annotation><xsd:restriction base="xsd:string"><xsd:enumeration value="Unknown"/><xsd:enumeration value="Update"/><xsd:enumeration value="Completed"/><xsd:enumeration value="Close"/></xsd:restriction></xsd:simpleType>
