Included schema Transactions_r25.xsd
Namespace urn:aseXML:r25
Annotations

This schema file is part of the aseXML schema set, and is subject to the terms and conditions that are detailed in the aseXML_r*.xsd schema file with which this file is used

Purpose - Define the structure of transactions within aseXML
Detail - All transactions within aseXML are carried within a common Transaction element. This schema also defines the set of specific transactions that can appear within the Transaction element.
Properties
attribute form default: unqualified
element form default: unqualified
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transactions/Transaction
Namespace No namespace

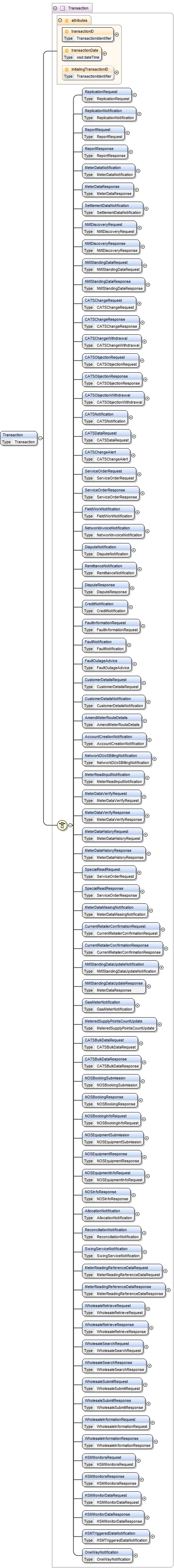

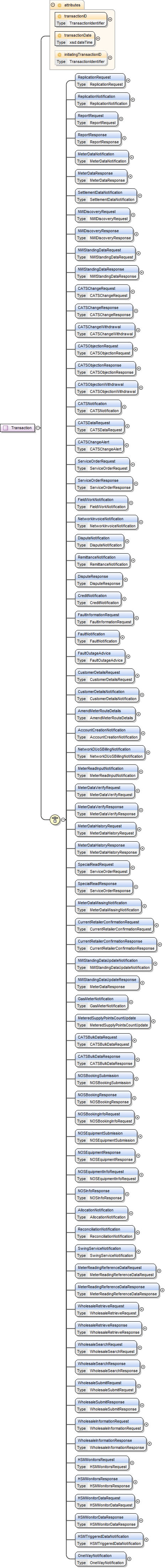

Diagram
Diagram asexml_r2513.tmp#id1306 asexml_r2513.tmp#id1308 asexml_r2513.tmp#id1309 asexml_r2513.tmp#id58 asexml_r2513.tmp#id72 asexml_r2513.tmp#id105 asexml_r2513.tmp#id113 asexml_r2513.tmp#id120 asexml_r2513.tmp#id144 asexml_r2513.tmp#id153 asexml_r2513.tmp#id159 asexml_r2513.tmp#id218 asexml_r2513.tmp#id230 asexml_r2513.tmp#id236 asexml_r2513.tmp#id241 asexml_r2513.tmp#id260 asexml_r2513.tmp#id265 asexml_r2513.tmp#id269 asexml_r2513.tmp#id277 asexml_r2513.tmp#id283 asexml_r2513.tmp#id290 asexml_r2513.tmp#id317 asexml_r2513.tmp#id326 asexml_r2513.tmp#id335 asexml_r2513.tmp#id432 asexml_r2513.tmp#id445 asexml_r2513.tmp#id453 asexml_r2513.tmp#id520 asexml_r2513.tmp#id545 asexml_r2513.tmp#id568 asexml_r2513.tmp#id590 asexml_r2513.tmp#id615 asexml_r2513.tmp#id623 asexml_r2513.tmp#id660 asexml_r2513.tmp#id692 asexml_r2513.tmp#id699 asexml_r2513.tmp#id720 asexml_r2513.tmp#id733 asexml_r2513.tmp#id737 asexml_r2513.tmp#id748 asexml_r2513.tmp#id752 asexml_r2513.tmp#id758 asexml_r2513.tmp#id762 asexml_r2513.tmp#id767 asexml_r2513.tmp#id773 asexml_r2513.tmp#id774 asexml_r2513.tmp#id775 asexml_r2513.tmp#id780 asexml_r2513.tmp#id784 asexml_r2513.tmp#id788 asexml_r2513.tmp#id793 asexml_r2513.tmp#id794 asexml_r2513.tmp#id870 asexml_r2513.tmp#id875 asexml_r2513.tmp#id886 asexml_r2513.tmp#id895 asexml_r2513.tmp#id969 asexml_r2513.tmp#id1003 asexml_r2513.tmp#id1013 asexml_r2513.tmp#id1027 asexml_r2513.tmp#id1036 asexml_r2513.tmp#id1043 asexml_r2513.tmp#id1110 asexml_r2513.tmp#id1193 asexml_r2513.tmp#id1205 asexml_r2513.tmp#id1219 asexml_r2513.tmp#id1223 asexml_r2513.tmp#id1229 asexml_r2513.tmp#id1235 asexml_r2513.tmp#id1241 asexml_r2513.tmp#id1246 asexml_r2513.tmp#id1252 asexml_r2513.tmp#id1257 asexml_r2513.tmp#id1263 asexml_r2513.tmp#id1268 asexml_r2513.tmp#id1274 asexml_r2513.tmp#id1280 asexml_r2513.tmp#id1286 asexml_r2513.tmp#id1291 asexml_r2513.tmp#id1297 asexml_r2513.tmp#id1302 asexml_r2513.tmp#id57
Type Transaction
Properties
content: complex
maxOccurs: unbounded
Model ReplicationRequest | ReplicationNotification | ReportRequest | ReportResponse | MeterDataNotification | MeterDataResponse | SettlementDataNotification | NMIDiscoveryRequest | NMIDiscoveryResponse | NMIStandingDataRequest | NMIStandingDataResponse | CATSChangeRequest | CATSChangeResponse | CATSChangeWithdrawal | CATSObjectionRequest | CATSObjectionResponse | CATSObjectionWithdrawal | CATSNotification | CATSDataRequest | CATSChangeAlert | ServiceOrderRequest | ServiceOrderResponse | FieldWorkNotification | NetworkInvoiceNotification | DisputeNotification | RemittanceNotification | DisputeResponse | CreditNotification | FaultInformationRequest | FaultNotification | FaultOutageAdvice | CustomerDetailsRequest | CustomerDetailsNotification | AmendMeterRouteDetails | AccountCreationNotification | NetworkDUoSBillingNotification | MeterReadInputNotification | MeterDataVerifyRequest | MeterDataVerifyResponse | MeterDataHistoryRequest | MeterDataHistoryResponse | SpecialReadRequest | SpecialReadResponse | MeterDataMissingNotification | CurrentRetailerConfirmationRequest | CurrentRetailerConfirmationResponse | NMIStandingDataUpdateNotification | NMIStandingDataUpdateResponse | GasMeterNotification | MeteredSupplyPointsCountUpdate | CATSBulkDataRequest | CATSBulkDataResponse | NOSBookingSubmission | NOSBookingResponse | NOSBookingInfoRequest | NOSEquipmentSubmission | NOSEquipmentResponse | NOSEquipmentInfoRequest | NOSInfoResponse | AllocationNotification | ReconciliationNotification | SwingServiceNotification | MeterReadingReferenceDataRequest | MeterReadingReferenceDataResponse | WholesaleRetrieveRequest | WholesaleRetrieveResponse | WholesaleSearchRequest | WholesaleSearchResponse | WholesaleSubmitRequest | WholesaleSubmitResponse | WholesaleInformationRequest | WholesaleInformationResponse | HSMMonitorsRequest | HSMMonitorsResponse | HSMMonitorDataRequest | HSMMonitorDataResponse | HSMTriggeredDataNotification | OneWayNotification
Children AccountCreationNotification, AllocationNotification, AmendMeterRouteDetails, CATSBulkDataRequest, CATSBulkDataResponse, CATSChangeAlert, CATSChangeRequest, CATSChangeResponse, CATSChangeWithdrawal, CATSDataRequest, CATSNotification, CATSObjectionRequest, CATSObjectionResponse, CATSObjectionWithdrawal, CreditNotification, CurrentRetailerConfirmationRequest, CurrentRetailerConfirmationResponse, CustomerDetailsNotification, CustomerDetailsRequest, DisputeNotification, DisputeResponse, FaultInformationRequest, FaultNotification, FaultOutageAdvice, FieldWorkNotification, GasMeterNotification, HSMMonitorDataRequest, HSMMonitorDataResponse, HSMMonitorsRequest, HSMMonitorsResponse, HSMTriggeredDataNotification, MeterDataHistoryRequest, MeterDataHistoryResponse, MeterDataMissingNotification, MeterDataNotification, MeterDataResponse, MeterDataVerifyRequest, MeterDataVerifyResponse, MeterReadInputNotification, MeterReadingReferenceDataRequest, MeterReadingReferenceDataResponse, MeteredSupplyPointsCountUpdate, NMIDiscoveryRequest, NMIDiscoveryResponse, NMIStandingDataRequest, NMIStandingDataResponse, NMIStandingDataUpdateNotification, NMIStandingDataUpdateResponse, NOSBookingInfoRequest, NOSBookingResponse, NOSBookingSubmission, NOSEquipmentInfoRequest, NOSEquipmentResponse, NOSEquipmentSubmission, NOSInfoResponse, NetworkDUoSBillingNotification, NetworkInvoiceNotification, OneWayNotification, ReconciliationNotification, RemittanceNotification, ReplicationNotification, ReplicationRequest, ReportRequest, ReportResponse, ServiceOrderRequest, ServiceOrderResponse, SettlementDataNotification, SpecialReadRequest, SpecialReadResponse, SwingServiceNotification, WholesaleInformationRequest, WholesaleInformationResponse, WholesaleRetrieveRequest, WholesaleRetrieveResponse, WholesaleSearchRequest, WholesaleSearchResponse, WholesaleSubmitRequest, WholesaleSubmitResponse
Instance

<Transaction initiatingTransactionID="" transactionDate="" transactionID="">
  <ReplicationRequest version="">{1,1}</ReplicationRequest>
  <ReplicationNotification version="">{1,1}</ReplicationNotification>
  <ReportRequest version="">{1,1}</ReportRequest>
  <ReportResponse version="">{1,1}</ReportResponse>
  <MeterDataNotification version="">{1,1}</MeterDataNotification>
  <MeterDataResponse version="">{1,1}</MeterDataResponse>
  <SettlementDataNotification version="">{1,1}</SettlementDataNotification>
  <NMIDiscoveryRequest version="">{1,1}</NMIDiscoveryRequest>
  <NMIDiscoveryResponse version="">{1,1}</NMIDiscoveryResponse>
  <NMIStandingDataRequest version="">{1,1}</NMIStandingDataRequest>
  <NMIStandingDataResponse version="">{1,1}</NMIStandingDataResponse>
  <CATSChangeRequest version="">{1,1}</CATSChangeRequest>
  <CATSChangeResponse version="">{1,1}</CATSChangeResponse>
  <CATSChangeWithdrawal version="">{1,1}</CATSChangeWithdrawal>
  <CATSObjectionRequest version="">{1,1}</CATSObjectionRequest>
  <CATSObjectionResponse version="">{1,1}</CATSObjectionResponse>
  <CATSObjectionWithdrawal version="">{1,1}</CATSObjectionWithdrawal>
  <CATSNotification version="">{1,1}</CATSNotification>

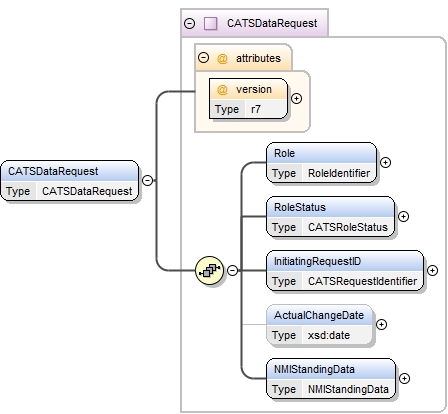

  <CATSDataRequest version="">{1,1}</CATSDataRequest>

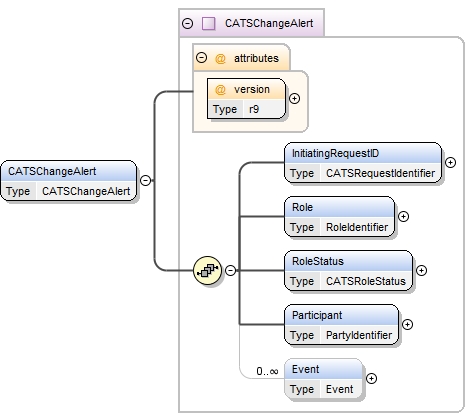

  <CATSChangeAlert version="">{1,1}</CATSChangeAlert>
  <ServiceOrderRequest actionType="New" version="">{1,1}</ServiceOrderRequest>
  <ServiceOrderResponse responseType="Closure" version="">{1,1}</ServiceOrderResponse>
  <FieldWorkNotification version="">{1,1}</FieldWorkNotification>
  <NetworkInvoiceNotification version="">{1,1}</NetworkInvoiceNotification>
  <DisputeNotification version="">{1,1}</DisputeNotification>
  <RemittanceNotification version="">{1,1}</RemittanceNotification>
  <DisputeResponse version="">{1,1}</DisputeResponse>
  <CreditNotification version="">{1,1}</CreditNotification>
  <FaultInformationRequest version="">{1,1}</FaultInformationRequest>

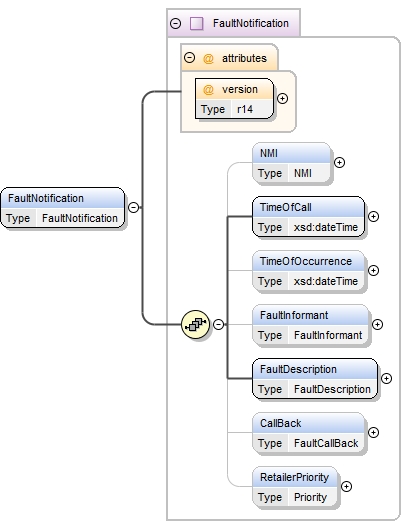

  <FaultNotification version="">{1,1}</FaultNotification>

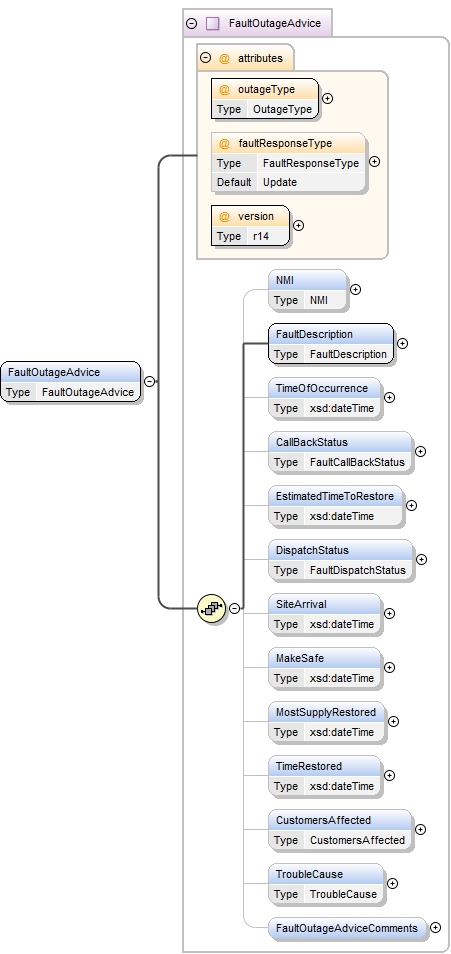

  <FaultOutageAdvice faultResponseType="Update" outageType="" version="">{1,1}</FaultOutageAdvice>
  <CustomerDetailsRequest version="">{1,1}</CustomerDetailsRequest>
  <CustomerDetailsNotification version="">{1,1}</CustomerDetailsNotification>

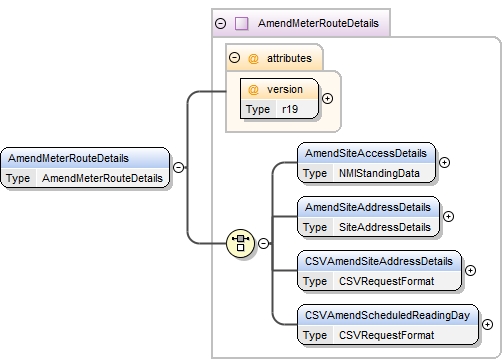

  <AmendMeterRouteDetails version="">{1,1}</AmendMeterRouteDetails>
  <AccountCreationNotification version="">{1,1}</AccountCreationNotification>
  <NetworkDUoSBillingNotification version="">{1,1}</NetworkDUoSBillingNotification>
  <MeterReadInputNotification version="">{1,1}</MeterReadInputNotification>

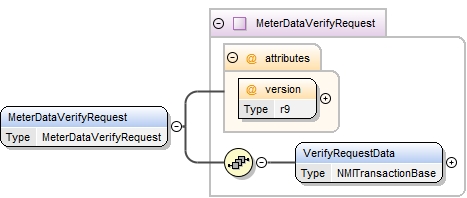

  <MeterDataVerifyRequest version="">{1,1}</MeterDataVerifyRequest>
  <MeterDataVerifyResponse version="">{1,1}</MeterDataVerifyResponse>

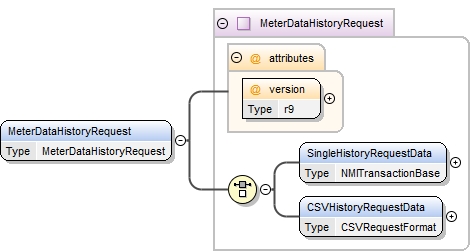

  <MeterDataHistoryRequest version="">{1,1}</MeterDataHistoryRequest>
  <MeterDataHistoryResponse version="">{1,1}</MeterDataHistoryResponse>
  <SpecialReadRequest actionType="New" version="">{1,1}</SpecialReadRequest>

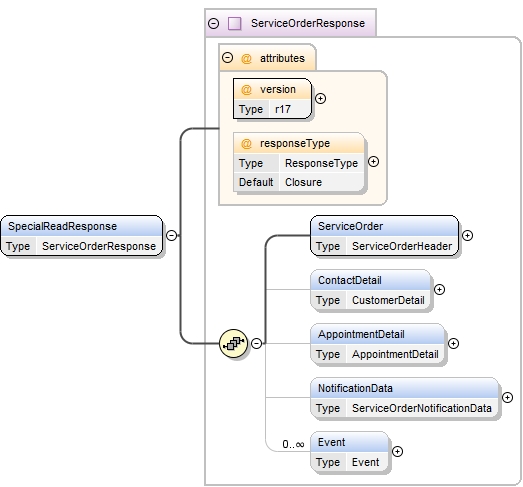

  <SpecialReadResponse responseType="Closure" version="">{1,1}</SpecialReadResponse>
  <MeterDataMissingNotification version="">{1,1}</MeterDataMissingNotification>

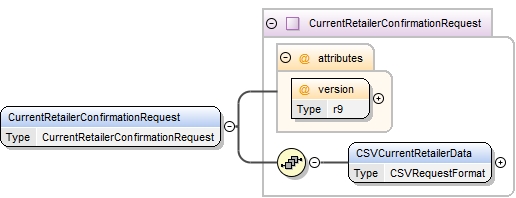

  <CurrentRetailerConfirmationRequest version="">{1,1}</CurrentRetailerConfirmationRequest>
  <CurrentRetailerConfirmationResponse version="">{1,1}</CurrentRetailerConfirmationResponse>
  <NMIStandingDataUpdateNotification version="">{1,1}</NMIStandingDataUpdateNotification>
  <NMIStandingDataUpdateResponse version="">{1,1}</NMIStandingDataUpdateResponse>
  <GasMeterNotification version="">{1,1}</GasMeterNotification>

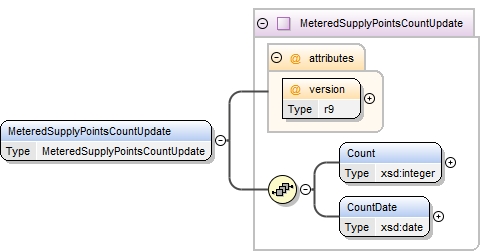

  <MeteredSupplyPointsCountUpdate version="">{1,1}</MeteredSupplyPointsCountUpdate>
  <CATSBulkDataRequest version="">{1,1}</CATSBulkDataRequest>
  <CATSBulkDataResponse version="">{1,1}</CATSBulkDataResponse>
  <NOSBookingSubmission version="">{1,1}</NOSBookingSubmission>
  <NOSBookingResponse version="">{1,1}</NOSBookingResponse>

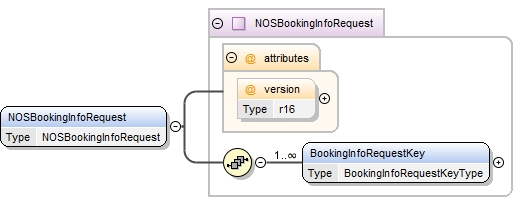

  <NOSBookingInfoRequest version="">{1,1}</NOSBookingInfoRequest>
  <NOSEquipmentSubmission subject="" version="">{1,1}</NOSEquipmentSubmission>
  <NOSEquipmentResponse version="">{1,1}</NOSEquipmentResponse>
  <NOSEquipmentInfoRequest version="">{1,1}</NOSEquipmentInfoRequest>
  <NOSInfoResponse InfoType="" version="">{1,1}</NOSInfoResponse>
  <AllocationNotification version="">{1,1}</AllocationNotification>
  <ReconciliationNotification version="">{1,1}</ReconciliationNotification>

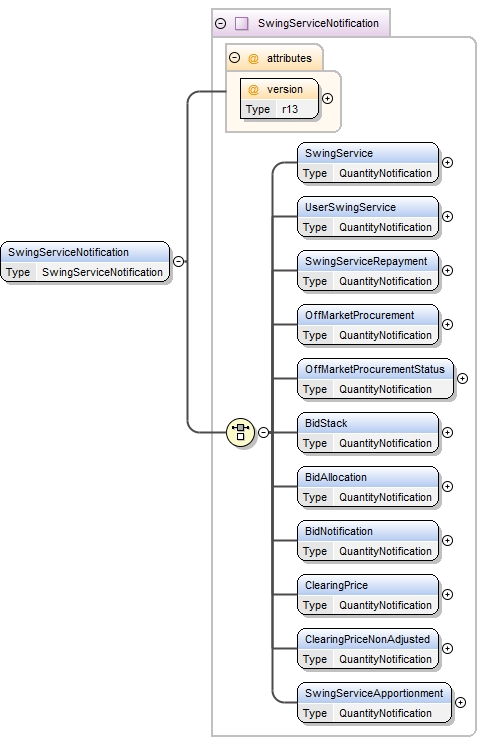

  <SwingServiceNotification version="">{1,1}</SwingServiceNotification>
  <MeterReadingReferenceDataRequest version="">{1,1}</MeterReadingReferenceDataRequest>
  <MeterReadingReferenceDataResponse version="">{1,1}</MeterReadingReferenceDataResponse>
  <WholesaleRetrieveRequest version="r20">{1,1}</WholesaleRetrieveRequest>
  <WholesaleRetrieveResponse version="r20">{1,1}</WholesaleRetrieveResponse>
  <WholesaleSearchRequest version="r20">{1,1}</WholesaleSearchRequest>
  <WholesaleSearchResponse version="r20">{1,1}</WholesaleSearchResponse>
  <WholesaleSubmitRequest version="r20">{1,1}</WholesaleSubmitRequest>
  <WholesaleSubmitResponse version="r20">{1,1}</WholesaleSubmitResponse>
  <WholesaleInformationRequest version="r20">{1,1}</WholesaleInformationRequest>
  <WholesaleInformationResponse version="r20">{1,1}</WholesaleInformationResponse>
  <HSMMonitorsRequest version="r21">{1,1}</HSMMonitorsRequest>

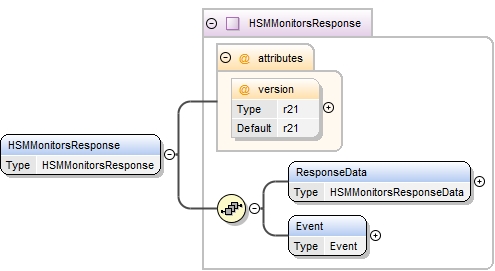

  <HSMMonitorsResponse version="r21">{1,1}</HSMMonitorsResponse>
  <HSMMonitorDataRequest version="r21">{1,1}</HSMMonitorDataRequest>
  <HSMMonitorDataResponse version="r21">{1,1}</HSMMonitorDataResponse>
  <HSMTriggeredDataNotification version="r21">{1,1}</HSMTriggeredDataNotification>
  <OneWayNotification version="">{1,1}</OneWayNotification>
</Transaction>
Attributes
QName Type Fixed Default Use Annotation
initiatingTransactionID TransactionIdentifier optional
transactionDate xsd:dateTime required
transactionID TransactionIdentifier required
Source

<xsd:element name="Transaction" type="Transaction" maxOccurs="unbounded"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

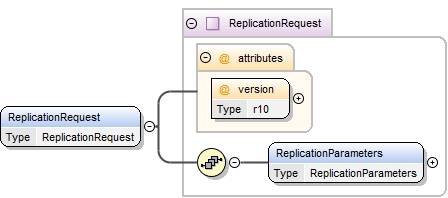

Element Transaction/ReplicationRequest
Namespace No namespace
Diagram
Diagram asexml_r251.tmp#id69 asexml_r251.tmp#id60 asexml_r251.tmp#id59
Type ReplicationRequest
Properties
content: complex
Model ReplicationParameters
Children ReplicationParameters
Instance

<ReplicationRequest version="">
  <ReplicationParameters>{1,1}</ReplicationParameters>
</ReplicationRequest>
Attributes
QName Type Fixed Default Use Annotation
version r10 required
Source

<xsd:element name="ReplicationRequest" type="ReplicationRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/ReplicationNotification
Namespace No namespace

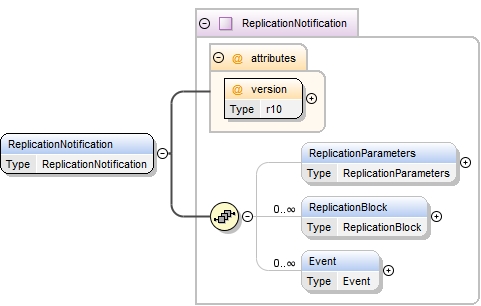

Diagram
Diagram asexml_r251.tmp#id104 asexml_r251.tmp#id74 asexml_r251.tmp#id75 asexml_r251.tmp#id86 asexml_r251.tmp#id73
Type ReplicationNotification
Properties
content: complex
Model ReplicationParameters{0,1} , ReplicationBlock* , Event*
Children Event, ReplicationBlock, ReplicationParameters
Instance

<ReplicationNotification version="">
  <ReplicationParameters>{0,1}</ReplicationParameters>
  <ReplicationBlock tableName="">{0,unbounded}</ReplicationBlock>
  <Event class="Application" severity="Fatal">{0,unbounded}</Event>
</ReplicationNotification>
Attributes
QName Type Fixed Default Use Annotation
version r10 required
Source

<xsd:element name="ReplicationNotification" type="ReplicationNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/ReportRequest
Namespace No namespace
Diagram

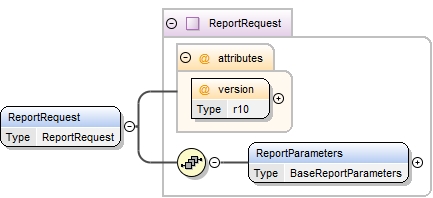

Diagram asexml_r2518.tmp#id112 asexml_r2518.tmp#id107 asexml_r2518.tmp#id106
Type ReportRequest
Properties
content: complex
Model ReportParameters
Children ReportParameters
Instance

<ReportRequest version="">
  <ReportParameters>{1,1}</ReportParameters>
</ReportRequest>
Attributes
QName Type Fixed Default Use Annotation
version r10 required
Source

<xsd:element name="ReportRequest" type="ReportRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

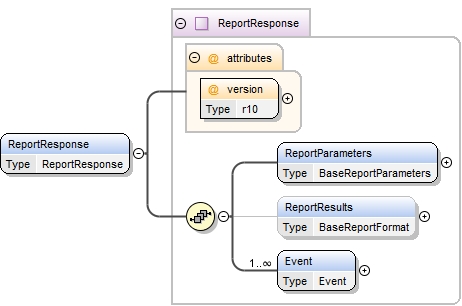

Element Transaction/ReportResponse
Namespace No namespace
Diagram
Diagram asexml_r2518.tmp#id119 asexml_r2518.tmp#id115 asexml_r2518.tmp#id116 asexml_r2518.tmp#id118 asexml_r2518.tmp#id114
Type ReportResponse
Properties
content: complex
Model ReportParameters , ReportResults{0,1} , Event+
Children Event, ReportParameters, ReportResults
Instance

<ReportResponse version="">
  <ReportParameters>{1,1}</ReportParameters>
  <ReportResults>{0,1}</ReportResults>
  <Event class="Application" severity="Fatal">{1,unbounded}</Event>
</ReportResponse>
Attributes
QName Type Fixed Default Use Annotation
version r10 required
Source

<xsd:element name="ReportResponse" type="ReportResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

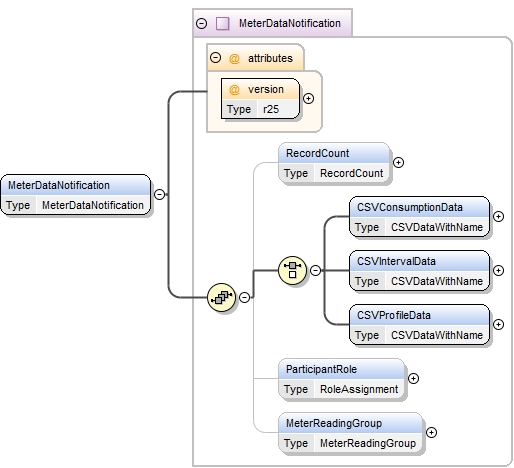

Element Transaction/MeterDataNotification
Namespace No namespace
Diagram
Diagram asexml_r2521.tmp#id142 asexml_r2521.tmp#id122 asexml_r2521.tmp#id124 asexml_r2521.tmp#id129 asexml_r2521.tmp#id130 asexml_r2521.tmp#id131 asexml_r2521.tmp#id136 asexml_r2521.tmp#id121
Type MeterDataNotification
Properties
content: complex
Model RecordCount{0,1} , (CSVConsumptionData | CSVIntervalData | CSVProfileData) , ParticipantRole{0,1} , MeterReadingGroup{0,1}
Children CSVConsumptionData, CSVIntervalData, CSVProfileData, MeterReadingGroup, ParticipantRole, RecordCount
Instance

<MeterDataNotification version="">
  <RecordCount>{0,1}</RecordCount>
  <ParticipantRole>{0,1}</ParticipantRole>
  <MeterReadingGroup context="">{0,1}</MeterReadingGroup>
</MeterDataNotification>
Attributes
QName Type Fixed Default Use Annotation
version r25 required
Source

<xsd:element name="MeterDataNotification" type="MeterDataNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/MeterDataResponse
Namespace No namespace
Diagram

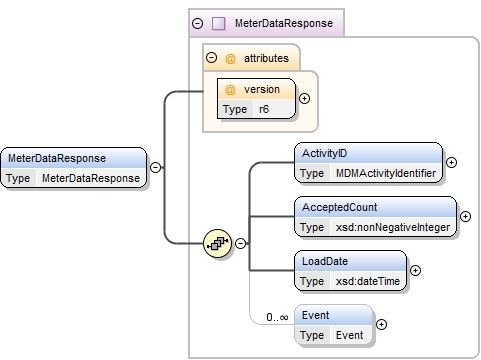

Diagram asexml_r2521.tmp#id151 asexml_r2521.tmp#id146 asexml_r2521.tmp#id148 asexml_r2521.tmp#id149 asexml_r2521.tmp#id150 asexml_r2521.tmp#id145
Type MeterDataResponse
Properties
content: complex
Model ActivityID , AcceptedCount , LoadDate , Event*
Children AcceptedCount, ActivityID, Event, LoadDate
Instance

<MeterDataResponse version="">
  <ActivityID>{1,1}</ActivityID>
  <AcceptedCount>{1,1}</AcceptedCount>
  <LoadDate>{1,1}</LoadDate>
  <Event class="Application" severity="Fatal">{0,unbounded}</Event>
</MeterDataResponse>
Attributes
QName Type Fixed Default Use Annotation
version r6 required
Source

<xsd:element name="MeterDataResponse" type="MeterDataResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/SettlementDataNotification
Namespace No namespace
Diagram
Diagram asexml_r2521.tmp#id157 asexml_r2521.tmp#id155 asexml_r2521.tmp#id156 asexml_r2521.tmp#id154
Type SettlementDataNotification
Properties
content: complex
Model CSVAggregatedSettlementData | CSVNonAggregatedSettlementData
Children CSVAggregatedSettlementData, CSVNonAggregatedSettlementData
Instance

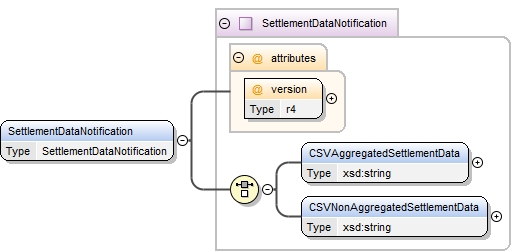

<SettlementDataNotification version="">
  <CSVAggregatedSettlementData>{1,1}</CSVAggregatedSettlementData>
  <CSVNonAggregatedSettlementData>{1,1}</CSVNonAggregatedSettlementData>
</SettlementDataNotification>
Attributes
QName Type Fixed Default Use Annotation
version r4 required
Source

<xsd:element name="SettlementDataNotification" type="SettlementDataNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NMIDiscoveryRequest
Namespace No namespace

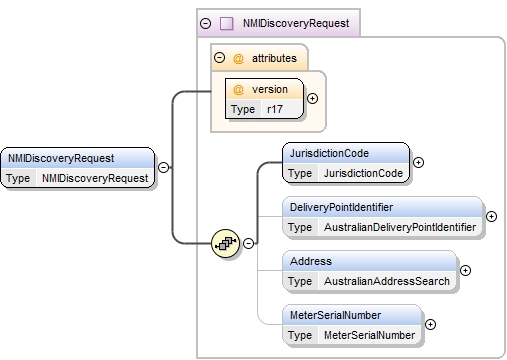

Diagram
Diagram asexml_r2530.tmp#id216 asexml_r2530.tmp#id161 asexml_r2530.tmp#id163 asexml_r2530.tmp#id165 asexml_r2530.tmp#id214 asexml_r2530.tmp#id160
Type NMIDiscoveryRequest
Properties
content: complex
Model JurisdictionCode , DeliveryPointIdentifier{0,1} , Address{0,1} , MeterSerialNumber{0,1}
Children Address, DeliveryPointIdentifier, JurisdictionCode, MeterSerialNumber
Instance

<NMIDiscoveryRequest version="">
  <JurisdictionCode>{1,1}</JurisdictionCode>
  <DeliveryPointIdentifier>{0,1}</DeliveryPointIdentifier>
  <Address>{0,1}</Address>
  <MeterSerialNumber>{0,1}</MeterSerialNumber>
</NMIDiscoveryRequest>
Attributes
QName Type Fixed Default Use Annotation
version r17 required
Source

<xsd:element name="NMIDiscoveryRequest" type="NMIDiscoveryRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

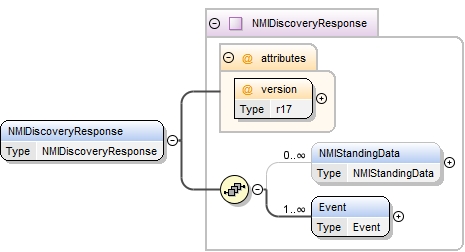

Element Transaction/NMIDiscoveryResponse
Namespace No namespace
Diagram
Diagram asexml_r2530.tmp#id229 asexml_r2530.tmp#id220 asexml_r2530.tmp#id228 asexml_r2530.tmp#id219
Type NMIDiscoveryResponse
Properties
content: complex
Model NMIStandingData* , Event+
Children Event, NMIStandingData
Instance

<NMIDiscoveryResponse version="">
  <NMIStandingData effectiveDateTime="">{0,unbounded}</NMIStandingData>
  <Event class="Application" severity="Fatal">{1,unbounded}</Event>
</NMIDiscoveryResponse>
Attributes
QName Type Fixed Default Use Annotation
version r17 required
Source

<xsd:element name="NMIDiscoveryResponse" type="NMIDiscoveryResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

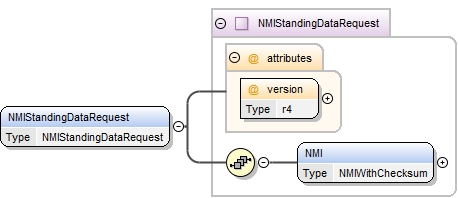

Element Transaction/NMIStandingDataRequest
Namespace No namespace
Diagram
Diagram asexml_r2530.tmp#id235 asexml_r2530.tmp#id232 asexml_r2530.tmp#id231
Type NMIStandingDataRequest
Properties
content: complex
Model NMI
Children NMI
Instance

<NMIStandingDataRequest version="">
  <NMI checksum="">{1,1}</NMI>
</NMIStandingDataRequest>
Attributes
QName Type Fixed Default Use Annotation
version r4 required
Source

<xsd:element name="NMIStandingDataRequest" type="NMIStandingDataRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

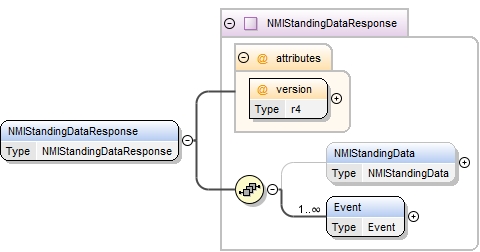

Element Transaction/NMIStandingDataResponse
Namespace No namespace
Diagram
Diagram asexml_r2530.tmp#id240 asexml_r2530.tmp#id238 asexml_r2530.tmp#id239 asexml_r2530.tmp#id237
Type NMIStandingDataResponse
Properties
content: complex
Model NMIStandingData{0,1} , Event+
Children Event, NMIStandingData
Instance

<NMIStandingDataResponse version="">
  <NMIStandingData effectiveDateTime="">{0,1}</NMIStandingData>
  <Event class="Application" severity="Fatal">{1,unbounded}</Event>
</NMIStandingDataResponse>
Attributes
QName Type Fixed Default Use Annotation
version r4 required
Source

<xsd:element name="NMIStandingDataResponse" type="NMIStandingDataResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

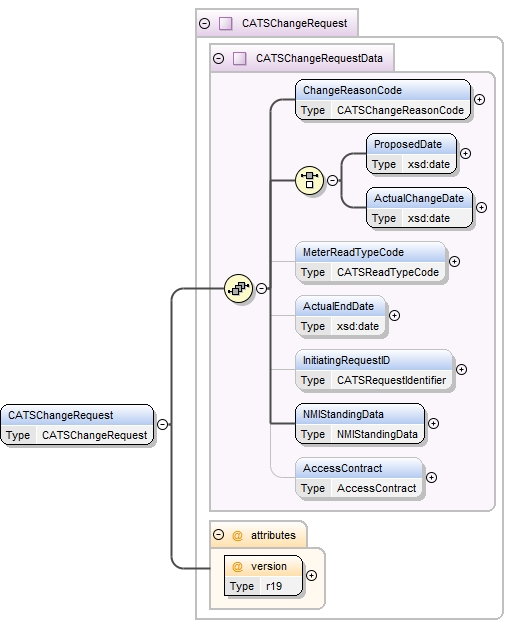

Element Transaction/CATSChangeRequest
Namespace No namespace
Diagram
Diagram asexml_r2514.tmp#id244 asexml_r2514.tmp#id246 asexml_r2514.tmp#id247 asexml_r2514.tmp#id248 asexml_r2514.tmp#id250 asexml_r2514.tmp#id251 asexml_r2514.tmp#id253 asexml_r2514.tmp#id254 asexml_r2514.tmp#id243 asexml_r2514.tmp#id258 asexml_r2514.tmp#id242
Type CATSChangeRequest
Type hierarchy
Properties
content: complex
Model ChangeReasonCode , (ProposedDate | ActualChangeDate) , MeterReadTypeCode{0,1} , ActualEndDate{0,1} , InitiatingRequestID{0,1} , NMIStandingData , AccessContract{0,1}
Children AccessContract, ActualChangeDate, ActualEndDate, ChangeReasonCode, InitiatingRequestID, MeterReadTypeCode, NMIStandingData, ProposedDate
Instance

<CATSChangeRequest version="">
  <ChangeReasonCode>{1,1}</ChangeReasonCode>
  <MeterReadTypeCode>{0,1}</MeterReadTypeCode>
  <ActualEndDate>{0,1}</ActualEndDate>
  <InitiatingRequestID>{0,1}</InitiatingRequestID>
  <NMIStandingData effectiveDateTime="">{1,1}</NMIStandingData>
  <AccessContract>{0,1}</AccessContract>
</CATSChangeRequest>
Attributes
QName Type Fixed Default Use Annotation
version r19 required
Source

<xsd:element name="CATSChangeRequest" type="CATSChangeRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

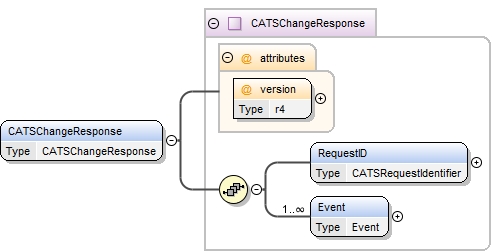

Element Transaction/CATSChangeResponse
Namespace No namespace
Diagram
Diagram asexml_r2514.tmp#id264 asexml_r2514.tmp#id262 asexml_r2514.tmp#id263 asexml_r2514.tmp#id261
Type CATSChangeResponse
Properties
content: complex
Model RequestID , Event+
Children Event, RequestID
Instance

<CATSChangeResponse version="">
  <RequestID>{1,1}</RequestID>
  <Event class="Application" severity="Fatal">{1,unbounded}</Event>
</CATSChangeResponse>
Attributes
QName Type Fixed Default Use Annotation
version r4 required
Source

<xsd:element name="CATSChangeResponse" type="CATSChangeResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

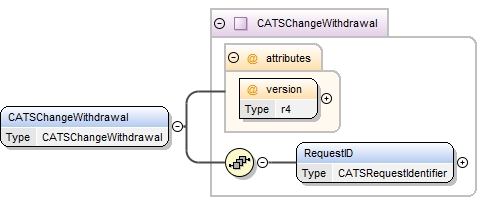

Element Transaction/CATSChangeWithdrawal
Namespace No namespace
Diagram
Diagram asexml_r2514.tmp#id268 asexml_r2514.tmp#id267 asexml_r2514.tmp#id266
Type CATSChangeWithdrawal
Properties
content: complex
Model RequestID
Children RequestID
Instance

<CATSChangeWithdrawal version="">
  <RequestID>{1,1}</RequestID>
</CATSChangeWithdrawal>
Attributes
QName Type Fixed Default Use Annotation
version r4 required
Source

<xsd:element name="CATSChangeWithdrawal" type="CATSChangeWithdrawal"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

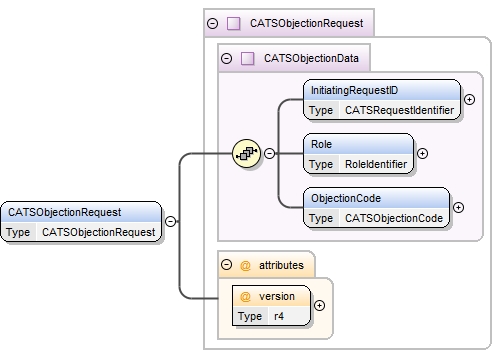

Element Transaction/CATSObjectionRequest
Namespace No namespace
Diagram
Diagram asexml_r2514.tmp#id272 asexml_r2514.tmp#id273 asexml_r2514.tmp#id274 asexml_r2514.tmp#id271 asexml_r2514.tmp#id276 asexml_r2514.tmp#id270
Type CATSObjectionRequest
Type hierarchy
Properties
content: complex
Model InitiatingRequestID , Role , ObjectionCode
Children InitiatingRequestID, ObjectionCode, Role
Instance

<CATSObjectionRequest version="">
  <InitiatingRequestID>{1,1}</InitiatingRequestID>
  <Role>{1,1}</Role>
  <ObjectionCode>{1,1}</ObjectionCode>
</CATSObjectionRequest>
Attributes
QName Type Fixed Default Use Annotation
version r4 required
Source

<xsd:element name="CATSObjectionRequest" type="CATSObjectionRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

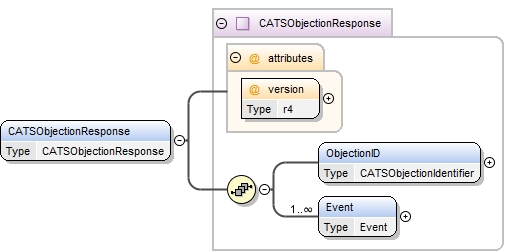

Element Transaction/CATSObjectionResponse
Namespace No namespace
Diagram
Diagram asexml_r2514.tmp#id282 asexml_r2514.tmp#id279 asexml_r2514.tmp#id281 asexml_r2514.tmp#id278
Type CATSObjectionResponse
Properties
content: complex
Model ObjectionID , Event+
Children Event, ObjectionID
Instance

<CATSObjectionResponse version="">
  <ObjectionID>{1,1}</ObjectionID>
  <Event class="Application" severity="Fatal">{1,unbounded}</Event>
</CATSObjectionResponse>
Attributes
QName Type Fixed Default Use Annotation
version r4 required
Source

<xsd:element name="CATSObjectionResponse" type="CATSObjectionResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

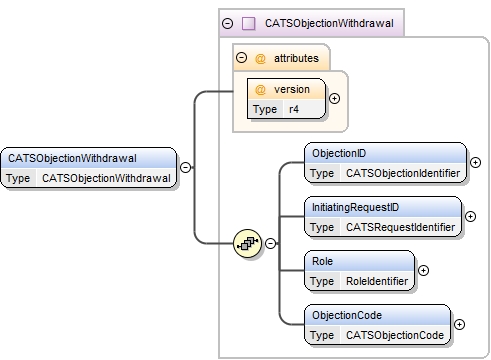

Element Transaction/CATSObjectionWithdrawal
Namespace No namespace
Diagram
Diagram asexml_r2514.tmp#id289 asexml_r2514.tmp#id285 asexml_r2514.tmp#id286 asexml_r2514.tmp#id287 asexml_r2514.tmp#id288 asexml_r2514.tmp#id284
Type CATSObjectionWithdrawal
Properties
content: complex
Model ObjectionID , InitiatingRequestID , Role , ObjectionCode
Children InitiatingRequestID, ObjectionCode, ObjectionID, Role
Instance

<CATSObjectionWithdrawal version="">
  <ObjectionID>{1,1}</ObjectionID>
  <InitiatingRequestID>{1,1}</InitiatingRequestID>
  <Role>{1,1}</Role>
  <ObjectionCode>{1,1}</ObjectionCode>
</CATSObjectionWithdrawal>
Attributes
QName Type Fixed Default Use Annotation
version r4 required
Source

<xsd:element name="CATSObjectionWithdrawal" type="CATSObjectionWithdrawal"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

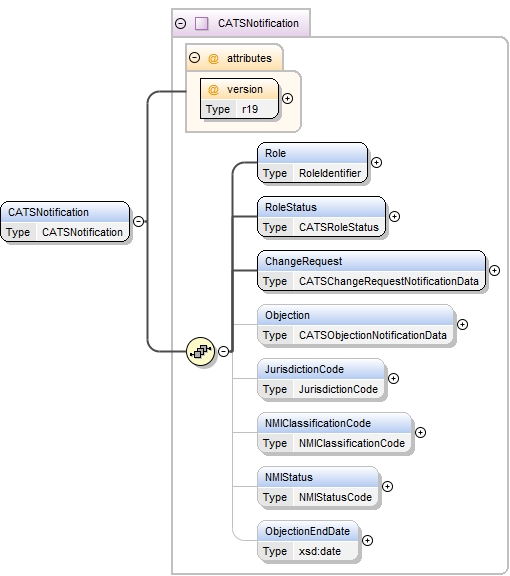

Element Transaction/CATSNotification
Namespace No namespace
Diagram
Diagram asexml_r2514.tmp#id316 asexml_r2514.tmp#id292 asexml_r2514.tmp#id293 asexml_r2514.tmp#id295 asexml_r2514.tmp#id302 asexml_r2514.tmp#id310 asexml_r2514.tmp#id311 asexml_r2514.tmp#id313 asexml_r2514.tmp#id315 asexml_r2514.tmp#id291
Type CATSNotification
Properties
content: complex
Model Role , RoleStatus , ChangeRequest , Objection{0,1} , JurisdictionCode{0,1} , NMIClassificationCode{0,1} , NMIStatus{0,1} , ObjectionEndDate{0,1}
Children ChangeRequest, JurisdictionCode, NMIClassificationCode, NMIStatus, Objection, ObjectionEndDate, Role, RoleStatus
Instance

<CATSNotification version="">
  <Role>{1,1}</Role>
  <RoleStatus>{1,1}</RoleStatus>
  <ChangeRequest>{1,1}</ChangeRequest>
  <Objection>{0,1}</Objection>
  <JurisdictionCode>{0,1}</JurisdictionCode>
  <NMIClassificationCode>{0,1}</NMIClassificationCode>
  <NMIStatus>{0,1}</NMIStatus>
  <ObjectionEndDate>{0,1}</ObjectionEndDate>
</CATSNotification>
Attributes
QName Type Fixed Default Use Annotation
version r19 required
Source

<xsd:element name="CATSNotification" type="CATSNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/CATSDataRequest
Namespace No namespace
Diagram
Diagram asexml_r2514.tmp#id324 asexml_r2514.tmp#id319 asexml_r2514.tmp#id320 asexml_r2514.tmp#id321 asexml_r2514.tmp#id322 asexml_r2514.tmp#id323 asexml_r2514.tmp#id318
Type CATSDataRequest
Properties
content: complex
Model Role , RoleStatus , InitiatingRequestID , ActualChangeDate{0,1} , NMIStandingData
Children ActualChangeDate, InitiatingRequestID, NMIStandingData, Role, RoleStatus
Instance

<CATSDataRequest version="">
  <Role>{1,1}</Role>
  <RoleStatus>{1,1}</RoleStatus>
  <InitiatingRequestID>{1,1}</InitiatingRequestID>
  <ActualChangeDate>{0,1}</ActualChangeDate>
  <NMIStandingData effectiveDateTime="">{1,1}</NMIStandingData>
</CATSDataRequest>
Attributes
QName Type Fixed Default Use Annotation
version r7 required
Source

<xsd:element name="CATSDataRequest" type="CATSDataRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/CATSChangeAlert
Namespace No namespace
Diagram
Diagram asexml_r2514.tmp#id333 asexml_r2514.tmp#id328 asexml_r2514.tmp#id329 asexml_r2514.tmp#id330 asexml_r2514.tmp#id331 asexml_r2514.tmp#id332 asexml_r2514.tmp#id327
Type CATSChangeAlert
Properties
content: complex
Model InitiatingRequestID , Role , RoleStatus , Participant , Event*
Children Event, InitiatingRequestID, Participant, Role, RoleStatus
Instance

<CATSChangeAlert version="">
  <InitiatingRequestID>{1,1}</InitiatingRequestID>
  <Role>{1,1}</Role>
  <RoleStatus>{1,1}</RoleStatus>
  <Participant context="" description="">{1,1}</Participant>
  <Event class="Application" severity="Fatal">{0,unbounded}</Event>
</CATSChangeAlert>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="CATSChangeAlert" type="CATSChangeAlert"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

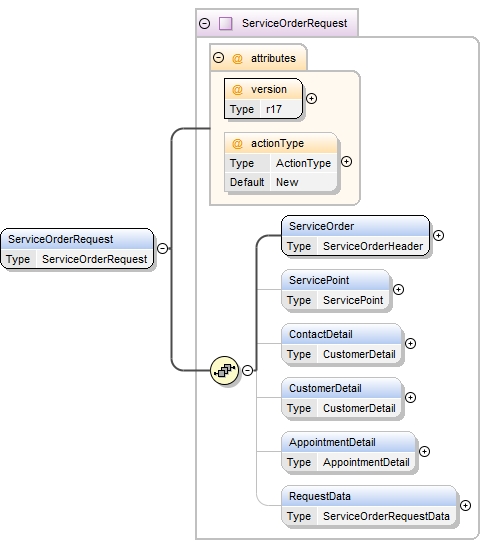

Element Transaction/ServiceOrderRequest
Namespace No namespace
Diagram
Diagram asexml_r2517.tmp#id429 asexml_r2517.tmp#id430 asexml_r2517.tmp#id337 asexml_r2517.tmp#id366 asexml_r2517.tmp#id382 asexml_r2517.tmp#id413 asexml_r2517.tmp#id414 asexml_r2517.tmp#id422 asexml_r2517.tmp#id336
Type ServiceOrderRequest
Properties
content: complex
Model ServiceOrder , ServicePoint{0,1} , ContactDetail{0,1} , CustomerDetail{0,1} , AppointmentDetail{0,1} , RequestData{0,1}
Children AppointmentDetail, ContactDetail, CustomerDetail, RequestData, ServiceOrder, ServicePoint
Instance

<ServiceOrderRequest actionType="New" version="">
  <ServiceOrder>{1,1}</ServiceOrder>
  <ServicePoint>{0,1}</ServicePoint>
  <ContactDetail>{0,1}</ContactDetail>
  <CustomerDetail>{0,1}</CustomerDetail>
  <AppointmentDetail>{0,1}</AppointmentDetail>
  <RequestData>{0,1}</RequestData>
</ServiceOrderRequest>
Attributes
QName Type Fixed Default Use Annotation
actionType ActionType New optional
version r17 required
Source

<xsd:element name="ServiceOrderRequest" type="ServiceOrderRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/ServiceOrderResponse
Namespace No namespace
Diagram
Diagram asexml_r2517.tmp#id442 asexml_r2517.tmp#id443 asexml_r2517.tmp#id434 asexml_r2517.tmp#id435 asexml_r2517.tmp#id436 asexml_r2517.tmp#id437 asexml_r2517.tmp#id441 asexml_r2517.tmp#id433
Type ServiceOrderResponse
Properties
content: complex
Model ServiceOrder , ContactDetail{0,1} , AppointmentDetail{0,1} , NotificationData{0,1} , Event*
Children AppointmentDetail, ContactDetail, Event, NotificationData, ServiceOrder
Instance

<ServiceOrderResponse responseType="Closure" version="">
  <ServiceOrder>{1,1}</ServiceOrder>
  <ContactDetail>{0,1}</ContactDetail>
  <AppointmentDetail>{0,1}</AppointmentDetail>
  <NotificationData>{0,1}</NotificationData>
  <Event class="Application" severity="Fatal">{0,unbounded}</Event>
</ServiceOrderResponse>
Attributes
QName Type Fixed Default Use Annotation
responseType ResponseType Closure optional
version r17 required
Source

<xsd:element name="ServiceOrderResponse" type="ServiceOrderResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

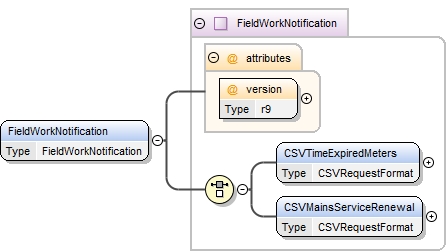

Element Transaction/FieldWorkNotification
Namespace No namespace
Diagram
Diagram asexml_r2517.tmp#id452 asexml_r2517.tmp#id447 asexml_r2517.tmp#id451 asexml_r2517.tmp#id446
Type FieldWorkNotification
Properties
content: complex
Model CSVTimeExpiredMeters | CSVMainsServiceRenewal
Children CSVMainsServiceRenewal, CSVTimeExpiredMeters
Instance

<FieldWorkNotification version="">
  <CSVTimeExpiredMeters>{1,1}</CSVTimeExpiredMeters>
  <CSVMainsServiceRenewal>{1,1}</CSVMainsServiceRenewal>
</FieldWorkNotification>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="FieldWorkNotification" type="FieldWorkNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NetworkInvoiceNotification
Namespace No namespace
Diagram
Diagram asexml_r255.tmp#id518 asexml_r255.tmp#id455 asexml_r255.tmp#id517 asexml_r255.tmp#id454
Type NetworkInvoiceNotification
Properties
content: complex

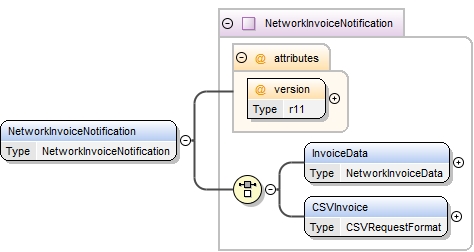

Model InvoiceData | CSVInvoice
Children CSVInvoice, InvoiceData
Instance

<NetworkInvoiceNotification version="">
  <InvoiceData>{1,1}</InvoiceData>
  <CSVInvoice>{1,1}</CSVInvoice>
</NetworkInvoiceNotification>
Attributes
QName Type Fixed Default Use Annotation
version r11 required
Source

<xsd:element name="NetworkInvoiceNotification" type="NetworkInvoiceNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

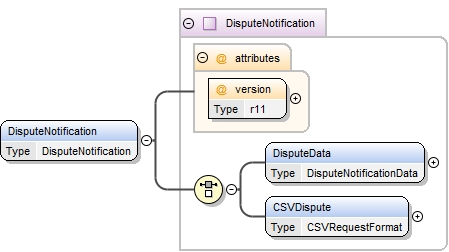

Element Transaction/DisputeNotification
Namespace No namespace
Diagram
Diagram asexml_r255.tmp#id544 asexml_r255.tmp#id522 asexml_r255.tmp#id543 asexml_r255.tmp#id521
Type DisputeNotification
Properties
content: complex
Model DisputeData | CSVDispute
Children CSVDispute, DisputeData
Instance

<DisputeNotification version="">
  <DisputeData>{1,1}</DisputeData>
  <CSVDispute>{1,1}</CSVDispute>
</DisputeNotification>
Attributes
QName Type Fixed Default Use Annotation
version r11 required
Source

<xsd:element name="DisputeNotification" type="DisputeNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

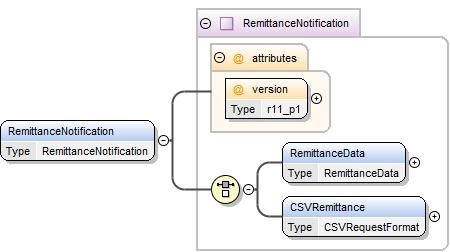

Element Transaction/RemittanceNotification
Namespace No namespace
Diagram
Diagram asexml_r255.tmp#id566 asexml_r255.tmp#id547 asexml_r255.tmp#id565 asexml_r255.tmp#id546
Type RemittanceNotification
Properties
content: complex
Model RemittanceData | CSVRemittance
Children CSVRemittance, RemittanceData
Instance

<RemittanceNotification version="">
  <RemittanceData>{1,1}</RemittanceData>
  <CSVRemittance>{1,1}</CSVRemittance>
</RemittanceNotification>
Attributes
QName Type Fixed Default Use Annotation
version r11_p1 required
Source

<xsd:element name="RemittanceNotification" type="RemittanceNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

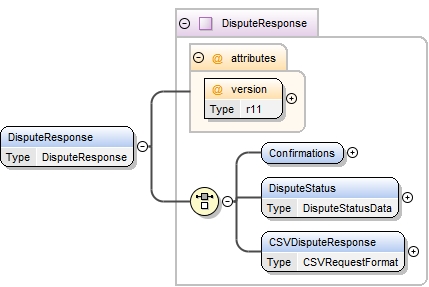

Element Transaction/DisputeResponse
Namespace No namespace
Diagram
Diagram asexml_r255.tmp#id589 asexml_r255.tmp#id570 asexml_r255.tmp#id582 asexml_r255.tmp#id588 asexml_r255.tmp#id569
Type DisputeResponse
Properties
content: complex
Model Confirmations | DisputeStatus | CSVDisputeResponse
Children CSVDisputeResponse, Confirmations, DisputeStatus
Instance

<DisputeResponse version="">
  <Confirmations>{1,1}</Confirmations>
  <DisputeStatus>{1,1}</DisputeStatus>
  <CSVDisputeResponse>{1,1}</CSVDisputeResponse>
</DisputeResponse>
Attributes
QName Type Fixed Default Use Annotation
version r11 required
Source

<xsd:element name="DisputeResponse" type="DisputeResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

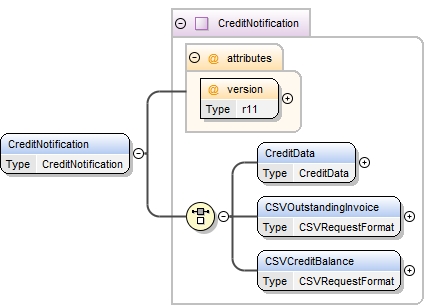

Element Transaction/CreditNotification
Namespace No namespace
Diagram
Diagram asexml_r255.tmp#id614 asexml_r255.tmp#id592 asexml_r255.tmp#id612 asexml_r255.tmp#id613 asexml_r255.tmp#id591
Type CreditNotification
Properties
content: complex
Model CreditData | CSVOutstandingInvoice | CSVCreditBalance
Children CSVCreditBalance, CSVOutstandingInvoice, CreditData
Instance

<CreditNotification version="">
  <CreditData>{1,1}</CreditData>
  <CSVOutstandingInvoice>{1,1}</CSVOutstandingInvoice>
  <CSVCreditBalance>{1,1}</CSVCreditBalance>
</CreditNotification>
Attributes
QName Type Fixed Default Use Annotation
version r11 required
Source

<xsd:element name="CreditNotification" type="CreditNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/FaultInformationRequest
Namespace No namespace
Diagram
Diagram asexml_r257.tmp#id621 asexml_r257.tmp#id617 asexml_r257.tmp#id618 asexml_r257.tmp#id616
Type FaultInformationRequest
Properties
content: complex
Model NMI{0,1} , FaultLocation
Children FaultLocation, NMI
Instance

<FaultInformationRequest version="">
  <NMI checksum="">{0,1}</NMI>
  <FaultLocation locationType="">{1,1}</FaultLocation>
</FaultInformationRequest>
Attributes
QName Type Fixed Default Use Annotation
version r12 required
Source

<xsd:element name="FaultInformationRequest" type="FaultInformationRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/FaultNotification
Namespace No namespace
Diagram
Diagram asexml_r257.tmp#id658 asexml_r257.tmp#id625 asexml_r257.tmp#id626 asexml_r257.tmp#id627 asexml_r257.tmp#id628 asexml_r257.tmp#id633 asexml_r257.tmp#id653 asexml_r257.tmp#id657 asexml_r257.tmp#id624
Type FaultNotification
Properties
content: complex
Model NMI{0,1} , TimeOfCall , TimeOfOccurrence{0,1} , FaultInformant{0,1} , FaultDescription , CallBack{0,1} , RetailerPriority{0,1}
Children CallBack, FaultDescription, FaultInformant, NMI, RetailerPriority, TimeOfCall, TimeOfOccurrence
Instance

<FaultNotification version="">
  <NMI checksum="">{0,1}</NMI>
  <TimeOfCall>{1,1}</TimeOfCall>
  <TimeOfOccurrence>{0,1}</TimeOfOccurrence>
  <FaultInformant>{0,1}</FaultInformant>
  <FaultDescription>{1,1}</FaultDescription>
  <CallBack callBackRequired="" timeRequired="">{0,1}</CallBack>
  <RetailerPriority>{0,1}</RetailerPriority>
</FaultNotification>
Attributes
QName Type Fixed Default Use Annotation
version r14 required
Source

<xsd:element name="FaultNotification" type="FaultNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/FaultOutageAdvice
Namespace No namespace
Diagram
Diagram asexml_r257.tmp#id687 asexml_r257.tmp#id689 asexml_r257.tmp#id691 asexml_r257.tmp#id662 asexml_r257.tmp#id663 asexml_r257.tmp#id664 asexml_r257.tmp#id665 asexml_r257.tmp#id669 asexml_r257.tmp#id670 asexml_r257.tmp#id674 asexml_r257.tmp#id675 asexml_r257.tmp#id676 asexml_r257.tmp#id677 asexml_r257.tmp#id678 asexml_r257.tmp#id683 asexml_r257.tmp#id685 asexml_r257.tmp#id661
Type FaultOutageAdvice
Properties
content: complex
Model NMI{0,1} , FaultDescription , TimeOfOccurrence{0,1} , CallBackStatus{0,1} , EstimatedTimeToRestore{0,1} , DispatchStatus{0,1} , SiteArrival{0,1} , MakeSafe{0,1} , MostSupplyRestored{0,1} , TimeRestored{0,1} , CustomersAffected{0,1} , TroubleCause{0,1} , FaultOutageAdviceComments{0,1}
Children CallBackStatus, CustomersAffected, DispatchStatus, EstimatedTimeToRestore, FaultDescription, FaultOutageAdviceComments, MakeSafe, MostSupplyRestored, NMI, SiteArrival, TimeOfOccurrence, TimeRestored, TroubleCause
Instance

<FaultOutageAdvice faultResponseType="Update" outageType="" version="">
  <NMI checksum="">{0,1}</NMI>
  <FaultDescription>{1,1}</FaultDescription>
  <TimeOfOccurrence>{0,1}</TimeOfOccurrence>
  <CallBackStatus calledBack="" timeStamp="">{0,1}</CallBackStatus>
  <EstimatedTimeToRestore>{0,1}</EstimatedTimeToRestore>
  <DispatchStatus dispatched="" timeStamp="">{0,1}</DispatchStatus>
  <SiteArrival>{0,1}</SiteArrival>
  <MakeSafe>{0,1}</MakeSafe>
  <MostSupplyRestored>{0,1}</MostSupplyRestored>
  <TimeRestored>{0,1}</TimeRestored>
  <CustomersAffected lifeSupport="" sensitiveLoad="" total="">{0,1}</CustomersAffected>
  <TroubleCause>{0,1}</TroubleCause>
  <FaultOutageAdviceComments>{0,1}</FaultOutageAdviceComments>
</FaultOutageAdvice>
Attributes
QName Type Fixed Default Use Annotation
faultResponseType FaultResponseType Update optional
outageType OutageType required
version r14 required
Source

<xsd:element name="FaultOutageAdvice" type="FaultOutageAdvice"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

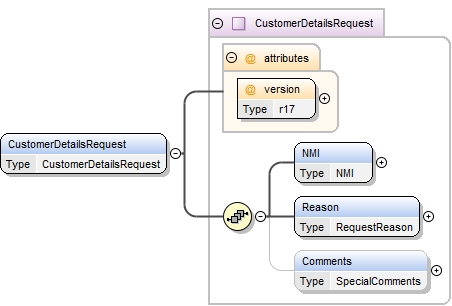

Element Transaction/CustomerDetailsRequest
Namespace No namespace
Diagram
Diagram asexml_r2529.tmp#id698 asexml_r2529.tmp#id694 asexml_r2529.tmp#id695 asexml_r2529.tmp#id697 asexml_r2529.tmp#id693
Type CustomerDetailsRequest
Properties
content: complex
Model NMI , Reason , Comments{0,1}
Children Comments, NMI, Reason
Instance

<CustomerDetailsRequest version="">
  <NMI checksum="">{1,1}</NMI>
  <Reason>{1,1}</Reason>
  <Comments>{0,1}</Comments>
</CustomerDetailsRequest>
Attributes
QName Type Fixed Default Use Annotation
version r17 required
Source

<xsd:element name="CustomerDetailsRequest" type="CustomerDetailsRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/CustomerDetailsNotification
Namespace No namespace
Diagram
Diagram asexml_r2529.tmp#id718 asexml_r2529.tmp#id701 asexml_r2529.tmp#id717 asexml_r2529.tmp#id700
Type CustomerDetailsNotification
Properties
content: complex

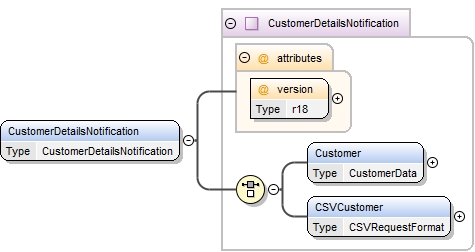

Model Customer | CSVCustomer
Children CSVCustomer, Customer
Instance

<CustomerDetailsNotification version="">
  <Customer>{1,1}</Customer>
  <CSVCustomer>{1,1}</CSVCustomer>
</CustomerDetailsNotification>
Attributes
QName Type Fixed Default Use Annotation
version r18 required
Source

<xsd:element name="CustomerDetailsNotification" type="CustomerDetailsNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/AmendMeterRouteDetails
Namespace No namespace
Diagram
Diagram asexml_r2529.tmp#id732 asexml_r2529.tmp#id722 asexml_r2529.tmp#id723 asexml_r2529.tmp#id730 asexml_r2529.tmp#id731 asexml_r2529.tmp#id721
Type AmendMeterRouteDetails
Properties
content: complex
Model AmendSiteAccessDetails | AmendSiteAddressDetails | CSVAmendSiteAddressDetails | CSVAmendScheduledReadingDay
Children AmendSiteAccessDetails, AmendSiteAddressDetails, CSVAmendScheduledReadingDay, CSVAmendSiteAddressDetails
Instance

<AmendMeterRouteDetails version="">
  <AmendSiteAccessDetails effectiveDateTime="">{1,1}</AmendSiteAccessDetails>
  <AmendSiteAddressDetails>{1,1}</AmendSiteAddressDetails>
  <CSVAmendSiteAddressDetails>{1,1}</CSVAmendSiteAddressDetails>
  <CSVAmendScheduledReadingDay>{1,1}</CSVAmendScheduledReadingDay>
</AmendMeterRouteDetails>
Attributes
QName Type Fixed Default Use Annotation
version r19 required
Source

<xsd:element name="AmendMeterRouteDetails" type="AmendMeterRouteDetails"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

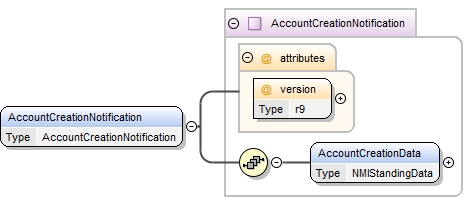

Element Transaction/AccountCreationNotification
Namespace No namespace
Diagram
Diagram asexml_r2521.tmp#id736 asexml_r2521.tmp#id735 asexml_r2521.tmp#id734
Type AccountCreationNotification
Properties
content: complex
Model AccountCreationData
Children AccountCreationData
Instance

<AccountCreationNotification version="">
  <AccountCreationData effectiveDateTime="">{1,1}</AccountCreationData>
</AccountCreationNotification>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="AccountCreationNotification" type="AccountCreationNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

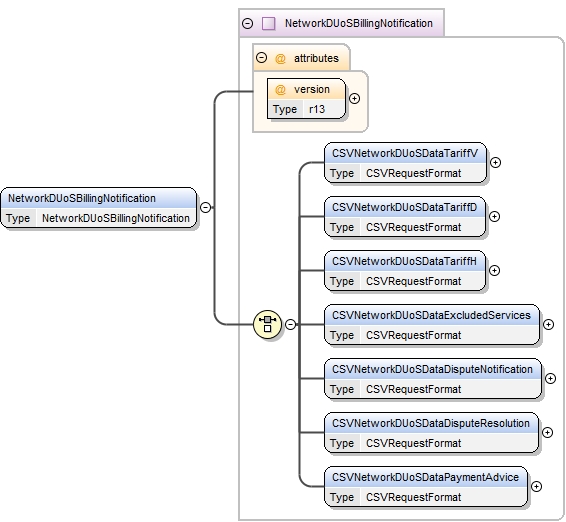

Element Transaction/NetworkDUoSBillingNotification
Namespace No namespace
Diagram
Diagram asexml_r255.tmp#id746 asexml_r255.tmp#id739 asexml_r255.tmp#id740 asexml_r255.tmp#id741 asexml_r255.tmp#id742 asexml_r255.tmp#id743 asexml_r255.tmp#id744 asexml_r255.tmp#id745 asexml_r255.tmp#id738
Type NetworkDUoSBillingNotification
Properties
content: complex
Model CSVNetworkDUoSDataTariffV | CSVNetworkDUoSDataTariffD | CSVNetworkDUoSDataTariffH | CSVNetworkDUoSDataExcludedServices | CSVNetworkDUoSDataDisputeNotification | CSVNetworkDUoSDataDisputeResolution | CSVNetworkDUoSDataPaymentAdvice
Children CSVNetworkDUoSDataDisputeNotification, CSVNetworkDUoSDataDisputeResolution, CSVNetworkDUoSDataExcludedServices, CSVNetworkDUoSDataPaymentAdvice, CSVNetworkDUoSDataTariffD, CSVNetworkDUoSDataTariffH, CSVNetworkDUoSDataTariffV
Instance

<NetworkDUoSBillingNotification version="">
  <CSVNetworkDUoSDataTariffV>{1,1}</CSVNetworkDUoSDataTariffV>
  <CSVNetworkDUoSDataTariffD>{1,1}</CSVNetworkDUoSDataTariffD>
  <CSVNetworkDUoSDataTariffH>{1,1}</CSVNetworkDUoSDataTariffH>
  <CSVNetworkDUoSDataExcludedServices>{1,1}</CSVNetworkDUoSDataExcludedServices>
  <CSVNetworkDUoSDataDisputeNotification>{1,1}</CSVNetworkDUoSDataDisputeNotification>
  <CSVNetworkDUoSDataDisputeResolution>{1,1}</CSVNetworkDUoSDataDisputeResolution>
  <CSVNetworkDUoSDataPaymentAdvice>{1,1}</CSVNetworkDUoSDataPaymentAdvice>
</NetworkDUoSBillingNotification>
Attributes
QName Type Fixed Default Use Annotation
version r13 required
Source

<xsd:element name="NetworkDUoSBillingNotification" type="NetworkDUoSBillingNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

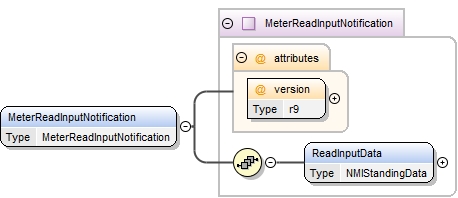

Element Transaction/MeterReadInputNotification
Namespace No namespace
Diagram
Diagram asexml_r2521.tmp#id751 asexml_r2521.tmp#id750 asexml_r2521.tmp#id749
Type MeterReadInputNotification
Properties
content: complex
Model ReadInputData
Children ReadInputData
Instance

<MeterReadInputNotification version="">
  <ReadInputData effectiveDateTime="">{1,1}</ReadInputData>
</MeterReadInputNotification>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="MeterReadInputNotification" type="MeterReadInputNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/MeterDataVerifyRequest
Namespace No namespace
Diagram
Diagram asexml_r2521.tmp#id757 asexml_r2521.tmp#id754 asexml_r2521.tmp#id753
Type MeterDataVerifyRequest
Properties
content: complex
Model VerifyRequestData
Children VerifyRequestData
Instance

<MeterDataVerifyRequest version="">
  <VerifyRequestData>{1,1}</VerifyRequestData>
</MeterDataVerifyRequest>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="MeterDataVerifyRequest" type="MeterDataVerifyRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/MeterDataVerifyResponse
Namespace No namespace
Diagram
Diagram asexml_r2521.tmp#id761 asexml_r2521.tmp#id760 asexml_r2521.tmp#id759
Type MeterDataVerifyResponse
Properties
content: complex
Model VerifyResponseData
Children VerifyResponseData
Instance

<MeterDataVerifyResponse version="">
  <VerifyResponseData>{1,1}</VerifyResponseData>
</MeterDataVerifyResponse>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="MeterDataVerifyResponse" type="MeterDataVerifyResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/MeterDataHistoryRequest
Namespace No namespace
Diagram
Diagram asexml_r2521.tmp#id766 asexml_r2521.tmp#id764 asexml_r2521.tmp#id765 asexml_r2521.tmp#id763
Type MeterDataHistoryRequest
Properties
content: complex
Model SingleHistoryRequestData | CSVHistoryRequestData
Children CSVHistoryRequestData, SingleHistoryRequestData
Instance

<MeterDataHistoryRequest version="">
  <SingleHistoryRequestData>{1,1}</SingleHistoryRequestData>
  <CSVHistoryRequestData>{1,1}</CSVHistoryRequestData>
</MeterDataHistoryRequest>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="MeterDataHistoryRequest" type="MeterDataHistoryRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/MeterDataHistoryResponse

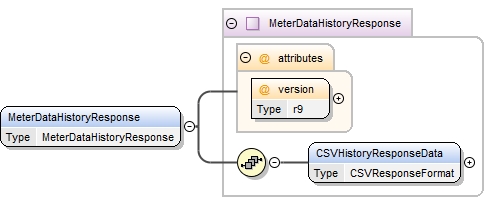

Namespace No namespace
Diagram
Diagram asexml_r2521.tmp#id772 asexml_r2521.tmp#id769 asexml_r2521.tmp#id768
Type MeterDataHistoryResponse
Properties
content: complex
Model CSVHistoryResponseData
Children CSVHistoryResponseData
Instance

<MeterDataHistoryResponse version="">
  <CSVHistoryResponseData>{1,1}</CSVHistoryResponseData>
</MeterDataHistoryResponse>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="MeterDataHistoryResponse" type="MeterDataHistoryResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/SpecialReadRequest
Namespace No namespace
Diagram
Diagram asexml_r2517.tmp#id429 asexml_r2517.tmp#id430 asexml_r2517.tmp#id337 asexml_r2517.tmp#id366 asexml_r2517.tmp#id382 asexml_r2517.tmp#id413 asexml_r2517.tmp#id414 asexml_r2517.tmp#id422 asexml_r2517.tmp#id336
Type ServiceOrderRequest
Properties
content: complex
Model ServiceOrder , ServicePoint{0,1} , ContactDetail{0,1} , CustomerDetail{0,1} , AppointmentDetail{0,1} , RequestData{0,1}
Children AppointmentDetail, ContactDetail, CustomerDetail, RequestData, ServiceOrder, ServicePoint
Instance

<SpecialReadRequest actionType="New" version="">
  <ServiceOrder>{1,1}</ServiceOrder>
  <ServicePoint>{0,1}</ServicePoint>
  <ContactDetail>{0,1}</ContactDetail>
  <CustomerDetail>{0,1}</CustomerDetail>
  <AppointmentDetail>{0,1}</AppointmentDetail>
  <RequestData>{0,1}</RequestData>
</SpecialReadRequest>
Attributes
QName Type Fixed Default Use Annotation
actionType ActionType New optional
version r17 required
Source

<xsd:element name="SpecialReadRequest" type="ServiceOrderRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/SpecialReadResponse
Namespace No namespace
Diagram
Diagram asexml_r2517.tmp#id442 asexml_r2517.tmp#id443 asexml_r2517.tmp#id434 asexml_r2517.tmp#id435 asexml_r2517.tmp#id436 asexml_r2517.tmp#id437 asexml_r2517.tmp#id441 asexml_r2517.tmp#id433
Type ServiceOrderResponse
Properties
content: complex
Model ServiceOrder , ContactDetail{0,1} , AppointmentDetail{0,1} , NotificationData{0,1} , Event*
Children AppointmentDetail, ContactDetail, Event, NotificationData, ServiceOrder
Instance

<SpecialReadResponse responseType="Closure" version="">
  <ServiceOrder>{1,1}</ServiceOrder>
  <ContactDetail>{0,1}</ContactDetail>
  <AppointmentDetail>{0,1}</AppointmentDetail>
  <NotificationData>{0,1}</NotificationData>
  <Event class="Application" severity="Fatal">{0,unbounded}</Event>
</SpecialReadResponse>
Attributes
QName Type Fixed Default Use Annotation
responseType ResponseType Closure optional
version r17 required
Source

<xsd:element name="SpecialReadResponse" type="ServiceOrderResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

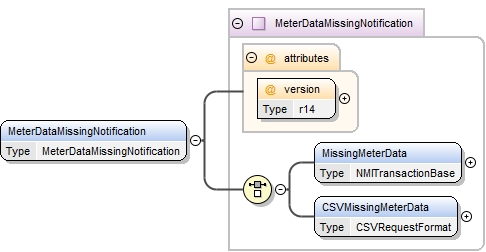

Element Transaction/MeterDataMissingNotification
Namespace No namespace
Diagram
Diagram asexml_r2521.tmp#id779 asexml_r2521.tmp#id777 asexml_r2521.tmp#id778 asexml_r2521.tmp#id776
Type MeterDataMissingNotification
Properties
content: complex
Model MissingMeterData | CSVMissingMeterData
Children CSVMissingMeterData, MissingMeterData
Instance

<MeterDataMissingNotification version="">
  <MissingMeterData>{1,1}</MissingMeterData>
  <CSVMissingMeterData>{1,1}</CSVMissingMeterData>
</MeterDataMissingNotification>
Attributes
QName Type Fixed Default Use Annotation
version r14 required
Source

<xsd:element name="MeterDataMissingNotification" type="MeterDataMissingNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/CurrentRetailerConfirmationRequest
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id783 asexml_r250.tmp#id782 asexml_r250.tmp#id781
Type CurrentRetailerConfirmationRequest
Properties
content: complex
Model CSVCurrentRetailerData
Children CSVCurrentRetailerData
Instance

<CurrentRetailerConfirmationRequest version="">
  <CSVCurrentRetailerData>{1,1}</CSVCurrentRetailerData>
</CurrentRetailerConfirmationRequest>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="CurrentRetailerConfirmationRequest" type="CurrentRetailerConfirmationRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

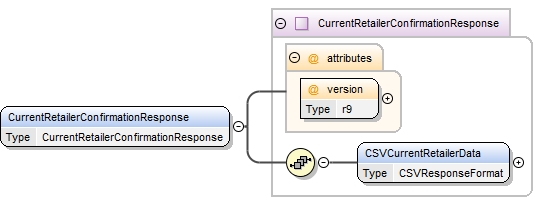

Element Transaction/CurrentRetailerConfirmationResponse
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id787 asexml_r250.tmp#id786 asexml_r250.tmp#id785
Type CurrentRetailerConfirmationResponse
Properties
content: complex
Model CSVCurrentRetailerData
Children CSVCurrentRetailerData
Instance

<CurrentRetailerConfirmationResponse version="">
  <CSVCurrentRetailerData>{1,1}</CSVCurrentRetailerData>
</CurrentRetailerConfirmationResponse>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="CurrentRetailerConfirmationResponse" type="CurrentRetailerConfirmationResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NMIStandingDataUpdateNotification
Namespace No namespace

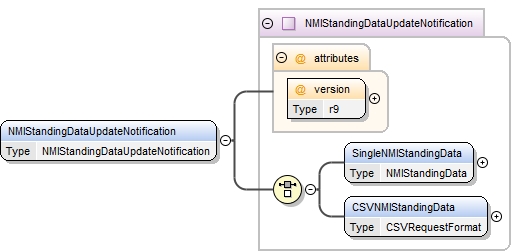

Diagram
Diagram asexml_r2530.tmp#id792 asexml_r2530.tmp#id790 asexml_r2530.tmp#id791 asexml_r2530.tmp#id789
Type NMIStandingDataUpdateNotification
Properties
content: complex
Model SingleNMIStandingData | CSVNMIStandingData
Children CSVNMIStandingData, SingleNMIStandingData
Instance

<NMIStandingDataUpdateNotification version="">
  <SingleNMIStandingData effectiveDateTime="">{1,1}</SingleNMIStandingData>
  <CSVNMIStandingData>{1,1}</CSVNMIStandingData>
</NMIStandingDataUpdateNotification>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="NMIStandingDataUpdateNotification" type="NMIStandingDataUpdateNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NMIStandingDataUpdateResponse
Namespace No namespace

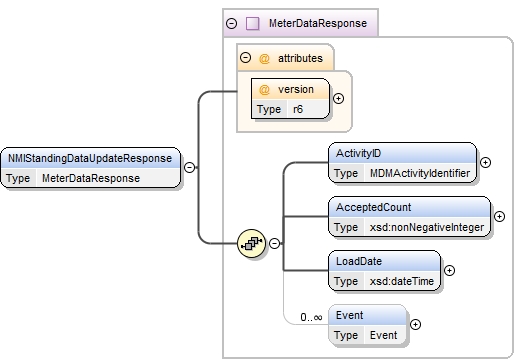

Diagram
Diagram asexml_r2521.tmp#id151 asexml_r2521.tmp#id146 asexml_r2521.tmp#id148 asexml_r2521.tmp#id149 asexml_r2521.tmp#id150 asexml_r2521.tmp#id145
Type MeterDataResponse
Properties
content: complex
Model ActivityID , AcceptedCount , LoadDate , Event*
Children AcceptedCount, ActivityID, Event, LoadDate
Instance

<NMIStandingDataUpdateResponse version="">
  <ActivityID>{1,1}</ActivityID>
  <AcceptedCount>{1,1}</AcceptedCount>
  <LoadDate>{1,1}</LoadDate>
  <Event class="Application" severity="Fatal">{0,unbounded}</Event>
</NMIStandingDataUpdateResponse>
Attributes
QName Type Fixed Default Use Annotation
version r6 required
Source

<xsd:element name="NMIStandingDataUpdateResponse" type="MeterDataResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

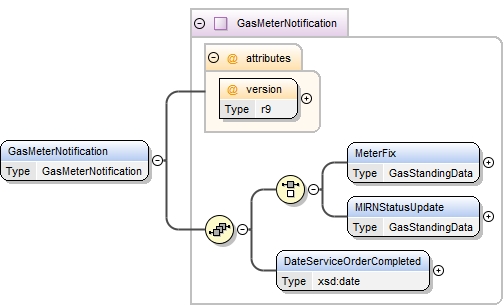

Element Transaction/GasMeterNotification
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id869 asexml_r259.tmp#id796 asexml_r259.tmp#id867 asexml_r259.tmp#id868 asexml_r259.tmp#id795
Type GasMeterNotification
Properties
content: complex
Model (MeterFix | MIRNStatusUpdate) , DateServiceOrderCompleted
Children DateServiceOrderCompleted, MIRNStatusUpdate, MeterFix
Instance

<GasMeterNotification version="">
  <MeterFix effectiveDateTime="" version="">{1,1}</MeterFix>
  <MIRNStatusUpdate effectiveDateTime="" version="">{1,1}</MIRNStatusUpdate>
  <DateServiceOrderCompleted>{1,1}</DateServiceOrderCompleted>
</GasMeterNotification>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="GasMeterNotification" type="GasMeterNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/MeteredSupplyPointsCountUpdate
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id874 asexml_r259.tmp#id872 asexml_r259.tmp#id873 asexml_r259.tmp#id871
Type MeteredSupplyPointsCountUpdate
Properties
content: complex
Model Count , CountDate
Children Count, CountDate
Instance

<MeteredSupplyPointsCountUpdate version="">
  <Count>{1,1}</Count>
  <CountDate>{1,1}</CountDate>
</MeteredSupplyPointsCountUpdate>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="MeteredSupplyPointsCountUpdate" type="MeteredSupplyPointsCountUpdate"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd

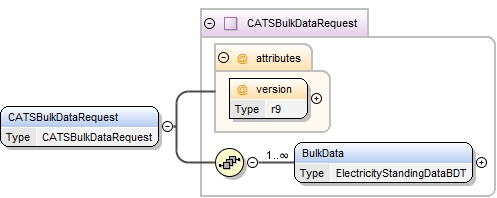

Element Transaction/CATSBulkDataRequest
Namespace No namespace
Diagram
Diagram asexml_r2527.tmp#id885 asexml_r2527.tmp#id877 asexml_r2527.tmp#id876
Type CATSBulkDataRequest
Properties
content: complex
Model BulkData+
Children BulkData
Instance

<CATSBulkDataRequest version="">
  <BulkData>{1,unbounded}</BulkData>
</CATSBulkDataRequest>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="CATSBulkDataRequest" type="CATSBulkDataRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/CATSBulkDataResponse
Namespace No namespace

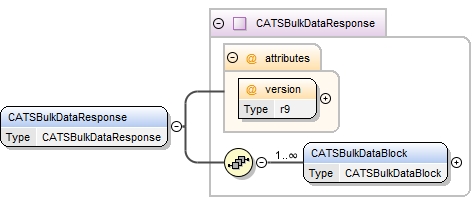

Diagram
Diagram asexml_r2527.tmp#id894 asexml_r2527.tmp#id888 asexml_r2527.tmp#id887
Type CATSBulkDataResponse
Properties
content: complex
Model CATSBulkDataBlock+
Children CATSBulkDataBlock
Instance

<CATSBulkDataResponse version="">
  <CATSBulkDataBlock>{1,unbounded}</CATSBulkDataBlock>
</CATSBulkDataResponse>
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:element name="CATSBulkDataResponse" type="CATSBulkDataResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NOSBookingSubmission
Namespace No namespace

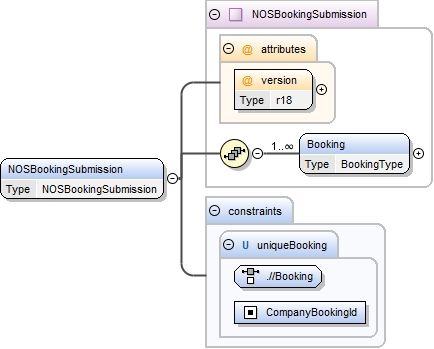

Diagram
Diagram asexml_r2520.tmp#id968 asexml_r2520.tmp#id897 asexml_r2520.tmp#id896
Type NOSBookingSubmission
Properties
content: complex
Model Booking+
Children Booking
Instance

<NOSBookingSubmission version="">
  <Booking changedBy="" operationType="">{1,unbounded}</Booking>
</NOSBookingSubmission>
Attributes
QName Type Fixed Default Use Annotation
version r18 required
Source

<xsd:element name="NOSBookingSubmission" type="NOSBookingSubmission">
  <xsd:unique name="uniqueBooking">
    <xsd:selector xpath=".//Booking"/>
    <xsd:field xpath="CompanyBookingId"/>
  </xsd:unique>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NOSBookingResponse
Namespace No namespace

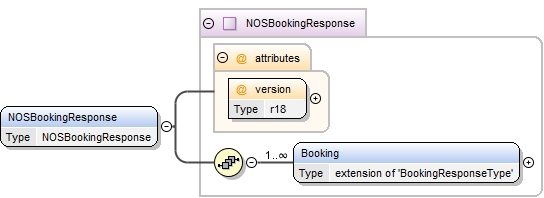

Diagram
Diagram asexml_r2520.tmp#id1002 asexml_r2520.tmp#id971 asexml_r2520.tmp#id970
Type NOSBookingResponse
Properties
content: complex
Model Booking+
Children Booking
Instance

<NOSBookingResponse version="">
  <Booking operationType="">{1,unbounded}</Booking>
</NOSBookingResponse>
Attributes
QName Type Fixed Default Use Annotation
version r18 required
Source

<xsd:element name="NOSBookingResponse" type="NOSBookingResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NOSBookingInfoRequest
Namespace No namespace
Diagram
Diagram asexml_r2520.tmp#id1011 asexml_r2520.tmp#id1005 asexml_r2520.tmp#id1004
Type NOSBookingInfoRequest
Properties
content: complex
Model BookingInfoRequestKey+
Children BookingInfoRequestKey
Instance

<NOSBookingInfoRequest version="">
  <BookingInfoRequestKey infoType="all">{1,unbounded}</BookingInfoRequestKey>
</NOSBookingInfoRequest>
Attributes
QName Type Fixed Default Use Annotation
version r16 optional
Source

<xsd:element name="NOSBookingInfoRequest" type="NOSBookingInfoRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NOSEquipmentSubmission
Namespace No namespace

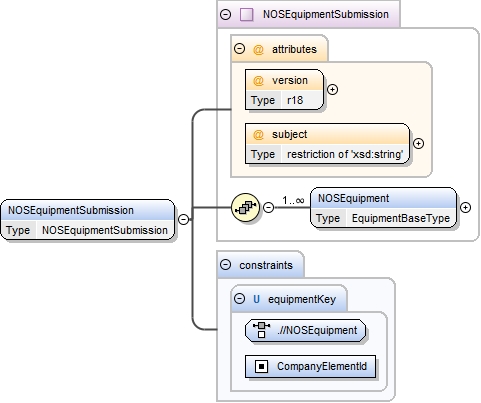

Diagram
Diagram asexml_r2512.tmp#id1025 asexml_r2512.tmp#id1026 asexml_r2512.tmp#id1015 asexml_r2512.tmp#id1014
Type NOSEquipmentSubmission
Properties
content: complex
Model NOSEquipment+
Children NOSEquipment
Instance

<NOSEquipmentSubmission subject="" version="">
  <NOSEquipment operationType="">{1,unbounded}</NOSEquipment>
</NOSEquipmentSubmission>
Attributes
QName Type Fixed Default Use Annotation
subject restriction of xsd:string required
version r18 required
Source

<xsd:element name="NOSEquipmentSubmission" type="NOSEquipmentSubmission">
  <xsd:unique name="equipmentKey">
    <xsd:selector xpath=".//NOSEquipment"/>
    <xsd:field xpath="CompanyElementId"/>
  </xsd:unique>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NOSEquipmentResponse
Namespace No namespace
Diagram

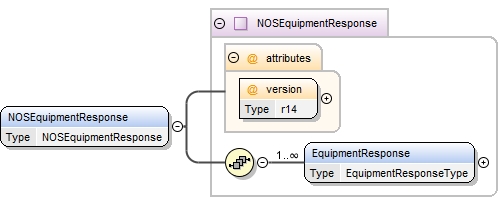

Diagram asexml_r2512.tmp#id1035 asexml_r2512.tmp#id1029 asexml_r2512.tmp#id1028
Type NOSEquipmentResponse
Properties
content: complex
Model EquipmentResponse+
Children EquipmentResponse
Instance

<NOSEquipmentResponse version="">
  <EquipmentResponse operationType="">{1,unbounded}</EquipmentResponse>
</NOSEquipmentResponse>
Attributes
QName Type Fixed Default Use Annotation
version r14 required
Source

<xsd:element name="NOSEquipmentResponse" type="NOSEquipmentResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NOSEquipmentInfoRequest
Namespace No namespace
Diagram

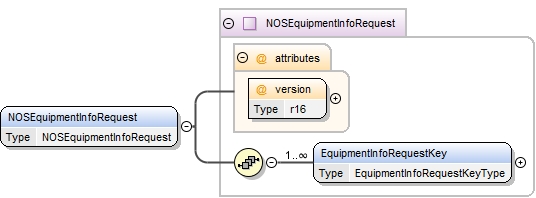

Diagram asexml_r2512.tmp#id1042 asexml_r2512.tmp#id1038 asexml_r2512.tmp#id1037
Type NOSEquipmentInfoRequest
Properties
content: complex
Model EquipmentInfoRequestKey+
Children EquipmentInfoRequestKey
Instance

<NOSEquipmentInfoRequest version="">
  <EquipmentInfoRequestKey>{1,unbounded}</EquipmentInfoRequestKey>
</NOSEquipmentInfoRequest>
Attributes
QName Type Fixed Default Use Annotation
version r16 required
Source

<xsd:element name="NOSEquipmentInfoRequest" type="NOSEquipmentInfoRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/NOSInfoResponse
Namespace No namespace

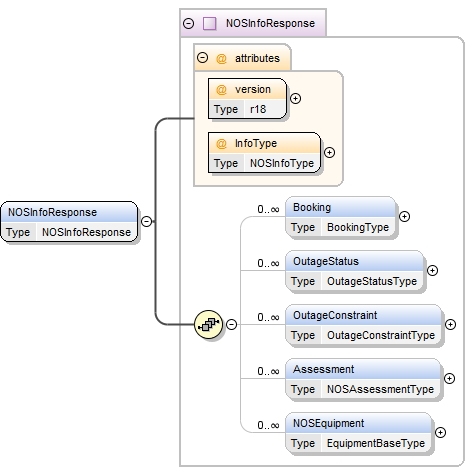

Diagram
Diagram asexml_r258.tmp#id1107 asexml_r258.tmp#id1108 asexml_r258.tmp#id1045 asexml_r258.tmp#id1046 asexml_r258.tmp#id1055 asexml_r258.tmp#id1064 asexml_r258.tmp#id1106 asexml_r258.tmp#id1044
Type NOSInfoResponse
Properties
content: complex
Model Booking* , OutageStatus* , OutageConstraint* , Assessment* , NOSEquipment*
Children Assessment, Booking, NOSEquipment, OutageConstraint, OutageStatus
Instance

<NOSInfoResponse InfoType="" version="">
  <Booking changedBy="" operationType="">{0,unbounded}</Booking>
  <OutageStatus>{0,unbounded}</OutageStatus>
  <OutageConstraint operationType="">{0,unbounded}</OutageConstraint>
  <Assessment operationType="">{0,unbounded}</Assessment>
  <NOSEquipment operationType="">{0,unbounded}</NOSEquipment>
</NOSInfoResponse>
Attributes
QName Type Fixed Default Use Annotation
InfoType NOSInfoType required
version r18 required
Source

<xsd:element name="NOSInfoResponse" type="NOSInfoResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/AllocationNotification
Namespace No namespace
Diagram

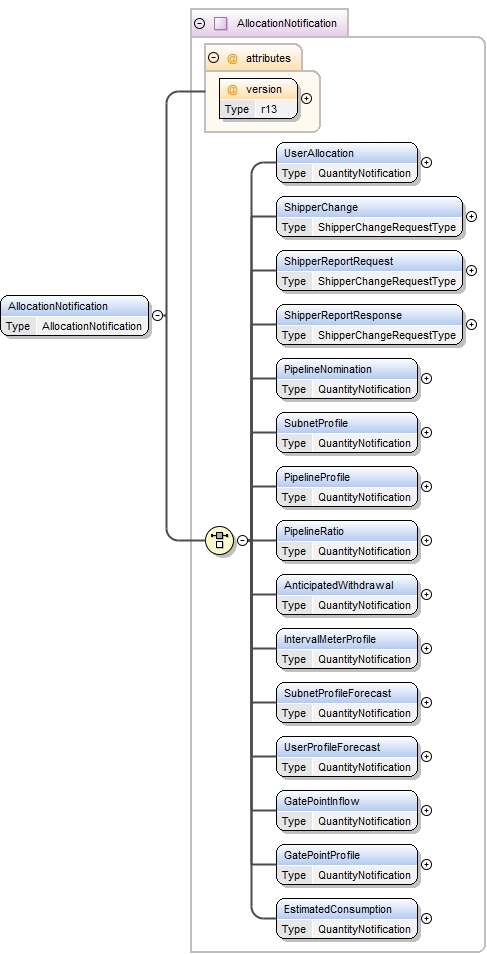

Diagram asexml_r253.tmp#id1192 asexml_r253.tmp#id1112 asexml_r253.tmp#id1170 asexml_r253.tmp#id1179 asexml_r253.tmp#id1180 asexml_r253.tmp#id1181 asexml_r253.tmp#id1182 asexml_r253.tmp#id1183 asexml_r253.tmp#id1184 asexml_r253.tmp#id1185 asexml_r253.tmp#id1186 asexml_r253.tmp#id1187 asexml_r253.tmp#id1188 asexml_r253.tmp#id1189 asexml_r253.tmp#id1190 asexml_r253.tmp#id1191 asexml_r253.tmp#id1111
Type AllocationNotification
Properties
content: complex
Model UserAllocation | ShipperChange | ShipperReportRequest | ShipperReportResponse | PipelineNomination | SubnetProfile | PipelineProfile | PipelineRatio | AnticipatedWithdrawal | IntervalMeterProfile | SubnetProfileForecast | UserProfileForecast | GatePointInflow | GatePointProfile | EstimatedConsumption
Children AnticipatedWithdrawal, EstimatedConsumption, GatePointInflow, GatePointProfile, IntervalMeterProfile, PipelineNomination, PipelineProfile, PipelineRatio, ShipperChange, ShipperReportRequest, ShipperReportResponse, SubnetProfile, SubnetProfileForecast, UserAllocation, UserProfileForecast
Instance

<AllocationNotification version="">
  <UserAllocation>{1,1}</UserAllocation>
  <ShipperChange type="">{1,1}</ShipperChange>
  <ShipperReportRequest type="">{1,1}</ShipperReportRequest>
  <ShipperReportResponse type="">{1,1}</ShipperReportResponse>
  <PipelineNomination>{1,1}</PipelineNomination>
  <SubnetProfile>{1,1}</SubnetProfile>
  <PipelineProfile>{1,1}</PipelineProfile>
  <PipelineRatio>{1,1}</PipelineRatio>
  <AnticipatedWithdrawal>{1,1}</AnticipatedWithdrawal>
  <IntervalMeterProfile>{1,1}</IntervalMeterProfile>
  <SubnetProfileForecast>{1,1}</SubnetProfileForecast>
  <UserProfileForecast>{1,1}</UserProfileForecast>
  <GatePointInflow>{1,1}</GatePointInflow>
  <GatePointProfile>{1,1}</GatePointProfile>
  <EstimatedConsumption>{1,1}</EstimatedConsumption>
</AllocationNotification>
Attributes
QName Type Fixed Default Use Annotation
version r13 required
Source

<xsd:element name="AllocationNotification" type="AllocationNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/ReconciliationNotification
Namespace No namespace
Diagram

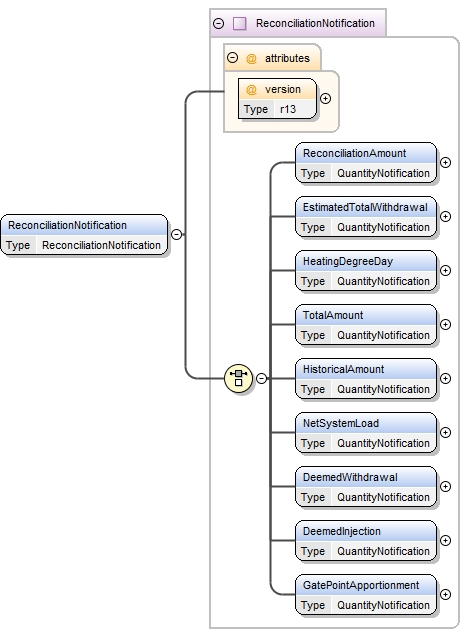

Diagram asexml_r253.tmp#id1204 asexml_r253.tmp#id1195 asexml_r253.tmp#id1196 asexml_r253.tmp#id1197 asexml_r253.tmp#id1198 asexml_r253.tmp#id1199 asexml_r253.tmp#id1200 asexml_r253.tmp#id1201 asexml_r253.tmp#id1202 asexml_r253.tmp#id1203 asexml_r253.tmp#id1194
Type ReconciliationNotification
Properties
content: complex
Model ReconciliationAmount | EstimatedTotalWithdrawal | HeatingDegreeDay | TotalAmount | HistoricalAmount | NetSystemLoad | DeemedWithdrawal | DeemedInjection | GatePointApportionment
Children DeemedInjection, DeemedWithdrawal, EstimatedTotalWithdrawal, GatePointApportionment, HeatingDegreeDay, HistoricalAmount, NetSystemLoad, ReconciliationAmount, TotalAmount
Instance

<ReconciliationNotification version="">
  <ReconciliationAmount>{1,1}</ReconciliationAmount>
  <EstimatedTotalWithdrawal>{1,1}</EstimatedTotalWithdrawal>
  <HeatingDegreeDay>{1,1}</HeatingDegreeDay>
  <TotalAmount>{1,1}</TotalAmount>
  <HistoricalAmount>{1,1}</HistoricalAmount>
  <NetSystemLoad>{1,1}</NetSystemLoad>
  <DeemedWithdrawal>{1,1}</DeemedWithdrawal>
  <DeemedInjection>{1,1}</DeemedInjection>
  <GatePointApportionment>{1,1}</GatePointApportionment>
</ReconciliationNotification>
Attributes
QName Type Fixed Default Use Annotation
version r13 required
Source

<xsd:element name="ReconciliationNotification" type="ReconciliationNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/SwingServiceNotification
Namespace No namespace
Diagram
Diagram asexml_r253.tmp#id1218 asexml_r253.tmp#id1207 asexml_r253.tmp#id1208 asexml_r253.tmp#id1209 asexml_r253.tmp#id1210 asexml_r253.tmp#id1211 asexml_r253.tmp#id1212 asexml_r253.tmp#id1213 asexml_r253.tmp#id1214 asexml_r253.tmp#id1215 asexml_r253.tmp#id1216 asexml_r253.tmp#id1217 asexml_r253.tmp#id1206
Type SwingServiceNotification
Properties
content: complex
Model SwingService | UserSwingService | SwingServiceRepayment | OffMarketProcurement | OffMarketProcurementStatus | BidStack | BidAllocation | BidNotification | ClearingPrice | ClearingPriceNonAdjusted | SwingServiceApportionment
Children BidAllocation, BidNotification, BidStack, ClearingPrice, ClearingPriceNonAdjusted, OffMarketProcurement, OffMarketProcurementStatus, SwingService, SwingServiceApportionment, SwingServiceRepayment, UserSwingService
Instance

<SwingServiceNotification version="">
  <SwingService>{1,1}</SwingService>
  <UserSwingService>{1,1}</UserSwingService>
  <SwingServiceRepayment>{1,1}</SwingServiceRepayment>
  <OffMarketProcurement>{1,1}</OffMarketProcurement>
  <OffMarketProcurementStatus>{1,1}</OffMarketProcurementStatus>
  <BidStack>{1,1}</BidStack>
  <BidAllocation>{1,1}</BidAllocation>
  <BidNotification>{1,1}</BidNotification>
  <ClearingPrice>{1,1}</ClearingPrice>
  <ClearingPriceNonAdjusted>{1,1}</ClearingPriceNonAdjusted>
  <SwingServiceApportionment>{1,1}</SwingServiceApportionment>
</SwingServiceNotification>
Attributes
QName Type Fixed Default Use Annotation
version r13 required
Source

<xsd:element name="SwingServiceNotification" type="SwingServiceNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/MeterReadingReferenceDataRequest
Namespace No namespace

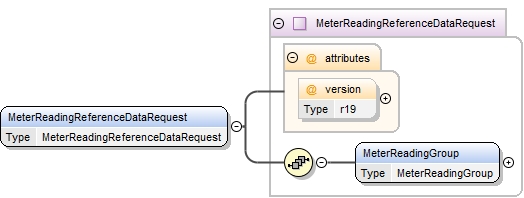

Diagram
Diagram asexml_r2521.tmp#id1222 asexml_r2521.tmp#id1221 asexml_r2521.tmp#id1220
Type MeterReadingReferenceDataRequest
Properties
content: complex
Model MeterReadingGroup
Children MeterReadingGroup
Instance

<MeterReadingReferenceDataRequest version="">
  <MeterReadingGroup context="">{1,1}</MeterReadingGroup>
</MeterReadingReferenceDataRequest>
Attributes
QName Type Fixed Default Use Annotation
version r19 optional
Source

<xsd:element name="MeterReadingReferenceDataRequest" type="MeterReadingReferenceDataRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/MeterReadingReferenceDataResponse
Namespace No namespace

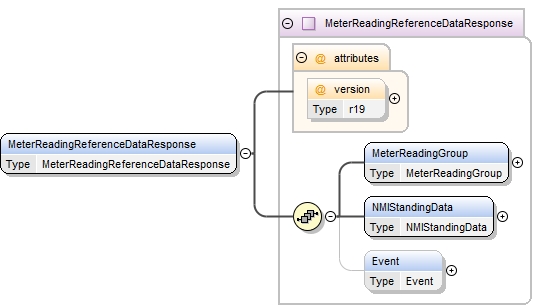

Diagram
Diagram asexml_r2521.tmp#id1228 asexml_r2521.tmp#id1225 asexml_r2521.tmp#id1226 asexml_r2521.tmp#id1227 asexml_r2521.tmp#id1224
Type MeterReadingReferenceDataResponse
Properties
content: complex
Model MeterReadingGroup , NMIStandingData , Event{0,1}
Children Event, MeterReadingGroup, NMIStandingData
Instance

<MeterReadingReferenceDataResponse version="">
  <MeterReadingGroup context="">{1,1}</MeterReadingGroup>
  <NMIStandingData effectiveDateTime="">{1,1}</NMIStandingData>
  <Event class="Application" severity="Fatal">{0,1}</Event>
</MeterReadingReferenceDataResponse>
Attributes
QName Type Fixed Default Use Annotation
version r19 optional
Source

<xsd:element name="MeterReadingReferenceDataResponse" type="MeterReadingReferenceDataResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/WholesaleRetrieveRequest
Namespace No namespace
Diagram

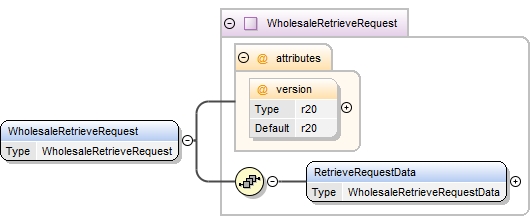

Diagram asexml_r2525.tmp#id1233 asexml_r2525.tmp#id1231 asexml_r2525.tmp#id1230
Type WholesaleRetrieveRequest
Properties
content: complex
Model RetrieveRequestData
Children RetrieveRequestData
Instance

<WholesaleRetrieveRequest version="r20">
  <RetrieveRequestData>{1,1}</RetrieveRequestData>
</WholesaleRetrieveRequest>
Attributes
QName Type Fixed Default Use Annotation
version r20 r20 optional
Source

<xsd:element name="WholesaleRetrieveRequest" type="WholesaleRetrieveRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/WholesaleRetrieveResponse
Namespace No namespace

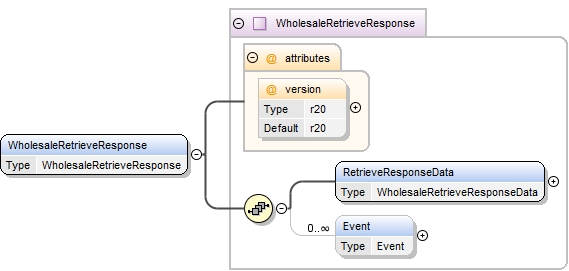

Diagram
Diagram asexml_r2525.tmp#id1240 asexml_r2525.tmp#id1237 asexml_r2525.tmp#id1239 asexml_r2525.tmp#id1236
Type WholesaleRetrieveResponse
Properties
content: complex
Model RetrieveResponseData , Event*
Children Event, RetrieveResponseData
Instance

<WholesaleRetrieveResponse version="r20">
  <RetrieveResponseData>{1,1}</RetrieveResponseData>
  <Event class="Application" severity="Fatal">{0,unbounded}</Event>
</WholesaleRetrieveResponse>
Attributes
QName Type Fixed Default Use Annotation
version r20 r20 optional
Source

<xsd:element name="WholesaleRetrieveResponse" type="WholesaleRetrieveResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/WholesaleSearchRequest
Namespace No namespace
Diagram
Diagram asexml_r2525.tmp#id1245 asexml_r2525.tmp#id1243 asexml_r2525.tmp#id1242
Type WholesaleSearchRequest
Properties
content: complex
Model SearchRequestData
Children SearchRequestData
Instance

<WholesaleSearchRequest version="r20">
  <SearchRequestData>{1,1}</SearchRequestData>
</WholesaleSearchRequest>
Attributes
QName Type Fixed Default Use Annotation
version r20 r20 optional
Source

<xsd:element name="WholesaleSearchRequest" type="WholesaleSearchRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/WholesaleSearchResponse
Namespace No namespace
Diagram
Diagram asexml_r2525.tmp#id1251 asexml_r2525.tmp#id1248 asexml_r2525.tmp#id1250 asexml_r2525.tmp#id1247
Type WholesaleSearchResponse
Properties
content: complex
Model SearchResponseData , Event*
Children Event, SearchResponseData
Instance

<WholesaleSearchResponse version="r20">
  <SearchResponseData>{1,1}</SearchResponseData>
  <Event class="Application" severity="Fatal">{0,unbounded}</Event>
</WholesaleSearchResponse>
Attributes
QName Type Fixed Default Use Annotation
version r20 r20 optional
Source

<xsd:element name="WholesaleSearchResponse" type="WholesaleSearchResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/WholesaleSubmitRequest
Namespace No namespace
Diagram
Diagram asexml_r2525.tmp#id1256 asexml_r2525.tmp#id1254 asexml_r2525.tmp#id1253
Type WholesaleSubmitRequest
Properties
content: complex
Model SubmitRequestData
Children SubmitRequestData
Instance

<WholesaleSubmitRequest version="r20">
  <SubmitRequestData>{1,1}</SubmitRequestData>
</WholesaleSubmitRequest>
Attributes
QName Type Fixed Default Use Annotation
version r20 r20 optional
Source

<xsd:element name="WholesaleSubmitRequest" type="WholesaleSubmitRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/WholesaleSubmitResponse
Namespace No namespace
Diagram
Diagram asexml_r2525.tmp#id1262 asexml_r2525.tmp#id1259 asexml_r2525.tmp#id1261 asexml_r2525.tmp#id1258
Type WholesaleSubmitResponse
Properties
content: complex
Model SubmitResponseData , Event*
Children Event, SubmitResponseData
Instance

<WholesaleSubmitResponse version="r20">
  <SubmitResponseData>{1,1}</SubmitResponseData>
  <Event class="Application" severity="Fatal">{0,unbounded}</Event>
</WholesaleSubmitResponse>
Attributes
QName Type Fixed Default Use Annotation
version r20 r20 optional
Source

<xsd:element name="WholesaleSubmitResponse" type="WholesaleSubmitResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/WholesaleInformationRequest
Namespace No namespace

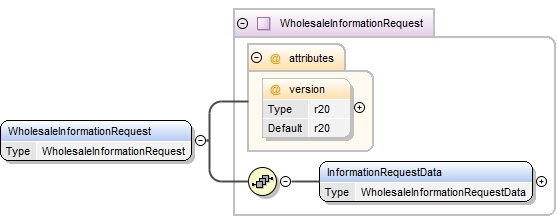

Diagram
Diagram asexml_r2525.tmp#id1267 asexml_r2525.tmp#id1265 asexml_r2525.tmp#id1264
Type WholesaleInformationRequest
Properties
content: complex
Model InformationRequestData
Children InformationRequestData
Instance

<WholesaleInformationRequest version="r20">
  <InformationRequestData>{1,1}</InformationRequestData>
</WholesaleInformationRequest>
Attributes
QName Type Fixed Default Use Annotation
version r20 r20 optional
Source

<xsd:element name="WholesaleInformationRequest" type="WholesaleInformationRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/WholesaleInformationResponse
Namespace No namespace

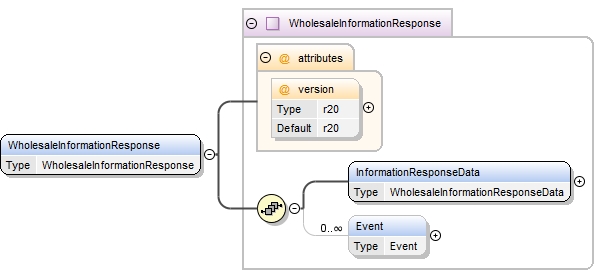

Diagram
Diagram asexml_r2525.tmp#id1273 asexml_r2525.tmp#id1270 asexml_r2525.tmp#id1272 asexml_r2525.tmp#id1269
Type WholesaleInformationResponse
Properties
content: complex
Model InformationResponseData , Event*
Children Event, InformationResponseData
Instance

<WholesaleInformationResponse version="r20">
  <InformationResponseData>{1,1}</InformationResponseData>
  <Event class="Application" severity="Fatal">{0,unbounded}</Event>
</WholesaleInformationResponse>
Attributes
QName Type Fixed Default Use Annotation
version r20 r20 optional
Source

<xsd:element name="WholesaleInformationResponse" type="WholesaleInformationResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/HSMMonitorsRequest
Namespace No namespace

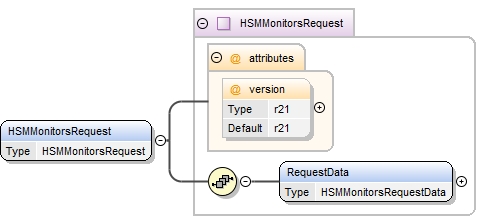

Diagram
Diagram asexml_r2510.tmp#id1278 asexml_r2510.tmp#id1276 asexml_r2510.tmp#id1275
Type HSMMonitorsRequest
Properties
content: complex
Model RequestData
Children RequestData
Instance

<HSMMonitorsRequest version="r21">
  <RequestData>{1,1}</RequestData>
</HSMMonitorsRequest>
Attributes
QName Type Fixed Default Use Annotation
version r21 r21 optional
Source

<xsd:element name="HSMMonitorsRequest" type="HSMMonitorsRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/HSMMonitorsResponse
Namespace No namespace
Diagram
Diagram asexml_r2510.tmp#id1285 asexml_r2510.tmp#id1282 asexml_r2510.tmp#id1284 asexml_r2510.tmp#id1281
Type HSMMonitorsResponse
Properties
content: complex
Model ResponseData , Event
Children Event, ResponseData
Instance

<HSMMonitorsResponse version="r21">
  <ResponseData>{1,1}</ResponseData>
  <Event class="Application" severity="Fatal">{1,1}</Event>
</HSMMonitorsResponse>
Attributes
QName Type Fixed Default Use Annotation
version r21 r21 optional
Source

<xsd:element name="HSMMonitorsResponse" type="HSMMonitorsResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/HSMMonitorDataRequest
Namespace No namespace
Diagram

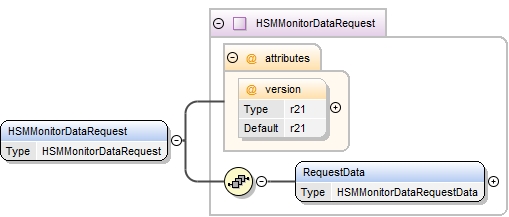

Diagram asexml_r2510.tmp#id1290 asexml_r2510.tmp#id1288 asexml_r2510.tmp#id1287
Type HSMMonitorDataRequest
Properties
content: complex
Model RequestData
Children RequestData
Instance

<HSMMonitorDataRequest version="r21">
  <RequestData>{1,1}</RequestData>
</HSMMonitorDataRequest>
Attributes
QName Type Fixed Default Use Annotation
version r21 r21 optional
Source

<xsd:element name="HSMMonitorDataRequest" type="HSMMonitorDataRequest"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/HSMMonitorDataResponse
Namespace No namespace
Diagram

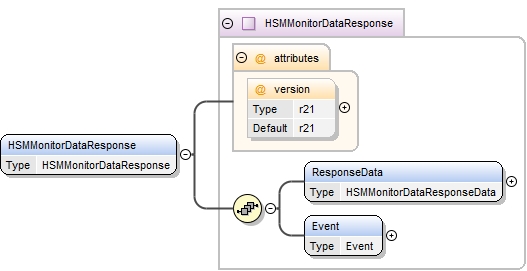

Diagram asexml_r2510.tmp#id1296 asexml_r2510.tmp#id1293 asexml_r2510.tmp#id1295 asexml_r2510.tmp#id1292
Type HSMMonitorDataResponse
Properties
content: complex
Model ResponseData , Event
Children Event, ResponseData
Instance

<HSMMonitorDataResponse version="r21">
  <ResponseData>{1,1}</ResponseData>
  <Event class="Application" severity="Fatal">{1,1}</Event>
</HSMMonitorDataResponse>
Attributes
QName Type Fixed Default Use Annotation
version r21 r21 optional
Source

<xsd:element name="HSMMonitorDataResponse" type="HSMMonitorDataResponse"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/HSMTriggeredDataNotification
Namespace No namespace

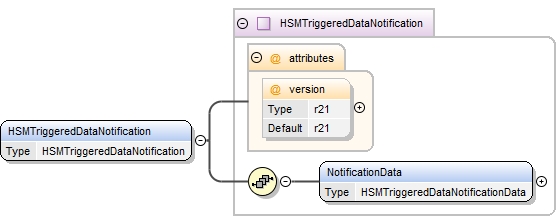

Diagram
Diagram asexml_r2510.tmp#id1301 asexml_r2510.tmp#id1299 asexml_r2510.tmp#id1298
Type HSMTriggeredDataNotification
Properties
content: complex
Model NotificationData
Children NotificationData
Instance

<HSMTriggeredDataNotification version="r21">
  <NotificationData>{1,1}</NotificationData>
</HSMTriggeredDataNotification>
Attributes
QName Type Fixed Default Use Annotation
version r21 r21 optional
Source

<xsd:element name="HSMTriggeredDataNotification" type="HSMTriggeredDataNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Element Transaction/OneWayNotification
Namespace No namespace
Diagram

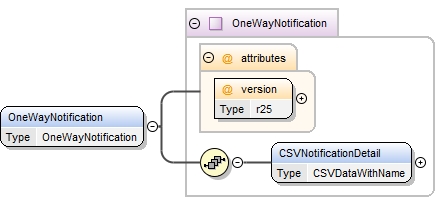

Diagram asexml_r2528.tmp#id1305 asexml_r2528.tmp#id1304 asexml_r2528.tmp#id1303
Type OneWayNotification
Properties
content: complex
Model CSVNotificationDetail
Children CSVNotificationDetail
Instance

<OneWayNotification version="">
  <CSVNotificationDetail Description="" Name="">{1,1}</CSVNotificationDetail>
</OneWayNotification>
Attributes
QName Type Fixed Default Use Annotation
version r25 required
Source

<xsd:element name="OneWayNotification" type="OneWayNotification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Complex Type Transactions
Namespace urn:aseXML:r25
Annotations

Purpose - Container for multiple transactions within one aseXML message
Detail - An aseXML message may contain one or more transactions. All transactions within an aseXML message are grouped under this container.
Diagram
Diagram asexml_r2513.tmp#id56
Used by
Model Transaction+
Children Transaction
Source

<xsd:complexType name="Transactions">
  <xsd:annotation>
    <xsd:documentation>Purpose - Container for multiple transactions within one aseXML message Detail - An aseXML message may contain one or more transactions. All transactions within an aseXML message are grouped under this container.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Transaction" type="Transaction" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Complex Type Transaction
Namespace urn:aseXML:r25
Annotations

Purpose - Common container for all transactions
Detail - All transactions within aseXML are carried within this container. The transactionID and transactionDate are provided for all transactions. The initiatingTransactionID is only provided on response transactions and represents the transactionID of the initiating transaction.
Diagram
Diagram asexml_r2513.tmp#id1306 asexml_r2513.tmp#id1308 asexml_r2513.tmp#id1309 asexml_r2513.tmp#id58 asexml_r2513.tmp#id72 asexml_r2513.tmp#id105 asexml_r2513.tmp#id113 asexml_r2513.tmp#id120 asexml_r2513.tmp#id144 asexml_r2513.tmp#id153 asexml_r2513.tmp#id159 asexml_r2513.tmp#id218 asexml_r2513.tmp#id230 asexml_r2513.tmp#id236 asexml_r2513.tmp#id241 asexml_r2513.tmp#id260 asexml_r2513.tmp#id265 asexml_r2513.tmp#id269 asexml_r2513.tmp#id277 asexml_r2513.tmp#id283 asexml_r2513.tmp#id290 asexml_r2513.tmp#id317 asexml_r2513.tmp#id326 asexml_r2513.tmp#id335 asexml_r2513.tmp#id432 asexml_r2513.tmp#id445 asexml_r2513.tmp#id453 asexml_r2513.tmp#id520 asexml_r2513.tmp#id545 asexml_r2513.tmp#id568 asexml_r2513.tmp#id590 asexml_r2513.tmp#id615 asexml_r2513.tmp#id623 asexml_r2513.tmp#id660 asexml_r2513.tmp#id692 asexml_r2513.tmp#id699 asexml_r2513.tmp#id720 asexml_r2513.tmp#id733 asexml_r2513.tmp#id737 asexml_r2513.tmp#id748 asexml_r2513.tmp#id752 asexml_r2513.tmp#id758 asexml_r2513.tmp#id762 asexml_r2513.tmp#id767 asexml_r2513.tmp#id773 asexml_r2513.tmp#id774 asexml_r2513.tmp#id775 asexml_r2513.tmp#id780 asexml_r2513.tmp#id784 asexml_r2513.tmp#id788 asexml_r2513.tmp#id793 asexml_r2513.tmp#id794 asexml_r2513.tmp#id870 asexml_r2513.tmp#id875 asexml_r2513.tmp#id886 asexml_r2513.tmp#id895 asexml_r2513.tmp#id969 asexml_r2513.tmp#id1003 asexml_r2513.tmp#id1013 asexml_r2513.tmp#id1027 asexml_r2513.tmp#id1036 asexml_r2513.tmp#id1043 asexml_r2513.tmp#id1110 asexml_r2513.tmp#id1193 asexml_r2513.tmp#id1205 asexml_r2513.tmp#id1219 asexml_r2513.tmp#id1223 asexml_r2513.tmp#id1229 asexml_r2513.tmp#id1235 asexml_r2513.tmp#id1241 asexml_r2513.tmp#id1246 asexml_r2513.tmp#id1252 asexml_r2513.tmp#id1257 asexml_r2513.tmp#id1263 asexml_r2513.tmp#id1268 asexml_r2513.tmp#id1274 asexml_r2513.tmp#id1280 asexml_r2513.tmp#id1286 asexml_r2513.tmp#id1291 asexml_r2513.tmp#id1297 asexml_r2513.tmp#id1302
Used by
Model ReplicationRequest | ReplicationNotification | ReportRequest | ReportResponse | MeterDataNotification | MeterDataResponse | SettlementDataNotification | NMIDiscoveryRequest | NMIDiscoveryResponse | NMIStandingDataRequest | NMIStandingDataResponse | CATSChangeRequest | CATSChangeResponse | CATSChangeWithdrawal | CATSObjectionRequest | CATSObjectionResponse | CATSObjectionWithdrawal | CATSNotification | CATSDataRequest | CATSChangeAlert | ServiceOrderRequest | ServiceOrderResponse | FieldWorkNotification | NetworkInvoiceNotification | DisputeNotification | RemittanceNotification | DisputeResponse | CreditNotification | FaultInformationRequest | FaultNotification | FaultOutageAdvice | CustomerDetailsRequest | CustomerDetailsNotification | AmendMeterRouteDetails | AccountCreationNotification | NetworkDUoSBillingNotification | MeterReadInputNotification | MeterDataVerifyRequest | MeterDataVerifyResponse | MeterDataHistoryRequest | MeterDataHistoryResponse | SpecialReadRequest | SpecialReadResponse | MeterDataMissingNotification | CurrentRetailerConfirmationRequest | CurrentRetailerConfirmationResponse | NMIStandingDataUpdateNotification | NMIStandingDataUpdateResponse | GasMeterNotification | MeteredSupplyPointsCountUpdate | CATSBulkDataRequest | CATSBulkDataResponse | NOSBookingSubmission | NOSBookingResponse | NOSBookingInfoRequest | NOSEquipmentSubmission | NOSEquipmentResponse | NOSEquipmentInfoRequest | NOSInfoResponse | AllocationNotification | ReconciliationNotification | SwingServiceNotification | MeterReadingReferenceDataRequest | MeterReadingReferenceDataResponse | WholesaleRetrieveRequest | WholesaleRetrieveResponse | WholesaleSearchRequest | WholesaleSearchResponse | WholesaleSubmitRequest | WholesaleSubmitResponse | WholesaleInformationRequest | WholesaleInformationResponse | HSMMonitorsRequest | HSMMonitorsResponse | HSMMonitorDataRequest | HSMMonitorDataResponse | HSMTriggeredDataNotification | OneWayNotification
Children AccountCreationNotification, AllocationNotification, AmendMeterRouteDetails, CATSBulkDataRequest, CATSBulkDataResponse, CATSChangeAlert, CATSChangeRequest, CATSChangeResponse, CATSChangeWithdrawal, CATSDataRequest, CATSNotification, CATSObjectionRequest, CATSObjectionResponse, CATSObjectionWithdrawal, CreditNotification, CurrentRetailerConfirmationRequest, CurrentRetailerConfirmationResponse, CustomerDetailsNotification, CustomerDetailsRequest, DisputeNotification, DisputeResponse, FaultInformationRequest, FaultNotification, FaultOutageAdvice, FieldWorkNotification, GasMeterNotification, HSMMonitorDataRequest, HSMMonitorDataResponse, HSMMonitorsRequest, HSMMonitorsResponse, HSMTriggeredDataNotification, MeterDataHistoryRequest, MeterDataHistoryResponse, MeterDataMissingNotification, MeterDataNotification, MeterDataResponse, MeterDataVerifyRequest, MeterDataVerifyResponse, MeterReadInputNotification, MeterReadingReferenceDataRequest, MeterReadingReferenceDataResponse, MeteredSupplyPointsCountUpdate, NMIDiscoveryRequest, NMIDiscoveryResponse, NMIStandingDataRequest, NMIStandingDataResponse, NMIStandingDataUpdateNotification, NMIStandingDataUpdateResponse, NOSBookingInfoRequest, NOSBookingResponse, NOSBookingSubmission, NOSEquipmentInfoRequest, NOSEquipmentResponse, NOSEquipmentSubmission, NOSInfoResponse, NetworkDUoSBillingNotification, NetworkInvoiceNotification, OneWayNotification, ReconciliationNotification, RemittanceNotification, ReplicationNotification, ReplicationRequest, ReportRequest, ReportResponse, ServiceOrderRequest, ServiceOrderResponse, SettlementDataNotification, SpecialReadRequest, SpecialReadResponse, SwingServiceNotification, WholesaleInformationRequest, WholesaleInformationResponse, WholesaleRetrieveRequest, WholesaleRetrieveResponse, WholesaleSearchRequest, WholesaleSearchResponse, WholesaleSubmitRequest, WholesaleSubmitResponse
Attributes
QName Type Fixed Default Use Annotation
initiatingTransactionID TransactionIdentifier optional
transactionDate xsd:dateTime required
transactionID TransactionIdentifier required
Source

<xsd:complexType name="Transaction">
  <xsd:annotation>
    <xsd:documentation>Purpose - Common container for all transactions Detail - All transactions within aseXML are carried within this container. The transactionID and transactionDate are provided for all transactions. The initiatingTransactionID is only provided on response transactions and represents the transactionID of the initiating transaction.</xsd:documentation>
  </xsd:annotation>
  <xsd:choice>
    <xsd:element name="ReplicationRequest" type="ReplicationRequest"/>
    <xsd:element name="ReplicationNotification" type="ReplicationNotification"/>
    <xsd:element name="ReportRequest" type="ReportRequest"/>
    <xsd:element name="ReportResponse" type="ReportResponse"/>
    <xsd:element name="MeterDataNotification" type="MeterDataNotification"/>
    <xsd:element name="MeterDataResponse" type="MeterDataResponse"/>
    <xsd:element name="SettlementDataNotification" type="SettlementDataNotification"/>
    <xsd:element name="NMIDiscoveryRequest" type="NMIDiscoveryRequest"/>
    <xsd:element name="NMIDiscoveryResponse" type="NMIDiscoveryResponse"/>
    <xsd:element name="NMIStandingDataRequest" type="NMIStandingDataRequest"/>
    <xsd:element name="NMIStandingDataResponse" type="NMIStandingDataResponse"/>
    <xsd:element name="CATSChangeRequest" type="CATSChangeRequest"/>
    <xsd:element name="CATSChangeResponse" type="CATSChangeResponse"/>
    <xsd:element name="CATSChangeWithdrawal" type="CATSChangeWithdrawal"/>
    <xsd:element name="CATSObjectionRequest" type="CATSObjectionRequest"/>
    <xsd:element name="CATSObjectionResponse" type="CATSObjectionResponse"/>
    <xsd:element name="CATSObjectionWithdrawal" type="CATSObjectionWithdrawal"/>
    <xsd:element name="CATSNotification" type="CATSNotification"/>
    <xsd:element name="CATSDataRequest" type="CATSDataRequest"/>
    <xsd:element name="CATSChangeAlert" type="CATSChangeAlert"/>
    <xsd:element name="ServiceOrderRequest" type="ServiceOrderRequest"/>
    <xsd:element name="ServiceOrderResponse" type="ServiceOrderResponse"/>
    <xsd:element name="FieldWorkNotification" type="FieldWorkNotification"/>
    <xsd:element name="NetworkInvoiceNotification" type="NetworkInvoiceNotification"/>
    <xsd:element name="DisputeNotification" type="DisputeNotification"/>
    <xsd:element name="RemittanceNotification" type="RemittanceNotification"/>
    <xsd:element name="DisputeResponse" type="DisputeResponse"/>
    <xsd:element name="CreditNotification" type="CreditNotification"/>
    <xsd:element name="FaultInformationRequest" type="FaultInformationRequest"/>
    <xsd:element name="FaultNotification" type="FaultNotification"/>
    <xsd:element name="FaultOutageAdvice" type="FaultOutageAdvice"/>
    <xsd:element name="CustomerDetailsRequest" type="CustomerDetailsRequest"/>
    <xsd:element name="CustomerDetailsNotification" type="CustomerDetailsNotification"/>
    <xsd:element name="AmendMeterRouteDetails" type="AmendMeterRouteDetails"/>
    <xsd:element name="AccountCreationNotification" type="AccountCreationNotification"/>
    <xsd:element name="NetworkDUoSBillingNotification" type="NetworkDUoSBillingNotification"/>
    <xsd:element name="MeterReadInputNotification" type="MeterReadInputNotification"/>
    <xsd:element name="MeterDataVerifyRequest" type="MeterDataVerifyRequest"/>
    <xsd:element name="MeterDataVerifyResponse" type="MeterDataVerifyResponse"/>
    <xsd:element name="MeterDataHistoryRequest" type="MeterDataHistoryRequest"/>
    <xsd:element name="MeterDataHistoryResponse" type="MeterDataHistoryResponse"/>
    <xsd:element name="SpecialReadRequest" type="ServiceOrderRequest"/>
    <xsd:element name="SpecialReadResponse" type="ServiceOrderResponse"/>
    <xsd:element name="MeterDataMissingNotification" type="MeterDataMissingNotification"/>
    <xsd:element name="CurrentRetailerConfirmationRequest" type="CurrentRetailerConfirmationRequest"/>
    <xsd:element name="CurrentRetailerConfirmationResponse" type="CurrentRetailerConfirmationResponse"/>
    <xsd:element name="NMIStandingDataUpdateNotification" type="NMIStandingDataUpdateNotification"/>
    <xsd:element name="NMIStandingDataUpdateResponse" type="MeterDataResponse"/>
    <xsd:element name="GasMeterNotification" type="GasMeterNotification"/>
    <xsd:element name="MeteredSupplyPointsCountUpdate" type="MeteredSupplyPointsCountUpdate"/>
    <xsd:element name="CATSBulkDataRequest" type="CATSBulkDataRequest"/>
    <xsd:element name="CATSBulkDataResponse" type="CATSBulkDataResponse"/>
    <xsd:element name="NOSBookingSubmission" type="NOSBookingSubmission">
      <xsd:unique name="uniqueBooking">
        <xsd:selector xpath=".//Booking"/>
        <xsd:field xpath="CompanyBookingId"/>
      </xsd:unique>
    </xsd:element>
    <xsd:element name="NOSBookingResponse" type="NOSBookingResponse"/>
    <xsd:element name="NOSBookingInfoRequest" type="NOSBookingInfoRequest"/>
    <xsd:element name="NOSEquipmentSubmission" type="NOSEquipmentSubmission">
      <xsd:unique name="equipmentKey">
        <xsd:selector xpath=".//NOSEquipment"/>
        <xsd:field xpath="CompanyElementId"/>
      </xsd:unique>
    </xsd:element>
    <xsd:element name="NOSEquipmentResponse" type="NOSEquipmentResponse"/>
    <xsd:element name="NOSEquipmentInfoRequest" type="NOSEquipmentInfoRequest"/>
    <xsd:element name="NOSInfoResponse" type="NOSInfoResponse"/>
    <xsd:element name="AllocationNotification" type="AllocationNotification"/>
    <xsd:element name="ReconciliationNotification" type="ReconciliationNotification"/>
    <xsd:element name="SwingServiceNotification" type="SwingServiceNotification"/>
    <xsd:element name="MeterReadingReferenceDataRequest" type="MeterReadingReferenceDataRequest"/>
    <xsd:element name="MeterReadingReferenceDataResponse" type="MeterReadingReferenceDataResponse"/>
    <xsd:element name="WholesaleRetrieveRequest" type="WholesaleRetrieveRequest"/>
    <xsd:element name="WholesaleRetrieveResponse" type="WholesaleRetrieveResponse"/>
    <xsd:element name="WholesaleSearchRequest" type="WholesaleSearchRequest"/>
    <xsd:element name="WholesaleSearchResponse" type="WholesaleSearchResponse"/>
    <xsd:element name="WholesaleSubmitRequest" type="WholesaleSubmitRequest"/>
    <xsd:element name="WholesaleSubmitResponse" type="WholesaleSubmitResponse"/>
    <xsd:element name="WholesaleInformationRequest" type="WholesaleInformationRequest"/>
    <xsd:element name="WholesaleInformationResponse" type="WholesaleInformationResponse"/>
    <xsd:element name="HSMMonitorsRequest" type="HSMMonitorsRequest"/>
    <xsd:element name="HSMMonitorsResponse" type="HSMMonitorsResponse"/>
    <xsd:element name="HSMMonitorDataRequest" type="HSMMonitorDataRequest"/>
    <xsd:element name="HSMMonitorDataResponse" type="HSMMonitorDataResponse"/>
    <xsd:element name="HSMTriggeredDataNotification" type="HSMTriggeredDataNotification"/>
    <xsd:element name="OneWayNotification" type="OneWayNotification"/>
  </xsd:choice>
  <xsd:attribute name="transactionID" type="TransactionIdentifier" use="required"/>
  <xsd:attribute name="transactionDate" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="initiatingTransactionID" type="TransactionIdentifier" use="optional"/>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Simple Type TransactionIdentifier
Namespace urn:aseXML:r25
Annotations

Purpose - Uniquely identify every transaction generated by the transaction sender
Detail - Note that transaction identifiers do not have to be globally unique, only unique to a particular sender. However, the length has been chosen such that UUIDs can be used as transaction identifiers if considered appropriate, guaranteeing global uniqueness.

A transaction acknowledgement identifies which transaction it is acknowledging by providing the transaction identifier as an attribute.

In addition to carrying its own unique identifier, a transaction generated in response to the initial transaction of a transaction exchange also carries the transaction identifier of the initial transaction. This allows the sender to determine the context in which the response transaction should be interpreted.
Diagram
Diagram asexml_r250.tmp#id364
Type UniqueIdentifier
Type hierarchy
Facets
minLength 1
maxLength 36
Used by
Source

<xsd:simpleType name="TransactionIdentifier">
  <xsd:annotation>
    <xsd:documentation>Purpose - Uniquely identify every transaction generated by the transaction sender Detail - Note that transaction identifiers do not have to be globally unique, only unique to a particular sender. However, the length has been chosen such that UUIDs can be used as transaction identifiers if considered appropriate, guaranteeing global uniqueness. A transaction acknowledgement identifies which transaction it is acknowledging by providing the transaction identifier as an attribute. In addition to carrying its own unique identifier, a transaction generated in response to the initial transaction of a transaction exchange also carries the transaction identifier of the initial transaction. This allows the sender to determine the context in which the response transaction should be interpreted.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="UniqueIdentifier"/>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Attribute Transaction/@transactionID
Namespace No namespace
Type TransactionIdentifier
Type hierarchy
Properties
use: required
Facets
minLength 1
maxLength 36
Used by
Complex Type Transaction
Source

<xsd:attribute name="transactionID" type="TransactionIdentifier" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Attribute Transaction/@transactionDate
Namespace No namespace
Type xsd:dateTime
Properties
use: required
Used by
Complex Type Transaction
Source

<xsd:attribute name="transactionDate" type="xsd:dateTime" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
Attribute Transaction/@initiatingTransactionID
Namespace No namespace
Type TransactionIdentifier
Type hierarchy
Properties
use: optional
Facets
minLength 1
maxLength 36
Used by
Complex Type Transaction
Source

<xsd:attribute name="initiatingTransactionID" type="TransactionIdentifier" use="optional"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Transactions_r25.xsd
XML Schema documentation generated by ® XML Editor.
