Included schema CATSTableReplication_r25.xsd
Namespace
No namespace

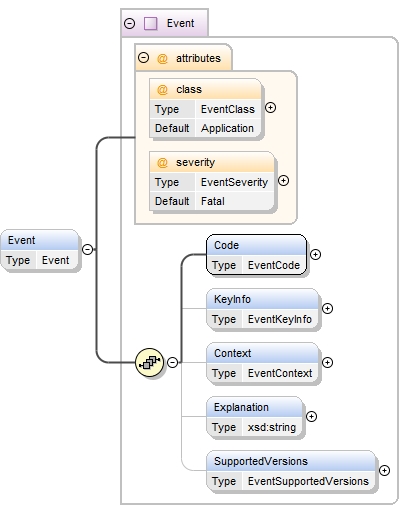

Diagram
Type
Event
Properties
content:
complex
minOccurs:
0
maxOccurs:
unbounded
Model
Code , KeyInfo{0,1} , Context{0,1} , Explanation{0,1} , SupportedVersions{0,1}
Children
Code , Context , Explanation , KeyInfo , SupportedVersions
Instance
<Event class= "Application" severity= "Fatal" >
<Code description= "" > {1,1} </Code>
<KeyInfo > {0,1} </KeyInfo>
<Context > {0,1} </Context>
<Explanation > {0,1} </Explanation>
<SupportedVersions > {0,1} </SupportedVersions>
</Event>
Attributes
Source
<xsd:element name= "Event" type= "Event" minOccurs= "0" maxOccurs= "unbounded" />
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Namespace
No namespace
Diagram
Type
Event
Properties
content:
complex
minOccurs:
0
maxOccurs:
unbounded
Model
Code , KeyInfo{0,1} , Context{0,1} , Explanation{0,1} , SupportedVersions{0,1}
Children
Code , Context , Explanation , KeyInfo , SupportedVersions
Instance
<Event class= "Application" severity= "Fatal" >
<Code description= "" > {1,1} </Code>
<KeyInfo > {0,1} </KeyInfo>
<Context > {0,1} </Context>
<Explanation > {0,1} </Explanation>
<SupportedVersions > {0,1} </SupportedVersions>
</Event>
Attributes
Source
<xsd:element name= "Event" type= "Event" minOccurs= "0" maxOccurs= "unbounded" />
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Namespace
No namespace
Diagram
Type
Event
Properties
content:
complex
minOccurs:
0
maxOccurs:
unbounded
Model
Code , KeyInfo{0,1} , Context{0,1} , Explanation{0,1} , SupportedVersions{0,1}
Children
Code , Context , Explanation , KeyInfo , SupportedVersions
Instance
<Event class= "Application" severity= "Fatal" >
<Code description= "" > {1,1} </Code>
<KeyInfo > {0,1} </KeyInfo>
<Context > {0,1} </Context>
<Explanation > {0,1} </Explanation>
<SupportedVersions > {0,1} </SupportedVersions>
</Event>
Attributes
Source
<xsd:element name= "Event" type= "Event" minOccurs= "0" maxOccurs= "unbounded" />
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Namespace
No namespace
Diagram
Type
Event
Properties
content:
complex
minOccurs:
0
maxOccurs:
unbounded
Model
Code , KeyInfo{0,1} , Context{0,1} , Explanation{0,1} , SupportedVersions{0,1}
Children
Code , Context , Explanation , KeyInfo , SupportedVersions
Instance
<Event class= "Application" severity= "Fatal" >
<Code description= "" > {1,1} </Code>
<KeyInfo > {0,1} </KeyInfo>
<Context > {0,1} </Context>
<Explanation > {0,1} </Explanation>
<SupportedVersions > {0,1} </SupportedVersions>
</Event>
Attributes
Source
<xsd:element name= "Event" type= "Event" minOccurs= "0" maxOccurs= "unbounded" />
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Namespace
No namespace
Diagram
Type
Event
Properties
content:
complex
minOccurs:
0
maxOccurs:
unbounded
Model
Code , KeyInfo{0,1} , Context{0,1} , Explanation{0,1} , SupportedVersions{0,1}
Children
Code , Context , Explanation , KeyInfo , SupportedVersions
Instance
<Event class= "Application" severity= "Fatal" >
<Code description= "" > {1,1} </Code>
<KeyInfo > {0,1} </KeyInfo>
<Context > {0,1} </Context>
<Explanation > {0,1} </Explanation>
<SupportedVersions > {0,1} </SupportedVersions>
</Event>
Attributes
Source
<xsd:element name= "Event" type= "Event" minOccurs= "0" maxOccurs= "unbounded" />
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Simple Type CATSDeregistrationCode
Simple Type CATSDeregistrationDescription
Simple Type CATSErrorCode
Simple Type CATSErrorDescription
Simple Type CATSRetrospectivityCode
Simple Type CATSRetrospectivityDescription
Simple Type CATSObjectionRuleDescription
Simple Type BDTStatus
Simple Type MSATSCodeValueType
Simple Type MSATSCodeValue
Simple Type MSATSCodeValueDescription

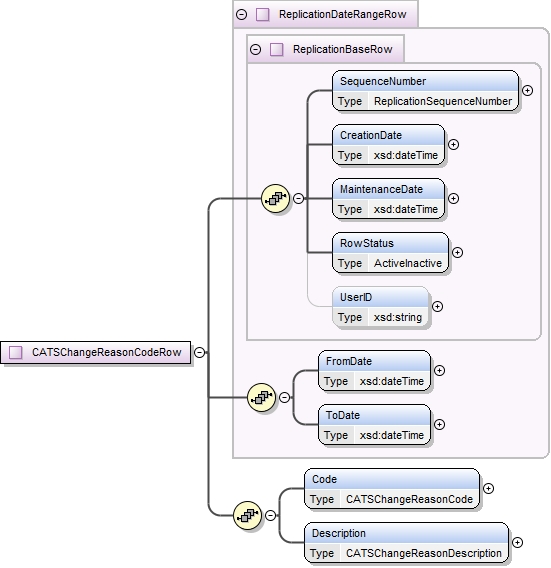

Complex Type CATSChangeReasonCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSChangeReasonCodes table
MSATS Data Model Table - CATS_Change_Reason_Codes
Replication Table Name - CATSChangeReasonCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "CATSChangeReasonCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSChangeReasonCodes table MSATS Data Model Table - CATS_Change_Reason_Codes Replication Table Name - CATSChangeReasonCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "CATSChangeReasonCode" />
<xsd:element name= "Description" type= "CATSChangeReasonDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

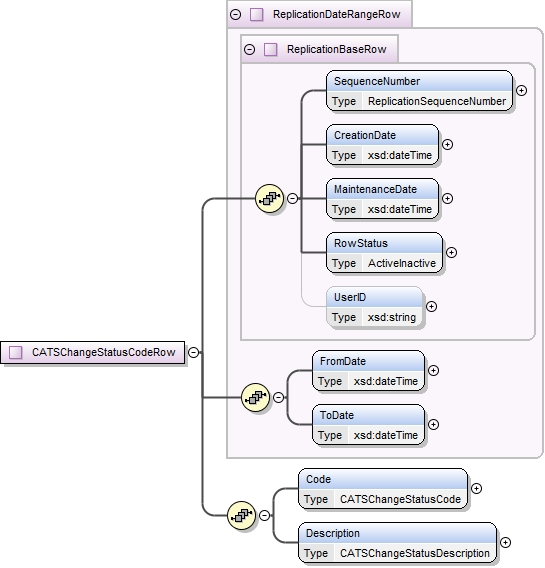

Complex Type CATSChangeStatusCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSChangeStatusCodes table
MSATS Data Model Table - CATS_CR_Status_Codes
Replication Table Name - CATSChangeStatusCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "CATSChangeStatusCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSChangeStatusCodes table MSATS Data Model Table - CATS_CR_Status_Codes Replication Table Name - CATSChangeStatusCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "CATSChangeStatusCode" />
<xsd:element name= "Description" type= "CATSChangeStatusDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

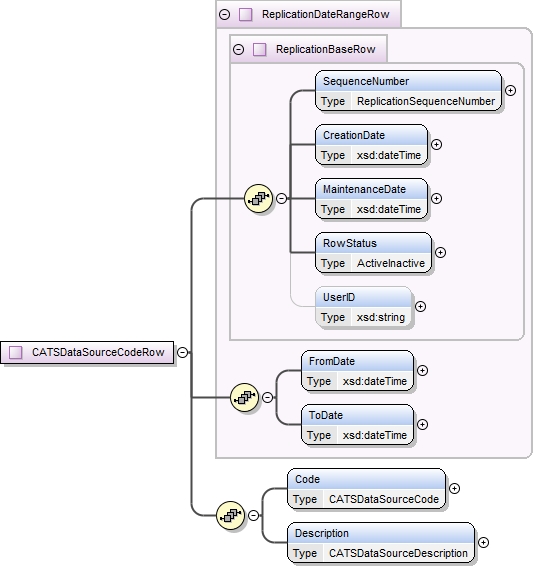

Complex Type CATSDataSourceCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSDataSourceCodes table
MSATS Data Model Table - CATS_Data_Source_Codes
Replication Table Name - CATSDataSourceCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "CATSDataSourceCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSDataSourceCodes table MSATS Data Model Table - CATS_Data_Source_Codes Replication Table Name - CATSDataSourceCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "CATSDataSourceCode" />
<xsd:element name= "Description" type= "CATSDataSourceDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

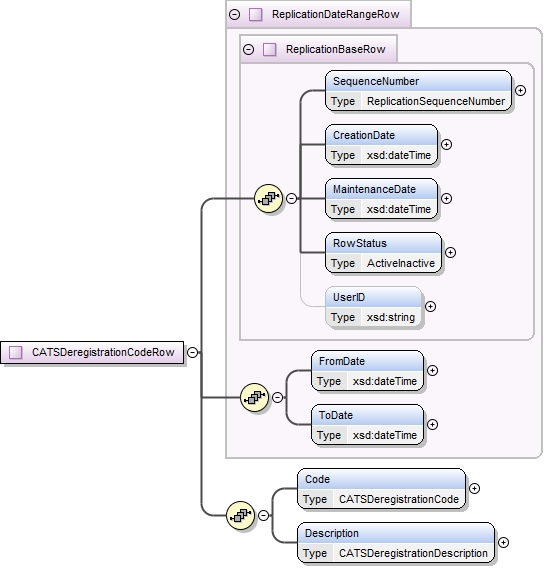

Complex Type CATSDeregistrationCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSDeregistrationCodes table
MSATS Data Model Table - CATS_Dereg_Codes
Replication Table Name - CATSDeregistrationCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "CATSDeregistrationCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSDeregistrationCodes table MSATS Data Model Table - CATS_Dereg_Codes Replication Table Name - CATSDeregistrationCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "CATSDeregistrationCode" />
<xsd:element name= "Description" type= "CATSDeregistrationDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

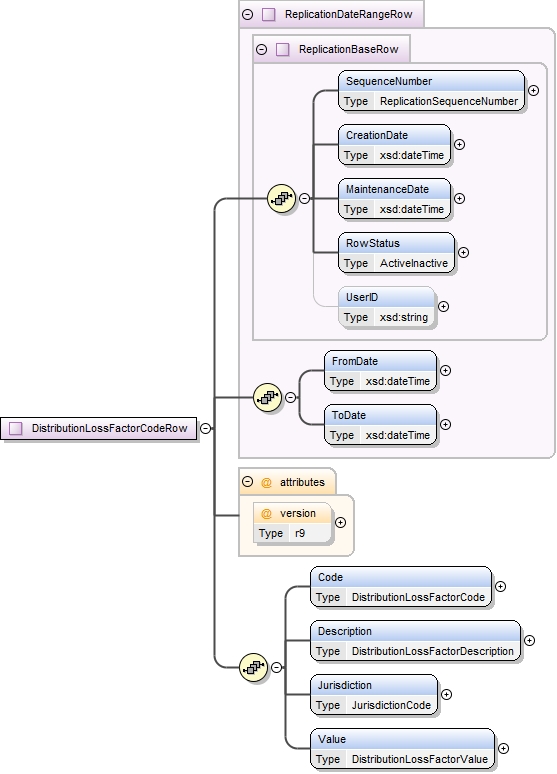

Complex Type DistributionLossFactorCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the DistributionLossFactorCodes table
MSATS Data Model Table - CATS_DLF_Codes
Replication Table Name - DistributionLossFactorCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description , Jurisdiction , Value
Children
Code , CreationDate , Description , FromDate , Jurisdiction , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID , Value
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "DistributionLossFactorCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the DistributionLossFactorCodes table MSATS Data Model Table - CATS_DLF_Codes Replication Table Name - DistributionLossFactorCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "DistributionLossFactorCode" />
<xsd:element name= "Description" type= "DistributionLossFactorDescription" />
<xsd:element name= "Jurisdiction" type= "JurisdictionCode" />
<xsd:element name= "Value" type= "DistributionLossFactorValue" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

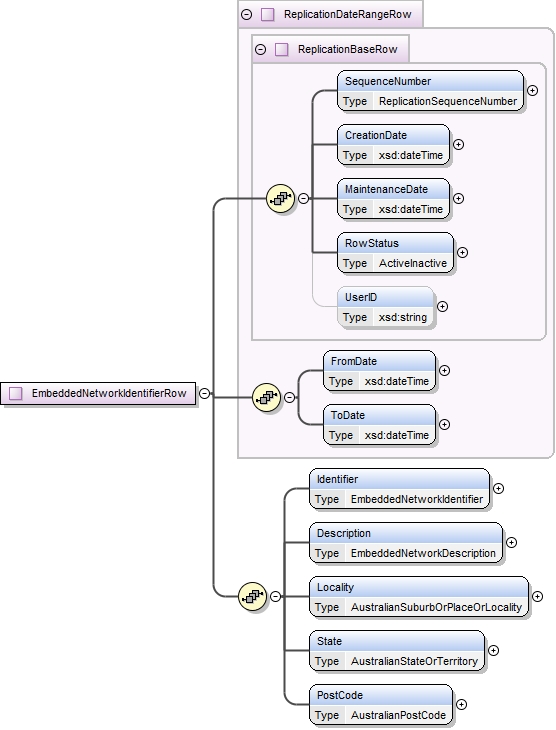

Complex Type EmbeddedNetworkIdentifierRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the EmbeddedNetworkIdentifiers table
MSATS Data Model Table - CATS_Emb_Net_ID_Codes
Replication Table Name - EmbeddedNetworkIdentifiers
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Identifier , Description , Locality , State , PostCode
Children
CreationDate , Description , FromDate , Identifier , Locality , MaintenanceDate , PostCode , RowStatus , SequenceNumber , State , ToDate , UserID
Source
<xsd:complexType name= "EmbeddedNetworkIdentifierRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the EmbeddedNetworkIdentifiers table MSATS Data Model Table - CATS_Emb_Net_ID_Codes Replication Table Name - EmbeddedNetworkIdentifiers </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Identifier" type= "EmbeddedNetworkIdentifier" />
<xsd:element name= "Description" type= "EmbeddedNetworkDescription" />
<xsd:element name= "Locality" type= "AustralianSuburbOrPlaceOrLocality" />
<xsd:element name= "State" type= "AustralianStateOrTerritory" />
<xsd:element name= "PostCode" type= "AustralianPostCode" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

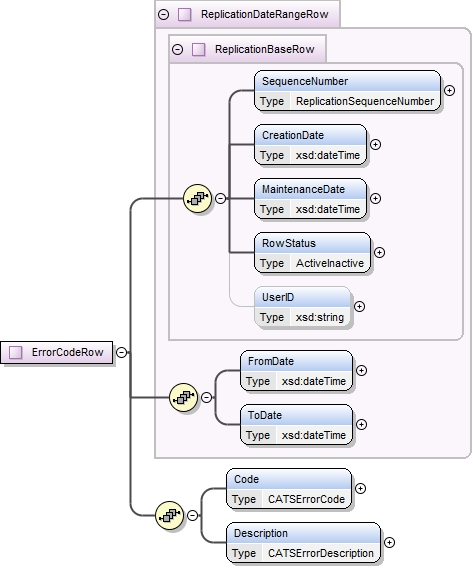

Complex Type ErrorCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the ErrorCodes table
MSATS Data Model Table - CATS_Error_Codes
Replication Table Name - ErrorCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "ErrorCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the ErrorCodes table MSATS Data Model Table - CATS_Error_Codes Replication Table Name - ErrorCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "CATSErrorCode" />
<xsd:element name= "Description" type= "CATSErrorDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

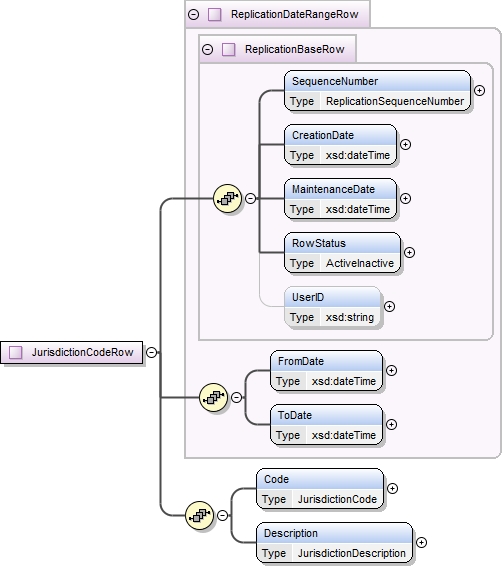

Complex Type JurisdictionCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the JurisdictionCodes table
MSATS Data Model Table - CATS_Jurisdiction_Codes
Replication Table Name - JurisdictionCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "JurisdictionCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the JurisdictionCodes table MSATS Data Model Table - CATS_Jurisdiction_Codes Replication Table Name - JurisdictionCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "JurisdictionCode" />
<xsd:element name= "Description" type= "JurisdictionDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

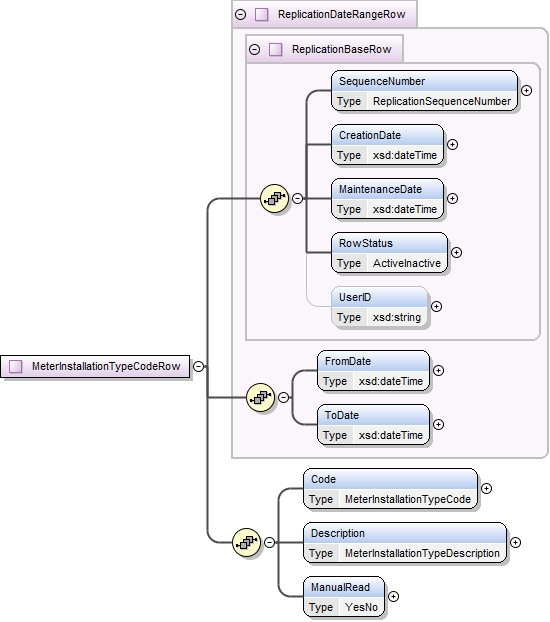

Complex Type MeterInstallationTypeCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the MeterInstallationTypeCodes table
MSATS Data Model Table - CATS_Meter_Install_Type_Codes
Replication Table Name - MeterInstallationTypeCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description , ManualRead
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , ManualRead , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "MeterInstallationTypeCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the MeterInstallationTypeCodes table MSATS Data Model Table - CATS_Meter_Install_Type_Codes Replication Table Name - MeterInstallationTypeCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "MeterInstallationTypeCode" />
<xsd:element name= "Description" type= "MeterInstallationTypeDescription" />
<xsd:element name= "ManualRead" type= "YesNo" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

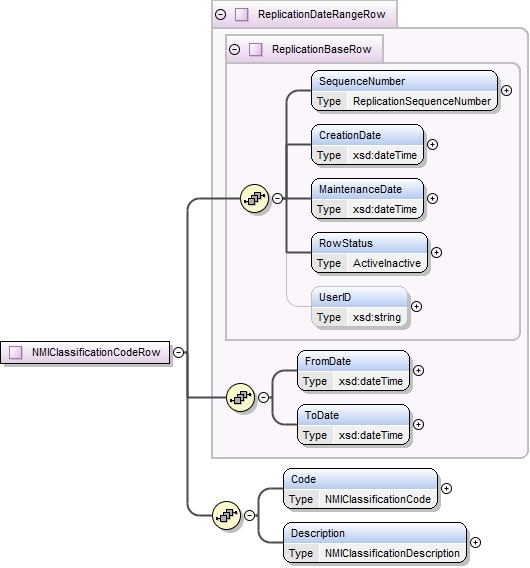

Complex Type NMIClassificationCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the NMIClassificationCodes table
MSATS Data Model Table - CATS_NMI_Class_Codes
Replication Table Name - NMIClassificationCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "NMIClassificationCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the NMIClassificationCodes table MSATS Data Model Table - CATS_NMI_Class_Codes Replication Table Name - NMIClassificationCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "NMIClassificationCode" />
<xsd:element name= "Description" type= "NMIClassificationDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type NMIStatusCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the NMIStatusCodes table
MSATS Data Model Table - CATS_NMI_Status_Codes
Replication Table Name - NMIStatusCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "NMIStatusCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the NMIStatusCodes table MSATS Data Model Table - CATS_NMI_Status_Codes Replication Table Name - NMIStatusCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "NMIStatusCode" />
<xsd:element name= "Description" type= "NMIStatusDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

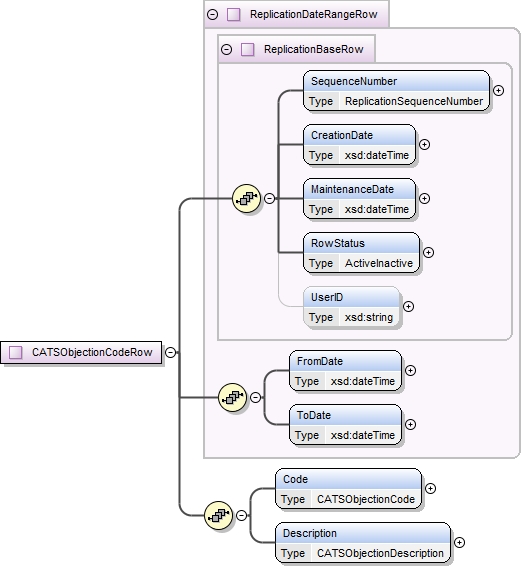

Complex Type CATSObjectionCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSObjectionCodes table
MSATS Data Model Table - CATS_Objection_Codes
Replication Table Name - CATSObjectionCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "CATSObjectionCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSObjectionCodes table MSATS Data Model Table - CATS_Objection_Codes Replication Table Name - CATSObjectionCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "CATSObjectionCode" />
<xsd:element name= "Description" type= "CATSObjectionDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

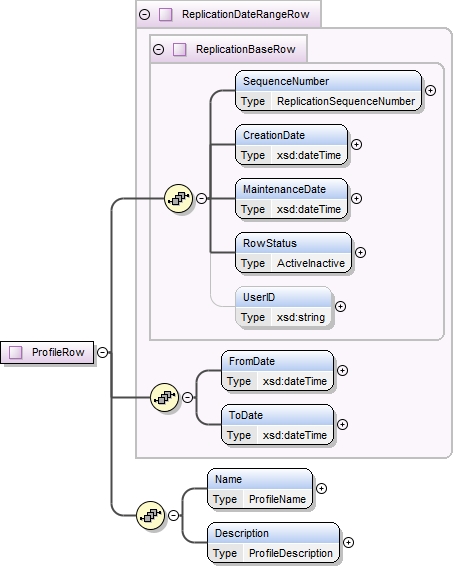

Complex Type ProfileRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the ProfileNames table
MSATS Data Model Table - CATS_Profile_Names_see_MDM
Replication Table Name - ProfileNames
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Name , Description
Children
CreationDate , Description , FromDate , MaintenanceDate , Name , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "ProfileRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the ProfileNames table MSATS Data Model Table - CATS_Profile_Names_see_MDM Replication Table Name - ProfileNames </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Name" type= "ProfileName" />
<xsd:element name= "Description" type= "ProfileDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

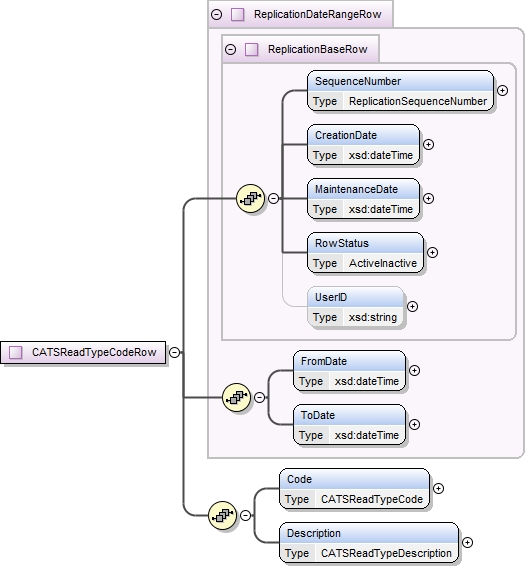

Complex Type CATSReadTypeCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSReadTypeCodes table
MSATS Data Model Table - CATS_Read_Type_Codes
Replication Table Name - CATSReadTypeCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "CATSReadTypeCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSReadTypeCodes table MSATS Data Model Table - CATS_Read_Type_Codes Replication Table Name - CATSReadTypeCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "CATSReadTypeCode" />
<xsd:element name= "Description" type= "CATSReadTypeDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSRetrospectivityCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSRetrospectivityCodes table
MSATS Data Model Table - CATS_Retrospectivity_Codes
Replication Table Name - CATSRetrospectivityCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "CATSRetrospectivityCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSRetrospectivityCodes table MSATS Data Model Table - CATS_Retrospectivity_Codes Replication Table Name - CATSRetrospectivityCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "CATSRetrospectivityCode" />
<xsd:element name= "Description" type= "CATSRetrospectivityDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

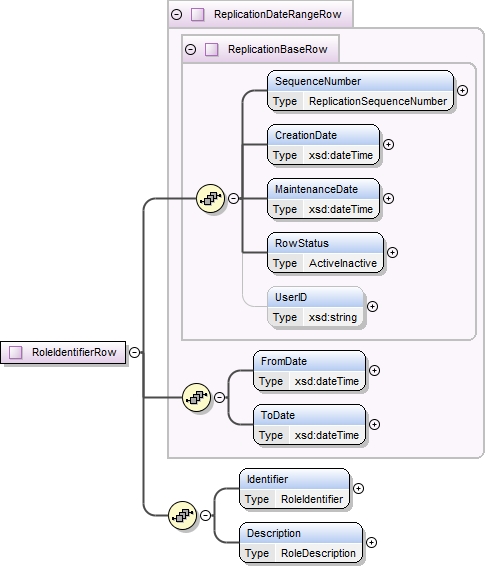

Complex Type RoleIdentifierRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the RoleIdentifiers table
MSATS Data Model Table - CATS_Roles
Replication Table Name - RoleIdentifiers
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Identifier , Description
Children
CreationDate , Description , FromDate , Identifier , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "RoleIdentifierRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the RoleIdentifiers table MSATS Data Model Table - CATS_Roles Replication Table Name - RoleIdentifiers </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Identifier" type= "RoleIdentifier" />
<xsd:element name= "Description" type= "RoleDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

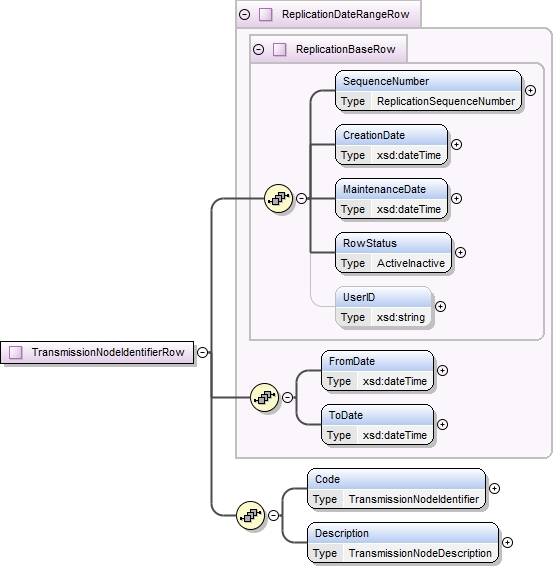

Complex Type TransmissionNodeIdentifierRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the TransmissionNodeIdentifiers table
MSATS Data Model Table - CATS_TNI_Codes
Replication Table Name - TransmissionNodeIdentifiers
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "TransmissionNodeIdentifierRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the TransmissionNodeIdentifiers table MSATS Data Model Table - CATS_TNI_Codes Replication Table Name - TransmissionNodeIdentifiers </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "TransmissionNodeIdentifier" />
<xsd:element name= "Description" type= "TransmissionNodeDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

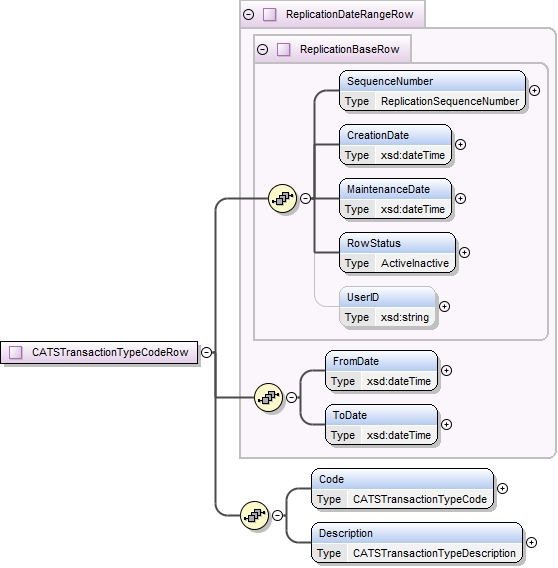

Complex Type CATSTransactionTypeCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSTransactionTypeCodes table
MSATS Data Model Table - CATS_Trans_Type_Codes
Replication Table Name - CATSTransactionTypeCodes
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code , Description
Children
Code , CreationDate , Description , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "CATSTransactionTypeCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSTransactionTypeCodes table MSATS Data Model Table - CATS_Trans_Type_Codes Replication Table Name - CATSTransactionTypeCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "CATSTransactionTypeCode" />
<xsd:element name= "Description" type= "CATSTransactionTypeDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSNetworkTariffCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATS Network Tariff Codes table
MSATS Data Model Table - CATS_networktariff_Codes
Replication Table Name - CATSNetworkTariffCodes

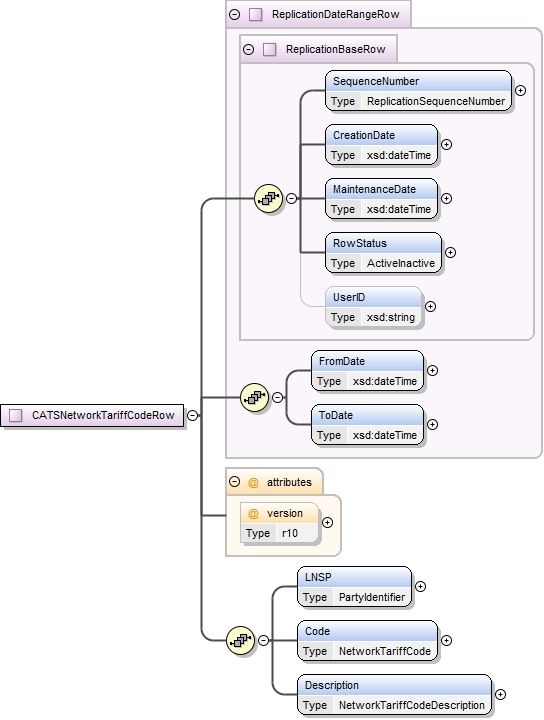

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , LNSP , Code , Description
Children
Code , CreationDate , Description , FromDate , LNSP , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r10
optional
Source
<xsd:complexType name= "CATSNetworkTariffCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATS Network Tariff Codes table MSATS Data Model Table - CATS_networktariff_Codes Replication Table Name - CATSNetworkTariffCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >

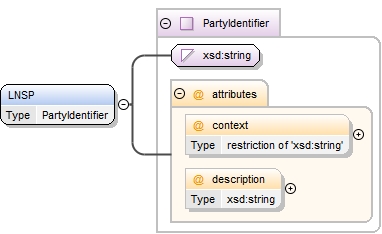

<xsd:element name= "LNSP" type= "PartyIdentifier" />
<xsd:element name= "Code" type= "NetworkTariffCode" />
<xsd:element name= "Description" type= "NetworkTariffCodeDescription" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r10" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSStreamlinedCRCodeRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSStreamlinedCR Codes table
MSATS Data Model Table - CATS_Streamlined_CR_Codes
Replication Table Name - CATSStreamlineCRCodes

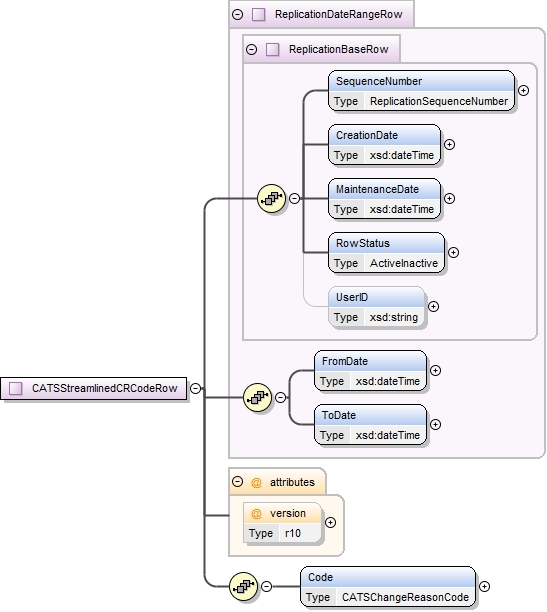

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Code
Children
Code , CreationDate , FromDate , MaintenanceDate , RowStatus , SequenceNumber , ToDate , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r10
optional
Source
<xsd:complexType name= "CATSStreamlinedCRCodeRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSStreamlinedCR Codes table MSATS Data Model Table - CATS_Streamlined_CR_Codes Replication Table Name - CATSStreamlineCRCodes </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "Code" type= "CATSChangeReasonCode" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r10" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

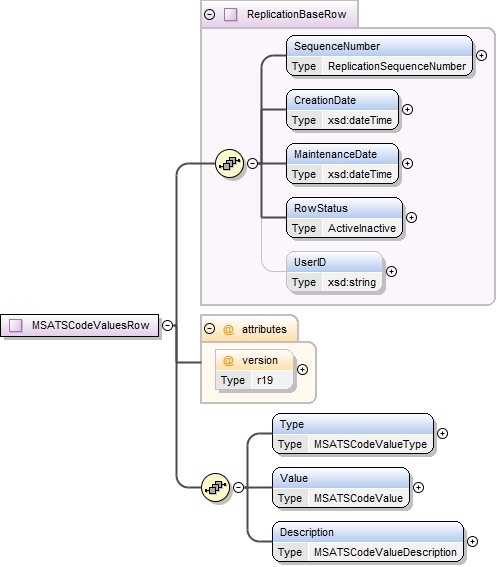

Complex Type MSATSCodeValuesRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the MSATSCodeValues table
MSATS Data Model Table - MSATS_CODE_VALUES
Replication Table Name - MSATSCodeValues
Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , Type , Value , Description
Children
CreationDate , Description , MaintenanceDate , RowStatus , SequenceNumber , Type , UserID , Value
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r19
optional
Source
<xsd:complexType name= "MSATSCodeValuesRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the MSATSCodeValues table MSATS Data Model Table - MSATS_CODE_VALUES Replication Table Name - MSATSCodeValues </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "Type" type= "MSATSCodeValueType" />
<xsd:element name= "Value" type= "MSATSCodeValue" />
<xsd:element name= "Description" type= "MSATSCodeValueDescription" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r19" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

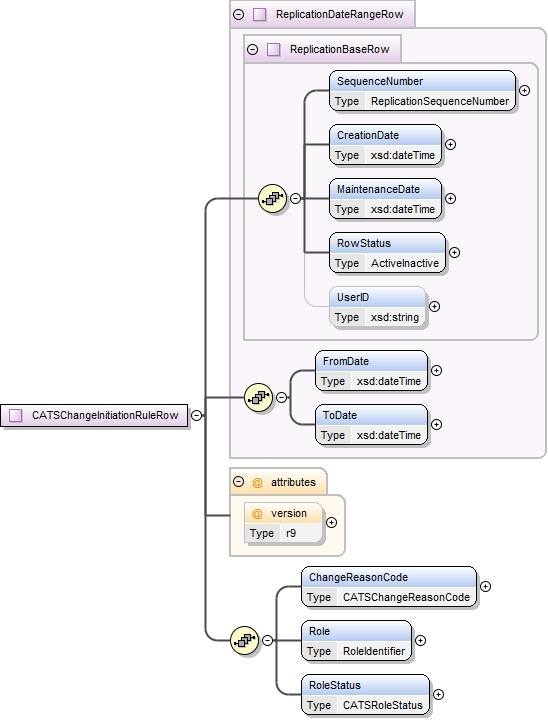

Complex Type CATSChangeInitiationRuleRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSChangeInitiationRules table
MSATS Data Model Table - CATS_CR_Initiation_Rules
Replication Table Name - CATSChangeInitiationRules
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , ChangeReasonCode , Role , RoleStatus
Children
ChangeReasonCode , CreationDate , FromDate , MaintenanceDate , Role , RoleStatus , RowStatus , SequenceNumber , ToDate , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "CATSChangeInitiationRuleRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSChangeInitiationRules table MSATS Data Model Table - CATS_CR_Initiation_Rules Replication Table Name - CATSChangeInitiationRules </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "ChangeReasonCode" type= "CATSChangeReasonCode" />
<xsd:element name= "Role" type= "RoleIdentifier" />
<xsd:element name= "RoleStatus" type= "CATSRoleStatus" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type NMIAccessRuleRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the NMIAccessRules table
MSATS Data Model Table - CATS_Discovery_Access_Rules
Replication Table Name - NMIAccessRules

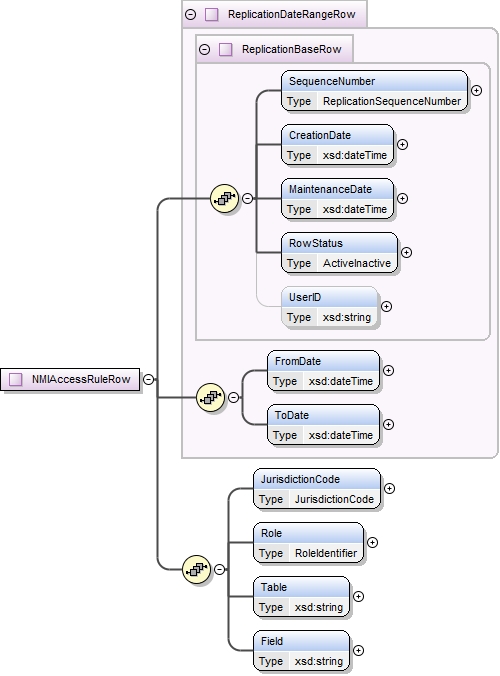

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , JurisdictionCode , Role , Table , Field
Children
CreationDate , Field , FromDate , JurisdictionCode , MaintenanceDate , Role , RowStatus , SequenceNumber , Table , ToDate , UserID
Source
<xsd:complexType name= "NMIAccessRuleRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the NMIAccessRules table MSATS Data Model Table - CATS_Discovery_Access_Rules Replication Table Name - NMIAccessRules </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "JurisdictionCode" type= "JurisdictionCode" />
<xsd:element name= "Role" type= "RoleIdentifier" />
<xsd:element name= "Table" type= "xsd:string" />
<xsd:element name= "Field" type= "xsd:string" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type NMISearchRuleRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the NMISearchRules table
MSATS Data Model Table - CATS_Discovery_Search_Rules
Replication Table Name - NMISearchRules
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , JurisdictionCode , Role , SearchOnDPID , SearchOnAddress , SearchOnMeterIdentifier , NMIReturnCount
Children
CreationDate , FromDate , JurisdictionCode , MaintenanceDate , NMIReturnCount , Role , RowStatus , SearchOnAddress , SearchOnDPID , SearchOnMeterIdentifier , SequenceNumber , ToDate , UserID
Source

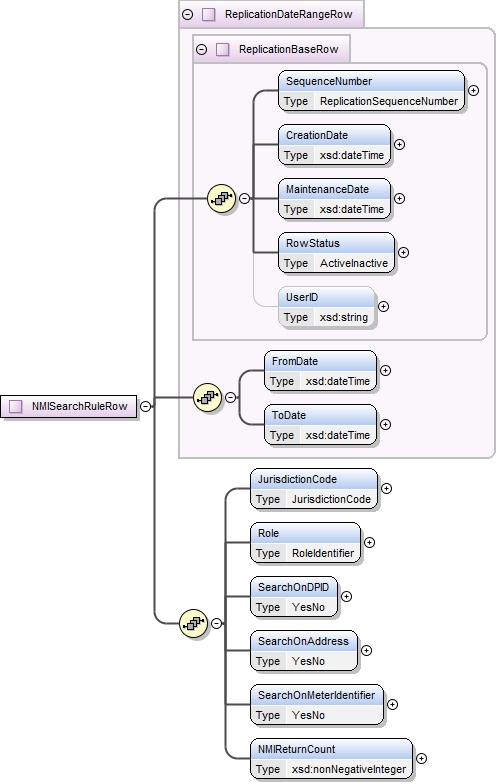

<xsd:complexType name= "NMISearchRuleRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the NMISearchRules table MSATS Data Model Table - CATS_Discovery_Search_Rules Replication Table Name - NMISearchRules </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "JurisdictionCode" type= "JurisdictionCode" />
<xsd:element name= "Role" type= "RoleIdentifier" />
<xsd:element name= "SearchOnDPID" type= "YesNo" />
<xsd:element name= "SearchOnAddress" type= "YesNo" />
<xsd:element name= "SearchOnMeterIdentifier" type= "YesNo" />
<xsd:element name= "NMIReturnCount" type= "xsd:nonNegativeInteger" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

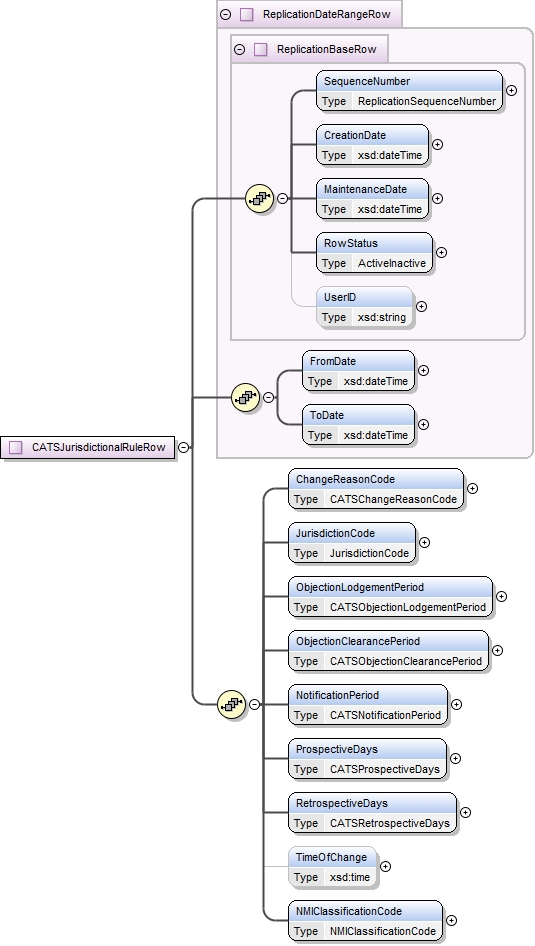

Complex Type CATSJurisdictionalRuleRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSJurisdictionalRules table
MSATS Data Model Table - CATS_Jurisdictional_Rules
Replication Table Name - CATSJurisdictionalRules
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , ChangeReasonCode , JurisdictionCode , ObjectionLodgementPeriod , ObjectionClearancePeriod , NotificationPeriod , ProspectiveDays , RetrospectiveDays , TimeOfChange{0,1} , NMIClassificationCode
Children
ChangeReasonCode , CreationDate , FromDate , JurisdictionCode , MaintenanceDate , NMIClassificationCode , NotificationPeriod , ObjectionClearancePeriod , ObjectionLodgementPeriod , ProspectiveDays , RetrospectiveDays , RowStatus , SequenceNumber , TimeOfChange , ToDate , UserID
Source
<xsd:complexType name= "CATSJurisdictionalRuleRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSJurisdictionalRules table MSATS Data Model Table - CATS_Jurisdictional_Rules Replication Table Name - CATSJurisdictionalRules </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "ChangeReasonCode" type= "CATSChangeReasonCode" />
<xsd:element name= "JurisdictionCode" type= "JurisdictionCode" />
<xsd:element name= "ObjectionLodgementPeriod" type= "CATSObjectionLodgementPeriod" />
<xsd:element name= "ObjectionClearancePeriod" type= "CATSObjectionClearancePeriod" />
<xsd:element name= "NotificationPeriod" type= "CATSNotificationPeriod" />
<xsd:element name= "ProspectiveDays" type= "CATSProspectiveDays" />
<xsd:element name= "RetrospectiveDays" type= "CATSRetrospectiveDays" />
<xsd:element name= "TimeOfChange" type= "xsd:time" nillable= "true" minOccurs= "0" />
<xsd:element name= "NMIClassificationCode" type= "NMIClassificationCode" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSNotificationRuleRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSNotificationRules table
MSATS Data Model Table - CATS_Notification_Rules
Replication Table Name - CATSNotificationRules
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , ChangeReasonCode , Role , RoleStatus , ChangeStatusCode , TransactionTypeCode
Children
ChangeReasonCode , ChangeStatusCode , CreationDate , FromDate , MaintenanceDate , Role , RoleStatus , RowStatus , SequenceNumber , ToDate , TransactionTypeCode , UserID
Source

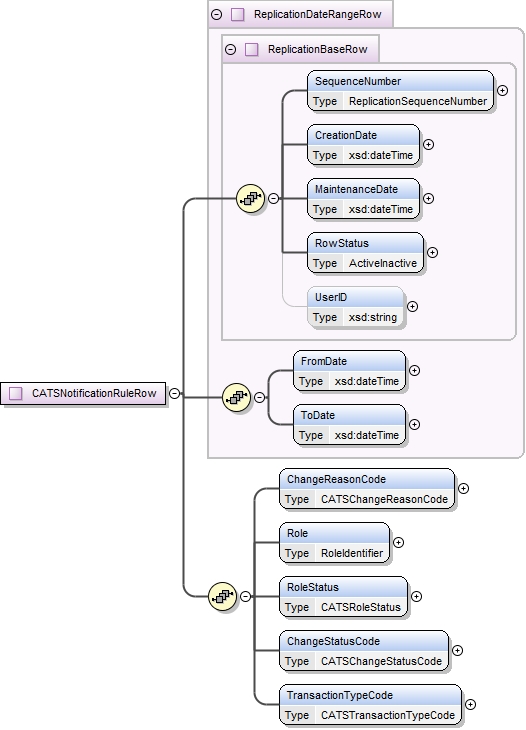

<xsd:complexType name= "CATSNotificationRuleRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSNotificationRules table MSATS Data Model Table - CATS_Notification_Rules Replication Table Name - CATSNotificationRules </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "ChangeReasonCode" type= "CATSChangeReasonCode" />
<xsd:element name= "Role" type= "RoleIdentifier" />
<xsd:element name= "RoleStatus" type= "CATSRoleStatus" />
<xsd:element name= "ChangeStatusCode" type= "CATSChangeStatusCode" />
<xsd:element name= "TransactionTypeCode" type= "CATSTransactionTypeCode" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

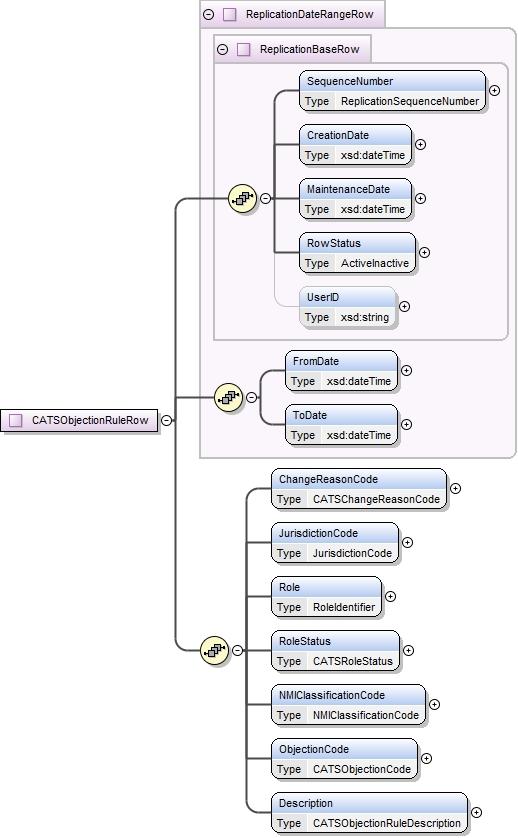

Complex Type CATSObjectionRuleRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSObjectionRules table
MSATS Data Model Table - CATS_Objection_Rules
Replication Table Name - CATSObjectionRules
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , ChangeReasonCode , JurisdictionCode , Role , RoleStatus , NMIClassificationCode , ObjectionCode , Description
Children
ChangeReasonCode , CreationDate , Description , FromDate , JurisdictionCode , MaintenanceDate , NMIClassificationCode , ObjectionCode , Role , RoleStatus , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "CATSObjectionRuleRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSObjectionRules table MSATS Data Model Table - CATS_Objection_Rules Replication Table Name - CATSObjectionRules </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "ChangeReasonCode" type= "CATSChangeReasonCode" />
<xsd:element name= "JurisdictionCode" type= "JurisdictionCode" />
<xsd:element name= "Role" type= "RoleIdentifier" />
<xsd:element name= "RoleStatus" type= "CATSRoleStatus" />
<xsd:element name= "NMIClassificationCode" type= "NMIClassificationCode" />
<xsd:element name= "ObjectionCode" type= "CATSObjectionCode" />
<xsd:element name= "Description" type= "CATSObjectionRuleDescription" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSStandingDataAccessRuleRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSStandingDataAccessRules table
MSATS Data Model Table - CATS_standing_data_access_rules
Replication Table Name - CATSStandingDataAccessRules

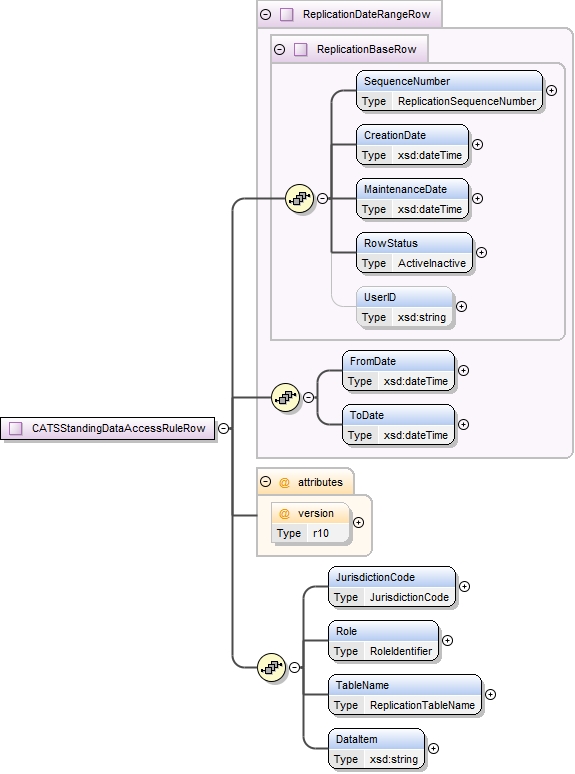

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , JurisdictionCode , Role , TableName , DataItem
Children
CreationDate , DataItem , FromDate , JurisdictionCode , MaintenanceDate , Role , RowStatus , SequenceNumber , TableName , ToDate , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r10
optional
Source
<xsd:complexType name= "CATSStandingDataAccessRuleRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSStandingDataAccessRules table MSATS Data Model Table - CATS_standing_data_access_rules Replication Table Name - CATSStandingDataAccessRules </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "JurisdictionCode" type= "JurisdictionCode" />
<xsd:element name= "Role" type= "RoleIdentifier" />
<xsd:element name= "TableName" type= "ReplicationTableName" />
<xsd:element name= "DataItem" type= "xsd:string" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r10" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

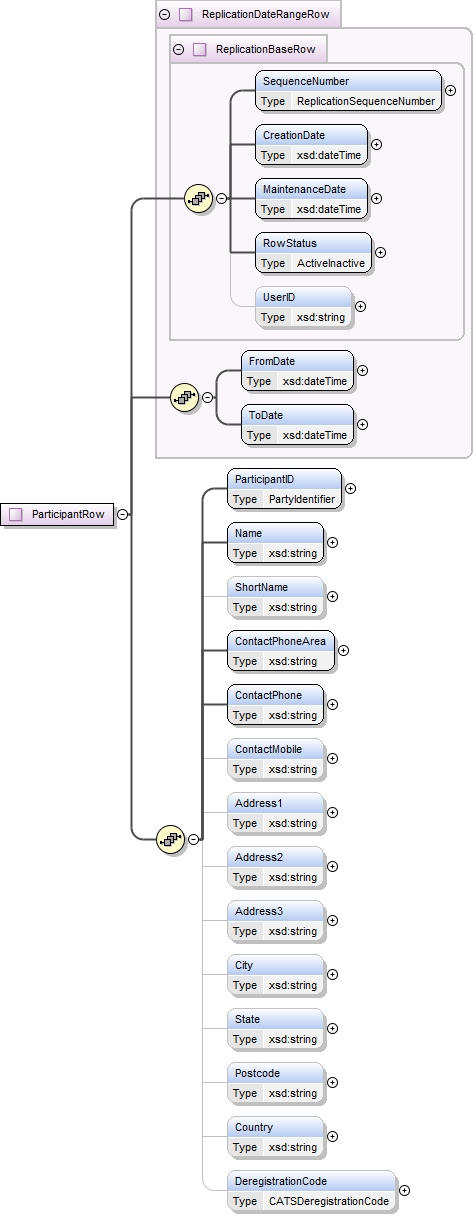

Complex Type ParticipantRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Participants table
MSATS Data Model Table - CATS_Participants
Replication Table Name - Participants
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , ParticipantID , Name , ShortName{0,1} , ContactPhoneArea , ContactPhone , ContactMobile{0,1} , Address1{0,1} , Address2{0,1} , Address3{0,1} , City{0,1} , State{0,1} , Postcode{0,1} , Country{0,1} , DeregistrationCode{0,1}
Children
Address1 , Address2 , Address3 , City , ContactMobile , ContactPhone , ContactPhoneArea , Country , CreationDate , DeregistrationCode , FromDate , MaintenanceDate , Name , ParticipantID , Postcode , RowStatus , SequenceNumber , ShortName , State , ToDate , UserID
Source
<xsd:complexType name= "ParticipantRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Participants table MSATS Data Model Table - CATS_Participants Replication Table Name - Participants </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "ParticipantID" type= "PartyIdentifier" />
<xsd:element name= "Name" type= "xsd:string" />
<xsd:element name= "ShortName" type= "xsd:string" nillable= "true" minOccurs= "0" />
<xsd:element name= "ContactPhoneArea" type= "xsd:string" />
<xsd:element name= "ContactPhone" type= "xsd:string" />
<xsd:element name= "ContactMobile" type= "xsd:string" nillable= "true" minOccurs= "0" />
<xsd:element name= "Address1" type= "xsd:string" nillable= "true" minOccurs= "0" />
<xsd:element name= "Address2" type= "xsd:string" nillable= "true" minOccurs= "0" />
<xsd:element name= "Address3" type= "xsd:string" nillable= "true" minOccurs= "0" />
<xsd:element name= "City" type= "xsd:string" nillable= "true" minOccurs= "0" />
<xsd:element name= "State" type= "xsd:string" nillable= "true" minOccurs= "0" />
<xsd:element name= "Postcode" type= "xsd:string" nillable= "true" minOccurs= "0" />
<xsd:element name= "Country" type= "xsd:string" nillable= "true" minOccurs= "0" />
<xsd:element name= "DeregistrationCode" type= "CATSDeregistrationCode" nillable= "true" minOccurs= "0" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

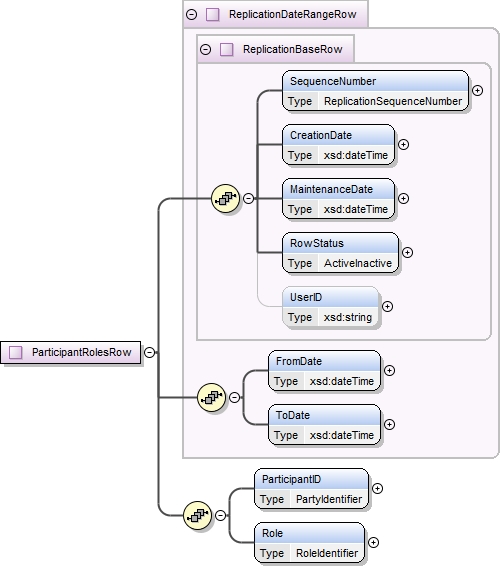

Complex Type ParticipantRolesRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Participant Roles table
MSATS Data Model Table - CATS_Participant_Roles
Replication Table Name - ParticipantRoles
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , ParticipantID , Role
Children
CreationDate , FromDate , MaintenanceDate , ParticipantID , Role , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "ParticipantRolesRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Participant Roles table MSATS Data Model Table - CATS_Participant_Roles Replication Table Name - ParticipantRoles </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "ParticipantID" type= "PartyIdentifier" />
<xsd:element name= "Role" type= "RoleIdentifier" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSTransactionFieldValidationRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATSTransactionFieldValidations table
MSATS Data Model Table - CATS_Trans_Field_Validation
Replication Table Name - CATSTransactionFieldValidations

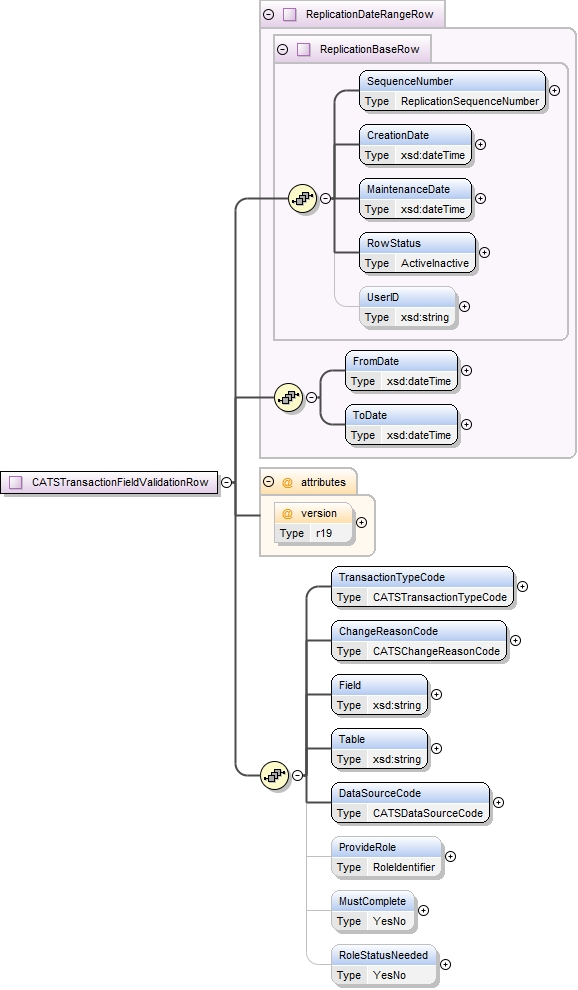

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , TransactionTypeCode , ChangeReasonCode , Field , Table , DataSourceCode , ProvideRole{0,1} , MustComplete{0,1} , RoleStatusNeeded{0,1}
Children
ChangeReasonCode , CreationDate , DataSourceCode , Field , FromDate , MaintenanceDate , MustComplete , ProvideRole , RoleStatusNeeded , RowStatus , SequenceNumber , Table , ToDate , TransactionTypeCode , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r19
optional
Source
<xsd:complexType name= "CATSTransactionFieldValidationRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATSTransactionFieldValidations table MSATS Data Model Table - CATS_Trans_Field_Validation Replication Table Name - CATSTransactionFieldValidations </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "TransactionTypeCode" type= "CATSTransactionTypeCode" />
<xsd:element name= "ChangeReasonCode" type= "CATSChangeReasonCode" />
<xsd:element name= "Field" type= "xsd:string" />
<xsd:element name= "Table" type= "xsd:string" />
<xsd:element name= "DataSourceCode" type= "CATSDataSourceCode" />
<xsd:element name= "ProvideRole" type= "RoleIdentifier" nillable= "true" minOccurs= "0" />
<xsd:element name= "MustComplete" type= "YesNo" nillable= "true" minOccurs= "0" />
<xsd:element name= "RoleStatusNeeded" type= "YesNo" nillable= "true" minOccurs= "0" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r19" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

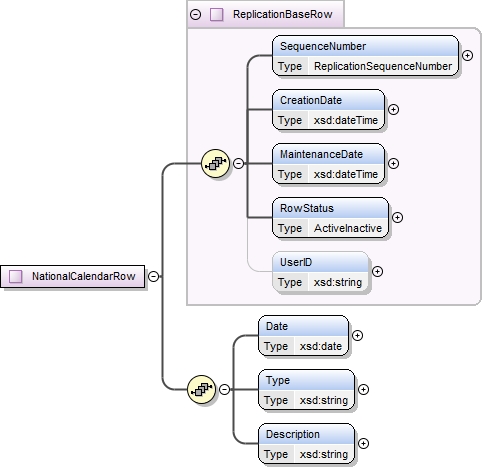

Complex Type NationalCalendarRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the NationalCalender table
MSATS Data Model Table - MSATS_National_Calender
Replication Table Name - NationalCalendar
Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , Date , Type , Description
Children
CreationDate , Date , Description , MaintenanceDate , RowStatus , SequenceNumber , Type , UserID
Source
<xsd:complexType name= "NationalCalendarRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the NationalCalender table MSATS Data Model Table - MSATS_National_Calender Replication Table Name - NationalCalendar </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "Date" type= "xsd:date" />
<xsd:element name= "Type" type= "xsd:string" />
<xsd:element name= "Description" type= "xsd:string" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityNMIMasterRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity NMI Master Standing Data table
MSATS Data Model Table - CATS_NMI_Data
Replication Table Name - ElectricityNMIMaster

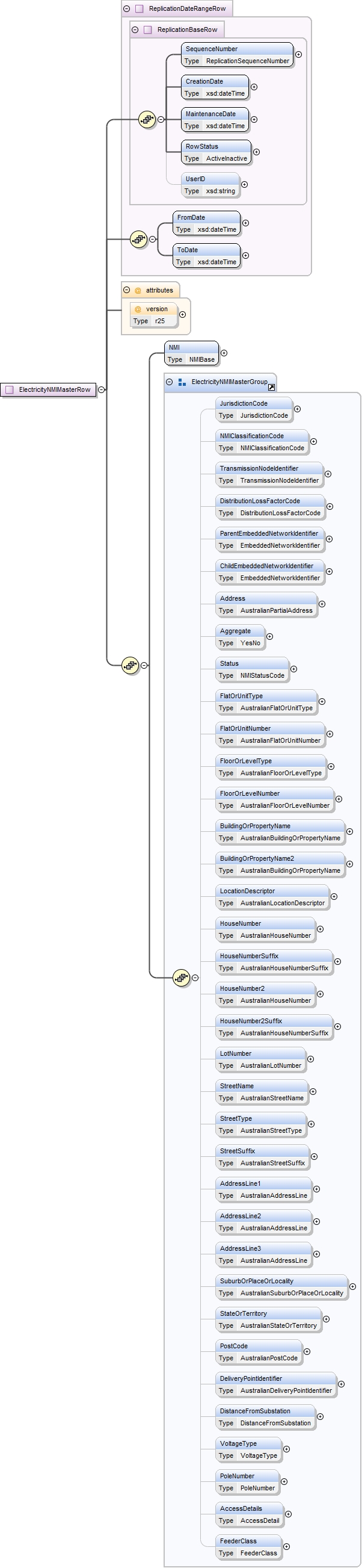

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , NMI , JurisdictionCode{0,1} , NMIClassificationCode{0,1} , TransmissionNodeIdentifier{0,1} , DistributionLossFactorCode{0,1} , ParentEmbeddedNetworkIdentifier{0,1} , ChildEmbeddedNetworkIdentifier{0,1} , Address{0,1} , Aggregate{0,1} , Status{0,1} , FlatOrUnitType{0,1} , FlatOrUnitNumber{0,1} , FloorOrLevelType{0,1} , FloorOrLevelNumber{0,1} , BuildingOrPropertyName{0,1} , BuildingOrPropertyName2{0,1} , LocationDescriptor{0,1} , HouseNumber{0,1} , HouseNumberSuffix{0,1} , HouseNumber2{0,1} , HouseNumber2Suffix{0,1} , LotNumber{0,1} , StreetName{0,1} , StreetType{0,1} , StreetSuffix{0,1} , AddressLine1{0,1} , AddressLine2{0,1} , AddressLine3{0,1} , SuburbOrPlaceOrLocality{0,1} , StateOrTerritory{0,1} , PostCode{0,1} , DeliveryPointIdentifier{0,1} , DistanceFromSubstation{0,1} , VoltageType{0,1} , PoleNumber{0,1} , AccessDetails{0,1} , FeederClass{0,1}
Children
AccessDetails , Address , AddressLine1 , AddressLine2 , AddressLine3 , Aggregate , BuildingOrPropertyName , BuildingOrPropertyName2 , ChildEmbeddedNetworkIdentifier , CreationDate , DeliveryPointIdentifier , DistanceFromSubstation , DistributionLossFactorCode , FeederClass , FlatOrUnitNumber , FlatOrUnitType , FloorOrLevelNumber , FloorOrLevelType , FromDate , HouseNumber , HouseNumber2 , HouseNumber2Suffix , HouseNumberSuffix , JurisdictionCode , LocationDescriptor , LotNumber , MaintenanceDate , NMI , NMIClassificationCode , ParentEmbeddedNetworkIdentifier , PoleNumber , PostCode , RowStatus , SequenceNumber , StateOrTerritory , Status , StreetName , StreetSuffix , StreetType , SuburbOrPlaceOrLocality , ToDate , TransmissionNodeIdentifier , UserID , VoltageType
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r25
optional
Source
<xsd:complexType name= "ElectricityNMIMasterRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity NMI Master Standing Data table MSATS Data Model Table - CATS_NMI_Data Replication Table Name - ElectricityNMIMaster </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "NMI" type= "NMIBase" />
<xsd:group ref= "ElectricityNMIMasterGroup" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r25" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

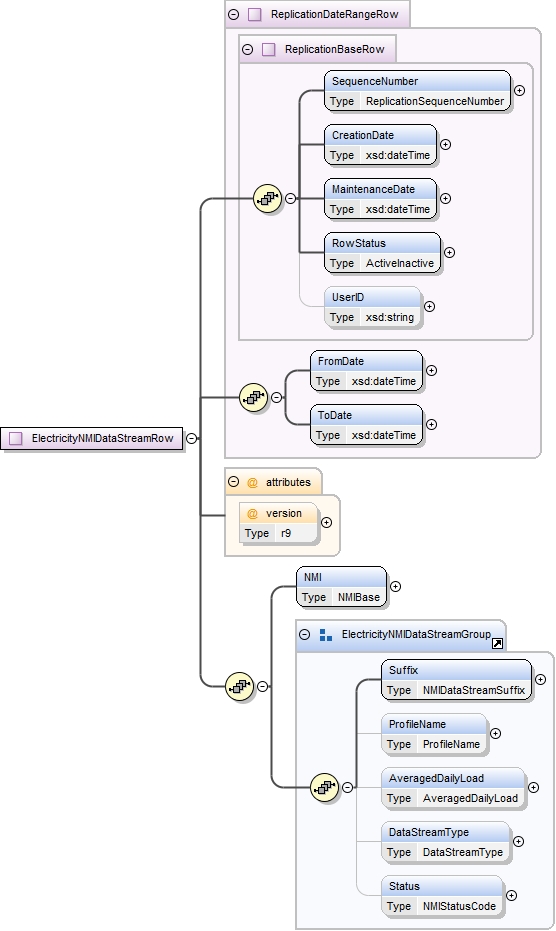

Complex Type ElectricityNMIDataStreamRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity NMI Data Stream table
MSATS Data Model Table - CATS_NMI_Data_Stream
Replication Table Name - ElectricityNMIDataStreams
Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , NMI , Suffix , ProfileName{0,1} , AveragedDailyLoad{0,1} , DataStreamType{0,1} , Status{0,1}
Children
AveragedDailyLoad , CreationDate , DataStreamType , FromDate , MaintenanceDate , NMI , ProfileName , RowStatus , SequenceNumber , Status , Suffix , ToDate , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "ElectricityNMIDataStreamRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity NMI Data Stream table MSATS Data Model Table - CATS_NMI_Data_Stream Replication Table Name - ElectricityNMIDataStreams </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "NMI" type= "NMIBase" />
<xsd:group ref= "ElectricityNMIDataStreamGroup" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityNMIMeterRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity NMI Meter Register table
MSATS Data Model Table - CATS_Meter_Register
Replication Table Name - ElectricityNMIMeters

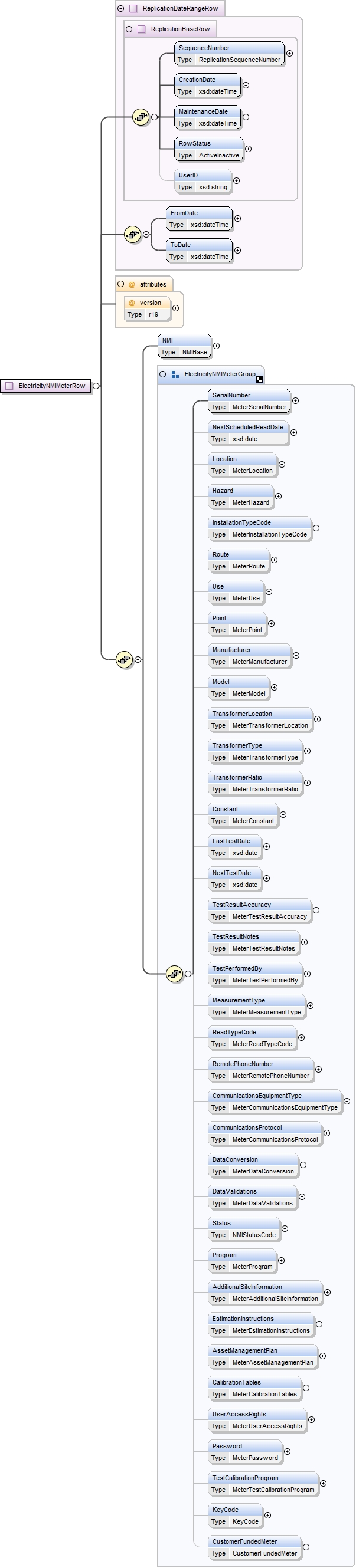

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , NMI , SerialNumber , NextScheduledReadDate{0,1} , Location{0,1} , Hazard{0,1} , InstallationTypeCode{0,1} , Route{0,1} , Use{0,1} , Point{0,1} , Manufacturer{0,1} , Model{0,1} , TransformerLocation{0,1} , TransformerType{0,1} , TransformerRatio{0,1} , Constant{0,1} , LastTestDate{0,1} , NextTestDate{0,1} , TestResultAccuracy{0,1} , TestResultNotes{0,1} , TestPerformedBy{0,1} , MeasurementType{0,1} , ReadTypeCode{0,1} , RemotePhoneNumber{0,1} , CommunicationsEquipmentType{0,1} , CommunicationsProtocol{0,1} , DataConversion{0,1} , DataValidations{0,1} , Status{0,1} , Program{0,1} , AdditionalSiteInformation{0,1} , EstimationInstructions{0,1} , AssetManagementPlan{0,1} , CalibrationTables{0,1} , UserAccessRights{0,1} , Password{0,1} , TestCalibrationProgram{0,1} , KeyCode{0,1} , CustomerFundedMeter{0,1}
Children
AdditionalSiteInformation , AssetManagementPlan , CalibrationTables , CommunicationsEquipmentType , CommunicationsProtocol , Constant , CreationDate , CustomerFundedMeter , DataConversion , DataValidations , EstimationInstructions , FromDate , Hazard , InstallationTypeCode , KeyCode , LastTestDate , Location , MaintenanceDate , Manufacturer , MeasurementType , Model , NMI , NextScheduledReadDate , NextTestDate , Password , Point , Program , ReadTypeCode , RemotePhoneNumber , Route , RowStatus , SequenceNumber , SerialNumber , Status , TestCalibrationProgram , TestPerformedBy , TestResultAccuracy , TestResultNotes , ToDate , TransformerLocation , TransformerRatio , TransformerType , Use , UserAccessRights , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r19
optional
Source
<xsd:complexType name= "ElectricityNMIMeterRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity NMI Meter Register table MSATS Data Model Table - CATS_Meter_Register Replication Table Name - ElectricityNMIMeters </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "NMI" type= "NMIBase" />
<xsd:group ref= "ElectricityNMIMeterGroup" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r19" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityNMIRoleRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity NMI Role Assignment table
MSATS Data Model Table - CATS_NMI_Participant_Relations
Replication Table Name - ElectricityNMIRoles

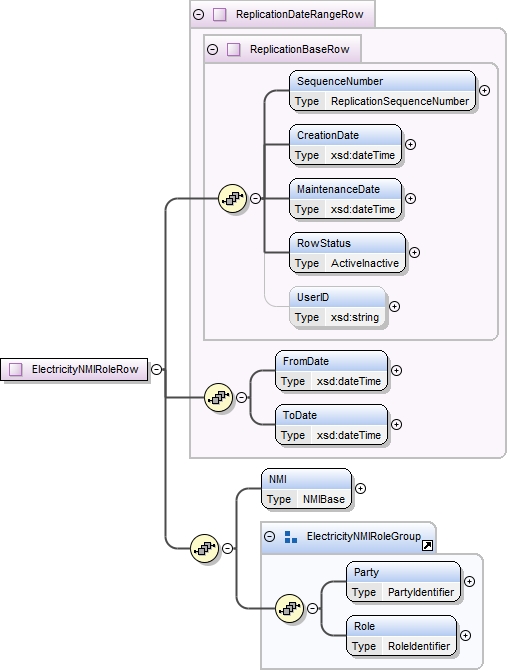

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , NMI , Party , Role
Children
CreationDate , FromDate , MaintenanceDate , NMI , Party , Role , RowStatus , SequenceNumber , ToDate , UserID
Source
<xsd:complexType name= "ElectricityNMIRoleRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity NMI Role Assignment table MSATS Data Model Table - CATS_NMI_Participant_Relations Replication Table Name - ElectricityNMIRoles </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "NMI" type= "NMIBase" />
<xsd:group ref= "ElectricityNMIRoleGroup" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityNMIMeterRegisterRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity NMI Meter Register Configuration table
MSATS Data Model Table - CATS_REGISTER_IDENTIFIER
Replication Table Name - ElectricityNMIMeterRegisters

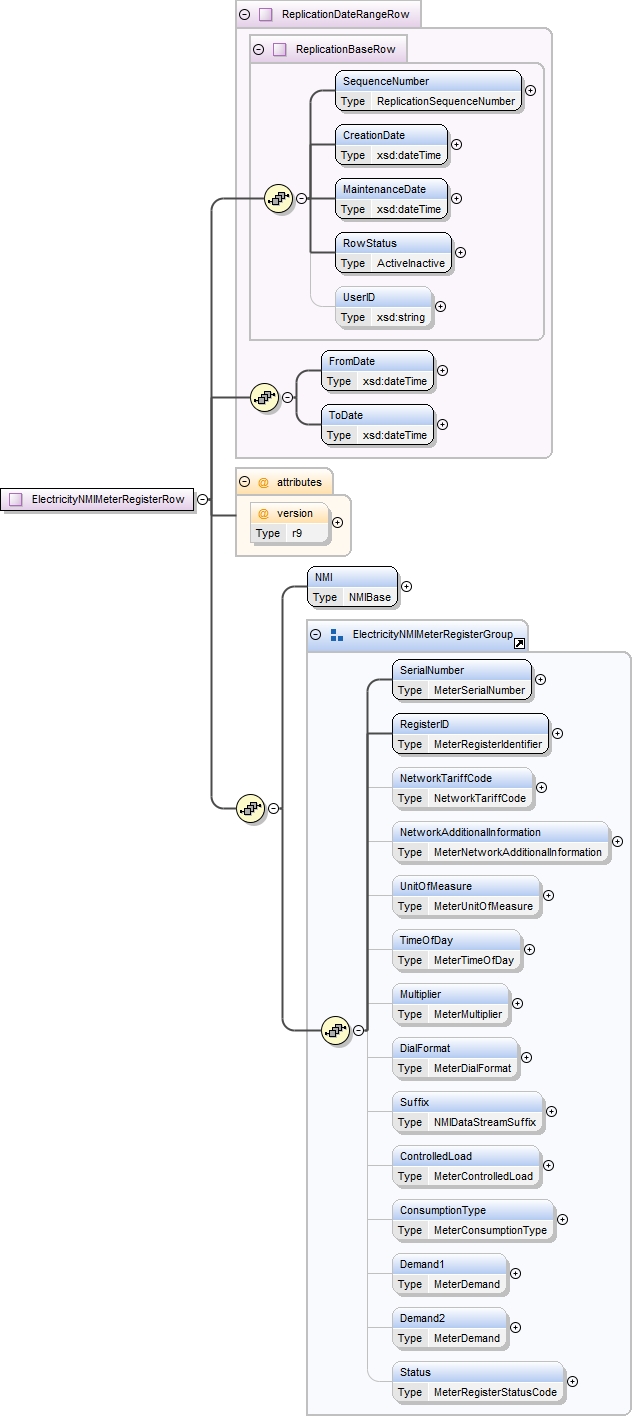

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , NMI , SerialNumber , RegisterID , NetworkTariffCode{0,1} , NetworkAdditionalInformation{0,1} , UnitOfMeasure{0,1} , TimeOfDay{0,1} , Multiplier{0,1} , DialFormat{0,1} , Suffix{0,1} , ControlledLoad{0,1} , ConsumptionType{0,1} , Demand1{0,1} , Demand2{0,1} , Status{0,1}
Children
ConsumptionType , ControlledLoad , CreationDate , Demand1 , Demand2 , DialFormat , FromDate , MaintenanceDate , Multiplier , NMI , NetworkAdditionalInformation , NetworkTariffCode , RegisterID , RowStatus , SequenceNumber , SerialNumber , Status , Suffix , TimeOfDay , ToDate , UnitOfMeasure , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "ElectricityNMIMeterRegisterRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity NMI Meter Register Configuration table MSATS Data Model Table - CATS_REGISTER_IDENTIFIER Replication Table Name - ElectricityNMIMeterRegisters </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:element name= "NMI" type= "NMIBase" />
<xsd:group ref= "ElectricityNMIMeterRegisterGroup" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityNMIMasterRowBDT
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity NMI Master Standing Data table extended by BDTStatus and Event for Bulk Data Tool
MSATS Data Model Table - CATS_NMI_Data
Replication Table Name - ElectricityNMIMaster

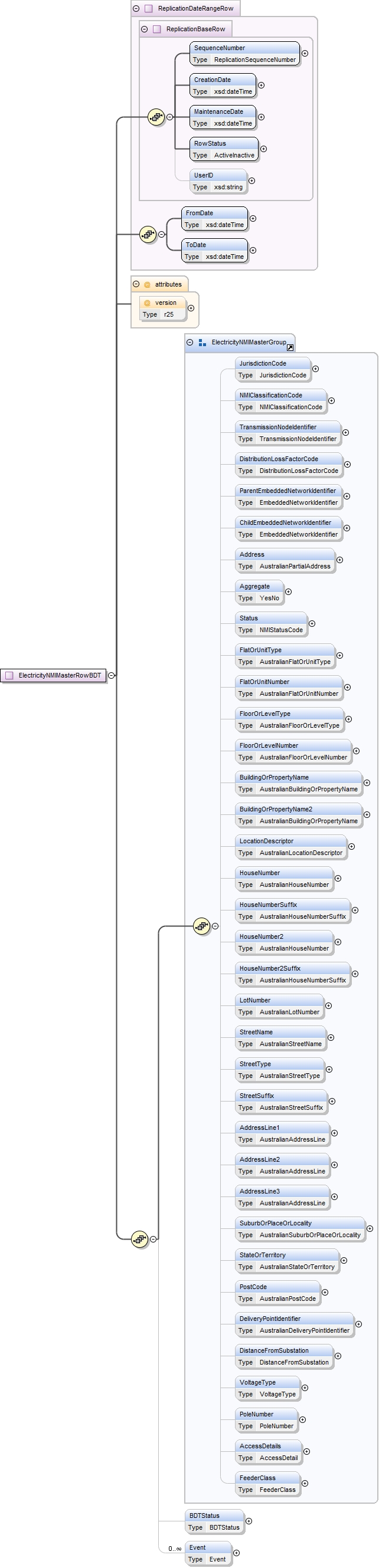

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , JurisdictionCode{0,1} , NMIClassificationCode{0,1} , TransmissionNodeIdentifier{0,1} , DistributionLossFactorCode{0,1} , ParentEmbeddedNetworkIdentifier{0,1} , ChildEmbeddedNetworkIdentifier{0,1} , Address{0,1} , Aggregate{0,1} , Status{0,1} , FlatOrUnitType{0,1} , FlatOrUnitNumber{0,1} , FloorOrLevelType{0,1} , FloorOrLevelNumber{0,1} , BuildingOrPropertyName{0,1} , BuildingOrPropertyName2{0,1} , LocationDescriptor{0,1} , HouseNumber{0,1} , HouseNumberSuffix{0,1} , HouseNumber2{0,1} , HouseNumber2Suffix{0,1} , LotNumber{0,1} , StreetName{0,1} , StreetType{0,1} , StreetSuffix{0,1} , AddressLine1{0,1} , AddressLine2{0,1} , AddressLine3{0,1} , SuburbOrPlaceOrLocality{0,1} , StateOrTerritory{0,1} , PostCode{0,1} , DeliveryPointIdentifier{0,1} , DistanceFromSubstation{0,1} , VoltageType{0,1} , PoleNumber{0,1} , AccessDetails{0,1} , FeederClass{0,1} , BDTStatus{0,1} , Event*
Children
AccessDetails , Address , AddressLine1 , AddressLine2 , AddressLine3 , Aggregate , BDTStatus , BuildingOrPropertyName , BuildingOrPropertyName2 , ChildEmbeddedNetworkIdentifier , CreationDate , DeliveryPointIdentifier , DistanceFromSubstation , DistributionLossFactorCode , Event , FeederClass , FlatOrUnitNumber , FlatOrUnitType , FloorOrLevelNumber , FloorOrLevelType , FromDate , HouseNumber , HouseNumber2 , HouseNumber2Suffix , HouseNumberSuffix , JurisdictionCode , LocationDescriptor , LotNumber , MaintenanceDate , NMIClassificationCode , ParentEmbeddedNetworkIdentifier , PoleNumber , PostCode , RowStatus , SequenceNumber , StateOrTerritory , Status , StreetName , StreetSuffix , StreetType , SuburbOrPlaceOrLocality , ToDate , TransmissionNodeIdentifier , UserID , VoltageType
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r25
optional
Source
<xsd:complexType name= "ElectricityNMIMasterRowBDT" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity NMI Master Standing Data table extended by BDTStatus and Event for Bulk Data Tool MSATS Data Model Table - CATS_NMI_Data Replication Table Name - ElectricityNMIMaster </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:group ref= "ElectricityNMIMasterGroup" />
<xsd:element name= "BDTStatus" type= "BDTStatus" minOccurs= "0" />
<xsd:element name= "Event" type= "Event" minOccurs= "0" maxOccurs= "unbounded" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r25" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityNMIDataStreamRowBDT
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity NMI DataStream Standing Data table extended by BDTStatus and Event for Bulk Data Tool

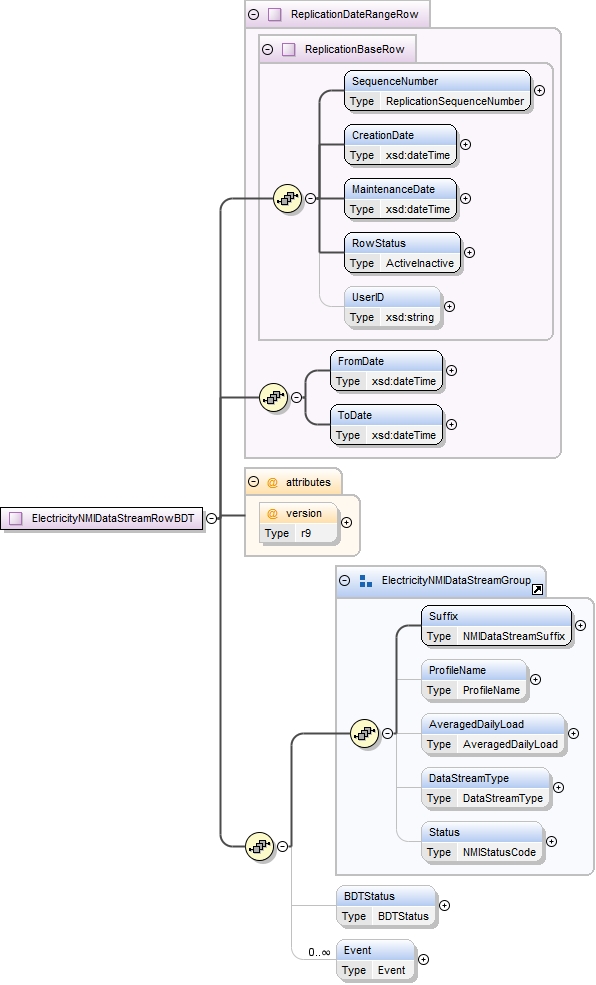

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Suffix , ProfileName{0,1} , AveragedDailyLoad{0,1} , DataStreamType{0,1} , Status{0,1} , BDTStatus{0,1} , Event*
Children
AveragedDailyLoad , BDTStatus , CreationDate , DataStreamType , Event , FromDate , MaintenanceDate , ProfileName , RowStatus , SequenceNumber , Status , Suffix , ToDate , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "ElectricityNMIDataStreamRowBDT" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity NMI DataStream Standing Data table extended by BDTStatus and Event for Bulk Data Tool </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:group ref= "ElectricityNMIDataStreamGroup" />
<xsd:element name= "BDTStatus" type= "BDTStatus" minOccurs= "0" />
<xsd:element name= "Event" type= "Event" minOccurs= "0" maxOccurs= "unbounded" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityNMIMeterRowBDT
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity NMI Meter Standing Data table extended by BDTStatus and Event for Bulk Data Tool

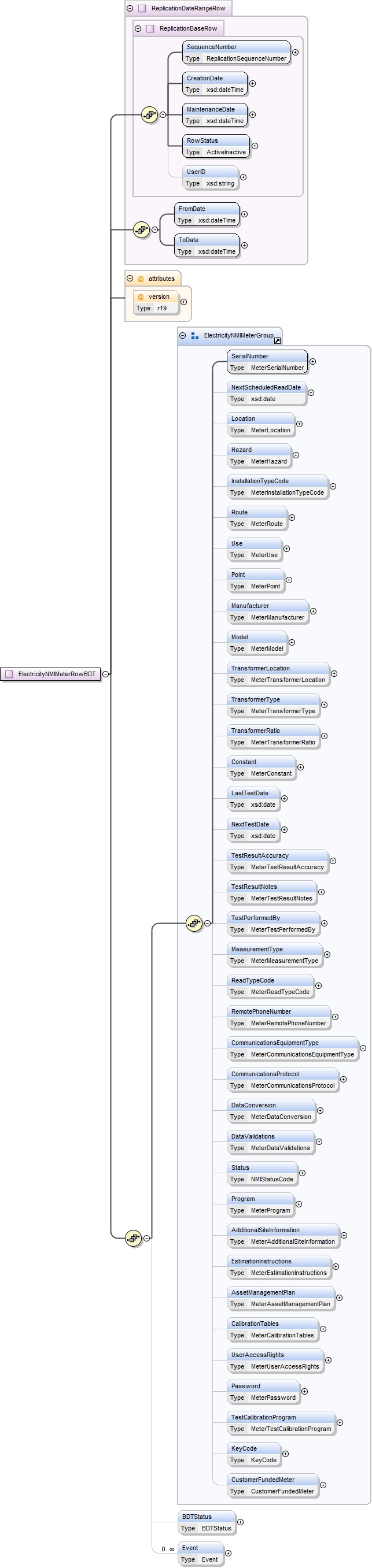

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , SerialNumber , NextScheduledReadDate{0,1} , Location{0,1} , Hazard{0,1} , InstallationTypeCode{0,1} , Route{0,1} , Use{0,1} , Point{0,1} , Manufacturer{0,1} , Model{0,1} , TransformerLocation{0,1} , TransformerType{0,1} , TransformerRatio{0,1} , Constant{0,1} , LastTestDate{0,1} , NextTestDate{0,1} , TestResultAccuracy{0,1} , TestResultNotes{0,1} , TestPerformedBy{0,1} , MeasurementType{0,1} , ReadTypeCode{0,1} , RemotePhoneNumber{0,1} , CommunicationsEquipmentType{0,1} , CommunicationsProtocol{0,1} , DataConversion{0,1} , DataValidations{0,1} , Status{0,1} , Program{0,1} , AdditionalSiteInformation{0,1} , EstimationInstructions{0,1} , AssetManagementPlan{0,1} , CalibrationTables{0,1} , UserAccessRights{0,1} , Password{0,1} , TestCalibrationProgram{0,1} , KeyCode{0,1} , CustomerFundedMeter{0,1} , BDTStatus{0,1} , Event*
Children
AdditionalSiteInformation , AssetManagementPlan , BDTStatus , CalibrationTables , CommunicationsEquipmentType , CommunicationsProtocol , Constant , CreationDate , CustomerFundedMeter , DataConversion , DataValidations , EstimationInstructions , Event , FromDate , Hazard , InstallationTypeCode , KeyCode , LastTestDate , Location , MaintenanceDate , Manufacturer , MeasurementType , Model , NextScheduledReadDate , NextTestDate , Password , Point , Program , ReadTypeCode , RemotePhoneNumber , Route , RowStatus , SequenceNumber , SerialNumber , Status , TestCalibrationProgram , TestPerformedBy , TestResultAccuracy , TestResultNotes , ToDate , TransformerLocation , TransformerRatio , TransformerType , Use , UserAccessRights , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r19
optional
Source
<xsd:complexType name= "ElectricityNMIMeterRowBDT" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity NMI Meter Standing Data table extended by BDTStatus and Event for Bulk Data Tool </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:group ref= "ElectricityNMIMeterGroup" />
<xsd:element name= "BDTStatus" type= "BDTStatus" minOccurs= "0" />
<xsd:element name= "Event" type= "Event" minOccurs= "0" maxOccurs= "unbounded" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r19" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityNMIRoleRowBDT
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity NMI Role Standing Data table extended by BDTStatus and Event for Bulk Data Tool

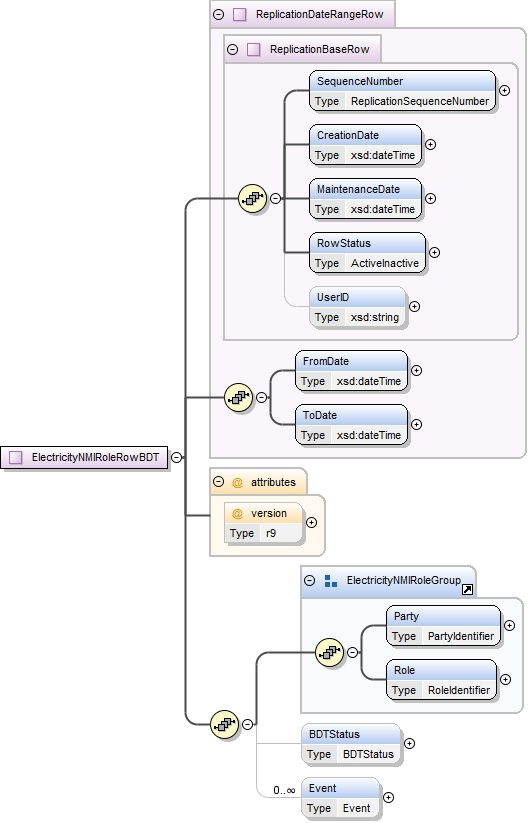

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , Party , Role , BDTStatus{0,1} , Event*
Children
BDTStatus , CreationDate , Event , FromDate , MaintenanceDate , Party , Role , RowStatus , SequenceNumber , ToDate , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "ElectricityNMIRoleRowBDT" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity NMI Role Standing Data table extended by BDTStatus and Event for Bulk Data Tool </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:group ref= "ElectricityNMIRoleGroup" />
<xsd:element name= "BDTStatus" type= "BDTStatus" minOccurs= "0" />
<xsd:element name= "Event" type= "Event" minOccurs= "0" maxOccurs= "unbounded" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityNMIMeterRegisterRowBDT
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity NMI Meter Register Standing Data table extended by BDTStatus and Event for Bulk Data Tool

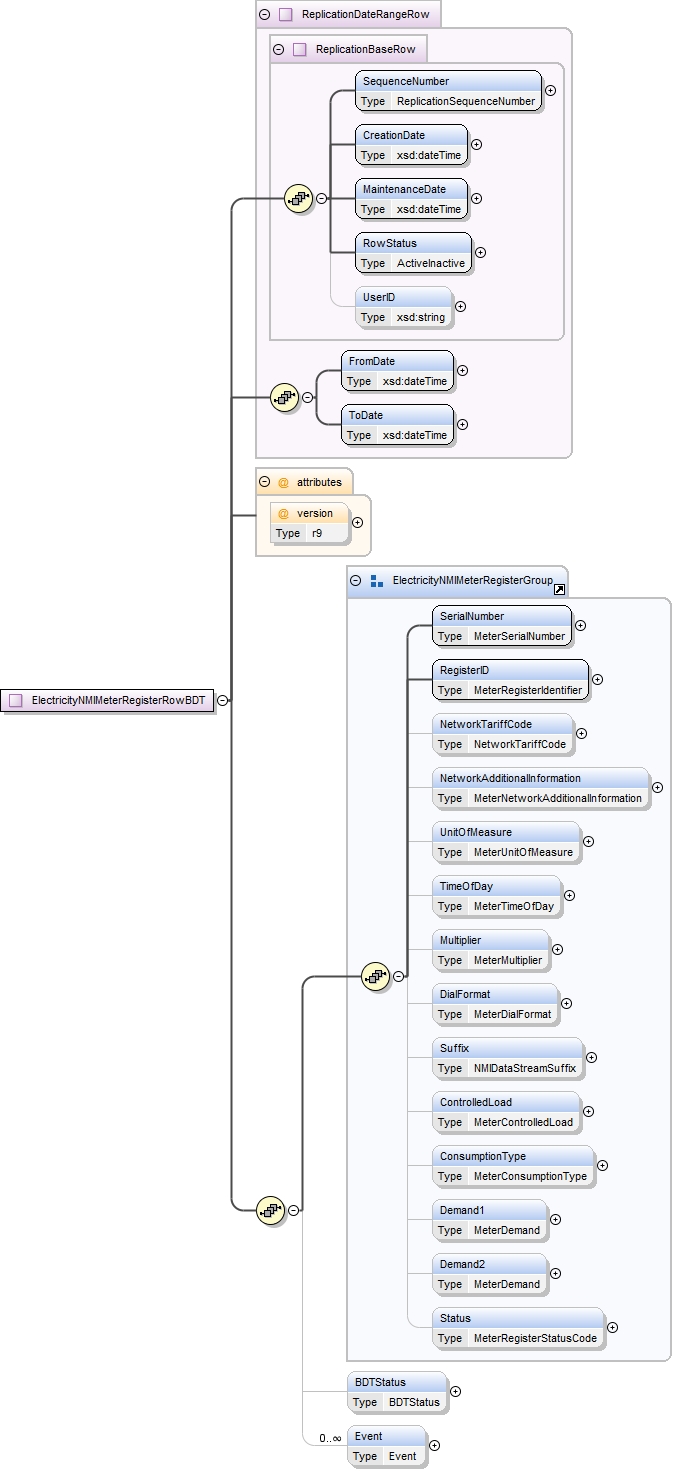

Diagram
Type
extension of ReplicationDateRangeRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , FromDate , ToDate , SerialNumber , RegisterID , NetworkTariffCode{0,1} , NetworkAdditionalInformation{0,1} , UnitOfMeasure{0,1} , TimeOfDay{0,1} , Multiplier{0,1} , DialFormat{0,1} , Suffix{0,1} , ControlledLoad{0,1} , ConsumptionType{0,1} , Demand1{0,1} , Demand2{0,1} , Status{0,1} , BDTStatus{0,1} , Event*
Children
BDTStatus , ConsumptionType , ControlledLoad , CreationDate , Demand1 , Demand2 , DialFormat , Event , FromDate , MaintenanceDate , Multiplier , NetworkAdditionalInformation , NetworkTariffCode , RegisterID , RowStatus , SequenceNumber , SerialNumber , Status , Suffix , TimeOfDay , ToDate , UnitOfMeasure , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "ElectricityNMIMeterRegisterRowBDT" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity NMI Meter Register Standing Data table extended by BDTStatus and Event for Bulk Data Tool </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationDateRangeRow" >
<xsd:sequence >
<xsd:group ref= "ElectricityNMIMeterRegisterGroup" />
<xsd:element name= "BDTStatus" type= "BDTStatus" minOccurs= "0" />
<xsd:element name= "Event" type= "Event" minOccurs= "0" maxOccurs= "unbounded" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSChangeRequestRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATS Change Request table
MSATS Data Model Table - CATS_Inbound_Change_Request
Replication Table Name - CATSChangeRequests

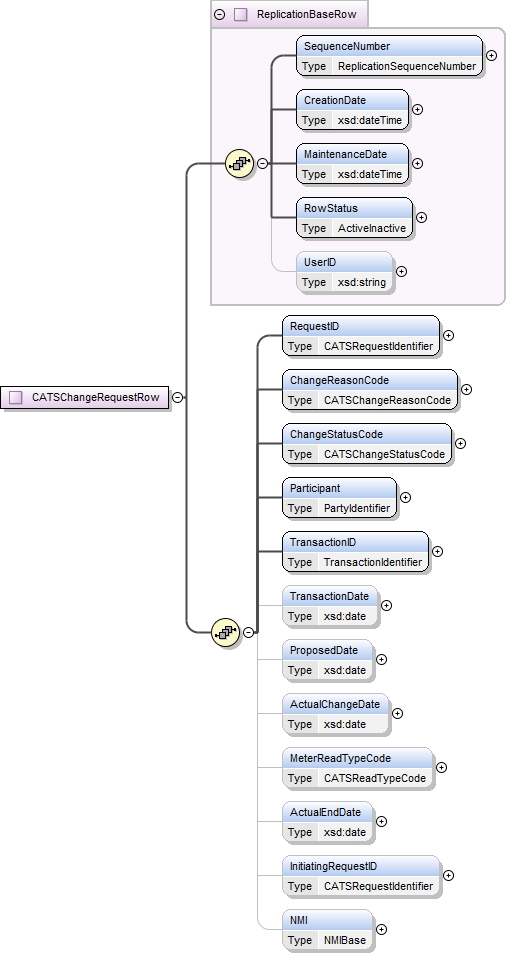

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , RequestID , ChangeReasonCode , ChangeStatusCode , Participant , TransactionID , TransactionDate{0,1} , ProposedDate{0,1} , ActualChangeDate{0,1} , MeterReadTypeCode{0,1} , ActualEndDate{0,1} , InitiatingRequestID{0,1} , NMI{0,1}
Children
ActualChangeDate , ActualEndDate , ChangeReasonCode , ChangeStatusCode , CreationDate , InitiatingRequestID , MaintenanceDate , MeterReadTypeCode , NMI , Participant , ProposedDate , RequestID , RowStatus , SequenceNumber , TransactionDate , TransactionID , UserID
Source
<xsd:complexType name= "CATSChangeRequestRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATS Change Request table MSATS Data Model Table - CATS_Inbound_Change_Request Replication Table Name - CATSChangeRequests </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "RequestID" type= "CATSRequestIdentifier" />
<xsd:element name= "ChangeReasonCode" type= "CATSChangeReasonCode" />
<xsd:element name= "ChangeStatusCode" type= "CATSChangeStatusCode" />
<xsd:element name= "Participant" type= "PartyIdentifier" />
<xsd:element name= "TransactionID" type= "TransactionIdentifier" />
<xsd:element name= "TransactionDate" type= "xsd:date" nillable= "true" minOccurs= "0" />
<xsd:element name= "ProposedDate" type= "xsd:date" nillable= "true" minOccurs= "0" />
<xsd:element name= "ActualChangeDate" type= "xsd:date" nillable= "true" minOccurs= "0" />
<xsd:element name= "MeterReadTypeCode" type= "CATSReadTypeCode" nillable= "true" minOccurs= "0" />
<xsd:element name= "ActualEndDate" type= "xsd:date" nillable= "true" minOccurs= "0" />
<xsd:element name= "InitiatingRequestID" type= "CATSRequestIdentifier" nillable= "true" minOccurs= "0" />
<xsd:element name= "NMI" type= "NMIBase" nillable= "true" minOccurs= "0" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityCATSChangeRequestNMIMasterRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity CATS Change Request NMI Master Standing Data table
MSATS Data Model Table - CATS_Inbound_NMI_Data
Replication Table Name - ElectricityCATSChangeRequestNMIMaster

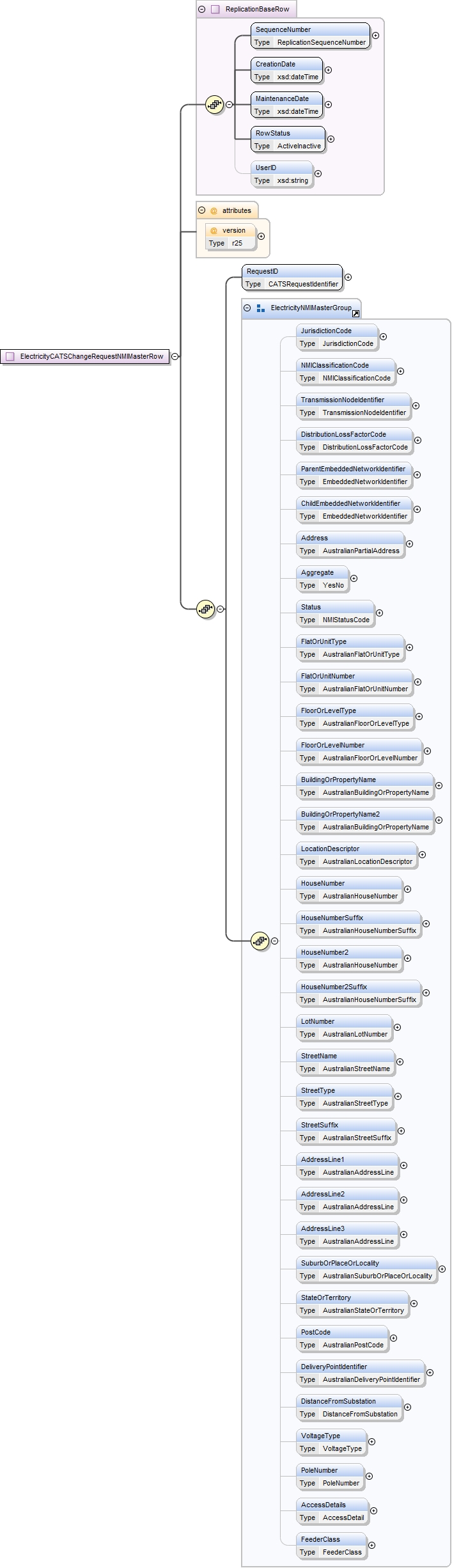

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , RequestID , JurisdictionCode{0,1} , NMIClassificationCode{0,1} , TransmissionNodeIdentifier{0,1} , DistributionLossFactorCode{0,1} , ParentEmbeddedNetworkIdentifier{0,1} , ChildEmbeddedNetworkIdentifier{0,1} , Address{0,1} , Aggregate{0,1} , Status{0,1} , FlatOrUnitType{0,1} , FlatOrUnitNumber{0,1} , FloorOrLevelType{0,1} , FloorOrLevelNumber{0,1} , BuildingOrPropertyName{0,1} , BuildingOrPropertyName2{0,1} , LocationDescriptor{0,1} , HouseNumber{0,1} , HouseNumberSuffix{0,1} , HouseNumber2{0,1} , HouseNumber2Suffix{0,1} , LotNumber{0,1} , StreetName{0,1} , StreetType{0,1} , StreetSuffix{0,1} , AddressLine1{0,1} , AddressLine2{0,1} , AddressLine3{0,1} , SuburbOrPlaceOrLocality{0,1} , StateOrTerritory{0,1} , PostCode{0,1} , DeliveryPointIdentifier{0,1} , DistanceFromSubstation{0,1} , VoltageType{0,1} , PoleNumber{0,1} , AccessDetails{0,1} , FeederClass{0,1}
Children
AccessDetails , Address , AddressLine1 , AddressLine2 , AddressLine3 , Aggregate , BuildingOrPropertyName , BuildingOrPropertyName2 , ChildEmbeddedNetworkIdentifier , CreationDate , DeliveryPointIdentifier , DistanceFromSubstation , DistributionLossFactorCode , FeederClass , FlatOrUnitNumber , FlatOrUnitType , FloorOrLevelNumber , FloorOrLevelType , HouseNumber , HouseNumber2 , HouseNumber2Suffix , HouseNumberSuffix , JurisdictionCode , LocationDescriptor , LotNumber , MaintenanceDate , NMIClassificationCode , ParentEmbeddedNetworkIdentifier , PoleNumber , PostCode , RequestID , RowStatus , SequenceNumber , StateOrTerritory , Status , StreetName , StreetSuffix , StreetType , SuburbOrPlaceOrLocality , TransmissionNodeIdentifier , UserID , VoltageType
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r25
optional
Source
<xsd:complexType name= "ElectricityCATSChangeRequestNMIMasterRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity CATS Change Request NMI Master Standing Data table MSATS Data Model Table - CATS_Inbound_NMI_Data Replication Table Name - ElectricityCATSChangeRequestNMIMaster </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "RequestID" type= "CATSRequestIdentifier" />
<xsd:group ref= "ElectricityNMIMasterGroup" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r25" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityCATSChangeRequestNMIDataStreamRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity CATSChange Request NMI Data Stream table
MSATS Data Model Table - CATS_Inbound_Streams
Replication Table Name - ElectricityCATSChangeRequestNMIDataStreams

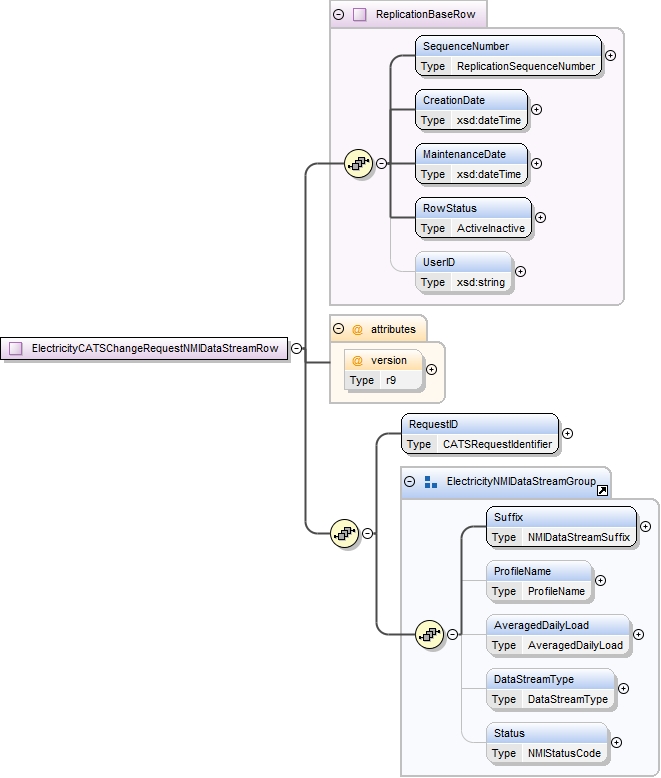

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , RequestID , Suffix , ProfileName{0,1} , AveragedDailyLoad{0,1} , DataStreamType{0,1} , Status{0,1}
Children
AveragedDailyLoad , CreationDate , DataStreamType , MaintenanceDate , ProfileName , RequestID , RowStatus , SequenceNumber , Status , Suffix , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "ElectricityCATSChangeRequestNMIDataStreamRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity CATSChange Request NMI Data Stream table MSATS Data Model Table - CATS_Inbound_Streams Replication Table Name - ElectricityCATSChangeRequestNMIDataStreams </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "RequestID" type= "CATSRequestIdentifier" />
<xsd:group ref= "ElectricityNMIDataStreamGroup" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityCATSChangeRequestNMIMeterRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity CATS Change Request NMI Meter Register table
MSATS Data Model Table - CATS_Inbound_Meter_Register
Replication Table Name - ElectricityCATSChangeRequestNMIMeters

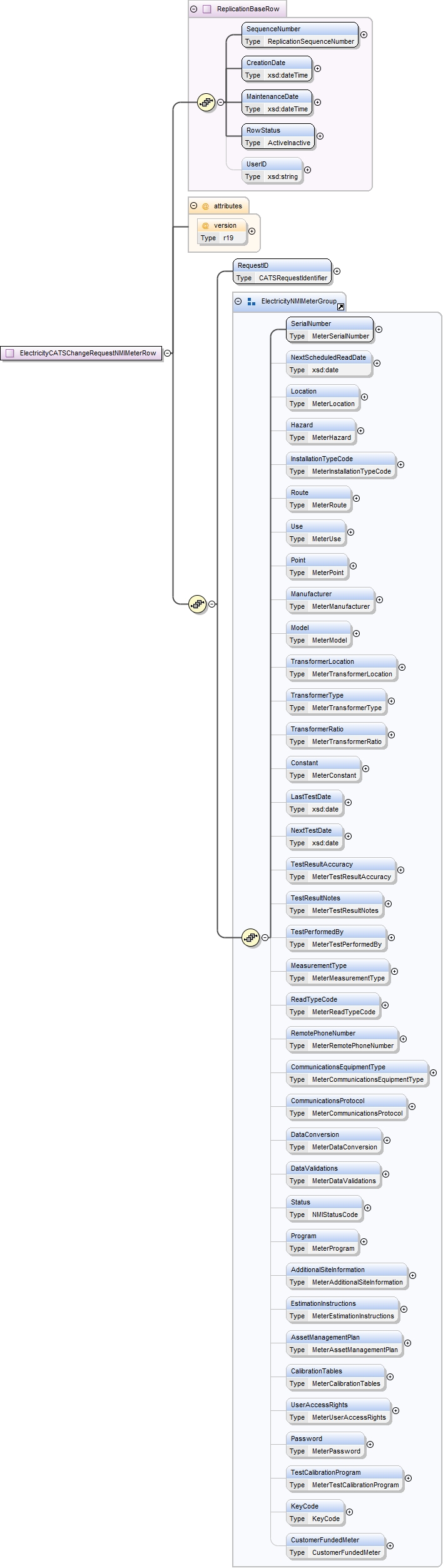

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , RequestID , SerialNumber , NextScheduledReadDate{0,1} , Location{0,1} , Hazard{0,1} , InstallationTypeCode{0,1} , Route{0,1} , Use{0,1} , Point{0,1} , Manufacturer{0,1} , Model{0,1} , TransformerLocation{0,1} , TransformerType{0,1} , TransformerRatio{0,1} , Constant{0,1} , LastTestDate{0,1} , NextTestDate{0,1} , TestResultAccuracy{0,1} , TestResultNotes{0,1} , TestPerformedBy{0,1} , MeasurementType{0,1} , ReadTypeCode{0,1} , RemotePhoneNumber{0,1} , CommunicationsEquipmentType{0,1} , CommunicationsProtocol{0,1} , DataConversion{0,1} , DataValidations{0,1} , Status{0,1} , Program{0,1} , AdditionalSiteInformation{0,1} , EstimationInstructions{0,1} , AssetManagementPlan{0,1} , CalibrationTables{0,1} , UserAccessRights{0,1} , Password{0,1} , TestCalibrationProgram{0,1} , KeyCode{0,1} , CustomerFundedMeter{0,1}
Children
AdditionalSiteInformation , AssetManagementPlan , CalibrationTables , CommunicationsEquipmentType , CommunicationsProtocol , Constant , CreationDate , CustomerFundedMeter , DataConversion , DataValidations , EstimationInstructions , Hazard , InstallationTypeCode , KeyCode , LastTestDate , Location , MaintenanceDate , Manufacturer , MeasurementType , Model , NextScheduledReadDate , NextTestDate , Password , Point , Program , ReadTypeCode , RemotePhoneNumber , RequestID , Route , RowStatus , SequenceNumber , SerialNumber , Status , TestCalibrationProgram , TestPerformedBy , TestResultAccuracy , TestResultNotes , TransformerLocation , TransformerRatio , TransformerType , Use , UserAccessRights , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r19
optional
Source
<xsd:complexType name= "ElectricityCATSChangeRequestNMIMeterRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity CATS Change Request NMI Meter Register table MSATS Data Model Table - CATS_Inbound_Meter_Register Replication Table Name - ElectricityCATSChangeRequestNMIMeters </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "RequestID" type= "CATSRequestIdentifier" />
<xsd:group ref= "ElectricityNMIMeterGroup" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r19" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityCATSChangeRequestNMIRoleRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity CATS Change Request NMI Role Assignment table
MSATS Data Model Table - CATS_Inbound_NMI_Participant_Relations
Replication Table Name - ElectricityCATSChangeRequestNMIRoles

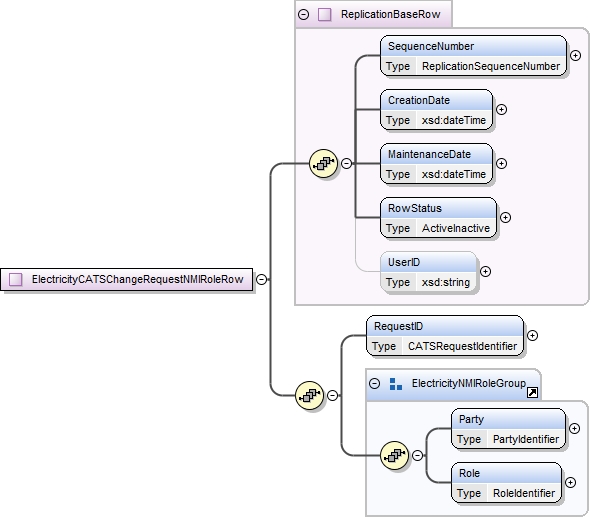

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , RequestID , Party , Role
Children
CreationDate , MaintenanceDate , Party , RequestID , Role , RowStatus , SequenceNumber , UserID
Source
<xsd:complexType name= "ElectricityCATSChangeRequestNMIRoleRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity CATS Change Request NMI Role Assignment table MSATS Data Model Table - CATS_Inbound_NMI_Participant_Relations Replication Table Name - ElectricityCATSChangeRequestNMIRoles </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "RequestID" type= "CATSRequestIdentifier" />
<xsd:group ref= "ElectricityNMIRoleGroup" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type ElectricityCATSChangeRequestNMIMeterRegisterRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity CATS Change Request NMI Meter Register Configuration table
MSATS Data Model Table - CATS_Inbound_REGISTER_IDENTIFIER
Replication Table Name - ElectricityCATSChangeRequestNMIMeterRegisters

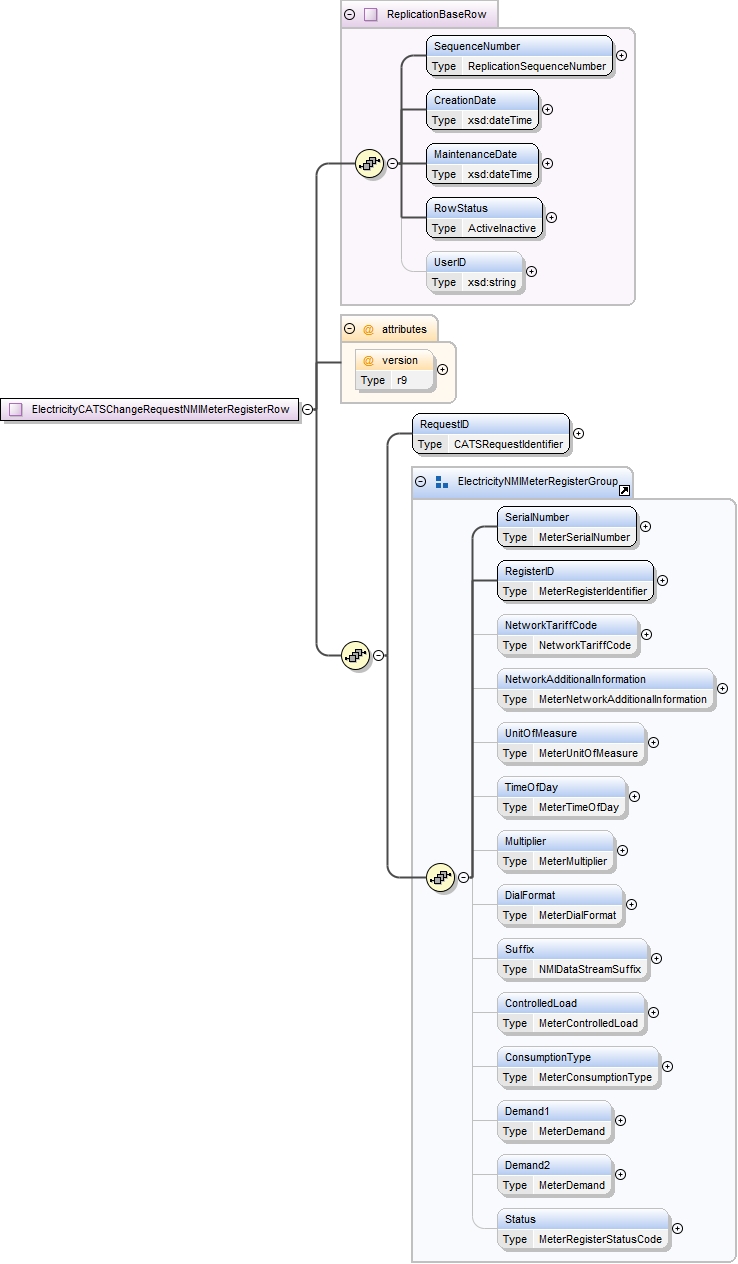

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , RequestID , SerialNumber , RegisterID , NetworkTariffCode{0,1} , NetworkAdditionalInformation{0,1} , UnitOfMeasure{0,1} , TimeOfDay{0,1} , Multiplier{0,1} , DialFormat{0,1} , Suffix{0,1} , ControlledLoad{0,1} , ConsumptionType{0,1} , Demand1{0,1} , Demand2{0,1} , Status{0,1}
Children
ConsumptionType , ControlledLoad , CreationDate , Demand1 , Demand2 , DialFormat , MaintenanceDate , Multiplier , NetworkAdditionalInformation , NetworkTariffCode , RegisterID , RequestID , RowStatus , SequenceNumber , SerialNumber , Status , Suffix , TimeOfDay , UnitOfMeasure , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "ElectricityCATSChangeRequestNMIMeterRegisterRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity CATS Change Request NMI Meter Register Configuration table MSATS Data Model Table - CATS_Inbound_REGISTER_IDENTIFIER Replication Table Name - ElectricityCATSChangeRequestNMIMeterRegisters </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "RequestID" type= "CATSRequestIdentifier" />
<xsd:group ref= "ElectricityNMIMeterRegisterGroup" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSChangeResponseRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATS Change Response table
MSATS Data Model Table - CATS_Outbound_Change_Requests
Replication Table Name - CATSChangeResponses

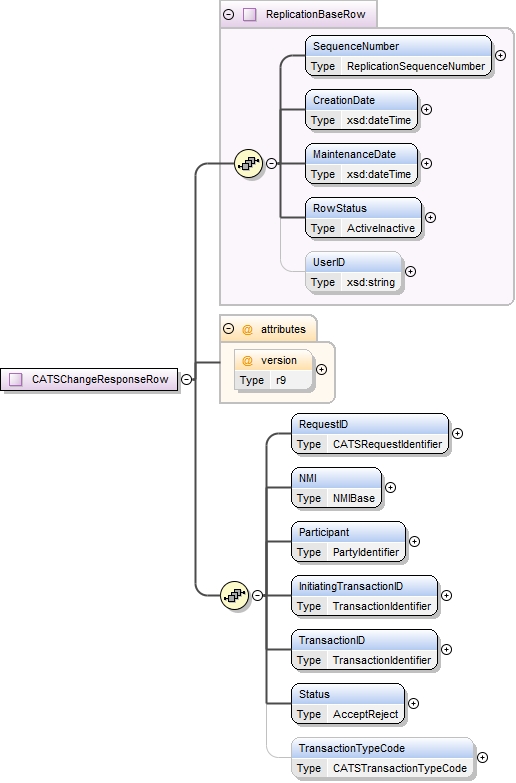

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , RequestID , NMI , Participant , InitiatingTransactionID , TransactionID , Status , TransactionTypeCode{0,1}
Children
CreationDate , InitiatingTransactionID , MaintenanceDate , NMI , Participant , RequestID , RowStatus , SequenceNumber , Status , TransactionID , TransactionTypeCode , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "CATSChangeResponseRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATS Change Response table MSATS Data Model Table - CATS_Outbound_Change_Requests Replication Table Name - CATSChangeResponses </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "RequestID" type= "CATSRequestIdentifier" />
<xsd:element name= "NMI" type= "NMIBase" />
<xsd:element name= "Participant" type= "PartyIdentifier" />
<xsd:element name= "InitiatingTransactionID" type= "TransactionIdentifier" />
<xsd:element name= "TransactionID" type= "TransactionIdentifier" />
<xsd:element name= "Status" type= "AcceptReject" />
<xsd:element name= "TransactionTypeCode" type= "CATSTransactionTypeCode" minOccurs= "0" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSErrorsRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity CATS Errors table
MSATS Data Model Table - CATS_Outbound_Errors
Replication Table Name - CATSErrors

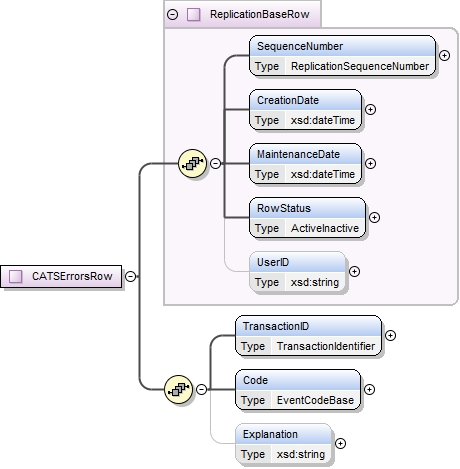

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , TransactionID , Code , Explanation{0,1}
Children
Code , CreationDate , Explanation , MaintenanceDate , RowStatus , SequenceNumber , TransactionID , UserID
Source
<xsd:complexType name= "CATSErrorsRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity CATS Errors table MSATS Data Model Table - CATS_Outbound_Errors Replication Table Name - CATSErrors </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "TransactionID" type= "TransactionIdentifier" />
<xsd:element name= "Code" type= "EventCodeBase" />
<xsd:element name= "Explanation" type= "xsd:string" nillable= "true" minOccurs= "0" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSObjectionRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATS Objection table
MSATS Data Model Table - CATS_Inbound_Objections
Replication Table Name - CATSObjections

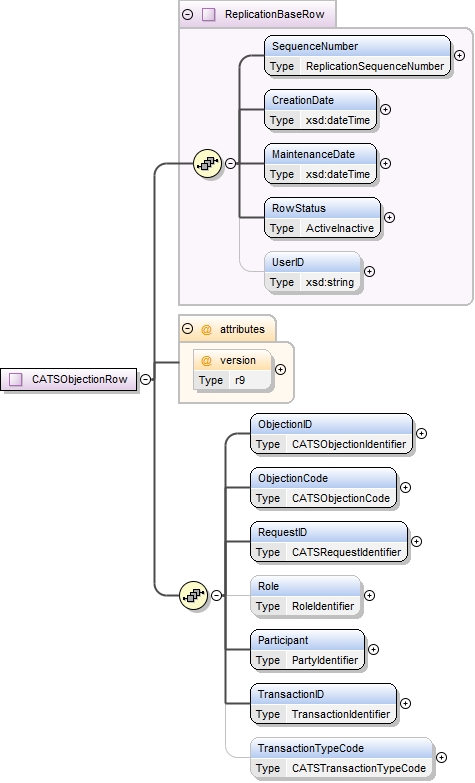

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , ObjectionID , ObjectionCode , RequestID , Role{0,1} , Participant , TransactionID , TransactionTypeCode{0,1}
Children
CreationDate , MaintenanceDate , ObjectionCode , ObjectionID , Participant , RequestID , Role , RowStatus , SequenceNumber , TransactionID , TransactionTypeCode , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "CATSObjectionRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATS Objection table MSATS Data Model Table - CATS_Inbound_Objections Replication Table Name - CATSObjections </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "ObjectionID" type= "CATSObjectionIdentifier" />
<xsd:element name= "ObjectionCode" type= "CATSObjectionCode" />
<xsd:element name= "RequestID" type= "CATSRequestIdentifier" />
<xsd:element name= "Role" type= "RoleIdentifier" minOccurs= "0" />
<xsd:element name= "Participant" type= "PartyIdentifier" />
<xsd:element name= "TransactionID" type= "TransactionIdentifier" />
<xsd:element name= "TransactionTypeCode" type= "CATSTransactionTypeCode" minOccurs= "0" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSObjectionResponseRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the Electricity Objection Response table
MSATS Data Model Table - CATS_Outbound_Objections
Replication Table Name - ElectricityObjectionResponses

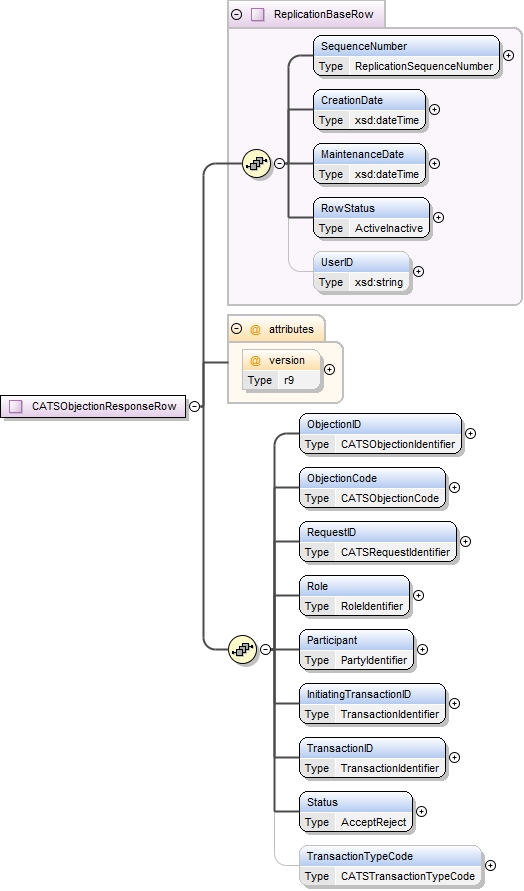

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , ObjectionID , ObjectionCode , RequestID , Role , Participant , InitiatingTransactionID , TransactionID , Status , TransactionTypeCode{0,1}
Children
CreationDate , InitiatingTransactionID , MaintenanceDate , ObjectionCode , ObjectionID , Participant , RequestID , Role , RowStatus , SequenceNumber , Status , TransactionID , TransactionTypeCode , UserID
Attributes
QName
Type
Fixed
Default
Use
Annotation
version
r9
optional
Source
<xsd:complexType name= "CATSObjectionResponseRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the Electricity Objection Response table MSATS Data Model Table - CATS_Outbound_Objections Replication Table Name - ElectricityObjectionResponses </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "ObjectionID" type= "CATSObjectionIdentifier" />
<xsd:element name= "ObjectionCode" type= "CATSObjectionCode" />
<xsd:element name= "RequestID" type= "CATSRequestIdentifier" />
<xsd:element name= "Role" type= "RoleIdentifier" />
<xsd:element name= "Participant" type= "PartyIdentifier" />
<xsd:element name= "InitiatingTransactionID" type= "TransactionIdentifier" />
<xsd:element name= "TransactionID" type= "TransactionIdentifier" />
<xsd:element name= "Status" type= "AcceptReject" />
<xsd:element name= "TransactionTypeCode" type= "CATSTransactionTypeCode" minOccurs= "0" />
</xsd:sequence>
<xsd:attribute name= "version" type= "r9" use= "optional" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSNotificationRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATS Notification table
MSATS Data Model Table - CATS_Outbound_Notifications
Replication Table Name - CATSNotifications

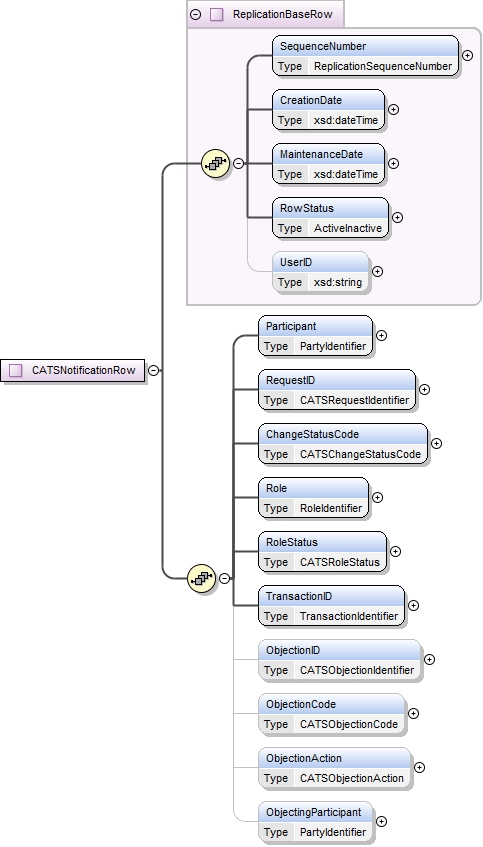

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , Participant , RequestID , ChangeStatusCode , Role , RoleStatus , TransactionID , ObjectionID{0,1} , ObjectionCode{0,1} , ObjectionAction{0,1} , ObjectingParticipant{0,1}
Children
ChangeStatusCode , CreationDate , MaintenanceDate , ObjectingParticipant , ObjectionAction , ObjectionCode , ObjectionID , Participant , RequestID , Role , RoleStatus , RowStatus , SequenceNumber , TransactionID , UserID
Source
<xsd:complexType name= "CATSNotificationRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATS Notification table MSATS Data Model Table - CATS_Outbound_Notifications Replication Table Name - CATSNotifications </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "Participant" type= "PartyIdentifier" />
<xsd:element name= "RequestID" type= "CATSRequestIdentifier" />
<xsd:element name= "ChangeStatusCode" type= "CATSChangeStatusCode" />
<xsd:element name= "Role" type= "RoleIdentifier" />
<xsd:element name= "RoleStatus" type= "CATSRoleStatus" />
<xsd:element name= "TransactionID" type= "TransactionIdentifier" />
<xsd:element name= "ObjectionID" type= "CATSObjectionIdentifier" nillable= "true" minOccurs= "0" />
<xsd:element name= "ObjectionCode" type= "CATSObjectionCode" nillable= "true" minOccurs= "0" />
<xsd:element name= "ObjectionAction" type= "CATSObjectionAction" nillable= "true" minOccurs= "0" />
<xsd:element name= "ObjectingParticipant" type= "PartyIdentifier" nillable= "true" minOccurs= "0" />
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Complex Type CATSDataRequestRow
Namespace
urn:aseXML:r25
Annotations
Purpose - Row of the CATS Data Request table
MSATS Data Model Table - CATS_Outbound_Requests
Replication Table Name - CATSDataRequests

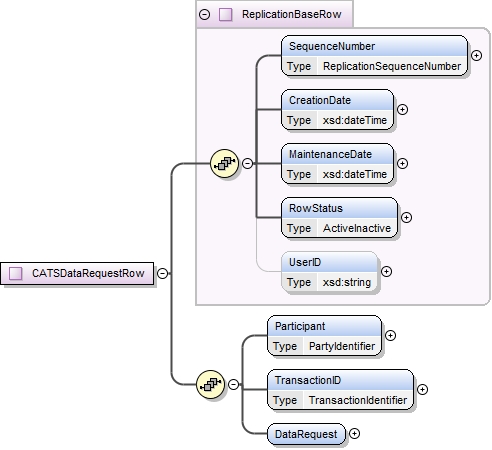

Diagram
Type
extension of ReplicationBaseRow
Type hierarchy
Model
SequenceNumber , CreationDate , MaintenanceDate , RowStatus , UserID{0,1} , Participant , TransactionID , DataRequest
Children
CreationDate , DataRequest , MaintenanceDate , Participant , RowStatus , SequenceNumber , TransactionID , UserID
Source
<xsd:complexType name= "CATSDataRequestRow" >
<xsd:annotation >
<xsd:documentation > Purpose - Row of the CATS Data Request table MSATS Data Model Table - CATS_Outbound_Requests Replication Table Name - CATSDataRequests </xsd:documentation>
</xsd:annotation>
<xsd:complexContent >
<xsd:extension base= "ReplicationBaseRow" >
<xsd:sequence >
<xsd:element name= "Participant" type= "PartyIdentifier" />
<xsd:element name= "TransactionID" type= "TransactionIdentifier" />
<xsd:element name= "DataRequest" >
<xsd:complexType >
<xsd:sequence >
<xsd:any namespace= "##any" processContents= "skip" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Element Group ElectricityNMIDataStreamGroup
Namespace
urn:aseXML:r25

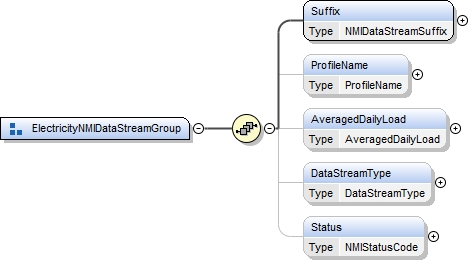

Diagram
Used by
Model
Suffix , ProfileName{0,1} , AveragedDailyLoad{0,1} , DataStreamType{0,1} , Status{0,1}
Children
AveragedDailyLoad , DataStreamType , ProfileName , Status , Suffix
Source
<xsd:group name= "ElectricityNMIDataStreamGroup" >
<xsd:annotation >
<xsd:documentation > Purpose - Common NMI Data Stream elements across Standing Data and Change Requests </xsd:documentation>
</xsd:annotation>
<xsd:sequence >
<xsd:element name= "Suffix" type= "NMIDataStreamSuffix" />
<xsd:element name= "ProfileName" type= "ProfileName" nillable= "true" minOccurs= "0" />
<xsd:element name= "AveragedDailyLoad" type= "AveragedDailyLoad" nillable= "true" minOccurs= "0" />
<xsd:element name= "DataStreamType" type= "DataStreamType" nillable= "true" minOccurs= "0" />
<xsd:element name= "Status" type= "NMIStatusCode" nillable= "true" minOccurs= "0" />
</xsd:sequence>
</xsd:group>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
Element Group ElectricityNMIMeterGroup
Namespace
urn:aseXML:r25

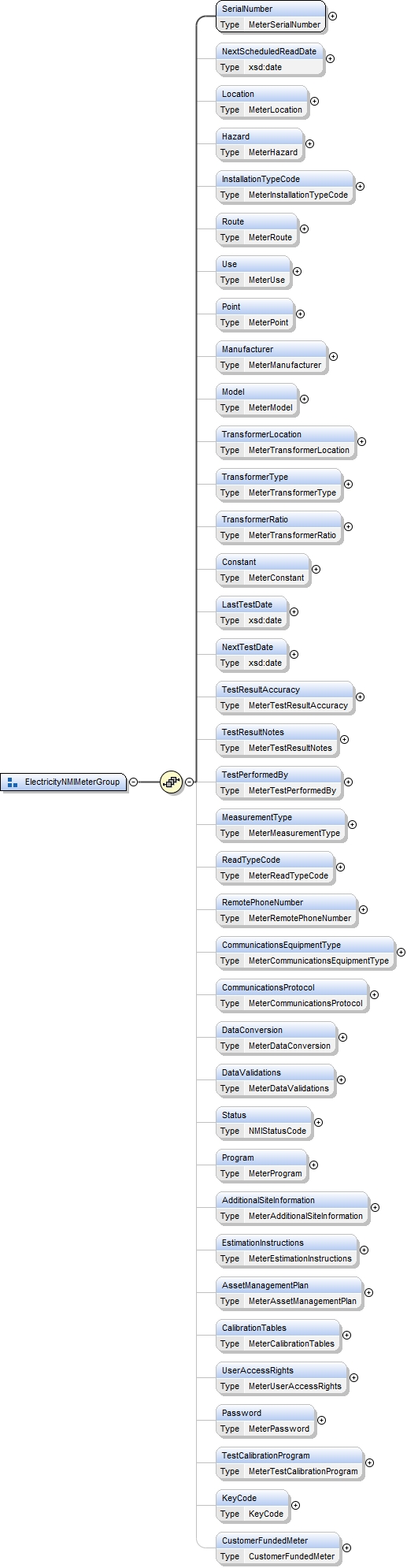

Diagram
Used by
Model
SerialNumber , NextScheduledReadDate{0,1} , Location{0,1} , Hazard{0,1} , InstallationTypeCode{0,1} , Route{0,1} , Use{0,1} , Point{0,1} , Manufacturer{0,1} , Model{0,1} , TransformerLocation{0,1} , TransformerType{0,1} , TransformerRatio{0,1} , Constant{0,1} , LastTestDate{0,1} , NextTestDate{0,1} , TestResultAccuracy{0,1} , TestResultNotes{0,1} , TestPerformedBy{0,1} , MeasurementType{0,1} , ReadTypeCode{0,1} , RemotePhoneNumber{0,1} , CommunicationsEquipmentType{0,1} , CommunicationsProtocol{0,1} , DataConversion{0,1} , DataValidations{0,1} , Status{0,1} , Program{0,1} , AdditionalSiteInformation{0,1} , EstimationInstructions{0,1} , AssetManagementPlan{0,1} , CalibrationTables{0,1} , UserAccessRights{0,1} , Password{0,1} , TestCalibrationProgram{0,1} , KeyCode{0,1} , CustomerFundedMeter{0,1}
Children
AdditionalSiteInformation , AssetManagementPlan , CalibrationTables , CommunicationsEquipmentType , CommunicationsProtocol , Constant , CustomerFundedMeter , DataConversion , DataValidations , EstimationInstructions , Hazard , InstallationTypeCode , KeyCode , LastTestDate , Location , Manufacturer , MeasurementType , Model , NextScheduledReadDate , NextTestDate , Password , Point , Program , ReadTypeCode , RemotePhoneNumber , Route , SerialNumber , Status , TestCalibrationProgram , TestPerformedBy , TestResultAccuracy , TestResultNotes , TransformerLocation , TransformerRatio , TransformerType , Use , UserAccessRights
Source
<xsd:group name= "ElectricityNMIMeterGroup" >
<xsd:annotation >
<xsd:documentation > Purpose - Common NMI Meter elements across Standing Data and Change Requests </xsd:documentation>
</xsd:annotation>
<xsd:sequence >
<xsd:element name= "SerialNumber" type= "MeterSerialNumber" />
<xsd:element name= "NextScheduledReadDate" type= "xsd:date" nillable= "true" minOccurs= "0" />
<xsd:element name= "Location" type= "MeterLocation" nillable= "true" minOccurs= "0" />
<xsd:element name= "Hazard" type= "MeterHazard" nillable= "true" minOccurs= "0" />
<xsd:element name= "InstallationTypeCode" type= "MeterInstallationTypeCode" nillable= "true" minOccurs= "0" />
<xsd:element name= "Route" type= "MeterRoute" nillable= "true" minOccurs= "0" />
<xsd:element name= "Use" type= "MeterUse" nillable= "true" minOccurs= "0" />
<xsd:element name= "Point" type= "MeterPoint" nillable= "true" minOccurs= "0" />
<xsd:element name= "Manufacturer" type= "MeterManufacturer" nillable= "true" minOccurs= "0" />
<xsd:element name= "Model" type= "MeterModel" nillable= "true" minOccurs= "0" />
<xsd:element name= "TransformerLocation" type= "MeterTransformerLocation" nillable= "true" minOccurs= "0" />
<xsd:element name= "TransformerType" type= "MeterTransformerType" nillable= "true" minOccurs= "0" />
<xsd:element name= "TransformerRatio" type= "MeterTransformerRatio" nillable= "true" minOccurs= "0" />
<xsd:element name= "Constant" type= "MeterConstant" nillable= "true" minOccurs= "0" />
<xsd:element name= "LastTestDate" type= "xsd:date" nillable= "true" minOccurs= "0" />
<xsd:element name= "NextTestDate" type= "xsd:date" nillable= "true" minOccurs= "0" />
<xsd:element name= "TestResultAccuracy" type= "MeterTestResultAccuracy" nillable= "true" minOccurs= "0" />
<xsd:element name= "TestResultNotes" type= "MeterTestResultNotes" nillable= "true" minOccurs= "0" />
<xsd:element name= "TestPerformedBy" type= "MeterTestPerformedBy" nillable= "true" minOccurs= "0" />
<xsd:element name= "MeasurementType" type= "MeterMeasurementType" nillable= "true" minOccurs= "0" />
<xsd:element name= "ReadTypeCode" type= "MeterReadTypeCode" nillable= "true" minOccurs= "0" />
<xsd:element name= "RemotePhoneNumber" type= "MeterRemotePhoneNumber" nillable= "true" minOccurs= "0" />
<xsd:element name= "CommunicationsEquipmentType" type= "MeterCommunicationsEquipmentType" nillable= "true" minOccurs= "0" />
<xsd:element name= "CommunicationsProtocol" type= "MeterCommunicationsProtocol" nillable= "true" minOccurs= "0" />
<xsd:element name= "DataConversion" type= "MeterDataConversion" nillable= "true" minOccurs= "0" />
<xsd:element name= "DataValidations" type= "MeterDataValidations" nillable= "true" minOccurs= "0" />
<xsd:element name= "Status" type= "NMIStatusCode" nillable= "true" minOccurs= "0" />
<xsd:element name= "Program" type= "MeterProgram" nillable= "true" minOccurs= "0" />
<xsd:element name= "AdditionalSiteInformation" type= "MeterAdditionalSiteInformation" nillable= "true" minOccurs= "0" />
<xsd:element name= "EstimationInstructions" type= "MeterEstimationInstructions" nillable= "true" minOccurs= "0" />
<xsd:element name= "AssetManagementPlan" type= "MeterAssetManagementPlan" nillable= "true" minOccurs= "0" />
<xsd:element name= "CalibrationTables" type= "MeterCalibrationTables" nillable= "true" minOccurs= "0" />
<xsd:element name= "UserAccessRights" type= "MeterUserAccessRights" nillable= "true" minOccurs= "0" />
<xsd:element name= "Password" type= "MeterPassword" nillable= "true" minOccurs= "0" />
<xsd:element name= "TestCalibrationProgram" type= "MeterTestCalibrationProgram" nillable= "true" minOccurs= "0" />
<xsd:element name= "KeyCode" type= "KeyCode" nillable= "true" minOccurs= "0" />
<xsd:element name= "CustomerFundedMeter" type= "CustomerFundedMeter" nillable= "true" minOccurs= "0" />
</xsd:sequence>
</xsd:group>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd

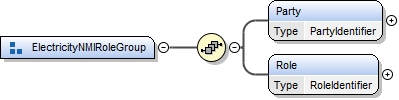

Element Group ElectricityNMIRoleGroup
Element Group ElectricityNMIMeterRegisterGroup
Namespace
urn:aseXML:r25

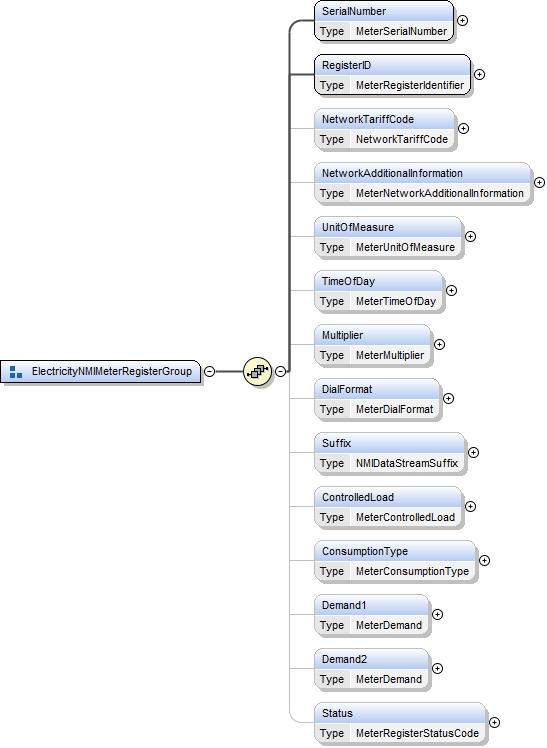

Diagram
Used by
Model
SerialNumber , RegisterID , NetworkTariffCode{0,1} , NetworkAdditionalInformation{0,1} , UnitOfMeasure{0,1} , TimeOfDay{0,1} , Multiplier{0,1} , DialFormat{0,1} , Suffix{0,1} , ControlledLoad{0,1} , ConsumptionType{0,1} , Demand1{0,1} , Demand2{0,1} , Status{0,1}
Children
ConsumptionType , ControlledLoad , Demand1 , Demand2 , DialFormat , Multiplier , NetworkAdditionalInformation , NetworkTariffCode , RegisterID , SerialNumber , Status , Suffix , TimeOfDay , UnitOfMeasure
Source
<xsd:group name= "ElectricityNMIMeterRegisterGroup" >
<xsd:annotation >
<xsd:documentation > Purpose - Common NMI Meter register elements across Standing Data and Change Requests </xsd:documentation>
</xsd:annotation>
<xsd:sequence >
<xsd:element name= "SerialNumber" type= "MeterSerialNumber" />
<xsd:element name= "RegisterID" type= "MeterRegisterIdentifier" />
<xsd:element name= "NetworkTariffCode" type= "NetworkTariffCode" nillable= "true" minOccurs= "0" />
<xsd:element name= "NetworkAdditionalInformation" type= "MeterNetworkAdditionalInformation" nillable= "true" minOccurs= "0" />
<xsd:element name= "UnitOfMeasure" type= "MeterUnitOfMeasure" nillable= "true" minOccurs= "0" />
<xsd:element name= "TimeOfDay" type= "MeterTimeOfDay" nillable= "true" minOccurs= "0" />
<xsd:element name= "Multiplier" type= "MeterMultiplier" nillable= "true" minOccurs= "0" />
<xsd:element name= "DialFormat" type= "MeterDialFormat" nillable= "true" minOccurs= "0" />
<xsd:element name= "Suffix" type= "NMIDataStreamSuffix" nillable= "true" minOccurs= "0" />
<xsd:element name= "ControlledLoad" type= "MeterControlledLoad" nillable= "true" minOccurs= "0" />
<xsd:element name= "ConsumptionType" type= "MeterConsumptionType" nillable= "true" minOccurs= "0" />
<xsd:element name= "Demand1" type= "MeterDemand" nillable= "true" minOccurs= "0" />
<xsd:element name= "Demand2" type= "MeterDemand" nillable= "true" minOccurs= "0" />
<xsd:element name= "Status" type= "MeterRegisterStatusCode" nillable= "true" minOccurs= "0" />
</xsd:sequence>
</xsd:group>
Schema location
file:/C:/Users/mihai/Desktop/asexml_r25/CATSTableReplication_r25.xsd
