Element time/beats
Namespace No namespace
Annotations

The beats element indicates the number of beats, as found in the numerator of a time signature.
Diagram
Diagram
Type xs:string
Properties
content: simple
Source

<xs:element name="beats" type="xs:string">
  <xs:annotation>
    <xs:documentation>The beats element indicates the number of beats, as found in the numerator of a time signature.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element time/beat-type
Namespace No namespace
Annotations

The beat-type element indicates the beat unit, as found in the denominator of a time signature.
Diagram
Diagram
Type xs:string
Properties
content: simple
Source

<xs:element name="beat-type" type="xs:string">
  <xs:annotation>
    <xs:documentation>The beat-type element indicates the beat unit, as found in the denominator of a time signature.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element time/senza-misura
Namespace No namespace
Annotations

A senza-misura element explicitly indicates that no time signature is present.
Diagram
Diagram musicxml53.tmp#id207
Type empty
Properties
content: complex
Source

<xs:element name="senza-misura" type="empty">
  <xs:annotation>
    <xs:documentation>A senza-misura element explicitly indicates that no time signature is present.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

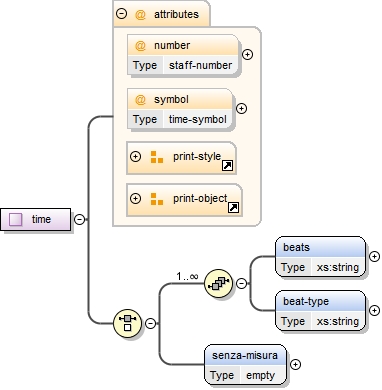

Complex Type time
Namespace No namespace
Annotations

Time signatures are represented by the beats element for the numerator and the beat-type element for the denominator. The symbol attribute is used indicate common and cut time symbols as well as a single number display. Multiple pairs of beat and beat-type elements are used for composite time signatures with multiple denominators, such as 2/4 + 3/8. A composite such as 3+2/8 requires only one beat/beat-type pair.

The print-object attribute allows a time signature to be specified but not printed, as is the case for excerpts from the middle of a score. The value is "yes" if not present. The optional number attribute refers to staff numbers within the part. If absent, the time signature applies to all staves in the part.
Diagram
Diagram musicxml76.tmp#id290 musicxml76.tmp#id291 musicxml6.tmp#id142 musicxml4.tmp#id138 musicxml76.tmp#id287 musicxml76.tmp#id288 musicxml76.tmp#id289
Used by
Element attributes/time
Model (beats , beat-type) | senza-misura
Children beat-type, beats, senza-misura
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
number staff-number optional
print-object yes-no optional
relative-x tenths optional
relative-y tenths optional
symbol time-symbol optional
Source

<xs:complexType name="time">
  <xs:annotation>
    <xs:documentation>Time signatures are represented by the beats element for the numerator and the beat-type element for the denominator. The symbol attribute is used indicate common and cut time symbols as well as a single number display. Multiple pairs of beat and beat-type elements are used for composite time signatures with multiple denominators, such as 2/4 + 3/8. A composite such as 3+2/8 requires only one beat/beat-type pair. The print-object attribute allows a time signature to be specified but not printed, as is the case for excerpts from the middle of a score. The value is "yes" if not present. The optional number attribute refers to staff numbers within the part. If absent, the time signature applies to all staves in the part.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="beats" type="xs:string">
        <xs:annotation>
          <xs:documentation>The beats element indicates the number of beats, as found in the numerator of a time signature.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="beat-type" type="xs:string">
        <xs:annotation>
          <xs:documentation>The beat-type element indicates the beat unit, as found in the denominator of a time signature.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:element name="senza-misura" type="empty">
      <xs:annotation>
        <xs:documentation>A senza-misura element explicitly indicates that no time signature is present.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:choice>
  <xs:attribute name="number" type="staff-number"/>
  <xs:attribute name="symbol" type="time-symbol"/>
  <xs:attributeGroup ref="print-style"/>
  <xs:attributeGroup ref="print-object"/>
</xs:complexType>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Attribute time/@number
Namespace No namespace
Type staff-number
Properties
content: simple
Used by
Complex Type time
Source

<xs:attribute name="number" type="staff-number"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Attribute time/@symbol
Namespace No namespace
Type time-symbol
Properties
content: simple
Facets
enumeration common, cut, single-number, normal
Used by
Complex Type time
Source

<xs:attribute name="symbol" type="time-symbol"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
