Schema documentation for component tied

Showing:

Annotations

Attributes

Diagrams

Facets

Properties

Source

Used by

Complex Type tied

Namespace

No namespace

Annotations

The tied type represents the notated tie. The tie element represents the tie sound.

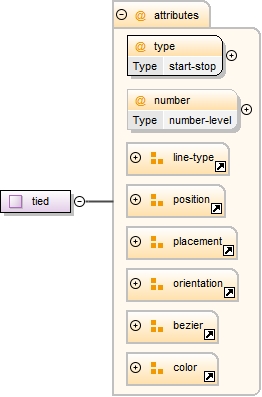

Diagram

Used by

Element

notations/tied

Attributes

QName	Type	Use
bezier-offset	divisions	optional
bezier-offset2	divisions	optional
bezier-x	tenths	optional
bezier-x2	tenths	optional
bezier-y	tenths	optional
bezier-y2	tenths	optional
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
line-type	line-type	optional
number	number-level	optional
orientation	over-under	optional
placement	above-below	optional
relative-x	tenths	optional
relative-y	tenths	optional
type	start-stop	required

Source

<xs:complexType name="tied">
  <xs:annotation>
    <xs:documentation>The tied type represents the notated tie. The tie element represents the tie sound.</xs:documentation>
  </xs:annotation>
  <xs:attribute name="type" type="start-stop" use="required"/>
  <xs:attribute name="number" type="number-level"/>
  <xs:attributeGroup ref="line-type"/>
  <xs:attributeGroup ref="position"/>
  <xs:attributeGroup ref="placement"/>
  <xs:attributeGroup ref="orientation"/>
  <xs:attributeGroup ref="bezier"/>
  <xs:attributeGroup ref="color"/>
</xs:complexType>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Attribute tied/@type

Namespace

No namespace

Type

start-stop

Properties

use:	required

Facets

enumeration

start, stop

Used by

Complex Type

tied

Source

<xs:attribute name="type" type="start-stop" use="required"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Attribute tied/@number

Namespace

No namespace

Type

number-level

Properties

content:

simple

Facets

maxInclusive	6
minInclusive	1

Used by

Complex Type

tied

Source

<xs:attribute name="number" type="number-level"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
