Element GasMeterNotification/MeterFix
Namespace No namespace

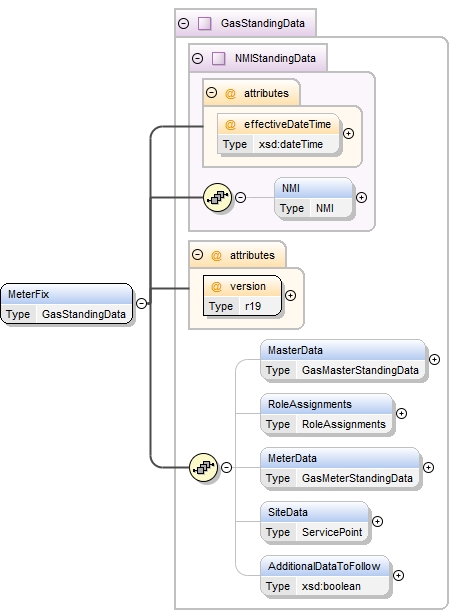

Diagram
Diagram asexml_r250.tmp#id227 asexml_r250.tmp#id222 asexml_r250.tmp#id221 asexml_r259.tmp#id866 asexml_r259.tmp#id798 asexml_r259.tmp#id822 asexml_r259.tmp#id825 asexml_r259.tmp#id864 asexml_r259.tmp#id865 asexml_r259.tmp#id797

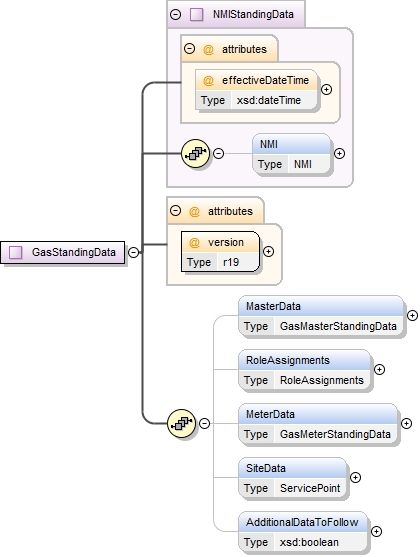

Type GasStandingData
Type hierarchy
Properties
content: complex
Model NMI{0,1} , MasterData{0,1} , RoleAssignments{0,1} , MeterData{0,1} , SiteData{0,1} , AdditionalDataToFollow{0,1}
Children AdditionalDataToFollow, MasterData, MeterData, NMI, RoleAssignments, SiteData
Instance

<MeterFix effectiveDateTime="" version="">
  <NMI checksum="">{0,1}</NMI>
</MeterFix>
Attributes
QName Type Fixed Default Use Annotation
effectiveDateTime xsd:dateTime optional
version r19 required
Source

<xsd:element name="MeterFix" type="GasStandingData"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

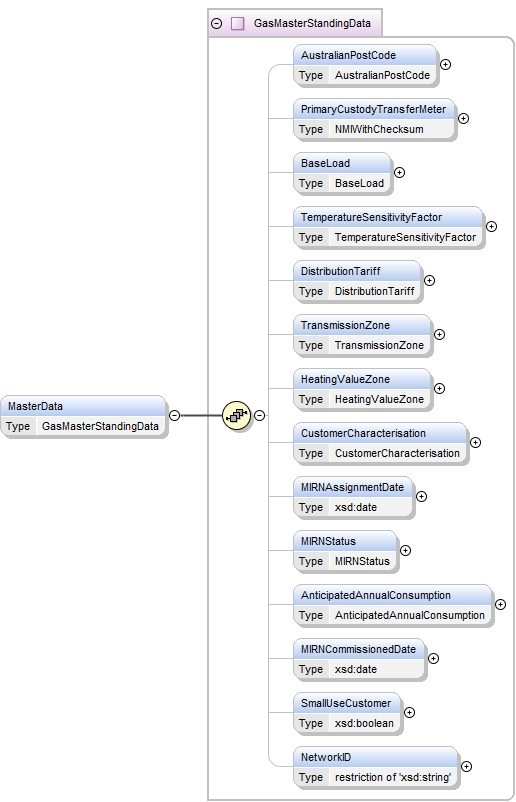

Element GasStandingData/MasterData
Namespace No namespace

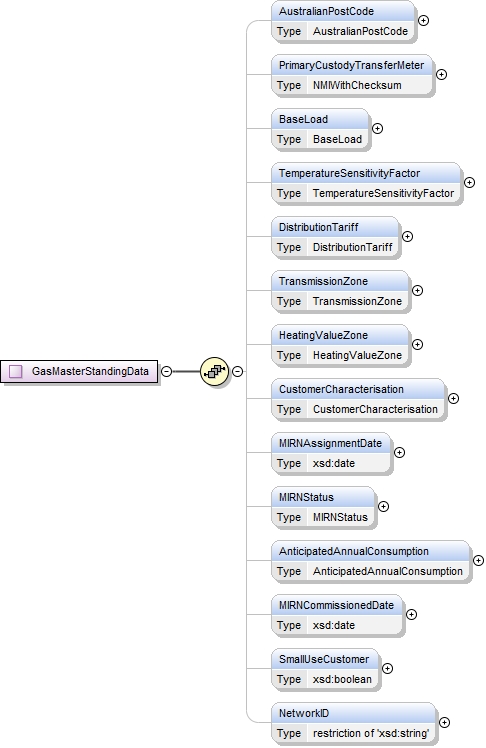

Diagram
Diagram asexml_r259.tmp#id800 asexml_r259.tmp#id801 asexml_r259.tmp#id802 asexml_r259.tmp#id804 asexml_r259.tmp#id806 asexml_r259.tmp#id808 asexml_r259.tmp#id810 asexml_r259.tmp#id812 asexml_r259.tmp#id814 asexml_r259.tmp#id815 asexml_r259.tmp#id817 asexml_r259.tmp#id819 asexml_r259.tmp#id820 asexml_r259.tmp#id821 asexml_r259.tmp#id799
Type GasMasterStandingData
Properties
content: complex
minOccurs: 0
Model AustralianPostCode{0,1} , PrimaryCustodyTransferMeter{0,1} , BaseLoad{0,1} , TemperatureSensitivityFactor{0,1} , DistributionTariff{0,1} , TransmissionZone{0,1} , HeatingValueZone{0,1} , CustomerCharacterisation{0,1} , MIRNAssignmentDate{0,1} , MIRNStatus{0,1} , AnticipatedAnnualConsumption{0,1} , MIRNCommissionedDate{0,1} , SmallUseCustomer{0,1} , NetworkID{0,1}
Children AnticipatedAnnualConsumption, AustralianPostCode, BaseLoad, CustomerCharacterisation, DistributionTariff, HeatingValueZone, MIRNAssignmentDate, MIRNCommissionedDate, MIRNStatus, NetworkID, PrimaryCustodyTransferMeter, SmallUseCustomer, TemperatureSensitivityFactor, TransmissionZone
Instance

<MasterData>
  <AustralianPostCode>{0,1}</AustralianPostCode>
  <PrimaryCustodyTransferMeter checksum="">{0,1}</PrimaryCustodyTransferMeter>
  <BaseLoad>{0,1}</BaseLoad>
  <TemperatureSensitivityFactor>{0,1}</TemperatureSensitivityFactor>
  <DistributionTariff>{0,1}</DistributionTariff>
  <TransmissionZone>{0,1}</TransmissionZone>
  <HeatingValueZone>{0,1}</HeatingValueZone>
  <CustomerCharacterisation>{0,1}</CustomerCharacterisation>
  <MIRNAssignmentDate>{0,1}</MIRNAssignmentDate>
  <MIRNStatus>{0,1}</MIRNStatus>
  <AnticipatedAnnualConsumption>{0,1}</AnticipatedAnnualConsumption>
  <MIRNCommissionedDate>{0,1}</MIRNCommissionedDate>
  <SmallUseCustomer>{0,1}</SmallUseCustomer>
  <NetworkID>{0,1}</NetworkID>
</MasterData>
Source

<xsd:element name="MasterData" type="GasMasterStandingData" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/AustralianPostCode
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id213
Type AustralianPostCode
Properties
content: simple
minOccurs: 0
nillable: true
Facets
pattern [\p{N}]{4}
Source

<xsd:element name="AustralianPostCode" type="AustralianPostCode" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

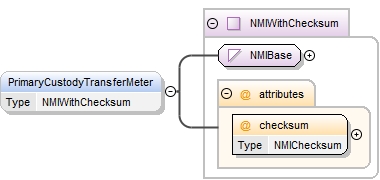

Element GasMasterStandingData/PrimaryCustodyTransferMeter
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224 asexml_r250.tmp#id234 asexml_r250.tmp#id233
Type NMIWithChecksum
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
checksum NMIChecksum required
Source

<xsd:element name="PrimaryCustodyTransferMeter" type="NMIWithChecksum" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/BaseLoad
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id803
Type BaseLoad
Properties
content: simple
minOccurs: 0
nillable: true
Facets
totalDigits 9
fractionDigits 1
Source

<xsd:element name="BaseLoad" type="BaseLoad" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/TemperatureSensitivityFactor
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id805
Type TemperatureSensitivityFactor
Properties
content: simple
minOccurs: 0
nillable: true
Facets
totalDigits 9
fractionDigits 2
Source

<xsd:element name="TemperatureSensitivityFactor" type="TemperatureSensitivityFactor" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/DistributionTariff
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id807
Type DistributionTariff
Properties
content: simple
minOccurs: 0
Facets
enumeration Demand, Volume, 1A1R, 1A2R, 1B1R, 1B2R, 1B3R, 1A1N, 1A2N, 1B1N, 1B2N, 1B3N, 1D1R, 1D2R, 1D3R, 1D1N, 1D2N, 1D3N, 1K1R, 1K2R, 1K3R, 1K1N, 1K2N, 1K3N, 1V1R, 1V2R, 1V3R, 1V1N, 1V2N, 1V3N, 1Demand, 2Demand, 3Demand, 4Demand, 5Demand, 6Demand, 7Demand, 8Demand, 9Demand, 0Demand, Commercial, Negotiated, NegotiatedVolume
Source

<xsd:element name="DistributionTariff" type="DistributionTariff" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/TransmissionZone
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id809
Type TransmissionZone
Properties
content: simple
minOccurs: 0
Facets
totalDigits 2
Source

<xsd:element name="TransmissionZone" type="TransmissionZone" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/HeatingValueZone
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id811
Type HeatingValueZone
Properties
content: simple
minOccurs: 0
Facets
maxLength 3
Source

<xsd:element name="HeatingValueZone" type="HeatingValueZone" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/CustomerCharacterisation
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id813
Type CustomerCharacterisation
Properties
content: simple
minOccurs: 0
Facets
enumeration Metropolitan Business, Metropolitan Residential, Non Metropolitan Business, Non Metropolitan Residential
Source

<xsd:element name="CustomerCharacterisation" type="CustomerCharacterisation" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/MIRNAssignmentDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
minOccurs: 0
nillable: true
Source

<xsd:element name="MIRNAssignmentDate" type="xsd:date" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/MIRNStatus
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id816
Type MIRNStatus
Properties
content: simple
minOccurs: 0
Facets
enumeration Commissioned, Decommissioned, Deregistered, Registered
Source

<xsd:element name="MIRNStatus" type="MIRNStatus" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/AnticipatedAnnualConsumption
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id818
Type AnticipatedAnnualConsumption
Properties
content: simple
minOccurs: 0
Facets
totalDigits 13
Source

<xsd:element name="AnticipatedAnnualConsumption" type="AnticipatedAnnualConsumption" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/MIRNCommissionedDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="MIRNCommissionedDate" type="xsd:date" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/SmallUseCustomer
Namespace No namespace
Diagram
Diagram
Type xsd:boolean
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="SmallUseCustomer" type="xsd:boolean" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMasterStandingData/NetworkID
Namespace No namespace
Diagram
Diagram
Type restriction of xsd:string
Properties
content: simple
minOccurs: 0
Facets
length 2
Source

<xsd:element name="NetworkID" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:length value="2"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

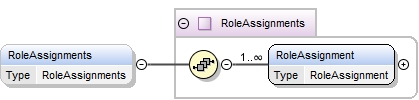

Element GasStandingData/RoleAssignments
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id824 asexml_r250.tmp#id823
Type RoleAssignments
Properties
content: complex
minOccurs: 0
Model RoleAssignment+
Children RoleAssignment
Instance

<RoleAssignments>
  <RoleAssignment>{1,unbounded}</RoleAssignment>
</RoleAssignments>
Source

<xsd:element name="RoleAssignments" type="RoleAssignments" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasStandingData/MeterData
Namespace No namespace

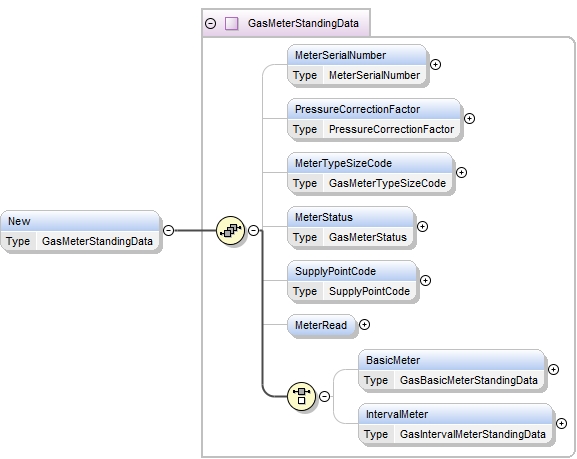

Diagram
Diagram asexml_r259.tmp#id827 asexml_r259.tmp#id828 asexml_r259.tmp#id830 asexml_r259.tmp#id832 asexml_r259.tmp#id834 asexml_r259.tmp#id836 asexml_r259.tmp#id845 asexml_r259.tmp#id853 asexml_r259.tmp#id826
Type GasMeterStandingData
Properties
content: complex
minOccurs: 0

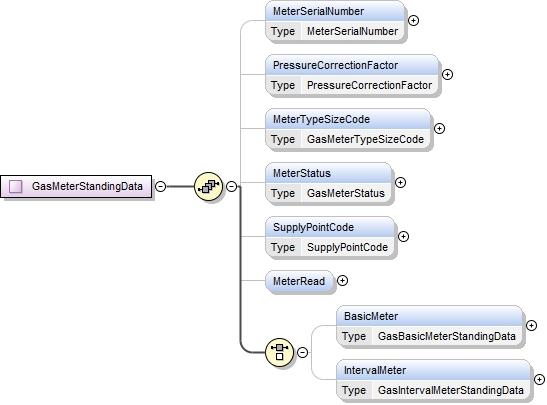

Model MeterSerialNumber{0,1} , PressureCorrectionFactor{0,1} , MeterTypeSizeCode{0,1} , MeterStatus{0,1} , SupplyPointCode{0,1} , MeterRead{0,1} , (BasicMeter{0,1} | IntervalMeter{0,1})
Children BasicMeter, IntervalMeter, MeterRead, MeterSerialNumber, MeterStatus, MeterTypeSizeCode, PressureCorrectionFactor, SupplyPointCode
Instance

<MeterData>
  <MeterSerialNumber>{0,1}</MeterSerialNumber>
  <PressureCorrectionFactor>{0,1}</PressureCorrectionFactor>
  <MeterTypeSizeCode>{0,1}</MeterTypeSizeCode>
  <MeterStatus>{0,1}</MeterStatus>
  <SupplyPointCode>{0,1}</SupplyPointCode>
  <MeterRead>{0,1}</MeterRead>
</MeterData>
Source

<xsd:element name="MeterData" type="GasMeterStandingData" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterStandingData/MeterSerialNumber
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id215
Type MeterSerialNumber
Properties
content: simple
minOccurs: 0
Facets
maxLength 12
Source

<xsd:element name="MeterSerialNumber" type="MeterSerialNumber" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterStandingData/PressureCorrectionFactor
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id829
Type PressureCorrectionFactor
Properties
content: simple
minOccurs: 0
Facets
totalDigits 6
fractionDigits 4
Source

<xsd:element name="PressureCorrectionFactor" type="PressureCorrectionFactor" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterStandingData/MeterTypeSizeCode
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id831
Type GasMeterTypeSizeCode
Properties
content: simple
minOccurs: 0
Facets
minLength 1
maxLength 3
Source

<xsd:element name="MeterTypeSizeCode" type="GasMeterTypeSizeCode" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterStandingData/MeterStatus
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id833
Type GasMeterStatus
Properties
content: simple
minOccurs: 0
Facets
enumeration No meter, Turned on, Turned off, Plugged
Source

<xsd:element name="MeterStatus" type="GasMeterStatus" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterStandingData/SupplyPointCode
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id835
Type SupplyPointCode
Properties
content: simple
minOccurs: 0
Facets
enumeration Basic, Interval, Transmission
Source

<xsd:element name="SupplyPointCode" type="SupplyPointCode" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

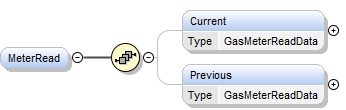

Element GasMeterStandingData/MeterRead
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id837 asexml_r259.tmp#id844
Properties
content: complex
minOccurs: 0
Model Current{0,1} , Previous{0,1}
Children Current, Previous
Instance

<MeterRead>
  <Current>{0,1}</Current>
  <Previous>{0,1}</Previous>
</MeterRead>
Source

<xsd:element name="MeterRead" minOccurs="0">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="Current" type="GasMeterReadData" minOccurs="0"/>
      <xsd:element name="Previous" type="GasMeterReadData" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element MeterRead/GasMeterStandingData/Current
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id839 asexml_r259.tmp#id841 asexml_r259.tmp#id842 asexml_r259.tmp#id838
Type GasMeterReadData
Properties
content: complex
minOccurs: 0

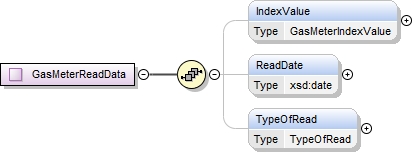

Model IndexValue{0,1} , ReadDate{0,1} , TypeOfRead{0,1}
Children IndexValue, ReadDate, TypeOfRead
Instance

<Current>
  <IndexValue>{0,1}</IndexValue>
  <ReadDate>{0,1}</ReadDate>
  <TypeOfRead>{0,1}</TypeOfRead>
</Current>
Source

<xsd:element name="Current" type="GasMeterReadData" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterReadData/IndexValue
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id840
Type GasMeterIndexValue
Properties
content: simple
minOccurs: 0
nillable: true
Facets
totalDigits 7
Source

<xsd:element name="IndexValue" type="GasMeterIndexValue" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterReadData/ReadDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
minOccurs: 0
nillable: true
Source

<xsd:element name="ReadDate" type="xsd:date" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterReadData/TypeOfRead
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id843
Type TypeOfRead
Properties
content: simple
minOccurs: 0
nillable: true
Facets
enumeration Actual, Estimated, Substituted, Customer Own Read, Deemed
Source

<xsd:element name="TypeOfRead" type="TypeOfRead" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

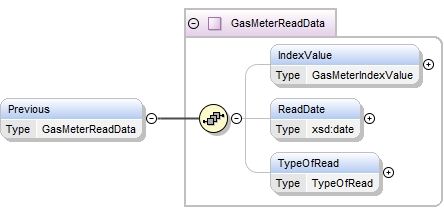

Element MeterRead/GasMeterStandingData/Previous
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id839 asexml_r259.tmp#id841 asexml_r259.tmp#id842 asexml_r259.tmp#id838
Type GasMeterReadData
Properties
content: complex
minOccurs: 0
Model IndexValue{0,1} , ReadDate{0,1} , TypeOfRead{0,1}
Children IndexValue, ReadDate, TypeOfRead
Instance

<Previous>
  <IndexValue>{0,1}</IndexValue>
  <ReadDate>{0,1}</ReadDate>
  <TypeOfRead>{0,1}</TypeOfRead>
</Previous>
Source

<xsd:element name="Previous" type="GasMeterReadData" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

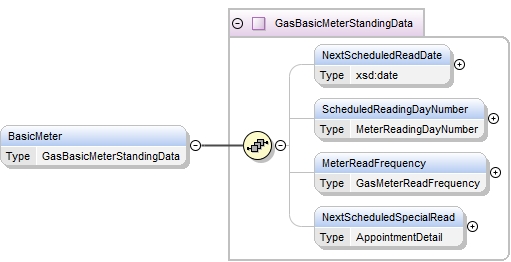

Element GasMeterStandingData/BasicMeter
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id847 asexml_r259.tmp#id848 asexml_r259.tmp#id850 asexml_r259.tmp#id852 asexml_r259.tmp#id846
Type GasBasicMeterStandingData
Properties
content: complex
minOccurs: 0

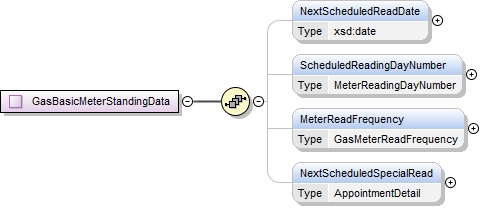

Model NextScheduledReadDate{0,1} , ScheduledReadingDayNumber{0,1} , MeterReadFrequency{0,1} , NextScheduledSpecialRead{0,1}
Children MeterReadFrequency, NextScheduledReadDate, NextScheduledSpecialRead, ScheduledReadingDayNumber
Instance

<BasicMeter>
  <NextScheduledReadDate>{0,1}</NextScheduledReadDate>
  <ScheduledReadingDayNumber>{0,1}</ScheduledReadingDayNumber>
  <MeterReadFrequency>{0,1}</MeterReadFrequency>
  <NextScheduledSpecialRead>{0,1}</NextScheduledSpecialRead>
</BasicMeter>
Source

<xsd:element name="BasicMeter" type="GasBasicMeterStandingData" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasBasicMeterStandingData/NextScheduledReadDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="NextScheduledReadDate" type="xsd:date" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasBasicMeterStandingData/ScheduledReadingDayNumber
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id849
Type MeterReadingDayNumber
Properties
content: simple
minOccurs: 0
Facets
maxLength 2
Source

<xsd:element name="ScheduledReadingDayNumber" type="MeterReadingDayNumber" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasBasicMeterStandingData/MeterReadFrequency
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id851
Type GasMeterReadFrequency
Properties
content: simple
minOccurs: 0
Facets
enumeration Bi Monthly, Monthly, Quarterly
Source

<xsd:element name="MeterReadFrequency" type="GasMeterReadFrequency" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

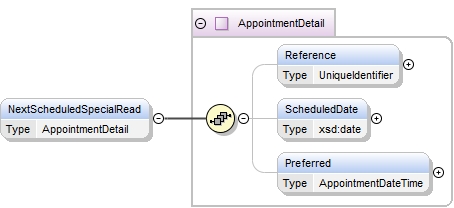

Element GasBasicMeterStandingData/NextScheduledSpecialRead
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id416 asexml_r250.tmp#id417 asexml_r250.tmp#id418 asexml_r250.tmp#id415
Type AppointmentDetail
Properties
content: complex
minOccurs: 0
Model Reference{0,1} , ScheduledDate{0,1} , Preferred{0,1}
Children Preferred, Reference, ScheduledDate
Instance

<NextScheduledSpecialRead>
  <Reference>{0,1}</Reference>
  <ScheduledDate>{0,1}</ScheduledDate>
  <Preferred>{0,1}</Preferred>
</NextScheduledSpecialRead>
Source

<xsd:element name="NextScheduledSpecialRead" type="AppointmentDetail" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

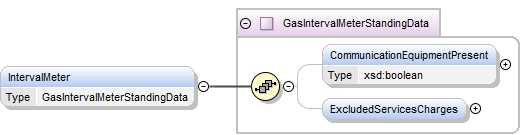

Element GasMeterStandingData/IntervalMeter
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id855 asexml_r259.tmp#id856 asexml_r259.tmp#id854
Type GasIntervalMeterStandingData
Properties
content: complex
minOccurs: 0
Model CommunicationEquipmentPresent{0,1} , ExcludedServicesCharges{0,1}
Children CommunicationEquipmentPresent, ExcludedServicesCharges
Instance

<IntervalMeter>
  <CommunicationEquipmentPresent>{0,1}</CommunicationEquipmentPresent>
  <ExcludedServicesCharges>{0,1}</ExcludedServicesCharges>
</IntervalMeter>
Source

<xsd:element name="IntervalMeter" type="GasIntervalMeterStandingData" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasIntervalMeterStandingData/CommunicationEquipmentPresent
Namespace No namespace
Diagram
Diagram
Type xsd:boolean
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="CommunicationEquipmentPresent" type="xsd:boolean" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasIntervalMeterStandingData/ExcludedServicesCharges
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id857
Properties
content: complex
minOccurs: 0
Model ChargeItem+
Children ChargeItem
Instance

<ExcludedServicesCharges>
  <ChargeItem>{1,unbounded}</ChargeItem>
</ExcludedServicesCharges>
Source

<xsd:element name="ExcludedServicesCharges" minOccurs="0">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="ChargeItem" type="GasIntervalMeterCharge" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

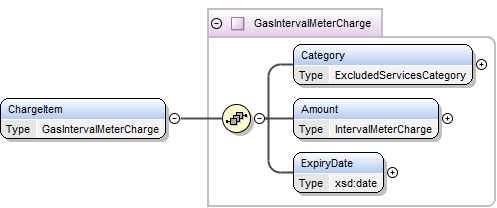

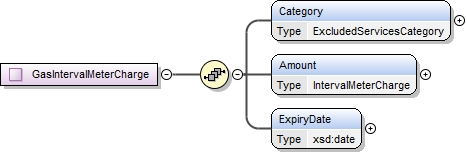

Element ExcludedServicesCharges/GasIntervalMeterStandingData/ChargeItem
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id859 asexml_r259.tmp#id861 asexml_r259.tmp#id863 asexml_r259.tmp#id858
Type GasIntervalMeterCharge
Properties
content: complex
maxOccurs: unbounded
Model Category , Amount , ExpiryDate
Children Amount, Category, ExpiryDate
Instance

<ChargeItem>
  <Category>{1,1}</Category>
  <Amount>{1,1}</Amount>
  <ExpiryDate>{1,1}</ExpiryDate>
</ChargeItem>
Source

<xsd:element name="ChargeItem" type="GasIntervalMeterCharge" maxOccurs="unbounded"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasIntervalMeterCharge/Category
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id860
Type ExcludedServicesCategory
Properties
content: simple
Facets
maxLength 20
enumeration Logger, Mains, Meter, O+M, Other, Service
Source

<xsd:element name="Category" type="ExcludedServicesCategory"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasIntervalMeterCharge/Amount
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id862
Type IntervalMeterCharge
Properties
content: simple
Facets
totalDigits 9
fractionDigits 2
Source

<xsd:element name="Amount" type="IntervalMeterCharge"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasIntervalMeterCharge/ExpiryDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="ExpiryDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasStandingData/SiteData
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id368 asexml_r250.tmp#id369 asexml_r250.tmp#id371 asexml_r250.tmp#id377 asexml_r250.tmp#id378 asexml_r250.tmp#id380 asexml_r250.tmp#id367
Type ServicePoint
Properties
content: complex
minOccurs: 0

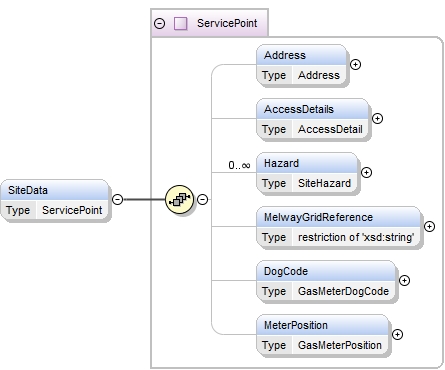

Model Address{0,1} , AccessDetails{0,1} , Hazard* , MelwayGridReference{0,1} , DogCode{0,1} , MeterPosition{0,1}
Children AccessDetails, Address, DogCode, Hazard, MelwayGridReference, MeterPosition
Instance

<SiteData>
  <Address>{0,1}</Address>
  <AccessDetails>{0,1}</AccessDetails>
  <Hazard>{0,unbounded}</Hazard>
  <MelwayGridReference>{0,1}</MelwayGridReference>
  <DogCode>{0,1}</DogCode>
  <MeterPosition>{0,1}</MeterPosition>
</SiteData>
Source

<xsd:element name="SiteData" type="ServicePoint" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasStandingData/AdditionalDataToFollow
Namespace No namespace
Diagram
Diagram
Type xsd:boolean
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="AdditionalDataToFollow" type="xsd:boolean" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

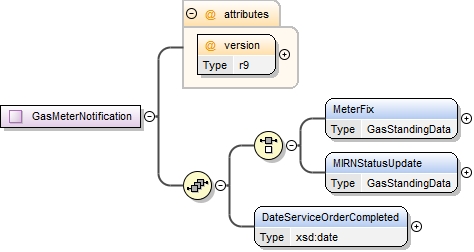

Element GasMeterNotification/MIRNStatusUpdate
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id227 asexml_r250.tmp#id222 asexml_r250.tmp#id221 asexml_r259.tmp#id866 asexml_r259.tmp#id798 asexml_r259.tmp#id822 asexml_r259.tmp#id825 asexml_r259.tmp#id864 asexml_r259.tmp#id865 asexml_r259.tmp#id797
Type GasStandingData
Type hierarchy
Properties
content: complex
Model NMI{0,1} , MasterData{0,1} , RoleAssignments{0,1} , MeterData{0,1} , SiteData{0,1} , AdditionalDataToFollow{0,1}
Children AdditionalDataToFollow, MasterData, MeterData, NMI, RoleAssignments, SiteData
Instance

<MIRNStatusUpdate effectiveDateTime="" version="">
  <NMI checksum="">{0,1}</NMI>
</MIRNStatusUpdate>
Attributes
QName Type Fixed Default Use Annotation
effectiveDateTime xsd:dateTime optional
version r19 required
Source

<xsd:element name="MIRNStatusUpdate" type="GasStandingData"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterNotification/DateServiceOrderCompleted
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="DateServiceOrderCompleted" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

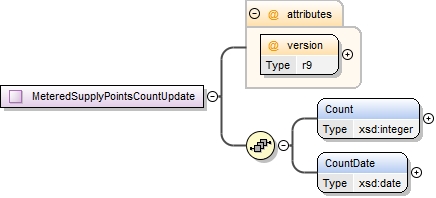

Element MeteredSupplyPointsCountUpdate/Count
Namespace No namespace
Diagram
Diagram
Type xsd:integer
Properties
content: simple
Source

<xsd:element name="Count" type="xsd:integer"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element MeteredSupplyPointsCountUpdate/CountDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="CountDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterFixCertification/SimpleMeter
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1774 asexml_r259.tmp#id1775
Properties
content: complex
Model COCNumber , PlumberLicenceNumber
Children COCNumber, PlumberLicenceNumber
Instance

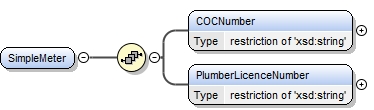

<SimpleMeter>
  <COCNumber>{1,1}</COCNumber>
  <PlumberLicenceNumber>{1,1}</PlumberLicenceNumber>
</SimpleMeter>
Source

<xsd:element name="SimpleMeter">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="COCNumber">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:maxLength value="7"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="PlumberLicenceNumber">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:maxLength value="30"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element SimpleMeter/GasMeterFixCertification/COCNumber
Namespace No namespace
Diagram
Diagram
Type restriction of xsd:string
Properties
content: simple
Facets
maxLength 7
Source

<xsd:element name="COCNumber">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:maxLength value="7"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element SimpleMeter/GasMeterFixCertification/PlumberLicenceNumber
Namespace No namespace
Diagram
Diagram
Type restriction of xsd:string
Properties
content: simple
Facets
maxLength 30
Source

<xsd:element name="PlumberLicenceNumber">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:maxLength value="30"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterFixCertification/ComplexMeter
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1777
Properties
content: complex
Model StartWorkNoticeNumber
Children StartWorkNoticeNumber
Instance

<ComplexMeter>
  <StartWorkNoticeNumber>{1,1}</StartWorkNoticeNumber>
</ComplexMeter>
Source

<xsd:element name="ComplexMeter">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="StartWorkNoticeNumber">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:maxLength value="6"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element ComplexMeter/GasMeterFixCertification/StartWorkNoticeNumber
Namespace No namespace
Diagram
Diagram
Type restriction of xsd:string
Properties
content: simple
Facets
maxLength 6
Source

<xsd:element name="StartWorkNoticeNumber">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:maxLength value="6"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

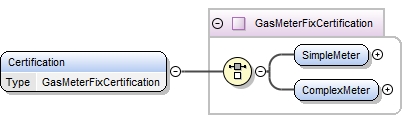

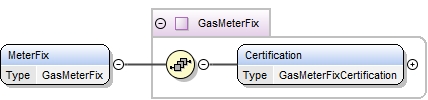

Element GasMeterFix/Certification
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1773 asexml_r259.tmp#id1776 asexml_r259.tmp#id1772
Type GasMeterFixCertification
Properties
content: complex
Model SimpleMeter | ComplexMeter
Children ComplexMeter, SimpleMeter
Instance

<Certification>
  <SimpleMeter>{1,1}</SimpleMeter>
  <ComplexMeter>{1,1}</ComplexMeter>
</Certification>
Source

<xsd:element name="Certification" type="GasMeterFixCertification"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasNewConnection/CustomerCharacterisation
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id813
Type CustomerCharacterisation
Properties
content: simple
Facets
enumeration Metropolitan Business, Metropolitan Residential, Non Metropolitan Business, Non Metropolitan Residential
Source

<xsd:element name="CustomerCharacterisation" type="CustomerCharacterisation"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

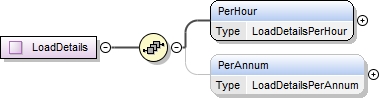

Element LoadDetails/PerHour
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1770
Type LoadDetailsPerHour
Properties
content: simple
Facets
totalDigits 6
Source

<xsd:element name="PerHour" type="LoadDetailsPerHour"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element LoadDetails/PerAnnum
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1769
Type LoadDetailsPerAnnum
Properties
content: simple
minOccurs: 0
Facets
totalDigits 10
Source

<xsd:element name="PerAnnum" type="LoadDetailsPerAnnum" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasSpecialReadNoAccess/ReasonForNoAccess
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1771
Type ReasonForNoAccess
Properties
content: simple
Facets
enumeration Access Overgrown, Can't Locate Meter, Damaged Meter, Dial Out of Alignment, Dirty Dial, Gate Locked, Key Required, Locked and No Answer, Meter Changed, Meter Obstructed, Meter Removed, Other, Refused Access, Savage Dog
Source

<xsd:element name="ReasonForNoAccess" type="ReasonForNoAccess"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasSpecialReadNoAccess/NextAvailableReadDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="NextAvailableReadDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

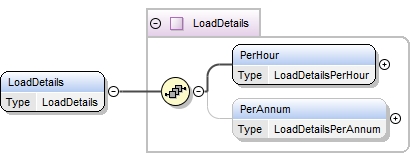

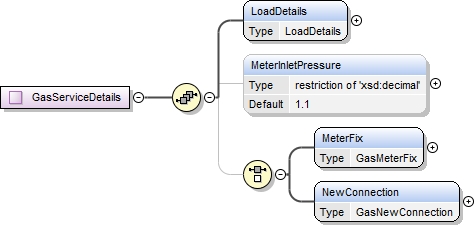

Element GasServiceDetails/LoadDetails
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1783 asexml_r259.tmp#id1784 asexml_r259.tmp#id1782
Type LoadDetails
Properties
content: complex
Model PerHour , PerAnnum{0,1}
Children PerAnnum, PerHour
Instance

<LoadDetails>
  <PerHour>{1,1}</PerHour>
  <PerAnnum>{0,1}</PerAnnum>
</LoadDetails>
Source

<xsd:element name="LoadDetails" type="LoadDetails"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasServiceDetails/MeterInletPressure
Namespace No namespace
Diagram
Diagram
Type restriction of xsd:decimal
Properties
content: simple
minOccurs: 0
default: 1.1
Facets
totalDigits 6
fractionDigits 2
Source

<xsd:element name="MeterInletPressure" default="1.1" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:decimal">
      <xsd:totalDigits value="6"/>
      <xsd:fractionDigits value="2"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasServiceDetails/MeterFix
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1779 asexml_r259.tmp#id1778
Type GasMeterFix
Properties
content: complex
Model Certification
Children Certification
Instance

<MeterFix>
  <Certification>{1,1}</Certification>
</MeterFix>
Source

<xsd:element name="MeterFix" type="GasMeterFix"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

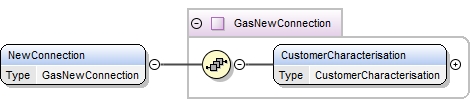

Element GasServiceDetails/NewConnection
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1781 asexml_r259.tmp#id1780
Type GasNewConnection
Properties
content: complex
Model CustomerCharacterisation
Children CustomerCharacterisation
Instance

<NewConnection>
  <CustomerCharacterisation>{1,1}</CustomerCharacterisation>
</NewConnection>
Source

<xsd:element name="NewConnection" type="GasNewConnection"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

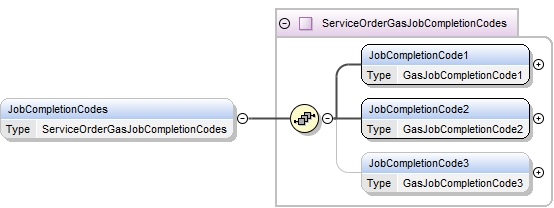

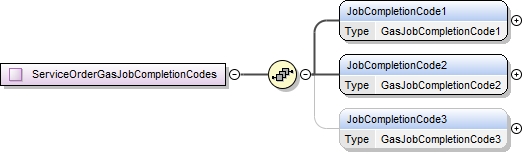

Element ServiceOrderGasJobCompletionCodes/JobCompletionCode1
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1763
Type GasJobCompletionCode1
Properties
content: simple
Facets
enumeration 10, 14, 15, 21, 22, 28, 48, 60, 70, 74
Source

<xsd:element name="JobCompletionCode1" type="GasJobCompletionCode1"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element ServiceOrderGasJobCompletionCodes/JobCompletionCode2
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1764
Type GasJobCompletionCode2
Properties
content: simple
Facets
enumeration 02, 03, 04, 06, 10, 11, 12, 13, 15, 16, 17, 18, 22, 23, 24, 30, 37, 40, 42, 46, 55, 60, 64, 70, 78, 79, 86, 98
Source

<xsd:element name="JobCompletionCode2" type="GasJobCompletionCode2"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element ServiceOrderGasJobCompletionCodes/JobCompletionCode3
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1765
Type GasJobCompletionCode3
Properties
content: simple
minOccurs: 0
Facets
enumeration 31, 33, 34, 37, 42, 44, 45, 47, 51, 52, 53, 55, 58, 59, 63, 72
Source

<xsd:element name="JobCompletionCode3" type="GasJobCompletionCode3" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

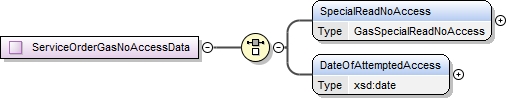

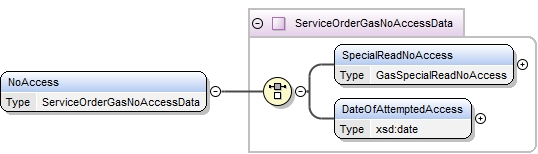

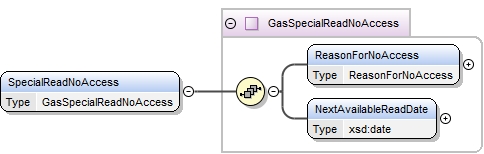

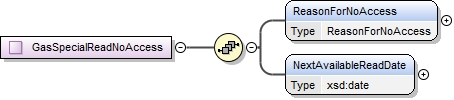

Element ServiceOrderGasNoAccessData/SpecialReadNoAccess
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1786 asexml_r259.tmp#id1787 asexml_r259.tmp#id1785
Type GasSpecialReadNoAccess
Properties
content: complex
Model ReasonForNoAccess , NextAvailableReadDate
Children NextAvailableReadDate, ReasonForNoAccess
Instance

<SpecialReadNoAccess>
  <ReasonForNoAccess>{1,1}</ReasonForNoAccess>
  <NextAvailableReadDate>{1,1}</NextAvailableReadDate>
</SpecialReadNoAccess>
Source

<xsd:element name="SpecialReadNoAccess" type="GasSpecialReadNoAccess"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element ServiceOrderGasNoAccessData/DateOfAttemptedAccess
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="DateOfAttemptedAccess" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

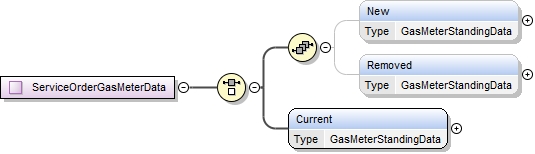

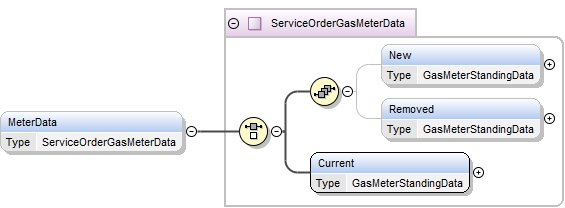

Element ServiceOrderGasMeterData/New
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id827 asexml_r259.tmp#id828 asexml_r259.tmp#id830 asexml_r259.tmp#id832 asexml_r259.tmp#id834 asexml_r259.tmp#id836 asexml_r259.tmp#id845 asexml_r259.tmp#id853 asexml_r259.tmp#id826
Type GasMeterStandingData
Properties
content: complex
minOccurs: 0
Model MeterSerialNumber{0,1} , PressureCorrectionFactor{0,1} , MeterTypeSizeCode{0,1} , MeterStatus{0,1} , SupplyPointCode{0,1} , MeterRead{0,1} , (BasicMeter{0,1} | IntervalMeter{0,1})
Children BasicMeter, IntervalMeter, MeterRead, MeterSerialNumber, MeterStatus, MeterTypeSizeCode, PressureCorrectionFactor, SupplyPointCode
Instance

<New>
  <MeterSerialNumber>{0,1}</MeterSerialNumber>
  <PressureCorrectionFactor>{0,1}</PressureCorrectionFactor>
  <MeterTypeSizeCode>{0,1}</MeterTypeSizeCode>
  <MeterStatus>{0,1}</MeterStatus>
  <SupplyPointCode>{0,1}</SupplyPointCode>
  <MeterRead>{0,1}</MeterRead>
</New>
Source

<xsd:element name="New" type="GasMeterStandingData" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element ServiceOrderGasMeterData/Removed
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id827 asexml_r259.tmp#id828 asexml_r259.tmp#id830 asexml_r259.tmp#id832 asexml_r259.tmp#id834 asexml_r259.tmp#id836 asexml_r259.tmp#id845 asexml_r259.tmp#id853 asexml_r259.tmp#id826
Type GasMeterStandingData
Properties
content: complex
minOccurs: 0
Model MeterSerialNumber{0,1} , PressureCorrectionFactor{0,1} , MeterTypeSizeCode{0,1} , MeterStatus{0,1} , SupplyPointCode{0,1} , MeterRead{0,1} , (BasicMeter{0,1} | IntervalMeter{0,1})
Children BasicMeter, IntervalMeter, MeterRead, MeterSerialNumber, MeterStatus, MeterTypeSizeCode, PressureCorrectionFactor, SupplyPointCode
Instance

<Removed>
  <MeterSerialNumber>{0,1}</MeterSerialNumber>
  <PressureCorrectionFactor>{0,1}</PressureCorrectionFactor>
  <MeterTypeSizeCode>{0,1}</MeterTypeSizeCode>
  <MeterStatus>{0,1}</MeterStatus>
  <SupplyPointCode>{0,1}</SupplyPointCode>
  <MeterRead>{0,1}</MeterRead>
</Removed>
Source

<xsd:element name="Removed" type="GasMeterStandingData" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element ServiceOrderGasMeterData/Current
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id827 asexml_r259.tmp#id828 asexml_r259.tmp#id830 asexml_r259.tmp#id832 asexml_r259.tmp#id834 asexml_r259.tmp#id836 asexml_r259.tmp#id845 asexml_r259.tmp#id853 asexml_r259.tmp#id826
Type GasMeterStandingData
Properties
content: complex
Model MeterSerialNumber{0,1} , PressureCorrectionFactor{0,1} , MeterTypeSizeCode{0,1} , MeterStatus{0,1} , SupplyPointCode{0,1} , MeterRead{0,1} , (BasicMeter{0,1} | IntervalMeter{0,1})
Children BasicMeter, IntervalMeter, MeterRead, MeterSerialNumber, MeterStatus, MeterTypeSizeCode, PressureCorrectionFactor, SupplyPointCode
Instance

<Current>
  <MeterSerialNumber>{0,1}</MeterSerialNumber>
  <PressureCorrectionFactor>{0,1}</PressureCorrectionFactor>
  <MeterTypeSizeCode>{0,1}</MeterTypeSizeCode>
  <MeterStatus>{0,1}</MeterStatus>
  <SupplyPointCode>{0,1}</SupplyPointCode>
  <MeterRead>{0,1}</MeterRead>
</Current>
Source

<xsd:element name="Current" type="GasMeterStandingData"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

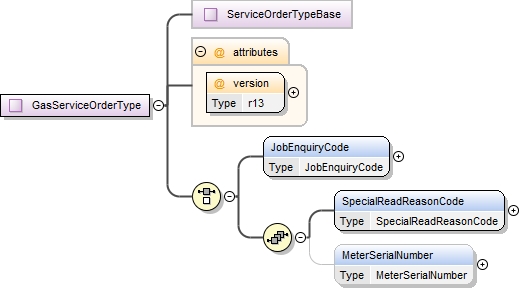

Element GasServiceOrderType/JobEnquiryCode
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1768
Type JobEnquiryCode
Properties
content: simple
Facets
enumeration AML, CSL, CLT, DFC, DSD, EBD, EBS, ECO, EFB, EMG, EMT, EOT, ESE, EST, EXP, FAP, FAT, FHS, FMN, FMT, FSV, MAP, MBO, MCH, MDM, MDO, MFX, MFXA, MHA, MRC, MRF, MRG, MRM, MRR, MRT, MST, MTE, MTJ, MTN, OTH, RML, RSD, RSR, SBS, SCR, SDR, SNG, SPN, UEF, UMS, USR
Source

<xsd:element name="JobEnquiryCode" type="JobEnquiryCode"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasServiceOrderType/SpecialReadReasonCode
Namespace No namespace
Diagram
Diagram asexml_r2517.tmp#id1446
Type SpecialReadReasonCode
Properties
content: simple
Facets
enumeration Account Investigation, Final Read, Final Read for Disconnection on Non-Payment, Final and Opening Read, Opening Read, Change of Retailer, Change of Customer, Check Read, Other, Sticker Removed, Final Read Stickered, Read Following Disconnection for Non-Payment
Source

<xsd:element name="SpecialReadReasonCode" type="SpecialReadReasonCode"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasServiceOrderType/MeterSerialNumber
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id215
Type MeterSerialNumber
Properties
content: simple
minOccurs: 0
Facets
maxLength 12
Source

<xsd:element name="MeterSerialNumber" type="MeterSerialNumber" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

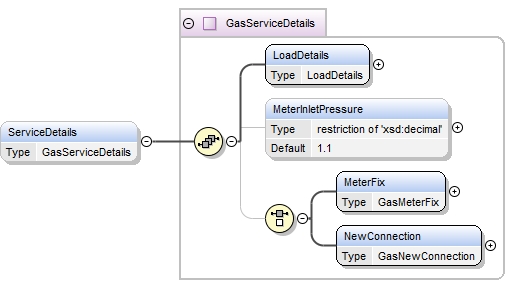

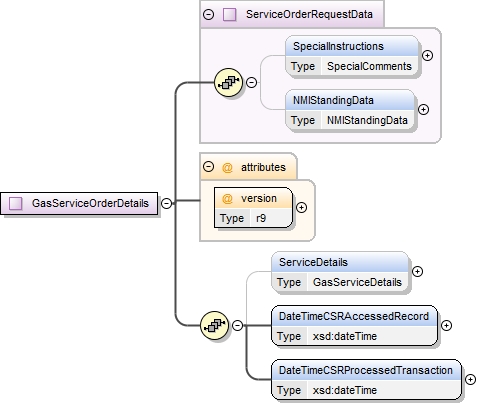

Element GasServiceOrderDetails/ServiceDetails
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1789 asexml_r259.tmp#id1790 asexml_r259.tmp#id1791 asexml_r259.tmp#id1792 asexml_r259.tmp#id1788
Type GasServiceDetails
Properties
content: complex
minOccurs: 0
Model LoadDetails , MeterInletPressure{0,1} , (MeterFix | NewConnection)
Children LoadDetails, MeterFix, MeterInletPressure, NewConnection
Instance

<ServiceDetails>
  <LoadDetails>{1,1}</LoadDetails>
  <MeterInletPressure>{0,1}</MeterInletPressure>
</ServiceDetails>
Source

<xsd:element name="ServiceDetails" type="GasServiceDetails" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasServiceOrderDetails/DateTimeCSRAccessedRecord
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="DateTimeCSRAccessedRecord" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasServiceOrderDetails/DateTimeCSRProcessedTransaction
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="DateTimeCSRProcessedTransaction" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

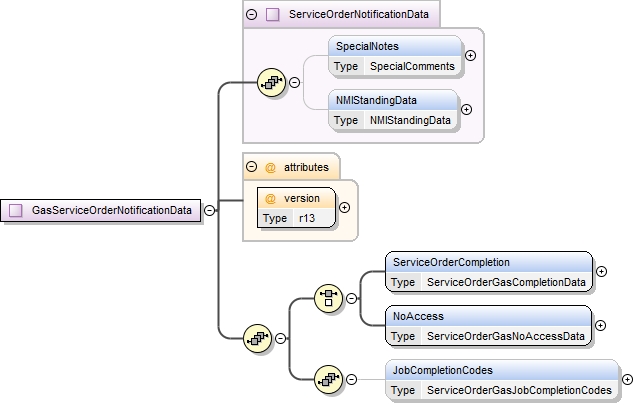

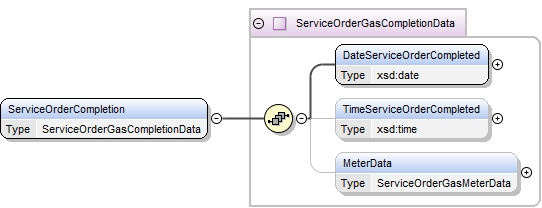

Element GasServiceOrderNotificationData/ServiceOrderCompletion
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1817 asexml_r259.tmp#id1818 asexml_r259.tmp#id1819 asexml_r259.tmp#id1816
Type ServiceOrderGasCompletionData
Properties
content: complex
Model DateServiceOrderCompleted , TimeServiceOrderCompleted{0,1} , MeterData{0,1}
Children DateServiceOrderCompleted, MeterData, TimeServiceOrderCompleted
Instance

<ServiceOrderCompletion>
  <DateServiceOrderCompleted>{1,1}</DateServiceOrderCompleted>
  <TimeServiceOrderCompleted>{0,1}</TimeServiceOrderCompleted>
  <MeterData>{0,1}</MeterData>
</ServiceOrderCompletion>
Source

<xsd:element name="ServiceOrderCompletion" type="ServiceOrderGasCompletionData"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

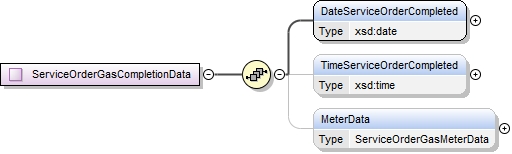

Element ServiceOrderGasCompletionData/DateServiceOrderCompleted
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="DateServiceOrderCompleted" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element ServiceOrderGasCompletionData/TimeServiceOrderCompleted
Namespace No namespace
Diagram
Diagram
Type xsd:time
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="TimeServiceOrderCompleted" type="xsd:time" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element ServiceOrderGasCompletionData/MeterData
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1801 asexml_r259.tmp#id1802 asexml_r259.tmp#id1803 asexml_r259.tmp#id1800
Type ServiceOrderGasMeterData
Properties
content: complex
minOccurs: 0
Model (New{0,1} , Removed{0,1}) | Current
Children Current, New, Removed
Instance

<MeterData>
  <New>{0,1}</New>
  <Removed>{0,1}</Removed>
  <Current>{1,1}</Current>
</MeterData>
Source

<xsd:element name="MeterData" type="ServiceOrderGasMeterData" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasServiceOrderNotificationData/NoAccess
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1798 asexml_r259.tmp#id1799 asexml_r259.tmp#id1797
Type ServiceOrderGasNoAccessData
Properties
content: complex
Model SpecialReadNoAccess | DateOfAttemptedAccess
Children DateOfAttemptedAccess, SpecialReadNoAccess
Instance

<NoAccess>
  <SpecialReadNoAccess>{1,1}</SpecialReadNoAccess>
  <DateOfAttemptedAccess>{1,1}</DateOfAttemptedAccess>
</NoAccess>
Source

<xsd:element name="NoAccess" type="ServiceOrderGasNoAccessData"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasServiceOrderNotificationData/JobCompletionCodes
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1794 asexml_r259.tmp#id1795 asexml_r259.tmp#id1796 asexml_r259.tmp#id1793
Type ServiceOrderGasJobCompletionCodes
Properties
content: complex
minOccurs: 0
Model JobCompletionCode1 , JobCompletionCode2 , JobCompletionCode3{0,1}
Children JobCompletionCode1, JobCompletionCode2, JobCompletionCode3
Instance

<JobCompletionCodes>
  <JobCompletionCode1>{1,1}</JobCompletionCode1>
  <JobCompletionCode2>{1,1}</JobCompletionCode2>
  <JobCompletionCode3>{0,1}</JobCompletionCode3>
</JobCompletionCodes>
Source

<xsd:element name="JobCompletionCodes" type="ServiceOrderGasJobCompletionCodes" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

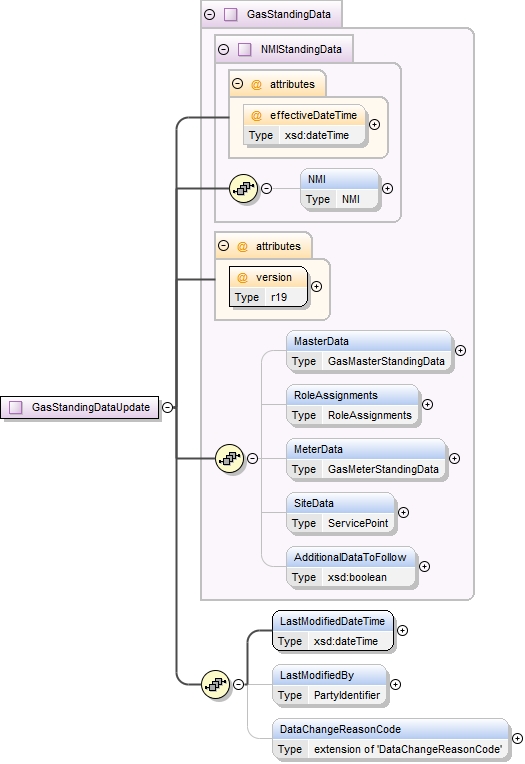

Element GasStandingDataUpdate/LastModifiedDateTime
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="LastModifiedDateTime" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

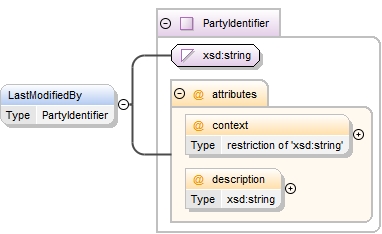

Element GasStandingDataUpdate/LastModifiedBy
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="LastModifiedBy" type="PartyIdentifier" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

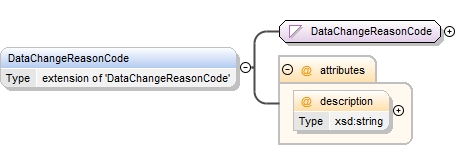

Element GasStandingDataUpdate/DataChangeReasonCode
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1766 asexml_r259.tmp#id1827
Type extension of DataChangeReasonCode
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
description xsd:string optional
Source

<xsd:element name="DataChangeReasonCode" minOccurs="0">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="DataChangeReasonCode">
        <xsd:attribute name="description" type="xsd:string"/>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

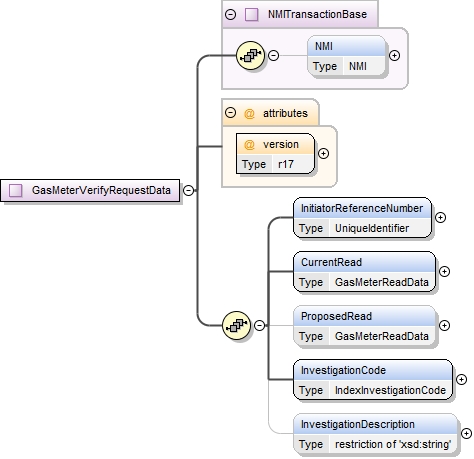

Element GasMeterVerifyRequestData/InitiatorReferenceNumber
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id364
Type UniqueIdentifier
Properties
content: simple
Facets
minLength 1
maxLength 36
Source

<xsd:element name="InitiatorReferenceNumber" type="UniqueIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterVerifyRequestData/CurrentRead
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id839 asexml_r259.tmp#id841 asexml_r259.tmp#id842 asexml_r259.tmp#id838
Type GasMeterReadData
Properties
content: complex
Model IndexValue{0,1} , ReadDate{0,1} , TypeOfRead{0,1}
Children IndexValue, ReadDate, TypeOfRead
Instance

<CurrentRead>
  <IndexValue>{0,1}</IndexValue>
  <ReadDate>{0,1}</ReadDate>
  <TypeOfRead>{0,1}</TypeOfRead>
</CurrentRead>
Source

<xsd:element name="CurrentRead" type="GasMeterReadData"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

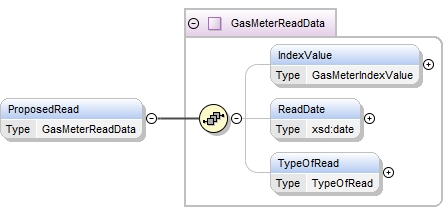

Element GasMeterVerifyRequestData/ProposedRead
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id839 asexml_r259.tmp#id841 asexml_r259.tmp#id842 asexml_r259.tmp#id838
Type GasMeterReadData
Properties
content: complex
minOccurs: 0
Model IndexValue{0,1} , ReadDate{0,1} , TypeOfRead{0,1}
Children IndexValue, ReadDate, TypeOfRead
Instance

<ProposedRead>
  <IndexValue>{0,1}</IndexValue>
  <ReadDate>{0,1}</ReadDate>
  <TypeOfRead>{0,1}</TypeOfRead>
</ProposedRead>
Source

<xsd:element name="ProposedRead" type="GasMeterReadData" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterVerifyRequestData/InvestigationCode
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id1388
Type IndexInvestigationCode
Properties
content: simple
Facets
enumeration Confirm Reading For Vacant Site, Confirm Zero Consumption, Incomplete Data, Invalid MDFF Data, Invalid Standing Data, Missing Datastream, Require Actual Reading or Substitute, Require Final Substitute, Require Latest Version, Scheduled Reading Required, Service Order Reading Required, Verify High Reading, Verify Low Reading, Customer Away, Customer Query, Customer Read, High Account, Zero Consumption, Recipient Not Responsible For The NMI, Other
Source

<xsd:element name="InvestigationCode" type="IndexInvestigationCode"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterVerifyRequestData/InvestigationDescription
Namespace No namespace
Diagram
Diagram
Type restriction of xsd:string
Properties
content: simple
minOccurs: 0
Facets
maxLength 100
Source

<xsd:element name="InvestigationDescription" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:maxLength value="100"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

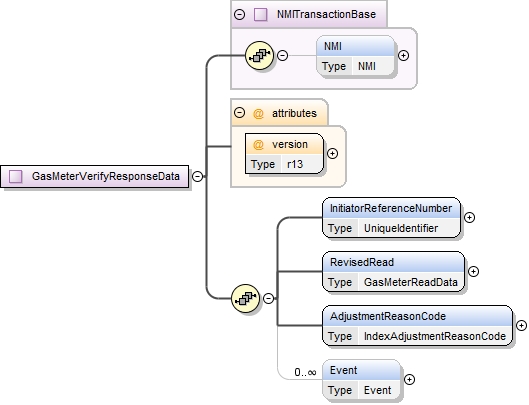

Element GasMeterVerifyResponseData/InitiatorReferenceNumber
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id364
Type UniqueIdentifier
Properties
content: simple
Facets
minLength 1
maxLength 36
Source

<xsd:element name="InitiatorReferenceNumber" type="UniqueIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterVerifyResponseData/RevisedRead
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id839 asexml_r259.tmp#id841 asexml_r259.tmp#id842 asexml_r259.tmp#id838
Type GasMeterReadData
Properties
content: complex
Model IndexValue{0,1} , ReadDate{0,1} , TypeOfRead{0,1}
Children IndexValue, ReadDate, TypeOfRead
Instance

<RevisedRead>
  <IndexValue>{0,1}</IndexValue>
  <ReadDate>{0,1}</ReadDate>
  <TypeOfRead>{0,1}</TypeOfRead>
</RevisedRead>
Source

<xsd:element name="RevisedRead" type="GasMeterReadData"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasMeterVerifyResponseData/AdjustmentReasonCode
Namespace No namespace
Diagram
Diagram asexml_r259.tmp#id1767
Type IndexAdjustmentReasonCode
Properties
content: simple
Facets
enumeration Over Read, Under Read, Over Estimate, Under Estimate, No Change
Source

<xsd:element name="AdjustmentReasonCode" type="IndexAdjustmentReasonCode"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

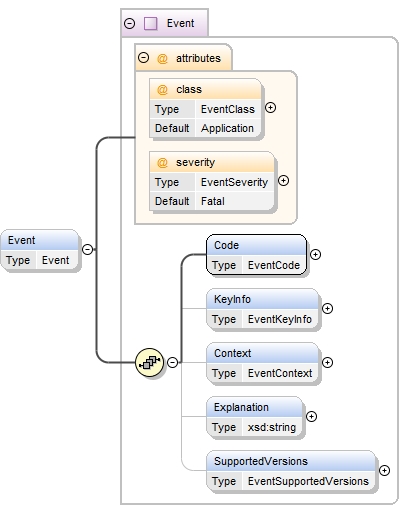

Element GasMeterVerifyResponseData/Event
Namespace No namespace
Diagram
Diagram asexml_r2523.tmp#id100 asexml_r2523.tmp#id102 asexml_r2523.tmp#id88 asexml_r2523.tmp#id92 asexml_r2523.tmp#id94 asexml_r2523.tmp#id96 asexml_r2523.tmp#id97 asexml_r2523.tmp#id87
Type Event
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Code , KeyInfo{0,1} , Context{0,1} , Explanation{0,1} , SupportedVersions{0,1}
Children Code, Context, Explanation, KeyInfo, SupportedVersions
Instance

<Event class="Application" severity="Fatal">
  <Code description="">{1,1}</Code>
  <KeyInfo>{0,1}</KeyInfo>
  <Context>{0,1}</Context>
  <Explanation>{0,1}</Explanation>
  <SupportedVersions>{0,1}</SupportedVersions>
</Event>
Attributes
QName Type Fixed Default Use Annotation
class EventClass Application optional
severity EventSeverity Fatal optional
Source

<xsd:element name="Event" type="Event" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd

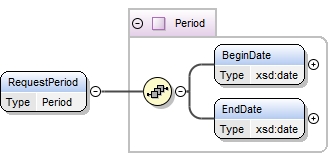

Element GasSingleHistoryRequestData/RequestPeriod
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id464 asexml_r250.tmp#id465 asexml_r250.tmp#id463
Type Period
Properties
content: complex
Model BeginDate , EndDate
Children BeginDate, EndDate
Instance

<RequestPeriod>
  <BeginDate>{1,1}</BeginDate>
  <EndDate>{1,1}</EndDate>
</RequestPeriod>
Source

<xsd:element name="RequestPeriod" type="Period"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Element GasSingleHistoryRequestData/FullHistoryRequired
Namespace No namespace
Diagram
Diagram
Type xsd:boolean
Properties
content: simple
Source

<xsd:element name="FullHistoryRequired" type="xsd:boolean"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasMeterNotification
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r259.tmp#id869 asexml_r259.tmp#id796 asexml_r259.tmp#id867 asexml_r259.tmp#id868
Used by
Model (MeterFix | MIRNStatusUpdate) , DateServiceOrderCompleted
Children DateServiceOrderCompleted, MIRNStatusUpdate, MeterFix
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:complexType name="GasMeterNotification">
  <xsd:sequence>
    <xsd:choice>
      <xsd:element name="MeterFix" type="GasStandingData"/>
      <xsd:element name="MIRNStatusUpdate" type="GasStandingData"/>
    </xsd:choice>
    <xsd:element name="DateServiceOrderCompleted" type="xsd:date"/>
  </xsd:sequence>
  <xsd:attribute name="version" type="r9" use="required"/>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasStandingData
Namespace urn:aseXML:r25
Annotations

Standing data associated with an gas NMI.
Diagram
Diagram asexml_r250.tmp#id227 asexml_r250.tmp#id222 asexml_r250.tmp#id221 asexml_r259.tmp#id866 asexml_r259.tmp#id798 asexml_r259.tmp#id822 asexml_r259.tmp#id825 asexml_r259.tmp#id864 asexml_r259.tmp#id865
Type extension of NMIStandingData
Type hierarchy
Used by
Model NMI{0,1} , MasterData{0,1} , RoleAssignments{0,1} , MeterData{0,1} , SiteData{0,1} , AdditionalDataToFollow{0,1}
Children AdditionalDataToFollow, MasterData, MeterData, NMI, RoleAssignments, SiteData
Attributes
QName Type Fixed Default Use Annotation
effectiveDateTime xsd:dateTime optional
version r19 required
Source

<xsd:complexType name="GasStandingData">
  <xsd:annotation>
    <xsd:documentation>Standing data associated with an gas NMI.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="NMIStandingData">
      <xsd:sequence>
        <xsd:element name="MasterData" type="GasMasterStandingData" minOccurs="0"/>
        <xsd:element name="RoleAssignments" type="RoleAssignments" minOccurs="0"/>
        <xsd:element name="MeterData" type="GasMeterStandingData" minOccurs="0"/>
        <xsd:element name="SiteData" type="ServicePoint" minOccurs="0"/>
        <xsd:element name="AdditionalDataToFollow" type="xsd:boolean" minOccurs="0"/>
        <!-- Fields to be determined -->
      </xsd:sequence>
      <xsd:attribute name="version" type="r19" use="required"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasMasterStandingData
Namespace urn:aseXML:r25
Annotations

Basic standing data associated with an gas NMI.
Diagram
Diagram asexml_r259.tmp#id800 asexml_r259.tmp#id801 asexml_r259.tmp#id802 asexml_r259.tmp#id804 asexml_r259.tmp#id806 asexml_r259.tmp#id808 asexml_r259.tmp#id810 asexml_r259.tmp#id812 asexml_r259.tmp#id814 asexml_r259.tmp#id815 asexml_r259.tmp#id817 asexml_r259.tmp#id819 asexml_r259.tmp#id820 asexml_r259.tmp#id821
Used by
Model AustralianPostCode{0,1} , PrimaryCustodyTransferMeter{0,1} , BaseLoad{0,1} , TemperatureSensitivityFactor{0,1} , DistributionTariff{0,1} , TransmissionZone{0,1} , HeatingValueZone{0,1} , CustomerCharacterisation{0,1} , MIRNAssignmentDate{0,1} , MIRNStatus{0,1} , AnticipatedAnnualConsumption{0,1} , MIRNCommissionedDate{0,1} , SmallUseCustomer{0,1} , NetworkID{0,1}
Children AnticipatedAnnualConsumption, AustralianPostCode, BaseLoad, CustomerCharacterisation, DistributionTariff, HeatingValueZone, MIRNAssignmentDate, MIRNCommissionedDate, MIRNStatus, NetworkID, PrimaryCustodyTransferMeter, SmallUseCustomer, TemperatureSensitivityFactor, TransmissionZone
Source

<xsd:complexType name="GasMasterStandingData">
  <xsd:annotation>
    <xsd:documentation>Basic standing data associated with an gas NMI.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="AustralianPostCode" type="AustralianPostCode" nillable="true" minOccurs="0"/>
    <xsd:element name="PrimaryCustodyTransferMeter" type="NMIWithChecksum" minOccurs="0"/>
    <xsd:element name="BaseLoad" type="BaseLoad" nillable="true" minOccurs="0"/>
    <xsd:element name="TemperatureSensitivityFactor" type="TemperatureSensitivityFactor" nillable="true" minOccurs="0"/>
    <xsd:element name="DistributionTariff" type="DistributionTariff" minOccurs="0"/>
    <xsd:element name="TransmissionZone" type="TransmissionZone" minOccurs="0"/>
    <xsd:element name="HeatingValueZone" type="HeatingValueZone" minOccurs="0"/>
    <xsd:element name="CustomerCharacterisation" type="CustomerCharacterisation" minOccurs="0"/>
    <xsd:element name="MIRNAssignmentDate" type="xsd:date" nillable="true" minOccurs="0"/>
    <xsd:element name="MIRNStatus" type="MIRNStatus" minOccurs="0"/>
    <xsd:element name="AnticipatedAnnualConsumption" type="AnticipatedAnnualConsumption" minOccurs="0"/>
    <xsd:element name="MIRNCommissionedDate" type="xsd:date" minOccurs="0"/>
    <xsd:element name="SmallUseCustomer" type="xsd:boolean" minOccurs="0"/>
    <xsd:element name="NetworkID" minOccurs="0">
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:length value="2"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:element>
    <!-- Fields to be determined -->
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type BaseLoad
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:decimal
Facets
totalDigits 9
fractionDigits 1
Used by
Source

<xsd:simpleType name="BaseLoad">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:decimal">
    <xsd:totalDigits value="9"/>
    <xsd:fractionDigits value="1"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type TemperatureSensitivityFactor
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:decimal
Facets
totalDigits 9
fractionDigits 2
Used by
Source

<xsd:simpleType name="TemperatureSensitivityFactor">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:decimal">
    <xsd:totalDigits value="9"/>
    <xsd:fractionDigits value="2"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type DistributionTariff
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Demand, Volume, 1A1R, 1A2R, 1B1R, 1B2R, 1B3R, 1A1N, 1A2N, 1B1N, 1B2N, 1B3N, 1D1R, 1D2R, 1D3R, 1D1N, 1D2N, 1D3N, 1K1R, 1K2R, 1K3R, 1K1N, 1K2N, 1K3N, 1V1R, 1V2R, 1V3R, 1V1N, 1V2N, 1V3N, 1Demand, 2Demand, 3Demand, 4Demand, 5Demand, 6Demand, 7Demand, 8Demand, 9Demand, 0Demand, Commercial, Negotiated, NegotiatedVolume
Used by
Source

<xsd:simpleType name="DistributionTariff">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Demand"/>
    <xsd:enumeration value="Volume"/>
    <xsd:enumeration value="1A1R"/>
    <xsd:enumeration value="1A2R"/>
    <xsd:enumeration value="1B1R"/>
    <xsd:enumeration value="1B2R"/>
    <xsd:enumeration value="1B3R"/>
    <xsd:enumeration value="1A1N"/>
    <xsd:enumeration value="1A2N"/>
    <xsd:enumeration value="1B1N"/>
    <xsd:enumeration value="1B2N"/>
    <xsd:enumeration value="1B3N"/>
    <xsd:enumeration value="1D1R"/>
    <xsd:enumeration value="1D2R"/>
    <xsd:enumeration value="1D3R"/>
    <xsd:enumeration value="1D1N"/>
    <xsd:enumeration value="1D2N"/>
    <xsd:enumeration value="1D3N"/>
    <xsd:enumeration value="1K1R"/>
    <xsd:enumeration value="1K2R"/>
    <xsd:enumeration value="1K3R"/>
    <xsd:enumeration value="1K1N"/>
    <xsd:enumeration value="1K2N"/>
    <xsd:enumeration value="1K3N"/>
    <xsd:enumeration value="1V1R"/>
    <xsd:enumeration value="1V2R"/>
    <xsd:enumeration value="1V3R"/>
    <xsd:enumeration value="1V1N"/>
    <xsd:enumeration value="1V2N"/>
    <xsd:enumeration value="1V3N"/>
    <xsd:enumeration value="1Demand"/>
    <xsd:enumeration value="2Demand"/>
    <xsd:enumeration value="3Demand"/>
    <xsd:enumeration value="4Demand"/>
    <xsd:enumeration value="5Demand"/>
    <xsd:enumeration value="6Demand"/>
    <xsd:enumeration value="7Demand"/>
    <xsd:enumeration value="8Demand"/>
    <xsd:enumeration value="9Demand"/>
    <xsd:enumeration value="0Demand"/>
    <xsd:enumeration value="Commercial"/>
    <xsd:enumeration value="Negotiated"/>
    <xsd:enumeration value="NegotiatedVolume"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type TransmissionZone
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:integer
Facets
totalDigits 2
Used by
Source

<xsd:simpleType name="TransmissionZone">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:integer">
    <xsd:totalDigits value="2"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type HeatingValueZone
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
maxLength 3
Used by
Source

<xsd:simpleType name="HeatingValueZone">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:maxLength value="3"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type CustomerCharacterisation
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Metropolitan Business, Metropolitan Residential, Non Metropolitan Business, Non Metropolitan Residential
Used by
Source

<xsd:simpleType name="CustomerCharacterisation">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Metropolitan Business"/>
    <xsd:enumeration value="Metropolitan Residential"/>
    <xsd:enumeration value="Non Metropolitan Business"/>
    <xsd:enumeration value="Non Metropolitan Residential"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type MIRNStatus
Namespace urn:aseXML:r25
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Commissioned, Decommissioned, Deregistered, Registered
Used by
Source

<xsd:simpleType name="MIRNStatus">
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Commissioned"/>
    <xsd:enumeration value="Decommissioned"/>
    <xsd:enumeration value="Deregistered"/>
    <xsd:enumeration value="Registered"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type AnticipatedAnnualConsumption
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:integer
Facets
totalDigits 13
Used by
Source

<xsd:simpleType name="AnticipatedAnnualConsumption">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:integer">
    <xsd:totalDigits value="13"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasMeterStandingData
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r259.tmp#id827 asexml_r259.tmp#id828 asexml_r259.tmp#id830 asexml_r259.tmp#id832 asexml_r259.tmp#id834 asexml_r259.tmp#id836 asexml_r259.tmp#id845 asexml_r259.tmp#id853
Used by
Model MeterSerialNumber{0,1} , PressureCorrectionFactor{0,1} , MeterTypeSizeCode{0,1} , MeterStatus{0,1} , SupplyPointCode{0,1} , MeterRead{0,1} , (BasicMeter{0,1} | IntervalMeter{0,1})
Children BasicMeter, IntervalMeter, MeterRead, MeterSerialNumber, MeterStatus, MeterTypeSizeCode, PressureCorrectionFactor, SupplyPointCode
Source

<xsd:complexType name="GasMeterStandingData">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="MeterSerialNumber" type="MeterSerialNumber" minOccurs="0"/>
    <xsd:element name="PressureCorrectionFactor" type="PressureCorrectionFactor" minOccurs="0"/>
    <xsd:element name="MeterTypeSizeCode" type="GasMeterTypeSizeCode" minOccurs="0"/>
    <xsd:element name="MeterStatus" type="GasMeterStatus" minOccurs="0"/>
    <xsd:element name="SupplyPointCode" type="SupplyPointCode" minOccurs="0"/>
    <xsd:element name="MeterRead" minOccurs="0">
      <xsd:complexType>
        <xsd:sequence>
          <xsd:element name="Current" type="GasMeterReadData" minOccurs="0"/>
          <xsd:element name="Previous" type="GasMeterReadData" minOccurs="0"/>
        </xsd:sequence>
      </xsd:complexType>
    </xsd:element>
    <xsd:choice>
      <xsd:element name="BasicMeter" type="GasBasicMeterStandingData" minOccurs="0"/>
      <xsd:element name="IntervalMeter" type="GasIntervalMeterStandingData" minOccurs="0"/>
    </xsd:choice>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type PressureCorrectionFactor
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:decimal
Facets
totalDigits 6
fractionDigits 4
Used by
Source

<xsd:simpleType name="PressureCorrectionFactor">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:decimal">
    <xsd:totalDigits value="6"/>
    <xsd:fractionDigits value="4"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type GasMeterTypeSizeCode
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
minLength 1
maxLength 3
Used by
Source

<xsd:simpleType name="GasMeterTypeSizeCode">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:maxLength value="3"/>
    <xsd:minLength value="1"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type GasMeterStatus
Namespace urn:aseXML:r25
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration No meter, Turned on, Turned off, Plugged
Used by
Source

<xsd:simpleType name="GasMeterStatus">
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="No meter"/>
    <xsd:enumeration value="Turned on"/>
    <xsd:enumeration value="Turned off"/>
    <xsd:enumeration value="Plugged"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type SupplyPointCode
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Basic, Interval, Transmission
Used by
Source

<xsd:simpleType name="SupplyPointCode">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Basic"/>
    <xsd:enumeration value="Interval"/>
    <xsd:enumeration value="Transmission"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasMeterReadData
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r259.tmp#id839 asexml_r259.tmp#id841 asexml_r259.tmp#id842
Used by
Model IndexValue{0,1} , ReadDate{0,1} , TypeOfRead{0,1}
Children IndexValue, ReadDate, TypeOfRead
Source

<xsd:complexType name="GasMeterReadData">
  <xsd:sequence>
    <xsd:element name="IndexValue" type="GasMeterIndexValue" nillable="true" minOccurs="0"/>
    <xsd:element name="ReadDate" type="xsd:date" nillable="true" minOccurs="0"/>
    <xsd:element name="TypeOfRead" type="TypeOfRead" nillable="true" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type GasMeterIndexValue
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:integer
Facets
totalDigits 7
Used by
Source

<xsd:simpleType name="GasMeterIndexValue">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:integer">
    <xsd:totalDigits value="7"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type TypeOfRead
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Actual, Estimated, Substituted, Customer Own Read, Deemed
Used by
Source

<xsd:simpleType name="TypeOfRead">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Actual"/>
    <xsd:enumeration value="Estimated"/>
    <xsd:enumeration value="Substituted"/>
    <xsd:enumeration value="Customer Own Read"/>
    <xsd:enumeration value="Deemed"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasBasicMeterStandingData
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r259.tmp#id847 asexml_r259.tmp#id848 asexml_r259.tmp#id850 asexml_r259.tmp#id852
Used by
Model NextScheduledReadDate{0,1} , ScheduledReadingDayNumber{0,1} , MeterReadFrequency{0,1} , NextScheduledSpecialRead{0,1}
Children MeterReadFrequency, NextScheduledReadDate, NextScheduledSpecialRead, ScheduledReadingDayNumber
Source

<xsd:complexType name="GasBasicMeterStandingData">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="NextScheduledReadDate" type="xsd:date" minOccurs="0"/>
    <xsd:element name="ScheduledReadingDayNumber" type="MeterReadingDayNumber" minOccurs="0"/>
    <xsd:element name="MeterReadFrequency" type="GasMeterReadFrequency" minOccurs="0"/>
    <xsd:element name="NextScheduledSpecialRead" type="AppointmentDetail" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type MeterReadingDayNumber
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
maxLength 2
Used by
Source

<xsd:simpleType name="MeterReadingDayNumber">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:maxLength value="2"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type GasMeterReadFrequency
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Bi Monthly, Monthly, Quarterly
Used by
Source

<xsd:simpleType name="GasMeterReadFrequency">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Bi Monthly"/>
    <xsd:enumeration value="Monthly"/>
    <xsd:enumeration value="Quarterly"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasIntervalMeterStandingData
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r259.tmp#id855 asexml_r259.tmp#id856
Used by
Model CommunicationEquipmentPresent{0,1} , ExcludedServicesCharges{0,1}
Children CommunicationEquipmentPresent, ExcludedServicesCharges
Source

<xsd:complexType name="GasIntervalMeterStandingData">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="CommunicationEquipmentPresent" type="xsd:boolean" minOccurs="0"/>
    <xsd:element name="ExcludedServicesCharges" minOccurs="0">
      <xsd:complexType>
        <xsd:sequence>
          <xsd:element name="ChargeItem" type="GasIntervalMeterCharge" maxOccurs="unbounded"/>
        </xsd:sequence>
      </xsd:complexType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasIntervalMeterCharge
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r259.tmp#id859 asexml_r259.tmp#id861 asexml_r259.tmp#id863
Used by
Model Category , Amount , ExpiryDate
Children Amount, Category, ExpiryDate
Source

<xsd:complexType name="GasIntervalMeterCharge">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Category" type="ExcludedServicesCategory"/>
    <xsd:element name="Amount" type="IntervalMeterCharge"/>
    <xsd:element name="ExpiryDate" type="xsd:date"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type ExcludedServicesCategory
Namespace urn:aseXML:r25
Diagram
Diagram
Type restriction of xsd:string
Facets
maxLength 20
enumeration Logger, Mains, Meter, O+M, Other, Service
Used by
Source

<xsd:simpleType name="ExcludedServicesCategory">
  <xsd:restriction base="xsd:string">
    <xsd:maxLength value="20"/>
    <xsd:enumeration value="Logger"/>
    <xsd:enumeration value="Mains"/>
    <xsd:enumeration value="Meter"/>
    <xsd:enumeration value="O+M"/>
    <xsd:enumeration value="Other"/>
    <xsd:enumeration value="Service"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type IntervalMeterCharge
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:decimal
Facets
totalDigits 9
fractionDigits 2
Used by
Source

<xsd:simpleType name="IntervalMeterCharge">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:decimal">
    <xsd:totalDigits value="9"/>
    <xsd:fractionDigits value="2"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type MeteredSupplyPointsCountUpdate
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r259.tmp#id874 asexml_r259.tmp#id872 asexml_r259.tmp#id873
Used by
Model Count , CountDate
Children Count, CountDate
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:complexType name="MeteredSupplyPointsCountUpdate">
  <xsd:sequence>
    <xsd:element name="Count" type="xsd:integer"/>
    <xsd:element name="CountDate" type="xsd:date"/>
  </xsd:sequence>
  <xsd:attribute name="version" type="r9" use="required"/>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type GasJobCompletionCode1
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration 10, 14, 15, 21, 22, 28, 48, 60, 70, 74
Used by
Source

<xsd:simpleType name="GasJobCompletionCode1">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="10"/>
    <xsd:enumeration value="14"/>
    <xsd:enumeration value="15"/>
    <xsd:enumeration value="21"/>
    <xsd:enumeration value="22"/>
    <xsd:enumeration value="28"/>
    <xsd:enumeration value="48"/>
    <xsd:enumeration value="60"/>
    <xsd:enumeration value="70"/>
    <xsd:enumeration value="74"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type GasJobCompletionCode2
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration 02, 03, 04, 06, 10, 11, 12, 13, 15, 16, 17, 18, 22, 23, 24, 30, 37, 40, 42, 46, 55, 60, 64, 70, 78, 79, 86, 98
Used by
Source

<xsd:simpleType name="GasJobCompletionCode2">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="02"/>
    <xsd:enumeration value="03"/>
    <xsd:enumeration value="04"/>
    <xsd:enumeration value="06"/>
    <xsd:enumeration value="10"/>
    <xsd:enumeration value="11"/>
    <xsd:enumeration value="12"/>
    <xsd:enumeration value="13"/>
    <xsd:enumeration value="15"/>
    <xsd:enumeration value="16"/>
    <xsd:enumeration value="17"/>
    <xsd:enumeration value="18"/>
    <xsd:enumeration value="22"/>
    <xsd:enumeration value="23"/>
    <xsd:enumeration value="24"/>
    <xsd:enumeration value="30"/>
    <xsd:enumeration value="37"/>
    <xsd:enumeration value="40"/>
    <xsd:enumeration value="42"/>
    <xsd:enumeration value="46"/>
    <xsd:enumeration value="55"/>
    <xsd:enumeration value="60"/>
    <xsd:enumeration value="64"/>
    <xsd:enumeration value="70"/>
    <xsd:enumeration value="78"/>
    <xsd:enumeration value="79"/>
    <xsd:enumeration value="86"/>
    <xsd:enumeration value="98"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type GasJobCompletionCode3
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration 31, 33, 34, 37, 42, 44, 45, 47, 51, 52, 53, 55, 58, 59, 63, 72
Used by
Source

<xsd:simpleType name="GasJobCompletionCode3">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="31"/>
    <xsd:enumeration value="33"/>
    <xsd:enumeration value="34"/>
    <xsd:enumeration value="37"/>
    <xsd:enumeration value="42"/>
    <xsd:enumeration value="44"/>
    <xsd:enumeration value="45"/>
    <xsd:enumeration value="47"/>
    <xsd:enumeration value="51"/>
    <xsd:enumeration value="52"/>
    <xsd:enumeration value="53"/>
    <xsd:enumeration value="55"/>
    <xsd:enumeration value="58"/>
    <xsd:enumeration value="59"/>
    <xsd:enumeration value="63"/>
    <xsd:enumeration value="72"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type DataChangeReasonCode
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
maxLength 6
enumeration DCR001, DCR002, DCR003, DCR004, DCR005, DCR006, DCR007, DCR008
Used by
Source

<xsd:simpleType name="DataChangeReasonCode">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:maxLength value="6"/>
    <xsd:enumeration value="DCR001"/>
    <xsd:enumeration value="DCR002"/>
    <xsd:enumeration value="DCR003"/>
    <xsd:enumeration value="DCR004"/>
    <xsd:enumeration value="DCR005"/>
    <xsd:enumeration value="DCR006"/>
    <xsd:enumeration value="DCR007"/>
    <xsd:enumeration value="DCR008"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type IndexAdjustmentReasonCode
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Over Read, Under Read, Over Estimate, Under Estimate, No Change
Used by
Source

<xsd:simpleType name="IndexAdjustmentReasonCode">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Over Read"/>
    <xsd:enumeration value="Under Read"/>
    <xsd:enumeration value="Over Estimate"/>
    <xsd:enumeration value="Under Estimate"/>
    <xsd:enumeration value="No Change"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type JobEnquiryCode
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration AML, CSL, CLT, DFC, DSD, EBD, EBS, ECO, EFB, EMG, EMT, EOT, ESE, EST, EXP, FAP, FAT, FHS, FMN, FMT, FSV, MAP, MBO, MCH, MDM, MDO, MFX, MFXA, MHA, MRC, MRF, MRG, MRM, MRR, MRT, MST, MTE, MTJ, MTN, OTH, RML, RSD, RSR, SBS, SCR, SDR, SNG, SPN, UEF, UMS, USR
Used by
Source

<xsd:simpleType name="JobEnquiryCode">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="AML"/>
    <xsd:enumeration value="CSL"/>
    <xsd:enumeration value="CLT"/>
    <xsd:enumeration value="DFC"/>
    <xsd:enumeration value="DSD"/>
    <xsd:enumeration value="EBD"/>
    <xsd:enumeration value="EBS"/>
    <xsd:enumeration value="ECO"/>
    <xsd:enumeration value="EFB"/>
    <xsd:enumeration value="EMG"/>
    <xsd:enumeration value="EMT"/>
    <xsd:enumeration value="EOT"/>
    <xsd:enumeration value="ESE"/>
    <xsd:enumeration value="EST"/>
    <xsd:enumeration value="EXP"/>
    <xsd:enumeration value="FAP"/>
    <xsd:enumeration value="FAT"/>
    <xsd:enumeration value="FHS"/>
    <xsd:enumeration value="FMN"/>
    <xsd:enumeration value="FMT"/>
    <xsd:enumeration value="FSV"/>
    <xsd:enumeration value="MAP"/>
    <xsd:enumeration value="MBO"/>
    <xsd:enumeration value="MCH"/>
    <xsd:enumeration value="MDM"/>
    <xsd:enumeration value="MDO"/>
    <xsd:enumeration value="MFX"/>
    <xsd:enumeration value="MFXA"/>
    <xsd:enumeration value="MHA"/>
    <xsd:enumeration value="MRC"/>
    <xsd:enumeration value="MRF"/>
    <xsd:enumeration value="MRG"/>
    <xsd:enumeration value="MRM"/>
    <xsd:enumeration value="MRR"/>
    <xsd:enumeration value="MRT"/>
    <xsd:enumeration value="MST"/>
    <xsd:enumeration value="MTE"/>
    <xsd:enumeration value="MTJ"/>
    <xsd:enumeration value="MTN"/>
    <xsd:enumeration value="OTH"/>
    <xsd:enumeration value="RML"/>
    <xsd:enumeration value="RSD"/>
    <xsd:enumeration value="RSR"/>
    <xsd:enumeration value="SBS"/>
    <xsd:enumeration value="SCR"/>
    <xsd:enumeration value="SDR"/>
    <xsd:enumeration value="SNG"/>
    <xsd:enumeration value="SPN"/>
    <xsd:enumeration value="UEF"/>
    <xsd:enumeration value="UMS"/>
    <xsd:enumeration value="USR"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type LoadDetailsPerAnnum
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:integer
Facets
totalDigits 10
Used by
Source

<xsd:simpleType name="LoadDetailsPerAnnum">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:integer">
    <xsd:totalDigits value="10"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type LoadDetailsPerHour
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram
Type restriction of xsd:integer
Facets
totalDigits 6
Used by
Source

<xsd:simpleType name="LoadDetailsPerHour">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:integer">
    <xsd:totalDigits value="6"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Simple Type ReasonForNoAccess
Namespace urn:aseXML:r25
Annotations

Schema - Common
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Access Overgrown, Can't Locate Meter, Damaged Meter, Dial Out of Alignment, Dirty Dial, Gate Locked, Key Required, Locked and No Answer, Meter Changed, Meter Obstructed, Meter Removed, Other, Refused Access, Savage Dog
Used by
Source

<xsd:simpleType name="ReasonForNoAccess">
  <xsd:annotation>
    <xsd:documentation>Schema - Common</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Access Overgrown"/>
    <xsd:enumeration value="Can't Locate Meter"/>
    <xsd:enumeration value="Damaged Meter"/>
    <xsd:enumeration value="Dial Out of Alignment"/>
    <xsd:enumeration value="Dirty Dial"/>
    <xsd:enumeration value="Gate Locked"/>
    <xsd:enumeration value="Key Required"/>
    <xsd:enumeration value="Locked and No Answer"/>
    <xsd:enumeration value="Meter Changed"/>
    <xsd:enumeration value="Meter Obstructed"/>
    <xsd:enumeration value="Meter Removed"/>
    <xsd:enumeration value="Other"/>
    <xsd:enumeration value="Refused Access"/>
    <xsd:enumeration value="Savage Dog"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasMeterFixCertification
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r259.tmp#id1773 asexml_r259.tmp#id1776
Used by
Model SimpleMeter | ComplexMeter
Children ComplexMeter, SimpleMeter
Source

<xsd:complexType name="GasMeterFixCertification">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:choice>
    <xsd:element name="SimpleMeter">
      <xsd:complexType>
        <xsd:sequence>
          <xsd:element name="COCNumber">
            <xsd:simpleType>
              <xsd:restriction base="xsd:string">
                <xsd:maxLength value="7"/>
              </xsd:restriction>
            </xsd:simpleType>
          </xsd:element>
          <xsd:element name="PlumberLicenceNumber">
            <xsd:simpleType>
              <xsd:restriction base="xsd:string">
                <xsd:maxLength value="30"/>
              </xsd:restriction>
            </xsd:simpleType>
          </xsd:element>
        </xsd:sequence>
      </xsd:complexType>
    </xsd:element>
    <xsd:element name="ComplexMeter">
      <xsd:complexType>
        <xsd:sequence>
          <xsd:element name="StartWorkNoticeNumber">
            <xsd:simpleType>
              <xsd:restriction base="xsd:string">
                <xsd:maxLength value="6"/>
              </xsd:restriction>
            </xsd:simpleType>
          </xsd:element>
        </xsd:sequence>
      </xsd:complexType>
    </xsd:element>
  </xsd:choice>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasMeterFix
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r259.tmp#id1779
Used by
Model Certification
Children Certification
Source

<xsd:complexType name="GasMeterFix">
  <xsd:sequence>
    <xsd:element name="Certification" type="GasMeterFixCertification"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasNewConnection
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r259.tmp#id1781
Used by
Model CustomerCharacterisation
Children CustomerCharacterisation
Source

<xsd:complexType name="GasNewConnection">
  <xsd:sequence>
    <xsd:element name="CustomerCharacterisation" type="CustomerCharacterisation"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type LoadDetails
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r259.tmp#id1783 asexml_r259.tmp#id1784
Used by
Model PerHour , PerAnnum{0,1}
Children PerAnnum, PerHour
Source

<xsd:complexType name="LoadDetails">
  <xsd:sequence>
    <xsd:element name="PerHour" type="LoadDetailsPerHour"/>
    <xsd:element name="PerAnnum" type="LoadDetailsPerAnnum" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasSpecialReadNoAccess
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r259.tmp#id1786 asexml_r259.tmp#id1787
Used by
Model ReasonForNoAccess , NextAvailableReadDate
Children NextAvailableReadDate, ReasonForNoAccess
Source

<xsd:complexType name="GasSpecialReadNoAccess">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ReasonForNoAccess" type="ReasonForNoAccess"/>
    <xsd:element name="NextAvailableReadDate" type="xsd:date"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasServiceDetails
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r259.tmp#id1789 asexml_r259.tmp#id1790 asexml_r259.tmp#id1791 asexml_r259.tmp#id1792
Used by
Model LoadDetails , MeterInletPressure{0,1} , (MeterFix | NewConnection)
Children LoadDetails, MeterFix, MeterInletPressure, NewConnection
Source

<xsd:complexType name="GasServiceDetails">
  <xsd:sequence>
    <xsd:element name="LoadDetails" type="LoadDetails"/>
    <xsd:element name="MeterInletPressure" default="1.1" minOccurs="0">
      <xsd:simpleType>
        <xsd:restriction base="xsd:decimal">
          <xsd:totalDigits value="6"/>
          <xsd:fractionDigits value="2"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:element>
    <xsd:choice minOccurs="0">
      <xsd:element name="MeterFix" type="GasMeterFix"/>
      <xsd:element name="NewConnection" type="GasNewConnection"/>
    </xsd:choice>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type ServiceOrderGasJobCompletionCodes
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r259.tmp#id1794 asexml_r259.tmp#id1795 asexml_r259.tmp#id1796
Used by
Model JobCompletionCode1 , JobCompletionCode2 , JobCompletionCode3{0,1}
Children JobCompletionCode1, JobCompletionCode2, JobCompletionCode3
Source

<xsd:complexType name="ServiceOrderGasJobCompletionCodes">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="JobCompletionCode1" type="GasJobCompletionCode1"/>
    <xsd:element name="JobCompletionCode2" type="GasJobCompletionCode2"/>
    <xsd:element name="JobCompletionCode3" type="GasJobCompletionCode3" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type ServiceOrderGasNoAccessData
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r259.tmp#id1798 asexml_r259.tmp#id1799
Used by
Model SpecialReadNoAccess | DateOfAttemptedAccess
Children DateOfAttemptedAccess, SpecialReadNoAccess
Source

<xsd:complexType name="ServiceOrderGasNoAccessData">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:choice>
    <xsd:element name="SpecialReadNoAccess" type="GasSpecialReadNoAccess"/>
    <xsd:element name="DateOfAttemptedAccess" type="xsd:date"/>
  </xsd:choice>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type ServiceOrderGasMeterData
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r259.tmp#id1801 asexml_r259.tmp#id1802 asexml_r259.tmp#id1803
Used by
Model (New{0,1} , Removed{0,1}) | Current
Children Current, New, Removed
Source

<xsd:complexType name="ServiceOrderGasMeterData">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:choice>
    <xsd:sequence>
      <xsd:element name="New" type="GasMeterStandingData" minOccurs="0"/>
      <xsd:element name="Removed" type="GasMeterStandingData" minOccurs="0"/>
    </xsd:sequence>
    <xsd:element name="Current" type="GasMeterStandingData"/>
  </xsd:choice>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasServiceOrderType
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r2517.tmp#id362 asexml_r259.tmp#id1808 asexml_r259.tmp#id1805 asexml_r259.tmp#id1806 asexml_r259.tmp#id1807
Type extension of ServiceOrderTypeBase
Type hierarchy
Model JobEnquiryCode | (SpecialReadReasonCode , MeterSerialNumber{0,1})
Children JobEnquiryCode, MeterSerialNumber, SpecialReadReasonCode
Attributes
QName Type Fixed Default Use Annotation
version r13 required
Source

<xsd:complexType name="GasServiceOrderType">
  <xsd:complexContent>
    <xsd:extension base="ServiceOrderTypeBase">
      <xsd:choice>
        <xsd:element name="JobEnquiryCode" type="JobEnquiryCode"/>
        <xsd:sequence>
          <xsd:element name="SpecialReadReasonCode" type="SpecialReadReasonCode"/>
          <xsd:element name="MeterSerialNumber" type="MeterSerialNumber" minOccurs="0"/>
        </xsd:sequence>
      </xsd:choice>
      <xsd:attribute name="version" type="r13" use="required"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasServiceOrderDetails
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r2517.tmp#id424 asexml_r2517.tmp#id428 asexml_r2517.tmp#id423 asexml_r259.tmp#id1813 asexml_r259.tmp#id1810 asexml_r259.tmp#id1811 asexml_r259.tmp#id1812
Type extension of ServiceOrderRequestData
Type hierarchy
Model SpecialInstructions{0,1} , NMIStandingData{0,1} , ServiceDetails{0,1} , DateTimeCSRAccessedRecord , DateTimeCSRProcessedTransaction
Children DateTimeCSRAccessedRecord, DateTimeCSRProcessedTransaction, NMIStandingData, ServiceDetails, SpecialInstructions
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:complexType name="GasServiceOrderDetails">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="ServiceOrderRequestData">
      <xsd:sequence>
        <xsd:element name="ServiceDetails" type="GasServiceDetails" minOccurs="0"/>
        <xsd:element name="DateTimeCSRAccessedRecord" type="xsd:dateTime"/>
        <xsd:element name="DateTimeCSRProcessedTransaction" type="xsd:dateTime"/>
      </xsd:sequence>
      <xsd:attribute name="version" type="r9" use="required"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasServiceOrderNotificationData
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r2517.tmp#id439 asexml_r2517.tmp#id440 asexml_r2517.tmp#id438 asexml_r259.tmp#id1822 asexml_r259.tmp#id1815 asexml_r259.tmp#id1820 asexml_r259.tmp#id1821
Type extension of ServiceOrderNotificationData
Type hierarchy
Model SpecialNotes{0,1} , NMIStandingData{0,1} , (ServiceOrderCompletion | NoAccess) , JobCompletionCodes{0,1}
Children JobCompletionCodes, NMIStandingData, NoAccess, ServiceOrderCompletion, SpecialNotes
Attributes
QName Type Fixed Default Use Annotation
version r13 required
Source

<xsd:complexType name="GasServiceOrderNotificationData">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="ServiceOrderNotificationData">
      <xsd:sequence>
        <xsd:choice>
          <xsd:element name="ServiceOrderCompletion" type="ServiceOrderGasCompletionData"/>
          <xsd:element name="NoAccess" type="ServiceOrderGasNoAccessData"/>
        </xsd:choice>
        <xsd:sequence>
          <xsd:element name="JobCompletionCodes" type="ServiceOrderGasJobCompletionCodes" minOccurs="0"/>
        </xsd:sequence>
      </xsd:sequence>
      <xsd:attribute name="version" type="r13" use="required"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type ServiceOrderGasCompletionData
Namespace urn:aseXML:r25
Annotations

Schema - Gas
Diagram
Diagram asexml_r259.tmp#id1817 asexml_r259.tmp#id1818 asexml_r259.tmp#id1819
Used by
Model DateServiceOrderCompleted , TimeServiceOrderCompleted{0,1} , MeterData{0,1}
Children DateServiceOrderCompleted, MeterData, TimeServiceOrderCompleted
Source

<xsd:complexType name="ServiceOrderGasCompletionData">
  <xsd:annotation>
    <xsd:documentation>Schema - Gas</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="DateServiceOrderCompleted" type="xsd:date"/>
    <xsd:element name="TimeServiceOrderCompleted" type="xsd:time" minOccurs="0"/>
    <xsd:element name="MeterData" type="ServiceOrderGasMeterData" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasStandingDataUpdate
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r250.tmp#id227 asexml_r250.tmp#id222 asexml_r250.tmp#id221 asexml_r259.tmp#id866 asexml_r259.tmp#id798 asexml_r259.tmp#id822 asexml_r259.tmp#id825 asexml_r259.tmp#id864 asexml_r259.tmp#id865 asexml_r259.tmp#id797 asexml_r259.tmp#id1824 asexml_r259.tmp#id1825 asexml_r259.tmp#id1826
Type extension of GasStandingData
Type hierarchy
Model NMI{0,1} , MasterData{0,1} , RoleAssignments{0,1} , MeterData{0,1} , SiteData{0,1} , AdditionalDataToFollow{0,1} , LastModifiedDateTime , LastModifiedBy{0,1} , DataChangeReasonCode{0,1}
Children AdditionalDataToFollow, DataChangeReasonCode, LastModifiedBy, LastModifiedDateTime, MasterData, MeterData, NMI, RoleAssignments, SiteData
Attributes
QName Type Fixed Default Use Annotation
effectiveDateTime xsd:dateTime optional
version r19 required
Source

<xsd:complexType name="GasStandingDataUpdate">
  <xsd:complexContent>
    <xsd:extension base="GasStandingData">
      <xsd:sequence>
        <xsd:element name="LastModifiedDateTime" type="xsd:dateTime"/>
        <xsd:element name="LastModifiedBy" type="PartyIdentifier" minOccurs="0"/>
        <xsd:element name="DataChangeReasonCode" minOccurs="0">
          <xsd:complexType>
            <xsd:simpleContent>
              <xsd:extension base="DataChangeReasonCode">
                <xsd:attribute name="description" type="xsd:string"/>
              </xsd:extension>
            </xsd:simpleContent>
          </xsd:complexType>
        </xsd:element>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasMeterVerifyRequestData
Namespace urn:aseXML:r25
Annotations

Schema - MeterDataManagement
Diagram
Diagram asexml_r250.tmp#id756 asexml_r250.tmp#id755 asexml_r259.tmp#id1834 asexml_r259.tmp#id1829 asexml_r259.tmp#id1830 asexml_r259.tmp#id1831 asexml_r259.tmp#id1832 asexml_r259.tmp#id1833
Type extension of NMITransactionBase
Type hierarchy
Model NMI{0,1} , InitiatorReferenceNumber , CurrentRead , ProposedRead{0,1} , InvestigationCode , InvestigationDescription{0,1}
Children CurrentRead, InitiatorReferenceNumber, InvestigationCode, InvestigationDescription, NMI, ProposedRead
Attributes
QName Type Fixed Default Use Annotation
version r17 required
Source

<xsd:complexType name="GasMeterVerifyRequestData">
  <xsd:annotation>
    <xsd:documentation>Schema - MeterDataManagement</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="NMITransactionBase">
      <xsd:sequence>
        <xsd:element name="InitiatorReferenceNumber" type="UniqueIdentifier"/>
        <xsd:element name="CurrentRead" type="GasMeterReadData"/>
        <xsd:element name="ProposedRead" type="GasMeterReadData" minOccurs="0"/>
        <xsd:element name="InvestigationCode" type="IndexInvestigationCode"/>
        <xsd:element name="InvestigationDescription" minOccurs="0">
          <xsd:simpleType>
            <xsd:restriction base="xsd:string">
              <xsd:maxLength value="100"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:element>
      </xsd:sequence>
      <xsd:attribute name="version" type="r17" use="required"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasMeterVerifyResponseData
Namespace urn:aseXML:r25
Annotations

Schema - MeterDataManagement
Diagram
Diagram asexml_r250.tmp#id756 asexml_r250.tmp#id755 asexml_r259.tmp#id1840 asexml_r259.tmp#id1836 asexml_r259.tmp#id1837 asexml_r259.tmp#id1838 asexml_r259.tmp#id1839
Type extension of NMITransactionBase
Type hierarchy
Model NMI{0,1} , InitiatorReferenceNumber , RevisedRead , AdjustmentReasonCode , Event*
Children AdjustmentReasonCode, Event, InitiatorReferenceNumber, NMI, RevisedRead
Attributes
QName Type Fixed Default Use Annotation
version r13 required
Source

<xsd:complexType name="GasMeterVerifyResponseData">
  <xsd:annotation>
    <xsd:documentation>Schema - MeterDataManagement</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="NMITransactionBase">
      <xsd:sequence>
        <xsd:element name="InitiatorReferenceNumber" type="UniqueIdentifier"/>
        <xsd:element name="RevisedRead" type="GasMeterReadData"/>
        <xsd:element name="AdjustmentReasonCode" type="IndexAdjustmentReasonCode"/>
        <xsd:element name="Event" type="Event" minOccurs="0" maxOccurs="unbounded"/>
      </xsd:sequence>
      <xsd:attribute name="version" type="r13" use="required"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Complex Type GasSingleHistoryRequestData
Namespace urn:aseXML:r25
Annotations

Schema - MeterDataManagement

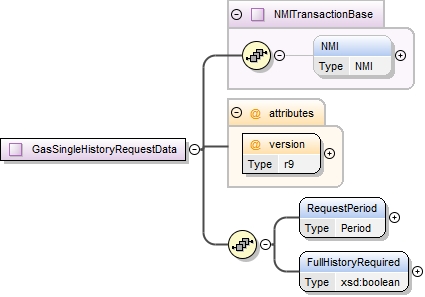

Diagram
Diagram asexml_r250.tmp#id756 asexml_r250.tmp#id755 asexml_r259.tmp#id1844 asexml_r259.tmp#id1842 asexml_r259.tmp#id1843
Type extension of NMITransactionBase
Type hierarchy
Model NMI{0,1} , RequestPeriod , FullHistoryRequired
Children FullHistoryRequired, NMI, RequestPeriod
Attributes
QName Type Fixed Default Use Annotation
version r9 required
Source

<xsd:complexType name="GasSingleHistoryRequestData">
  <xsd:annotation>
    <xsd:documentation>Schema - MeterDataManagement</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="NMITransactionBase">
      <xsd:sequence>
        <xsd:element name="RequestPeriod" type="Period"/>
        <xsd:element name="FullHistoryRequired" type="xsd:boolean"/>
      </xsd:sequence>
      <xsd:attribute name="version" type="r9" use="required"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Attribute GasStandingData/@version
Namespace No namespace
Type r19
Type hierarchy
Properties
use: required
Facets
enumeration r19
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Complex Type GasStandingData
Source

<xsd:attribute name="version" type="r19" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Attribute GasMeterNotification/@version
Namespace No namespace
Type r9
Type hierarchy
Properties
use: required
Facets
enumeration r9
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Complex Type GasMeterNotification
Source

<xsd:attribute name="version" type="r9" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Attribute MeteredSupplyPointsCountUpdate/@version
Namespace No namespace
Type r9
Type hierarchy
Properties
use: required
Facets
enumeration r9
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r9" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Attribute GasServiceOrderType/@version
Namespace No namespace
Type r13
Type hierarchy
Properties
use: required
Facets
enumeration r13
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Complex Type GasServiceOrderType
Source

<xsd:attribute name="version" type="r13" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Attribute GasServiceOrderDetails/@version
Namespace No namespace
Type r9
Type hierarchy
Properties
use: required
Facets
enumeration r9
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Complex Type GasServiceOrderDetails
Source

<xsd:attribute name="version" type="r9" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Attribute GasServiceOrderNotificationData/@version
Namespace No namespace
Type r13
Type hierarchy
Properties
use: required
Facets
enumeration r13
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r13" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Attribute DataChangeReasonCode/GasStandingDataUpdate/@description
Namespace No namespace
Type xsd:string
Properties
content: simple
Used by
Source

<xsd:attribute name="description" type="xsd:string"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Attribute GasMeterVerifyRequestData/@version
Namespace No namespace
Type r17
Type hierarchy
Properties
use: required
Facets
enumeration r17
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r17" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Attribute GasMeterVerifyResponseData/@version
Namespace No namespace
Type r13
Type hierarchy
Properties
use: required
Facets
enumeration r13
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r13" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
Attribute GasSingleHistoryRequestData/@version
Namespace No namespace
Type r9
Type hierarchy
Properties
use: required
Facets
enumeration r9
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r9" use="required"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Gas_r19.xsd
XML Schema documentation generated by ® XML Editor.
