Included schema ElectricityMasterStandingData.xsd
Namespace urn:aseXML:r25
Annotations
This schema file is part of the aseXML schema set, and is subject to the terms and conditions that are detailed in the aseXML_r*.xsd schema file with which this file is used
File version 1.0
ElectricityMasterStandingData file containing the electricity master standing data that can be added to at short notice and can be released outside of the standard aseXML change cycle.

Guidelines for use of this file:
- Only additions of the Electricity Master Standing Data are allowed outside of the standard aseXML Change Process cycle
- Deletions and modifications should be discouraged, but, if necessary, must be made through the standard aseXML Change Process
Properties
attribute form default: unqualified
element form default: unqualified
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/JurisdictionCode
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id162
Type JurisdictionCode
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 3
Source
<xsd:element name="JurisdictionCode" type="JurisdictionCode" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/NMIClassificationCode
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id312
Type NMIClassificationCode
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 8
Source
<xsd:element name="NMIClassificationCode" type="NMIClassificationCode" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/TransmissionNodeIdentifier
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1560
Type TransmissionNodeIdentifier
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 4
Source
<xsd:element name="TransmissionNodeIdentifier" type="TransmissionNodeIdentifier" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/DistributionLossFactorCode
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1562
Type DistributionLossFactorCode
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 4
Source
<xsd:element name="DistributionLossFactorCode" type="DistributionLossFactorCode" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/ParentEmbeddedNetworkIdentifier
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1565
Type EmbeddedNetworkIdentifier
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 10
Source
<xsd:element name="ParentEmbeddedNetworkIdentifier" type="EmbeddedNetworkIdentifier" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/ChildEmbeddedNetworkIdentifier
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1565
Type EmbeddedNetworkIdentifier
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 10
Source
<xsd:element name="ChildEmbeddedNetworkIdentifier" type="EmbeddedNetworkIdentifier" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/Address
Namespace No namespace
Diagram

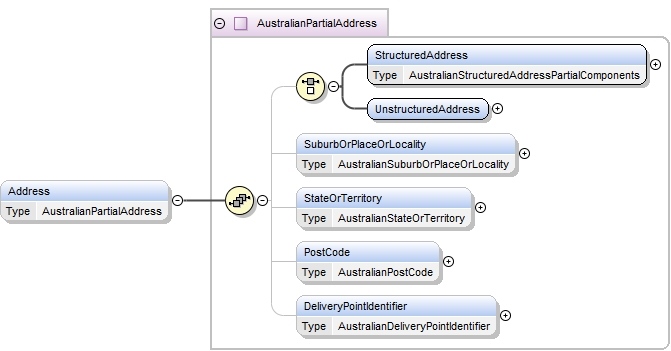

Diagram asexml_r252.tmp#id1367 asexml_r252.tmp#id1368 asexml_r252.tmp#id1370 asexml_r252.tmp#id1371 asexml_r252.tmp#id1372 asexml_r252.tmp#id1373 asexml_r252.tmp#id1366
Type AustralianPartialAddress
Properties
content: complex
minOccurs: 0
nillable: true
Model (StructuredAddress | UnstructuredAddress) , SuburbOrPlaceOrLocality{0,1} , StateOrTerritory{0,1} , PostCode{0,1} , DeliveryPointIdentifier{0,1}
Children DeliveryPointIdentifier, PostCode, StateOrTerritory, StructuredAddress, SuburbOrPlaceOrLocality, UnstructuredAddress
Instance
<Address>
  <StructuredAddress>{1,1}</StructuredAddress>
  <UnstructuredAddress>{1,1}</UnstructuredAddress>
  <SuburbOrPlaceOrLocality>{0,1}</SuburbOrPlaceOrLocality>
  <StateOrTerritory>{0,1}</StateOrTerritory>
  <PostCode>{0,1}</PostCode>
  <DeliveryPointIdentifier>{0,1}</DeliveryPointIdentifier>
</Address>
Source
<xsd:element name="Address" type="AustralianPartialAddress" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/Aggregate
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id1322
Type YesNo
Properties
content: simple
minOccurs: 0
nillable: true
Facets
enumeration Yes, No
Source
<xsd:element name="Aggregate" type="YesNo" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/Status
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id314
Type NMIStatusCode
Properties
content: simple
minOccurs: 0
nillable: true
Facets
length 1
Source
<xsd:element name="Status" type="NMIStatusCode" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/DistanceFromSubstation
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1572
Type DistanceFromSubstation
Properties
content: simple
minOccurs: 0
nillable: true
Facets
totalDigits 7
fractionDigits 3
maxInclusive 9999.999
Source
<xsd:element name="DistanceFromSubstation" type="DistanceFromSubstation" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/VoltageType
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1573
Type VoltageType
Properties
content: simple
minOccurs: 0
nillable: true
Facets
whiteSpace collapse
minLength 1
maxLength 10
Source
<xsd:element name="VoltageType" type="VoltageType" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/PoleNumber
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1574
Type PoleNumber
Properties
content: simple
minOccurs: 0
nillable: true
Facets
whiteSpace collapse
minLength 1
maxLength 40
Source
<xsd:element name="PoleNumber" type="PoleNumber" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/AccessDetails
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id370
Type AccessDetail
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 160
Source
<xsd:element name="AccessDetails" type="AccessDetail" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityMasterStandingData/FeederClass
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1575
Type FeederClass
Properties
content: simple
minOccurs: 0
nillable: true
Facets
whiteSpace collapse
minLength 1
maxLength 15
Source
<xsd:element name="FeederClass" type="FeederClass" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/JurisdictionCode
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id162
Type JurisdictionCode
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 3
Source
<xsd:element name="JurisdictionCode" type="JurisdictionCode" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/NMIClassificationCode
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id312
Type NMIClassificationCode
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 8
Source
<xsd:element name="NMIClassificationCode" type="NMIClassificationCode" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/TransmissionNodeIdentifier
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1560
Type TransmissionNodeIdentifier
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 4
Source
<xsd:element name="TransmissionNodeIdentifier" type="TransmissionNodeIdentifier" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/DistributionLossFactorCode
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1562
Type DistributionLossFactorCode
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 4
Source
<xsd:element name="DistributionLossFactorCode" type="DistributionLossFactorCode" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/ParentEmbeddedNetworkIdentifier
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1565
Type EmbeddedNetworkIdentifier
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 10
Source
<xsd:element name="ParentEmbeddedNetworkIdentifier" type="EmbeddedNetworkIdentifier" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/ChildEmbeddedNetworkIdentifier
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1565
Type EmbeddedNetworkIdentifier
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 10
Source
<xsd:element name="ChildEmbeddedNetworkIdentifier" type="EmbeddedNetworkIdentifier" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/Address
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id1367 asexml_r252.tmp#id1368 asexml_r252.tmp#id1370 asexml_r252.tmp#id1371 asexml_r252.tmp#id1372 asexml_r252.tmp#id1373 asexml_r252.tmp#id1366
Type AustralianPartialAddress
Properties
content: complex
minOccurs: 0
nillable: true
Model (StructuredAddress | UnstructuredAddress) , SuburbOrPlaceOrLocality{0,1} , StateOrTerritory{0,1} , PostCode{0,1} , DeliveryPointIdentifier{0,1}
Children DeliveryPointIdentifier, PostCode, StateOrTerritory, StructuredAddress, SuburbOrPlaceOrLocality, UnstructuredAddress
Instance
<Address>
  <StructuredAddress>{1,1}</StructuredAddress>
  <UnstructuredAddress>{1,1}</UnstructuredAddress>
  <SuburbOrPlaceOrLocality>{0,1}</SuburbOrPlaceOrLocality>
  <StateOrTerritory>{0,1}</StateOrTerritory>
  <PostCode>{0,1}</PostCode>
  <DeliveryPointIdentifier>{0,1}</DeliveryPointIdentifier>
</Address>
Source
<xsd:element name="Address" type="AustralianPartialAddress" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/Aggregate
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id1322
Type YesNo
Properties
content: simple
minOccurs: 0
nillable: true
Facets
enumeration Yes, No
Source
<xsd:element name="Aggregate" type="YesNo" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/Status
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id314
Type NMIStatusCode
Properties
content: simple
minOccurs: 0
nillable: true
Facets
length 1
Source
<xsd:element name="Status" type="NMIStatusCode" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/FlatOrUnitType
Namespace No namespace
Diagram
Diagram asexml_r2526.tmp#id171
Type AustralianFlatOrUnitType
Properties
content: simple
minOccurs: 0
nillable: true
Facets
enumeration APT, CTGE, DUP, FY, F, HSE, KSK, MSNT, MB, OFF, PTHS, RM, SHED, SHOP, SITE, SL, STU, SE, TNHS, U, VLLA, WARD, WE
Source
<xsd:element name="FlatOrUnitType" type="AustralianFlatOrUnitType" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/FlatOrUnitNumber
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id173
Type AustralianFlatOrUnitNumber
Properties
content: simple
minOccurs: 0
nillable: true
Facets
pattern [\p{L}\p{N}\p{P}\s]{1,7}
Source
<xsd:element name="FlatOrUnitNumber" type="AustralianFlatOrUnitNumber" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/FloorOrLevelType
Namespace No namespace
Diagram
Diagram asexml_r2526.tmp#id176
Type AustralianFloorOrLevelType
Properties
content: simple
minOccurs: 0
nillable: true
Facets
enumeration B, FL, G, L, LG, M, UG
Source
<xsd:element name="FloorOrLevelType" type="AustralianFloorOrLevelType" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/FloorOrLevelNumber
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id178
Type AustralianFloorOrLevelNumber
Properties
content: simple
minOccurs: 0
nillable: true
Facets
pattern [\p{L}\p{N}\p{P}\s]{1,5}
Source
<xsd:element name="FloorOrLevelNumber" type="AustralianFloorOrLevelNumber" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/BuildingOrPropertyName
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id180
Type AustralianBuildingOrPropertyName
Properties
content: simple
minOccurs: 0
nillable: true
Facets
minLength 1
maxLength 30
Source
<xsd:element name="BuildingOrPropertyName" type="AustralianBuildingOrPropertyName" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/BuildingOrPropertyName2
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id180
Type AustralianBuildingOrPropertyName
Properties
content: simple
minOccurs: 0
nillable: true
Facets
minLength 1
maxLength 30
Source
<xsd:element name="BuildingOrPropertyName2" type="AustralianBuildingOrPropertyName" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/LocationDescriptor
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id182
Type AustralianLocationDescriptor
Properties
content: simple
minOccurs: 0
nillable: true
Facets
pattern [\p{L}\p{N}\p{P}\s]{1,30}
Source
<xsd:element name="LocationDescriptor" type="AustralianLocationDescriptor" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/HouseNumber
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id185
Type AustralianHouseNumber
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxInclusive 99999
Source
<xsd:element name="HouseNumber" type="AustralianHouseNumber" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/HouseNumberSuffix
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id187
Type AustralianHouseNumberSuffix
Properties
content: simple
minOccurs: 0
nillable: true
Facets
pattern [\p{L}\p{N}]{1}
Source
<xsd:element name="HouseNumberSuffix" type="AustralianHouseNumberSuffix" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/HouseNumber2
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id185
Type AustralianHouseNumber
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxInclusive 99999
Source
<xsd:element name="HouseNumber2" type="AustralianHouseNumber" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/HouseNumber2Suffix
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id187
Type AustralianHouseNumberSuffix
Properties
content: simple
minOccurs: 0
nillable: true
Facets
pattern [\p{L}\p{N}]{1}
Source
<xsd:element name="HouseNumber2Suffix" type="AustralianHouseNumberSuffix" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/LotNumber
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id190
Type AustralianLotNumber
Properties
content: simple
minOccurs: 0
nillable: true
Facets
pattern [\p{L}\p{N}\p{P}\s]{1,6}
Source
<xsd:element name="LotNumber" type="AustralianLotNumber" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/StreetName
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id193
Type AustralianStreetName
Properties
content: simple
minOccurs: 0
nillable: true
Facets
pattern [\p{L}\p{N}\s\-']{1,30}
Source
<xsd:element name="StreetName" type="AustralianStreetName" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/StreetType
Namespace No namespace
Diagram
Diagram asexml_r2526.tmp#id195
Type AustralianStreetType
Properties
content: simple
minOccurs: 0
nillable: true
Facets
enumeration ACCS, ALLY, ALWY, AMBL, ANCG, APP, ARC, ART, AVE, BASN, BCH, BEND, BLK, BVD, BOWL, BRCE, BRAE, BRK, BDGE, BDWY, BROW, BYPA, BYWY, CAUS, CRSE, CTR, CNWY, CH, CIR, CLT, CCT, CRCS, CL, CLDE, CMMN, CON, CPS, CNR, CSO, CT, CTYD, COVE, CRES, CRST, CRSS, CRSG, CRD, COWY, CUWY, CDS, CTTG, DALE, DELL, DEVN, DIP, DSTR, DR, DRWY, EDGE, ELB, END, ENT, ESP, EST, EXP, EXTN, FAWY, FTRK, FITR, FLAT, FOLW, FTWY, FSHR, FORM, FWY, FRNT, FRTG, GAP, GDN, GDNS, GTE, GTES, GTWY, GLD, GLEN, GRA, GRN, GRND, GR, GLY, HETH, HTS, HRD, HUB, HWY, HILL, INTG, INTN, ISLD, JNC, KEY, LDG, LANE, LNWY, LEES, LINE, LINK, LT, LKT, LOOP, LWR, MALL, MNDR, MEW, MEWS, MWY, MT, NOOK, OTLK, PDE, PARK, PKLD, PKWY, PART, PASS, PATH, PHWY, PIAZ, PL, PLAT, PLZA, PKT, PNT, PORT, PROM, PRST, PSGE, QUAD, QDGL, QDRT, QY, QYS, RMBL, RAMP, RNGE, RCH, RES, REST, RTT, RIDE, RDGE, RGWY, ROWY, RING, RISE, RVR, RVWY, RVRA, RD, RDS, RDSD, RDWY, RNDE, RSBL, RTY, RND, RTE, RTRN, ROW, RUE, RUN, SWY, SDNG, SLPE, SND, SPUR, SQ, STRS, SHWY, STPS, STRA, ST, STRP, SBWY, TARN, TCE, THOR, TLWY, TOP, TOR, TWRS, TRK, TRL, TRLR, TRI, TKWY, TURN, UPAS, UPR, VALE, VDCT, VIEW, VLL, VLLS, VSTA, WADE, WALK, WKWY, WAY, WHRF, WOOD, WTRS, WYND, YARD
Source
<xsd:element name="StreetType" type="AustralianStreetType" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/StreetSuffix
Namespace No namespace
Diagram
Diagram asexml_r2526.tmp#id197
Type AustralianStreetSuffix
Properties
content: simple
minOccurs: 0
nillable: true
Facets
enumeration CN, E, EX, LR, N, NE, NW, S, SE, SW, UP, W
Source
<xsd:element name="StreetSuffix" type="AustralianStreetSuffix" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/AddressLine1
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id347
Type AustralianAddressLine
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 80
Source
<xsd:element name="AddressLine1" type="AustralianAddressLine" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/AddressLine2
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id347
Type AustralianAddressLine
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 80
Source
<xsd:element name="AddressLine2" type="AustralianAddressLine" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/AddressLine3
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id347
Type AustralianAddressLine
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 80
Source
<xsd:element name="AddressLine3" type="AustralianAddressLine" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/SuburbOrPlaceOrLocality
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id209
Type AustralianSuburbOrPlaceOrLocality
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 46
Source
<xsd:element name="SuburbOrPlaceOrLocality" type="AustralianSuburbOrPlaceOrLocality" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/StateOrTerritory
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id211
Type AustralianStateOrTerritory
Properties
content: simple
minOccurs: 0
nillable: true
Facets
enumeration AAT, ACT, NSW, NT, QLD, SA, TAS, VIC, WA
Source
<xsd:element name="StateOrTerritory" type="AustralianStateOrTerritory" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/PostCode
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id213
Type AustralianPostCode
Properties
content: simple
minOccurs: 0
nillable: true
Facets
pattern [\p{N}]{4}
Source
<xsd:element name="PostCode" type="AustralianPostCode" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/DeliveryPointIdentifier
Namespace No namespace
Diagram
Diagram asexml_r252.tmp#id164
Type AustralianDeliveryPointIdentifier
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxInclusive 99999999
minInclusive 10000000
Source
<xsd:element name="DeliveryPointIdentifier" type="AustralianDeliveryPointIdentifier" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/DistanceFromSubstation
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1572
Type DistanceFromSubstation
Properties
content: simple
minOccurs: 0
nillable: true
Facets
totalDigits 7
fractionDigits 3
maxInclusive 9999.999
Source
<xsd:element name="DistanceFromSubstation" type="DistanceFromSubstation" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/VoltageType
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1573
Type VoltageType
Properties
content: simple
minOccurs: 0
nillable: true
Facets
whiteSpace collapse
minLength 1
maxLength 10
Source
<xsd:element name="VoltageType" type="VoltageType" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/PoleNumber
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1574
Type PoleNumber
Properties
content: simple
minOccurs: 0
nillable: true
Facets
whiteSpace collapse
minLength 1
maxLength 40
Source
<xsd:element name="PoleNumber" type="PoleNumber" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/AccessDetails
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id370
Type AccessDetail
Properties
content: simple
minOccurs: 0
nillable: true
Facets
maxLength 160
Source
<xsd:element name="AccessDetails" type="AccessDetail" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element ElectricityNMIMasterGroup/FeederClass
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1575
Type FeederClass
Properties
content: simple
minOccurs: 0
nillable: true
Facets
whiteSpace collapse
minLength 1
maxLength 15
Source
<xsd:element name="FeederClass" type="FeederClass" nillable="true" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd

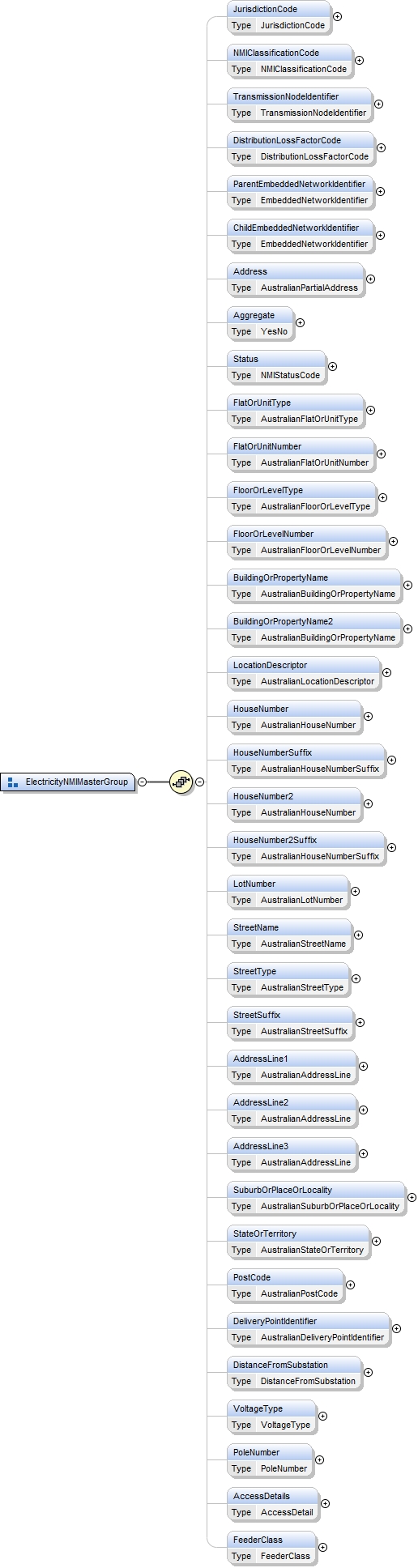

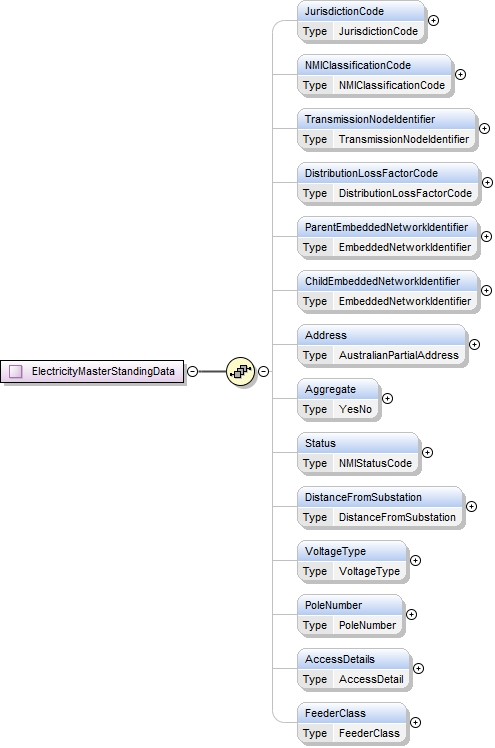

Complex Type ElectricityMasterStandingData
Namespace urn:aseXML:r25
Annotations
Purpose - container for non-repeating standing data associated with an electricity NMI
Diagram
Diagram asexml_r2531.tmp#id1694 asexml_r2531.tmp#id1695 asexml_r2531.tmp#id1696 asexml_r2531.tmp#id1697 asexml_r2531.tmp#id1698 asexml_r2531.tmp#id1699 asexml_r2531.tmp#id1700 asexml_r2531.tmp#id1701 asexml_r2531.tmp#id1702 asexml_r2531.tmp#id1703 asexml_r2531.tmp#id1704 asexml_r2531.tmp#id1705 asexml_r2531.tmp#id1706 asexml_r2531.tmp#id1707
Used by
Model JurisdictionCode{0,1} , NMIClassificationCode{0,1} , TransmissionNodeIdentifier{0,1} , DistributionLossFactorCode{0,1} , ParentEmbeddedNetworkIdentifier{0,1} , ChildEmbeddedNetworkIdentifier{0,1} , Address{0,1} , Aggregate{0,1} , Status{0,1} , DistanceFromSubstation{0,1} , VoltageType{0,1} , PoleNumber{0,1} , AccessDetails{0,1} , FeederClass{0,1}
Children AccessDetails, Address, Aggregate, ChildEmbeddedNetworkIdentifier, DistanceFromSubstation, DistributionLossFactorCode, FeederClass, JurisdictionCode, NMIClassificationCode, ParentEmbeddedNetworkIdentifier, PoleNumber, Status, TransmissionNodeIdentifier, VoltageType
Source
<xsd:complexType name="ElectricityMasterStandingData">
  <xsd:annotation>
    <xsd:documentation>Purpose - container for non-repeating standing data associated with an electricity NMI</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="JurisdictionCode" type="JurisdictionCode" nillable="true" minOccurs="0"/>
    <xsd:element name="NMIClassificationCode" type="NMIClassificationCode" nillable="true" minOccurs="0"/>
    <xsd:element name="TransmissionNodeIdentifier" type="TransmissionNodeIdentifier" nillable="true" minOccurs="0"/>
    <xsd:element name="DistributionLossFactorCode" type="DistributionLossFactorCode" nillable="true" minOccurs="0"/>
    <xsd:element name="ParentEmbeddedNetworkIdentifier" type="EmbeddedNetworkIdentifier" nillable="true" minOccurs="0"/>
    <xsd:element name="ChildEmbeddedNetworkIdentifier" type="EmbeddedNetworkIdentifier" nillable="true" minOccurs="0"/>
    <xsd:element name="Address" type="AustralianPartialAddress" nillable="true" minOccurs="0"/>
    <xsd:element name="Aggregate" type="YesNo" nillable="true" minOccurs="0"/>
    <xsd:element name="Status" type="NMIStatusCode" nillable="true" minOccurs="0"/>
    <xsd:element name="DistanceFromSubstation" type="DistanceFromSubstation" nillable="true" minOccurs="0"/>
    <xsd:element name="VoltageType" type="VoltageType" nillable="true" minOccurs="0"/>
    <xsd:element name="PoleNumber" type="PoleNumber" nillable="true" minOccurs="0"/>
    <xsd:element name="AccessDetails" type="AccessDetail" nillable="true" minOccurs="0"/>
    <xsd:element name="FeederClass" type="FeederClass" nillable="true" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
Element Group ElectricityNMIMasterGroup
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r2531.tmp#id1727 asexml_r2531.tmp#id1728 asexml_r2531.tmp#id1729 asexml_r2531.tmp#id1730 asexml_r2531.tmp#id1731 asexml_r2531.tmp#id1732 asexml_r2531.tmp#id1733 asexml_r2531.tmp#id1734 asexml_r2531.tmp#id1735 asexml_r2531.tmp#id1736 asexml_r2531.tmp#id1737 asexml_r2531.tmp#id1738 asexml_r2531.tmp#id1739 asexml_r2531.tmp#id1740 asexml_r2531.tmp#id1741 asexml_r2531.tmp#id1742 asexml_r2531.tmp#id1743 asexml_r2531.tmp#id1744 asexml_r2531.tmp#id1745 asexml_r2531.tmp#id1746 asexml_r2531.tmp#id1747 asexml_r2531.tmp#id1748 asexml_r2531.tmp#id1749 asexml_r2531.tmp#id1750 asexml_r2531.tmp#id1751 asexml_r2531.tmp#id1752 asexml_r2531.tmp#id1753 asexml_r2531.tmp#id1754 asexml_r2531.tmp#id1755 asexml_r2531.tmp#id1756 asexml_r2531.tmp#id1757 asexml_r2531.tmp#id1758 asexml_r2531.tmp#id1759 asexml_r2531.tmp#id1760 asexml_r2531.tmp#id1761 asexml_r2531.tmp#id1762
Used by
Model JurisdictionCode{0,1} , NMIClassificationCode{0,1} , TransmissionNodeIdentifier{0,1} , DistributionLossFactorCode{0,1} , ParentEmbeddedNetworkIdentifier{0,1} , ChildEmbeddedNetworkIdentifier{0,1} , Address{0,1} , Aggregate{0,1} , Status{0,1} , FlatOrUnitType{0,1} , FlatOrUnitNumber{0,1} , FloorOrLevelType{0,1} , FloorOrLevelNumber{0,1} , BuildingOrPropertyName{0,1} , BuildingOrPropertyName2{0,1} , LocationDescriptor{0,1} , HouseNumber{0,1} , HouseNumberSuffix{0,1} , HouseNumber2{0,1} , HouseNumber2Suffix{0,1} , LotNumber{0,1} , StreetName{0,1} , StreetType{0,1} , StreetSuffix{0,1} , AddressLine1{0,1} , AddressLine2{0,1} , AddressLine3{0,1} , SuburbOrPlaceOrLocality{0,1} , StateOrTerritory{0,1} , PostCode{0,1} , DeliveryPointIdentifier{0,1} , DistanceFromSubstation{0,1} , VoltageType{0,1} , PoleNumber{0,1} , AccessDetails{0,1} , FeederClass{0,1}
Children AccessDetails, Address, AddressLine1, AddressLine2, AddressLine3, Aggregate, BuildingOrPropertyName, BuildingOrPropertyName2, ChildEmbeddedNetworkIdentifier, DeliveryPointIdentifier, DistanceFromSubstation, DistributionLossFactorCode, FeederClass, FlatOrUnitNumber, FlatOrUnitType, FloorOrLevelNumber, FloorOrLevelType, HouseNumber, HouseNumber2, HouseNumber2Suffix, HouseNumberSuffix, JurisdictionCode, LocationDescriptor, LotNumber, NMIClassificationCode, ParentEmbeddedNetworkIdentifier, PoleNumber, PostCode, StateOrTerritory, Status, StreetName, StreetSuffix, StreetType, SuburbOrPlaceOrLocality, TransmissionNodeIdentifier, VoltageType
Source
<xsd:group name="ElectricityNMIMasterGroup">
  <xsd:annotation>
    <xsd:documentation>Purpose - Common NMI Master elements across Standing Data and Change Requests</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="JurisdictionCode" type="JurisdictionCode" nillable="true" minOccurs="0"/>
    <xsd:element name="NMIClassificationCode" type="NMIClassificationCode" nillable="true" minOccurs="0"/>
    <xsd:element name="TransmissionNodeIdentifier" type="TransmissionNodeIdentifier" nillable="true" minOccurs="0"/>
    <xsd:element name="DistributionLossFactorCode" type="DistributionLossFactorCode" nillable="true" minOccurs="0"/>
    <xsd:element name="ParentEmbeddedNetworkIdentifier" type="EmbeddedNetworkIdentifier" nillable="true" minOccurs="0"/>
    <xsd:element name="ChildEmbeddedNetworkIdentifier" type="EmbeddedNetworkIdentifier" nillable="true" minOccurs="0"/>
    <xsd:element name="Address" type="AustralianPartialAddress" nillable="true" minOccurs="0"/>
    <xsd:element name="Aggregate" type="YesNo" nillable="true" minOccurs="0"/>
    <xsd:element name="Status" type="NMIStatusCode" nillable="true" minOccurs="0"/>
    <xsd:element name="FlatOrUnitType" type="AustralianFlatOrUnitType" nillable="true" minOccurs="0"/>
    <xsd:element name="FlatOrUnitNumber" type="AustralianFlatOrUnitNumber" nillable="true" minOccurs="0"/>
    <xsd:element name="FloorOrLevelType" type="AustralianFloorOrLevelType" nillable="true" minOccurs="0"/>
    <xsd:element name="FloorOrLevelNumber" type="AustralianFloorOrLevelNumber" nillable="true" minOccurs="0"/>
    <xsd:element name="BuildingOrPropertyName" type="AustralianBuildingOrPropertyName" nillable="true" minOccurs="0"/>
    <xsd:element name="BuildingOrPropertyName2" type="AustralianBuildingOrPropertyName" nillable="true" minOccurs="0"/>
    <xsd:element name="LocationDescriptor" type="AustralianLocationDescriptor" nillable="true" minOccurs="0"/>
    <xsd:element name="HouseNumber" type="AustralianHouseNumber" nillable="true" minOccurs="0"/>
    <xsd:element name="HouseNumberSuffix" type="AustralianHouseNumberSuffix" nillable="true" minOccurs="0"/>
    <xsd:element name="HouseNumber2" type="AustralianHouseNumber" nillable="true" minOccurs="0"/>
    <xsd:element name="HouseNumber2Suffix" type="AustralianHouseNumberSuffix" nillable="true" minOccurs="0"/>
    <xsd:element name="LotNumber" type="AustralianLotNumber" nillable="true" minOccurs="0"/>
    <xsd:element name="StreetName" type="AustralianStreetName" nillable="true" minOccurs="0"/>
    <xsd:element name="StreetType" type="AustralianStreetType" nillable="true" minOccurs="0"/>
    <xsd:element name="StreetSuffix" type="AustralianStreetSuffix" nillable="true" minOccurs="0"/>
    <xsd:element name="AddressLine1" type="AustralianAddressLine" nillable="true" minOccurs="0"/>
    <xsd:element name="AddressLine2" type="AustralianAddressLine" nillable="true" minOccurs="0"/>
    <xsd:element name="AddressLine3" type="AustralianAddressLine" nillable="true" minOccurs="0"/>
    <xsd:element name="SuburbOrPlaceOrLocality" type="AustralianSuburbOrPlaceOrLocality" nillable="true" minOccurs="0"/>
    <xsd:element name="StateOrTerritory" type="AustralianStateOrTerritory" nillable="true" minOccurs="0"/>
    <xsd:element name="PostCode" type="AustralianPostCode" nillable="true" minOccurs="0"/>
    <xsd:element name="DeliveryPointIdentifier" type="AustralianDeliveryPointIdentifier" nillable="true" minOccurs="0"/>
    <xsd:element name="DistanceFromSubstation" type="DistanceFromSubstation" nillable="true" minOccurs="0"/>
    <xsd:element name="VoltageType" type="VoltageType" nillable="true" minOccurs="0"/>
    <xsd:element name="PoleNumber" type="PoleNumber" nillable="true" minOccurs="0"/>
    <xsd:element name="AccessDetails" type="AccessDetail" nillable="true" minOccurs="0"/>
    <xsd:element name="FeederClass" type="FeederClass" nillable="true" minOccurs="0"/>
  </xsd:sequence>
</xsd:group>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/ElectricityMasterStandingData.xsd
