Included schema MDMTReports_r15.xsd
Namespace urn:aseXML:r25
Annotations

This schema file is part of the aseXML schema set, and is subject to the terms and conditions that are detailed in the aseXML_r*.xsd schema file with which this file is used

Purpose - Define the MDMT specific report parameters and formats
Properties
attribute form default: unqualified
element form default: unqualified
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

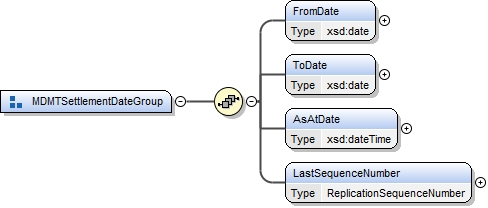

Element MDMTSettlementDateGroup/FromDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="FromDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTSettlementDateGroup/ToDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="ToDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTSettlementDateGroup/AsAtDate
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="AsAtDate" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTSettlementDateGroup/LastSequenceNumber
Namespace No namespace
Diagram
Diagram asexml_r251.tmp#id67
Type ReplicationSequenceNumber
Properties
content: simple
Source

<xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTSettlementCaseGroup/SettlementCase
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2566
Type MDMSettlementCaseIdentifier
Properties
content: simple
Facets
totalDigits 38
Source

<xsd:element name="SettlementCase" type="MDMSettlementCaseIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTSettlementCaseGroup/FromDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="FromDate" type="xsd:date" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTSettlementCaseGroup/ToDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="ToDate" type="xsd:date" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTSettlementCaseGroup/LastSequenceNumber
Namespace No namespace
Diagram
Diagram asexml_r251.tmp#id67
Type ReplicationSequenceNumber
Properties
content: simple
Source

<xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTSettlementCaseDataReportParameters/SettlementCase
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2566
Type MDMSettlementCaseIdentifier
Properties
content: simple
Facets
totalDigits 38
Source

<xsd:element name="SettlementCase" type="MDMSettlementCaseIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

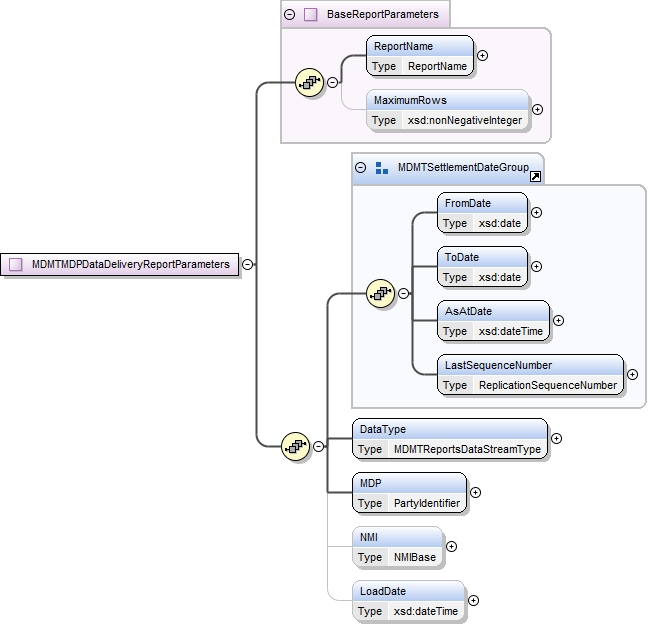

Element MDMTMDPDataDeliveryReportParameters/DataType
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2567
Type MDMTReportsDataStreamType
Type hierarchy
Properties
content: simple
Facets
enumeration Interval, Consumption
Source

<xsd:element name="DataType" type="MDMTReportsDataStreamType"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

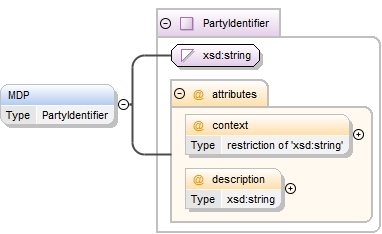

Element MDMTMDPDataDeliveryReportParameters/MDP
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="MDP" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTMDPDataDeliveryReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224
Type NMIBase
Properties
content: simple
minOccurs: 0
Facets
length 10
Source

<xsd:element name="NMI" type="NMIBase" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTMDPDataDeliveryReportParameters/LoadDate
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="LoadDate" type="xsd:dateTime" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

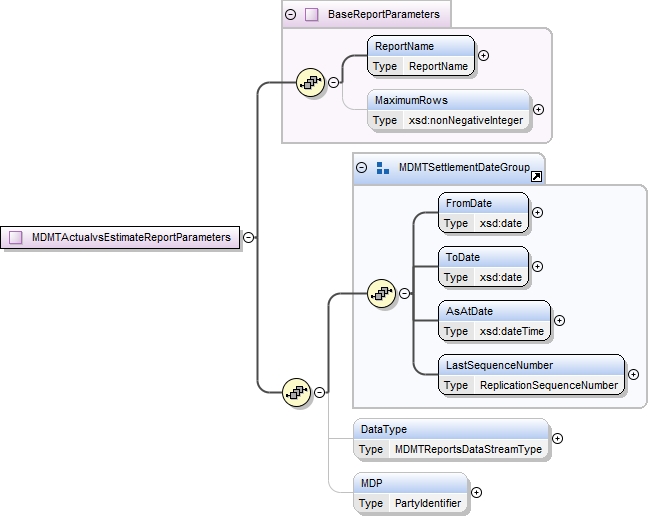

Element MDMTActualvsEstimateReportParameters/DataType
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2567
Type MDMTReportsDataStreamType
Type hierarchy
Properties
content: simple
minOccurs: 0
Facets
enumeration Interval, Consumption
Source

<xsd:element name="DataType" type="MDMTReportsDataStreamType" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTActualvsEstimateReportParameters/MDP
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="MDP" type="PartyIdentifier" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

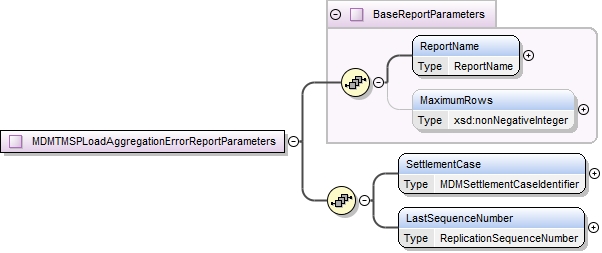

Element MDMTMSPLoadAggregationErrorReportParameters/SettlementCase
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2566
Type MDMSettlementCaseIdentifier
Properties
content: simple
Facets
totalDigits 38
Source

<xsd:element name="SettlementCase" type="MDMSettlementCaseIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTMSPLoadAggregationErrorReportParameters/LastSequenceNumber
Namespace No namespace
Diagram
Diagram asexml_r251.tmp#id67
Type ReplicationSequenceNumber
Properties
content: simple
Source

<xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTMissingDataReportParameters/MDP
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="MDP" type="PartyIdentifier" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTMissingDataReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224
Type NMIBase
Properties
content: simple
minOccurs: 0
Facets
length 10
Source

<xsd:element name="NMI" type="NMIBase" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTMissingDataReportParameters/DataType
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2567
Type MDMTReportsDataStreamType
Type hierarchy
Properties
content: simple
Facets
enumeration Interval, Consumption
Source

<xsd:element name="DataType" type="MDMTReportsDataStreamType"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTMissingDataReportParameters/NMISelection
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2569
Type MDMNMISelectionType
Properties
content: simple
Facets
enumeration SecondTierNMIs, AllNMIs
Source

<xsd:element name="NMISelection" type="MDMNMISelectionType"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

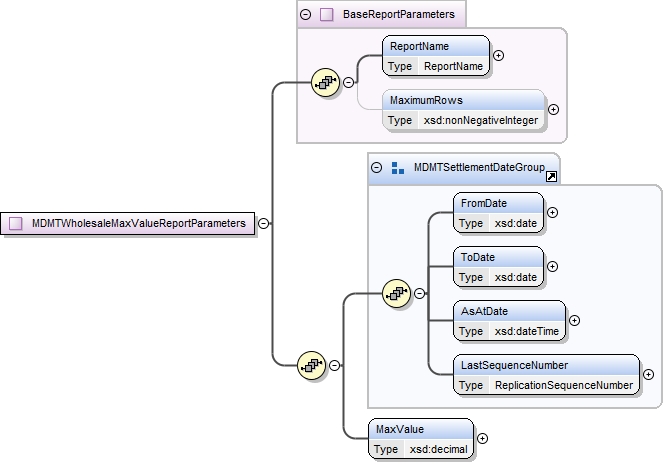

Element MDMTWholesaleMaxValueReportParameters/MaxValue
Namespace No namespace
Diagram
Diagram
Type xsd:decimal
Properties
content: simple
Source

<xsd:element name="MaxValue" type="xsd:decimal"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

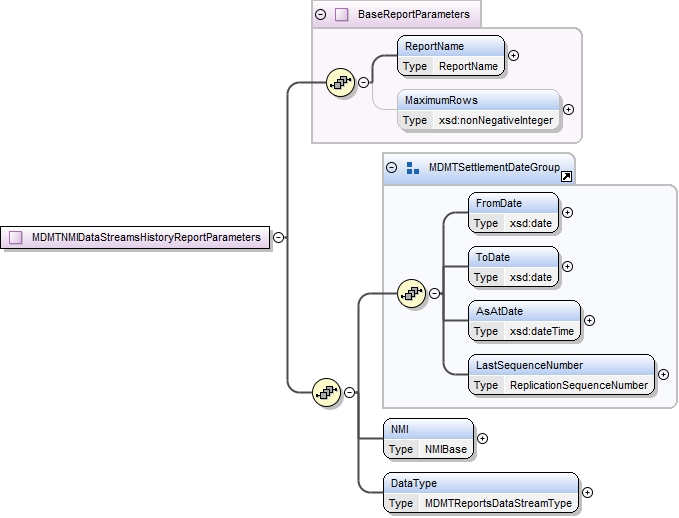

Element MDMTNMIDataStreamsHistoryReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224
Type NMIBase
Properties
content: simple
Facets
length 10
Source

<xsd:element name="NMI" type="NMIBase"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTNMIDataStreamsHistoryReportParameters/DataType
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2567
Type MDMTReportsDataStreamType
Type hierarchy
Properties
content: simple
Facets
enumeration Interval, Consumption
Source

<xsd:element name="DataType" type="MDMTReportsDataStreamType"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

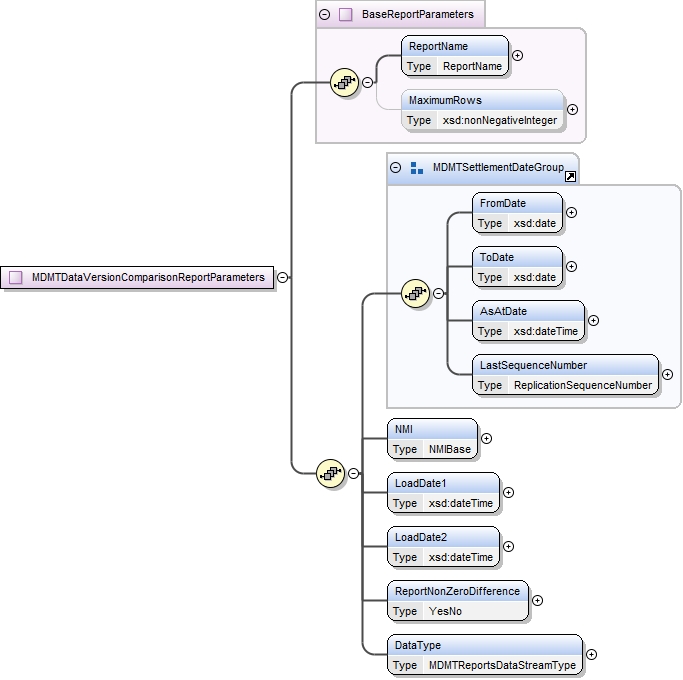

Element MDMTDataVersionComparisonReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224
Type NMIBase
Properties
content: simple
Facets
length 10
Source

<xsd:element name="NMI" type="NMIBase"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTDataVersionComparisonReportParameters/LoadDate1
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="LoadDate1" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTDataVersionComparisonReportParameters/LoadDate2
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="LoadDate2" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTDataVersionComparisonReportParameters/ReportNonZeroDifference
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id1322
Type YesNo
Properties
content: simple
Facets
enumeration Yes, No
Source

<xsd:element name="ReportNonZeroDifference" type="YesNo"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTDataVersionComparisonReportParameters/DataType
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2567
Type MDMTReportsDataStreamType
Type hierarchy
Properties
content: simple
Facets
enumeration Interval, Consumption
Source

<xsd:element name="DataType" type="MDMTReportsDataStreamType"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTMultipleVersionsReportParameters/MDP
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="MDP" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTMultipleVersionsReportParameters/DataType
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2567
Type MDMTReportsDataStreamType
Type hierarchy
Properties
content: simple
Facets
enumeration Interval, Consumption
Source

<xsd:element name="DataType" type="MDMTReportsDataStreamType"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

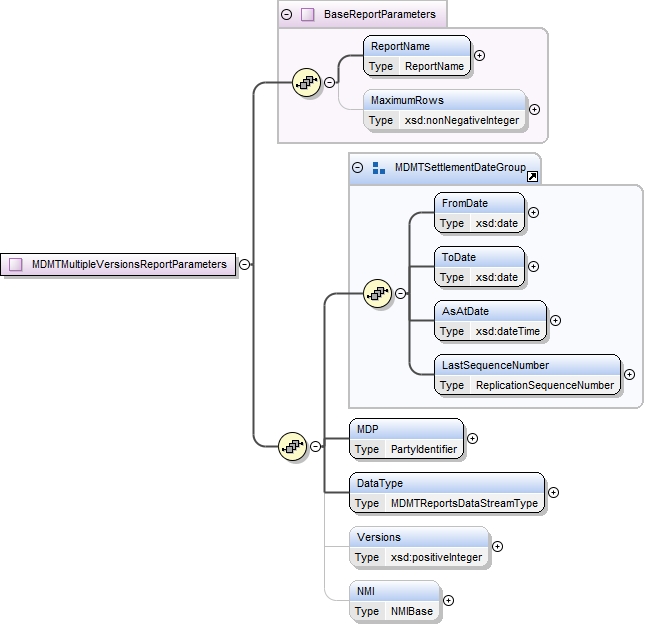

Element MDMTMultipleVersionsReportParameters/Versions
Namespace No namespace
Diagram
Diagram
Type xsd:positiveInteger
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="Versions" type="xsd:positiveInteger" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTMultipleVersionsReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224
Type NMIBase
Properties
content: simple
minOccurs: 0
Facets
length 10
Source

<xsd:element name="NMI" type="NMIBase" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

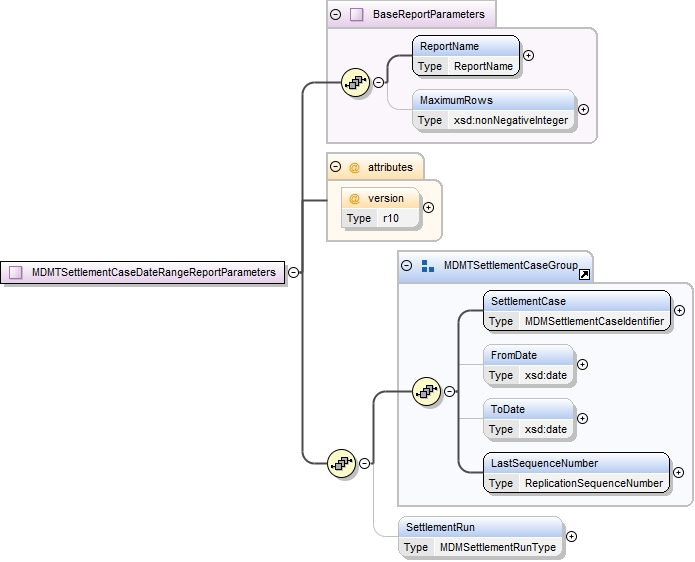

Element MDMTSettlementCaseDateRangeReportParameters/SettlementRun
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2568
Type MDMSettlementRunType
Properties
content: simple
minOccurs: 0
Facets
enumeration RREV2, RREV1, SPECIAL, PRELIMINARY, FINAL
Source

<xsd:element name="SettlementRun" type="MDMSettlementRunType" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

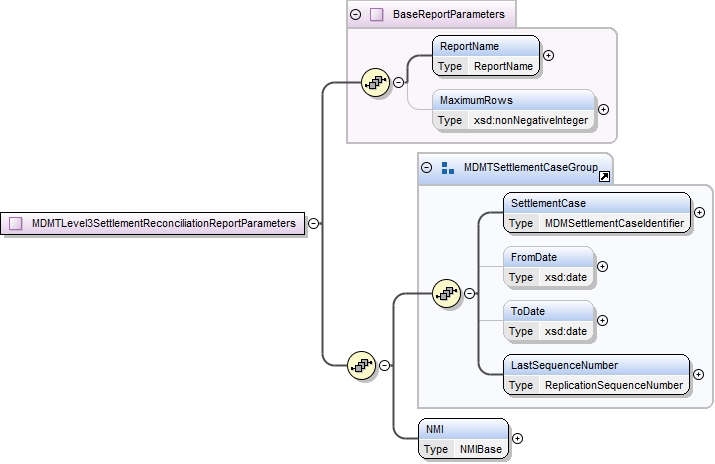

Element MDMTLevel3SettlementReconciliationReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224
Type NMIBase
Properties
content: simple
Facets
length 10
Source

<xsd:element name="NMI" type="NMIBase"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTElectricityIntervalDataReportParameters/TransmissionNodeIdentifier
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1560
Type TransmissionNodeIdentifier
Properties
content: simple
Facets
maxLength 4
Source

<xsd:element name="TransmissionNodeIdentifier" type="TransmissionNodeIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

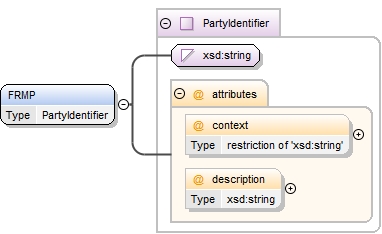

Element MDMTElectricityIntervalDataReportParameters/FRMP
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="FRMP" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTElectricityIntervalDataReportParameters/LR
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="LR" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTElectricityIntervalDataReportParameters/MDP
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="MDP" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTElectricityIntervalDataReportParameters/MDPVersion
Namespace No namespace
Diagram
Diagram
Type xsd:string
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="MDPVersion" type="xsd:string" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTElectricityIntervalDataReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224
Type NMIBase
Properties
content: simple
minOccurs: 0
Facets
length 10
Source

<xsd:element name="NMI" type="NMIBase" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTPPSReportParameters/SettlementCase
Namespace No namespace
Diagram
Diagram asexml_r2522.tmp#id2566
Type MDMSettlementCaseIdentifier
Properties
content: simple
Facets
totalDigits 38
Source

<xsd:element name="SettlementCase" type="MDMSettlementCaseIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTPPSReportParameters/AsAtDate
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="AsAtDate" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTPPSReportParameters/FromDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="FromDate" type="xsd:date" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTPPSReportParameters/ToDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="ToDate" type="xsd:date" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTPPSReportParameters/LastSequenceNumber
Namespace No namespace
Diagram
Diagram asexml_r251.tmp#id67
Type ReplicationSequenceNumber
Properties
content: simple
Source

<xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTPPSReportParameters/ProfileName
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1509
Type ProfileName
Properties
content: simple
minOccurs: 0
Facets
maxLength 10
Source

<xsd:element name="ProfileName" type="ProfileName" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTPPSReportParameters/MDPVersion
Namespace No namespace
Diagram
Diagram
Type xsd:string
Properties
content: simple
minOccurs: 0
Source

<xsd:element name="MDPVersion" type="xsd:string" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTLevel2SettlementReconciliationReportParameters/TransmissionNodeIdentifier
Namespace No namespace
Diagram
Diagram asexml_r2515.tmp#id1560
Type TransmissionNodeIdentifier
Properties
content: simple
Facets
maxLength 4
Source

<xsd:element name="TransmissionNodeIdentifier" type="TransmissionNodeIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTLevel2SettlementReconciliationReportParameters/FRMP
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="FRMP" type="PartyIdentifier" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTLevel2SettlementReconciliationReportParameters/LR
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="LR" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element MDMTLevel2SettlementReconciliationReportParameters/MDP
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="MDP" type="PartyIdentifier" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Simple Type MDMSettlementCaseIdentifier
Namespace urn:aseXML:r25
Annotations

Purpose - Uniquely identify each settlement run
Diagram
Diagram
Type restriction of xsd:nonNegativeInteger
Facets
totalDigits 38
Used by
Source

<xsd:simpleType name="MDMSettlementCaseIdentifier">
  <xsd:annotation>
    <xsd:documentation>Purpose - Uniquely identify each settlement run</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:nonNegativeInteger">
    <xsd:totalDigits value="38"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Simple Type MDMTReportsDataStreamType
Namespace urn:aseXML:r25
Annotations

Purpose - MDM Reports only provide support for "Interval" and "Consumption" data streams.
Diagram
Diagram asexml_r2515.tmp#id1569
Type restriction of DataStreamType
Type hierarchy
Facets
enumeration Interval, Consumption
Used by
Source

<xsd:simpleType name="MDMTReportsDataStreamType">
  <xsd:annotation>
    <xsd:documentation>Purpose - MDM Reports only provide support for "Interval" and "Consumption" data streams.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="DataStreamType">
    <xsd:enumeration value="Interval"/>
    <xsd:enumeration value="Consumption"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Simple Type MDMSettlementRunType
Namespace urn:aseXML:r25
Annotations

Purpose - Identify settlement run type: PRELIM, FINAL, REV1 etc.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration RREV2, RREV1, SPECIAL, PRELIMINARY, FINAL
Used by
Source

<xsd:simpleType name="MDMSettlementRunType">
  <xsd:annotation>
    <xsd:documentation>Purpose - Identify settlement run type: PRELIM, FINAL, REV1 etc.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="RREV2"/>
    <xsd:enumeration value="RREV1"/>
    <xsd:enumeration value="SPECIAL"/>
    <xsd:enumeration value="PRELIMINARY"/>
    <xsd:enumeration value="FINAL"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Simple Type MDMNMISelectionType
Namespace urn:aseXML:r25
Annotations

Purpose - Allows for selection between 'SecondTierNMIs' and 'AllNMIs'
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration SecondTierNMIs, AllNMIs
Used by
Source

<xsd:simpleType name="MDMNMISelectionType">
  <xsd:annotation>
    <xsd:documentation>Purpose - Allows for selection between 'SecondTierNMIs' and 'AllNMIs'</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="SecondTierNMIs"/>
    <xsd:enumeration value="AllNMIs"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd

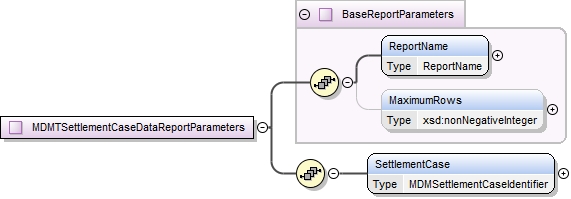

Complex Type MDMTSettlementCaseDataReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for reports requiring only the settlement case identifier
Report Names - SettlementAggregatedData, SettlementNonAggregatedData, SettlementProfileShape
MSATS Reports - RM23, RM24, RM25
Detail - Note that the same report parameters type can be used for several reports since they all use the
same parameters. It is thus the report name that will indicate what output will be produced.
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2581
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , SettlementCase
Children MaximumRows, ReportName, SettlementCase
Source

<xsd:complexType name="MDMTSettlementCaseDataReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for reports requiring only the settlement case identifier Report Names - SettlementAggregatedData, SettlementNonAggregatedData, SettlementProfileShape MSATS Reports - RM23, RM24, RM25 Detail - Note that the same report parameters type can be used for several reports since they all use the same parameters. It is thus the report name that will indicate what output will be produced.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="SettlementCase" type="MDMSettlementCaseIdentifier"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTMDPDataDeliveryReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a MDP Data Delivery Report
Report Name - MDPDataDelivery
MSATS Report - RM7
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2571 asexml_r2522.tmp#id2572 asexml_r2522.tmp#id2573 asexml_r2522.tmp#id2574 asexml_r2522.tmp#id2570 asexml_r2522.tmp#id2583 asexml_r2522.tmp#id2584 asexml_r2522.tmp#id2585 asexml_r2522.tmp#id2586
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber , DataType , MDP , NMI{0,1} , LoadDate{0,1}
Children AsAtDate, DataType, FromDate, LastSequenceNumber, LoadDate, MDP, MaximumRows, NMI, ReportName, ToDate
Source

<xsd:complexType name="MDMTMDPDataDeliveryReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a MDP Data Delivery Report Report Name - MDPDataDelivery MSATS Report - RM7</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementDateGroup"/>
        <xsd:element name="DataType" type="MDMTReportsDataStreamType"/>
        <xsd:element name="MDP" type="PartyIdentifier"/>
        <xsd:element name="NMI" type="NMIBase" minOccurs="0"/>
        <xsd:element name="LoadDate" type="xsd:dateTime" minOccurs="0"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTDatePPSBMPGeneratedReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a Date PPS and BMP Generated Report

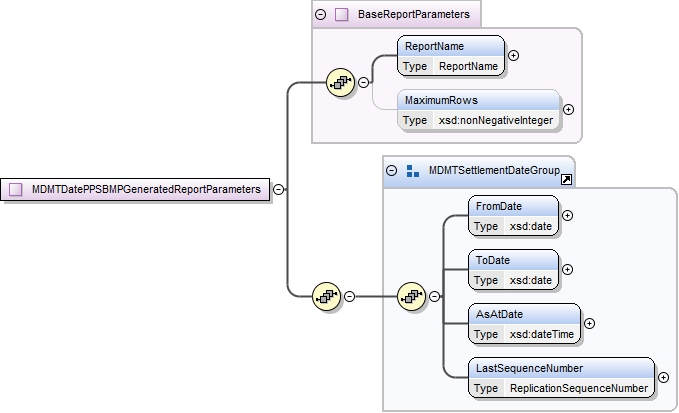

Report Name - DatePPSBMPGenerated
MSATS Report - RM8
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2571 asexml_r2522.tmp#id2572 asexml_r2522.tmp#id2573 asexml_r2522.tmp#id2574 asexml_r2522.tmp#id2570
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber
Children AsAtDate, FromDate, LastSequenceNumber, MaximumRows, ReportName, ToDate
Source

<xsd:complexType name="MDMTDatePPSBMPGeneratedReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a Date PPS and BMP Generated Report Report Name - DatePPSBMPGenerated MSATS Report - RM8</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementDateGroup"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTActualvsEstimateReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for an Actual vs Estimate Data Report
Report Name - ActualvsEstimate
MSATS Report - RM9
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2571 asexml_r2522.tmp#id2572 asexml_r2522.tmp#id2573 asexml_r2522.tmp#id2574 asexml_r2522.tmp#id2570 asexml_r2522.tmp#id2589 asexml_r2522.tmp#id2590
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber , DataType{0,1} , MDP{0,1}
Children AsAtDate, DataType, FromDate, LastSequenceNumber, MDP, MaximumRows, ReportName, ToDate
Source

<xsd:complexType name="MDMTActualvsEstimateReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for an Actual vs Estimate Data Report Report Name - ActualvsEstimate MSATS Report - RM9</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementDateGroup"/>
        <xsd:element name="DataType" type="MDMTReportsDataStreamType" minOccurs="0"/>
        <xsd:element name="MDP" type="PartyIdentifier" minOccurs="0"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTMSPLoadAggregationErrorReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a MSP Load Aggregation Error Report
Report Name - MSPLoadAggregationError
MSATS Report - RM10
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2592 asexml_r2522.tmp#id2593
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , SettlementCase , LastSequenceNumber
Children LastSequenceNumber, MaximumRows, ReportName, SettlementCase
Source

<xsd:complexType name="MDMTMSPLoadAggregationErrorReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a MSP Load Aggregation Error Report Report Name - MSPLoadAggregationError MSATS Report - RM10</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="SettlementCase" type="MDMSettlementCaseIdentifier"/>
        <xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTMissingDataReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a Missing Data (null) Report

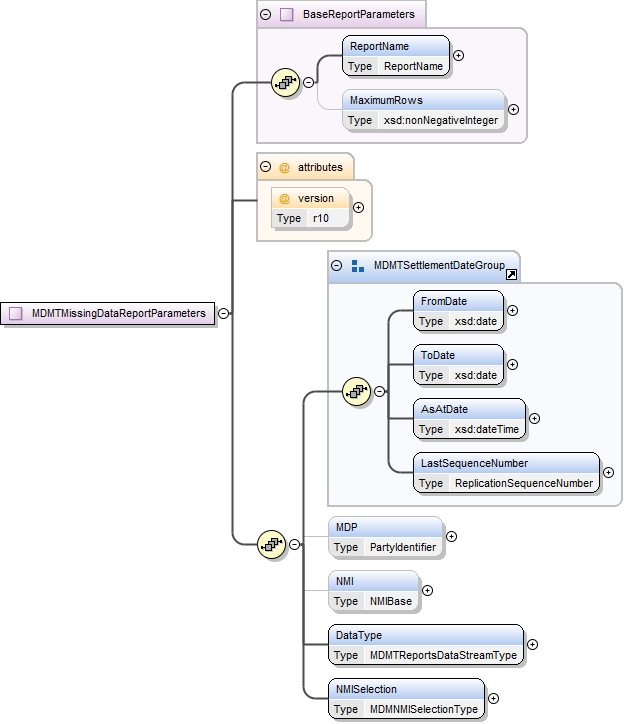

Report Name - MissingData
MSATS Report - RM11
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2599 asexml_r2522.tmp#id2571 asexml_r2522.tmp#id2572 asexml_r2522.tmp#id2573 asexml_r2522.tmp#id2574 asexml_r2522.tmp#id2570 asexml_r2522.tmp#id2595 asexml_r2522.tmp#id2596 asexml_r2522.tmp#id2597 asexml_r2522.tmp#id2598
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber , MDP{0,1} , NMI{0,1} , DataType , NMISelection
Children AsAtDate, DataType, FromDate, LastSequenceNumber, MDP, MaximumRows, NMI, NMISelection, ReportName, ToDate
Attributes
QName Type Fixed Default Use Annotation
version r10 optional
Source

<xsd:complexType name="MDMTMissingDataReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a Missing Data (null) Report Report Name - MissingData MSATS Report - RM11</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementDateGroup"/>
        <xsd:element name="MDP" type="PartyIdentifier" minOccurs="0"/>
        <xsd:element name="NMI" type="NMIBase" minOccurs="0"/>
        <xsd:element name="DataType" type="MDMTReportsDataStreamType"/>
        <xsd:element name="NMISelection" type="MDMNMISelectionType"/>
      </xsd:sequence>
      <xsd:attribute name="version" type="r10" use="optional"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTWholesaleMaxValueReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a Max Value for Wholesale Report
Report Name - WholesaleMaxValue
MSATS Report - RM12
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2571 asexml_r2522.tmp#id2572 asexml_r2522.tmp#id2573 asexml_r2522.tmp#id2574 asexml_r2522.tmp#id2570 asexml_r2522.tmp#id2601
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber , MaxValue
Children AsAtDate, FromDate, LastSequenceNumber, MaxValue, MaximumRows, ReportName, ToDate
Source

<xsd:complexType name="MDMTWholesaleMaxValueReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a Max Value for Wholesale Report Report Name - WholesaleMaxValue MSATS Report - RM12</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementDateGroup"/>
        <xsd:element name="MaxValue" type="xsd:decimal"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTNMIDataStreamsHistoryReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a NMI Data Streams History Report
Report Name - NMIDataStreamsHistory
MSATS Report - RM13
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2571 asexml_r2522.tmp#id2572 asexml_r2522.tmp#id2573 asexml_r2522.tmp#id2574 asexml_r2522.tmp#id2570 asexml_r2522.tmp#id2603 asexml_r2522.tmp#id2604
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber , NMI , DataType
Children AsAtDate, DataType, FromDate, LastSequenceNumber, MaximumRows, NMI, ReportName, ToDate
Source

<xsd:complexType name="MDMTNMIDataStreamsHistoryReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a NMI Data Streams History Report Report Name - NMIDataStreamsHistory MSATS Report - RM13</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementDateGroup"/>
        <xsd:element name="NMI" type="NMIBase"/>
        <xsd:element name="DataType" type="MDMTReportsDataStreamType"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTDataVersionComparisonReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a Data Version Comparison Report
Report Name - DataVersionComparison
MSATS Report - RM14
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2571 asexml_r2522.tmp#id2572 asexml_r2522.tmp#id2573 asexml_r2522.tmp#id2574 asexml_r2522.tmp#id2570 asexml_r2522.tmp#id2606 asexml_r2522.tmp#id2607 asexml_r2522.tmp#id2608 asexml_r2522.tmp#id2609 asexml_r2522.tmp#id2610
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber , NMI , LoadDate1 , LoadDate2 , ReportNonZeroDifference , DataType
Children AsAtDate, DataType, FromDate, LastSequenceNumber, LoadDate1, LoadDate2, MaximumRows, NMI, ReportName, ReportNonZeroDifference, ToDate
Source

<xsd:complexType name="MDMTDataVersionComparisonReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a Data Version Comparison Report Report Name - DataVersionComparison MSATS Report - RM14</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementDateGroup"/>
        <xsd:element name="NMI" type="NMIBase"/>
        <xsd:element name="LoadDate1" type="xsd:dateTime"/>
        <xsd:element name="LoadDate2" type="xsd:dateTime"/>
        <xsd:element name="ReportNonZeroDifference" type="YesNo"/>
        <xsd:element name="DataType" type="MDMTReportsDataStreamType"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTMultipleVersionsReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a Count of Multiple Versions Report
Report Name - MultipleVersions
MSATS Report - RM15
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2571 asexml_r2522.tmp#id2572 asexml_r2522.tmp#id2573 asexml_r2522.tmp#id2574 asexml_r2522.tmp#id2570 asexml_r2522.tmp#id2612 asexml_r2522.tmp#id2613 asexml_r2522.tmp#id2614 asexml_r2522.tmp#id2615
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber , MDP , DataType , Versions{0,1} , NMI{0,1}
Children AsAtDate, DataType, FromDate, LastSequenceNumber, MDP, MaximumRows, NMI, ReportName, ToDate, Versions
Source

<xsd:complexType name="MDMTMultipleVersionsReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a Count of Multiple Versions Report Report Name - MultipleVersions MSATS Report - RM15</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementDateGroup"/>
        <xsd:element name="MDP" type="PartyIdentifier"/>
        <xsd:element name="DataType" type="MDMTReportsDataStreamType"/>
        <xsd:element name="Versions" type="xsd:positiveInteger" minOccurs="0"/>
        <xsd:element name="NMI" type="NMIBase" minOccurs="0"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTSettlementCaseDateRangeReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for reports requiring the settlement case identifier and optionally a date range within it
Report Names - Level1SettlementReconciliation, AggregatedActualvsEstimate, DataEstimation
MSATS Reports - RM16, RM19, RM22
Detail - Note that the same report parameters type can be used for several reports since they all use the
same parameters. It is thus the report name that will indicate what output will be produced.
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2618 asexml_r2522.tmp#id2576 asexml_r2522.tmp#id2577 asexml_r2522.tmp#id2578 asexml_r2522.tmp#id2579 asexml_r2522.tmp#id2575 asexml_r2522.tmp#id2617
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , SettlementCase , FromDate{0,1} , ToDate{0,1} , LastSequenceNumber , SettlementRun{0,1}
Children FromDate, LastSequenceNumber, MaximumRows, ReportName, SettlementCase, SettlementRun, ToDate
Attributes
QName Type Fixed Default Use Annotation
version r10 optional
Source

<xsd:complexType name="MDMTSettlementCaseDateRangeReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for reports requiring the settlement case identifier and optionally a date range within it Report Names - Level1SettlementReconciliation, AggregatedActualvsEstimate, DataEstimation MSATS Reports - RM16, RM19, RM22 Detail - Note that the same report parameters type can be used for several reports since they all use the same parameters. It is thus the report name that will indicate what output will be produced.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementCaseGroup"/>
        <xsd:element name="SettlementRun" type="MDMSettlementRunType" minOccurs="0"/>
      </xsd:sequence>
      <xsd:attribute name="version" type="r10" use="optional"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTLevel3SettlementReconciliationReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a Level  3 Settlement Reconciliation Report
Report Name - Level3SettlementReconciliation
MSATS Reports - RM17
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2576 asexml_r2522.tmp#id2577 asexml_r2522.tmp#id2578 asexml_r2522.tmp#id2579 asexml_r2522.tmp#id2575 asexml_r2522.tmp#id2620
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , SettlementCase , FromDate{0,1} , ToDate{0,1} , LastSequenceNumber , NMI
Children FromDate, LastSequenceNumber, MaximumRows, NMI, ReportName, SettlementCase, ToDate
Source

<xsd:complexType name="MDMTLevel3SettlementReconciliationReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a Level 3 Settlement Reconciliation Report Report Name - Level3SettlementReconciliation MSATS Reports - RM17</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementCaseGroup"/>
        <xsd:element name="NMI" type="NMIBase"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTElectricityIntervalDataReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for an Electricity Interval Data Report
Report Name - ElectricityIntervalData
MSATS Reports - RM18
Diagram

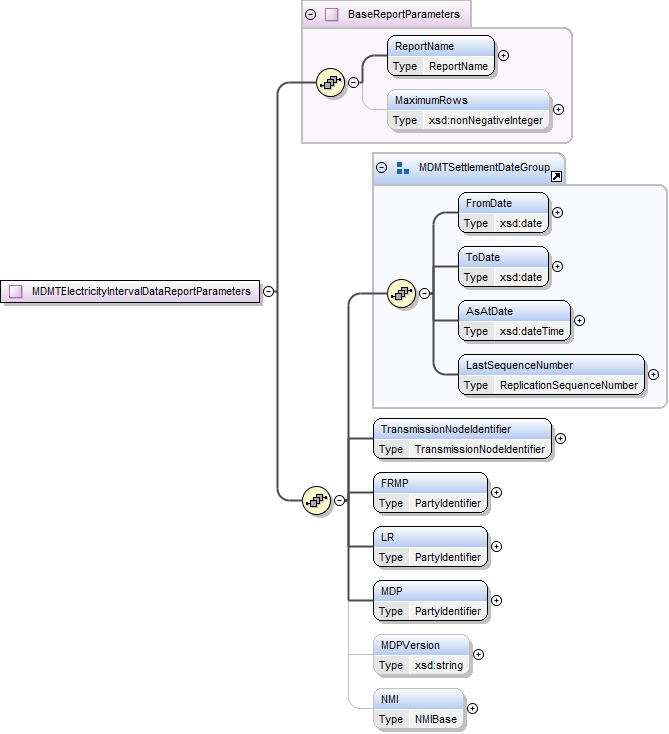

Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2571 asexml_r2522.tmp#id2572 asexml_r2522.tmp#id2573 asexml_r2522.tmp#id2574 asexml_r2522.tmp#id2570 asexml_r2522.tmp#id2622 asexml_r2522.tmp#id2623 asexml_r2522.tmp#id2624 asexml_r2522.tmp#id2625 asexml_r2522.tmp#id2626 asexml_r2522.tmp#id2627
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber , TransmissionNodeIdentifier , FRMP , LR , MDP , MDPVersion{0,1} , NMI{0,1}
Children AsAtDate, FRMP, FromDate, LR, LastSequenceNumber, MDP, MDPVersion, MaximumRows, NMI, ReportName, ToDate, TransmissionNodeIdentifier
Source

<xsd:complexType name="MDMTElectricityIntervalDataReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for an Electricity Interval Data Report Report Name - ElectricityIntervalData MSATS Reports - RM18</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementDateGroup"/>
        <xsd:element name="TransmissionNodeIdentifier" type="TransmissionNodeIdentifier"/>
        <xsd:element name="FRMP" type="PartyIdentifier"/>
        <xsd:element name="LR" type="PartyIdentifier"/>
        <xsd:element name="MDP" type="PartyIdentifier"/>
        <xsd:element name="MDPVersion" type="xsd:string" minOccurs="0"/>
        <xsd:element name="NMI" type="NMIBase" minOccurs="0"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTPPSReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a PPS Report
Report Name - PPS
MSATS Reports - RM20
Diagram

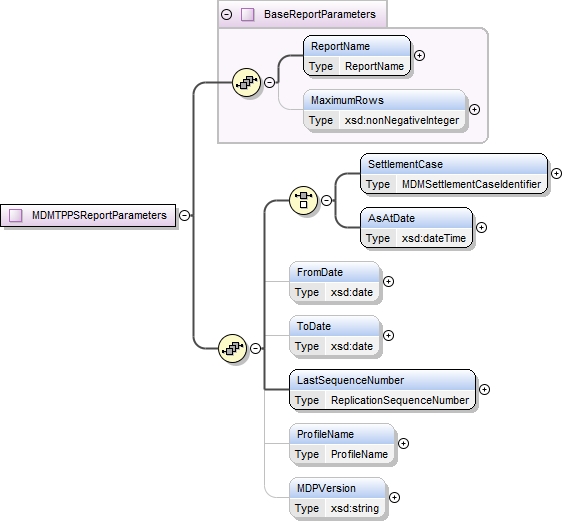

Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2629 asexml_r2522.tmp#id2630 asexml_r2522.tmp#id2631 asexml_r2522.tmp#id2632 asexml_r2522.tmp#id2633 asexml_r2522.tmp#id2634 asexml_r2522.tmp#id2635
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , (SettlementCase | AsAtDate) , FromDate{0,1} , ToDate{0,1} , LastSequenceNumber , ProfileName{0,1} , MDPVersion{0,1}
Children AsAtDate, FromDate, LastSequenceNumber, MDPVersion, MaximumRows, ProfileName, ReportName, SettlementCase, ToDate
Source

<xsd:complexType name="MDMTPPSReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a PPS Report Report Name - PPS MSATS Reports - RM20</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:choice>
          <xsd:element name="SettlementCase" type="MDMSettlementCaseIdentifier"/>
          <xsd:element name="AsAtDate" type="xsd:dateTime"/>
        </xsd:choice>
        <xsd:element name="FromDate" type="xsd:date" minOccurs="0"/>
        <xsd:element name="ToDate" type="xsd:date" minOccurs="0"/>
        <xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
        <xsd:element name="ProfileName" type="ProfileName" minOccurs="0"/>
        <xsd:element name="MDPVersion" type="xsd:string" minOccurs="0"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Complex Type MDMTLevel2SettlementReconciliationReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for a Level  2 Settlement Reconciliation Report
Report Name - Level2SettlementReconciliation
MSATS Reports - RM21
Diagram

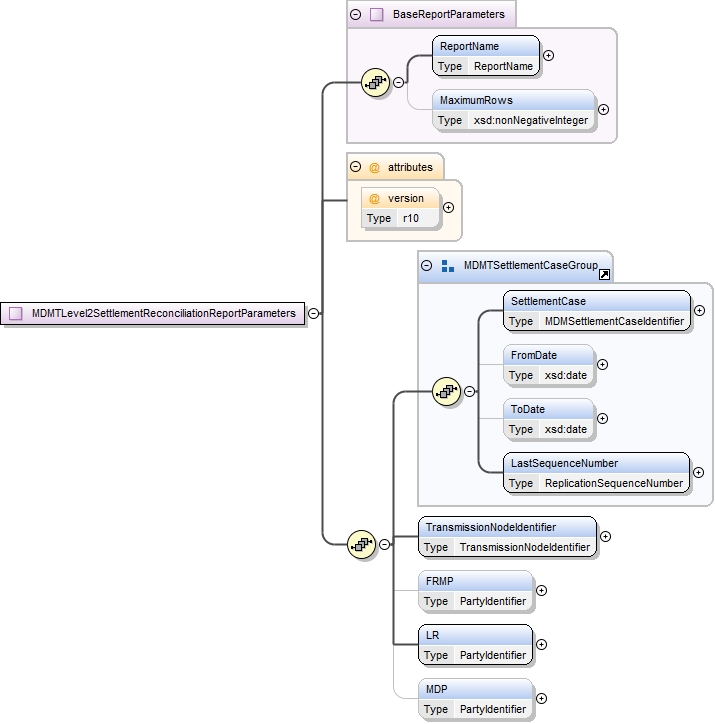

Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2522.tmp#id2641 asexml_r2522.tmp#id2576 asexml_r2522.tmp#id2577 asexml_r2522.tmp#id2578 asexml_r2522.tmp#id2579 asexml_r2522.tmp#id2575 asexml_r2522.tmp#id2637 asexml_r2522.tmp#id2638 asexml_r2522.tmp#id2639 asexml_r2522.tmp#id2640
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , SettlementCase , FromDate{0,1} , ToDate{0,1} , LastSequenceNumber , TransmissionNodeIdentifier , FRMP{0,1} , LR , MDP{0,1}
Children FRMP, FromDate, LR, LastSequenceNumber, MDP, MaximumRows, ReportName, SettlementCase, ToDate, TransmissionNodeIdentifier
Attributes
QName Type Fixed Default Use Annotation
version r10 optional
Source

<xsd:complexType name="MDMTLevel2SettlementReconciliationReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for a Level 2 Settlement Reconciliation Report Report Name - Level2SettlementReconciliation MSATS Reports - RM21</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:group ref="MDMTSettlementCaseGroup"/>
        <xsd:element name="TransmissionNodeIdentifier" type="TransmissionNodeIdentifier"/>
        <xsd:element name="FRMP" type="PartyIdentifier" minOccurs="0"/>
        <xsd:element name="LR" type="PartyIdentifier"/>
        <xsd:element name="MDP" type="PartyIdentifier" minOccurs="0"/>
      </xsd:sequence>
      <xsd:attribute name="version" type="r10" use="optional"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Attribute MDMTMissingDataReportParameters/@version
Namespace No namespace
Type r10
Type hierarchy
Properties
use: optional
Facets
enumeration r10
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r10" use="optional"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Attribute MDMTSettlementCaseDateRangeReportParameters/@version
Namespace No namespace
Type r10
Type hierarchy
Properties
use: optional
Facets
enumeration r10
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r10" use="optional"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Attribute MDMTLevel2SettlementReconciliationReportParameters/@version
Namespace No namespace
Type r10
Type hierarchy
Properties
use: optional
Facets
enumeration r10
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r10" use="optional"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element Group MDMTSettlementDateGroup
Namespace urn:aseXML:r25
Diagram
Diagram asexml_r2522.tmp#id2571 asexml_r2522.tmp#id2572 asexml_r2522.tmp#id2573 asexml_r2522.tmp#id2574
Used by
Model FromDate , ToDate , AsAtDate , LastSequenceNumber
Children AsAtDate, FromDate, LastSequenceNumber, ToDate
Source

<xsd:group name="MDMTSettlementDateGroup">
  <xsd:annotation>
    <xsd:documentation>Purpose - Settlement Date Information Group</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="FromDate" type="xsd:date"/>
    <xsd:element name="ToDate" type="xsd:date"/>
    <xsd:element name="AsAtDate" type="xsd:dateTime"/>
    <xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
  </xsd:sequence>
</xsd:group>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
Element Group MDMTSettlementCaseGroup
Namespace urn:aseXML:r25
Diagram

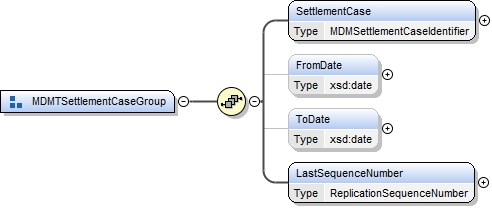

Diagram asexml_r2522.tmp#id2576 asexml_r2522.tmp#id2577 asexml_r2522.tmp#id2578 asexml_r2522.tmp#id2579
Used by
Model SettlementCase , FromDate{0,1} , ToDate{0,1} , LastSequenceNumber
Children FromDate, LastSequenceNumber, SettlementCase, ToDate
Source

<xsd:group name="MDMTSettlementCaseGroup">
  <xsd:annotation>
    <xsd:documentation>Purpose - Settlement Case Identifier plus date range Information Group</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="SettlementCase" type="MDMSettlementCaseIdentifier"/>
    <xsd:element name="FromDate" type="xsd:date" minOccurs="0"/>
    <xsd:element name="ToDate" type="xsd:date" minOccurs="0"/>
    <xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
  </xsd:sequence>
</xsd:group>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/MDMTReports_r15.xsd
XML Schema documentation generated by ® XML Editor.
