Included schema CATSReports_r20.xsd
Namespace urn:aseXML:r25
Annotations

This schema file is part of the aseXML schema set, and is subject to the terms and conditions that are detailed in the aseXML_r*.xsd schema file with which this file is used

Purpose - Define the CATS specific report parameters and formats
Properties
attribute form default: unqualified
element form default: unqualified
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

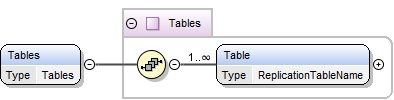

Element Tables/Table
Namespace No namespace
Diagram
Diagram asexml_r251.tmp#id63
Type ReplicationTableName
Properties
content: simple
maxOccurs: unbounded
Facets
maxLength 80
Source

<xsd:element name="Table" type="ReplicationTableName" maxOccurs="unbounded"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

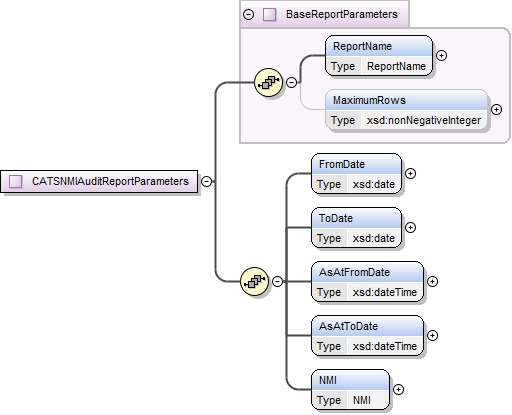

Element CATSNMIAuditReportParameters/FromDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="FromDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSNMIAuditReportParameters/ToDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="ToDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSNMIAuditReportParameters/AsAtFromDate
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="AsAtFromDate" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSNMIAuditReportParameters/AsAtToDate
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="AsAtToDate" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSNMIAuditReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224 asexml_r250.tmp#id225 asexml_r250.tmp#id223
Type NMI
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
checksum NMIChecksum optional
Source

<xsd:element name="NMI" type="NMI"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

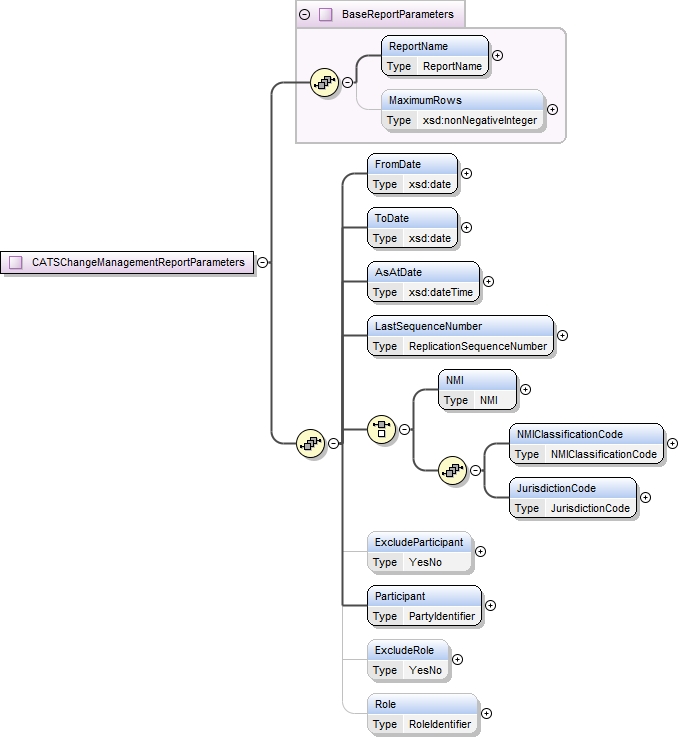

Element CATSChangeManagementReportParameters/FromDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="FromDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSChangeManagementReportParameters/ToDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="ToDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSChangeManagementReportParameters/AsAtDate
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="AsAtDate" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSChangeManagementReportParameters/LastSequenceNumber
Namespace No namespace
Diagram
Diagram asexml_r251.tmp#id67
Type ReplicationSequenceNumber
Properties
content: simple
Source

<xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSChangeManagementReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224 asexml_r250.tmp#id225 asexml_r250.tmp#id223
Type NMI
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
checksum NMIChecksum optional
Source

<xsd:element name="NMI" type="NMI"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSChangeManagementReportParameters/NMIClassificationCode
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id312
Type NMIClassificationCode
Properties
content: simple
Facets
maxLength 8
Source

<xsd:element name="NMIClassificationCode" type="NMIClassificationCode"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSChangeManagementReportParameters/JurisdictionCode
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id162
Type JurisdictionCode
Properties
content: simple
Facets
maxLength 3
Source

<xsd:element name="JurisdictionCode" type="JurisdictionCode"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSChangeManagementReportParameters/ExcludeParticipant
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id1322
Type YesNo
Properties
content: simple
minOccurs: 0
Facets
enumeration Yes, No
Source

<xsd:element name="ExcludeParticipant" type="YesNo" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

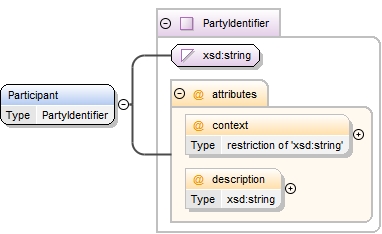

Element CATSChangeManagementReportParameters/Participant
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="Participant" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSChangeManagementReportParameters/ExcludeRole
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id1322
Type YesNo
Properties
content: simple
minOccurs: 0
Facets
enumeration Yes, No
Source

<xsd:element name="ExcludeRole" type="YesNo" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSChangeManagementReportParameters/Role
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id135
Type RoleIdentifier
Properties
content: simple
minOccurs: 0
Facets
maxLength 4
Source

<xsd:element name="Role" type="RoleIdentifier" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

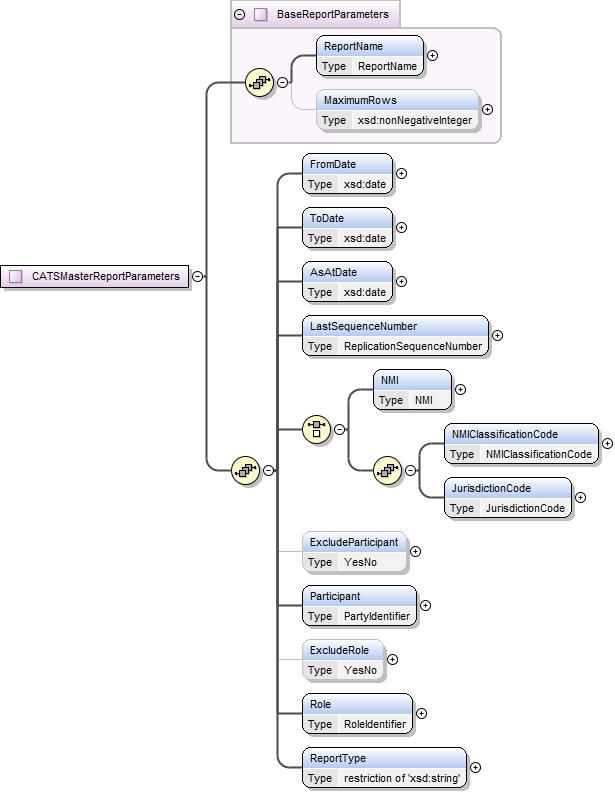

Element CATSMasterReportParameters/FromDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="FromDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/ToDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="ToDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/AsAtDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="AsAtDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/LastSequenceNumber
Namespace No namespace
Diagram
Diagram asexml_r251.tmp#id67
Type ReplicationSequenceNumber
Properties
content: simple
Source

<xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224 asexml_r250.tmp#id225 asexml_r250.tmp#id223
Type NMI
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
checksum NMIChecksum optional
Source

<xsd:element name="NMI" type="NMI"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/NMIClassificationCode
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id312
Type NMIClassificationCode
Properties
content: simple
Facets
maxLength 8
Source

<xsd:element name="NMIClassificationCode" type="NMIClassificationCode"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/JurisdictionCode
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id162
Type JurisdictionCode
Properties
content: simple
Facets
maxLength 3
Source

<xsd:element name="JurisdictionCode" type="JurisdictionCode"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/ExcludeParticipant
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id1322
Type YesNo
Properties
content: simple
minOccurs: 0
Facets
enumeration Yes, No
Source

<xsd:element name="ExcludeParticipant" type="YesNo" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/Participant
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="Participant" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/ExcludeRole
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id1322
Type YesNo
Properties
content: simple
minOccurs: 0
Facets
enumeration Yes, No
Source

<xsd:element name="ExcludeRole" type="YesNo" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/Role
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id135
Type RoleIdentifier
Properties
content: simple
Facets
maxLength 4
Source

<xsd:element name="Role" type="RoleIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSMasterReportParameters/ReportType
Namespace No namespace
Diagram
Diagram
Type restriction of xsd:string
Properties
content: simple
Facets
enumeration Summary, Detailed
Source

<xsd:element name="ReportType">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Summary"/>
      <xsd:enumeration value="Detailed"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

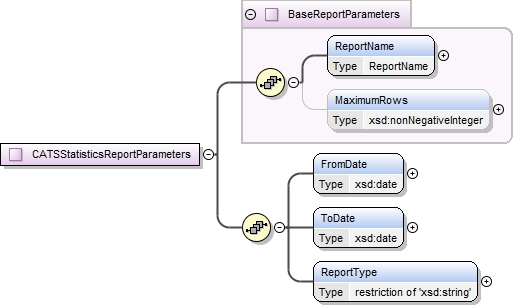

Element CATSStatisticsReportParameters/FromDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="FromDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSStatisticsReportParameters/ToDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="ToDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSStatisticsReportParameters/ReportType
Namespace No namespace
Diagram
Diagram
Type restriction of xsd:string
Properties
content: simple
Facets
enumeration Public, Internal
Source

<xsd:element name="ReportType">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Public"/>
      <xsd:enumeration value="Internal"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

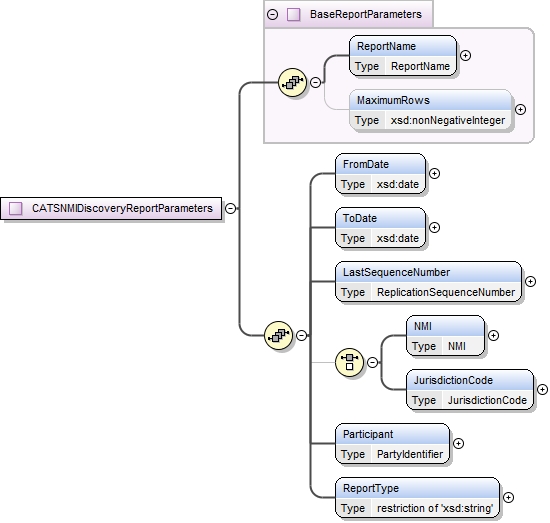

Element CATSNMIDiscoveryReportParameters/FromDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="FromDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSNMIDiscoveryReportParameters/ToDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="ToDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSNMIDiscoveryReportParameters/LastSequenceNumber
Namespace No namespace
Diagram
Diagram asexml_r251.tmp#id67
Type ReplicationSequenceNumber
Properties
content: simple
Source

<xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSNMIDiscoveryReportParameters/NMI
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id224 asexml_r250.tmp#id225 asexml_r250.tmp#id223
Type NMI
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
checksum NMIChecksum optional
Source

<xsd:element name="NMI" type="NMI"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSNMIDiscoveryReportParameters/JurisdictionCode
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id162
Type JurisdictionCode
Properties
content: simple
Facets
maxLength 3
Source

<xsd:element name="JurisdictionCode" type="JurisdictionCode"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSNMIDiscoveryReportParameters/Participant
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="Participant" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSNMIDiscoveryReportParameters/ReportType
Namespace No namespace
Diagram
Diagram
Type restriction of xsd:string
Properties
content: simple
Facets
enumeration SourceContent, Statistic
Source

<xsd:element name="ReportType">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="SourceContent"/>
      <xsd:enumeration value="Statistic"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

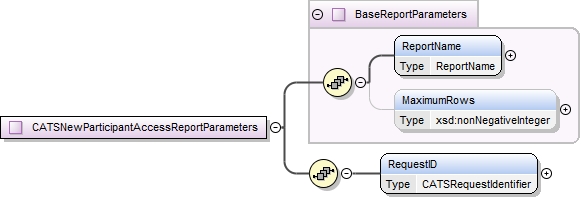

Element CATSNewParticipantAccessReportParameters/RequestID
Namespace No namespace
Diagram
Diagram asexml_r2514.tmp#id252
Type CATSRequestIdentifier
Properties
content: simple
Facets
maxInclusive 9999999999
Source

<xsd:element name="RequestID" type="CATSRequestIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

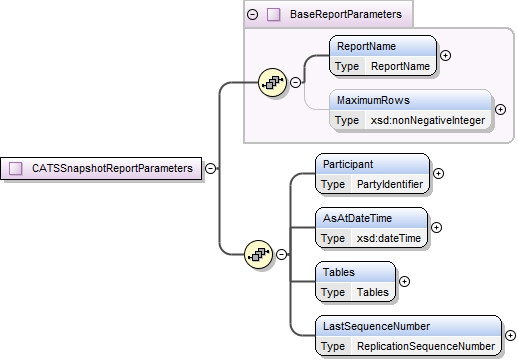

Element CATSSnapshotReportParameters/Participant
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="Participant" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSSnapshotReportParameters/AsAtDateTime
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="AsAtDateTime" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSSnapshotReportParameters/Tables
Namespace No namespace
Diagram
Diagram asexml_r2519.tmp#id2499 asexml_r2519.tmp#id2498
Type Tables
Properties
content: complex
Model Table+
Children Table
Instance

<Tables>
  <Table>{1,unbounded}</Table>
</Tables>
Source

<xsd:element name="Tables" type="Tables"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element CATSSnapshotReportParameters/LastSequenceNumber
Namespace No namespace
Diagram
Diagram asexml_r251.tmp#id67
Type ReplicationSequenceNumber
Properties
content: simple
Source

<xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

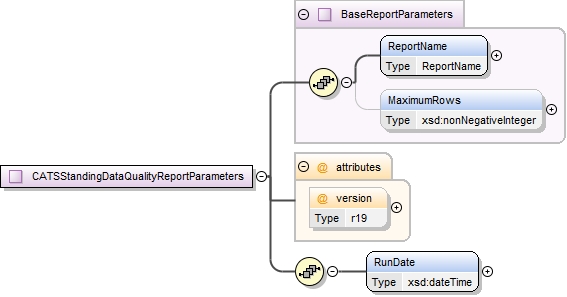

Element CATSStandingDataQualityReportParameters/RunDate
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="RunDate" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

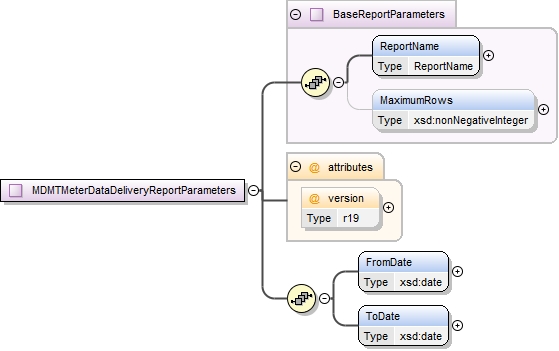

Element MDMTMeterDataDeliveryReportParameters/FromDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="FromDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element MDMTMeterDataDeliveryReportParameters/ToDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="ToDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

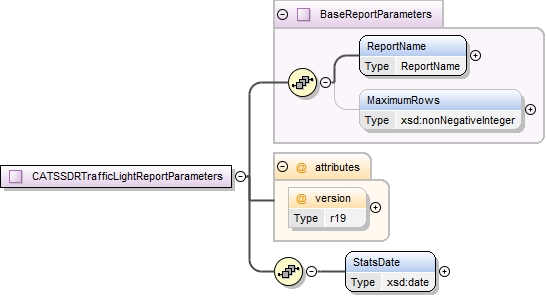

Element CATSSDRTrafficLightReportParameters/StatsDate
Namespace No namespace
Diagram
Diagram
Type xsd:date
Properties
content: simple
Source

<xsd:element name="StatsDate" type="xsd:date"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

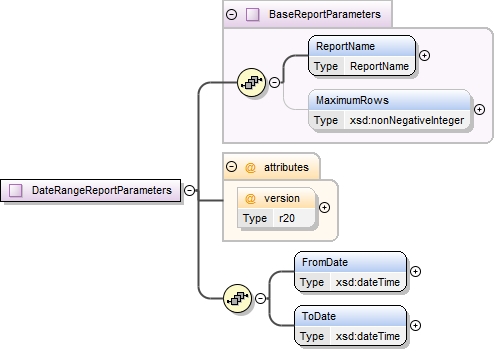

Element DateRangeReportParameters/FromDate
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="FromDate" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Element DateRangeReportParameters/ToDate
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="ToDate" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd

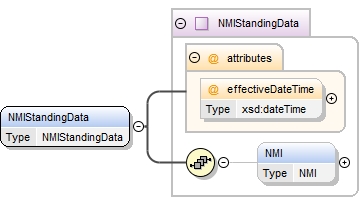

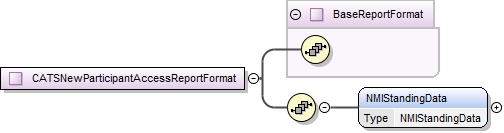

Element CATSNewParticipantAccessReportFormat/NMIStandingData
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id227 asexml_r250.tmp#id222 asexml_r250.tmp#id221
Type NMIStandingData
Properties
content: complex
Model NMI{0,1}
Children NMI
Instance

<NMIStandingData effectiveDateTime="">
  <NMI checksum="">{0,1}</NMI>
</NMIStandingData>
Attributes
QName Type Fixed Default Use Annotation
effectiveDateTime xsd:dateTime optional
Source

<xsd:element name="NMIStandingData" type="NMIStandingData"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type Tables
Namespace urn:aseXML:r25
Annotations

Purpose - container for requested tables
Diagram
Diagram asexml_r2519.tmp#id2499
Used by
Model Table+
Children Table
Source

<xsd:complexType name="Tables">
  <xsd:annotation>
    <xsd:documentation>Purpose - container for requested tables</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Table" type="ReplicationTableName" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type CATSNMIAuditReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameters for a CATS NMI Audit Report
Report Name - NMIAudit
MSATS Report - C2
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2501 asexml_r2519.tmp#id2502 asexml_r2519.tmp#id2503 asexml_r2519.tmp#id2504 asexml_r2519.tmp#id2505
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtFromDate , AsAtToDate , NMI
Children AsAtFromDate, AsAtToDate, FromDate, MaximumRows, NMI, ReportName, ToDate
Source

<xsd:complexType name="CATSNMIAuditReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameters for a CATS NMI Audit Report Report Name - NMIAudit MSATS Report - C2</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="FromDate" type="xsd:date"/>
        <xsd:element name="ToDate" type="xsd:date"/>
        <xsd:element name="AsAtFromDate" type="xsd:dateTime"/>
        <xsd:element name="AsAtToDate" type="xsd:dateTime"/>
        <xsd:element name="NMI" type="NMI"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type CATSChangeManagementReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameters for a CATS Change Management Report
Report Name - ChangeManagement
MSATS Report - C3
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2507 asexml_r2519.tmp#id2508 asexml_r2519.tmp#id2509 asexml_r2519.tmp#id2510 asexml_r2519.tmp#id2511 asexml_r2519.tmp#id2512 asexml_r2519.tmp#id2513 asexml_r2519.tmp#id2514 asexml_r2519.tmp#id2515 asexml_r2519.tmp#id2516 asexml_r2519.tmp#id2517
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber , (NMI | (NMIClassificationCode , JurisdictionCode)) , ExcludeParticipant{0,1} , Participant , ExcludeRole{0,1} , Role{0,1}
Children AsAtDate, ExcludeParticipant, ExcludeRole, FromDate, JurisdictionCode, LastSequenceNumber, MaximumRows, NMI, NMIClassificationCode, Participant, ReportName, Role, ToDate
Source

<xsd:complexType name="CATSChangeManagementReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameters for a CATS Change Management Report Report Name - ChangeManagement MSATS Report - C3</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="FromDate" type="xsd:date"/>
        <xsd:element name="ToDate" type="xsd:date"/>
        <xsd:element name="AsAtDate" type="xsd:dateTime"/>
        <xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
        <xsd:choice>
          <xsd:element name="NMI" type="NMI"/>
          <xsd:sequence>
            <xsd:element name="NMIClassificationCode" type="NMIClassificationCode"/>
            <xsd:element name="JurisdictionCode" type="JurisdictionCode"/>
          </xsd:sequence>
        </xsd:choice>
        <xsd:element name="ExcludeParticipant" type="YesNo" minOccurs="0"/>
        <xsd:element name="Participant" type="PartyIdentifier"/>
        <xsd:element name="ExcludeRole" type="YesNo" minOccurs="0"/>
        <xsd:element name="Role" type="RoleIdentifier" minOccurs="0"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type CATSMasterReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameters for a CATS Master Report
Report Name - Master
MSATS Report - C4
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2519 asexml_r2519.tmp#id2520 asexml_r2519.tmp#id2521 asexml_r2519.tmp#id2522 asexml_r2519.tmp#id2523 asexml_r2519.tmp#id2524 asexml_r2519.tmp#id2525 asexml_r2519.tmp#id2526 asexml_r2519.tmp#id2527 asexml_r2519.tmp#id2528 asexml_r2519.tmp#id2529 asexml_r2519.tmp#id2530
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , AsAtDate , LastSequenceNumber , (NMI | (NMIClassificationCode , JurisdictionCode)) , ExcludeParticipant{0,1} , Participant , ExcludeRole{0,1} , Role , ReportType
Children AsAtDate, ExcludeParticipant, ExcludeRole, FromDate, JurisdictionCode, LastSequenceNumber, MaximumRows, NMI, NMIClassificationCode, Participant, ReportName, ReportType, Role, ToDate
Source

<xsd:complexType name="CATSMasterReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameters for a CATS Master Report Report Name - Master MSATS Report - C4</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="FromDate" type="xsd:date"/>
        <xsd:element name="ToDate" type="xsd:date"/>
        <xsd:element name="AsAtDate" type="xsd:date"/>
        <xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
        <xsd:choice>
          <xsd:element name="NMI" type="NMI"/>
          <xsd:sequence>
            <xsd:element name="NMIClassificationCode" type="NMIClassificationCode"/>
            <xsd:element name="JurisdictionCode" type="JurisdictionCode"/>
          </xsd:sequence>
        </xsd:choice>
        <xsd:element name="ExcludeParticipant" type="YesNo" minOccurs="0"/>
        <xsd:element name="Participant" type="PartyIdentifier"/>
        <xsd:element name="ExcludeRole" type="YesNo" minOccurs="0"/>
        <xsd:element name="Role" type="RoleIdentifier"/>
        <xsd:element name="ReportType">
          <xsd:simpleType>
            <xsd:restriction base="xsd:string">
              <xsd:enumeration value="Summary"/>
              <xsd:enumeration value="Detailed"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:element>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type CATSStatisticsReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameters for a CATS Statistics Report
Report Name - Statistics
MSATS Report - C5
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2532 asexml_r2519.tmp#id2533 asexml_r2519.tmp#id2534
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , ReportType
Children FromDate, MaximumRows, ReportName, ReportType, ToDate
Source

<xsd:complexType name="CATSStatisticsReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameters for a CATS Statistics Report Report Name - Statistics MSATS Report - C5</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="FromDate" type="xsd:date"/>
        <xsd:element name="ToDate" type="xsd:date"/>
        <xsd:element name="ReportType">
          <xsd:simpleType>
            <xsd:restriction base="xsd:string">
              <xsd:enumeration value="Public"/>
              <xsd:enumeration value="Internal"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:element>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type CATSNMIDiscoveryReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameters for a CATS NMI Discovery Report
Report Name - NMIDiscovery
MSATS Report - C6
Detail - The NMI/Jurisdiction choice is ignored if a report type of Source and Content is selected. One of NMI/Jurisdiction should however be provided for a report type of Statistic.
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2536 asexml_r2519.tmp#id2537 asexml_r2519.tmp#id2538 asexml_r2519.tmp#id2539 asexml_r2519.tmp#id2540 asexml_r2519.tmp#id2541 asexml_r2519.tmp#id2542
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate , LastSequenceNumber , (NMI | JurisdictionCode) , Participant , ReportType
Children FromDate, JurisdictionCode, LastSequenceNumber, MaximumRows, NMI, Participant, ReportName, ReportType, ToDate
Source

<xsd:complexType name="CATSNMIDiscoveryReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameters for a CATS NMI Discovery Report Report Name - NMIDiscovery MSATS Report - C6 Detail - The NMI/Jurisdiction choice is ignored if a report type of Source and Content is selected. One of NMI/Jurisdiction should however be provided for a report type of Statistic.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="FromDate" type="xsd:date"/>
        <xsd:element name="ToDate" type="xsd:date"/>
        <xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
        <xsd:choice minOccurs="0">
          <xsd:element name="NMI" type="NMI"/>
          <xsd:element name="JurisdictionCode" type="JurisdictionCode"/>
        </xsd:choice>
        <xsd:element name="Participant" type="PartyIdentifier"/>
        <xsd:element name="ReportType">
          <xsd:simpleType>
            <xsd:restriction base="xsd:string">
              <xsd:enumeration value="SourceContent"/>
              <xsd:enumeration value="Statistic"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:element>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type CATSNewParticipantAccessReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameters for a CATS New Participant Access to Master Record Report
Report Name - NewParticipantAccess
MSATS Report - C7
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2544
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , RequestID
Children MaximumRows, ReportName, RequestID
Source

<xsd:complexType name="CATSNewParticipantAccessReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameters for a CATS New Participant Access to Master Record Report Report Name - NewParticipantAccess MSATS Report - C7</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="RequestID" type="CATSRequestIdentifier"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type CATSSnapshotReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameters for a CATS Snapshot Report. Report Name
Snapshot MSATS Report
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2546 asexml_r2519.tmp#id2547 asexml_r2519.tmp#id2548 asexml_r2519.tmp#id2549
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , Participant , AsAtDateTime , Tables , LastSequenceNumber
Children AsAtDateTime, LastSequenceNumber, MaximumRows, Participant, ReportName, Tables
Source

<xsd:complexType name="CATSSnapshotReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameters for a CATS Snapshot Report. Report Name Snapshot MSATS Report</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="Participant" type="PartyIdentifier"/>
        <xsd:element name="AsAtDateTime" type="xsd:dateTime"/>
        <xsd:element name="Tables" type="Tables"/>
        <xsd:element name="LastSequenceNumber" type="ReplicationSequenceNumber"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type CATSStandingDataQualityReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for  Standing Data Report
Report Name - Participant Standing Data  report
MSATS Report - STANDING_DATA_QUALITY
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2552 asexml_r2519.tmp#id2551
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , RunDate
Children MaximumRows, ReportName, RunDate
Attributes
QName Type Fixed Default Use Annotation
version r19 optional
Source

<xsd:complexType name="CATSStandingDataQualityReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for Standing Data Report Report Name - Participant Standing Data report MSATS Report - STANDING_DATA_QUALITY</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="RunDate" type="xsd:dateTime"/>
      </xsd:sequence>
      <xsd:attribute name="version" type="r19" use="optional"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type MDMTMeterDataDeliveryReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for Meter Data Delivery Report
Report Name - SDD Export
MSATS Report - MTR_DATA_DEL_XML_CRT
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2556 asexml_r2519.tmp#id2554 asexml_r2519.tmp#id2555
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate
Children FromDate, MaximumRows, ReportName, ToDate
Attributes
QName Type Fixed Default Use Annotation
version r19 optional
Source

<xsd:complexType name="MDMTMeterDataDeliveryReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for Meter Data Delivery Report Report Name - SDD Export MSATS Report - MTR_DATA_DEL_XML_CRT</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="FromDate" type="xsd:date"/>
        <xsd:element name="ToDate" type="xsd:date"/>
      </xsd:sequence>
      <xsd:attribute name="version" type="r19" use="optional"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type CATSSDRTrafficLightReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameter definition for  SDR Traffic Light Report
Report Name - SDR Export
MSATS Report - STND_DAT_TRAFFICLGHT
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2559 asexml_r2519.tmp#id2558
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , StatsDate
Children MaximumRows, ReportName, StatsDate
Attributes
QName Type Fixed Default Use Annotation
version r19 optional
Source

<xsd:complexType name="CATSSDRTrafficLightReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameter definition for SDR Traffic Light Report Report Name - SDR Export MSATS Report - STND_DAT_TRAFFICLGHT</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="StatsDate" type="xsd:date"/>
      </xsd:sequence>
      <xsd:attribute name="version" type="r19" use="optional"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type DateRangeReportParameters
Namespace urn:aseXML:r25
Annotations

Purpose - Parameters for a CATS Security Report
Report Name - C8
Diagram
Diagram asexml_r2518.tmp#id109 asexml_r2518.tmp#id111 asexml_r2518.tmp#id108 asexml_r2519.tmp#id2563 asexml_r2519.tmp#id2561 asexml_r2519.tmp#id2562
Type extension of BaseReportParameters
Type hierarchy
Model ReportName , MaximumRows{0,1} , FromDate , ToDate
Children FromDate, MaximumRows, ReportName, ToDate
Attributes
QName Type Fixed Default Use Annotation
version r20 optional
Source

<xsd:complexType name="DateRangeReportParameters">
  <xsd:annotation>
    <xsd:documentation>Purpose - Parameters for a CATS Security Report Report Name - C8</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportParameters">
      <xsd:sequence>
        <xsd:element name="FromDate" type="xsd:dateTime"/>
        <xsd:element name="ToDate" type="xsd:dateTime"/>
      </xsd:sequence>
      <xsd:attribute name="version" type="r20"/>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Complex Type CATSNewParticipantAccessReportFormat
Namespace urn:aseXML:r25
Annotations

Purpose - Format for a CATS New Participant Access to Master Record Report
Report Name - NewParticipantAccess
MSATS Report - C7
Diagram
Diagram asexml_r2518.tmp#id117 asexml_r2519.tmp#id2565
Type extension of BaseReportFormat
Type hierarchy
Model NMIStandingData
Children NMIStandingData
Source

<xsd:complexType name="CATSNewParticipantAccessReportFormat">
  <xsd:annotation>
    <xsd:documentation>Purpose - Format for a CATS New Participant Access to Master Record Report Report Name - NewParticipantAccess MSATS Report - C7</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="BaseReportFormat">
      <xsd:sequence>
        <xsd:element name="NMIStandingData" type="NMIStandingData"/>
      </xsd:sequence>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Attribute CATSStandingDataQualityReportParameters/@version
Namespace No namespace
Type r19
Type hierarchy
Properties
use: optional
Facets
enumeration r19
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r19" use="optional"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Attribute MDMTMeterDataDeliveryReportParameters/@version
Namespace No namespace
Type r19
Type hierarchy
Properties
use: optional
Facets
enumeration r19
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r19" use="optional"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Attribute CATSSDRTrafficLightReportParameters/@version
Namespace No namespace
Type r19
Type hierarchy
Properties
use: optional
Facets
enumeration r19
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r19" use="optional"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
Attribute DateRangeReportParameters/@version
Namespace No namespace
Type r20
Type hierarchy
Properties
content: simple
Facets
enumeration r20
pattern r[0-9]*|r[0-9]*_[a-z][0-9]*
Used by
Source

<xsd:attribute name="version" type="r20"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/CATSReports_r20.xsd
