Included schema sportsml-specific-soccer.xsd
Namespace http://iptc.org/std/SportsML/2008-04-01/
Properties
attribute form default unqualified
element form default unqualified
version 2.0
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd

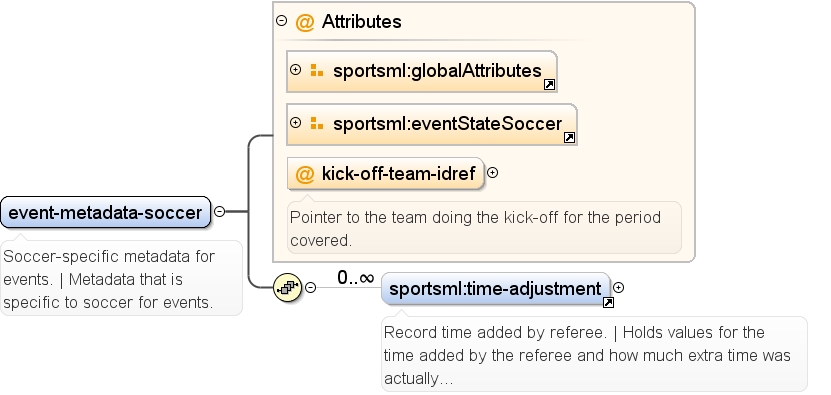

Element sportsml:event-metadata-soccer
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Soccer-specific metadata for events. | Metadata that is specific to soccer for events.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#eventStateSoccer sportsml-specific-soccer_xsd.tmp#event-metadata-soccer_kick-off-team-idref sportsml-specific-soccer_xsd.tmp#time-adjustment
Properties
content complex
Used by
Model
Children sportsml:time-adjustment
Instance

<sportsml:event-metadata-soccer id="" kick-off-team-idref="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:time-adjustment id="" minutes-elapsed="" period-extra-time-added="" period-extra-time-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="">{0,unbounded}</sportsml:time-adjustment>
</sportsml:event-metadata-soccer>
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
kick-off-team-idref IDREF optional
Pointer to the team doing the kick-off for the period covered.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
Source

<element name="event-metadata-soccer">
  <annotation>
    <documentation>Soccer-specific metadata for events. | Metadata that is specific to soccer for events.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:time-adjustment" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>

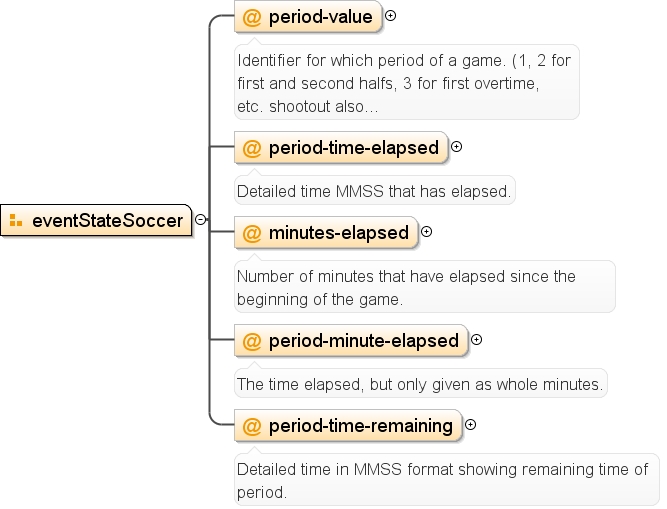

    <attributeGroup ref="sportsml:eventStateSoccer"/>
    <attribute name="kick-off-team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>Pointer to the team doing the kick-off for the period covered.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd

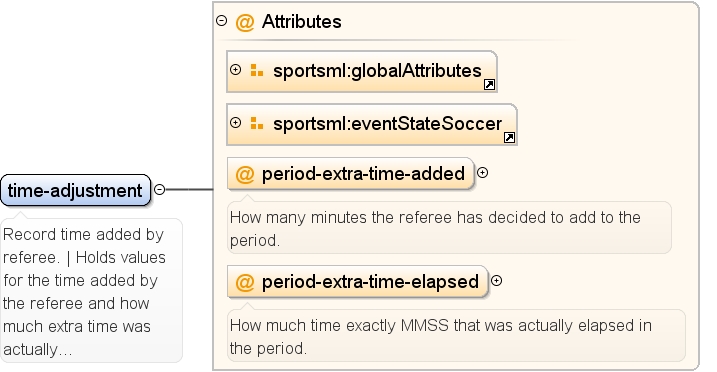

Element sportsml:time-adjustment
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Record time added by referee. | Holds values for the time added by the referee and how much extra time was actually played.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#eventStateSoccer sportsml-specific-soccer_xsd.tmp#time-adjustment_period-extra-time-added sportsml-specific-soccer_xsd.tmp#time-adjustment_period-extra-time-elapsed
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-extra-time-added string optional
How many minutes the referee has decided to add to the period.
period-extra-time-elapsed string optional
How much time exactly MMSS that was actually elapsed in the period.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
Source

<element name="time-adjustment">
  <annotation>
    <documentation>Record time added by referee. | Holds values for the time added by the referee and how much extra time was actually played.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateSoccer"/>
    <attribute name="period-extra-time-added" type="string" use="optional">
      <annotation>
        <documentation>How many minutes the referee has decided to add to the period.</documentation>
      </annotation>
    </attribute>
    <attribute name="period-extra-time-elapsed" type="string" use="optional">
      <annotation>
        <documentation>How much time exactly MMSS that was actually elapsed in the period.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd

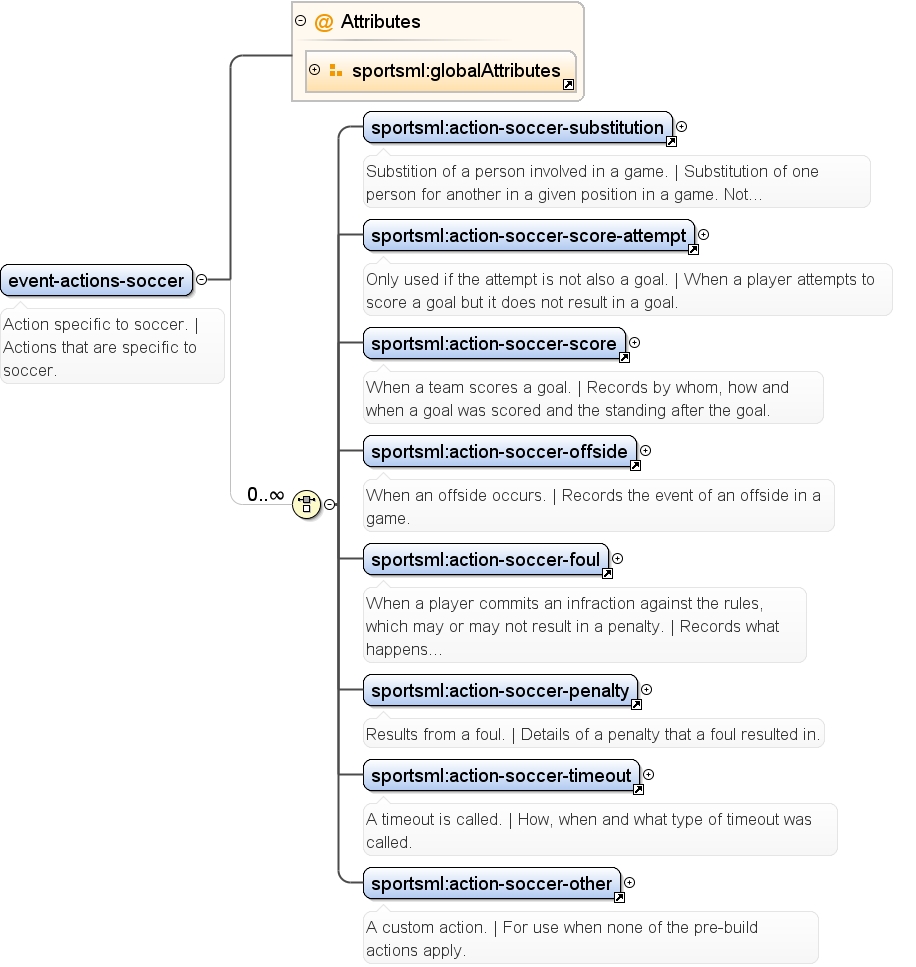

Element sportsml:event-actions-soccer
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Action specific to soccer. | Actions that are specific to soccer.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#action-soccer-substitution sportsml-specific-soccer_xsd.tmp#action-soccer-score-attempt sportsml-specific-soccer_xsd.tmp#action-soccer-score sportsml-specific-soccer_xsd.tmp#action-soccer-offside sportsml-specific-soccer_xsd.tmp#action-soccer-foul sportsml-specific-soccer_xsd.tmp#action-soccer-penalty sportsml-specific-soccer_xsd.tmp#action-soccer-timeout sportsml-specific-soccer_xsd.tmp#action-soccer-other
Properties
content complex
Used by
Model
Children sportsml:action-soccer-foul, sportsml:action-soccer-offside, sportsml:action-soccer-other, sportsml:action-soccer-penalty, sportsml:action-soccer-score, sportsml:action-soccer-score-attempt, sportsml:action-soccer-substitution, sportsml:action-soccer-timeout
Instance

<sportsml:event-actions-soccer id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-soccer-substitution comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" person-original-idref="" person-original-position="" person-replacing-idref="" person-replacing-position="" person-type="" substitution-reason="" team-idref="">{1,1}</sportsml:action-soccer-substitution>
  <sportsml:action-soccer-score-attempt comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" score-attempt-method="" score-attempt-result="" score-attempt-type="" shootout-shot-order="" team-idref="">{1,1}</sportsml:action-soccer-score-attempt>
  <sportsml:action-soccer-score comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" score-attempt-method="" score-attempt-type="" score-team="" score-team-opposing="" shootout-shot-order="" team-idref="">{1,1}</sportsml:action-soccer-score>

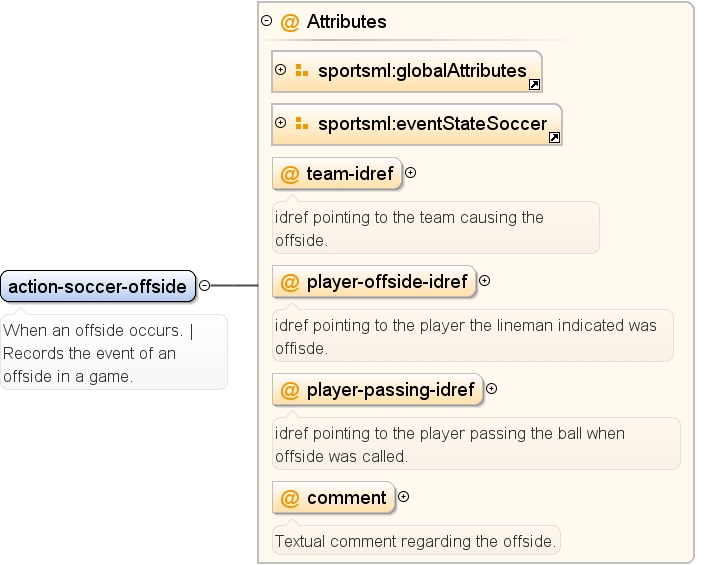

  <sportsml:action-soccer-offside comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" player-offside-idref="" player-passing-idref="" team-idref="">{1,1}</sportsml:action-soccer-offside>
  <sportsml:action-soccer-foul comment="" fouled-player-idref="" fouled-team-idref="" fouling-player-idref="" fouling-team-idref="" foul-name="" foul-result="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="">{1,1}</sportsml:action-soccer-foul>

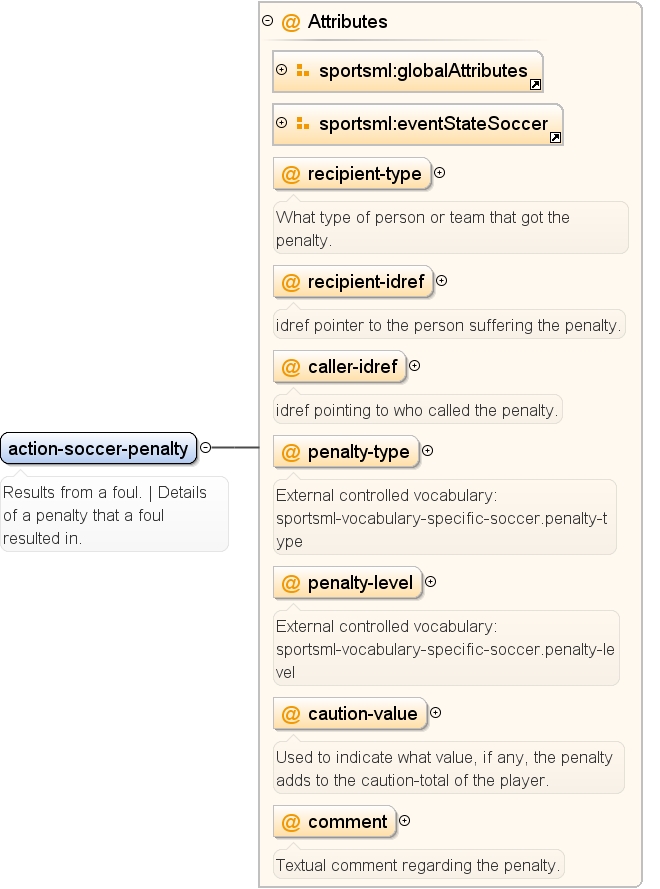

  <sportsml:action-soccer-penalty caller-idref="" caution-value="" comment="" id="" minutes-elapsed="" penalty-level="" penalty-type="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" recipient-idref="" recipient-type="">{1,1}</sportsml:action-soccer-penalty>

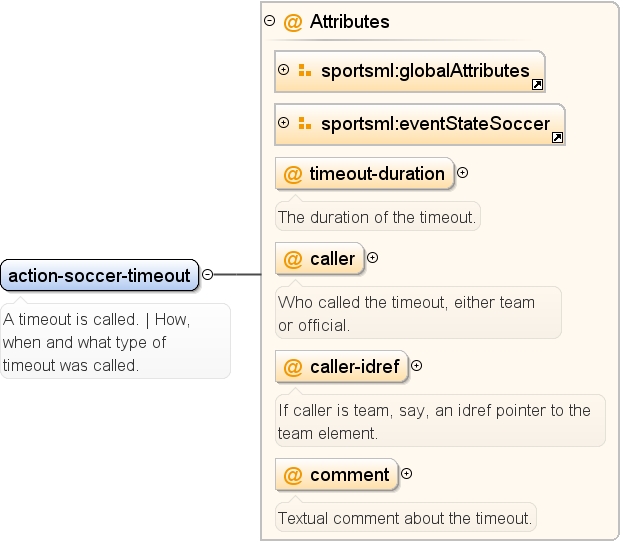

  <sportsml:action-soccer-timeout caller="" caller-idref="" comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" timeout-duration="">{1,1}</sportsml:action-soccer-timeout>
  <sportsml:action-soccer-other action-source="" action-type="" comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="">{1,1}</sportsml:action-soccer-other>
</sportsml:event-actions-soccer>
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
Source

<element name="event-actions-soccer">
  <annotation>
    <documentation>Action specific to soccer. | Actions that are specific to soccer.</documentation>
  </annotation>
  <complexType>
    <choice minOccurs="0" maxOccurs="unbounded">
      <element ref="sportsml:action-soccer-substitution"/>
      <element ref="sportsml:action-soccer-score-attempt"/>
      <element ref="sportsml:action-soccer-score"/>
      <element ref="sportsml:action-soccer-offside"/>
      <element ref="sportsml:action-soccer-foul"/>
      <element ref="sportsml:action-soccer-penalty"/>
      <element ref="sportsml:action-soccer-timeout"/>
      <element ref="sportsml:action-soccer-other"/>
    </choice>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd

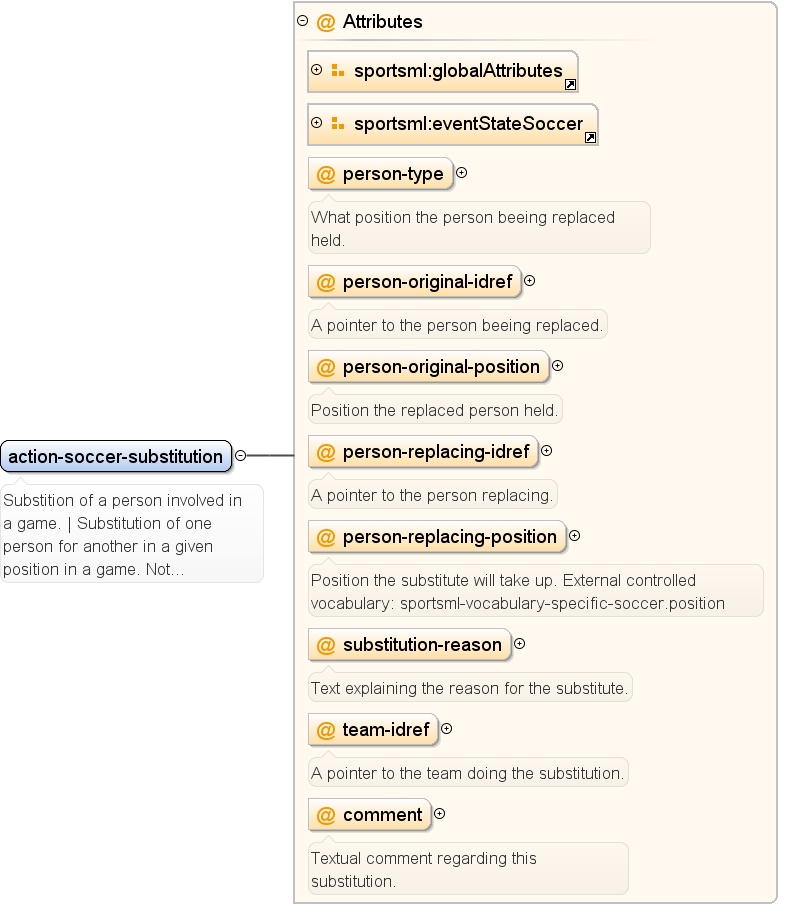

Element sportsml:action-soccer-substitution
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Substition of a person involved in a game. | Substitution of one person for another in a given position in a game. Not limited to players.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#eventStateSoccer sportsml-specific-soccer_xsd.tmp#action-soccer-substitution_person-type sportsml-specific-soccer_xsd.tmp#action-soccer-substitution_person-original-idref sportsml-specific-soccer_xsd.tmp#action-soccer-substitution_person-original-position sportsml-specific-soccer_xsd.tmp#action-soccer-substitution_person-replacing-idref sportsml-specific-soccer_xsd.tmp#action-soccer-substitution_person-replacing-position sportsml-specific-soccer_xsd.tmp#action-soccer-substitution_substitution-reason sportsml-specific-soccer_xsd.tmp#action-soccer-substitution_team-idref sportsml-specific-soccer_xsd.tmp#action-soccer-substitution_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
Textual comment regarding this substitution.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
person-original-idref IDREF optional
A pointer to the person beeing replaced.
person-original-position sportsml:position.Soccer optional
Position the replaced person held.
person-replacing-idref IDREF optional
A pointer to the person replacing.
person-replacing-position string optional
Position the substitute will take up.  External controlled vocabulary: sportsml-vocabulary-specific-soccer.position
person-type restriction of string optional
What position the person beeing replaced held.
substitution-reason string optional
Text explaining the reason for the substitute.
team-idref IDREF optional
A pointer to the team doing the substitution.
Source

<element name="action-soccer-substitution">
  <annotation>
    <documentation>Substition of a person involved in a game. | Substitution of one person for another in a given position in a game. Not limited to players.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateSoccer"/>
    <attribute name="person-type" use="optional">
      <annotation>
        <documentation>What position the person beeing replaced held.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="player"/>
          <enumeration value="associate"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="person-original-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the person beeing replaced.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-original-position" type="sportsml:position.Soccer" use="optional">
      <annotation>
        <documentation>Position the replaced person held.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the person replacing.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-position" type="string" use="optional">
      <annotation>
        <documentation>Position the substitute will take up. External controlled vocabulary: sportsml-vocabulary-specific-soccer.position</documentation>
      </annotation>
    </attribute>
    <attribute name="substitution-reason" type="string" use="optional">
      <annotation>
        <documentation>Text explaining the reason for the substitute.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the team doing the substitution.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment regarding this substitution.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd

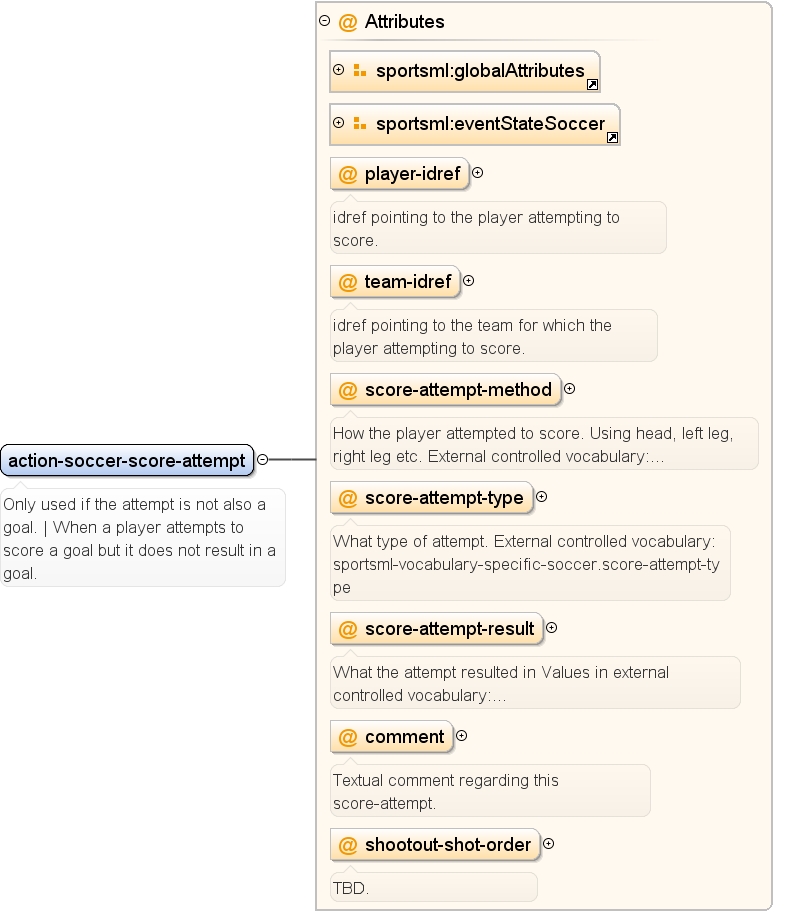

Element sportsml:action-soccer-score-attempt
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Only used if the attempt is not also a goal. | When a player attempts to score a goal but it does not result in a goal.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#eventStateSoccer sportsml-specific-soccer_xsd.tmp#action-soccer-score-attempt_player-idref sportsml-specific-soccer_xsd.tmp#action-soccer-score-attempt_team-idref sportsml-specific-soccer_xsd.tmp#action-soccer-score-attempt_score-attempt-method sportsml-specific-soccer_xsd.tmp#action-soccer-score-attempt_score-attempt-type sportsml-specific-soccer_xsd.tmp#action-soccer-score-attempt_score-attempt-result sportsml-specific-soccer_xsd.tmp#action-soccer-score-attempt_comment sportsml-specific-soccer_xsd.tmp#action-soccer-score-attempt_shootout-shot-order
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
Textual comment regarding this score-attempt.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
player-idref IDREF optional
idref pointing to the player attempting to score.
score-attempt-method string optional
How the player attempted to score. Using head, left leg, right leg etc. External controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-method
score-attempt-result string optional
What the attempt resulted in Values in external controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-result
score-attempt-type string optional
What type of attempt. External controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-type
shootout-shot-order string optional
TBD.
team-idref IDREF optional
idref pointing to the team for which the player attempting to score.
Source

<element name="action-soccer-score-attempt">
  <annotation>
    <documentation>Only used if the attempt is not also a goal. | When a player attempts to score a goal but it does not result in a goal.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateSoccer"/>
    <attribute name="player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player attempting to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the team for which the player attempting to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-method" type="string" use="optional">
      <annotation>
        <documentation>How the player attempted to score. Using head, left leg, right leg etc. External controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-method</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-type" type="string" use="optional">
      <annotation>
        <documentation>What type of attempt. External controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-type</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-result" type="string" use="optional">
      <annotation>
        <documentation>What the attempt resulted in Values in external controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-result</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment regarding this score-attempt.</documentation>
      </annotation>
    </attribute>
    <attribute name="shootout-shot-order" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Element sportsml:action-soccer-score
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

When a team scores a goal. | Records by whom, how and when a goal was scored and the standing after the goal.
Diagram

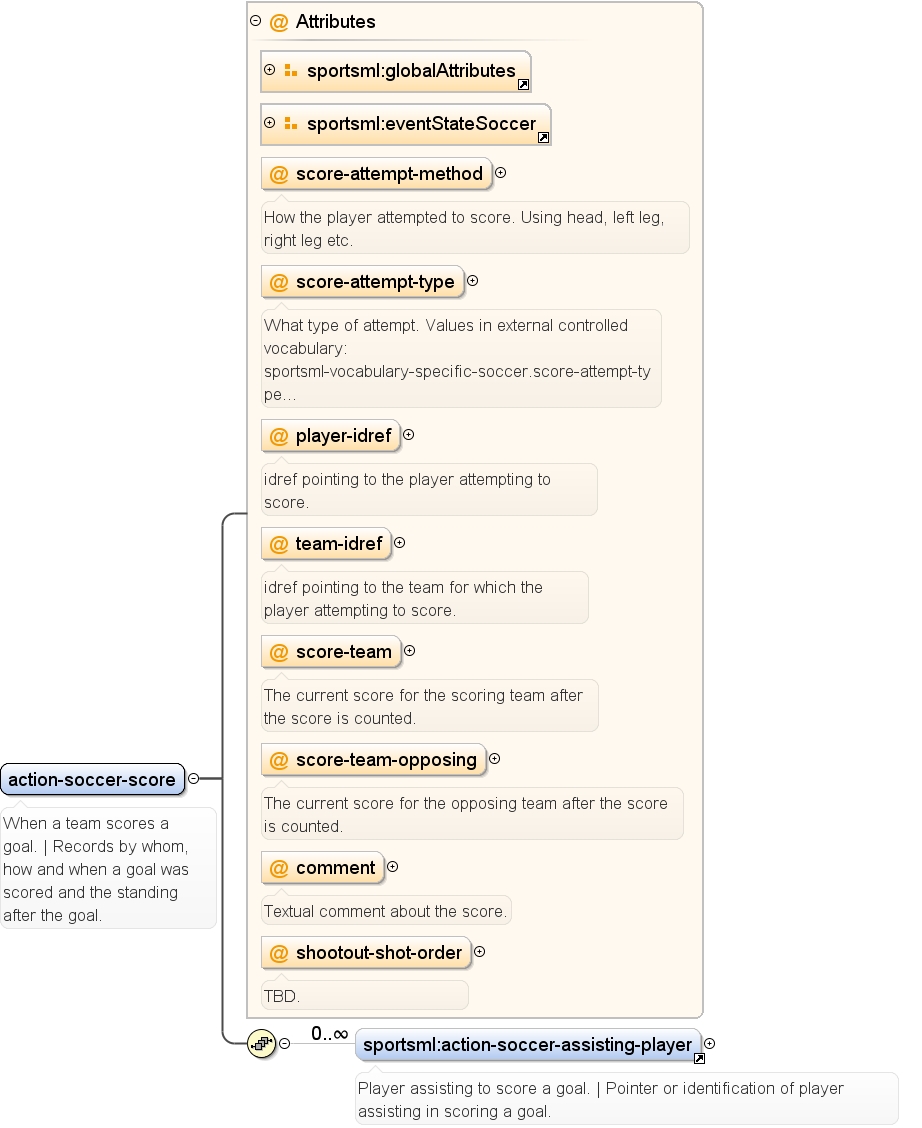

Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#eventStateSoccer sportsml-specific-soccer_xsd.tmp#action-soccer-score_score-attempt-method sportsml-specific-soccer_xsd.tmp#action-soccer-score_score-attempt-type sportsml-specific-soccer_xsd.tmp#action-soccer-score_player-idref sportsml-specific-soccer_xsd.tmp#action-soccer-score_team-idref sportsml-specific-soccer_xsd.tmp#action-soccer-score_score-team sportsml-specific-soccer_xsd.tmp#action-soccer-score_score-team-opposing sportsml-specific-soccer_xsd.tmp#action-soccer-score_comment sportsml-specific-soccer_xsd.tmp#action-soccer-score_shootout-shot-order sportsml-specific-soccer_xsd.tmp#action-soccer-assisting-player
Properties
content complex
Used by
Model
Children sportsml:action-soccer-assisting-player
Instance

<sportsml:action-soccer-score comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" score-attempt-method="" score-attempt-type="" score-team="" score-team-opposing="" shootout-shot-order="" team-idref="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-soccer-assisting-player id="" player-idref="">{0,unbounded}</sportsml:action-soccer-assisting-player>
</sportsml:action-soccer-score>
Attributes
QName Type Use Annotation
comment string optional
Textual comment about the score.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
player-idref IDREF optional
idref pointing to the player attempting to score.
score-attempt-method string optional
How the player attempted to score. Using head, left leg, right leg etc.
score-attempt-type string optional
What type of attempt. Values in external controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-type (Note that the same attribute names are used as in score-attempt to avoid the need for duplicated vocabularies.)
score-team string optional
The current score for the scoring team after the score is counted.
score-team-opposing string optional
The current score for the opposing team after the score is counted.
shootout-shot-order string optional
TBD.
team-idref IDREF optional
idref pointing to the team for which the player attempting to score.
Source

<element name="action-soccer-score">
  <annotation>
    <documentation>When a team scores a goal. | Records by whom, how and when a goal was scored and the standing after the goal.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:action-soccer-assisting-player" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateSoccer"/>
    <attribute name="score-attempt-method" type="string" use="optional">
      <annotation>
        <documentation>How the player attempted to score. Using head, left leg, right leg etc.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-type" type="string" use="optional">
      <annotation>
        <documentation>What type of attempt. Values in external controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-type (Note that the same attribute names are used as in score-attempt to avoid the need for duplicated vocabularies.)</documentation>
      </annotation>
    </attribute>
    <attribute name="player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player attempting to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the team for which the player attempting to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-team" type="string" use="optional">
      <annotation>
        <documentation>The current score for the scoring team after the score is counted.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-team-opposing" type="string" use="optional">
      <annotation>
        <documentation>The current score for the opposing team after the score is counted.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the score.</documentation>
      </annotation>
    </attribute>
    <attribute name="shootout-shot-order" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Element sportsml:action-soccer-assisting-player
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Player assisting to score a goal. | Pointer or identification of player assisting in scoring a goal.
Diagram

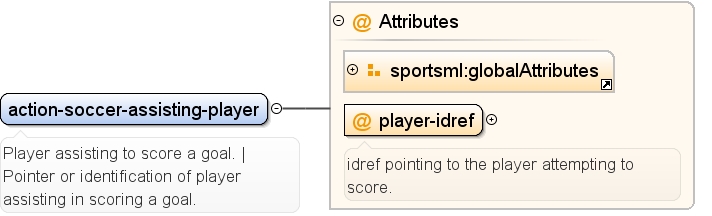

Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#action-soccer-assisting-player_player-idref
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
idref pointing to the player attempting to score.
Source

<element name="action-soccer-assisting-player">
  <annotation>
    <documentation>Player assisting to score a goal. | Pointer or identification of player assisting in scoring a goal.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>idref pointing to the player attempting to score.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Element sportsml:action-soccer-offside
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

When an offside occurs. | Records the event of an offside in a game.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#eventStateSoccer sportsml-specific-soccer_xsd.tmp#action-soccer-offside_team-idref sportsml-specific-soccer_xsd.tmp#action-soccer-offside_player-offside-idref sportsml-specific-soccer_xsd.tmp#action-soccer-offside_player-passing-idref sportsml-specific-soccer_xsd.tmp#action-soccer-offside_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
Textual comment regarding the offside.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
player-offside-idref IDREF optional
idref pointing to the player the lineman indicated was offisde.
player-passing-idref IDREF optional
idref pointing to the player passing the ball when offside was called.
team-idref IDREF optional
idref pointing to the team causing the offside.
Source

<element name="action-soccer-offside">
  <annotation>
    <documentation>When an offside occurs. | Records the event of an offside in a game.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateSoccer"/>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the team causing the offside.</documentation>
      </annotation>
    </attribute>
    <attribute name="player-offside-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player the lineman indicated was offisde.</documentation>
      </annotation>
    </attribute>
    <attribute name="player-passing-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player passing the ball when offside was called.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment regarding the offside.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd

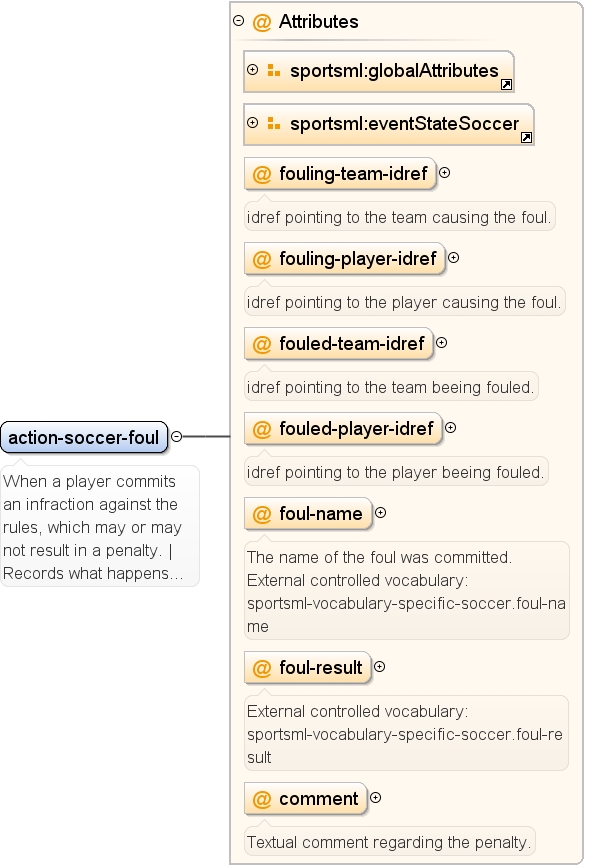

Element sportsml:action-soccer-foul
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

When a player commits an infraction against the rules, which may or may not result in a penalty. | Records what happens (or not happens) when a player commits a foul. Cautions and ejections are recorded under penalty.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#eventStateSoccer sportsml-specific-soccer_xsd.tmp#action-soccer-foul_fouling-team-idref sportsml-specific-soccer_xsd.tmp#action-soccer-foul_fouling-player-idref sportsml-specific-soccer_xsd.tmp#action-soccer-foul_fouled-team-idref sportsml-specific-soccer_xsd.tmp#action-soccer-foul_fouled-player-idref sportsml-specific-soccer_xsd.tmp#action-soccer-foul_foul-name sportsml-specific-soccer_xsd.tmp#action-soccer-foul_foul-result sportsml-specific-soccer_xsd.tmp#action-soccer-foul_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
Textual comment regarding the penalty.
foul-name string optional
The name of the foul was committed. External controlled vocabulary: sportsml-vocabulary-specific-soccer.foul-name
foul-result string optional
External controlled vocabulary: sportsml-vocabulary-specific-soccer.foul-result
fouled-player-idref IDREF optional
idref pointing to the player beeing fouled.
fouled-team-idref IDREF optional
idref pointing to the team beeing fouled.
fouling-player-idref IDREF optional
idref pointing to the player causing the foul.
fouling-team-idref IDREF optional
idref pointing to the team causing the foul.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
Source

<element name="action-soccer-foul">
  <annotation>
    <documentation>When a player commits an infraction against the rules, which may or may not result in a penalty. | Records what happens (or not happens) when a player commits a foul. Cautions and ejections are recorded under penalty.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateSoccer"/>
    <attribute name="fouling-team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the team causing the foul.</documentation>
      </annotation>
    </attribute>
    <attribute name="fouling-player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player causing the foul.</documentation>
      </annotation>
    </attribute>
    <attribute name="fouled-team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the team beeing fouled.</documentation>
      </annotation>
    </attribute>
    <attribute name="fouled-player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player beeing fouled.</documentation>
      </annotation>
    </attribute>
    <attribute name="foul-name" type="string" use="optional">
      <annotation>
        <documentation>The name of the foul was committed. External controlled vocabulary: sportsml-vocabulary-specific-soccer.foul-name</documentation>
      </annotation>
    </attribute>
    <attribute name="foul-result" type="string" use="optional">
      <annotation>
        <documentation>External controlled vocabulary: sportsml-vocabulary-specific-soccer.foul-result</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment regarding the penalty.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Element sportsml:action-soccer-penalty
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Results from a foul. | Details of a penalty that a foul resulted in.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#eventStateSoccer sportsml-specific-soccer_xsd.tmp#action-soccer-penalty_recipient-type sportsml-specific-soccer_xsd.tmp#action-soccer-penalty_recipient-idref sportsml-specific-soccer_xsd.tmp#action-soccer-penalty_caller-idref sportsml-specific-soccer_xsd.tmp#action-soccer-penalty_penalty-type sportsml-specific-soccer_xsd.tmp#action-soccer-penalty_penalty-level sportsml-specific-soccer_xsd.tmp#action-soccer-penalty_caution-value sportsml-specific-soccer_xsd.tmp#action-soccer-penalty_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
caller-idref string optional
idref pointing to who called the penalty.
caution-value string optional
Used to indicate what value, if any, the penalty adds to the caution-total of the player.
comment string optional
Textual comment regarding the penalty.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
penalty-level string optional
External controlled vocabulary: sportsml-vocabulary-specific-soccer.penalty-level
penalty-type string optional
External controlled vocabulary: sportsml-vocabulary-specific-soccer.penalty-type
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
recipient-idref IDREF optional
idref pointer to the person suffering the penalty.
recipient-type restriction of string optional
What type of person or team that got the penalty.
Source

<element name="action-soccer-penalty">
  <annotation>
    <documentation>Results from a foul. | Details of a penalty that a foul resulted in.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateSoccer"/>
    <attribute name="recipient-type" use="optional">
      <annotation>
        <documentation>What type of person or team that got the penalty.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="player"/>
          <enumeration value="auxilliary"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="recipient-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointer to the person suffering the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="caller-idref" type="string" use="optional">
      <annotation>
        <documentation>idref pointing to who called the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-type" type="string" use="optional">
      <annotation>
        <documentation>External controlled vocabulary: sportsml-vocabulary-specific-soccer.penalty-type</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-level" type="string" use="optional">
      <annotation>
        <documentation>External controlled vocabulary: sportsml-vocabulary-specific-soccer.penalty-level</documentation>
      </annotation>
    </attribute>
    <attribute name="caution-value" type="string" use="optional">
      <annotation>
        <documentation>Used to indicate what value, if any, the penalty adds to the caution-total of the player.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment regarding the penalty.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Element sportsml:action-soccer-timeout
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

A timeout is called. | How, when and what type of timeout was called.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#eventStateSoccer sportsml-specific-soccer_xsd.tmp#action-soccer-timeout_timeout-duration sportsml-specific-soccer_xsd.tmp#action-soccer-timeout_caller sportsml-specific-soccer_xsd.tmp#action-soccer-timeout_caller-idref sportsml-specific-soccer_xsd.tmp#action-soccer-timeout_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
caller restriction of string optional
Who called the timeout, either team or official.
caller-idref IDREF optional
If caller is team, say, an idref pointer to the team element.
comment string optional
Textual comment about the timeout.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
timeout-duration string optional
The duration of the timeout.
Source

<element name="action-soccer-timeout">
  <annotation>
    <documentation>A timeout is called. | How, when and what type of timeout was called.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateSoccer"/>
    <attribute name="timeout-duration" type="string" use="optional">
      <annotation>
        <documentation>The duration of the timeout.</documentation>
      </annotation>
    </attribute>
    <attribute name="caller" use="optional">
      <annotation>
        <documentation>Who called the timeout, either team or official.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="caller-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>If caller is team, say, an idref pointer to the team element.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the timeout.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd

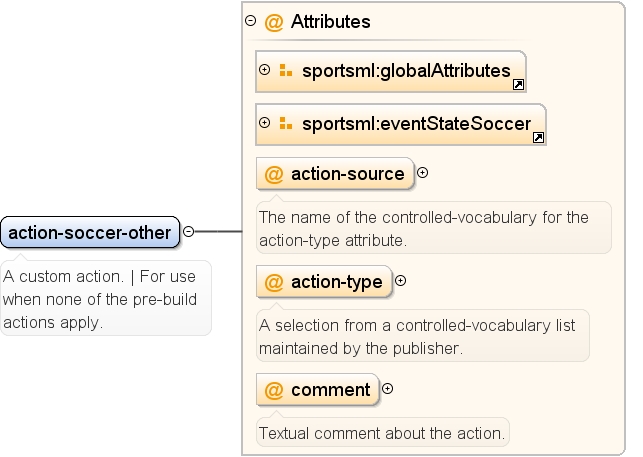

Element sportsml:action-soccer-other
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

A custom action. | For use when none of the pre-build actions apply.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-soccer_xsd.tmp#eventStateSoccer sportsml-specific-soccer_xsd.tmp#action-soccer-other_action-source sportsml-specific-soccer_xsd.tmp#action-soccer-other_action-type sportsml-specific-soccer_xsd.tmp#action-soccer-other_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
action-source string optional
The name of the controlled-vocabulary for the action-type attribute.
action-type string optional
A selection from a controlled-vocabulary list maintained by the publisher.
comment string optional
Textual comment about the action.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
Source

<element name="action-soccer-other">
  <annotation>
    <documentation>A custom action. | For use when none of the pre-build actions apply.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateSoccer"/>
    <attribute name="action-source" type="string" use="optional">
      <annotation>
        <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
      </annotation>
    </attribute>
    <attribute name="action-type" type="string" use="optional">
      <annotation>
        <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd

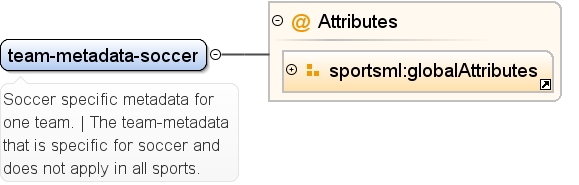

Element sportsml:team-metadata-soccer
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Soccer specific metadata for one team. | The team-metadata that is specific for soccer and does not apply in all sports.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
Source

<element name="team-metadata-soccer">
  <annotation>
    <documentation>Soccer specific metadata for one team. | The team-metadata that is specific for soccer and does not apply in all sports.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd

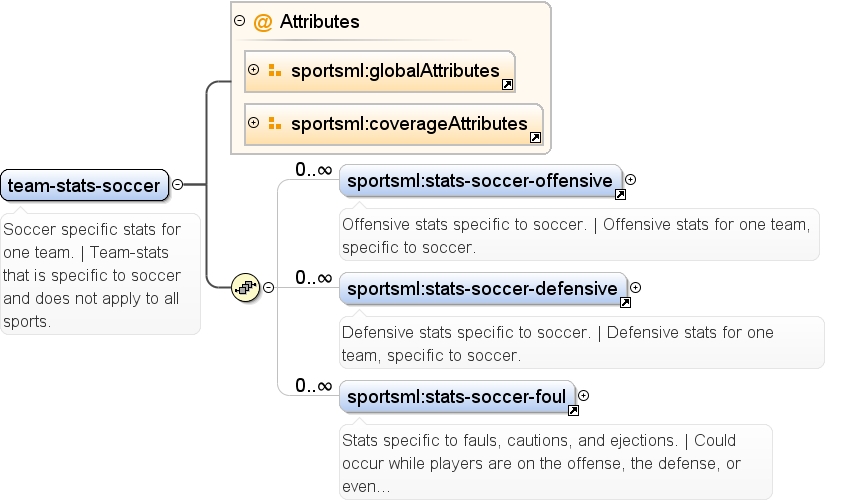

Element sportsml:team-stats-soccer
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Soccer specific stats for one team. | Team-stats that is specific to soccer and does not apply to all sports.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive sportsml-specific-soccer_xsd.tmp#stats-soccer-foul
Properties
content complex
Used by
Model
Children sportsml:stats-soccer-defensive, sportsml:stats-soccer-foul, sportsml:stats-soccer-offensive
Instance

<sportsml:team-stats-soccer alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-soccer-offensive alignment-scope="" assists-game-tying="" assists-game-winning="" assists-overtime="" assists-total="" competition-scope="" corner-kicks="" date-coverage-type="" date-coverage-value="" duration-scope="" giveaways="" goals-game-tying="" goals-game-winning="" goals-overtime="" goals-shootout="" goals-total="" hat-tricks="" id="" offsides="" period-value="" points="" position-scope="" record-making-scope="" scoping-label="" shots-hit-frame="" shots-on-goal-total="" shots-penalty-shot-missed="" shots-penalty-shot-percentage="" shots-penalty-shot-scored="" shots-penalty-shot-taken="" shots-shootout-missed="" shots-shootout-percentage="" shots-shootout-scored="" shots-shootout-taken="" shots-total="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:stats-soccer-offensive>
  <sportsml:stats-soccer-defensive alignment-scope="" catches-punches="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" goals-against-average="" goals-against-total="" goals-penalty-shot-allowed="" id="" period-value="" position-scope="" record-making-scope="" save-percentage="" saves="" scoping-label="" shots-blocked="" shots-on-goal-total="" shots-penalty-shot-allowed="" shots-shootout-allowed="" shots-shootout-total="" shutouts="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:stats-soccer-defensive>
  <sportsml:stats-soccer-foul alignment-scope="" caution-points-pending="" caution-points-total="" cautions-pending="" cautions-total="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" ejections-total="" fouls-commited="" fouls-suffered="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:stats-soccer-foul>
</sportsml:team-stats-soccer>
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="team-stats-soccer">
  <annotation>
    <documentation>Soccer specific stats for one team. | Team-stats that is specific to soccer and does not apply to all sports.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-soccer-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-soccer-defensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-soccer-foul" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Element sportsml:stats-soccer-offensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Offensive stats specific to soccer. | Offensive stats for one team, specific to soccer.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_goals-game-winning sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_goals-game-tying sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_goals-overtime sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_goals-shootout sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_goals-total sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_assists-game-winning sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_assists-game-tying sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_assists-overtime sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_assists-total sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_points sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-total sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-on-goal-total sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-penalty-shot-taken sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-penalty-shot-scored sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-penalty-shot-missed sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-penalty-shot-percentage sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-shootout-taken sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-shootout-scored sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-shootout-missed sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-shootout-percentage sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_giveaways sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_offsides sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_corner-kicks sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_hat-tricks sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive_shots-hit-frame
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
assists-game-tying string optional
Assists to goals that meant tying a game.
assists-game-winning string optional
Assists to goals that meant winning a game.
assists-overtime string optional
Assists made on goals scored during overtime.
assists-total string optional
Number of assists.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
corner-kicks string optional
Total number of corner kicks performed.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
giveaways string optional
When you play bad so the other team gets hold of the ball/puck.
goals-game-tying string optional
Goals that meant tying a game.
goals-game-winning string optional
Goals that meant winning a game.
goals-overtime string optional
Goals scored during overtime.
goals-shootout string optional
Goals scored during shootout.
goals-total string optional
TBD.
hat-tricks string optional
A record of the number of times a player scored three or more goals in a game. Sometimes, the rules that govern the assignment of a hat-trick varies.
id ID optional
An XML-specific identifier for the element.
offsides string optional
Total number of offsides.
period-value string optional
Used for tracking hits-per-inning, for example.
points string optional
Sum of goals and assists.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
shots-hit-frame string optional
TBD.
shots-on-goal-total string optional
TBD.
shots-penalty-shot-missed string optional
Total number of attempts to score as penalty-shot that did not result in a goal.
shots-penalty-shot-percentage string optional
Percentage of penalty shots scored. Could be calculated from above values.
shots-penalty-shot-scored string optional
Goals scored as penalty-shots.
shots-penalty-shot-taken string optional
Total number of attempts to score as penalty-shot.
shots-shootout-missed string optional
Goals missed during shootout.
shots-shootout-percentage string optional
Percentage of shootout goals scored.
shots-shootout-scored string optional
Goals scored during shootout.
shots-shootout-taken string optional
Total number of attempts to score during shootout.
shots-total string optional
TBD.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="stats-soccer-offensive">
  <annotation>
    <documentation>Offensive stats specific to soccer. | Offensive stats for one team, specific to soccer.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="goals-game-winning" type="string" use="optional">
      <annotation>
        <documentation>Goals that meant winning a game.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-game-tying" type="string" use="optional">
      <annotation>
        <documentation>Goals that meant tying a game.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-overtime" type="string" use="optional">
      <annotation>
        <documentation>Goals scored during overtime.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-shootout" type="string" use="optional">
      <annotation>
        <documentation>Goals scored during shootout.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-total" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-game-winning" type="string" use="optional">
      <annotation>
        <documentation>Assists to goals that meant winning a game.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-game-tying" type="string" use="optional">
      <annotation>
        <documentation>Assists to goals that meant tying a game.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-overtime" type="string" use="optional">
      <annotation>
        <documentation>Assists made on goals scored during overtime.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-total" type="string" use="optional">
      <annotation>
        <documentation>Number of assists.</documentation>
      </annotation>
    </attribute>
    <attribute name="points" type="string" use="optional">
      <annotation>
        <documentation>Sum of goals and assists.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-total" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-on-goal-total" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-taken" type="string" use="optional">
      <annotation>
        <documentation>Total number of attempts to score as penalty-shot.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-scored" type="string" use="optional">
      <annotation>
        <documentation>Goals scored as penalty-shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-missed" type="string" use="optional">
      <annotation>
        <documentation>Total number of attempts to score as penalty-shot that did not result in a goal.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of penalty shots scored. Could be calculated from above values.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-shootout-taken" type="string" use="optional">
      <annotation>
        <documentation>Total number of attempts to score during shootout.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-shootout-scored" type="string" use="optional">
      <annotation>
        <documentation>Goals scored during shootout.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-shootout-missed" type="string" use="optional">
      <annotation>
        <documentation>Goals missed during shootout.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-shootout-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of shootout goals scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="giveaways" type="string" use="optional">
      <annotation>
        <documentation>When you play bad so the other team gets hold of the ball/puck.</documentation>
      </annotation>
    </attribute>
    <attribute name="offsides" type="string" use="optional">
      <annotation>
        <documentation>Total number of offsides.</documentation>
      </annotation>
    </attribute>
    <attribute name="corner-kicks" type="string" use="optional">
      <annotation>
        <documentation>Total number of corner kicks performed.</documentation>
      </annotation>
    </attribute>
    <attribute name="hat-tricks" type="string" use="optional">
      <annotation>
        <documentation>A record of the number of times a player scored three or more goals in a game. Sometimes, the rules that govern the assignment of a hat-trick varies.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-hit-frame" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Element sportsml:stats-soccer-defensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Defensive stats specific to soccer. | Defensive stats for one team, specific to soccer.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_shots-penalty-shot-allowed sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_goals-penalty-shot-allowed sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_goals-against-average sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_goals-against-total sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_saves sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_save-percentage sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_catches-punches sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_shots-on-goal-total sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_shots-shootout-total sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_shots-shootout-allowed sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_shots-blocked sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive_shutouts
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
catches-punches string optional
Situations when the goalie catches or punches the ball. Not a save attempt.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
goals-against-average string optional
Average goals against per game for the given period.
goals-against-total string optional
TBD.
goals-penalty-shot-allowed string optional
Total number of goals allowed as penalty shots.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
save-percentage string optional
Percentage of saves compared to score-attempts on goal.
saves string optional
Score attempts that were saved by the goal-keeper.
scoping-label string optional
A textual description for the scope.
shots-blocked string optional
Score attempts that was blocked by someone else than the goal-keeper.
shots-on-goal-total string optional
TBD.
shots-penalty-shot-allowed string optional
Total number of penalty-shots allowed from other teams.
shots-shootout-allowed string optional
Goals allowed during shootout.
shots-shootout-total string optional
Total number of attempts to score during shootout.
shutouts string optional
Number of games when you did not allow the other team to score.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="stats-soccer-defensive">
  <annotation>
    <documentation>Defensive stats specific to soccer. | Defensive stats for one team, specific to soccer.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="shots-penalty-shot-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of penalty-shots allowed from other teams.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-penalty-shot-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals allowed as penalty shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-against-average" type="string" use="optional">
      <annotation>
        <documentation>Average goals against per game for the given period.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-against-total" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="saves" type="string" use="optional">
      <annotation>
        <documentation>Score attempts that were saved by the goal-keeper.</documentation>
      </annotation>
    </attribute>
    <attribute name="save-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of saves compared to score-attempts on goal.</documentation>
      </annotation>
    </attribute>
    <attribute name="catches-punches" type="string" use="optional">
      <annotation>
        <documentation>Situations when the goalie catches or punches the ball. Not a save attempt.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-on-goal-total" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-shootout-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of attempts to score during shootout.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-shootout-allowed" type="string" use="optional">
      <annotation>
        <documentation>Goals allowed during shootout.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-blocked" type="string" use="optional">
      <annotation>
        <documentation>Score attempts that was blocked by someone else than the goal-keeper.</documentation>
      </annotation>
    </attribute>
    <attribute name="shutouts" type="string" use="optional">
      <annotation>
        <documentation>Number of games when you did not allow the other team to score.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Element sportsml:stats-soccer-foul
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Stats specific to fauls, cautions, and ejections. | Could occur while players are on the offense, the defense, or even the bench.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-soccer_xsd.tmp#stats-soccer-foul_fouls-commited sportsml-specific-soccer_xsd.tmp#stats-soccer-foul_fouls-suffered sportsml-specific-soccer_xsd.tmp#stats-soccer-foul_cautions-total sportsml-specific-soccer_xsd.tmp#stats-soccer-foul_cautions-pending sportsml-specific-soccer_xsd.tmp#stats-soccer-foul_caution-points-total sportsml-specific-soccer_xsd.tmp#stats-soccer-foul_caution-points-pending sportsml-specific-soccer_xsd.tmp#stats-soccer-foul_ejections-total
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
caution-points-pending string optional
Number of caution points that could result in a game suspension.
caution-points-total string optional
Total amount of caution points. Can occur over various games in a season.
cautions-pending string optional
Number of cautions that could result in a game suspension.
cautions-total string optional
Total number of cautions recieved.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
ejections-total string optional
Total number of ejections.
fouls-commited string optional
Total number of fouls commited. Generally a defensive foul.
fouls-suffered string optional
Total number of fouls the player has suffered. Generally an offensive foul.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="stats-soccer-foul">
  <annotation>
    <documentation>Stats specific to fauls, cautions, and ejections. | Could occur while players are on the offense, the defense, or even the bench.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="fouls-commited" type="string" use="optional">
      <annotation>
        <documentation>Total number of fouls commited. Generally a defensive foul.</documentation>
      </annotation>
    </attribute>
    <attribute name="fouls-suffered" type="string" use="optional">
      <annotation>
        <documentation>Total number of fouls the player has suffered. Generally an offensive foul.</documentation>
      </annotation>
    </attribute>
    <attribute name="cautions-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of cautions recieved.</documentation>
      </annotation>
    </attribute>
    <attribute name="cautions-pending" type="string" use="optional">
      <annotation>
        <documentation>Number of cautions that could result in a game suspension.</documentation>
      </annotation>
    </attribute>
    <attribute name="caution-points-total" type="string" use="optional">
      <annotation>
        <documentation>Total amount of caution points. Can occur over various games in a season.</documentation>
      </annotation>
    </attribute>
    <attribute name="caution-points-pending" type="string" use="optional">
      <annotation>
        <documentation>Number of caution points that could result in a game suspension.</documentation>
      </annotation>
    </attribute>
    <attribute name="ejections-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of ejections.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Element sportsml:player-metadata-soccer
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Player metadata specific to soccer. | Metadata for one player, specific to soccer.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
Source

<element name="player-metadata-soccer">
  <annotation>
    <documentation>Player metadata specific to soccer. | Metadata for one player, specific to soccer.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Element sportsml:player-stats-soccer
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Player statistics that are specific to soccer. | Soccer specific statistic information about a player.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-soccer_xsd.tmp#stats-soccer-offensive sportsml-specific-soccer_xsd.tmp#stats-soccer-defensive sportsml-specific-soccer_xsd.tmp#stats-soccer-foul
Properties
content complex
Used by
Model
Children sportsml:stats-soccer-defensive, sportsml:stats-soccer-foul, sportsml:stats-soccer-offensive
Instance

<sportsml:player-stats-soccer alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-soccer-offensive alignment-scope="" assists-game-tying="" assists-game-winning="" assists-overtime="" assists-total="" competition-scope="" corner-kicks="" date-coverage-type="" date-coverage-value="" duration-scope="" giveaways="" goals-game-tying="" goals-game-winning="" goals-overtime="" goals-shootout="" goals-total="" hat-tricks="" id="" offsides="" period-value="" points="" position-scope="" record-making-scope="" scoping-label="" shots-hit-frame="" shots-on-goal-total="" shots-penalty-shot-missed="" shots-penalty-shot-percentage="" shots-penalty-shot-scored="" shots-penalty-shot-taken="" shots-shootout-missed="" shots-shootout-percentage="" shots-shootout-scored="" shots-shootout-taken="" shots-total="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:stats-soccer-offensive>
  <sportsml:stats-soccer-defensive alignment-scope="" catches-punches="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" goals-against-average="" goals-against-total="" goals-penalty-shot-allowed="" id="" period-value="" position-scope="" record-making-scope="" save-percentage="" saves="" scoping-label="" shots-blocked="" shots-on-goal-total="" shots-penalty-shot-allowed="" shots-shootout-allowed="" shots-shootout-total="" shutouts="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:stats-soccer-defensive>
  <sportsml:stats-soccer-foul alignment-scope="" caution-points-pending="" caution-points-total="" cautions-pending="" cautions-total="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" ejections-total="" fouls-commited="" fouls-suffered="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:stats-soccer-foul>
</sportsml:player-stats-soccer>
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="player-stats-soccer">
  <annotation>
    <documentation>Player statistics that are specific to soccer. | Soccer specific statistic information about a player.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-soccer-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-soccer-defensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-soccer-foul" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:eventStateSoccer / @period-value
Namespace No namespace
Annotations

Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateSoccer
Source

<attribute name="period-value" type="string" use="optional">
  <annotation>
    <documentation>Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:eventStateSoccer / @period-time-elapsed
Namespace No namespace
Annotations

Detailed time MMSS that has elapsed.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateSoccer
Source

<attribute name="period-time-elapsed" type="string" use="optional">
  <annotation>
    <documentation>Detailed time MMSS that has elapsed.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:eventStateSoccer / @minutes-elapsed
Namespace No namespace
Annotations

Number of minutes that have elapsed since the beginning of the game.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateSoccer
Source

<attribute name="minutes-elapsed" type="string" use="optional">
  <annotation>
    <documentation>Number of minutes that have elapsed since the beginning of the game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:eventStateSoccer / @period-minute-elapsed
Namespace No namespace
Annotations

The time elapsed, but only given as whole minutes.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateSoccer
Source

<attribute name="period-minute-elapsed" type="string" use="optional">
  <annotation>
    <documentation>The time elapsed, but only given as whole minutes.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:eventStateSoccer / @period-time-remaining
Namespace No namespace
Annotations

Detailed time in MMSS format showing remaining time of period.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateSoccer
Source

<attribute name="period-time-remaining" type="string" use="optional">
  <annotation>
    <documentation>Detailed time in MMSS format showing remaining time of period.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:time-adjustment / @period-extra-time-added
Namespace No namespace
Annotations

How many minutes the referee has decided to add to the period.
Type string
Properties
use optional
Used by
Source

<attribute name="period-extra-time-added" type="string" use="optional">
  <annotation>
    <documentation>How many minutes the referee has decided to add to the period.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:time-adjustment / @period-extra-time-elapsed
Namespace No namespace
Annotations

How much time exactly MMSS that was actually elapsed in the period.
Type string
Properties
use optional
Used by
Source

<attribute name="period-extra-time-elapsed" type="string" use="optional">
  <annotation>
    <documentation>How much time exactly MMSS that was actually elapsed in the period.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:event-metadata-soccer / @kick-off-team-idref
Namespace No namespace
Annotations

Pointer to the team doing the kick-off for the period covered.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="kick-off-team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>Pointer to the team doing the kick-off for the period covered.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-substitution / @person-type
Namespace No namespace
Annotations

What position the person beeing replaced held.
Type restriction of string
Properties
use optional
Facets
enumeration player
enumeration associate
enumeration official
Used by
Source

<attribute name="person-type" use="optional">
  <annotation>
    <documentation>What position the person beeing replaced held.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="player"/>
      <enumeration value="associate"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-substitution / @person-original-idref
Namespace No namespace
Annotations

A pointer to the person beeing replaced.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="person-original-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the person beeing replaced.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-substitution / @person-original-position
Namespace No namespace
Annotations

Position the replaced person held.
Type sportsml:position.Soccer
Properties
use optional
Used by
Source

<attribute name="person-original-position" type="sportsml:position.Soccer" use="optional">
  <annotation>
    <documentation>Position the replaced person held.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-substitution / @person-replacing-idref
Namespace No namespace
Annotations

A pointer to the person replacing.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="person-replacing-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the person replacing.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-substitution / @person-replacing-position
Namespace No namespace
Annotations

Position the substitute will take up.  External controlled vocabulary: sportsml-vocabulary-specific-soccer.position
Type string
Properties
use optional
Used by
Source

<attribute name="person-replacing-position" type="string" use="optional">
  <annotation>
    <documentation>Position the substitute will take up. External controlled vocabulary: sportsml-vocabulary-specific-soccer.position</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-substitution / @substitution-reason
Namespace No namespace
Annotations

Text explaining the reason for the substitute.
Type string
Properties
use optional
Used by
Source

<attribute name="substitution-reason" type="string" use="optional">
  <annotation>
    <documentation>Text explaining the reason for the substitute.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-substitution / @team-idref
Namespace No namespace
Annotations

A pointer to the team doing the substitution.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the team doing the substitution.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-substitution / @comment
Namespace No namespace
Annotations

Textual comment regarding this substitution.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment regarding this substitution.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score-attempt / @player-idref
Namespace No namespace
Annotations

idref pointing to the player attempting to score.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player attempting to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score-attempt / @team-idref
Namespace No namespace
Annotations

idref pointing to the team for which the player attempting to score.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the team for which the player attempting to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score-attempt / @score-attempt-method
Namespace No namespace
Annotations

How the player attempted to score. Using head, left leg, right leg etc. External controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-method
Type string
Properties
use optional
Used by
Source

<attribute name="score-attempt-method" type="string" use="optional">
  <annotation>
    <documentation>How the player attempted to score. Using head, left leg, right leg etc. External controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-method</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score-attempt / @score-attempt-type
Namespace No namespace
Annotations

What type of attempt. External controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-type
Type string
Properties
use optional
Used by
Source

<attribute name="score-attempt-type" type="string" use="optional">
  <annotation>
    <documentation>What type of attempt. External controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-type</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score-attempt / @score-attempt-result
Namespace No namespace
Annotations

What the attempt resulted in Values in external controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-result
Type string
Properties
use optional
Used by
Source

<attribute name="score-attempt-result" type="string" use="optional">
  <annotation>
    <documentation>What the attempt resulted in Values in external controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-result</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score-attempt / @comment
Namespace No namespace
Annotations

Textual comment regarding this score-attempt.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment regarding this score-attempt.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score-attempt / @shootout-shot-order
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="shootout-shot-order" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-assisting-player / @player-idref
Namespace No namespace
Annotations

idref pointing to the player attempting to score.
Type IDREF
Properties
use required
Used by
Source

<attribute name="player-idref" type="IDREF" use="required">
  <annotation>
    <documentation>idref pointing to the player attempting to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score / @score-attempt-method
Namespace No namespace
Annotations

How the player attempted to score. Using head, left leg, right leg etc.
Type string
Properties
use optional
Used by
Source

<attribute name="score-attempt-method" type="string" use="optional">
  <annotation>
    <documentation>How the player attempted to score. Using head, left leg, right leg etc.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score / @score-attempt-type
Namespace No namespace
Annotations

What type of attempt. Values in external controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-type (Note that the same attribute names are used as in score-attempt to avoid the need for duplicated vocabularies.)
Type string
Properties
use optional
Used by
Source

<attribute name="score-attempt-type" type="string" use="optional">
  <annotation>
    <documentation>What type of attempt. Values in external controlled vocabulary: sportsml-vocabulary-specific-soccer.score-attempt-type (Note that the same attribute names are used as in score-attempt to avoid the need for duplicated vocabularies.)</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score / @player-idref
Namespace No namespace
Annotations

idref pointing to the player attempting to score.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player attempting to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score / @team-idref
Namespace No namespace
Annotations

idref pointing to the team for which the player attempting to score.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the team for which the player attempting to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score / @score-team
Namespace No namespace
Annotations

The current score for the scoring team after the score is counted.
Type string
Properties
use optional
Used by
Source

<attribute name="score-team" type="string" use="optional">
  <annotation>
    <documentation>The current score for the scoring team after the score is counted.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score / @score-team-opposing
Namespace No namespace
Annotations

The current score for the opposing team after the score is counted.
Type string
Properties
use optional
Used by
Source

<attribute name="score-team-opposing" type="string" use="optional">
  <annotation>
    <documentation>The current score for the opposing team after the score is counted.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score / @comment
Namespace No namespace
Annotations

Textual comment about the score.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-score / @shootout-shot-order
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="shootout-shot-order" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-offside / @team-idref
Namespace No namespace
Annotations

idref pointing to the team causing the offside.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the team causing the offside.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-offside / @player-offside-idref
Namespace No namespace
Annotations

idref pointing to the player the lineman indicated was offisde.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="player-offside-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player the lineman indicated was offisde.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-offside / @player-passing-idref
Namespace No namespace
Annotations

idref pointing to the player passing the ball when offside was called.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="player-passing-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player passing the ball when offside was called.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-offside / @comment
Namespace No namespace
Annotations

Textual comment regarding the offside.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment regarding the offside.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-foul / @fouling-team-idref
Namespace No namespace
Annotations

idref pointing to the team causing the foul.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="fouling-team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the team causing the foul.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-foul / @fouling-player-idref
Namespace No namespace
Annotations

idref pointing to the player causing the foul.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="fouling-player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player causing the foul.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-foul / @fouled-team-idref
Namespace No namespace
Annotations

idref pointing to the team beeing fouled.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="fouled-team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the team beeing fouled.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-foul / @fouled-player-idref
Namespace No namespace
Annotations

idref pointing to the player beeing fouled.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="fouled-player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player beeing fouled.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-foul / @foul-name
Namespace No namespace
Annotations

The name of the foul was committed. External controlled vocabulary: sportsml-vocabulary-specific-soccer.foul-name
Type string
Properties
use optional
Used by
Source

<attribute name="foul-name" type="string" use="optional">
  <annotation>
    <documentation>The name of the foul was committed. External controlled vocabulary: sportsml-vocabulary-specific-soccer.foul-name</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-foul / @foul-result
Namespace No namespace
Annotations

External controlled vocabulary: sportsml-vocabulary-specific-soccer.foul-result
Type string
Properties
use optional
Used by
Source

<attribute name="foul-result" type="string" use="optional">
  <annotation>
    <documentation>External controlled vocabulary: sportsml-vocabulary-specific-soccer.foul-result</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-foul / @comment
Namespace No namespace
Annotations

Textual comment regarding the penalty.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment regarding the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-penalty / @recipient-type
Namespace No namespace
Annotations

What type of person or team that got the penalty.
Type restriction of string
Properties
use optional
Facets
enumeration team
enumeration player
enumeration auxilliary
enumeration official
Used by
Source

<attribute name="recipient-type" use="optional">
  <annotation>
    <documentation>What type of person or team that got the penalty.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="team"/>
      <enumeration value="player"/>
      <enumeration value="auxilliary"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-penalty / @recipient-idref
Namespace No namespace
Annotations

idref pointer to the person suffering the penalty.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="recipient-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointer to the person suffering the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-penalty / @caller-idref
Namespace No namespace
Annotations

idref pointing to who called the penalty.
Type string
Properties
use optional
Used by
Source

<attribute name="caller-idref" type="string" use="optional">
  <annotation>
    <documentation>idref pointing to who called the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-penalty / @penalty-type
Namespace No namespace
Annotations

External controlled vocabulary: sportsml-vocabulary-specific-soccer.penalty-type
Type string
Properties
use optional
Used by
Source

<attribute name="penalty-type" type="string" use="optional">
  <annotation>
    <documentation>External controlled vocabulary: sportsml-vocabulary-specific-soccer.penalty-type</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-penalty / @penalty-level
Namespace No namespace
Annotations

External controlled vocabulary: sportsml-vocabulary-specific-soccer.penalty-level
Type string
Properties
use optional
Used by
Source

<attribute name="penalty-level" type="string" use="optional">
  <annotation>
    <documentation>External controlled vocabulary: sportsml-vocabulary-specific-soccer.penalty-level</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-penalty / @caution-value
Namespace No namespace
Annotations

Used to indicate what value, if any, the penalty adds to the caution-total of the player.
Type string
Properties
use optional
Used by
Source

<attribute name="caution-value" type="string" use="optional">
  <annotation>
    <documentation>Used to indicate what value, if any, the penalty adds to the caution-total of the player.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-penalty / @comment
Namespace No namespace
Annotations

Textual comment regarding the penalty.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment regarding the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-timeout / @timeout-duration
Namespace No namespace
Annotations

The duration of the timeout.
Type string
Properties
use optional
Used by
Source

<attribute name="timeout-duration" type="string" use="optional">
  <annotation>
    <documentation>The duration of the timeout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-timeout / @caller
Namespace No namespace
Annotations

Who called the timeout, either team or official.
Type restriction of string
Properties
use optional
Facets
enumeration team
enumeration official
Used by
Source

<attribute name="caller" use="optional">
  <annotation>
    <documentation>Who called the timeout, either team or official.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="team"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-timeout / @caller-idref
Namespace No namespace
Annotations

If caller is team, say, an idref pointer to the team element.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="caller-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>If caller is team, say, an idref pointer to the team element.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-timeout / @comment
Namespace No namespace
Annotations

Textual comment about the timeout.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the timeout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-other / @action-source
Namespace No namespace
Annotations

The name of the controlled-vocabulary for the action-type attribute.
Type string
Properties
use optional
Used by
Source

<attribute name="action-source" type="string" use="optional">
  <annotation>
    <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-other / @action-type
Namespace No namespace
Annotations

A selection from a controlled-vocabulary list maintained by the publisher.
Type string
Properties
use optional
Used by
Source

<attribute name="action-type" type="string" use="optional">
  <annotation>
    <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:action-soccer-other / @comment
Namespace No namespace
Annotations

Textual comment about the action.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the action.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @goals-game-winning
Namespace No namespace
Annotations

Goals that meant winning a game.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-game-winning" type="string" use="optional">
  <annotation>
    <documentation>Goals that meant winning a game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @goals-game-tying
Namespace No namespace
Annotations

Goals that meant tying a game.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-game-tying" type="string" use="optional">
  <annotation>
    <documentation>Goals that meant tying a game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @goals-overtime
Namespace No namespace
Annotations

Goals scored during overtime.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-overtime" type="string" use="optional">
  <annotation>
    <documentation>Goals scored during overtime.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @goals-shootout
Namespace No namespace
Annotations

Goals scored during shootout.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-shootout" type="string" use="optional">
  <annotation>
    <documentation>Goals scored during shootout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @goals-total
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-total" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @assists-game-winning
Namespace No namespace
Annotations

Assists to goals that meant winning a game.
Type string
Properties
use optional
Used by
Source

<attribute name="assists-game-winning" type="string" use="optional">
  <annotation>
    <documentation>Assists to goals that meant winning a game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @assists-game-tying
Namespace No namespace
Annotations

Assists to goals that meant tying a game.
Type string
Properties
use optional
Used by
Source

<attribute name="assists-game-tying" type="string" use="optional">
  <annotation>
    <documentation>Assists to goals that meant tying a game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @assists-overtime
Namespace No namespace
Annotations

Assists made on goals scored during overtime.
Type string
Properties
use optional
Used by
Source

<attribute name="assists-overtime" type="string" use="optional">
  <annotation>
    <documentation>Assists made on goals scored during overtime.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @assists-total
Namespace No namespace
Annotations

Number of assists.
Type string
Properties
use optional
Used by
Source

<attribute name="assists-total" type="string" use="optional">
  <annotation>
    <documentation>Number of assists.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @points
Namespace No namespace
Annotations

Sum of goals and assists.
Type string
Properties
use optional
Used by
Source

<attribute name="points" type="string" use="optional">
  <annotation>
    <documentation>Sum of goals and assists.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-total
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-total" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-on-goal-total
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-on-goal-total" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-penalty-shot-taken
Namespace No namespace
Annotations

Total number of attempts to score as penalty-shot.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-penalty-shot-taken" type="string" use="optional">
  <annotation>
    <documentation>Total number of attempts to score as penalty-shot.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-penalty-shot-scored
Namespace No namespace
Annotations

Goals scored as penalty-shots.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-penalty-shot-scored" type="string" use="optional">
  <annotation>
    <documentation>Goals scored as penalty-shots.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-penalty-shot-missed
Namespace No namespace
Annotations

Total number of attempts to score as penalty-shot that did not result in a goal.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-penalty-shot-missed" type="string" use="optional">
  <annotation>
    <documentation>Total number of attempts to score as penalty-shot that did not result in a goal.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-penalty-shot-percentage
Namespace No namespace
Annotations

Percentage of penalty shots scored. Could be calculated from above values.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-penalty-shot-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of penalty shots scored. Could be calculated from above values.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-shootout-taken
Namespace No namespace
Annotations

Total number of attempts to score during shootout.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-shootout-taken" type="string" use="optional">
  <annotation>
    <documentation>Total number of attempts to score during shootout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-shootout-scored
Namespace No namespace
Annotations

Goals scored during shootout.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-shootout-scored" type="string" use="optional">
  <annotation>
    <documentation>Goals scored during shootout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-shootout-missed
Namespace No namespace
Annotations

Goals missed during shootout.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-shootout-missed" type="string" use="optional">
  <annotation>
    <documentation>Goals missed during shootout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-shootout-percentage
Namespace No namespace
Annotations

Percentage of shootout goals scored.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-shootout-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of shootout goals scored.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @giveaways
Namespace No namespace
Annotations

When you play bad so the other team gets hold of the ball/puck.
Type string
Properties
use optional
Used by
Source

<attribute name="giveaways" type="string" use="optional">
  <annotation>
    <documentation>When you play bad so the other team gets hold of the ball/puck.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @offsides
Namespace No namespace
Annotations

Total number of offsides.
Type string
Properties
use optional
Used by
Source

<attribute name="offsides" type="string" use="optional">
  <annotation>
    <documentation>Total number of offsides.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @corner-kicks
Namespace No namespace
Annotations

Total number of corner kicks performed.
Type string
Properties
use optional
Used by
Source

<attribute name="corner-kicks" type="string" use="optional">
  <annotation>
    <documentation>Total number of corner kicks performed.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @hat-tricks
Namespace No namespace
Annotations

A record of the number of times a player scored three or more goals in a game. Sometimes, the rules that govern the assignment of a hat-trick varies.
Type string
Properties
use optional
Used by
Source

<attribute name="hat-tricks" type="string" use="optional">
  <annotation>
    <documentation>A record of the number of times a player scored three or more goals in a game. Sometimes, the rules that govern the assignment of a hat-trick varies.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-offensive / @shots-hit-frame
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-hit-frame" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @shots-penalty-shot-allowed
Namespace No namespace
Annotations

Total number of penalty-shots allowed from other teams.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-penalty-shot-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of penalty-shots allowed from other teams.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @goals-penalty-shot-allowed
Namespace No namespace
Annotations

Total number of goals allowed as penalty shots.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-penalty-shot-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals allowed as penalty shots.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @goals-against-average
Namespace No namespace
Annotations

Average goals against per game for the given period.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-against-average" type="string" use="optional">
  <annotation>
    <documentation>Average goals against per game for the given period.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @goals-against-total
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-against-total" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @saves
Namespace No namespace
Annotations

Score attempts that were saved by the goal-keeper.
Type string
Properties
use optional
Used by
Source

<attribute name="saves" type="string" use="optional">
  <annotation>
    <documentation>Score attempts that were saved by the goal-keeper.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @save-percentage
Namespace No namespace
Annotations

Percentage of saves compared to score-attempts on goal.
Type string
Properties
use optional
Used by
Source

<attribute name="save-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of saves compared to score-attempts on goal.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @catches-punches
Namespace No namespace
Annotations

Situations when the goalie catches or punches the ball. Not a save attempt.
Type string
Properties
use optional
Used by
Source

<attribute name="catches-punches" type="string" use="optional">
  <annotation>
    <documentation>Situations when the goalie catches or punches the ball. Not a save attempt.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @shots-on-goal-total
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-on-goal-total" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @shots-shootout-total
Namespace No namespace
Annotations

Total number of attempts to score during shootout.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-shootout-total" type="string" use="optional">
  <annotation>
    <documentation>Total number of attempts to score during shootout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @shots-shootout-allowed
Namespace No namespace
Annotations

Goals allowed during shootout.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-shootout-allowed" type="string" use="optional">
  <annotation>
    <documentation>Goals allowed during shootout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @shots-blocked
Namespace No namespace
Annotations

Score attempts that was blocked by someone else than the goal-keeper.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-blocked" type="string" use="optional">
  <annotation>
    <documentation>Score attempts that was blocked by someone else than the goal-keeper.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-defensive / @shutouts
Namespace No namespace
Annotations

Number of games when you did not allow the other team to score.
Type string
Properties
use optional
Used by
Source

<attribute name="shutouts" type="string" use="optional">
  <annotation>
    <documentation>Number of games when you did not allow the other team to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-foul / @fouls-commited
Namespace No namespace
Annotations

Total number of fouls commited. Generally a defensive foul.
Type string
Properties
use optional
Used by
Source

<attribute name="fouls-commited" type="string" use="optional">
  <annotation>
    <documentation>Total number of fouls commited. Generally a defensive foul.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-foul / @fouls-suffered
Namespace No namespace
Annotations

Total number of fouls the player has suffered. Generally an offensive foul.
Type string
Properties
use optional
Used by
Source

<attribute name="fouls-suffered" type="string" use="optional">
  <annotation>
    <documentation>Total number of fouls the player has suffered. Generally an offensive foul.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-foul / @cautions-total
Namespace No namespace
Annotations

Total number of cautions recieved.
Type string
Properties
use optional
Used by
Source

<attribute name="cautions-total" type="string" use="optional">
  <annotation>
    <documentation>Total number of cautions recieved.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-foul / @cautions-pending
Namespace No namespace
Annotations

Number of cautions that could result in a game suspension.
Type string
Properties
use optional
Used by
Source

<attribute name="cautions-pending" type="string" use="optional">
  <annotation>
    <documentation>Number of cautions that could result in a game suspension.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-foul / @caution-points-total
Namespace No namespace
Annotations

Total amount of caution points. Can occur over various games in a season.
Type string
Properties
use optional
Used by
Source

<attribute name="caution-points-total" type="string" use="optional">
  <annotation>
    <documentation>Total amount of caution points. Can occur over various games in a season.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-foul / @caution-points-pending
Namespace No namespace
Annotations

Number of caution points that could result in a game suspension.
Type string
Properties
use optional
Used by
Source

<attribute name="caution-points-pending" type="string" use="optional">
  <annotation>
    <documentation>Number of caution points that could result in a game suspension.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute sportsml:stats-soccer-foul / @ejections-total
Namespace No namespace
Annotations

Total number of ejections.
Type string
Properties
use optional
Used by
Source

<attribute name="ejections-total" type="string" use="optional">
  <annotation>
    <documentation>Total number of ejections.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
Attribute Group sportsml:eventStateSoccer
Namespace http://iptc.org/std/SportsML/2008-04-01/
Diagram
Diagram sportsml-specific-soccer_xsd.tmp#eventStateSoccer_period-value sportsml-specific-soccer_xsd.tmp#eventStateSoccer_period-time-elapsed sportsml-specific-soccer_xsd.tmp#eventStateSoccer_minutes-elapsed sportsml-specific-soccer_xsd.tmp#eventStateSoccer_period-minute-elapsed sportsml-specific-soccer_xsd.tmp#eventStateSoccer_period-time-remaining
Used by
Attributes
QName Type Use Annotation
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).
Source

<attributeGroup name="eventStateSoccer">
  <attribute name="period-value" type="string" use="optional">
    <annotation>
      <documentation>Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc. shootout also allowed value.).</documentation>
    </annotation>
  </attribute>
  <attribute name="period-time-elapsed" type="string" use="optional">
    <annotation>
      <documentation>Detailed time MMSS that has elapsed.</documentation>
    </annotation>
  </attribute>
  <attribute name="minutes-elapsed" type="string" use="optional">
    <annotation>
      <documentation>Number of minutes that have elapsed since the beginning of the game.</documentation>
    </annotation>
  </attribute>
  <attribute name="period-minute-elapsed" type="string" use="optional">
    <annotation>
      <documentation>The time elapsed, but only given as whole minutes.</documentation>
    </annotation>
  </attribute>
  <attribute name="period-time-remaining" type="string" use="optional">
    <annotation>
      <documentation>Detailed time in MMSS format showing remaining time of period.</documentation>
    </annotation>
  </attribute>
</attributeGroup>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-soccer.xsd
XML Schema documentation generated by ® XML Editor.
