Included schema sportsml-specific-ice-hockey.xsd
Namespace http://iptc.org/std/SportsML/2008-04-01/
Properties
attribute form default unqualified
element form default unqualified
version 2.0
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd

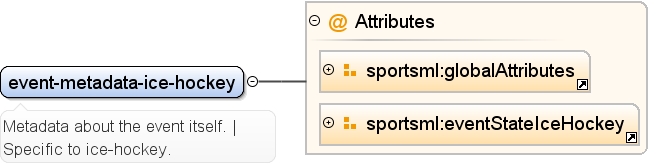

Element sportsml:event-metadata-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Metadata about the event itself. | Specific to ice-hockey.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
Source

<element name="event-metadata-ice-hockey">
  <annotation>
    <documentation>Metadata about the event itself. | Specific to ice-hockey.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>

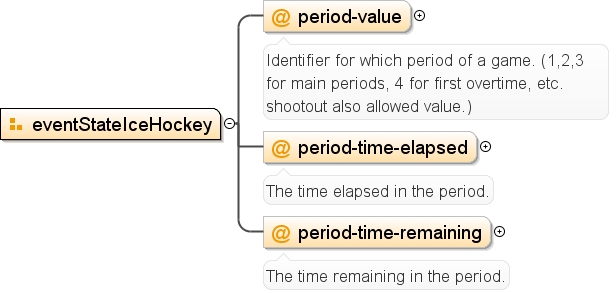

    <attributeGroup ref="sportsml:eventStateIceHockey"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Element sportsml:event-actions-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Event actions specific to ice-hockey. | Include scores, penalties, timeouts, etc.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-timeout sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-other
Properties
content complex
Used by
Model
Children sportsml:action-ice-hockey-other, sportsml:action-ice-hockey-penalty, sportsml:action-ice-hockey-score, sportsml:action-ice-hockey-score-attempt, sportsml:action-ice-hockey-substitution, sportsml:action-ice-hockey-timeout
Instance

<sportsml:event-actions-ice-hockey id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-ice-hockey-substitution comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" person-original-idref="" person-original-position="" person-replacing-idref="" person-replacing-position="" person-type="" substitution-reason="">{1,1}</sportsml:action-ice-hockey-substitution>
  <sportsml:action-ice-hockey-score-attempt comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" score-attempt-result="" score-attempt-type="" shootout-shot-order="" skaters-on-ice="" skaters-on-ice-opposing="" team-idref="">{1,1}</sportsml:action-ice-hockey-score-attempt>
  <sportsml:action-ice-hockey-score comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" score-attempt-type="" score-team="" score-team-opposing="" shootout-shot-order="" skaters-on-ice="" skaters-on-ice-opposing="" team-idref="">{1,1}</sportsml:action-ice-hockey-score>

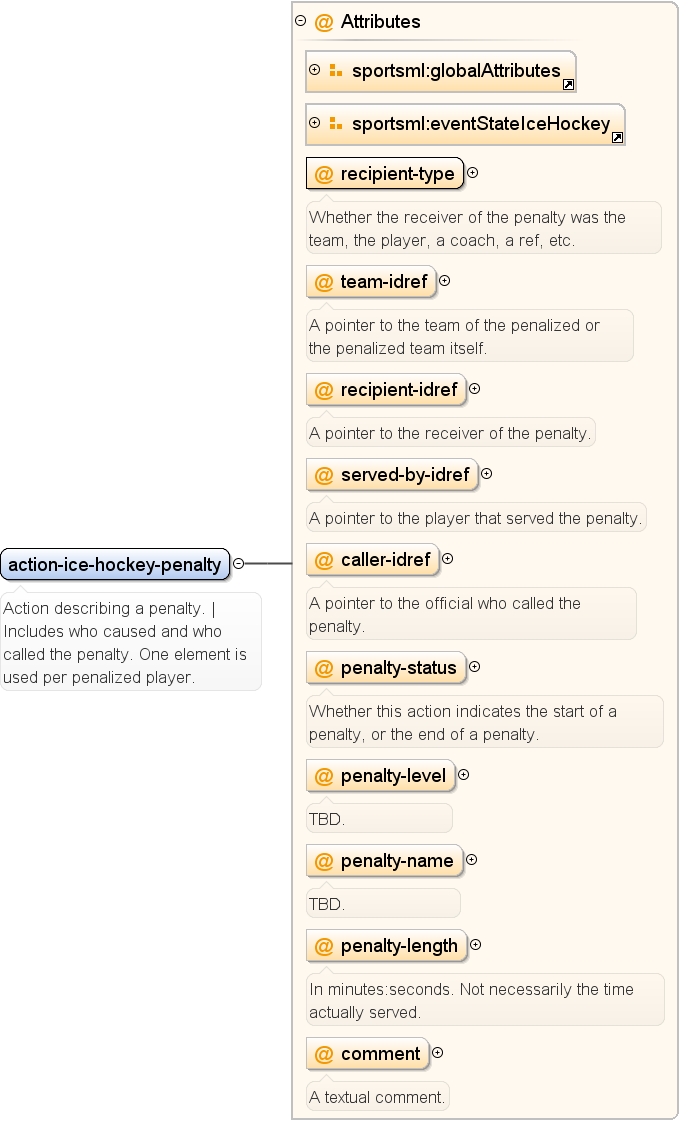

  <sportsml:action-ice-hockey-penalty caller-idref="" comment="" id="" penalty-length="" penalty-level="" penalty-name="" penalty-status="" period-time-elapsed="" period-time-remaining="" period-value="" recipient-idref="" recipient-type="" served-by-idref="" team-idref="">{1,1}</sportsml:action-ice-hockey-penalty>

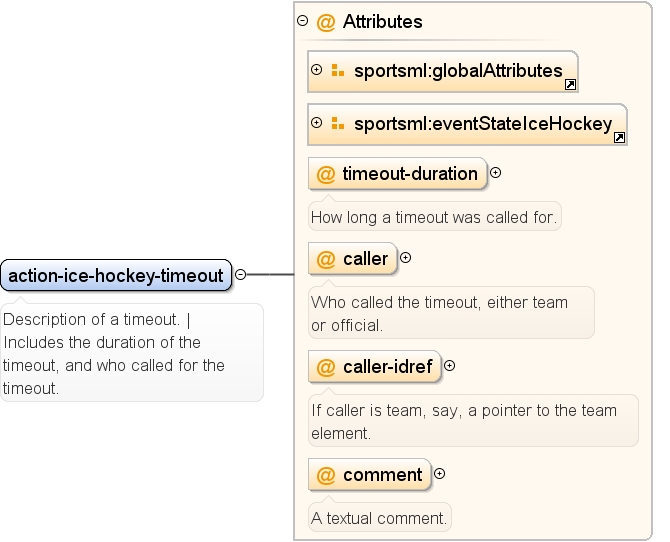

  <sportsml:action-ice-hockey-timeout caller="" caller-idref="" comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" timeout-duration="">{1,1}</sportsml:action-ice-hockey-timeout>

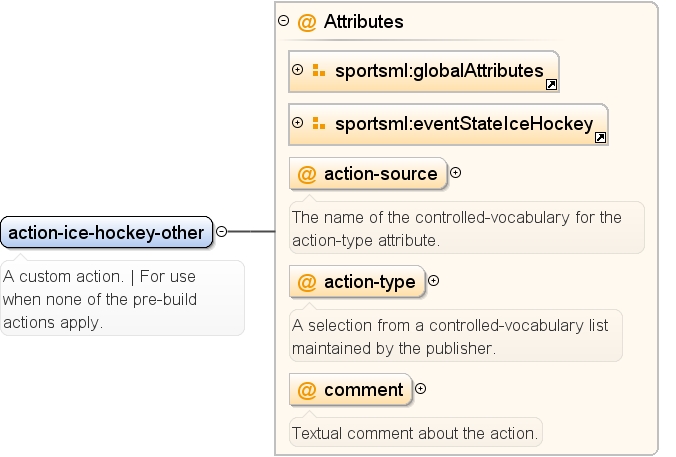

  <sportsml:action-ice-hockey-other action-source="" action-type="" comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="">{1,1}</sportsml:action-ice-hockey-other>
</sportsml:event-actions-ice-hockey>
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
Source

<element name="event-actions-ice-hockey">
  <annotation>
    <documentation>Event actions specific to ice-hockey. | Include scores, penalties, timeouts, etc.</documentation>
  </annotation>
  <complexType>
    <choice minOccurs="0" maxOccurs="unbounded">
      <element ref="sportsml:action-ice-hockey-substitution"/>
      <element ref="sportsml:action-ice-hockey-score-attempt"/>
      <element ref="sportsml:action-ice-hockey-score"/>
      <element ref="sportsml:action-ice-hockey-penalty"/>
      <element ref="sportsml:action-ice-hockey-timeout"/>
      <element ref="sportsml:action-ice-hockey-other"/>
    </choice>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd

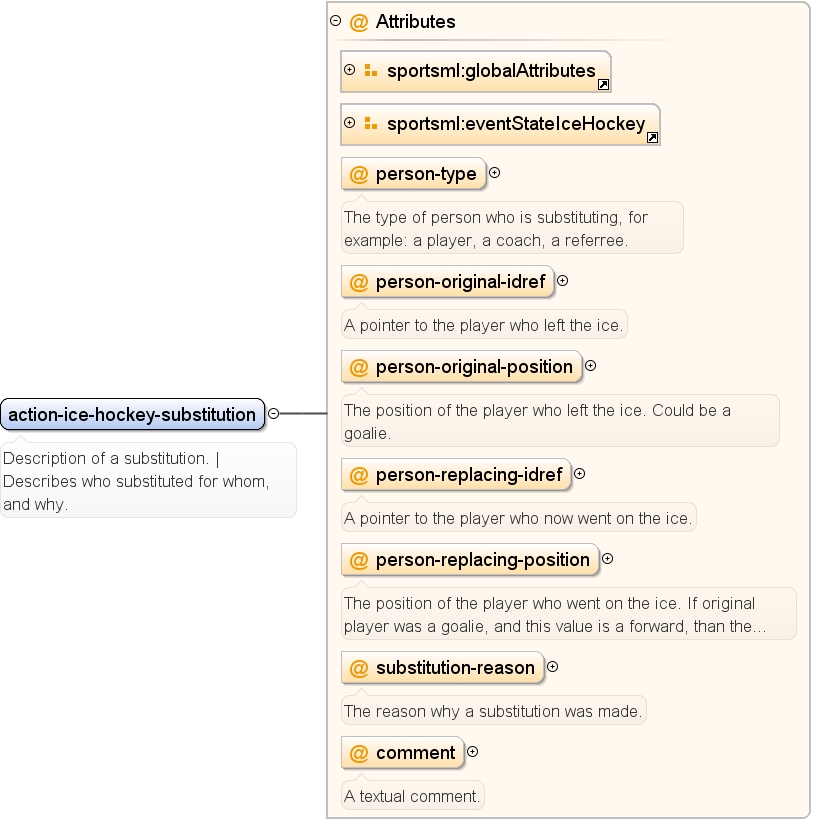

Element sportsml:action-ice-hockey-substitution
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Description of a substitution. | Describes who substituted for whom, and why.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_person-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_person-original-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_person-original-position sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_person-replacing-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_person-replacing-position sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_substitution-reason sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
person-original-idref IDREF optional
A pointer to the player who left the ice.
person-original-position sportsml:position.IceHockey optional
The position of the player who left the ice. Could be a goalie.
person-replacing-idref IDREF optional
A pointer to the player who now went on the ice.
person-replacing-position sportsml:position.IceHockey optional
The position of the player who went on the ice. If original player was a goalie, and this value is a forward, than the goalie has been pulled.
person-type restriction of string optional
The type of person who is substituting, for example: a player, a coach, a referree.
substitution-reason string optional
The reason why a substitution was made.
Source

<element name="action-ice-hockey-substitution">
  <annotation>
    <documentation>Description of a substitution. | Describes who substituted for whom, and why.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attribute name="person-type" use="optional">
      <annotation>
        <documentation>The type of person who is substituting, for example: a player, a coach, a referree.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="player"/>
          <enumeration value="auxilliary"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="person-original-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player who left the ice.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-original-position" type="sportsml:position.IceHockey" use="optional">
      <annotation>
        <documentation>The position of the player who left the ice. Could be a goalie.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player who now went on the ice.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-position" type="sportsml:position.IceHockey" use="optional">
      <annotation>
        <documentation>The position of the player who went on the ice. If original player was a goalie, and this value is a forward, than the goalie has been pulled.</documentation>
      </annotation>
    </attribute>
    <attribute name="substitution-reason" type="string" use="optional">
      <annotation>
        <documentation>The reason why a substitution was made.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd

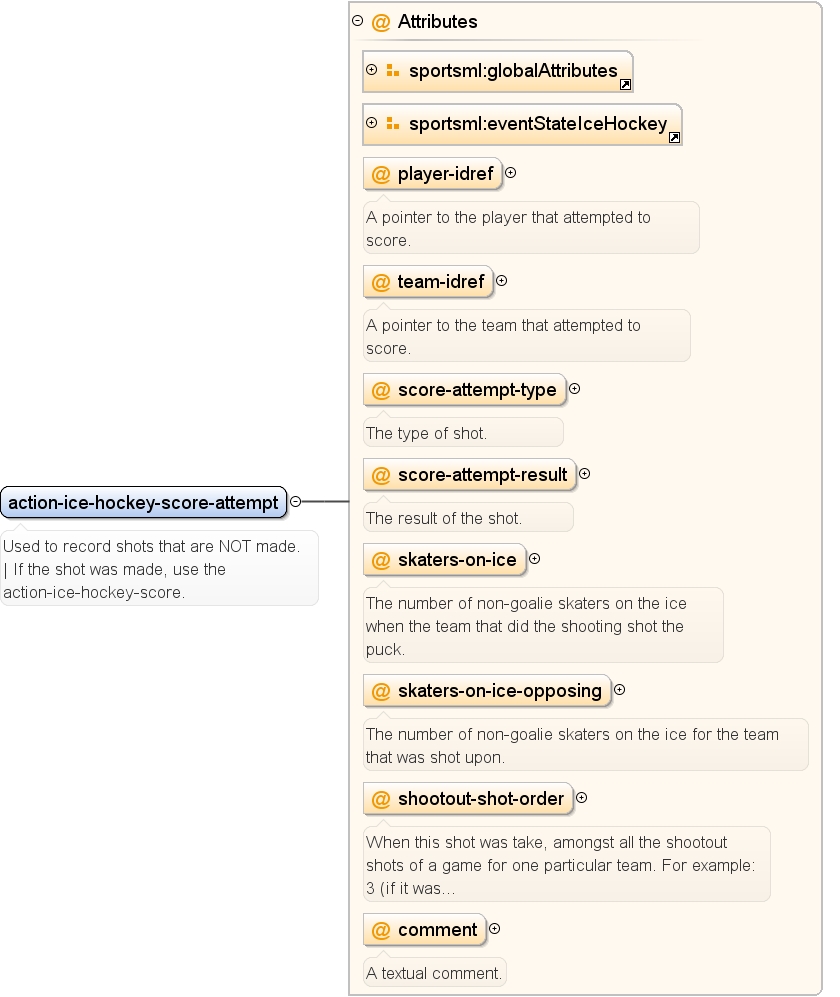

Element sportsml:action-ice-hockey-score-attempt
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Used to record shots that are NOT made. | If the shot was made, use the action-ice-hockey-score.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_player-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_team-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_score-attempt-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_score-attempt-result sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_skaters-on-ice sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_skaters-on-ice-opposing sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_shootout-shot-order sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
player-idref IDREF optional
A pointer to the player that attempted to score.
score-attempt-result sportsml:scoreAttemptResult.IceHockey optional
The result of the shot.
score-attempt-type sportsml:scoreAttemptType.IceHockey optional
The type of shot.
shootout-shot-order string optional
When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).
skaters-on-ice string optional
The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.
skaters-on-ice-opposing string optional
The number of non-goalie skaters on the ice for the team that was shot upon.
team-idref IDREF optional
A pointer to the team that attempted to score.
Source

<element name="action-ice-hockey-score-attempt">
  <annotation>
    <documentation>Used to record shots that are NOT made. | If the shot was made, use the action-ice-hockey-score.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attribute name="player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player that attempted to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the team that attempted to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-type" type="sportsml:scoreAttemptType.IceHockey" use="optional">
      <annotation>
        <documentation>The type of shot.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-result" type="sportsml:scoreAttemptResult.IceHockey" use="optional">
      <annotation>
        <documentation>The result of the shot.</documentation>
      </annotation>
    </attribute>
    <attribute name="skaters-on-ice" type="string" use="optional">
      <annotation>
        <documentation>The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.</documentation>
      </annotation>
    </attribute>
    <attribute name="skaters-on-ice-opposing" type="string" use="optional">
      <annotation>
        <documentation>The number of non-goalie skaters on the ice for the team that was shot upon.</documentation>
      </annotation>
    </attribute>
    <attribute name="shootout-shot-order" type="string" use="optional">
      <annotation>
        <documentation>When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd

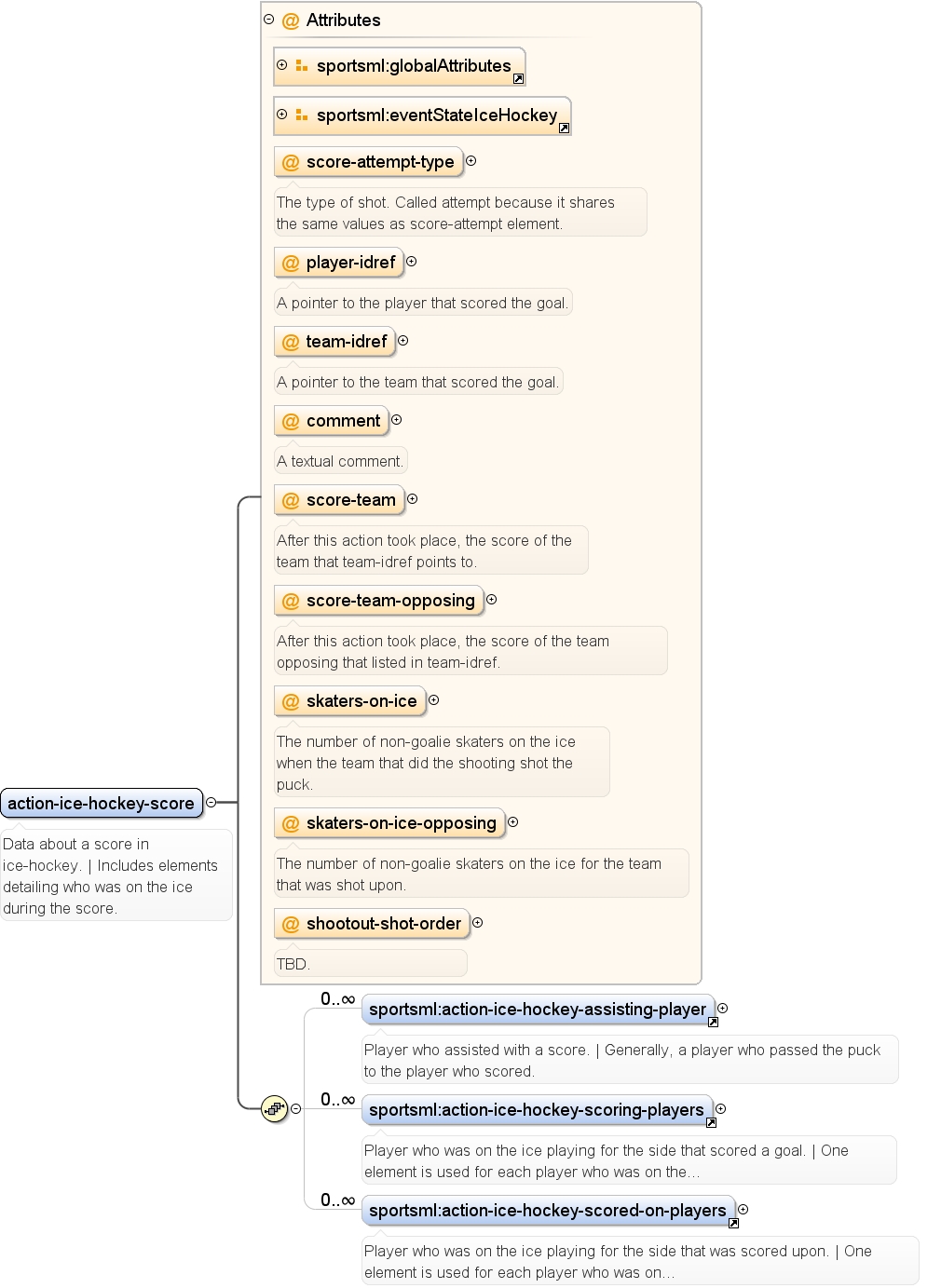

Element sportsml:action-ice-hockey-score
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Data about a score in ice-hockey. | Includes elements detailing who was on the ice during the score.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_score-attempt-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_player-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_team-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_comment sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_score-team sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_score-team-opposing sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_skaters-on-ice sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_skaters-on-ice-opposing sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_shootout-shot-order sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-assisting-player sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-scoring-players sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-scored-on-players
Properties
content complex
Used by
Model
Children sportsml:action-ice-hockey-assisting-player, sportsml:action-ice-hockey-scored-on-players, sportsml:action-ice-hockey-scoring-players
Instance

<sportsml:action-ice-hockey-score comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" score-attempt-type="" score-team="" score-team-opposing="" shootout-shot-order="" skaters-on-ice="" skaters-on-ice-opposing="" team-idref="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">

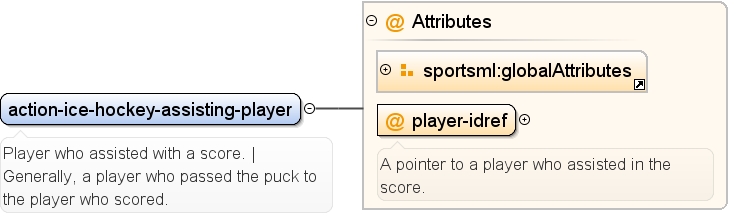

  <sportsml:action-ice-hockey-assisting-player id="" player-idref="">{0,unbounded}</sportsml:action-ice-hockey-assisting-player>

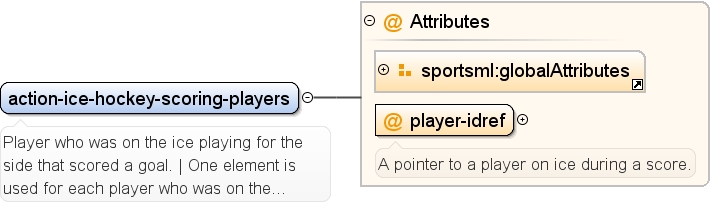

  <sportsml:action-ice-hockey-scoring-players id="" player-idref="">{0,unbounded}</sportsml:action-ice-hockey-scoring-players>

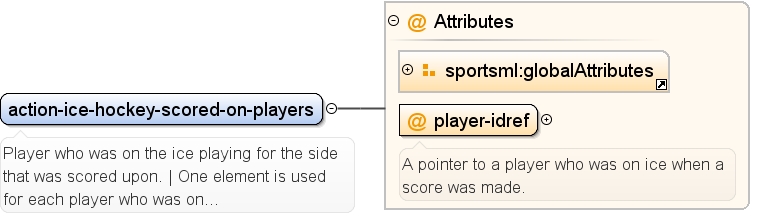

  <sportsml:action-ice-hockey-scored-on-players id="" player-idref="">{0,unbounded}</sportsml:action-ice-hockey-scored-on-players>
</sportsml:action-ice-hockey-score>
Attributes
QName Type Use Annotation
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
player-idref IDREF optional
A pointer to the player that scored the goal.
score-attempt-type sportsml:scoreAttemptType.IceHockey optional
The type of shot. Called attempt because it shares the same values as score-attempt element.
score-team string optional
After this action took place, the score of the team that team-idref points to.
score-team-opposing string optional
After this action took place, the score of the team opposing that listed in team-idref.
shootout-shot-order string optional
TBD.
skaters-on-ice string optional
The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.
skaters-on-ice-opposing string optional
The number of non-goalie skaters on the ice for the team that was shot upon.
team-idref IDREF optional
A pointer to the team that scored the goal.
Source

<element name="action-ice-hockey-score">
  <annotation>
    <documentation>Data about a score in ice-hockey. | Includes elements detailing who was on the ice during the score.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:action-ice-hockey-assisting-player" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:action-ice-hockey-scoring-players" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:action-ice-hockey-scored-on-players" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attribute name="score-attempt-type" type="sportsml:scoreAttemptType.IceHockey" use="optional">
      <annotation>
        <documentation>The type of shot. Called attempt because it shares the same values as score-attempt element.</documentation>
      </annotation>
    </attribute>
    <attribute name="player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player that scored the goal.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the team that scored the goal.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-team" type="string" use="optional">
      <annotation>
        <documentation>After this action took place, the score of the team that team-idref points to.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-team-opposing" type="string" use="optional">
      <annotation>
        <documentation>After this action took place, the score of the team opposing that listed in team-idref.</documentation>
      </annotation>
    </attribute>
    <attribute name="skaters-on-ice" type="string" use="optional">
      <annotation>
        <documentation>The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.</documentation>
      </annotation>
    </attribute>
    <attribute name="skaters-on-ice-opposing" type="string" use="optional">
      <annotation>
        <documentation>The number of non-goalie skaters on the ice for the team that was shot upon.</documentation>
      </annotation>
    </attribute>
    <attribute name="shootout-shot-order" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Element sportsml:action-ice-hockey-assisting-player
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Player who assisted with a score. | Generally, a player who passed the puck to the player who scored.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-assisting-player_player-idref
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
A pointer to a player who assisted in the score.
Source

<element name="action-ice-hockey-assisting-player">
  <annotation>
    <documentation>Player who assisted with a score. | Generally, a player who passed the puck to the player who scored.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player who assisted in the score.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Element sportsml:action-ice-hockey-scoring-players
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Player who was on the ice playing for the side that scored a goal. | One element is used for each player who was on the ice when a score was made.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-scoring-players_player-idref
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
A pointer to a player on ice during a score.
Source

<element name="action-ice-hockey-scoring-players">
  <annotation>
    <documentation>Player who was on the ice playing for the side that scored a goal. | One element is used for each player who was on the ice when a score was made.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player on ice during a score.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Element sportsml:action-ice-hockey-scored-on-players
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Player who was on the ice playing for the side that was scored upon. | One element is used for each player who was on the ice when the score was made.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-scored-on-players_player-idref
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
A pointer to a player who was on ice when a score was made.
Source

<element name="action-ice-hockey-scored-on-players">
  <annotation>
    <documentation>Player who was on the ice playing for the side that was scored upon. | One element is used for each player who was on the ice when the score was made.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player who was on ice when a score was made.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Element sportsml:action-ice-hockey-penalty
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Action describing a penalty. | Includes who caused and who called the penalty. One element is used per penalized player.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_recipient-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_team-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_recipient-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_served-by-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_caller-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_penalty-status sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_penalty-level sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_penalty-name sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_penalty-length sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
caller-idref IDREF optional
A pointer to the official who called the penalty.
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
penalty-length string optional
In minutes:seconds. Not necessarily the time actually served.
penalty-level sportsml:penaltyLevel.IceHockey optional
TBD.
penalty-name sportsml:penaltyName.IceHockey optional
TBD.
penalty-status restriction of string optional
Whether this action indicates the start of a penalty, or the end of a penalty.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
recipient-idref IDREF optional
A pointer to the receiver of the penalty.
recipient-type restriction of string required
Whether the receiver of the penalty was the team, the player, a coach, a ref, etc.
served-by-idref IDREF optional
A pointer to the player that served the penalty.
team-idref IDREF optional
A pointer to the team of the penalized or the penalized team itself.
Source

<element name="action-ice-hockey-penalty">
  <annotation>
    <documentation>Action describing a penalty. | Includes who caused and who called the penalty. One element is used per penalized player.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attribute name="recipient-type" use="required">
      <annotation>
        <documentation>Whether the receiver of the penalty was the team, the player, a coach, a ref, etc.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="player"/>
          <enumeration value="auxilliary"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the team of the penalized or the penalized team itself.</documentation>
      </annotation>
    </attribute>
    <attribute name="recipient-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the receiver of the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="served-by-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player that served the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="caller-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the official who called the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-status" use="optional">
      <annotation>
        <documentation>Whether this action indicates the start of a penalty, or the end of a penalty.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="start"/>
          <enumeration value="end"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="penalty-level" type="sportsml:penaltyLevel.IceHockey" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-name" type="sportsml:penaltyName.IceHockey" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-length" type="string" use="optional">
      <annotation>
        <documentation>In minutes:seconds. Not necessarily the time actually served.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Element sportsml:action-ice-hockey-timeout
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Description of a timeout. | Includes the duration of the timeout, and who called for the timeout.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-timeout_timeout-duration sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-timeout_caller sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-timeout_caller-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-timeout_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
caller restriction of string optional
Who called the timeout, either team or official.
caller-idref IDREF optional
If caller is team, say, a pointer to the team element.
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
timeout-duration string optional
How long a timeout was called for.
Source

<element name="action-ice-hockey-timeout">
  <annotation>
    <documentation>Description of a timeout. | Includes the duration of the timeout, and who called for the timeout.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attribute name="timeout-duration" type="string" use="optional">
      <annotation>
        <documentation>How long a timeout was called for.</documentation>
      </annotation>
    </attribute>
    <attribute name="caller" use="optional">
      <annotation>
        <documentation>Who called the timeout, either team or official.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="caller-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>If caller is team, say, a pointer to the team element.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Element sportsml:action-ice-hockey-other
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

A custom action. | For use when none of the pre-build actions apply.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-other_action-source sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-other_action-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-other_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
action-source string optional
The name of the controlled-vocabulary for the action-type attribute.
action-type string optional
A selection from a controlled-vocabulary list maintained by the publisher.
comment string optional
Textual comment about the action.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
Source

<element name="action-ice-hockey-other">
  <annotation>
    <documentation>A custom action. | For use when none of the pre-build actions apply.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attribute name="action-source" type="string" use="optional">
      <annotation>
        <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
      </annotation>
    </attribute>
    <attribute name="action-type" type="string" use="optional">
      <annotation>
        <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd

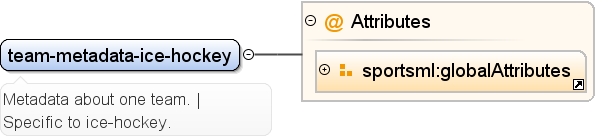

Element sportsml:team-metadata-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Metadata about one team. | Specific to ice-hockey.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
Source

<element name="team-metadata-ice-hockey">
  <annotation>
    <documentation>Metadata about one team. | Specific to ice-hockey.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd

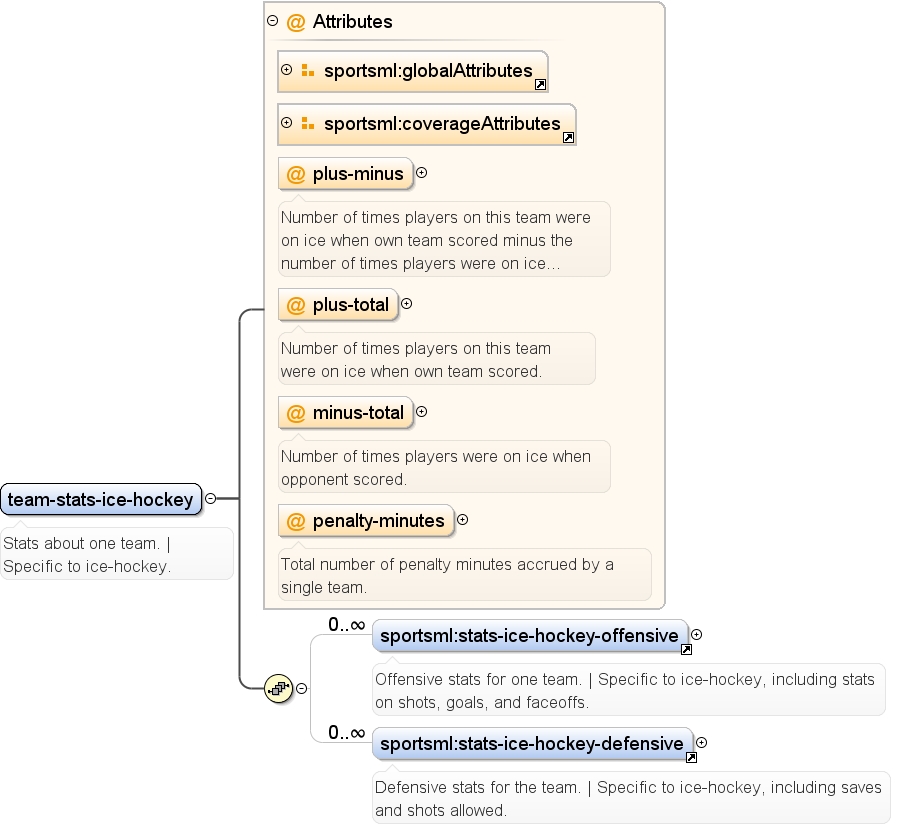

Element sportsml:team-stats-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Stats about one team. | Specific to ice-hockey.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-ice-hockey_xsd.tmp#team-stats-ice-hockey_plus-minus sportsml-specific-ice-hockey_xsd.tmp#team-stats-ice-hockey_plus-total sportsml-specific-ice-hockey_xsd.tmp#team-stats-ice-hockey_minus-total sportsml-specific-ice-hockey_xsd.tmp#team-stats-ice-hockey_penalty-minutes sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive
Properties
content complex
Used by
Model
Children sportsml:stats-ice-hockey-defensive, sportsml:stats-ice-hockey-offensive
Instance

<sportsml:team-stats-ice-hockey alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" minus-total="" penalty-minutes="" period-value="" plus-minus="" plus-total="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-ice-hockey-offensive alignment-scope="" assists="" assists-game-tying="" assists-game-winning="" assists-overtime="" assists-power-play="" assists-short-handed="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" faceoff-losses="" faceoff-win-percentage="" faceoff-wins="" giveaways="" goals-empty-net="" goals-even-strength="" goals-game-tying="" goals-game-winning="" goals-overtime="" goals-penalty-shot="" goals-per-game="" goals-power-play="" goals-shootout="" goals-shootout-attempts="" goals-short-handed="" hat-tricks="" id="" minutes-power-play="" period-value="" points="" points-power-play="" points-short-handed="" position-scope="" power-play-amount="" power-play-percentage="" record-making-scope="" scoping-label="" scoring-chances="" shots-penalty-shot-missed="" shots-penalty-shot-percentage="" shots-penalty-shot-taken="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:stats-ice-hockey-offensive>
  <sportsml:stats-ice-hockey-defensive alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" goals-against-average="" goals-empty-net-allowed="" goals-penalty-shot-allowed="" goals-power-play-allowed="" goals-shootout-allowed="" goals-short-handed-allowed="" goaltender-losses-overtime="" goaltender-wins-overtime="" hits="" id="" minutes-penalty-killing="" penalty-killing-amount="" penalty-killing-percentage="" period-value="" position-scope="" record-making-scope="" save-percentage="" saves="" scoping-label="" shots-blocked="" shots-penalty-shot-allowed="" shots-power-play-allowed="" shots-shootout-allowed="" shutouts="" stats-coverage="" takeaways="" team-coverage="">{0,unbounded}</sportsml:stats-ice-hockey-defensive>
</sportsml:team-stats-ice-hockey>
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
minus-total string optional
Number of times players were on ice when opponent scored.
penalty-minutes string optional
Total number of penalty minutes accrued by a single team.
period-value string optional
Used for tracking hits-per-inning, for example.
plus-minus string optional
Number of times players on this team were on ice when own team scored minus the number of times players were on ice when opponent scored.
plus-total string optional
Number of times players on this team were on ice when own team scored.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="team-stats-ice-hockey">
  <annotation>
    <documentation>Stats about one team. | Specific to ice-hockey.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-ice-hockey-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-ice-hockey-defensive" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="plus-minus" type="string" use="optional">
      <annotation>
        <documentation>Number of times players on this team were on ice when own team scored minus the number of times players were on ice when opponent scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="plus-total" type="string" use="optional">
      <annotation>
        <documentation>Number of times players on this team were on ice when own team scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="minus-total" type="string" use="optional">
      <annotation>
        <documentation>Number of times players were on ice when opponent scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-minutes" type="string" use="optional">
      <annotation>
        <documentation>Total number of penalty minutes accrued by a single team.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd

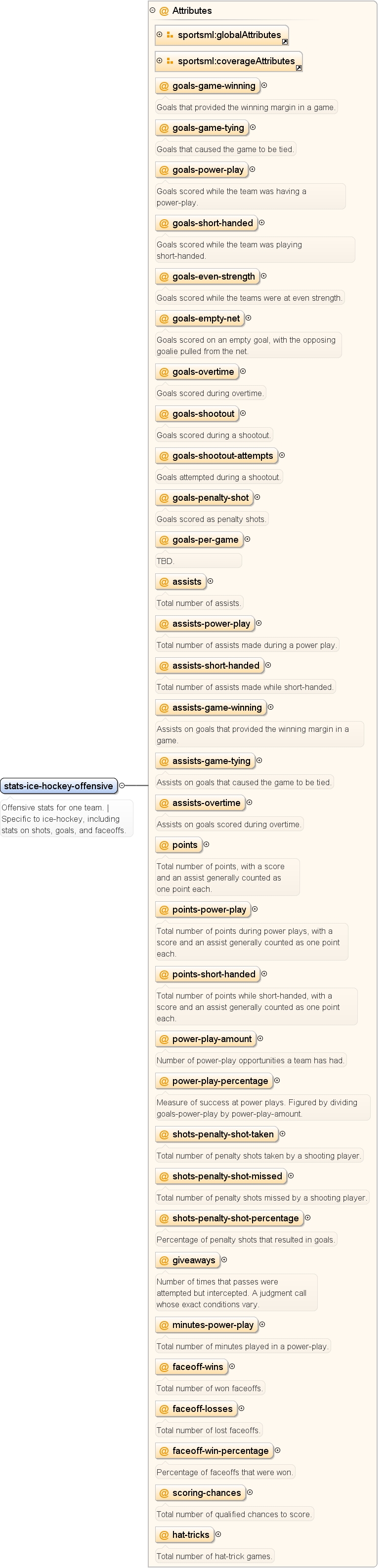

Element sportsml:stats-ice-hockey-offensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Offensive stats for one team. | Specific to ice-hockey, including stats on shots, goals, and faceoffs.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-game-winning sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-game-tying sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-short-handed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-even-strength sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-empty-net sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-overtime sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-shootout sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-shootout-attempts sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-penalty-shot sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-per-game sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists-short-handed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists-game-winning sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists-game-tying sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists-overtime sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_points sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_points-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_points-short-handed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_power-play-amount sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_power-play-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-penalty-shot-taken sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-penalty-shot-missed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-penalty-shot-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_giveaways sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_minutes-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_faceoff-wins sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_faceoff-losses sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_faceoff-win-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_scoring-chances sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_hat-tricks
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
assists string optional
Total number of assists.
assists-game-tying string optional
Assists on goals that caused the game to be tied.
assists-game-winning string optional
Assists on goals that provided the winning margin in a game.
assists-overtime string optional
Assists on goals scored during overtime.
assists-power-play string optional
Total number of assists made during a power play.
assists-short-handed string optional
Total number of assists made while short-handed.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
faceoff-losses string optional
Total number of lost faceoffs.
faceoff-win-percentage string optional
Percentage of faceoffs that were won.
faceoff-wins string optional
Total number of won faceoffs.
giveaways string optional
Number of times that passes were attempted but intercepted. A judgment call whose exact conditions vary.
goals-empty-net string optional
Goals scored on an empty goal, with the opposing goalie pulled from the net.
goals-even-strength string optional
Goals scored while the teams were at even strength.
goals-game-tying string optional
Goals that caused the game to be tied.
goals-game-winning string optional
Goals that provided the winning margin in a game.
goals-overtime string optional
Goals scored during overtime.
goals-penalty-shot string optional
Goals scored as penalty shots.
goals-per-game string optional
TBD.
goals-power-play string optional
Goals scored while the team was having a power-play.
goals-shootout string optional
Goals scored during a shootout.
goals-shootout-attempts string optional
Goals attempted during a shootout.
goals-short-handed string optional
Goals scored while the team was playing short-handed.
hat-tricks string optional
Total number of hat-trick games.
id ID optional
An XML-specific identifier for the element.
minutes-power-play string optional
Total number of minutes played in a power-play.
period-value string optional
Used for tracking hits-per-inning, for example.
points string optional
Total number of points, with a score and an assist generally counted as one point each.
points-power-play string optional
Total number of points during power plays, with a score and an assist generally counted as one point each.
points-short-handed string optional
Total number of points while short-handed, with a score and an assist generally counted as one point each.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
power-play-amount string optional
Number of power-play opportunities a team has had.
power-play-percentage string optional
Measure of success at power plays. Figured by dividing goals-power-play by power-play-amount.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
scoring-chances string optional
Total number of qualified chances to score.
shots-penalty-shot-missed string optional
Total number of penalty shots missed by a shooting player.
shots-penalty-shot-percentage string optional
Percentage of penalty shots that resulted in goals.
shots-penalty-shot-taken string optional
Total number of penalty shots taken by a shooting player.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="stats-ice-hockey-offensive">
  <annotation>
    <documentation>Offensive stats for one team. | Specific to ice-hockey, including stats on shots, goals, and faceoffs.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="goals-game-winning" type="string" use="optional">
      <annotation>
        <documentation>Goals that provided the winning margin in a game.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-game-tying" type="string" use="optional">
      <annotation>
        <documentation>Goals that caused the game to be tied.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-power-play" type="string" use="optional">
      <annotation>
        <documentation>Goals scored while the team was having a power-play.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-short-handed" type="string" use="optional">
      <annotation>
        <documentation>Goals scored while the team was playing short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-even-strength" type="string" use="optional">
      <annotation>
        <documentation>Goals scored while the teams were at even strength.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-empty-net" type="string" use="optional">
      <annotation>
        <documentation>Goals scored on an empty goal, with the opposing goalie pulled from the net.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-overtime" type="string" use="optional">
      <annotation>
        <documentation>Goals scored during overtime.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-shootout" type="string" use="optional">
      <annotation>
        <documentation>Goals scored during a shootout.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-shootout-attempts" type="string" use="optional">
      <annotation>
        <documentation>Goals attempted during a shootout.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-penalty-shot" type="string" use="optional">
      <annotation>
        <documentation>Goals scored as penalty shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-per-game" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists" type="string" use="optional">
      <annotation>
        <documentation>Total number of assists.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-power-play" type="string" use="optional">
      <annotation>
        <documentation>Total number of assists made during a power play.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-short-handed" type="string" use="optional">
      <annotation>
        <documentation>Total number of assists made while short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-game-winning" type="string" use="optional">
      <annotation>
        <documentation>Assists on goals that provided the winning margin in a game.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-game-tying" type="string" use="optional">
      <annotation>
        <documentation>Assists on goals that caused the game to be tied.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-overtime" type="string" use="optional">
      <annotation>
        <documentation>Assists on goals scored during overtime.</documentation>
      </annotation>
    </attribute>
    <attribute name="points" type="string" use="optional">
      <annotation>
        <documentation>Total number of points, with a score and an assist generally counted as one point each.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-power-play" type="string" use="optional">
      <annotation>
        <documentation>Total number of points during power plays, with a score and an assist generally counted as one point each.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-short-handed" type="string" use="optional">
      <annotation>
        <documentation>Total number of points while short-handed, with a score and an assist generally counted as one point each.</documentation>
      </annotation>
    </attribute>
    <attribute name="power-play-amount" type="string" use="optional">
      <annotation>
        <documentation>Number of power-play opportunities a team has had.</documentation>
      </annotation>
    </attribute>
    <attribute name="power-play-percentage" type="string" use="optional">
      <annotation>
        <documentation>Measure of success at power plays. Figured by dividing goals-power-play by power-play-amount.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-taken" type="string" use="optional">
      <annotation>
        <documentation>Total number of penalty shots taken by a shooting player.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-missed" type="string" use="optional">
      <annotation>
        <documentation>Total number of penalty shots missed by a shooting player.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of penalty shots that resulted in goals.</documentation>
      </annotation>
    </attribute>
    <attribute name="giveaways" type="string" use="optional">
      <annotation>
        <documentation>Number of times that passes were attempted but intercepted. A judgment call whose exact conditions vary.</documentation>
      </annotation>
    </attribute>
    <attribute name="minutes-power-play" type="string" use="optional">
      <annotation>
        <documentation>Total number of minutes played in a power-play.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoff-wins" type="string" use="optional">
      <annotation>
        <documentation>Total number of won faceoffs.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoff-losses" type="string" use="optional">
      <annotation>
        <documentation>Total number of lost faceoffs.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoff-win-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of faceoffs that were won.</documentation>
      </annotation>
    </attribute>
    <attribute name="scoring-chances" type="string" use="optional">
      <annotation>
        <documentation>Total number of qualified chances to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="hat-tricks" type="string" use="optional">
      <annotation>
        <documentation>Total number of hat-trick games.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd

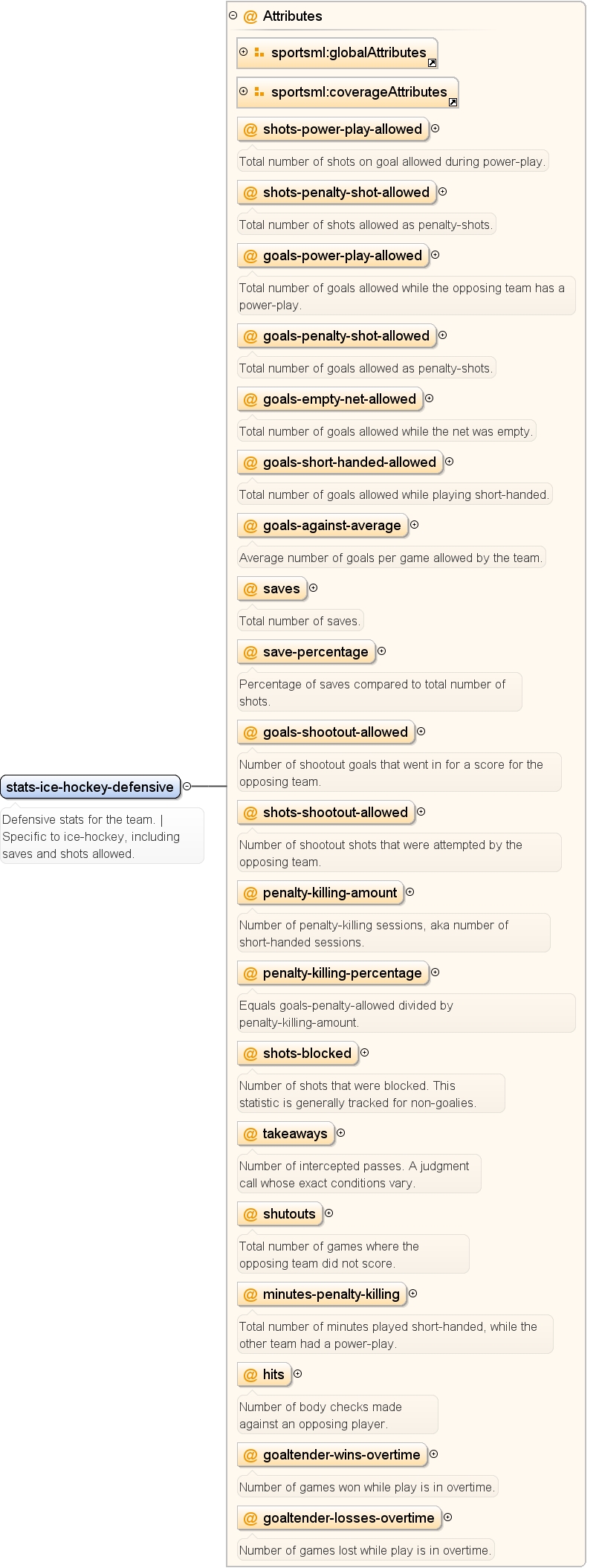

Element sportsml:stats-ice-hockey-defensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Defensive stats for the team. | Specific to ice-hockey, including saves and shots allowed.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_shots-power-play-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_shots-penalty-shot-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-power-play-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-penalty-shot-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-empty-net-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-short-handed-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-against-average sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_saves sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_save-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-shootout-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_shots-shootout-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_penalty-killing-amount sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_penalty-killing-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_shots-blocked sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_takeaways sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_shutouts sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_minutes-penalty-killing sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_hits sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goaltender-wins-overtime sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goaltender-losses-overtime
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
goals-against-average string optional
Average number of goals per game allowed by the team.
goals-empty-net-allowed string optional
Total number of goals allowed while the net was empty.
goals-penalty-shot-allowed string optional
Total number of goals allowed as penalty-shots.
goals-power-play-allowed string optional
Total number of goals allowed while the opposing team has a power-play.
goals-shootout-allowed string optional
Number of shootout goals that went in for a score for the opposing team.
goals-short-handed-allowed string optional
Total number of goals allowed while playing short-handed.
goaltender-losses-overtime string optional
Number of games lost while play is in overtime.
goaltender-wins-overtime string optional
Number of games won while play is in overtime.
hits string optional
Number of body checks made against an opposing player.
id ID optional
An XML-specific identifier for the element.
minutes-penalty-killing string optional
Total number of minutes played short-handed, while the other team had a power-play.
penalty-killing-amount string optional
Number of penalty-killing sessions, aka number of short-handed sessions.
penalty-killing-percentage string optional
Equals goals-penalty-allowed divided by penalty-killing-amount.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
save-percentage string optional
Percentage of saves compared to total number of shots.
saves string optional
Total number of saves.
scoping-label string optional
A textual description for the scope.
shots-blocked string optional
Number of shots that were blocked. This statistic is generally tracked for non-goalies.
shots-penalty-shot-allowed string optional
Total number of shots allowed as penalty-shots.
shots-power-play-allowed string optional
Total number of shots on goal allowed during power-play.
shots-shootout-allowed string optional
Number of shootout shots that were attempted by the opposing team.
shutouts string optional
Total number of games where the opposing team did not score.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
takeaways string optional
Number of intercepted passes. A judgment call whose exact conditions vary.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="stats-ice-hockey-defensive">
  <annotation>
    <documentation>Defensive stats for the team. | Specific to ice-hockey, including saves and shots allowed.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="shots-power-play-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of shots on goal allowed during power-play.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of shots allowed as penalty-shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-power-play-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals allowed while the opposing team has a power-play.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-penalty-shot-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals allowed as penalty-shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-empty-net-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals allowed while the net was empty.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-short-handed-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals allowed while playing short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-against-average" type="string" use="optional">
      <annotation>
        <documentation>Average number of goals per game allowed by the team.</documentation>
      </annotation>
    </attribute>
    <attribute name="saves" type="string" use="optional">
      <annotation>
        <documentation>Total number of saves.</documentation>
      </annotation>
    </attribute>
    <attribute name="save-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of saves compared to total number of shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-shootout-allowed" type="string" use="optional">
      <annotation>
        <documentation>Number of shootout goals that went in for a score for the opposing team.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-shootout-allowed" type="string" use="optional">
      <annotation>
        <documentation>Number of shootout shots that were attempted by the opposing team.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-killing-amount" type="string" use="optional">
      <annotation>
        <documentation>Number of penalty-killing sessions, aka number of short-handed sessions.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-killing-percentage" type="string" use="optional">
      <annotation>
        <documentation>Equals goals-penalty-allowed divided by penalty-killing-amount.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-blocked" type="string" use="optional">
      <annotation>
        <documentation>Number of shots that were blocked. This statistic is generally tracked for non-goalies.</documentation>
      </annotation>
    </attribute>
    <attribute name="takeaways" type="string" use="optional">
      <annotation>
        <documentation>Number of intercepted passes. A judgment call whose exact conditions vary.</documentation>
      </annotation>
    </attribute>
    <attribute name="shutouts" type="string" use="optional">
      <annotation>
        <documentation>Total number of games where the opposing team did not score.</documentation>
      </annotation>
    </attribute>
    <attribute name="minutes-penalty-killing" type="string" use="optional">
      <annotation>
        <documentation>Total number of minutes played short-handed, while the other team had a power-play.</documentation>
      </annotation>
    </attribute>
    <attribute name="hits" type="string" use="optional">
      <annotation>
        <documentation>Number of body checks made against an opposing player.</documentation>
      </annotation>
    </attribute>
    <attribute name="goaltender-wins-overtime" type="string" use="optional">
      <annotation>
        <documentation>Number of games won while play is in overtime.</documentation>
      </annotation>
    </attribute>
    <attribute name="goaltender-losses-overtime" type="string" use="optional">
      <annotation>
        <documentation>Number of games lost while play is in overtime.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Element sportsml:player-metadata-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Metadata for a player. | Specific to ice-hockey. Reserved for future use.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#player-metadata-ice-hockey_shooting-hand sportsml-specific-ice-hockey_xsd.tmp#player-metadata-ice-hockey_catching-hand
Properties
content complex
Used by
Attributes
QName Type Use Annotation
catching-hand restriction of string optional
The hand with which a player, generally a goaltender, catches the puck.
id ID optional
An XML-specific identifier for the element.
shooting-hand restriction of string optional
The side from which a player normally shoots.
Source

<element name="player-metadata-ice-hockey">
  <annotation>
    <documentation>Metadata for a player. | Specific to ice-hockey. Reserved for future use.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="shooting-hand" use="optional">
      <annotation>
        <documentation>The side from which a player normally shoots.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="left"/>
          <enumeration value="right"/>
          <enumeration value="both"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="catching-hand" use="optional">
      <annotation>
        <documentation>The hand with which a player, generally a goaltender, catches the puck.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="left"/>
          <enumeration value="right"/>
          <enumeration value="both"/>
        </restriction>
      </simpleType>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Element sportsml:player-stats-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Stats for a player specific to ice-hockey. | Includes the same offensive and defensive stats available for a team.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_plus-minus sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_plus-total sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_minus-total sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_minutes-played sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_penalty-minutes sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_goaltender-wins sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_goaltender-losses sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_goaltender-ties sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive
Properties
content complex
Used by
Model
Children sportsml:stats-ice-hockey-defensive, sportsml:stats-ice-hockey-offensive
Instance

<sportsml:player-stats-ice-hockey alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" goaltender-losses="" goaltender-ties="" goaltender-wins="" id="" minus-total="" minutes-played="" penalty-minutes="" period-value="" plus-minus="" plus-total="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-ice-hockey-offensive alignment-scope="" assists="" assists-game-tying="" assists-game-winning="" assists-overtime="" assists-power-play="" assists-short-handed="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" faceoff-losses="" faceoff-win-percentage="" faceoff-wins="" giveaways="" goals-empty-net="" goals-even-strength="" goals-game-tying="" goals-game-winning="" goals-overtime="" goals-penalty-shot="" goals-per-game="" goals-power-play="" goals-shootout="" goals-shootout-attempts="" goals-short-handed="" hat-tricks="" id="" minutes-power-play="" period-value="" points="" points-power-play="" points-short-handed="" position-scope="" power-play-amount="" power-play-percentage="" record-making-scope="" scoping-label="" scoring-chances="" shots-penalty-shot-missed="" shots-penalty-shot-percentage="" shots-penalty-shot-taken="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:stats-ice-hockey-offensive>
  <sportsml:stats-ice-hockey-defensive alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" goals-against-average="" goals-empty-net-allowed="" goals-penalty-shot-allowed="" goals-power-play-allowed="" goals-shootout-allowed="" goals-short-handed-allowed="" goaltender-losses-overtime="" goaltender-wins-overtime="" hits="" id="" minutes-penalty-killing="" penalty-killing-amount="" penalty-killing-percentage="" period-value="" position-scope="" record-making-scope="" save-percentage="" saves="" scoping-label="" shots-blocked="" shots-penalty-shot-allowed="" shots-power-play-allowed="" shots-shootout-allowed="" shutouts="" stats-coverage="" takeaways="" team-coverage="">{0,unbounded}</sportsml:stats-ice-hockey-defensive>
</sportsml:player-stats-ice-hockey>
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
goaltender-losses string optional
TBD.
goaltender-ties string optional
TBD.
goaltender-wins string optional
TBD.
id ID optional
An XML-specific identifier for the element.
minus-total string optional
Number of times player was on ice when opponent scored.
minutes-played string optional
Number of minutes player was on ice.
penalty-minutes string optional
Total number of penalty minutes accrued by a single player.
period-value string optional
Used for tracking hits-per-inning, for example.
plus-minus string optional
Number of times player was on ice when own team scored minus the number of times player was on ice when opponent scored.
plus-total string optional
Number of times player was on ice when own team scored.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="player-stats-ice-hockey">
  <annotation>
    <documentation>Stats for a player specific to ice-hockey. | Includes the same offensive and defensive stats available for a team.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-ice-hockey-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-ice-hockey-defensive" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="plus-minus" type="string" use="optional">
      <annotation>
        <documentation>Number of times player was on ice when own team scored minus the number of times player was on ice when opponent scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="plus-total" type="string" use="optional">
      <annotation>
        <documentation>Number of times player was on ice when own team scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="minus-total" type="string" use="optional">
      <annotation>
        <documentation>Number of times player was on ice when opponent scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="minutes-played" type="string" use="optional">
      <annotation>
        <documentation>Number of minutes player was on ice.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-minutes" type="string" use="optional">
      <annotation>
        <documentation>Total number of penalty minutes accrued by a single player.</documentation>
      </annotation>
    </attribute>
    <attribute name="goaltender-wins" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="goaltender-losses" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="goaltender-ties" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:eventStateIceHockey / @period-value
Namespace No namespace
Annotations

Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
Type string
Properties
use optional
Used by
Source

<attribute name="period-value" type="string" use="optional">
  <annotation>
    <documentation>Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:eventStateIceHockey / @period-time-elapsed
Namespace No namespace
Annotations

The time elapsed in the period.
Type string
Properties
use optional
Used by
Source

<attribute name="period-time-elapsed" type="string" use="optional">
  <annotation>
    <documentation>The time elapsed in the period.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:eventStateIceHockey / @period-time-remaining
Namespace No namespace
Annotations

The time remaining in the period.
Type string
Properties
use optional
Used by
Source

<attribute name="period-time-remaining" type="string" use="optional">
  <annotation>
    <documentation>The time remaining in the period.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-substitution / @person-type
Namespace No namespace
Annotations

The type of person who is substituting, for example: a player, a coach, a referree.
Type restriction of string
Properties
use optional
Facets
enumeration player
enumeration auxilliary
enumeration official
Used by
Source

<attribute name="person-type" use="optional">
  <annotation>
    <documentation>The type of person who is substituting, for example: a player, a coach, a referree.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="player"/>
      <enumeration value="auxilliary"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-substitution / @person-original-idref
Namespace No namespace
Annotations

A pointer to the player who left the ice.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="person-original-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player who left the ice.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-substitution / @person-original-position
Namespace No namespace
Annotations

The position of the player who left the ice. Could be a goalie.
Type sportsml:position.IceHockey
Properties
use optional
Used by
Source

<attribute name="person-original-position" type="sportsml:position.IceHockey" use="optional">
  <annotation>
    <documentation>The position of the player who left the ice. Could be a goalie.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-substitution / @person-replacing-idref
Namespace No namespace
Annotations

A pointer to the player who now went on the ice.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="person-replacing-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player who now went on the ice.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-substitution / @person-replacing-position
Namespace No namespace
Annotations

The position of the player who went on the ice. If original player was a goalie, and this value is a forward, than the goalie has been pulled.
Type sportsml:position.IceHockey
Properties
use optional
Used by
Source

<attribute name="person-replacing-position" type="sportsml:position.IceHockey" use="optional">
  <annotation>
    <documentation>The position of the player who went on the ice. If original player was a goalie, and this value is a forward, than the goalie has been pulled.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-substitution / @substitution-reason
Namespace No namespace
Annotations

The reason why a substitution was made.
Type string
Properties
use optional
Used by
Source

<attribute name="substitution-reason" type="string" use="optional">
  <annotation>
    <documentation>The reason why a substitution was made.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-substitution / @comment
Namespace No namespace
Annotations

A textual comment.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score-attempt / @player-idref
Namespace No namespace
Annotations

A pointer to the player that attempted to score.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player that attempted to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score-attempt / @team-idref
Namespace No namespace
Annotations

A pointer to the team that attempted to score.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the team that attempted to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score-attempt / @score-attempt-type
Namespace No namespace
Annotations

The type of shot.
Type sportsml:scoreAttemptType.IceHockey
Properties
use optional
Used by
Source

<attribute name="score-attempt-type" type="sportsml:scoreAttemptType.IceHockey" use="optional">
  <annotation>
    <documentation>The type of shot.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score-attempt / @score-attempt-result
Namespace No namespace
Annotations

The result of the shot.
Type sportsml:scoreAttemptResult.IceHockey
Properties
use optional
Used by
Source

<attribute name="score-attempt-result" type="sportsml:scoreAttemptResult.IceHockey" use="optional">
  <annotation>
    <documentation>The result of the shot.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score-attempt / @skaters-on-ice
Namespace No namespace
Annotations

The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.
Type string
Properties
use optional
Used by
Source

<attribute name="skaters-on-ice" type="string" use="optional">
  <annotation>
    <documentation>The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score-attempt / @skaters-on-ice-opposing
Namespace No namespace
Annotations

The number of non-goalie skaters on the ice for the team that was shot upon.
Type string
Properties
use optional
Used by
Source

<attribute name="skaters-on-ice-opposing" type="string" use="optional">
  <annotation>
    <documentation>The number of non-goalie skaters on the ice for the team that was shot upon.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score-attempt / @shootout-shot-order
Namespace No namespace
Annotations

When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).
Type string
Properties
use optional
Used by
Source

<attribute name="shootout-shot-order" type="string" use="optional">
  <annotation>
    <documentation>When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score-attempt / @comment
Namespace No namespace
Annotations

A textual comment.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-assisting-player / @player-idref
Namespace No namespace
Annotations

A pointer to a player who assisted in the score.
Type IDREF
Properties
use required
Used by
Source

<attribute name="player-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to a player who assisted in the score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-scoring-players / @player-idref
Namespace No namespace
Annotations

A pointer to a player on ice during a score.
Type IDREF
Properties
use required
Used by
Source

<attribute name="player-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to a player on ice during a score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-scored-on-players / @player-idref
Namespace No namespace
Annotations

A pointer to a player who was on ice when a score was made.
Type IDREF
Properties
use required
Used by
Source

<attribute name="player-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to a player who was on ice when a score was made.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score / @score-attempt-type
Namespace No namespace
Annotations

The type of shot. Called attempt because it shares the same values as score-attempt element.
Type sportsml:scoreAttemptType.IceHockey
Properties
use optional
Used by
Source

<attribute name="score-attempt-type" type="sportsml:scoreAttemptType.IceHockey" use="optional">
  <annotation>
    <documentation>The type of shot. Called attempt because it shares the same values as score-attempt element.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score / @player-idref
Namespace No namespace
Annotations

A pointer to the player that scored the goal.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player that scored the goal.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score / @team-idref
Namespace No namespace
Annotations

A pointer to the team that scored the goal.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the team that scored the goal.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score / @comment
Namespace No namespace
Annotations

A textual comment.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score / @score-team
Namespace No namespace
Annotations

After this action took place, the score of the team that team-idref points to.
Type string
Properties
use optional
Used by
Source

<attribute name="score-team" type="string" use="optional">
  <annotation>
    <documentation>After this action took place, the score of the team that team-idref points to.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score / @score-team-opposing
Namespace No namespace
Annotations

After this action took place, the score of the team opposing that listed in team-idref.
Type string
Properties
use optional
Used by
Source

<attribute name="score-team-opposing" type="string" use="optional">
  <annotation>
    <documentation>After this action took place, the score of the team opposing that listed in team-idref.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score / @skaters-on-ice
Namespace No namespace
Annotations

The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.
Type string
Properties
use optional
Used by
Source

<attribute name="skaters-on-ice" type="string" use="optional">
  <annotation>
    <documentation>The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score / @skaters-on-ice-opposing
Namespace No namespace
Annotations

The number of non-goalie skaters on the ice for the team that was shot upon.
Type string
Properties
use optional
Used by
Source

<attribute name="skaters-on-ice-opposing" type="string" use="optional">
  <annotation>
    <documentation>The number of non-goalie skaters on the ice for the team that was shot upon.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-score / @shootout-shot-order
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="shootout-shot-order" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-penalty / @recipient-type
Namespace No namespace
Annotations

Whether the receiver of the penalty was the team, the player, a coach, a ref, etc.
Type restriction of string
Properties
use required
Facets
enumeration team
enumeration player
enumeration auxilliary
enumeration official
Used by
Source

<attribute name="recipient-type" use="required">
  <annotation>
    <documentation>Whether the receiver of the penalty was the team, the player, a coach, a ref, etc.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="team"/>
      <enumeration value="player"/>
      <enumeration value="auxilliary"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-penalty / @team-idref
Namespace No namespace
Annotations

A pointer to the team of the penalized or the penalized team itself.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the team of the penalized or the penalized team itself.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-penalty / @recipient-idref
Namespace No namespace
Annotations

A pointer to the receiver of the penalty.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="recipient-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the receiver of the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-penalty / @served-by-idref
Namespace No namespace
Annotations

A pointer to the player that served the penalty.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="served-by-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player that served the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-penalty / @caller-idref
Namespace No namespace
Annotations

A pointer to the official who called the penalty.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="caller-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the official who called the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-penalty / @penalty-status
Namespace No namespace
Annotations

Whether this action indicates the start of a penalty, or the end of a penalty.
Type restriction of string
Properties
use optional
Facets
enumeration start
enumeration end
Used by
Source

<attribute name="penalty-status" use="optional">
  <annotation>
    <documentation>Whether this action indicates the start of a penalty, or the end of a penalty.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="start"/>
      <enumeration value="end"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-penalty / @penalty-level
Namespace No namespace
Annotations

TBD.
Type sportsml:penaltyLevel.IceHockey
Properties
use optional
Used by
Source

<attribute name="penalty-level" type="sportsml:penaltyLevel.IceHockey" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-penalty / @penalty-name
Namespace No namespace
Annotations

TBD.
Type sportsml:penaltyName.IceHockey
Properties
use optional
Used by
Source

<attribute name="penalty-name" type="sportsml:penaltyName.IceHockey" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-penalty / @penalty-length
Namespace No namespace
Annotations

In minutes:seconds. Not necessarily the time actually served.
Type string
Properties
use optional
Used by
Source

<attribute name="penalty-length" type="string" use="optional">
  <annotation>
    <documentation>In minutes:seconds. Not necessarily the time actually served.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-penalty / @comment
Namespace No namespace
Annotations

A textual comment.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-timeout / @timeout-duration
Namespace No namespace
Annotations

How long a timeout was called for.
Type string
Properties
use optional
Used by
Source

<attribute name="timeout-duration" type="string" use="optional">
  <annotation>
    <documentation>How long a timeout was called for.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-timeout / @caller
Namespace No namespace
Annotations

Who called the timeout, either team or official.
Type restriction of string
Properties
use optional
Facets
enumeration team
enumeration official
Used by
Source

<attribute name="caller" use="optional">
  <annotation>
    <documentation>Who called the timeout, either team or official.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="team"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-timeout / @caller-idref
Namespace No namespace
Annotations

If caller is team, say, a pointer to the team element.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="caller-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>If caller is team, say, a pointer to the team element.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-timeout / @comment
Namespace No namespace
Annotations

A textual comment.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-other / @action-source
Namespace No namespace
Annotations

The name of the controlled-vocabulary for the action-type attribute.
Type string
Properties
use optional
Used by
Source

<attribute name="action-source" type="string" use="optional">
  <annotation>
    <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-other / @action-type
Namespace No namespace
Annotations

A selection from a controlled-vocabulary list maintained by the publisher.
Type string
Properties
use optional
Used by
Source

<attribute name="action-type" type="string" use="optional">
  <annotation>
    <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:action-ice-hockey-other / @comment
Namespace No namespace
Annotations

Textual comment about the action.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the action.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-game-winning
Namespace No namespace
Annotations

Goals that provided the winning margin in a game.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-game-winning" type="string" use="optional">
  <annotation>
    <documentation>Goals that provided the winning margin in a game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-game-tying
Namespace No namespace
Annotations

Goals that caused the game to be tied.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-game-tying" type="string" use="optional">
  <annotation>
    <documentation>Goals that caused the game to be tied.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-power-play
Namespace No namespace
Annotations

Goals scored while the team was having a power-play.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-power-play" type="string" use="optional">
  <annotation>
    <documentation>Goals scored while the team was having a power-play.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-short-handed
Namespace No namespace
Annotations

Goals scored while the team was playing short-handed.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-short-handed" type="string" use="optional">
  <annotation>
    <documentation>Goals scored while the team was playing short-handed.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-even-strength
Namespace No namespace
Annotations

Goals scored while the teams were at even strength.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-even-strength" type="string" use="optional">
  <annotation>
    <documentation>Goals scored while the teams were at even strength.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-empty-net
Namespace No namespace
Annotations

Goals scored on an empty goal, with the opposing goalie pulled from the net.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-empty-net" type="string" use="optional">
  <annotation>
    <documentation>Goals scored on an empty goal, with the opposing goalie pulled from the net.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-overtime
Namespace No namespace
Annotations

Goals scored during overtime.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-overtime" type="string" use="optional">
  <annotation>
    <documentation>Goals scored during overtime.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-shootout
Namespace No namespace
Annotations

Goals scored during a shootout.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-shootout" type="string" use="optional">
  <annotation>
    <documentation>Goals scored during a shootout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-shootout-attempts
Namespace No namespace
Annotations

Goals attempted during a shootout.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-shootout-attempts" type="string" use="optional">
  <annotation>
    <documentation>Goals attempted during a shootout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-penalty-shot
Namespace No namespace
Annotations

Goals scored as penalty shots.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-penalty-shot" type="string" use="optional">
  <annotation>
    <documentation>Goals scored as penalty shots.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @goals-per-game
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-per-game" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @assists
Namespace No namespace
Annotations

Total number of assists.
Type string
Properties
use optional
Used by
Source

<attribute name="assists" type="string" use="optional">
  <annotation>
    <documentation>Total number of assists.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @assists-power-play
Namespace No namespace
Annotations

Total number of assists made during a power play.
Type string
Properties
use optional
Used by
Source

<attribute name="assists-power-play" type="string" use="optional">
  <annotation>
    <documentation>Total number of assists made during a power play.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @assists-short-handed
Namespace No namespace
Annotations

Total number of assists made while short-handed.
Type string
Properties
use optional
Used by
Source

<attribute name="assists-short-handed" type="string" use="optional">
  <annotation>
    <documentation>Total number of assists made while short-handed.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @assists-game-winning
Namespace No namespace
Annotations

Assists on goals that provided the winning margin in a game.
Type string
Properties
use optional
Used by
Source

<attribute name="assists-game-winning" type="string" use="optional">
  <annotation>
    <documentation>Assists on goals that provided the winning margin in a game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @assists-game-tying
Namespace No namespace
Annotations

Assists on goals that caused the game to be tied.
Type string
Properties
use optional
Used by
Source

<attribute name="assists-game-tying" type="string" use="optional">
  <annotation>
    <documentation>Assists on goals that caused the game to be tied.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @assists-overtime
Namespace No namespace
Annotations

Assists on goals scored during overtime.
Type string
Properties
use optional
Used by
Source

<attribute name="assists-overtime" type="string" use="optional">
  <annotation>
    <documentation>Assists on goals scored during overtime.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @points
Namespace No namespace
Annotations

Total number of points, with a score and an assist generally counted as one point each.
Type string
Properties
use optional
Used by
Source

<attribute name="points" type="string" use="optional">
  <annotation>
    <documentation>Total number of points, with a score and an assist generally counted as one point each.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @points-power-play
Namespace No namespace
Annotations

Total number of points during power plays, with a score and an assist generally counted as one point each.
Type string
Properties
use optional
Used by
Source

<attribute name="points-power-play" type="string" use="optional">
  <annotation>
    <documentation>Total number of points during power plays, with a score and an assist generally counted as one point each.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @points-short-handed
Namespace No namespace
Annotations

Total number of points while short-handed, with a score and an assist generally counted as one point each.
Type string
Properties
use optional
Used by
Source

<attribute name="points-short-handed" type="string" use="optional">
  <annotation>
    <documentation>Total number of points while short-handed, with a score and an assist generally counted as one point each.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @power-play-amount
Namespace No namespace
Annotations

Number of power-play opportunities a team has had.
Type string
Properties
use optional
Used by
Source

<attribute name="power-play-amount" type="string" use="optional">
  <annotation>
    <documentation>Number of power-play opportunities a team has had.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @power-play-percentage
Namespace No namespace
Annotations

Measure of success at power plays. Figured by dividing goals-power-play by power-play-amount.
Type string
Properties
use optional
Used by
Source

<attribute name="power-play-percentage" type="string" use="optional">
  <annotation>
    <documentation>Measure of success at power plays. Figured by dividing goals-power-play by power-play-amount.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @shots-penalty-shot-taken
Namespace No namespace
Annotations

Total number of penalty shots taken by a shooting player.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-penalty-shot-taken" type="string" use="optional">
  <annotation>
    <documentation>Total number of penalty shots taken by a shooting player.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @shots-penalty-shot-missed
Namespace No namespace
Annotations

Total number of penalty shots missed by a shooting player.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-penalty-shot-missed" type="string" use="optional">
  <annotation>
    <documentation>Total number of penalty shots missed by a shooting player.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @shots-penalty-shot-percentage
Namespace No namespace
Annotations

Percentage of penalty shots that resulted in goals.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-penalty-shot-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of penalty shots that resulted in goals.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @giveaways
Namespace No namespace
Annotations

Number of times that passes were attempted but intercepted. A judgment call whose exact conditions vary.
Type string
Properties
use optional
Used by
Source

<attribute name="giveaways" type="string" use="optional">
  <annotation>
    <documentation>Number of times that passes were attempted but intercepted. A judgment call whose exact conditions vary.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @minutes-power-play
Namespace No namespace
Annotations

Total number of minutes played in a power-play.
Type string
Properties
use optional
Used by
Source

<attribute name="minutes-power-play" type="string" use="optional">
  <annotation>
    <documentation>Total number of minutes played in a power-play.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @faceoff-wins
Namespace No namespace
Annotations

Total number of won faceoffs.
Type string
Properties
use optional
Used by
Source

<attribute name="faceoff-wins" type="string" use="optional">
  <annotation>
    <documentation>Total number of won faceoffs.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @faceoff-losses
Namespace No namespace
Annotations

Total number of lost faceoffs.
Type string
Properties
use optional
Used by
Source

<attribute name="faceoff-losses" type="string" use="optional">
  <annotation>
    <documentation>Total number of lost faceoffs.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @faceoff-win-percentage
Namespace No namespace
Annotations

Percentage of faceoffs that were won.
Type string
Properties
use optional
Used by
Source

<attribute name="faceoff-win-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of faceoffs that were won.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @scoring-chances
Namespace No namespace
Annotations

Total number of qualified chances to score.
Type string
Properties
use optional
Used by
Source

<attribute name="scoring-chances" type="string" use="optional">
  <annotation>
    <documentation>Total number of qualified chances to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-offensive / @hat-tricks
Namespace No namespace
Annotations

Total number of hat-trick games.
Type string
Properties
use optional
Used by
Source

<attribute name="hat-tricks" type="string" use="optional">
  <annotation>
    <documentation>Total number of hat-trick games.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @shots-power-play-allowed
Namespace No namespace
Annotations

Total number of shots on goal allowed during power-play.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-power-play-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of shots on goal allowed during power-play.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @shots-penalty-shot-allowed
Namespace No namespace
Annotations

Total number of shots allowed as penalty-shots.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-penalty-shot-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of shots allowed as penalty-shots.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @goals-power-play-allowed
Namespace No namespace
Annotations

Total number of goals allowed while the opposing team has a power-play.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-power-play-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals allowed while the opposing team has a power-play.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @goals-penalty-shot-allowed
Namespace No namespace
Annotations

Total number of goals allowed as penalty-shots.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-penalty-shot-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals allowed as penalty-shots.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @goals-empty-net-allowed
Namespace No namespace
Annotations

Total number of goals allowed while the net was empty.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-empty-net-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals allowed while the net was empty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @goals-short-handed-allowed
Namespace No namespace
Annotations

Total number of goals allowed while playing short-handed.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-short-handed-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals allowed while playing short-handed.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @goals-against-average
Namespace No namespace
Annotations

Average number of goals per game allowed by the team.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-against-average" type="string" use="optional">
  <annotation>
    <documentation>Average number of goals per game allowed by the team.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @saves
Namespace No namespace
Annotations

Total number of saves.
Type string
Properties
use optional
Used by
Source

<attribute name="saves" type="string" use="optional">
  <annotation>
    <documentation>Total number of saves.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @save-percentage
Namespace No namespace
Annotations

Percentage of saves compared to total number of shots.
Type string
Properties
use optional
Used by
Source

<attribute name="save-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of saves compared to total number of shots.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @goals-shootout-allowed
Namespace No namespace
Annotations

Number of shootout goals that went in for a score for the opposing team.
Type string
Properties
use optional
Used by
Source

<attribute name="goals-shootout-allowed" type="string" use="optional">
  <annotation>
    <documentation>Number of shootout goals that went in for a score for the opposing team.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @shots-shootout-allowed
Namespace No namespace
Annotations

Number of shootout shots that were attempted by the opposing team.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-shootout-allowed" type="string" use="optional">
  <annotation>
    <documentation>Number of shootout shots that were attempted by the opposing team.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @penalty-killing-amount
Namespace No namespace
Annotations

Number of penalty-killing sessions, aka number of short-handed sessions.
Type string
Properties
use optional
Used by
Source

<attribute name="penalty-killing-amount" type="string" use="optional">
  <annotation>
    <documentation>Number of penalty-killing sessions, aka number of short-handed sessions.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @penalty-killing-percentage
Namespace No namespace
Annotations

Equals goals-penalty-allowed divided by penalty-killing-amount.
Type string
Properties
use optional
Used by
Source

<attribute name="penalty-killing-percentage" type="string" use="optional">
  <annotation>
    <documentation>Equals goals-penalty-allowed divided by penalty-killing-amount.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @shots-blocked
Namespace No namespace
Annotations

Number of shots that were blocked. This statistic is generally tracked for non-goalies.
Type string
Properties
use optional
Used by
Source

<attribute name="shots-blocked" type="string" use="optional">
  <annotation>
    <documentation>Number of shots that were blocked. This statistic is generally tracked for non-goalies.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @takeaways
Namespace No namespace
Annotations

Number of intercepted passes. A judgment call whose exact conditions vary.
Type string
Properties
use optional
Used by
Source

<attribute name="takeaways" type="string" use="optional">
  <annotation>
    <documentation>Number of intercepted passes. A judgment call whose exact conditions vary.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @shutouts
Namespace No namespace
Annotations

Total number of games where the opposing team did not score.
Type string
Properties
use optional
Used by
Source

<attribute name="shutouts" type="string" use="optional">
  <annotation>
    <documentation>Total number of games where the opposing team did not score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @minutes-penalty-killing
Namespace No namespace
Annotations

Total number of minutes played short-handed, while the other team had a power-play.
Type string
Properties
use optional
Used by
Source

<attribute name="minutes-penalty-killing" type="string" use="optional">
  <annotation>
    <documentation>Total number of minutes played short-handed, while the other team had a power-play.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @hits
Namespace No namespace
Annotations

Number of body checks made against an opposing player.
Type string
Properties
use optional
Used by
Source

<attribute name="hits" type="string" use="optional">
  <annotation>
    <documentation>Number of body checks made against an opposing player.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @goaltender-wins-overtime
Namespace No namespace
Annotations

Number of games won while play is in overtime.
Type string
Properties
use optional
Used by
Source

<attribute name="goaltender-wins-overtime" type="string" use="optional">
  <annotation>
    <documentation>Number of games won while play is in overtime.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:stats-ice-hockey-defensive / @goaltender-losses-overtime
Namespace No namespace
Annotations

Number of games lost while play is in overtime.
Type string
Properties
use optional
Used by
Source

<attribute name="goaltender-losses-overtime" type="string" use="optional">
  <annotation>
    <documentation>Number of games lost while play is in overtime.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:team-stats-ice-hockey / @plus-minus
Namespace No namespace
Annotations

Number of times players on this team were on ice when own team scored minus the number of times players were on ice when opponent scored.
Type string
Properties
use optional
Used by
Source

<attribute name="plus-minus" type="string" use="optional">
  <annotation>
    <documentation>Number of times players on this team were on ice when own team scored minus the number of times players were on ice when opponent scored.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:team-stats-ice-hockey / @plus-total
Namespace No namespace
Annotations

Number of times players on this team were on ice when own team scored.
Type string
Properties
use optional
Used by
Source

<attribute name="plus-total" type="string" use="optional">
  <annotation>
    <documentation>Number of times players on this team were on ice when own team scored.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:team-stats-ice-hockey / @minus-total
Namespace No namespace
Annotations

Number of times players were on ice when opponent scored.
Type string
Properties
use optional
Used by
Source

<attribute name="minus-total" type="string" use="optional">
  <annotation>
    <documentation>Number of times players were on ice when opponent scored.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:team-stats-ice-hockey / @penalty-minutes
Namespace No namespace
Annotations

Total number of penalty minutes accrued by a single team.
Type string
Properties
use optional
Used by
Source

<attribute name="penalty-minutes" type="string" use="optional">
  <annotation>
    <documentation>Total number of penalty minutes accrued by a single team.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:player-metadata-ice-hockey / @shooting-hand
Namespace No namespace
Annotations

The side from which a player normally shoots.
Type restriction of string
Properties
use optional
Facets
enumeration left
enumeration right
enumeration both
Used by
Source

<attribute name="shooting-hand" use="optional">
  <annotation>
    <documentation>The side from which a player normally shoots.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="left"/>
      <enumeration value="right"/>
      <enumeration value="both"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:player-metadata-ice-hockey / @catching-hand
Namespace No namespace
Annotations

The hand with which a player, generally a goaltender, catches the puck.
Type restriction of string
Properties
use optional
Facets
enumeration left
enumeration right
enumeration both
Used by
Source

<attribute name="catching-hand" use="optional">
  <annotation>
    <documentation>The hand with which a player, generally a goaltender, catches the puck.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="left"/>
      <enumeration value="right"/>
      <enumeration value="both"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:player-stats-ice-hockey / @plus-minus
Namespace No namespace
Annotations

Number of times player was on ice when own team scored minus the number of times player was on ice when opponent scored.
Type string
Properties
use optional
Used by
Source

<attribute name="plus-minus" type="string" use="optional">
  <annotation>
    <documentation>Number of times player was on ice when own team scored minus the number of times player was on ice when opponent scored.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:player-stats-ice-hockey / @plus-total
Namespace No namespace
Annotations

Number of times player was on ice when own team scored.
Type string
Properties
use optional
Used by
Source

<attribute name="plus-total" type="string" use="optional">
  <annotation>
    <documentation>Number of times player was on ice when own team scored.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:player-stats-ice-hockey / @minus-total
Namespace No namespace
Annotations

Number of times player was on ice when opponent scored.
Type string
Properties
use optional
Used by
Source

<attribute name="minus-total" type="string" use="optional">
  <annotation>
    <documentation>Number of times player was on ice when opponent scored.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:player-stats-ice-hockey / @minutes-played
Namespace No namespace
Annotations

Number of minutes player was on ice.
Type string
Properties
use optional
Used by
Source

<attribute name="minutes-played" type="string" use="optional">
  <annotation>
    <documentation>Number of minutes player was on ice.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:player-stats-ice-hockey / @penalty-minutes
Namespace No namespace
Annotations

Total number of penalty minutes accrued by a single player.
Type string
Properties
use optional
Used by
Source

<attribute name="penalty-minutes" type="string" use="optional">
  <annotation>
    <documentation>Total number of penalty minutes accrued by a single player.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:player-stats-ice-hockey / @goaltender-wins
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="goaltender-wins" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:player-stats-ice-hockey / @goaltender-losses
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="goaltender-losses" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute sportsml:player-stats-ice-hockey / @goaltender-ties
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="goaltender-ties" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
Attribute Group sportsml:eventStateIceHockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Diagram
Diagram sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_period-value sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_period-time-elapsed sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_period-time-remaining
Used by
Attributes
QName Type Use Annotation
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
Source

<attributeGroup name="eventStateIceHockey">
  <attribute name="period-value" type="string" use="optional">
    <annotation>
      <documentation>Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)</documentation>
    </annotation>
  </attribute>
  <attribute name="period-time-elapsed" type="string" use="optional">
    <annotation>
      <documentation>The time elapsed in the period.</documentation>
    </annotation>
  </attribute>
  <attribute name="period-time-remaining" type="string" use="optional">
    <annotation>
      <documentation>The time remaining in the period.</documentation>
    </annotation>
  </attribute>
</attributeGroup>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-ice-hockey.xsd
XML Schema documentation generated by ® XML Editor.
