Included schema sportsml-specific-baseball.xsd
Namespace http://iptc.org/std/SportsML/2008-04-01/
Properties
attribute form default unqualified
element form default unqualified
version 2.0
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd

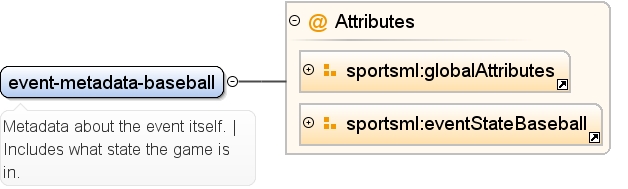

Element sportsml:event-metadata-baseball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Metadata about the event itself. | Includes what state the game is in.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-baseball_xsd.tmp#eventStateBaseball
Properties
content complex
Used by
Attributes
QName Type Use Annotation
at-bat-number string optional
Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
balls string optional
Either 1, 2, 3, or 4.
batter-idref IDREF optional
A pointer to the player element for the batter at the plate.
batter-side restriction of string optional
Which side of the plate the batter was on when taking the pitch.
id ID optional
An XML-specific identifier for the element.
inning-half restriction of string optional
Either top or bottom.
inning-value string optional
An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
outs string optional
Either 1, 2, or 3.
pitcher-idref IDREF optional
A pointer to the player element for the pitcher standing on the mound.
runner-on-first string optional
Whether or not a player is standing on first base. Either true or false.
runner-on-first-idref IDREF optional
A pointer to the player on first base.
runner-on-second string optional
Whether or not a player is standing on second base. Either true or false.
runner-on-second-idref IDREF optional
A pointer to the player on second base.
runner-on-third string optional
Whether or not a player is standing on third base. Either true or false.
runner-on-third-idref IDREF optional
A pointer to the player on third base.
runs-this-inning-half string optional
An integer.
sequence-number string optional
Usually an integer
strikes string optional
Either 1, 2, or 3.
Source

<element name="event-metadata-baseball">
  <annotation>
    <documentation>Metadata about the event itself. | Includes what state the game is in.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>

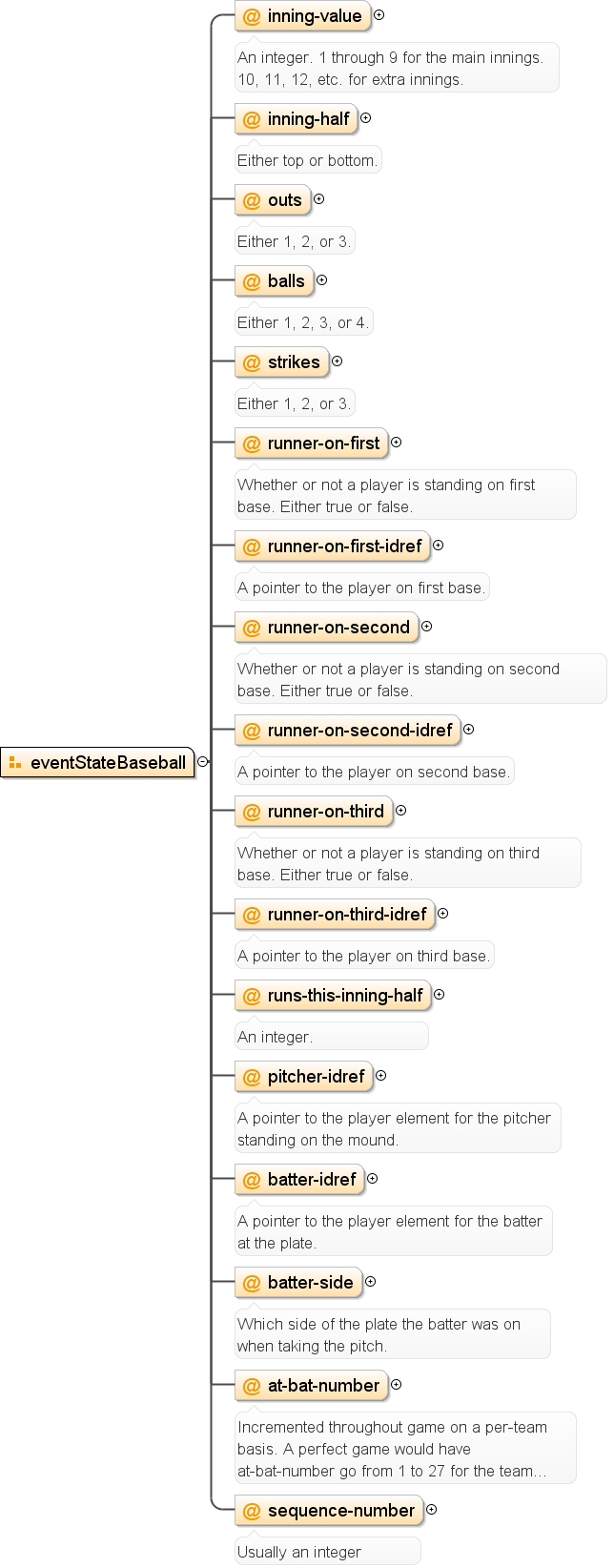

    <attributeGroup ref="sportsml:eventStateBaseball"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd

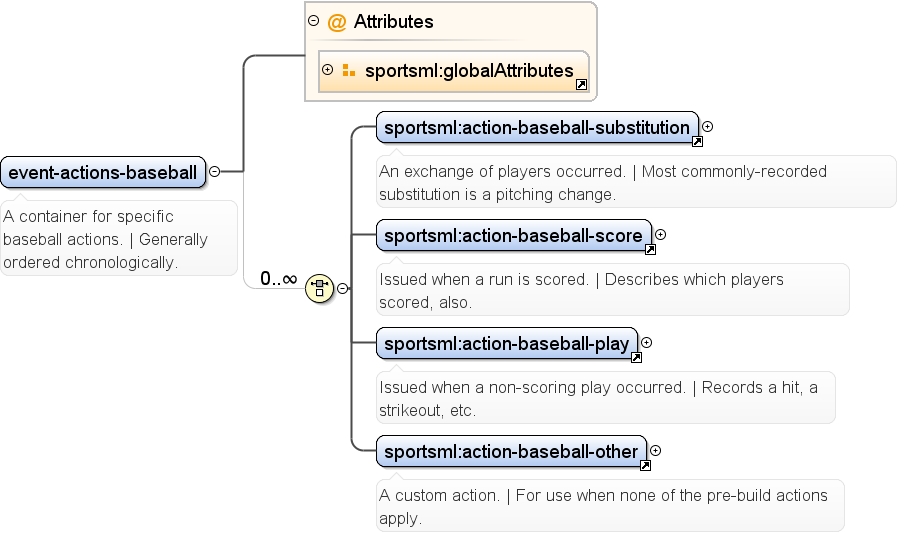

Element sportsml:event-actions-baseball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

A container for specific baseball actions. | Generally ordered chronologically.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-baseball_xsd.tmp#action-baseball-substitution sportsml-specific-baseball_xsd.tmp#action-baseball-score sportsml-specific-baseball_xsd.tmp#action-baseball-play sportsml-specific-baseball_xsd.tmp#action-baseball-other
Properties
content complex
Used by
Model
Children sportsml:action-baseball-other, sportsml:action-baseball-play, sportsml:action-baseball-score, sportsml:action-baseball-substitution
Instance

<sportsml:event-actions-baseball id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-baseball-substitution at-bat-number="" balls="" batter-idref="" batter-side="" comment="" id="" inning-exiting="" inning-half="" inning-value="" lead-entering="" lead-exiting="" outs="" outs-exiting="" person-original-idref="" person-original-lineup-slot="" person-original-position="" person-replacing-idref="" person-replacing-lineup-slot="" person-replacing-position="" person-type="" pitcher-idref="" runner-on-first="" runner-on-first-idref="" runner-on-second="" runner-on-second-idref="" runner-on-third="" runner-on-third-idref="" runners-on-base="" runs-this-inning-half="" sequence-number="" strikes="" substitution-reason="">{1,1}</sportsml:action-baseball-substitution>
  <sportsml:action-baseball-score at-bat-number="" balls="" batter-advance="" batter-idref="" batter-side="" comment="" earned-runs-scored="" hit-by-pitch-type="" hit-type="" id="" inning-half="" inning-value="" outs="" outs-recorded="" out-type="" pitcher-idref="" play-scorekeepers-notation="" play-type="" rbi="" runner-on-first="" runner-on-first-advance="" runner-on-first-idref="" runner-on-second="" runner-on-second-advance="" runner-on-second-idref="" runner-on-third="" runner-on-third-advance="" runner-on-third-idref="" runs-scored="" runs-this-inning-half="" score-team="" score-team-opposing="" sequence-number="" strikes="" walk-type="">{1,1}</sportsml:action-baseball-score>
  <sportsml:action-baseball-play at-bat-number="" balls="" batter-advance="" batter-idref="" batter-side="" comment="" hit-by-pitch-type="" hit-type="" id="" inning-half="" inning-value="" outs="" outs-recorded="" out-type="" pitcher-idref="" play-scorekeepers-notation="" play-type="" runner-on-first="" runner-on-first-advance="" runner-on-first-idref="" runner-on-second="" runner-on-second-advance="" runner-on-second-idref="" runner-on-third="" runner-on-third-advance="" runner-on-third-idref="" runs-this-inning-half="" sequence-number="" strikes="" walk-type="">{1,1}</sportsml:action-baseball-play>

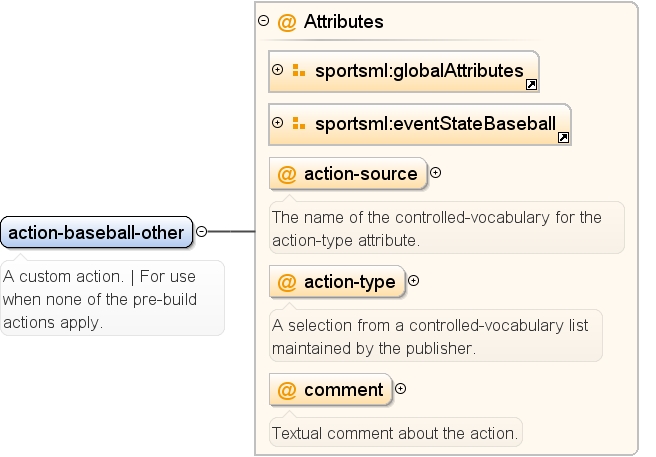

  <sportsml:action-baseball-other action-source="" action-type="" at-bat-number="" balls="" batter-idref="" batter-side="" comment="" id="" inning-half="" inning-value="" outs="" pitcher-idref="" runner-on-first="" runner-on-first-idref="" runner-on-second="" runner-on-second-idref="" runner-on-third="" runner-on-third-idref="" runs-this-inning-half="" sequence-number="" strikes="">{1,1}</sportsml:action-baseball-other>
</sportsml:event-actions-baseball>
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
Source

<element name="event-actions-baseball">
  <annotation>
    <documentation>A container for specific baseball actions. | Generally ordered chronologically.</documentation>
  </annotation>
  <complexType>
    <choice minOccurs="0" maxOccurs="unbounded">
      <element ref="sportsml:action-baseball-substitution"/>
      <element ref="sportsml:action-baseball-score"/>
      <element ref="sportsml:action-baseball-play"/>
      <element ref="sportsml:action-baseball-other"/>
    </choice>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd

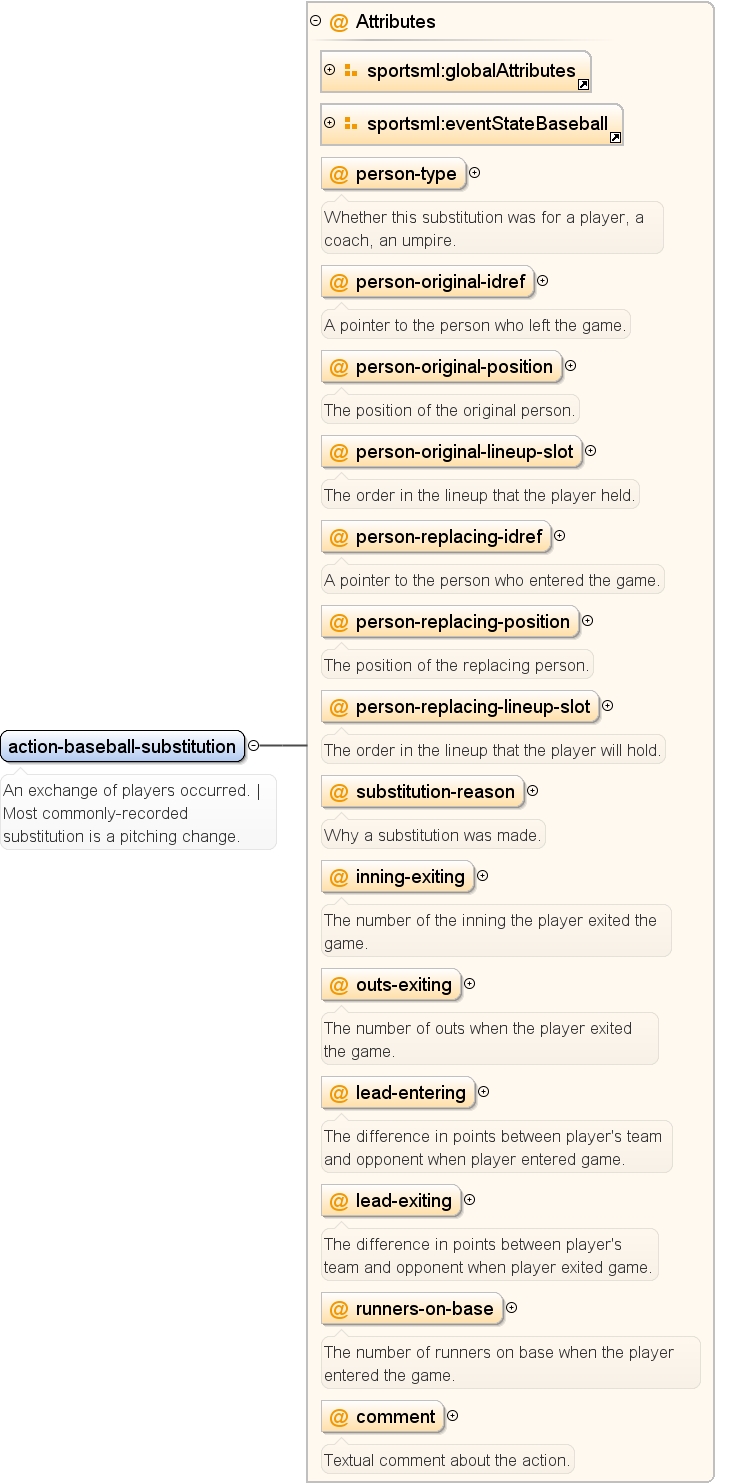

Element sportsml:action-baseball-substitution
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

An exchange of players occurred. | Most commonly-recorded substitution is a pitching change.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-baseball_xsd.tmp#eventStateBaseball sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_person-type sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_person-original-idref sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_person-original-position sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_person-original-lineup-slot sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_person-replacing-idref sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_person-replacing-position sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_person-replacing-lineup-slot sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_substitution-reason sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_inning-exiting sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_outs-exiting sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_lead-entering sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_lead-exiting sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_runners-on-base sportsml-specific-baseball_xsd.tmp#action-baseball-substitution_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
at-bat-number string optional
Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
balls string optional
Either 1, 2, 3, or 4.
batter-idref IDREF optional
A pointer to the player element for the batter at the plate.
batter-side restriction of string optional
Which side of the plate the batter was on when taking the pitch.
comment string optional
Textual comment about the action.
id ID optional
An XML-specific identifier for the element.
inning-exiting string optional
The number of the inning the player exited the game.
inning-half restriction of string optional
Either top or bottom.
inning-value string optional
An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
lead-entering string optional
The difference in points between player's team and opponent when player entered game.
lead-exiting string optional
The difference in points between player's team and opponent when player exited game.
outs string optional
Either 1, 2, or 3.
outs-exiting string optional
The number of outs when the player exited the game.
person-original-idref IDREF optional
A pointer to the person who left the game.
person-original-lineup-slot string optional
The order in the lineup that the player held.
person-original-position sportsml:position.Baseball optional
The position of the original person.
person-replacing-idref IDREF optional
A pointer to the person who entered the game.
person-replacing-lineup-slot string optional
The order in the lineup that the player will hold.
person-replacing-position string optional
The position of the replacing person.
person-type restriction of string optional
Whether this substitution was for a player, a coach, an umpire.
pitcher-idref IDREF optional
A pointer to the player element for the pitcher standing on the mound.
runner-on-first string optional
Whether or not a player is standing on first base. Either true or false.
runner-on-first-idref IDREF optional
A pointer to the player on first base.
runner-on-second string optional
Whether or not a player is standing on second base. Either true or false.
runner-on-second-idref IDREF optional
A pointer to the player on second base.
runner-on-third string optional
Whether or not a player is standing on third base. Either true or false.
runner-on-third-idref IDREF optional
A pointer to the player on third base.
runners-on-base string optional
The number of runners on base when the player entered the game.
runs-this-inning-half string optional
An integer.
sequence-number string optional
Usually an integer
strikes string optional
Either 1, 2, or 3.
substitution-reason string optional
Why a substitution was made.
Source

<element name="action-baseball-substitution">
  <annotation>
    <documentation>An exchange of players occurred. | Most commonly-recorded substitution is a pitching change.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBaseball"/>
    <attribute name="person-type" use="optional">
      <annotation>
        <documentation>Whether this substitution was for a player, a coach, an umpire.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="player"/>
          <enumeration value="associate"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="person-original-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the person who left the game.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-original-position" type="sportsml:position.Baseball" use="optional">
      <annotation>
        <documentation>The position of the original person.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-original-lineup-slot" type="string" use="optional">
      <annotation>
        <documentation>The order in the lineup that the player held.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the person who entered the game.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-position" type="string" use="optional">
      <annotation>
        <documentation>The position of the replacing person.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-lineup-slot" type="string" use="optional">
      <annotation>
        <documentation>The order in the lineup that the player will hold.</documentation>
      </annotation>
    </attribute>
    <attribute name="substitution-reason" type="string" use="optional">
      <annotation>
        <documentation>Why a substitution was made.</documentation>
      </annotation>
    </attribute>
    <attribute name="inning-exiting" type="string" use="optional">
      <annotation>
        <documentation>The number of the inning the player exited the game.</documentation>
      </annotation>
    </attribute>
    <attribute name="outs-exiting" type="string" use="optional">
      <annotation>
        <documentation>The number of outs when the player exited the game.</documentation>
      </annotation>
    </attribute>
    <attribute name="lead-entering" type="string" use="optional">
      <annotation>
        <documentation>The difference in points between player's team and opponent when player entered game.</documentation>
      </annotation>
    </attribute>
    <attribute name="lead-exiting" type="string" use="optional">
      <annotation>
        <documentation>The difference in points between player's team and opponent when player exited game.</documentation>
      </annotation>
    </attribute>
    <attribute name="runners-on-base" type="string" use="optional">
      <annotation>
        <documentation>The number of runners on base when the player entered the game.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Element sportsml:action-baseball-score
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Issued when a run is scored. | Describes which players scored, also.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-baseball_xsd.tmp#eventStateBaseball sportsml-specific-baseball_xsd.tmp#action-baseball-score_play-type sportsml-specific-baseball_xsd.tmp#action-baseball-score_play-scorekeepers-notation sportsml-specific-baseball_xsd.tmp#action-baseball-score_walk-type sportsml-specific-baseball_xsd.tmp#action-baseball-score_hit-type sportsml-specific-baseball_xsd.tmp#action-baseball-score_hit-by-pitch-type sportsml-specific-baseball_xsd.tmp#action-baseball-score_out-type sportsml-specific-baseball_xsd.tmp#action-baseball-score_outs-recorded sportsml-specific-baseball_xsd.tmp#action-baseball-score_comment sportsml-specific-baseball_xsd.tmp#action-baseball-score_rbi sportsml-specific-baseball_xsd.tmp#action-baseball-score_runs-scored sportsml-specific-baseball_xsd.tmp#action-baseball-score_score-team sportsml-specific-baseball_xsd.tmp#action-baseball-score_score-team-opposing sportsml-specific-baseball_xsd.tmp#action-baseball-score_earned-runs-scored sportsml-specific-baseball_xsd.tmp#action-baseball-score_batter-advance sportsml-specific-baseball_xsd.tmp#action-baseball-score_runner-on-first-advance sportsml-specific-baseball_xsd.tmp#action-baseball-score_runner-on-second-advance sportsml-specific-baseball_xsd.tmp#action-baseball-score_runner-on-third-advance sportsml-specific-baseball_xsd.tmp#action-baseball-pitch
Properties
content complex
Used by
Model
Children sportsml:action-baseball-pitch
Instance

<sportsml:action-baseball-score at-bat-number="" balls="" batter-advance="" batter-idref="" batter-side="" comment="" earned-runs-scored="" hit-by-pitch-type="" hit-type="" id="" inning-half="" inning-value="" outs="" outs-recorded="" out-type="" pitcher-idref="" play-scorekeepers-notation="" play-type="" rbi="" runner-on-first="" runner-on-first-advance="" runner-on-first-idref="" runner-on-second="" runner-on-second-advance="" runner-on-second-idref="" runner-on-third="" runner-on-third-advance="" runner-on-third-idref="" runs-scored="" runs-this-inning-half="" score-team="" score-team-opposing="" sequence-number="" strikes="" walk-type="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">

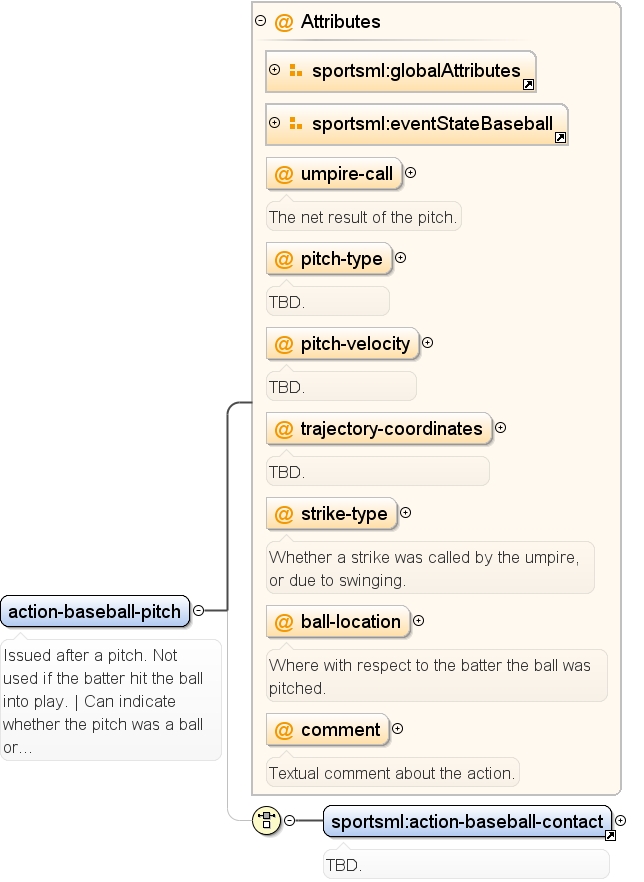

  <sportsml:action-baseball-pitch at-bat-number="" ball-location="" balls="" batter-idref="" batter-side="" comment="" id="" inning-half="" inning-value="" outs="" pitcher-idref="" pitch-type="" pitch-velocity="" runner-on-first="" runner-on-first-idref="" runner-on-second="" runner-on-second-idref="" runner-on-third="" runner-on-third-idref="" runs-this-inning-half="" sequence-number="" strikes="" strike-type="" trajectory-coordinates="" umpire-call="">{1,1}</sportsml:action-baseball-pitch>
</sportsml:action-baseball-score>
Attributes
QName Type Use Annotation
at-bat-number string optional
Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
balls string optional
Either 1, 2, 3, or 4.
batter-advance restriction of string optional
The base to which the batter advanced.
batter-idref IDREF optional
A pointer to the player element for the batter at the plate.
batter-side restriction of string optional
Which side of the plate the batter was on when taking the pitch.
comment string optional
Textual comment about the action.
earned-runs-scored string optional
TBD.
hit-by-pitch-type sportsml:hitByPitchType.Baseball optional
A description for how or why a batter was hit by a pitch.
hit-type sportsml:hitType.Baseball optional
A description for the hit.
id ID optional
An XML-specific identifier for the element.
inning-half restriction of string optional
Either top or bottom.
inning-value string optional
An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
out-type sportsml:outType.Baseball optional
How the out was made.
outs string optional
Either 1, 2, or 3.
outs-recorded restriction of string optional
How many outs were recorded on the play. Values are 1, 2, 3.
pitcher-idref IDREF optional
A pointer to the player element for the pitcher standing on the mound.
play-scorekeepers-notation string optional
Denotes which fielders touched the ball during the play. Example: 6-4-3.
play-type sportsml:playType.Baseball optional
A description for the play.
rbi string optional
How many runs-batted-in were credited on the play. An error may preclude the assigning of an rbi.
runner-on-first string optional
Whether or not a player is standing on first base. Either true or false.
runner-on-first-advance restriction of string optional
The base to which the runner on first base advanced.
runner-on-first-idref IDREF optional
A pointer to the player on first base.
runner-on-second string optional
Whether or not a player is standing on second base. Either true or false.
runner-on-second-advance restriction of string optional
The base to which the runner on second base advanced.
runner-on-second-idref IDREF optional
A pointer to the player on second base.
runner-on-third string optional
Whether or not a player is standing on third base. Either true or false.
runner-on-third-advance restriction of string optional
The base to which the runner on third base advanced.
runner-on-third-idref IDREF optional
A pointer to the player on third base.
runs-scored string optional
How many runs scored on the play.
runs-this-inning-half string optional
An integer.
score-team string optional
The score of the team that did the scoring, once the play completed.
score-team-opposing string optional
The current score of the team that did not do the scoring.
sequence-number string optional
Usually an integer
strikes string optional
Either 1, 2, or 3.
walk-type sportsml:walkType.Baseball optional
If this play was a base-on-balls, the type of walk.
Source

<element name="action-baseball-score">
  <annotation>
    <documentation>Issued when a run is scored. | Describes which players scored, also.</documentation>
  </annotation>
  <complexType>
    <choice minOccurs="0" maxOccurs="unbounded">
      <element ref="sportsml:action-baseball-pitch"/>
    </choice>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBaseball"/>
    <attribute name="play-type" type="sportsml:playType.Baseball" use="optional">
      <annotation>
        <documentation>A description for the play.</documentation>
      </annotation>
    </attribute>
    <attribute name="play-scorekeepers-notation" type="string" use="optional">
      <annotation>
        <documentation>Denotes which fielders touched the ball during the play. Example: 6-4-3.</documentation>
      </annotation>
    </attribute>
    <attribute name="walk-type" type="sportsml:walkType.Baseball" use="optional">
      <annotation>
        <documentation>If this play was a base-on-balls, the type of walk.</documentation>
      </annotation>
    </attribute>
    <attribute name="hit-type" type="sportsml:hitType.Baseball" use="optional">
      <annotation>
        <documentation>A description for the hit.</documentation>
      </annotation>
    </attribute>
    <attribute name="hit-by-pitch-type" type="sportsml:hitByPitchType.Baseball" use="optional">
      <annotation>
        <documentation>A description for how or why a batter was hit by a pitch.</documentation>
      </annotation>
    </attribute>
    <attribute name="out-type" type="sportsml:outType.Baseball" use="optional">
      <annotation>
        <documentation>How the out was made.</documentation>
      </annotation>
    </attribute>
    <attribute name="outs-recorded" use="optional">
      <annotation>
        <documentation>How many outs were recorded on the play. Values are 1, 2, 3.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="none"/>
          <enumeration value="one"/>
          <enumeration value="two"/>
          <enumeration value="three"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
    <attribute name="rbi" type="string" use="optional">
      <annotation>
        <documentation>How many runs-batted-in were credited on the play. An error may preclude the assigning of an rbi.</documentation>
      </annotation>
    </attribute>
    <attribute name="runs-scored" type="string" use="optional">
      <annotation>
        <documentation>How many runs scored on the play.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-team" type="string" use="optional">
      <annotation>
        <documentation>The score of the team that did the scoring, once the play completed.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-team-opposing" type="string" use="optional">
      <annotation>
        <documentation>The current score of the team that did not do the scoring.</documentation>
      </annotation>
    </attribute>
    <attribute name="earned-runs-scored" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="batter-advance" use="optional">
      <annotation>
        <documentation>The base to which the batter advanced.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="1"/>
          <enumeration value="2"/>
          <enumeration value="3"/>
          <enumeration value="home"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="runner-on-first-advance" use="optional">
      <annotation>
        <documentation>The base to which the runner on first base advanced.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="2"/>
          <enumeration value="3"/>
          <enumeration value="home"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="runner-on-second-advance" use="optional">
      <annotation>
        <documentation>The base to which the runner on second base advanced.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="3"/>
          <enumeration value="home"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="runner-on-third-advance" use="optional">
      <annotation>
        <documentation>The base to which the runner on third base advanced.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="home"/>
        </restriction>
      </simpleType>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Element sportsml:action-baseball-pitch
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Issued after a pitch. Not used if the batter hit the ball into play. | Can indicate whether the pitch was a ball or strike, and where the pitch was located.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-baseball_xsd.tmp#eventStateBaseball sportsml-specific-baseball_xsd.tmp#action-baseball-pitch_umpire-call sportsml-specific-baseball_xsd.tmp#action-baseball-pitch_pitch-type sportsml-specific-baseball_xsd.tmp#action-baseball-pitch_pitch-velocity sportsml-specific-baseball_xsd.tmp#action-baseball-pitch_trajectory-coordinates sportsml-specific-baseball_xsd.tmp#action-baseball-pitch_strike-type sportsml-specific-baseball_xsd.tmp#action-baseball-pitch_ball-location sportsml-specific-baseball_xsd.tmp#action-baseball-pitch_comment sportsml-specific-baseball_xsd.tmp#action-baseball-contact
Properties
content complex
Used by
Model
Children sportsml:action-baseball-contact
Instance

<sportsml:action-baseball-pitch at-bat-number="" ball-location="" balls="" batter-idref="" batter-side="" comment="" id="" inning-half="" inning-value="" outs="" pitcher-idref="" pitch-type="" pitch-velocity="" runner-on-first="" runner-on-first-idref="" runner-on-second="" runner-on-second-idref="" runner-on-third="" runner-on-third-idref="" runs-this-inning-half="" sequence-number="" strikes="" strike-type="" trajectory-coordinates="" umpire-call="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-baseball-contact comment="" id="" location="" strength="" trajectory-coordinates="" velocity="">{1,1}</sportsml:action-baseball-contact>
</sportsml:action-baseball-pitch>
Attributes
QName Type Use Annotation
at-bat-number string optional
Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
ball-location sportsml:ballLocation.Baseball optional
Where with respect to the batter the ball was pitched.
balls string optional
Either 1, 2, 3, or 4.
batter-idref IDREF optional
A pointer to the player element for the batter at the plate.
batter-side restriction of string optional
Which side of the plate the batter was on when taking the pitch.
comment string optional
Textual comment about the action.
id ID optional
An XML-specific identifier for the element.
inning-half restriction of string optional
Either top or bottom.
inning-value string optional
An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
outs string optional
Either 1, 2, or 3.
pitch-type string optional
TBD.
pitch-velocity string optional
TBD.
pitcher-idref IDREF optional
A pointer to the player element for the pitcher standing on the mound.
runner-on-first string optional
Whether or not a player is standing on first base. Either true or false.
runner-on-first-idref IDREF optional
A pointer to the player on first base.
runner-on-second string optional
Whether or not a player is standing on second base. Either true or false.
runner-on-second-idref IDREF optional
A pointer to the player on second base.
runner-on-third string optional
Whether or not a player is standing on third base. Either true or false.
runner-on-third-idref IDREF optional
A pointer to the player on third base.
runs-this-inning-half string optional
An integer.
sequence-number string optional
Usually an integer
strike-type sportsml:strikeType.Baseball optional
Whether a strike was called by the umpire, or due to swinging.
strikes string optional
Either 1, 2, or 3.
trajectory-coordinates string optional
TBD.
umpire-call restriction of string optional
The net result of the pitch.
Source

<element name="action-baseball-pitch">
  <annotation>
    <documentation>Issued after a pitch. Not used if the batter hit the ball into play. | Can indicate whether the pitch was a ball or strike, and where the pitch was located.</documentation>
  </annotation>
  <complexType>
    <choice minOccurs="0">
      <element ref="sportsml:action-baseball-contact"/>
    </choice>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBaseball"/>
    <attribute name="umpire-call" use="optional">
      <annotation>
        <documentation>The net result of the pitch.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="ball"/>
          <enumeration value="strike"/>
          <enumeration value="in-play"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="pitch-type" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="pitch-velocity" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="trajectory-coordinates" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="strike-type" type="sportsml:strikeType.Baseball" use="optional">
      <annotation>
        <documentation>Whether a strike was called by the umpire, or due to swinging.</documentation>
      </annotation>
    </attribute>
    <attribute name="ball-location" type="sportsml:ballLocation.Baseball" use="optional">
      <annotation>
        <documentation>Where with respect to the batter the ball was pitched.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd

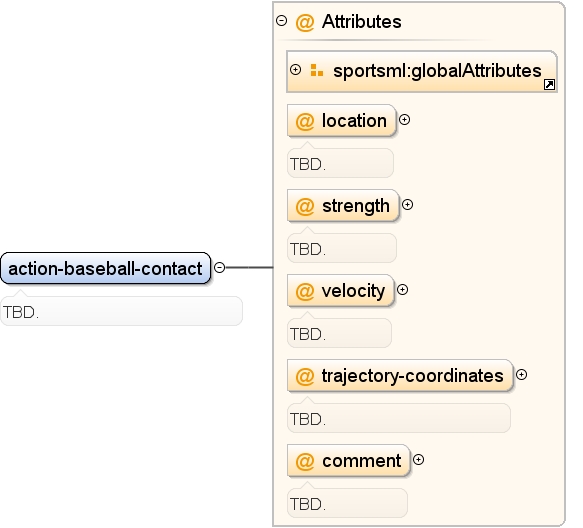

Element sportsml:action-baseball-contact
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

TBD.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-baseball_xsd.tmp#action-baseball-contact_location sportsml-specific-baseball_xsd.tmp#action-baseball-contact_strength sportsml-specific-baseball_xsd.tmp#action-baseball-contact_velocity sportsml-specific-baseball_xsd.tmp#action-baseball-contact_trajectory-coordinates sportsml-specific-baseball_xsd.tmp#action-baseball-contact_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
TBD.
id ID optional
An XML-specific identifier for the element.
location string optional
TBD.
strength string optional
TBD.
trajectory-coordinates string optional
TBD.
velocity string optional
TBD.
Source

<element name="action-baseball-contact">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="location" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="strength" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="velocity" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="trajectory-coordinates" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Element sportsml:action-baseball-play
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Issued when a non-scoring play occurred. | Records a hit, a strikeout, etc.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-baseball_xsd.tmp#eventStateBaseball sportsml-specific-baseball_xsd.tmp#action-baseball-play_play-type sportsml-specific-baseball_xsd.tmp#action-baseball-play_play-scorekeepers-notation sportsml-specific-baseball_xsd.tmp#action-baseball-play_walk-type sportsml-specific-baseball_xsd.tmp#action-baseball-play_hit-type sportsml-specific-baseball_xsd.tmp#action-baseball-play_hit-by-pitch-type sportsml-specific-baseball_xsd.tmp#action-baseball-play_out-type sportsml-specific-baseball_xsd.tmp#action-baseball-play_outs-recorded sportsml-specific-baseball_xsd.tmp#action-baseball-play_comment sportsml-specific-baseball_xsd.tmp#action-baseball-play_batter-advance sportsml-specific-baseball_xsd.tmp#action-baseball-play_runner-on-first-advance sportsml-specific-baseball_xsd.tmp#action-baseball-play_runner-on-second-advance sportsml-specific-baseball_xsd.tmp#action-baseball-play_runner-on-third-advance sportsml-specific-baseball_xsd.tmp#action-baseball-pitch
Properties
content complex
Used by
Model
Children sportsml:action-baseball-pitch
Instance

<sportsml:action-baseball-play at-bat-number="" balls="" batter-advance="" batter-idref="" batter-side="" comment="" hit-by-pitch-type="" hit-type="" id="" inning-half="" inning-value="" outs="" outs-recorded="" out-type="" pitcher-idref="" play-scorekeepers-notation="" play-type="" runner-on-first="" runner-on-first-advance="" runner-on-first-idref="" runner-on-second="" runner-on-second-advance="" runner-on-second-idref="" runner-on-third="" runner-on-third-advance="" runner-on-third-idref="" runs-this-inning-half="" sequence-number="" strikes="" walk-type="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-baseball-pitch at-bat-number="" ball-location="" balls="" batter-idref="" batter-side="" comment="" id="" inning-half="" inning-value="" outs="" pitcher-idref="" pitch-type="" pitch-velocity="" runner-on-first="" runner-on-first-idref="" runner-on-second="" runner-on-second-idref="" runner-on-third="" runner-on-third-idref="" runs-this-inning-half="" sequence-number="" strikes="" strike-type="" trajectory-coordinates="" umpire-call="">{1,1}</sportsml:action-baseball-pitch>
</sportsml:action-baseball-play>
Attributes
QName Type Use Annotation
at-bat-number string optional
Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
balls string optional
Either 1, 2, 3, or 4.
batter-advance restriction of string optional
The base to which the batter advanced.
batter-idref IDREF optional
A pointer to the player element for the batter at the plate.
batter-side restriction of string optional
Which side of the plate the batter was on when taking the pitch.
comment string optional
Textual comment about the action.
hit-by-pitch-type sportsml:hitByPitchType.Baseball optional
A description for how or why a batter was hit by a pitch.
hit-type sportsml:hitType.Baseball optional
A description for the hit.
id ID optional
An XML-specific identifier for the element.
inning-half restriction of string optional
Either top or bottom.
inning-value string optional
An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
out-type sportsml:outType.Baseball optional
How the out was made.
outs string optional
Either 1, 2, or 3.
outs-recorded restriction of string optional
How many outs were recorded on the play. Values are 1, 2, 3.
pitcher-idref IDREF optional
A pointer to the player element for the pitcher standing on the mound.
play-scorekeepers-notation string optional
Denotes which fielders touched the ball during the play. Example: 6-4-3.
play-type sportsml:playType.Baseball optional
A description for the play.
runner-on-first string optional
Whether or not a player is standing on first base. Either true or false.
runner-on-first-advance restriction of string optional
The base to which the runner on first base advanced.
runner-on-first-idref IDREF optional
A pointer to the player on first base.
runner-on-second string optional
Whether or not a player is standing on second base. Either true or false.
runner-on-second-advance restriction of string optional
The base to which the runner on second base advanced.
runner-on-second-idref IDREF optional
A pointer to the player on second base.
runner-on-third string optional
Whether or not a player is standing on third base. Either true or false.
runner-on-third-advance restriction of string optional
The base to which the runner on third base advanced.
runner-on-third-idref IDREF optional
A pointer to the player on third base.
runs-this-inning-half string optional
An integer.
sequence-number string optional
Usually an integer
strikes string optional
Either 1, 2, or 3.
walk-type sportsml:walkType.Baseball optional
If this play was a base-on-balls, the type of walk.
Source

<element name="action-baseball-play">
  <annotation>
    <documentation>Issued when a non-scoring play occurred. | Records a hit, a strikeout, etc.</documentation>
  </annotation>
  <complexType>
    <choice minOccurs="0" maxOccurs="unbounded">
      <element ref="sportsml:action-baseball-pitch"/>
    </choice>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBaseball"/>
    <attribute name="play-type" type="sportsml:playType.Baseball" use="optional">
      <annotation>
        <documentation>A description for the play.</documentation>
      </annotation>
    </attribute>
    <attribute name="play-scorekeepers-notation" type="string" use="optional">
      <annotation>
        <documentation>Denotes which fielders touched the ball during the play. Example: 6-4-3.</documentation>
      </annotation>
    </attribute>
    <attribute name="walk-type" type="sportsml:walkType.Baseball" use="optional">
      <annotation>
        <documentation>If this play was a base-on-balls, the type of walk.</documentation>
      </annotation>
    </attribute>
    <attribute name="hit-type" type="sportsml:hitType.Baseball" use="optional">
      <annotation>
        <documentation>A description for the hit.</documentation>
      </annotation>
    </attribute>
    <attribute name="hit-by-pitch-type" type="sportsml:hitByPitchType.Baseball" use="optional">
      <annotation>
        <documentation>A description for how or why a batter was hit by a pitch.</documentation>
      </annotation>
    </attribute>
    <attribute name="out-type" type="sportsml:outType.Baseball" use="optional">
      <annotation>
        <documentation>How the out was made.</documentation>
      </annotation>
    </attribute>
    <attribute name="outs-recorded" use="optional">
      <annotation>
        <documentation>How many outs were recorded on the play. Values are 1, 2, 3.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="none"/>
          <enumeration value="one"/>
          <enumeration value="two"/>
          <enumeration value="three"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
    <attribute name="batter-advance" use="optional">
      <annotation>
        <documentation>The base to which the batter advanced.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="1"/>
          <enumeration value="2"/>
          <enumeration value="3"/>
          <enumeration value="home"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="runner-on-first-advance" use="optional">
      <annotation>
        <documentation>The base to which the runner on first base advanced.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="2"/>
          <enumeration value="3"/>
          <enumeration value="home"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="runner-on-second-advance" use="optional">
      <annotation>
        <documentation>The base to which the runner on second base advanced.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="3"/>
          <enumeration value="home"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="runner-on-third-advance" use="optional">
      <annotation>
        <documentation>The base to which the runner on third base advanced.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="home"/>
        </restriction>
      </simpleType>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Element sportsml:action-baseball-other
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

A custom action. | For use when none of the pre-build actions apply.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-baseball_xsd.tmp#eventStateBaseball sportsml-specific-baseball_xsd.tmp#action-baseball-other_action-source sportsml-specific-baseball_xsd.tmp#action-baseball-other_action-type sportsml-specific-baseball_xsd.tmp#action-baseball-other_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
action-source string optional
The name of the controlled-vocabulary for the action-type attribute.
action-type string optional
A selection from a controlled-vocabulary list maintained by the publisher.
at-bat-number string optional
Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
balls string optional
Either 1, 2, 3, or 4.
batter-idref IDREF optional
A pointer to the player element for the batter at the plate.
batter-side restriction of string optional
Which side of the plate the batter was on when taking the pitch.
comment string optional
Textual comment about the action.
id ID optional
An XML-specific identifier for the element.
inning-half restriction of string optional
Either top or bottom.
inning-value string optional
An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
outs string optional
Either 1, 2, or 3.
pitcher-idref IDREF optional
A pointer to the player element for the pitcher standing on the mound.
runner-on-first string optional
Whether or not a player is standing on first base. Either true or false.
runner-on-first-idref IDREF optional
A pointer to the player on first base.
runner-on-second string optional
Whether or not a player is standing on second base. Either true or false.
runner-on-second-idref IDREF optional
A pointer to the player on second base.
runner-on-third string optional
Whether or not a player is standing on third base. Either true or false.
runner-on-third-idref IDREF optional
A pointer to the player on third base.
runs-this-inning-half string optional
An integer.
sequence-number string optional
Usually an integer
strikes string optional
Either 1, 2, or 3.
Source

<element name="action-baseball-other">
  <annotation>
    <documentation>A custom action. | For use when none of the pre-build actions apply.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBaseball"/>
    <attribute name="action-source" type="string" use="optional">
      <annotation>
        <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
      </annotation>
    </attribute>
    <attribute name="action-type" type="string" use="optional">
      <annotation>
        <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd

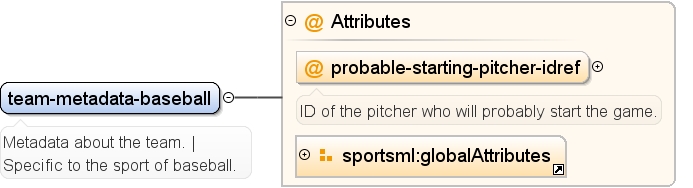

Element sportsml:team-metadata-baseball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Metadata about the team. | Specific to the sport of baseball.
Diagram
Diagram sportsml-specific-baseball_xsd.tmp#team-metadata-baseball_probable-starting-pitcher-idref sportsml-core_xsd.tmp#globalAttributes
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
probable-starting-pitcher-idref IDREF optional
ID of the pitcher who will probably start the game.
Source

<element name="team-metadata-baseball">
  <annotation>
    <documentation>Metadata about the team. | Specific to the sport of baseball.</documentation>
  </annotation>
  <complexType>
    <attribute name="probable-starting-pitcher-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>ID of the pitcher who will probably start the game.</documentation>
      </annotation>
    </attribute>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Element sportsml:team-stats-baseball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Specific statistics for baseball. | Includes offensive, pitching, and defensive stats.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive
Properties
content complex
Used by
Model
Children sportsml:stats-baseball-defensive, sportsml:stats-baseball-offensive, sportsml:stats-baseball-pitching
Instance

<sportsml:team-stats-baseball alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-baseball-offensive alignment-scope="" at-bats="" at-bats-per-home-run="" at-bats-per-rbi="" average="" bases-on-balls="" bases-on-balls-intentional="" bases-on-balls-rate="" competition-scope="" date-coverage-type="" date-coverage-value="" double-plays-against="" doubles="" duration-scope="" games-played="" grand-slams="" grounded-into-double-play="" hit-by-pitch="" hit-into-double-play="" hits="" hits-event-winning="" hits-extra-base="" home-runs="" home-runs-season="" id="" left-in-scoring-position="" left-on-base="" moved-up="" on-base-percentage="" on-base-plus-slugging="" outs-fly="" outs-ground="" period-value="" pick-offs-against="" plate-appearances="" plate-appearances-per-home-run="" plate-appearances-per-rbi="" position-scope="" rbi="" reached-base-defensive-interference="" reached-base-error="" reached-base-fielder-choice="" record-making-scope="" runs-scored="" sac-bunts="" sac-flies="" sacrifices="" scoping-label="" shutouts="" singles="" slugging-percentage="" stats-coverage="" stolen-bases="" stolen-bases-average="" stolen-bases-caught="" streak-hits="" strikeout-rate="" strikeouts="" strikeouts-looking="" team-coverage="" total-bases="" triple-plays-against="" triples="">{0,unbounded}</sportsml:stats-baseball-offensive>
  <sportsml:stats-baseball-pitching alignment-scope="" balks="" bases-on-balls="" bases-on-balls-intentional="" batters-at-bats-against="" batters-average-against="" batters-doubles-against="" batters-home-runs-against="" batters-on-base-percentage-against="" batters-slugging-percentage-against="" batters-total-against="" batters-total-bases-against="" batters-triples-against="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" earned-runs="" era="" errors-hit-with-pitch="" errors-wild-pitch="" event-credit="" games-complete="" games-finished="" games-pitched="" hits="" holds="" home-runs-allowed="" id="" inherited-runners-scored="" inherited-runners-total="" innings-pitched="" innings-pitched-average="" interferences="" losses="" number-of-pitches="" number-of-strikes="" period-value="" pick-offs="" position-scope="" record-making-scope="" relief-points="" runs-allowed="" sacrifice-bunts-allowed="" sacrifice-flies-allowed="" sacrifice-hits-allowed="" save-credit="" saves="" saves-blown="" saves-opportunities="" saves-tough="" scoping-label="" shutouts="" shutouts-combined="" stats-coverage="" strikeouts="" strikeout-to-bb-ratio="" team-coverage="" unearned-runs="" whip="" winning-percentage="" wins="">{0,unbounded}</sportsml:stats-baseball-pitching>
  <sportsml:stats-baseball-defensive alignment-scope="" assists="" competition-scope="" date-coverage-type="" date-coverage-value="" defensive-average="" double-plays="" duration-scope="" errors="" errors-catchers-interference="" errors-passed-ball="" fielding-chances="" fielding-percentage="" games-played="" id="" innings-played="" period-value="" position="" position-scope="" putouts="" record-making-scope="" scoping-label="" stats-coverage="" stolen-bases="" stolen-bases-average="" stolen-bases-caught="" team-coverage="" triple-plays="">{0,unbounded}</sportsml:stats-baseball-defensive>
</sportsml:team-stats-baseball>
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="team-stats-baseball">
  <annotation>
    <documentation>Specific statistics for baseball. | Includes offensive, pitching, and defensive stats.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-baseball-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-baseball-pitching" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-baseball-defensive" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd

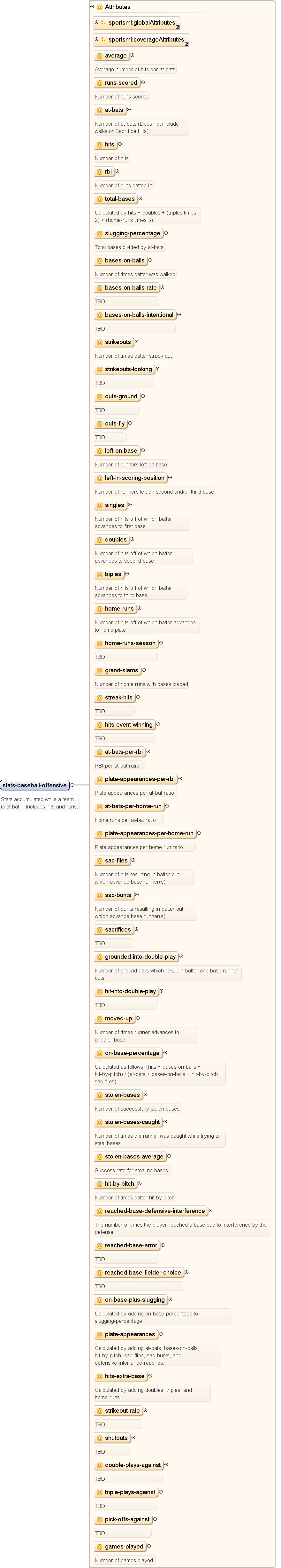

Element sportsml:stats-baseball-offensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Stats accumulated while a team is at bat. | Includes hits and runs.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_average sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_runs-scored sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_at-bats sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_hits sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_rbi sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_total-bases sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_slugging-percentage sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_bases-on-balls sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_bases-on-balls-rate sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_bases-on-balls-intentional sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_strikeouts sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_strikeouts-looking sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_outs-ground sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_outs-fly sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_left-on-base sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_left-in-scoring-position sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_singles sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_doubles sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_triples sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_home-runs sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_home-runs-season sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_grand-slams sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_streak-hits sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_hits-event-winning sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_at-bats-per-rbi sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_plate-appearances-per-rbi sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_at-bats-per-home-run sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_plate-appearances-per-home-run sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_sac-flies sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_sac-bunts sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_sacrifices sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_grounded-into-double-play sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_hit-into-double-play sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_moved-up sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_on-base-percentage sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_stolen-bases sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_stolen-bases-caught sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_stolen-bases-average sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_hit-by-pitch sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_reached-base-defensive-interference sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_reached-base-error sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_reached-base-fielder-choice sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_on-base-plus-slugging sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_plate-appearances sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_hits-extra-base sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_strikeout-rate sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_shutouts sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_double-plays-against sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_triple-plays-against sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_pick-offs-against sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive_games-played
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
at-bats string optional
Number of at-bats  (Does not include walks or Sacrifice Hits)
at-bats-per-home-run string optional
Home runs per at-bat ratio
at-bats-per-rbi string optional
RBI per at-bat ratio
average string optional
Average number of hits per at-bats
bases-on-balls string optional
Number of times batter was walked
bases-on-balls-intentional string optional
TBD.
bases-on-balls-rate string optional
TBD.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
double-plays-against string optional
TBD.
doubles string optional
Number of hits off of which batter advances to second base
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
games-played string optional
Number of games played.
grand-slams string optional
Number of home runs with bases loaded
grounded-into-double-play string optional
Number of ground balls which result in batter and base runner outs
hit-by-pitch string optional
Number of times batter hit by pitch
hit-into-double-play string optional
TBD.
hits string optional
Number of hits
hits-event-winning string optional
TBD.
hits-extra-base string optional
Calculated by adding doubles, triples, and home-runs.
home-runs string optional
Number of hits off of which batter advances to home plate
home-runs-season string optional
TBD.
id ID optional
An XML-specific identifier for the element.
left-in-scoring-position string optional
Number of runners left on second and/or third base
left-on-base string optional
Number of runners left on base
moved-up string optional
Number of times runner advances to another base
on-base-percentage string optional
Calculated as follows: (hits + bases-on-balls + hit-by-pitch) / (at-bats + bases-on-balls + hit-by-pitch + sac-flies)
on-base-plus-slugging string optional
Calculated by adding on-base-percentage to slugging-percentage.
outs-fly string optional
TBD.
outs-ground string optional
TBD.
period-value string optional
Used for tracking hits-per-inning, for example.
pick-offs-against string optional
TBD.
plate-appearances string optional
Calculated by adding at-bats, bases-on-balls, hit-by-pitch, sac-flies, sac-bunts, and defensive-interfance-reaches.
plate-appearances-per-home-run string optional
Plate appearances per home run ratio
plate-appearances-per-rbi string optional
Plate appearances per at-bat ratio
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
rbi string optional
Number of runs batted in
reached-base-defensive-interference string optional
The number of times the player reached a base due to interference by the defense.
reached-base-error string optional
TBD.
reached-base-fielder-choice string optional
TBD.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
runs-scored string optional
Number of runs scored
sac-bunts string optional
Number of bunts resulting in batter out which advance base runner(s)
sac-flies string optional
Number of hits resulting in batter out which advance base runner(s)
sacrifices string optional
TBD.
scoping-label string optional
A textual description for the scope.
shutouts string optional
TBD.
singles string optional
Number of hits off of which batter advances to first base
slugging-percentage string optional
Total bases divided by at-bats.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
stolen-bases string optional
Number of successfully stolen bases.
stolen-bases-average string optional
Success rate for stealing bases.
stolen-bases-caught string optional
Number of times the runner was caught while trying to steal bases.
streak-hits string optional
TBD.
strikeout-rate string optional
TBD.
strikeouts string optional
Number of times batter struck out
strikeouts-looking string optional
TBD.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
total-bases string optional
Calculated by hits + doubles + (triples times 2) + (home-runs times 3).
triple-plays-against string optional
TBD.
triples string optional
Number of hits off of which batter advances to third base
Source

<element name="stats-baseball-offensive">
  <annotation>
    <documentation>Stats accumulated while a team is at bat. | Includes hits and runs.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="average" type="string" use="optional">
      <annotation>
        <documentation>Average number of hits per at-bats</documentation>
      </annotation>
    </attribute>
    <attribute name="runs-scored" type="string" use="optional">
      <annotation>
        <documentation>Number of runs scored</documentation>
      </annotation>
    </attribute>
    <attribute name="at-bats" type="string" use="optional">
      <annotation>
        <documentation>Number of at-bats (Does not include walks or Sacrifice Hits)</documentation>
      </annotation>
    </attribute>
    <attribute name="hits" type="string" use="optional">
      <annotation>
        <documentation>Number of hits</documentation>
      </annotation>
    </attribute>
    <attribute name="rbi" type="string" use="optional">
      <annotation>
        <documentation>Number of runs batted in</documentation>
      </annotation>
    </attribute>
    <attribute name="total-bases" type="string" use="optional">
      <annotation>
        <documentation>Calculated by hits + doubles + (triples times 2) + (home-runs times 3).</documentation>
      </annotation>
    </attribute>
    <attribute name="slugging-percentage" type="string" use="optional">
      <annotation>
        <documentation>Total bases divided by at-bats.</documentation>
      </annotation>
    </attribute>
    <attribute name="bases-on-balls" type="string" use="optional">
      <annotation>
        <documentation>Number of times batter was walked</documentation>
      </annotation>
    </attribute>
    <attribute name="bases-on-balls-rate" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="bases-on-balls-intentional" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="strikeouts" type="string" use="optional">
      <annotation>
        <documentation>Number of times batter struck out</documentation>
      </annotation>
    </attribute>
    <attribute name="strikeouts-looking" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="outs-ground" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="outs-fly" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="left-on-base" type="string" use="optional">
      <annotation>
        <documentation>Number of runners left on base</documentation>
      </annotation>
    </attribute>
    <attribute name="left-in-scoring-position" type="string" use="optional">
      <annotation>
        <documentation>Number of runners left on second and/or third base</documentation>
      </annotation>
    </attribute>
    <attribute name="singles" type="string" use="optional">
      <annotation>
        <documentation>Number of hits off of which batter advances to first base</documentation>
      </annotation>
    </attribute>
    <attribute name="doubles" type="string" use="optional">
      <annotation>
        <documentation>Number of hits off of which batter advances to second base</documentation>
      </annotation>
    </attribute>
    <attribute name="triples" type="string" use="optional">
      <annotation>
        <documentation>Number of hits off of which batter advances to third base</documentation>
      </annotation>
    </attribute>
    <attribute name="home-runs" type="string" use="optional">
      <annotation>
        <documentation>Number of hits off of which batter advances to home plate</documentation>
      </annotation>
    </attribute>
    <attribute name="home-runs-season" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="grand-slams" type="string" use="optional">
      <annotation>
        <documentation>Number of home runs with bases loaded</documentation>
      </annotation>
    </attribute>
    <attribute name="streak-hits" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="hits-event-winning" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="at-bats-per-rbi" type="string" use="optional">
      <annotation>
        <documentation>RBI per at-bat ratio</documentation>
      </annotation>
    </attribute>
    <attribute name="plate-appearances-per-rbi" type="string" use="optional">
      <annotation>
        <documentation>Plate appearances per at-bat ratio</documentation>
      </annotation>
    </attribute>
    <attribute name="at-bats-per-home-run" type="string" use="optional">
      <annotation>
        <documentation>Home runs per at-bat ratio</documentation>
      </annotation>
    </attribute>
    <attribute name="plate-appearances-per-home-run" type="string" use="optional">
      <annotation>
        <documentation>Plate appearances per home run ratio</documentation>
      </annotation>
    </attribute>
    <attribute name="sac-flies" type="string" use="optional">
      <annotation>
        <documentation>Number of hits resulting in batter out which advance base runner(s)</documentation>
      </annotation>
    </attribute>
    <attribute name="sac-bunts" type="string" use="optional">
      <annotation>
        <documentation>Number of bunts resulting in batter out which advance base runner(s)</documentation>
      </annotation>
    </attribute>
    <attribute name="sacrifices" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="grounded-into-double-play" type="string" use="optional">
      <annotation>
        <documentation>Number of ground balls which result in batter and base runner outs</documentation>
      </annotation>
    </attribute>
    <attribute name="hit-into-double-play" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="moved-up" type="string" use="optional">
      <annotation>
        <documentation>Number of times runner advances to another base</documentation>
      </annotation>
    </attribute>
    <attribute name="on-base-percentage" type="string" use="optional">
      <annotation>
        <documentation>Calculated as follows: (hits + bases-on-balls + hit-by-pitch) / (at-bats + bases-on-balls + hit-by-pitch + sac-flies)</documentation>
      </annotation>
    </attribute>
    <attribute name="stolen-bases" type="string" use="optional">
      <annotation>
        <documentation>Number of successfully stolen bases.</documentation>
      </annotation>
    </attribute>
    <attribute name="stolen-bases-caught" type="string" use="optional">
      <annotation>
        <documentation>Number of times the runner was caught while trying to steal bases.</documentation>
      </annotation>
    </attribute>
    <attribute name="stolen-bases-average" type="string" use="optional">
      <annotation>
        <documentation>Success rate for stealing bases.</documentation>
      </annotation>
    </attribute>
    <attribute name="hit-by-pitch" type="string" use="optional">
      <annotation>
        <documentation>Number of times batter hit by pitch</documentation>
      </annotation>
    </attribute>
    <attribute name="reached-base-defensive-interference" type="string" use="optional">
      <annotation>
        <documentation>The number of times the player reached a base due to interference by the defense.</documentation>
      </annotation>
    </attribute>
    <attribute name="reached-base-error" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="reached-base-fielder-choice" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="on-base-plus-slugging" type="string" use="optional">
      <annotation>
        <documentation>Calculated by adding on-base-percentage to slugging-percentage.</documentation>
      </annotation>
    </attribute>
    <attribute name="plate-appearances" type="string" use="optional">
      <annotation>
        <documentation>Calculated by adding at-bats, bases-on-balls, hit-by-pitch, sac-flies, sac-bunts, and defensive-interfance-reaches.</documentation>
      </annotation>
    </attribute>
    <attribute name="hits-extra-base" type="string" use="optional">
      <annotation>
        <documentation>Calculated by adding doubles, triples, and home-runs.</documentation>
      </annotation>
    </attribute>
    <attribute name="strikeout-rate" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="shutouts" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="double-plays-against" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="triple-plays-against" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="pick-offs-against" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="games-played" type="string" use="optional">
      <annotation>
        <documentation>Number of games played.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Element sportsml:stats-baseball-pitching
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Stats accumulated while a team is pitching. | Includes strikeouts and shutouts.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_runs-allowed sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_home-runs-allowed sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_sacrifice-bunts-allowed sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_sacrifice-hits-allowed sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_interferences sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_innings-pitched sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_innings-pitched-average sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_hits sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_earned-runs sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_unearned-runs sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_bases-on-balls sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_bases-on-balls-intentional sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_strikeouts sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_strikeout-to-bb-ratio sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_number-of-pitches sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_number-of-strikes sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_era sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_whip sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_inherited-runners-scored sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_pick-offs sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_errors-hit-with-pitch sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_errors-wild-pitch sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_balks sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_wins sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_losses sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_saves sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_holds sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_saves-blown sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_saves-tough sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_saves-opportunities sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_relief-points sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_shutouts sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_games-complete sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_games-finished sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_games-pitched sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_winning-percentage sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_event-credit sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_save-credit sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_batters-average-against sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_batters-at-bats-against sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_batters-total-against sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_batters-total-bases-against sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_batters-slugging-percentage-against sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_batters-on-base-percentage-against sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_batters-doubles-against sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_batters-triples-against sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_batters-home-runs-against sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_inherited-runners-total sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_sacrifice-flies-allowed sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching_shutouts-combined
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
balks string optional
Number of balks
bases-on-balls string optional
Number of earned walks allowed
bases-on-balls-intentional string optional
Number of batters intentionally walked
batters-at-bats-against string optional
Number of batters faced who were credited with at-bats.
batters-average-against string optional
TBD.
batters-doubles-against string optional
TBD.
batters-home-runs-against string optional
TBD.
batters-on-base-percentage-against string optional
TBD.
batters-slugging-percentage-against string optional
TBD.
batters-total-against string optional
Total number of batters faced.
batters-total-bases-against string optional
TBD.
batters-triples-against string optional
TBD.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
earned-runs string optional
Number of earned runs against
era string optional
Earned run average: Number of earned runs divided by number of innings pitched multiplied by nine
errors-hit-with-pitch string optional
Number of times pitcher hits batter with pitch
errors-wild-pitch string optional
Number of wild pitches thrown
event-credit restriction of string optional
Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)
games-complete string optional
Number of complete games pitched
games-finished string optional
Number of games pitched to the end
games-pitched string optional
TBD.
hits string optional
Number of hits against
holds string optional
Number of games relief pitcher has held the lead
home-runs-allowed string optional
Number of home runs against
id ID optional
An XML-specific identifier for the element.
inherited-runners-scored string optional
Number of runners which a previous pitcher allowed on base which scored
inherited-runners-total string optional
TBD.
innings-pitched string optional
Number of innings pitched
innings-pitched-average string optional
TBD.
interferences string optional
Number of interference or obstruction calls
losses string optional
Number of games pitcher has lost
number-of-pitches string optional
Number of pitches thrown
number-of-strikes string optional
TBD.
period-value string optional
Used for tracking hits-per-inning, for example.
pick-offs string optional
The number of times the pitcher caught a player trying to steal, before making the pitch.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
relief-points string optional
Formula for rating relief performances. 4 points for a tough save; 3 points for a save; 2 for a relief win; minus 2 for a relief loss and blown save.
runs-allowed string optional
Number of runs against
sacrifice-bunts-allowed string optional
Number of sacrifice bunts against
sacrifice-flies-allowed string optional
TBD.
sacrifice-hits-allowed string optional
Number of sacrifice hits against
save-credit restriction of string optional
Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)
saves string optional
Number of games pitcher has saved
saves-blown string optional
TBD.
saves-opportunities string optional
TBD.
saves-tough string optional
TBD.
scoping-label string optional
A textual description for the scope.
shutouts string optional
Number of games pitched in which opposing team did not score
shutouts-combined string optional
TBD.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
strikeout-to-bb-ratio string optional
Strikeout to walks ratio
strikeouts string optional
Number of earned strikeouts
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
unearned-runs string optional
Number of unearned runs against
whip string optional
TBD.
winning-percentage string optional
Calculated by wins divided by (wins + losses).
wins string optional
Number of games pitcher has won
Source

<element name="stats-baseball-pitching">
  <annotation>
    <documentation>Stats accumulated while a team is pitching. | Includes strikeouts and shutouts.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="runs-allowed" type="string" use="optional">
      <annotation>
        <documentation>Number of runs against</documentation>
      </annotation>
    </attribute>
    <attribute name="home-runs-allowed" type="string" use="optional">
      <annotation>
        <documentation>Number of home runs against</documentation>
      </annotation>
    </attribute>
    <attribute name="sacrifice-bunts-allowed" type="string" use="optional">
      <annotation>
        <documentation>Number of sacrifice bunts against</documentation>
      </annotation>
    </attribute>
    <attribute name="sacrifice-hits-allowed" type="string" use="optional">
      <annotation>
        <documentation>Number of sacrifice hits against</documentation>
      </annotation>
    </attribute>
    <attribute name="interferences" type="string" use="optional">
      <annotation>
        <documentation>Number of interference or obstruction calls</documentation>
      </annotation>
    </attribute>
    <attribute name="innings-pitched" type="string" use="optional">
      <annotation>
        <documentation>Number of innings pitched</documentation>
      </annotation>
    </attribute>
    <attribute name="innings-pitched-average" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="hits" type="string" use="optional">
      <annotation>
        <documentation>Number of hits against</documentation>
      </annotation>
    </attribute>
    <attribute name="earned-runs" type="string" use="optional">
      <annotation>
        <documentation>Number of earned runs against</documentation>
      </annotation>
    </attribute>
    <attribute name="unearned-runs" type="string" use="optional">
      <annotation>
        <documentation>Number of unearned runs against</documentation>
      </annotation>
    </attribute>
    <attribute name="bases-on-balls" type="string" use="optional">
      <annotation>
        <documentation>Number of earned walks allowed</documentation>
      </annotation>
    </attribute>
    <attribute name="bases-on-balls-intentional" type="string" use="optional">
      <annotation>
        <documentation>Number of batters intentionally walked</documentation>
      </annotation>
    </attribute>
    <attribute name="strikeouts" type="string" use="optional">
      <annotation>
        <documentation>Number of earned strikeouts</documentation>
      </annotation>
    </attribute>
    <attribute name="strikeout-to-bb-ratio" type="string" use="optional">
      <annotation>
        <documentation>Strikeout to walks ratio</documentation>
      </annotation>
    </attribute>
    <attribute name="number-of-pitches" type="string" use="optional">
      <annotation>
        <documentation>Number of pitches thrown</documentation>
      </annotation>
    </attribute>
    <attribute name="number-of-strikes" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="era" type="string" use="optional">
      <annotation>
        <documentation>Earned run average: Number of earned runs divided by number of innings pitched multiplied by nine</documentation>
      </annotation>
    </attribute>
    <attribute name="whip" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="inherited-runners-scored" type="string" use="optional">
      <annotation>
        <documentation>Number of runners which a previous pitcher allowed on base which scored</documentation>
      </annotation>
    </attribute>
    <attribute name="pick-offs" type="string" use="optional">
      <annotation>
        <documentation>The number of times the pitcher caught a player trying to steal, before making the pitch.</documentation>
      </annotation>
    </attribute>
    <attribute name="errors-hit-with-pitch" type="string" use="optional">
      <annotation>
        <documentation>Number of times pitcher hits batter with pitch</documentation>
      </annotation>
    </attribute>
    <attribute name="errors-wild-pitch" type="string" use="optional">
      <annotation>
        <documentation>Number of wild pitches thrown</documentation>
      </annotation>
    </attribute>
    <attribute name="balks" type="string" use="optional">
      <annotation>
        <documentation>Number of balks</documentation>
      </annotation>
    </attribute>
    <attribute name="wins" type="string" use="optional">
      <annotation>
        <documentation>Number of games pitcher has won</documentation>
      </annotation>
    </attribute>
    <attribute name="losses" type="string" use="optional">
      <annotation>
        <documentation>Number of games pitcher has lost</documentation>
      </annotation>
    </attribute>
    <attribute name="saves" type="string" use="optional">
      <annotation>
        <documentation>Number of games pitcher has saved</documentation>
      </annotation>
    </attribute>
    <attribute name="holds" type="string" use="optional">
      <annotation>
        <documentation>Number of games relief pitcher has held the lead</documentation>
      </annotation>
    </attribute>
    <attribute name="saves-blown" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="saves-tough" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="saves-opportunities" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="relief-points" type="string" use="optional">
      <annotation>
        <documentation>Formula for rating relief performances. 4 points for a tough save; 3 points for a save; 2 for a relief win; minus 2 for a relief loss and blown save.</documentation>
      </annotation>
    </attribute>
    <attribute name="shutouts" type="string" use="optional">
      <annotation>
        <documentation>Number of games pitched in which opposing team did not score</documentation>
      </annotation>
    </attribute>
    <attribute name="games-complete" type="string" use="optional">
      <annotation>
        <documentation>Number of complete games pitched</documentation>
      </annotation>
    </attribute>
    <attribute name="games-finished" type="string" use="optional">
      <annotation>
        <documentation>Number of games pitched to the end</documentation>
      </annotation>
    </attribute>
    <attribute name="games-pitched" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="winning-percentage" type="string" use="optional">
      <annotation>
        <documentation>Calculated by wins divided by (wins + losses).</documentation>
      </annotation>
    </attribute>
    <attribute name="event-credit" use="optional">
      <annotation>
        <documentation>Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="win"/>
          <enumeration value="loss"/>
          <enumeration value="save"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="save-credit" use="optional">
      <annotation>
        <documentation>Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="hold"/>
          <enumeration value="blown"/>
          <enumeration value="save"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="batters-average-against" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="batters-at-bats-against" type="string" use="optional">
      <annotation>
        <documentation>Number of batters faced who were credited with at-bats.</documentation>
      </annotation>
    </attribute>
    <attribute name="batters-total-against" type="string" use="optional">
      <annotation>
        <documentation>Total number of batters faced.</documentation>
      </annotation>
    </attribute>
    <attribute name="batters-total-bases-against" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="batters-slugging-percentage-against" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="batters-on-base-percentage-against" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="batters-doubles-against" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="batters-triples-against" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="batters-home-runs-against" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="inherited-runners-total" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="sacrifice-flies-allowed" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="shutouts-combined" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Element sportsml:stats-baseball-defensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Stats accumulated while a team is out in the field. | Includes double-plays and errors.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_position sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_double-plays sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_triple-plays sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_putouts sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_assists sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_errors sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_fielding-chances sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_fielding-percentage sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_defensive-average sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_errors-passed-ball sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_errors-catchers-interference sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_stolen-bases sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_stolen-bases-caught sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_stolen-bases-average sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_innings-played sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive_games-played
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
assists string optional
Number of plays in which a fielder throws a ball to another fielder for the out.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
defensive-average string optional
Rate a fielder turns a bill hit to their area into an out.
double-plays string optional
Number of times two runners thrown out at the base.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
errors string optional
Number of plays in which a fielder committed an error, such as dropping a ball.
errors-catchers-interference string optional
Number of times a catcher has improperly interfered with play.
errors-passed-ball string optional
Number of times a catcher is faulted with letting a pitched ball go past.
fielding-chances string optional
TBD.
fielding-percentage string optional
A measure of fielding success. Calculated as follows: (putouts + assists) / (putouts + assists + errors).
games-played string optional
Number of games played at the named position.
id ID optional
An XML-specific identifier for the element.
innings-played string optional
Number of innings played at the named position.
period-value string optional
Used for tracking hits-per-inning, for example.
position sportsml:position.Baseball optional
Position played for these stats.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
putouts string optional
Number of times a fielder caught a fly ball for an out.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
stolen-bases string optional
Number of bases successfully stolen while this player was on the field.
stolen-bases-average string optional
Success rate for stealing bases while this player was on the field.
stolen-bases-caught string optional
Number of times a runner was caught while trying to steal bases while this player was on the field.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
triple-plays string optional
Number of times three runners thrown out at the base.
Source

<element name="stats-baseball-defensive">
  <annotation>
    <documentation>Stats accumulated while a team is out in the field. | Includes double-plays and errors.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="position" type="sportsml:position.Baseball" use="optional">
      <annotation>
        <documentation>Position played for these stats.</documentation>
      </annotation>
    </attribute>
    <attribute name="double-plays" type="string" use="optional">
      <annotation>
        <documentation>Number of times two runners thrown out at the base.</documentation>
      </annotation>
    </attribute>
    <attribute name="triple-plays" type="string" use="optional">
      <annotation>
        <documentation>Number of times three runners thrown out at the base.</documentation>
      </annotation>
    </attribute>
    <attribute name="putouts" type="string" use="optional">
      <annotation>
        <documentation>Number of times a fielder caught a fly ball for an out.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists" type="string" use="optional">
      <annotation>
        <documentation>Number of plays in which a fielder throws a ball to another fielder for the out.</documentation>
      </annotation>
    </attribute>
    <attribute name="errors" type="string" use="optional">
      <annotation>
        <documentation>Number of plays in which a fielder committed an error, such as dropping a ball.</documentation>
      </annotation>
    </attribute>
    <attribute name="fielding-chances" type="string" use="optional">
      <annotation>
        <documentation>TBD.</documentation>
      </annotation>
    </attribute>
    <attribute name="fielding-percentage" type="string" use="optional">
      <annotation>
        <documentation>A measure of fielding success. Calculated as follows: (putouts + assists) / (putouts + assists + errors).</documentation>
      </annotation>
    </attribute>
    <attribute name="defensive-average" type="string" use="optional">
      <annotation>
        <documentation>Rate a fielder turns a bill hit to their area into an out.</documentation>
      </annotation>
    </attribute>
    <attribute name="errors-passed-ball" type="string" use="optional">
      <annotation>
        <documentation>Number of times a catcher is faulted with letting a pitched ball go past.</documentation>
      </annotation>
    </attribute>
    <attribute name="errors-catchers-interference" type="string" use="optional">
      <annotation>
        <documentation>Number of times a catcher has improperly interfered with play.</documentation>
      </annotation>
    </attribute>
    <attribute name="stolen-bases" type="string" use="optional">
      <annotation>
        <documentation>Number of bases successfully stolen while this player was on the field.</documentation>
      </annotation>
    </attribute>
    <attribute name="stolen-bases-caught" type="string" use="optional">
      <annotation>
        <documentation>Number of times a runner was caught while trying to steal bases while this player was on the field.</documentation>
      </annotation>
    </attribute>
    <attribute name="stolen-bases-average" type="string" use="optional">
      <annotation>
        <documentation>Success rate for stealing bases while this player was on the field.</documentation>
      </annotation>
    </attribute>
    <attribute name="innings-played" type="string" use="optional">
      <annotation>
        <documentation>Number of innings played at the named position.</documentation>
      </annotation>
    </attribute>
    <attribute name="games-played" type="string" use="optional">
      <annotation>
        <documentation>Number of games played at the named position.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Element sportsml:player-metadata-baseball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Metadata about the player. | Specific to the sport of baseball.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-baseball_xsd.tmp#player-metadata-baseball_batting-hand sportsml-specific-baseball_xsd.tmp#player-metadata-baseball_throwing-hand
Properties
content complex
Used by
Attributes
QName Type Use Annotation
batting-hand restriction of string optional
Indicates whether player bats left, right, or is a switch-hitter.
id ID optional
An XML-specific identifier for the element.
throwing-hand restriction of string optional
Indicates whether player throws left, right, or is a switch-thrower.
Source

<element name="player-metadata-baseball">
  <annotation>
    <documentation>Metadata about the player. | Specific to the sport of baseball.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="batting-hand" use="optional">
      <annotation>
        <documentation>Indicates whether player bats left, right, or is a switch-hitter.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="left"/>
          <enumeration value="right"/>
          <enumeration value="both"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="throwing-hand" use="optional">
      <annotation>
        <documentation>Indicates whether player throws left, right, or is a switch-thrower.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="left"/>
          <enumeration value="right"/>
          <enumeration value="both"/>
        </restriction>
      </simpleType>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Element sportsml:player-stats-baseball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations

Stats collected by a player. | Includes offensive, pitching, and defensive stats.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#stats-baseball-offensive sportsml-specific-baseball_xsd.tmp#stats-baseball-pitching sportsml-specific-baseball_xsd.tmp#stats-baseball-defensive
Properties
content complex
Used by
Model
Children sportsml:stats-baseball-defensive, sportsml:stats-baseball-offensive, sportsml:stats-baseball-pitching
Instance

<sportsml:player-stats-baseball alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-baseball-offensive alignment-scope="" at-bats="" at-bats-per-home-run="" at-bats-per-rbi="" average="" bases-on-balls="" bases-on-balls-intentional="" bases-on-balls-rate="" competition-scope="" date-coverage-type="" date-coverage-value="" double-plays-against="" doubles="" duration-scope="" games-played="" grand-slams="" grounded-into-double-play="" hit-by-pitch="" hit-into-double-play="" hits="" hits-event-winning="" hits-extra-base="" home-runs="" home-runs-season="" id="" left-in-scoring-position="" left-on-base="" moved-up="" on-base-percentage="" on-base-plus-slugging="" outs-fly="" outs-ground="" period-value="" pick-offs-against="" plate-appearances="" plate-appearances-per-home-run="" plate-appearances-per-rbi="" position-scope="" rbi="" reached-base-defensive-interference="" reached-base-error="" reached-base-fielder-choice="" record-making-scope="" runs-scored="" sac-bunts="" sac-flies="" sacrifices="" scoping-label="" shutouts="" singles="" slugging-percentage="" stats-coverage="" stolen-bases="" stolen-bases-average="" stolen-bases-caught="" streak-hits="" strikeout-rate="" strikeouts="" strikeouts-looking="" team-coverage="" total-bases="" triple-plays-against="" triples="">{0,unbounded}</sportsml:stats-baseball-offensive>
  <sportsml:stats-baseball-pitching alignment-scope="" balks="" bases-on-balls="" bases-on-balls-intentional="" batters-at-bats-against="" batters-average-against="" batters-doubles-against="" batters-home-runs-against="" batters-on-base-percentage-against="" batters-slugging-percentage-against="" batters-total-against="" batters-total-bases-against="" batters-triples-against="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" earned-runs="" era="" errors-hit-with-pitch="" errors-wild-pitch="" event-credit="" games-complete="" games-finished="" games-pitched="" hits="" holds="" home-runs-allowed="" id="" inherited-runners-scored="" inherited-runners-total="" innings-pitched="" innings-pitched-average="" interferences="" losses="" number-of-pitches="" number-of-strikes="" period-value="" pick-offs="" position-scope="" record-making-scope="" relief-points="" runs-allowed="" sacrifice-bunts-allowed="" sacrifice-flies-allowed="" sacrifice-hits-allowed="" save-credit="" saves="" saves-blown="" saves-opportunities="" saves-tough="" scoping-label="" shutouts="" shutouts-combined="" stats-coverage="" strikeouts="" strikeout-to-bb-ratio="" team-coverage="" unearned-runs="" whip="" winning-percentage="" wins="">{0,unbounded}</sportsml:stats-baseball-pitching>
  <sportsml:stats-baseball-defensive alignment-scope="" assists="" competition-scope="" date-coverage-type="" date-coverage-value="" defensive-average="" double-plays="" duration-scope="" errors="" errors-catchers-interference="" errors-passed-ball="" fielding-chances="" fielding-percentage="" games-played="" id="" innings-played="" period-value="" position="" position-scope="" putouts="" record-making-scope="" scoping-label="" stats-coverage="" stolen-bases="" stolen-bases-average="" stolen-bases-caught="" team-coverage="" triple-plays="">{0,unbounded}</sportsml:stats-baseball-defensive>
</sportsml:player-stats-baseball>
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source

<element name="player-stats-baseball">
  <annotation>
    <documentation>Stats collected by a player. | Includes offensive, pitching, and defensive stats.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-baseball-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-baseball-pitching" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-baseball-defensive" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @inning-value
Namespace No namespace
Annotations

An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="inning-value" type="string" use="optional">
  <annotation>
    <documentation>An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @inning-half
Namespace No namespace
Annotations

Either top or bottom.
Type restriction of string
Properties
use optional
Facets
enumeration top
enumeration bottom
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="inning-half" use="optional">
  <annotation>
    <documentation>Either top or bottom.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="top"/>
      <enumeration value="bottom"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @outs
Namespace No namespace
Annotations

Either 1, 2, or 3.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="outs" type="string" use="optional">
  <annotation>
    <documentation>Either 1, 2, or 3.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @balls
Namespace No namespace
Annotations

Either 1, 2, 3, or 4.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="balls" type="string" use="optional">
  <annotation>
    <documentation>Either 1, 2, 3, or 4.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @strikes
Namespace No namespace
Annotations

Either 1, 2, or 3.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="strikes" type="string" use="optional">
  <annotation>
    <documentation>Either 1, 2, or 3.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @runner-on-first
Namespace No namespace
Annotations

Whether or not a player is standing on first base. Either true or false.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="runner-on-first" type="string" use="optional">
  <annotation>
    <documentation>Whether or not a player is standing on first base. Either true or false.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @runner-on-first-idref
Namespace No namespace
Annotations

A pointer to the player on first base.
Type IDREF
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="runner-on-first-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player on first base.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @runner-on-second
Namespace No namespace
Annotations

Whether or not a player is standing on second base. Either true or false.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="runner-on-second" type="string" use="optional">
  <annotation>
    <documentation>Whether or not a player is standing on second base. Either true or false.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @runner-on-second-idref
Namespace No namespace
Annotations

A pointer to the player on second base.
Type IDREF
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="runner-on-second-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player on second base.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @runner-on-third
Namespace No namespace
Annotations

Whether or not a player is standing on third base. Either true or false.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="runner-on-third" type="string" use="optional">
  <annotation>
    <documentation>Whether or not a player is standing on third base. Either true or false.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @runner-on-third-idref
Namespace No namespace
Annotations

A pointer to the player on third base.
Type IDREF
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="runner-on-third-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player on third base.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @runs-this-inning-half
Namespace No namespace
Annotations

An integer.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="runs-this-inning-half" type="string" use="optional">
  <annotation>
    <documentation>An integer.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @pitcher-idref
Namespace No namespace
Annotations

A pointer to the player element for the pitcher standing on the mound.
Type IDREF
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="pitcher-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player element for the pitcher standing on the mound.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @batter-idref
Namespace No namespace
Annotations

A pointer to the player element for the batter at the plate.
Type IDREF
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="batter-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player element for the batter at the plate.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @batter-side
Namespace No namespace
Annotations

Which side of the plate the batter was on when taking the pitch.
Type restriction of string
Properties
use optional
Facets
enumeration left
enumeration right
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="batter-side" use="optional">
  <annotation>
    <documentation>Which side of the plate the batter was on when taking the pitch.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="left"/>
      <enumeration value="right"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @at-bat-number
Namespace No namespace
Annotations

Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="at-bat-number" type="string" use="optional">
  <annotation>
    <documentation>Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:eventStateBaseball / @sequence-number
Namespace No namespace
Annotations

Usually an integer
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateBaseball
Source

<attribute name="sequence-number" type="string" use="optional">
  <annotation>
    <documentation>Usually an integer</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @person-type
Namespace No namespace
Annotations

Whether this substitution was for a player, a coach, an umpire.
Type restriction of string
Properties
use optional
Facets
enumeration player
enumeration associate
enumeration official
Used by
Source

<attribute name="person-type" use="optional">
  <annotation>
    <documentation>Whether this substitution was for a player, a coach, an umpire.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="player"/>
      <enumeration value="associate"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @person-original-idref
Namespace No namespace
Annotations

A pointer to the person who left the game.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="person-original-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the person who left the game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @person-original-position
Namespace No namespace
Annotations

The position of the original person.
Type sportsml:position.Baseball
Properties
use optional
Used by
Source

<attribute name="person-original-position" type="sportsml:position.Baseball" use="optional">
  <annotation>
    <documentation>The position of the original person.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @person-original-lineup-slot
Namespace No namespace
Annotations

The order in the lineup that the player held.
Type string
Properties
use optional
Used by
Source

<attribute name="person-original-lineup-slot" type="string" use="optional">
  <annotation>
    <documentation>The order in the lineup that the player held.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @person-replacing-idref
Namespace No namespace
Annotations

A pointer to the person who entered the game.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="person-replacing-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the person who entered the game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @person-replacing-position
Namespace No namespace
Annotations

The position of the replacing person.
Type string
Properties
use optional
Used by
Source

<attribute name="person-replacing-position" type="string" use="optional">
  <annotation>
    <documentation>The position of the replacing person.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @person-replacing-lineup-slot
Namespace No namespace
Annotations

The order in the lineup that the player will hold.
Type string
Properties
use optional
Used by
Source

<attribute name="person-replacing-lineup-slot" type="string" use="optional">
  <annotation>
    <documentation>The order in the lineup that the player will hold.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @substitution-reason
Namespace No namespace
Annotations

Why a substitution was made.
Type string
Properties
use optional
Used by
Source

<attribute name="substitution-reason" type="string" use="optional">
  <annotation>
    <documentation>Why a substitution was made.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @inning-exiting
Namespace No namespace
Annotations

The number of the inning the player exited the game.
Type string
Properties
use optional
Used by
Source

<attribute name="inning-exiting" type="string" use="optional">
  <annotation>
    <documentation>The number of the inning the player exited the game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @outs-exiting
Namespace No namespace
Annotations

The number of outs when the player exited the game.
Type string
Properties
use optional
Used by
Source

<attribute name="outs-exiting" type="string" use="optional">
  <annotation>
    <documentation>The number of outs when the player exited the game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @lead-entering
Namespace No namespace
Annotations

The difference in points between player's team and opponent when player entered game.
Type string
Properties
use optional
Used by
Source

<attribute name="lead-entering" type="string" use="optional">
  <annotation>
    <documentation>The difference in points between player's team and opponent when player entered game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @lead-exiting
Namespace No namespace
Annotations

The difference in points between player's team and opponent when player exited game.
Type string
Properties
use optional
Used by
Source

<attribute name="lead-exiting" type="string" use="optional">
  <annotation>
    <documentation>The difference in points between player's team and opponent when player exited game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @runners-on-base
Namespace No namespace
Annotations

The number of runners on base when the player entered the game.
Type string
Properties
use optional
Used by
Source

<attribute name="runners-on-base" type="string" use="optional">
  <annotation>
    <documentation>The number of runners on base when the player entered the game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-substitution / @comment
Namespace No namespace
Annotations

Textual comment about the action.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the action.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-contact / @location
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="location" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-contact / @strength
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="strength" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-contact / @velocity
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="velocity" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-contact / @trajectory-coordinates
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="trajectory-coordinates" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-contact / @comment
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-pitch / @umpire-call
Namespace No namespace
Annotations

The net result of the pitch.
Type restriction of string
Properties
use optional
Facets
enumeration ball
enumeration strike
enumeration in-play
Used by
Source

<attribute name="umpire-call" use="optional">
  <annotation>
    <documentation>The net result of the pitch.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="ball"/>
      <enumeration value="strike"/>
      <enumeration value="in-play"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-pitch / @pitch-type
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="pitch-type" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-pitch / @pitch-velocity
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="pitch-velocity" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-pitch / @trajectory-coordinates
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="trajectory-coordinates" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-pitch / @strike-type
Namespace No namespace
Annotations

Whether a strike was called by the umpire, or due to swinging.
Type sportsml:strikeType.Baseball
Properties
use optional
Used by
Source

<attribute name="strike-type" type="sportsml:strikeType.Baseball" use="optional">
  <annotation>
    <documentation>Whether a strike was called by the umpire, or due to swinging.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-pitch / @ball-location
Namespace No namespace
Annotations

Where with respect to the batter the ball was pitched.
Type sportsml:ballLocation.Baseball
Properties
use optional
Used by
Source

<attribute name="ball-location" type="sportsml:ballLocation.Baseball" use="optional">
  <annotation>
    <documentation>Where with respect to the batter the ball was pitched.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-pitch / @comment
Namespace No namespace
Annotations

Textual comment about the action.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the action.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @play-type
Namespace No namespace
Annotations

A description for the play.
Type sportsml:playType.Baseball
Properties
use optional
Used by
Source

<attribute name="play-type" type="sportsml:playType.Baseball" use="optional">
  <annotation>
    <documentation>A description for the play.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @play-scorekeepers-notation
Namespace No namespace
Annotations

Denotes which fielders touched the ball during the play. Example: 6-4-3.
Type string
Properties
use optional
Used by
Source

<attribute name="play-scorekeepers-notation" type="string" use="optional">
  <annotation>
    <documentation>Denotes which fielders touched the ball during the play. Example: 6-4-3.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @walk-type
Namespace No namespace
Annotations

If this play was a base-on-balls, the type of walk.
Type sportsml:walkType.Baseball
Properties
use optional
Used by
Source

<attribute name="walk-type" type="sportsml:walkType.Baseball" use="optional">
  <annotation>
    <documentation>If this play was a base-on-balls, the type of walk.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @hit-type
Namespace No namespace
Annotations

A description for the hit.
Type sportsml:hitType.Baseball
Properties
use optional
Used by
Source

<attribute name="hit-type" type="sportsml:hitType.Baseball" use="optional">
  <annotation>
    <documentation>A description for the hit.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @hit-by-pitch-type
Namespace No namespace
Annotations

A description for how or why a batter was hit by a pitch.
Type sportsml:hitByPitchType.Baseball
Properties
use optional
Used by
Source

<attribute name="hit-by-pitch-type" type="sportsml:hitByPitchType.Baseball" use="optional">
  <annotation>
    <documentation>A description for how or why a batter was hit by a pitch.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @out-type
Namespace No namespace
Annotations

How the out was made.
Type sportsml:outType.Baseball
Properties
use optional
Used by
Source

<attribute name="out-type" type="sportsml:outType.Baseball" use="optional">
  <annotation>
    <documentation>How the out was made.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @outs-recorded
Namespace No namespace
Annotations

How many outs were recorded on the play. Values are 1, 2, 3.
Type restriction of string
Properties
use optional
Facets
enumeration none
enumeration one
enumeration two
enumeration three
Used by
Source

<attribute name="outs-recorded" use="optional">
  <annotation>
    <documentation>How many outs were recorded on the play. Values are 1, 2, 3.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="none"/>
      <enumeration value="one"/>
      <enumeration value="two"/>
      <enumeration value="three"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @comment
Namespace No namespace
Annotations

Textual comment about the action.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the action.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @rbi
Namespace No namespace
Annotations

How many runs-batted-in were credited on the play. An error may preclude the assigning of an rbi.
Type string
Properties
use optional
Used by
Source

<attribute name="rbi" type="string" use="optional">
  <annotation>
    <documentation>How many runs-batted-in were credited on the play. An error may preclude the assigning of an rbi.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @runs-scored
Namespace No namespace
Annotations

How many runs scored on the play.
Type string
Properties
use optional
Used by
Source

<attribute name="runs-scored" type="string" use="optional">
  <annotation>
    <documentation>How many runs scored on the play.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @score-team
Namespace No namespace
Annotations

The score of the team that did the scoring, once the play completed.
Type string
Properties
use optional
Used by
Source

<attribute name="score-team" type="string" use="optional">
  <annotation>
    <documentation>The score of the team that did the scoring, once the play completed.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @score-team-opposing
Namespace No namespace
Annotations

The current score of the team that did not do the scoring.
Type string
Properties
use optional
Used by
Source

<attribute name="score-team-opposing" type="string" use="optional">
  <annotation>
    <documentation>The current score of the team that did not do the scoring.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @earned-runs-scored
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="earned-runs-scored" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @batter-advance
Namespace No namespace
Annotations

The base to which the batter advanced.
Type restriction of string
Properties
use optional
Facets
enumeration 1
enumeration 2
enumeration 3
enumeration home
Used by
Source

<attribute name="batter-advance" use="optional">
  <annotation>
    <documentation>The base to which the batter advanced.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="1"/>
      <enumeration value="2"/>
      <enumeration value="3"/>
      <enumeration value="home"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @runner-on-first-advance
Namespace No namespace
Annotations

The base to which the runner on first base advanced.
Type restriction of string
Properties
use optional
Facets
enumeration 2
enumeration 3
enumeration home
Used by
Source

<attribute name="runner-on-first-advance" use="optional">
  <annotation>
    <documentation>The base to which the runner on first base advanced.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="2"/>
      <enumeration value="3"/>
      <enumeration value="home"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @runner-on-second-advance
Namespace No namespace
Annotations

The base to which the runner on second base advanced.
Type restriction of string
Properties
use optional
Facets
enumeration 3
enumeration home
Used by
Source

<attribute name="runner-on-second-advance" use="optional">
  <annotation>
    <documentation>The base to which the runner on second base advanced.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="3"/>
      <enumeration value="home"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-score / @runner-on-third-advance
Namespace No namespace
Annotations

The base to which the runner on third base advanced.
Type restriction of string
Properties
use optional
Facets
enumeration home
Used by
Source

<attribute name="runner-on-third-advance" use="optional">
  <annotation>
    <documentation>The base to which the runner on third base advanced.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="home"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @play-type
Namespace No namespace
Annotations

A description for the play.
Type sportsml:playType.Baseball
Properties
use optional
Used by
Source

<attribute name="play-type" type="sportsml:playType.Baseball" use="optional">
  <annotation>
    <documentation>A description for the play.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @play-scorekeepers-notation
Namespace No namespace
Annotations

Denotes which fielders touched the ball during the play. Example: 6-4-3.
Type string
Properties
use optional
Used by
Source

<attribute name="play-scorekeepers-notation" type="string" use="optional">
  <annotation>
    <documentation>Denotes which fielders touched the ball during the play. Example: 6-4-3.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @walk-type
Namespace No namespace
Annotations

If this play was a base-on-balls, the type of walk.
Type sportsml:walkType.Baseball
Properties
use optional
Used by
Source

<attribute name="walk-type" type="sportsml:walkType.Baseball" use="optional">
  <annotation>
    <documentation>If this play was a base-on-balls, the type of walk.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @hit-type
Namespace No namespace
Annotations

A description for the hit.
Type sportsml:hitType.Baseball
Properties
use optional
Used by
Source

<attribute name="hit-type" type="sportsml:hitType.Baseball" use="optional">
  <annotation>
    <documentation>A description for the hit.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @hit-by-pitch-type
Namespace No namespace
Annotations

A description for how or why a batter was hit by a pitch.
Type sportsml:hitByPitchType.Baseball
Properties
use optional
Used by
Source

<attribute name="hit-by-pitch-type" type="sportsml:hitByPitchType.Baseball" use="optional">
  <annotation>
    <documentation>A description for how or why a batter was hit by a pitch.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @out-type
Namespace No namespace
Annotations

How the out was made.
Type sportsml:outType.Baseball
Properties
use optional
Used by
Source

<attribute name="out-type" type="sportsml:outType.Baseball" use="optional">
  <annotation>
    <documentation>How the out was made.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @outs-recorded
Namespace No namespace
Annotations

How many outs were recorded on the play. Values are 1, 2, 3.
Type restriction of string
Properties
use optional
Facets
enumeration none
enumeration one
enumeration two
enumeration three
Used by
Source

<attribute name="outs-recorded" use="optional">
  <annotation>
    <documentation>How many outs were recorded on the play. Values are 1, 2, 3.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="none"/>
      <enumeration value="one"/>
      <enumeration value="two"/>
      <enumeration value="three"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @comment
Namespace No namespace
Annotations

Textual comment about the action.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the action.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @batter-advance
Namespace No namespace
Annotations

The base to which the batter advanced.
Type restriction of string
Properties
use optional
Facets
enumeration 1
enumeration 2
enumeration 3
enumeration home
Used by
Source

<attribute name="batter-advance" use="optional">
  <annotation>
    <documentation>The base to which the batter advanced.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="1"/>
      <enumeration value="2"/>
      <enumeration value="3"/>
      <enumeration value="home"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @runner-on-first-advance
Namespace No namespace
Annotations

The base to which the runner on first base advanced.
Type restriction of string
Properties
use optional
Facets
enumeration 2
enumeration 3
enumeration home
Used by
Source

<attribute name="runner-on-first-advance" use="optional">
  <annotation>
    <documentation>The base to which the runner on first base advanced.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="2"/>
      <enumeration value="3"/>
      <enumeration value="home"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @runner-on-second-advance
Namespace No namespace
Annotations

The base to which the runner on second base advanced.
Type restriction of string
Properties
use optional
Facets
enumeration 3
enumeration home
Used by
Source

<attribute name="runner-on-second-advance" use="optional">
  <annotation>
    <documentation>The base to which the runner on second base advanced.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="3"/>
      <enumeration value="home"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-play / @runner-on-third-advance
Namespace No namespace
Annotations

The base to which the runner on third base advanced.
Type restriction of string
Properties
use optional
Facets
enumeration home
Used by
Source

<attribute name="runner-on-third-advance" use="optional">
  <annotation>
    <documentation>The base to which the runner on third base advanced.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="home"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-other / @action-source
Namespace No namespace
Annotations

The name of the controlled-vocabulary for the action-type attribute.
Type string
Properties
use optional
Used by
Source

<attribute name="action-source" type="string" use="optional">
  <annotation>
    <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-other / @action-type
Namespace No namespace
Annotations

A selection from a controlled-vocabulary list maintained by the publisher.
Type string
Properties
use optional
Used by
Source

<attribute name="action-type" type="string" use="optional">
  <annotation>
    <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:action-baseball-other / @comment
Namespace No namespace
Annotations

Textual comment about the action.
Type string
Properties
use optional
Used by
Source

<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the action.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:team-metadata-baseball / @probable-starting-pitcher-idref
Namespace No namespace
Annotations

ID of the pitcher who will probably start the game.
Type IDREF
Properties
use optional
Used by
Source

<attribute name="probable-starting-pitcher-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>ID of the pitcher who will probably start the game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @average
Namespace No namespace
Annotations

Average number of hits per at-bats
Type string
Properties
use optional
Used by
Source

<attribute name="average" type="string" use="optional">
  <annotation>
    <documentation>Average number of hits per at-bats</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @runs-scored
Namespace No namespace
Annotations

Number of runs scored
Type string
Properties
use optional
Used by
Source

<attribute name="runs-scored" type="string" use="optional">
  <annotation>
    <documentation>Number of runs scored</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @at-bats
Namespace No namespace
Annotations

Number of at-bats  (Does not include walks or Sacrifice Hits)
Type string
Properties
use optional
Used by
Source

<attribute name="at-bats" type="string" use="optional">
  <annotation>
    <documentation>Number of at-bats (Does not include walks or Sacrifice Hits)</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @hits
Namespace No namespace
Annotations

Number of hits
Type string
Properties
use optional
Used by
Source

<attribute name="hits" type="string" use="optional">
  <annotation>
    <documentation>Number of hits</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @rbi
Namespace No namespace
Annotations

Number of runs batted in
Type string
Properties
use optional
Used by
Source

<attribute name="rbi" type="string" use="optional">
  <annotation>
    <documentation>Number of runs batted in</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @total-bases
Namespace No namespace
Annotations

Calculated by hits + doubles + (triples times 2) + (home-runs times 3).
Type string
Properties
use optional
Used by
Source

<attribute name="total-bases" type="string" use="optional">
  <annotation>
    <documentation>Calculated by hits + doubles + (triples times 2) + (home-runs times 3).</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @slugging-percentage
Namespace No namespace
Annotations

Total bases divided by at-bats.
Type string
Properties
use optional
Used by
Source

<attribute name="slugging-percentage" type="string" use="optional">
  <annotation>
    <documentation>Total bases divided by at-bats.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @bases-on-balls
Namespace No namespace
Annotations

Number of times batter was walked
Type string
Properties
use optional
Used by
Source

<attribute name="bases-on-balls" type="string" use="optional">
  <annotation>
    <documentation>Number of times batter was walked</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @bases-on-balls-rate
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="bases-on-balls-rate" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @bases-on-balls-intentional
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="bases-on-balls-intentional" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @strikeouts
Namespace No namespace
Annotations

Number of times batter struck out
Type string
Properties
use optional
Used by
Source

<attribute name="strikeouts" type="string" use="optional">
  <annotation>
    <documentation>Number of times batter struck out</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @strikeouts-looking
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="strikeouts-looking" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @outs-ground
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="outs-ground" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @outs-fly
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="outs-fly" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @left-on-base
Namespace No namespace
Annotations

Number of runners left on base
Type string
Properties
use optional
Used by
Source

<attribute name="left-on-base" type="string" use="optional">
  <annotation>
    <documentation>Number of runners left on base</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @left-in-scoring-position
Namespace No namespace
Annotations

Number of runners left on second and/or third base
Type string
Properties
use optional
Used by
Source

<attribute name="left-in-scoring-position" type="string" use="optional">
  <annotation>
    <documentation>Number of runners left on second and/or third base</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @singles
Namespace No namespace
Annotations

Number of hits off of which batter advances to first base
Type string
Properties
use optional
Used by
Source

<attribute name="singles" type="string" use="optional">
  <annotation>
    <documentation>Number of hits off of which batter advances to first base</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @doubles
Namespace No namespace
Annotations

Number of hits off of which batter advances to second base
Type string
Properties
use optional
Used by
Source

<attribute name="doubles" type="string" use="optional">
  <annotation>
    <documentation>Number of hits off of which batter advances to second base</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @triples
Namespace No namespace
Annotations

Number of hits off of which batter advances to third base
Type string
Properties
use optional
Used by
Source

<attribute name="triples" type="string" use="optional">
  <annotation>
    <documentation>Number of hits off of which batter advances to third base</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @home-runs
Namespace No namespace
Annotations

Number of hits off of which batter advances to home plate
Type string
Properties
use optional
Used by
Source

<attribute name="home-runs" type="string" use="optional">
  <annotation>
    <documentation>Number of hits off of which batter advances to home plate</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @home-runs-season
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="home-runs-season" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @grand-slams
Namespace No namespace
Annotations

Number of home runs with bases loaded
Type string
Properties
use optional
Used by
Source

<attribute name="grand-slams" type="string" use="optional">
  <annotation>
    <documentation>Number of home runs with bases loaded</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @streak-hits
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="streak-hits" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @hits-event-winning
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="hits-event-winning" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @at-bats-per-rbi
Namespace No namespace
Annotations

RBI per at-bat ratio
Type string
Properties
use optional
Used by
Source

<attribute name="at-bats-per-rbi" type="string" use="optional">
  <annotation>
    <documentation>RBI per at-bat ratio</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @plate-appearances-per-rbi
Namespace No namespace
Annotations

Plate appearances per at-bat ratio
Type string
Properties
use optional
Used by
Source

<attribute name="plate-appearances-per-rbi" type="string" use="optional">
  <annotation>
    <documentation>Plate appearances per at-bat ratio</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @at-bats-per-home-run
Namespace No namespace
Annotations

Home runs per at-bat ratio
Type string
Properties
use optional
Used by
Source

<attribute name="at-bats-per-home-run" type="string" use="optional">
  <annotation>
    <documentation>Home runs per at-bat ratio</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @plate-appearances-per-home-run
Namespace No namespace
Annotations

Plate appearances per home run ratio
Type string
Properties
use optional
Used by
Source

<attribute name="plate-appearances-per-home-run" type="string" use="optional">
  <annotation>
    <documentation>Plate appearances per home run ratio</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @sac-flies
Namespace No namespace
Annotations

Number of hits resulting in batter out which advance base runner(s)
Type string
Properties
use optional
Used by
Source

<attribute name="sac-flies" type="string" use="optional">
  <annotation>
    <documentation>Number of hits resulting in batter out which advance base runner(s)</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @sac-bunts
Namespace No namespace
Annotations

Number of bunts resulting in batter out which advance base runner(s)
Type string
Properties
use optional
Used by
Source

<attribute name="sac-bunts" type="string" use="optional">
  <annotation>
    <documentation>Number of bunts resulting in batter out which advance base runner(s)</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @sacrifices
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="sacrifices" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @grounded-into-double-play
Namespace No namespace
Annotations

Number of ground balls which result in batter and base runner outs
Type string
Properties
use optional
Used by
Source

<attribute name="grounded-into-double-play" type="string" use="optional">
  <annotation>
    <documentation>Number of ground balls which result in batter and base runner outs</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @hit-into-double-play
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="hit-into-double-play" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @moved-up
Namespace No namespace
Annotations

Number of times runner advances to another base
Type string
Properties
use optional
Used by
Source

<attribute name="moved-up" type="string" use="optional">
  <annotation>
    <documentation>Number of times runner advances to another base</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @on-base-percentage
Namespace No namespace
Annotations

Calculated as follows: (hits + bases-on-balls + hit-by-pitch) / (at-bats + bases-on-balls + hit-by-pitch + sac-flies)
Type string
Properties
use optional
Used by
Source

<attribute name="on-base-percentage" type="string" use="optional">
  <annotation>
    <documentation>Calculated as follows: (hits + bases-on-balls + hit-by-pitch) / (at-bats + bases-on-balls + hit-by-pitch + sac-flies)</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @stolen-bases
Namespace No namespace
Annotations

Number of successfully stolen bases.
Type string
Properties
use optional
Used by
Source

<attribute name="stolen-bases" type="string" use="optional">
  <annotation>
    <documentation>Number of successfully stolen bases.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @stolen-bases-caught
Namespace No namespace
Annotations

Number of times the runner was caught while trying to steal bases.
Type string
Properties
use optional
Used by
Source

<attribute name="stolen-bases-caught" type="string" use="optional">
  <annotation>
    <documentation>Number of times the runner was caught while trying to steal bases.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @stolen-bases-average
Namespace No namespace
Annotations

Success rate for stealing bases.
Type string
Properties
use optional
Used by
Source

<attribute name="stolen-bases-average" type="string" use="optional">
  <annotation>
    <documentation>Success rate for stealing bases.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @hit-by-pitch
Namespace No namespace
Annotations

Number of times batter hit by pitch
Type string
Properties
use optional
Used by
Source

<attribute name="hit-by-pitch" type="string" use="optional">
  <annotation>
    <documentation>Number of times batter hit by pitch</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @reached-base-defensive-interference
Namespace No namespace
Annotations

The number of times the player reached a base due to interference by the defense.
Type string
Properties
use optional
Used by
Source

<attribute name="reached-base-defensive-interference" type="string" use="optional">
  <annotation>
    <documentation>The number of times the player reached a base due to interference by the defense.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @reached-base-error
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="reached-base-error" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @reached-base-fielder-choice
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="reached-base-fielder-choice" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @on-base-plus-slugging
Namespace No namespace
Annotations

Calculated by adding on-base-percentage to slugging-percentage.
Type string
Properties
use optional
Used by
Source

<attribute name="on-base-plus-slugging" type="string" use="optional">
  <annotation>
    <documentation>Calculated by adding on-base-percentage to slugging-percentage.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @plate-appearances
Namespace No namespace
Annotations

Calculated by adding at-bats, bases-on-balls, hit-by-pitch, sac-flies, sac-bunts, and defensive-interfance-reaches.
Type string
Properties
use optional
Used by
Source

<attribute name="plate-appearances" type="string" use="optional">
  <annotation>
    <documentation>Calculated by adding at-bats, bases-on-balls, hit-by-pitch, sac-flies, sac-bunts, and defensive-interfance-reaches.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @hits-extra-base
Namespace No namespace
Annotations

Calculated by adding doubles, triples, and home-runs.
Type string
Properties
use optional
Used by
Source

<attribute name="hits-extra-base" type="string" use="optional">
  <annotation>
    <documentation>Calculated by adding doubles, triples, and home-runs.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @strikeout-rate
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="strikeout-rate" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @shutouts
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="shutouts" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @double-plays-against
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="double-plays-against" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @triple-plays-against
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="triple-plays-against" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @pick-offs-against
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="pick-offs-against" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-offensive / @games-played
Namespace No namespace
Annotations

Number of games played.
Type string
Properties
use optional
Used by
Source

<attribute name="games-played" type="string" use="optional">
  <annotation>
    <documentation>Number of games played.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @runs-allowed
Namespace No namespace
Annotations

Number of runs against
Type string
Properties
use optional
Used by
Source

<attribute name="runs-allowed" type="string" use="optional">
  <annotation>
    <documentation>Number of runs against</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @home-runs-allowed
Namespace No namespace
Annotations

Number of home runs against
Type string
Properties
use optional
Used by
Source

<attribute name="home-runs-allowed" type="string" use="optional">
  <annotation>
    <documentation>Number of home runs against</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @sacrifice-bunts-allowed
Namespace No namespace
Annotations

Number of sacrifice bunts against
Type string
Properties
use optional
Used by
Source

<attribute name="sacrifice-bunts-allowed" type="string" use="optional">
  <annotation>
    <documentation>Number of sacrifice bunts against</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @sacrifice-hits-allowed
Namespace No namespace
Annotations

Number of sacrifice hits against
Type string
Properties
use optional
Used by
Source

<attribute name="sacrifice-hits-allowed" type="string" use="optional">
  <annotation>
    <documentation>Number of sacrifice hits against</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @interferences
Namespace No namespace
Annotations

Number of interference or obstruction calls
Type string
Properties
use optional
Used by
Source

<attribute name="interferences" type="string" use="optional">
  <annotation>
    <documentation>Number of interference or obstruction calls</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @innings-pitched
Namespace No namespace
Annotations

Number of innings pitched
Type string
Properties
use optional
Used by
Source

<attribute name="innings-pitched" type="string" use="optional">
  <annotation>
    <documentation>Number of innings pitched</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @innings-pitched-average
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="innings-pitched-average" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @hits
Namespace No namespace
Annotations

Number of hits against
Type string
Properties
use optional
Used by
Source

<attribute name="hits" type="string" use="optional">
  <annotation>
    <documentation>Number of hits against</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @earned-runs
Namespace No namespace
Annotations

Number of earned runs against
Type string
Properties
use optional
Used by
Source

<attribute name="earned-runs" type="string" use="optional">
  <annotation>
    <documentation>Number of earned runs against</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @unearned-runs
Namespace No namespace
Annotations

Number of unearned runs against
Type string
Properties
use optional
Used by
Source

<attribute name="unearned-runs" type="string" use="optional">
  <annotation>
    <documentation>Number of unearned runs against</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @bases-on-balls
Namespace No namespace
Annotations

Number of earned walks allowed
Type string
Properties
use optional
Used by
Source

<attribute name="bases-on-balls" type="string" use="optional">
  <annotation>
    <documentation>Number of earned walks allowed</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @bases-on-balls-intentional
Namespace No namespace
Annotations

Number of batters intentionally walked
Type string
Properties
use optional
Used by
Source

<attribute name="bases-on-balls-intentional" type="string" use="optional">
  <annotation>
    <documentation>Number of batters intentionally walked</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @strikeouts
Namespace No namespace
Annotations

Number of earned strikeouts
Type string
Properties
use optional
Used by
Source

<attribute name="strikeouts" type="string" use="optional">
  <annotation>
    <documentation>Number of earned strikeouts</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @strikeout-to-bb-ratio
Namespace No namespace
Annotations

Strikeout to walks ratio
Type string
Properties
use optional
Used by
Source

<attribute name="strikeout-to-bb-ratio" type="string" use="optional">
  <annotation>
    <documentation>Strikeout to walks ratio</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @number-of-pitches
Namespace No namespace
Annotations

Number of pitches thrown
Type string
Properties
use optional
Used by
Source

<attribute name="number-of-pitches" type="string" use="optional">
  <annotation>
    <documentation>Number of pitches thrown</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @number-of-strikes
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="number-of-strikes" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @era
Namespace No namespace
Annotations

Earned run average: Number of earned runs divided by number of innings pitched multiplied by nine
Type string
Properties
use optional
Used by
Source

<attribute name="era" type="string" use="optional">
  <annotation>
    <documentation>Earned run average: Number of earned runs divided by number of innings pitched multiplied by nine</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @whip
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="whip" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @inherited-runners-scored
Namespace No namespace
Annotations

Number of runners which a previous pitcher allowed on base which scored
Type string
Properties
use optional
Used by
Source

<attribute name="inherited-runners-scored" type="string" use="optional">
  <annotation>
    <documentation>Number of runners which a previous pitcher allowed on base which scored</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @pick-offs
Namespace No namespace
Annotations

The number of times the pitcher caught a player trying to steal, before making the pitch.
Type string
Properties
use optional
Used by
Source

<attribute name="pick-offs" type="string" use="optional">
  <annotation>
    <documentation>The number of times the pitcher caught a player trying to steal, before making the pitch.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @errors-hit-with-pitch
Namespace No namespace
Annotations

Number of times pitcher hits batter with pitch
Type string
Properties
use optional
Used by
Source

<attribute name="errors-hit-with-pitch" type="string" use="optional">
  <annotation>
    <documentation>Number of times pitcher hits batter with pitch</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @errors-wild-pitch
Namespace No namespace
Annotations

Number of wild pitches thrown
Type string
Properties
use optional
Used by
Source

<attribute name="errors-wild-pitch" type="string" use="optional">
  <annotation>
    <documentation>Number of wild pitches thrown</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @balks
Namespace No namespace
Annotations

Number of balks
Type string
Properties
use optional
Used by
Source

<attribute name="balks" type="string" use="optional">
  <annotation>
    <documentation>Number of balks</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @wins
Namespace No namespace
Annotations

Number of games pitcher has won
Type string
Properties
use optional
Used by
Source

<attribute name="wins" type="string" use="optional">
  <annotation>
    <documentation>Number of games pitcher has won</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @losses
Namespace No namespace
Annotations

Number of games pitcher has lost
Type string
Properties
use optional
Used by
Source

<attribute name="losses" type="string" use="optional">
  <annotation>
    <documentation>Number of games pitcher has lost</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @saves
Namespace No namespace
Annotations

Number of games pitcher has saved
Type string
Properties
use optional
Used by
Source

<attribute name="saves" type="string" use="optional">
  <annotation>
    <documentation>Number of games pitcher has saved</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @holds
Namespace No namespace
Annotations

Number of games relief pitcher has held the lead
Type string
Properties
use optional
Used by
Source

<attribute name="holds" type="string" use="optional">
  <annotation>
    <documentation>Number of games relief pitcher has held the lead</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @saves-blown
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="saves-blown" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @saves-tough
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="saves-tough" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @saves-opportunities
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="saves-opportunities" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @relief-points
Namespace No namespace
Annotations

Formula for rating relief performances. 4 points for a tough save; 3 points for a save; 2 for a relief win; minus 2 for a relief loss and blown save.
Type string
Properties
use optional
Used by
Source

<attribute name="relief-points" type="string" use="optional">
  <annotation>
    <documentation>Formula for rating relief performances. 4 points for a tough save; 3 points for a save; 2 for a relief win; minus 2 for a relief loss and blown save.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @shutouts
Namespace No namespace
Annotations

Number of games pitched in which opposing team did not score
Type string
Properties
use optional
Used by
Source

<attribute name="shutouts" type="string" use="optional">
  <annotation>
    <documentation>Number of games pitched in which opposing team did not score</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @games-complete
Namespace No namespace
Annotations

Number of complete games pitched
Type string
Properties
use optional
Used by
Source

<attribute name="games-complete" type="string" use="optional">
  <annotation>
    <documentation>Number of complete games pitched</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @games-finished
Namespace No namespace
Annotations

Number of games pitched to the end
Type string
Properties
use optional
Used by
Source

<attribute name="games-finished" type="string" use="optional">
  <annotation>
    <documentation>Number of games pitched to the end</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @games-pitched
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="games-pitched" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @winning-percentage
Namespace No namespace
Annotations

Calculated by wins divided by (wins + losses).
Type string
Properties
use optional
Used by
Source

<attribute name="winning-percentage" type="string" use="optional">
  <annotation>
    <documentation>Calculated by wins divided by (wins + losses).</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @event-credit
Namespace No namespace
Annotations

Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)
Type restriction of string
Properties
use optional
Facets
enumeration win
enumeration loss
enumeration save
Used by
Source

<attribute name="event-credit" use="optional">
  <annotation>
    <documentation>Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="win"/>
      <enumeration value="loss"/>
      <enumeration value="save"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @save-credit
Namespace No namespace
Annotations

Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)
Type restriction of string
Properties
use optional
Facets
enumeration hold
enumeration blown
enumeration save
Used by
Source

<attribute name="save-credit" use="optional">
  <annotation>
    <documentation>Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="hold"/>
      <enumeration value="blown"/>
      <enumeration value="save"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @batters-average-against
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="batters-average-against" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @batters-at-bats-against
Namespace No namespace
Annotations

Number of batters faced who were credited with at-bats.
Type string
Properties
use optional
Used by
Source

<attribute name="batters-at-bats-against" type="string" use="optional">
  <annotation>
    <documentation>Number of batters faced who were credited with at-bats.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @batters-total-against
Namespace No namespace
Annotations

Total number of batters faced.
Type string
Properties
use optional
Used by
Source

<attribute name="batters-total-against" type="string" use="optional">
  <annotation>
    <documentation>Total number of batters faced.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @batters-total-bases-against
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="batters-total-bases-against" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @batters-slugging-percentage-against
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="batters-slugging-percentage-against" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @batters-on-base-percentage-against
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="batters-on-base-percentage-against" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @batters-doubles-against
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="batters-doubles-against" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @batters-triples-against
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="batters-triples-against" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @batters-home-runs-against
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="batters-home-runs-against" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @inherited-runners-total
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="inherited-runners-total" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @sacrifice-flies-allowed
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="sacrifice-flies-allowed" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-pitching / @shutouts-combined
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="shutouts-combined" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @position
Namespace No namespace
Annotations

Position played for these stats.
Type sportsml:position.Baseball
Properties
use optional
Used by
Source

<attribute name="position" type="sportsml:position.Baseball" use="optional">
  <annotation>
    <documentation>Position played for these stats.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @double-plays
Namespace No namespace
Annotations

Number of times two runners thrown out at the base.
Type string
Properties
use optional
Used by
Source

<attribute name="double-plays" type="string" use="optional">
  <annotation>
    <documentation>Number of times two runners thrown out at the base.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @triple-plays
Namespace No namespace
Annotations

Number of times three runners thrown out at the base.
Type string
Properties
use optional
Used by
Source

<attribute name="triple-plays" type="string" use="optional">
  <annotation>
    <documentation>Number of times three runners thrown out at the base.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @putouts
Namespace No namespace
Annotations

Number of times a fielder caught a fly ball for an out.
Type string
Properties
use optional
Used by
Source

<attribute name="putouts" type="string" use="optional">
  <annotation>
    <documentation>Number of times a fielder caught a fly ball for an out.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @assists
Namespace No namespace
Annotations

Number of plays in which a fielder throws a ball to another fielder for the out.
Type string
Properties
use optional
Used by
Source

<attribute name="assists" type="string" use="optional">
  <annotation>
    <documentation>Number of plays in which a fielder throws a ball to another fielder for the out.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @errors
Namespace No namespace
Annotations

Number of plays in which a fielder committed an error, such as dropping a ball.
Type string
Properties
use optional
Used by
Source

<attribute name="errors" type="string" use="optional">
  <annotation>
    <documentation>Number of plays in which a fielder committed an error, such as dropping a ball.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @fielding-chances
Namespace No namespace
Annotations

TBD.
Type string
Properties
use optional
Used by
Source

<attribute name="fielding-chances" type="string" use="optional">
  <annotation>
    <documentation>TBD.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @fielding-percentage
Namespace No namespace
Annotations

A measure of fielding success. Calculated as follows: (putouts + assists) / (putouts + assists + errors).
Type string
Properties
use optional
Used by
Source

<attribute name="fielding-percentage" type="string" use="optional">
  <annotation>
    <documentation>A measure of fielding success. Calculated as follows: (putouts + assists) / (putouts + assists + errors).</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @defensive-average
Namespace No namespace
Annotations

Rate a fielder turns a bill hit to their area into an out.
Type string
Properties
use optional
Used by
Source

<attribute name="defensive-average" type="string" use="optional">
  <annotation>
    <documentation>Rate a fielder turns a bill hit to their area into an out.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @errors-passed-ball
Namespace No namespace
Annotations

Number of times a catcher is faulted with letting a pitched ball go past.
Type string
Properties
use optional
Used by
Source

<attribute name="errors-passed-ball" type="string" use="optional">
  <annotation>
    <documentation>Number of times a catcher is faulted with letting a pitched ball go past.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @errors-catchers-interference
Namespace No namespace
Annotations

Number of times a catcher has improperly interfered with play.
Type string
Properties
use optional
Used by
Source

<attribute name="errors-catchers-interference" type="string" use="optional">
  <annotation>
    <documentation>Number of times a catcher has improperly interfered with play.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @stolen-bases
Namespace No namespace
Annotations

Number of bases successfully stolen while this player was on the field.
Type string
Properties
use optional
Used by
Source

<attribute name="stolen-bases" type="string" use="optional">
  <annotation>
    <documentation>Number of bases successfully stolen while this player was on the field.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @stolen-bases-caught
Namespace No namespace
Annotations

Number of times a runner was caught while trying to steal bases while this player was on the field.
Type string
Properties
use optional
Used by
Source

<attribute name="stolen-bases-caught" type="string" use="optional">
  <annotation>
    <documentation>Number of times a runner was caught while trying to steal bases while this player was on the field.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @stolen-bases-average
Namespace No namespace
Annotations

Success rate for stealing bases while this player was on the field.
Type string
Properties
use optional
Used by
Source

<attribute name="stolen-bases-average" type="string" use="optional">
  <annotation>
    <documentation>Success rate for stealing bases while this player was on the field.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @innings-played
Namespace No namespace
Annotations

Number of innings played at the named position.
Type string
Properties
use optional
Used by
Source

<attribute name="innings-played" type="string" use="optional">
  <annotation>
    <documentation>Number of innings played at the named position.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:stats-baseball-defensive / @games-played
Namespace No namespace
Annotations

Number of games played at the named position.
Type string
Properties
use optional
Used by
Source

<attribute name="games-played" type="string" use="optional">
  <annotation>
    <documentation>Number of games played at the named position.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:player-metadata-baseball / @batting-hand
Namespace No namespace
Annotations

Indicates whether player bats left, right, or is a switch-hitter.
Type restriction of string
Properties
use optional
Facets
enumeration left
enumeration right
enumeration both
Used by
Source

<attribute name="batting-hand" use="optional">
  <annotation>
    <documentation>Indicates whether player bats left, right, or is a switch-hitter.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="left"/>
      <enumeration value="right"/>
      <enumeration value="both"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute sportsml:player-metadata-baseball / @throwing-hand
Namespace No namespace
Annotations

Indicates whether player throws left, right, or is a switch-thrower.
Type restriction of string
Properties
use optional
Facets
enumeration left
enumeration right
enumeration both
Used by
Source

<attribute name="throwing-hand" use="optional">
  <annotation>
    <documentation>Indicates whether player throws left, right, or is a switch-thrower.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="left"/>
      <enumeration value="right"/>
      <enumeration value="both"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
Attribute Group sportsml:eventStateBaseball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Diagram
Diagram sportsml-specific-baseball_xsd.tmp#eventStateBaseball_inning-value sportsml-specific-baseball_xsd.tmp#eventStateBaseball_inning-half sportsml-specific-baseball_xsd.tmp#eventStateBaseball_outs sportsml-specific-baseball_xsd.tmp#eventStateBaseball_balls sportsml-specific-baseball_xsd.tmp#eventStateBaseball_strikes sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-first sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-first-idref sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-second sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-second-idref sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-third sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-third-idref sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runs-this-inning-half sportsml-specific-baseball_xsd.tmp#eventStateBaseball_pitcher-idref sportsml-specific-baseball_xsd.tmp#eventStateBaseball_batter-idref sportsml-specific-baseball_xsd.tmp#eventStateBaseball_batter-side sportsml-specific-baseball_xsd.tmp#eventStateBaseball_at-bat-number sportsml-specific-baseball_xsd.tmp#eventStateBaseball_sequence-number
Used by
Attributes
QName Type Use Annotation
at-bat-number string optional
Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
balls string optional
Either 1, 2, 3, or 4.
batter-idref IDREF optional
A pointer to the player element for the batter at the plate.
batter-side restriction of string optional
Which side of the plate the batter was on when taking the pitch.
inning-half restriction of string optional
Either top or bottom.
inning-value string optional
An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
outs string optional
Either 1, 2, or 3.
pitcher-idref IDREF optional
A pointer to the player element for the pitcher standing on the mound.
runner-on-first string optional
Whether or not a player is standing on first base. Either true or false.
runner-on-first-idref IDREF optional
A pointer to the player on first base.
runner-on-second string optional
Whether or not a player is standing on second base. Either true or false.
runner-on-second-idref IDREF optional
A pointer to the player on second base.
runner-on-third string optional
Whether or not a player is standing on third base. Either true or false.
runner-on-third-idref IDREF optional
A pointer to the player on third base.
runs-this-inning-half string optional
An integer.
sequence-number string optional
Usually an integer
strikes string optional
Either 1, 2, or 3.
Source

<attributeGroup name="eventStateBaseball">
  <attribute name="inning-value" type="string" use="optional">
    <annotation>
      <documentation>An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.</documentation>
    </annotation>
  </attribute>
  <attribute name="inning-half" use="optional">
    <annotation>
      <documentation>Either top or bottom.</documentation>
    </annotation>
    <simpleType>
      <restriction base="string">
        <enumeration value="top"/>
        <enumeration value="bottom"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="outs" type="string" use="optional">
    <annotation>
      <documentation>Either 1, 2, or 3.</documentation>
    </annotation>
  </attribute>
  <attribute name="balls" type="string" use="optional">
    <annotation>
      <documentation>Either 1, 2, 3, or 4.</documentation>
    </annotation>
  </attribute>
  <attribute name="strikes" type="string" use="optional">
    <annotation>
      <documentation>Either 1, 2, or 3.</documentation>
    </annotation>
  </attribute>
  <attribute name="runner-on-first" type="string" use="optional">
    <annotation>
      <documentation>Whether or not a player is standing on first base. Either true or false.</documentation>
    </annotation>
  </attribute>
  <attribute name="runner-on-first-idref" type="IDREF" use="optional">
    <annotation>
      <documentation>A pointer to the player on first base.</documentation>
    </annotation>
  </attribute>
  <attribute name="runner-on-second" type="string" use="optional">
    <annotation>
      <documentation>Whether or not a player is standing on second base. Either true or false.</documentation>
    </annotation>
  </attribute>
  <attribute name="runner-on-second-idref" type="IDREF" use="optional">
    <annotation>
      <documentation>A pointer to the player on second base.</documentation>
    </annotation>
  </attribute>
  <attribute name="runner-on-third" type="string" use="optional">
    <annotation>
      <documentation>Whether or not a player is standing on third base. Either true or false.</documentation>
    </annotation>
  </attribute>
  <attribute name="runner-on-third-idref" type="IDREF" use="optional">
    <annotation>
      <documentation>A pointer to the player on third base.</documentation>
    </annotation>
  </attribute>
  <attribute name="runs-this-inning-half" type="string" use="optional">
    <annotation>
      <documentation>An integer.</documentation>
    </annotation>
  </attribute>
  <attribute name="pitcher-idref" type="IDREF" use="optional">
    <annotation>
      <documentation>A pointer to the player element for the pitcher standing on the mound.</documentation>
    </annotation>
  </attribute>
  <attribute name="batter-idref" type="IDREF" use="optional">
    <annotation>
      <documentation>A pointer to the player element for the batter at the plate.</documentation>
    </annotation>
  </attribute>
  <attribute name="batter-side" use="optional">
    <annotation>
      <documentation>Which side of the plate the batter was on when taking the pitch.</documentation>
    </annotation>
    <simpleType>
      <restriction base="string">
        <enumeration value="left"/>
        <enumeration value="right"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="at-bat-number" type="string" use="optional">
    <annotation>
      <documentation>Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.</documentation>
    </annotation>
  </attribute>
  <attribute name="sequence-number" type="string" use="optional">
    <annotation>
      <documentation>Usually an integer</documentation>
    </annotation>
  </attribute>
</attributeGroup>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-baseball.xsd
XML Schema documentation generated by ® XML Editor.
