Complex Type staff-tuning
Namespace No namespace
Annotations

The staff-tuning type specifies the open, non-capo tuning of the lines on a tabluature staff.

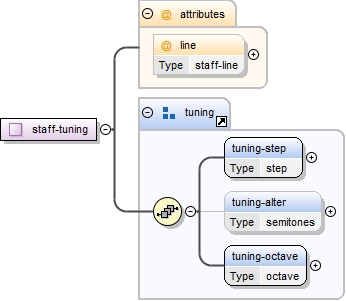

Diagram
Diagram musicxml190.tmp#id317 musicxml191.tmp#id313 musicxml191.tmp#id314 musicxml191.tmp#id315 musicxml191.tmp#id312
Used by
Model tuning-step , tuning-alter{0,1} , tuning-octave
Children tuning-alter, tuning-octave, tuning-step
Attributes
QName Type Fixed Default Use Annotation
line staff-line optional
Source

<xs:complexType name="staff-tuning">
  <xs:annotation>
    <xs:documentation>The staff-tuning type specifies the open, non-capo tuning of the lines on a tabluature staff.</xs:documentation>
  </xs:annotation>
  <xs:group ref="tuning"/>
  <xs:attribute name="line" type="staff-line"/>
</xs:complexType>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Attribute staff-tuning/@line
Namespace No namespace
Type staff-line
Properties
content: simple
Source

<xs:attribute name="line" type="staff-line"/>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
