Documentation for definitions

Showing:

Annotations

Diagram

Properties

Constraints

Used By

Source

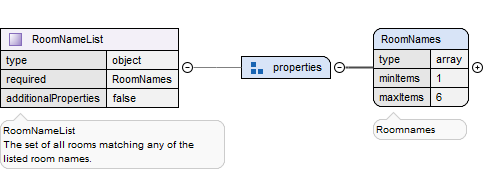

Definition RoomNameList

Annotations

Title  RoomNameList

Description  The set of all rooms matching any of the listed room names.

Diagram

Type

object

Properties

Name	Occurrence
RoomNames	required

Additional Properties

false

Used by

Schema

RoomPairTargetFilter/properties/From/anyOf/0

FurnitureArrangementSet/properties/TargetSet/anyOf/1

InteriorMaterialSet/properties/TargetSet/anyOf/1

RoomPairTargetFilter/properties/From

RoomPairTargetFilter/properties/To

Source


 "RoomNameList": {
  "type": "object",
  "additionalProperties": false,
  "title": "RoomNameList",
  "description": "The set of all rooms matching any of the listed room names.",
  "required": ["RoomNames"],
  "properties": {
    "RoomNames": {
      "type": "array",
      "minItems": 1,
      "maxItems": 6,
      "title": "Roomnames",
      "items": {}
    }
  }
}

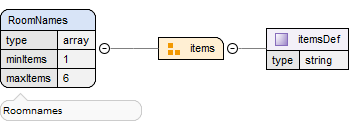

Definition RoomNames

Annotations

Title  Roomnames

Diagram

Type

array

Constraints

Unique Items : false

Array Items

Items
definitions_RoomNameList.html#/definitions/RoomNameList/properties/RoomNames/items

Additional Items

true

Used by

Schema

RoomNameList

Source


 "RoomNames": {
  "type": "array",
  "minItems": 1,
  "maxItems": 6,
  "title": "Roomnames",
  "items": {"type": "string"}
}

Definition RoomNames/items

Diagram

Type

string

Used by

Schema

RoomNameList/properties/RoomNames

Source


 "items": {"type": "string"}
