[oXygen-user] Going from FrameMaker to oXygen / Outline View / Text duplicates
Oxygen XML Editor Support (Radu Coravu)
support at oxygenxml.com
Mon Jan 9 23:51:43 CST 2023
Hi Frank,
I added an internal issue to consider adding a new setting based on what
you want:
EXM-52156 Outline - Setting to avoid showing text of element on
ancestor element
The purpose of the current behavior is to make it easier to figure out
what text content is inside a certain node hierarchy without the need to
expand nodes. So in this case I know what text is inside the <info>
element's structure without expanding it.
Regards,
Radu
Radu Coravu
Oxygen XML Editor
On 1/9/23 18:47, Frank Dissinger wrote:
>
> Hi Jang,
>
>
> Just to be sure we are talking about the same thing:
>
>

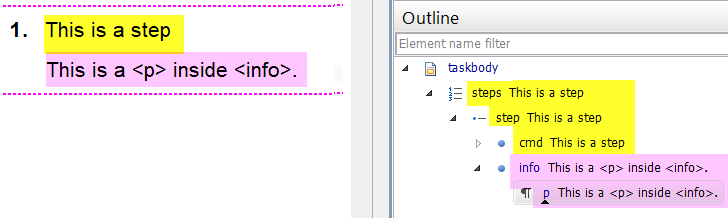

> Current behavior:
>

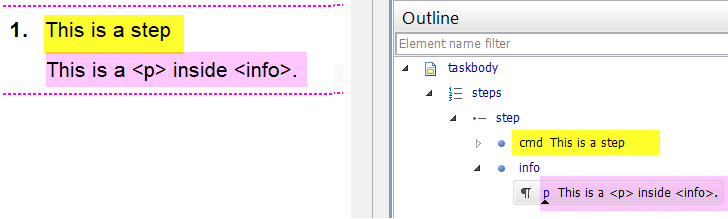

> What I want is this:
>
>
>
> I see no point in the current behavior. Why are empty elements marked
> as "filled" elements in oXygen?
>
>
> *@SyncroSoft*
>
> Feature request : Can the current behavior of the Outline view be
> changed to show empty elements as empty?
>
>
> If the current behavior is required (for whichever reason...), I
> understand that I'd need to implement DITA contstraints. Can you be
> more specific about that? How would I do this with oXygen?
>
>
> Regards,
>
>
> Frank
>
>
> ------------------------------------------------------------------------
> Am 09.01.2023 um 11:27 schrieb 4everJang:
>> Hello Frank,
>>
>> About the last point in your missing features list: the DITA specs
>> allow plain text as well as block elements like <p> inside an <li>.
>> If you create constraints that disallow plain text (and inline
>> elements) in the <li> you should get rid of the extra Text indicators
>> in oXygen’s author view.
>>
>> And I do suggest everyone to create constraints before starting to
>> work with DITA, as the definitions in the so-called standard DITA
>> packages allows almost everything and is not meant to be a useful
>> subset of elements for anyone’s specific content domain. The first
>> step in any useful DITA implementation is defining constraints and
>> possibly specialisations. I often get the reply from newbie DITA
>> users that they want to stick with standard DITA. Fact is that
>> constraints, and even specialisations, do not take you away from the
>> standard. DITA was intended to be customised, i.e. adapted to your
>> particular content domain, so that it will become as useful as
>> possible - without pushing you out of the standard. Any DITA tool
>> should support constraints and specialisations (as long as you create
>> them in the defined manner), otherwise they cannot claim to be DITA
>> compliant at all.
>>
>> Good luck with the transition from FM to oXygen.
>>
>> *4everJang*
>> *Amsterdam, Netherlands*
>>
>> On 9 Jan 2023, 10:37 +0100, Frank Dissinger
>> <frank.dissinger at cgs-oris.com>, wrote:
>>>
>>> Hi Alan,
>>>
>>>
>>> Thank you for your reply. I fully agree with what you wrote about
>>> FM's Structure View. An excellent tool.
>>>
>>>
>>> It would be great if oXygen could enhance its Outline View and make
>>> it work in a similar way. I am especially missing the following
>>> features:
>>>
>>> * Allow users to place the cursor between tags, or at the
>>> beginning/end of the element contents, and indicate the position
>>> * Display attributes: Toggle between all/all with a value/none (no
>>> need to waste room on the screen for a separate Attributes window)
>>> * Expand/collapse complete tree of elements or attributes in one
>>> go (Shift-click)
>>> * Element content should not be repeated for empty wrapping
>>> elements, this is confusing (show it only once)
>>> For exmaple, for <li><p>Text..., the "Text" is shown both for
>>> <li> and <p>. It should only be shown for <p>.
>>>
>>> Can I add this as feature request?
>>>
>>>
>>> I have now switched to the oXygen Users Mailing List and will post
>>> any further oXygen-related issues there.
>>>
>>>
>>> Regards,
>>>
>>>
>>> Frank
>>>
>>>
>>> ------------------------------------------------------------------------
>>> Am 04.01.2023 um 22:05 schrieb Alan Houser:
>>>> Chiming in a bit late here. Longtime structured FrameMaker and
>>>> oXygen user...
>>>>
>>>> *Frank mentions the FrameMaker structure view. IMO, this is the
>>>> best and most distinctive part of the FrameMaker structured
>>>> authoring interface. Easy access to any part of the document.
>>>> Expand/collapse at any level of the document hierarchy; locally or
>>>> globally (e.g. expand/collapse "this" section; expand/collapse all
>>>> sections). Full navigation capabilities. Visual feedback (and
>>>> shortcut control) over cursor location -- beginning, middle, or end
>>>> of an element. Configurable and interactive attribute display.*
>>>> *
>>>> *
>>>> *While most XML editors provide some sort of outline view, I've
>>>> never seen one as full-featured and useful as the FrameMaker
>>>> structure view.*
>>>>
>>>> I occasionally use the oXygen Outline View for quick navigation in
>>>> larger XML documents. And the "folding" feature in the edit window
>>>> to expand/collapse content. But these don't fully replace what one
>>>> can do with the FrameMaker structure view.
>>>>
>>>> I think you will find that oXygen provides more and different
>>>> features than Structured FrameMaker, many of which you will come to
>>>> appreciate. I suggest (as you are doing) learning how to be most
>>>> productive with the oXygen features and workflow. And be prepared
>>>> to miss the FrameMaker structure view. 🙁
>>>>
>>>> -Alan
>>>> --
>>>> Alan Houser
>>>> Group Wellesley, Inc.
>>>> Consultant and Trainer, Technical Publishing
>>>> arh on Twitter
>>>> 412-450-0532
>>>>
>>>>
>>>>
>>>>> On Dec 8, 2022, at 10:37 AM, Frank Dissinger
>>>>> <frank.dissinger at cgs-oris.com> wrote:
>>>>>
>>>>> Thank you,
>>>>>
>>>>> Chris
>>>>> Radu
>>>>> Stefan
>>>>> Thomas
>>>>> Yves
>>>>>
>>>>> for your replies, this valuable information and for offering me
>>>>> your help.
>>>>>
>>>>> I have already made some initial progress. I have successfully
>>>>> created a custom framework with my own CSS file and are getting my
>>>>> topic editor window panel look more and more the way I like (using
>>>>> the 'print-ready' display style).
>>>>>
>>>>> I'll try to dig a bit deeper into this matter and will collect the
>>>>> questions and issues as I get on with this. I'll then come back to
>>>>> you.
>>>>>
>>>>> Best regards,
>>>>>
>>>>> Frank
>>>>>
>>>>> ------------------------------------------------------------------------
>>>>> Am 06.12.2022 um 17:42 schrieb Frank Dissinger:
>>>>>> Hi all,
>>>>>>
>>>>>> Are there any passionate long-term structured FrameMaker users
>>>>>> who have changed to oXygen as a DITA editor? Has anybody tried to
>>>>>> set up the oXygen authoring environment as close as possible to
>>>>>> FrameMaker's WYSIWYG view? Or at least in a way that makes the
>>>>>> switch as painless as possible for a FrameMaker user?
>>>>>>
>>>>>> I've been using FrameMaker V11+DITA-FMx as a DITA editor for many
>>>>>> years -- until recently also as a PDF transformation engine,
>>>>>> which I have now replaced with MiramoPDF. I have used oXygen for
>>>>>> a few years only and mostly as a transformation engine. With FM I
>>>>>> am stuck with an old DITA implementation and the DITA-FMx plug-in
>>>>>> is not developed any further. This is why I would like to use
>>>>>> oXygen as a DITA editor instead. But I find it very hard to make
>>>>>> the switch: The way DITA maps, topics, tags, structures... are
>>>>>> presented is so different and I haven't the time to learn oXygen
>>>>>> properly and in full detail. It's such a powerful tool with tons
>>>>>> of features. So I thought there may be someone who can help me
>>>>>> getting started -- at least with setting up the user interface
>>>>>> and authoring environment.
>>>>>>
>>>>>> A few examples of things I am struggling with right away when I
>>>>>> look at how oXygen presents my DITA files:
>>>>>>
>>>>>> * It seems that a DITA map loads all the referenced submaps and
>>>>>> displays all of these maps in a single window panel (as if
>>>>>> this was a single file). In FM I see only the references and
>>>>>> open the submaps as separate files by double-clicking on them.
>>>>>> * I feel lost in these maps. There are lots of big fonts,
>>>>>> frames, colored backgrounds, icons... Can I customize the
>>>>>> appearance? For example, by defining CSS-like styles for the
>>>>>> DITA elements displayed on the screen?
>>>>>> * The Outline view is a bit similar to FM's Structure View. But
>>>>>> I am used to setting the cursor into the Structure View to
>>>>>> precisely define the point where to insert an element. This
>>>>>> does not work in oXygen.
>>>>>> * I'd like to see text and images without any tags in one
>>>>>> window panel and the DITA structure with elements and
>>>>>> attributes in a separate panel. I know I can switch off tags
>>>>>> and use the Outline view, but I am not sure if this really
>>>>>> gives me full control over everything...
>>>>>> * How does oXygen visualize conditionalized content
>>>>>> (included/excluded via a ditaval file)?
>>>>>> * Can I define a fixed page size in oXygen? I'd like to set a
>>>>>> page width (height is not important) to make sure that images
>>>>>> fit on the page and that table columns are not too narrow (in
>>>>>> PDF deliverables). Setting an image resolution is also important.
>>>>>> * ...
>>>>>>
>>>>>> Regards,
>>>>>>
>>>>>> Frank
>>>>> --
>>>>> *Frank Dissinger*
>>>>> Documentation Manager
>>>>> ....................................................................
>>>>> *CGS Publishing Technologies International GmbH*
>>>>> *Email*frank.dissinger at cgs-oris.com|*Web*www.cgs-oris.com
>>>>> <http://www.cgs-oris.com/>
>>>>> *Address*Kettelerstr. 24 | D-63512 Hainburg | Germany
>>>>> *Phone*+49 6182 9626-27 |*Fax*+49 6182 9626-99
>>>>> *Commercial register*Offenbach, HRB no. 21495
>>>>> *Managing directors*Bernd Rückert, Christoph Thommessen
>>>>>
>>>>> https://www.cgs-oris.com/Signatur.png
>>>>> <https://www.cgs-oris.com/signatur>
>>>> --
>>>>
>>>> *Frank Dissinger*
>>>>
>>>> Documentation Manager
>>>>
>>>> ....................................................................
>>>>
>>>> *CGS Publishing Technologies International GmbH*
>>>>
>>>> *Email* frank.dissinger at cgs-oris.com | *Web* www.cgs-oris.com
>>>> <http://www.cgs-oris.com/>
>>>>
>>>> *Address* Kettelerstr. 24 | D-63512 Hainburg | Germany
>>>>
>>>> *Phone* +49 6182 9626-27 | *Fax* +49 6182 9626-99
>>>>
>>>> *Commercial register* Offenbach, HRB no. 21495
>>>>
>>>> *Managing directors* Bernd Rückert, Christoph Thommessen
>>>>
>>>>
>>>> https://www.cgs-oris.com/Signatur.png
>>>> <https://www.cgs-oris.com/signatur>
>> _._,_._,_
>> ------------------------------------------------------------------------
>> Groups.io Links:
>>
>> You receive all messages sent to this group.
>>
>> View/Reply Online (#47181)
>> <https://dita-users.groups.io/g/main/message/47181> | Reply To Group
>> <mailto:main at dita-users.groups.io?subject=Re:%20Re%3A%20%5Bdita-users%5D%20Going%20from%20FrameMaker%20to%20oXygen%20%2F%20FM%20Structure%20View%20vs.%20oXy%20Outline%20View%20%2F%20Feature%20request>
>> | Reply To Sender
>> <mailto:jang at jang.nl?subject=Private:%20Re:%20Re%3A%20%5Bdita-users%5D%20Going%20from%20FrameMaker%20to%20oXygen%20%2F%20FM%20Structure%20View%20vs.%20oXy%20Outline%20View%20%2F%20Feature%20request>
>> | Mute This Topic <https://groups.io/mt/96149052/2470666> | New Topic
>> <https://dita-users.groups.io/g/main/post>
>> Your Subscription
>> <https://dita-users.groups.io/g/main/editsub/2470666> | Contact Group
>> Owner <mailto:main+owner at dita-users.groups.io> | Unsubscribe
>> <https://dita-users.groups.io/g/main/leave/5778861/2470666/1973504771/xyzzy>
>> [frank.dissinger at cgs-oris.com]
>>
>> _._,_._,_
> --
>
> *Frank Dissinger*
>
> Documentation Manager
>
> ....................................................................
>
> *CGS Publishing Technologies International GmbH*
>
> *Email *frank.dissinger at cgs-oris.com | *Web* www.cgs-oris.com
> <http://www.cgs-oris.com/>
>
> *Address* Kettelerstr. 24 | D-63512 Hainburg | Germany
>
> *Phone* +49 6182 9626-27 | *Fax* +49 6182 9626-99
>
> *Commercial register* Offenbach, HRB no. 21495
>
> *Managing directors* Bernd Rückert, Christoph Thommessen
>
>
> https://www.cgs-oris.com/Signatur.png <https://www.cgs-oris.com/signatur>
>
> _______________________________________________
> oXygen-user mailing list
> oXygen-user at oxygenxml.com
> https://www.oxygenxml.com/mailman/listinfo/oxygen-user
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.oxygenxml.com/pipermail/oxygen-user/attachments/20230110/ea48cff1/attachment.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: UUXmyJKxe2KbXsoZ.png
Type: image/png
Size: 11612 bytes
Desc: not available
URL: <http://www.oxygenxml.com/pipermail/oxygen-user/attachments/20230110/ea48cff1/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ZgBUNyzxT5Oy9z3N.png
Type: image/png
Size: 10193 bytes
Desc: not available
URL: <http://www.oxygenxml.com/pipermail/oxygen-user/attachments/20230110/ea48cff1/attachment-0001.png>
More information about the oXygen-user
mailing list
