[oXygen-user] Insert Image as Variable in Eclipse environment

[Radu Coravu]

Hi Judith,

Thank you for contacting us.

If you switch the opened DITA topic to the Text editing mode how does
that image reference look like? Does it look like:

> <image keyref="..."/>
?

The Oxygen Eclipse plugin should have for each opened DITA topic an
"Insert image" toolbar action allowing you to insert either direct
images or indirect (keyref) images.

If the toolbar action is not there for you, Ixiasoft may have changed
this, they have access to our APIs and they can remove Oxygen actions
which they consider that do not work well with their CMS. I think I saw
a demonstration some years ago in which somebody from Ixiasoft used a
special Ixiasoft side view in Eclipse to locate a key and then they
right clicked and had options there to insert an image with a keyref, I
think they also made this work with drag and drop, dropping the key
definition in Oxygen's editing area.

If you will still have problems with this, maybe you should ask the
Ixiasoft support about the recommended way to insert images in a DITA
topic with the Oxygen integration.

Regards,
Radu

Radu Coravu
Oxygen XML Editor

On 8/28/20 5:08 PM, Oudkerk, Judith wrote:
>
> Hi All,
>
> I’m using Oxygen XML (version  in the Ixiasoft Eclipse CCMS
> environment. I’d like to insert an image as variable in a topic, but I
> can’t get it to work. I know it’s possible, because I used to do this
> in the Stand-alone Oxygen XML editor.
>
> I created a variables map and added this for the image variable:
>
> <keydef format="png" href="nlr1598608071706.image" keys="cap"
> scope="local"/>
>

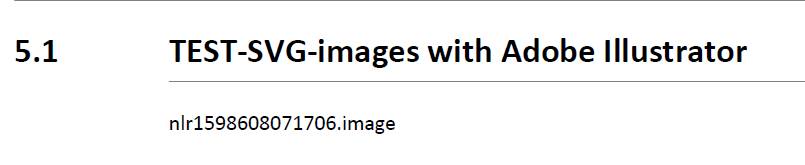

> The output shows the href as text though:
>
> Am I doing something wrong, or is it not possible within the Eclipse
> environment?
>
