XQuery Builder View

The XPath/XQuery Builder view allows you to compose complex XQuery expressions and execute them over the currently edited XML or JSON document. You can use the doc() function to specify the source file that will have the expressions executed. When you connect to a database, the expressions are executed over that database. If you are using the XPath/XQuery Builder view and the current file is an XSLT document, Oxygen XML executes the expressions over the XML document in the associated scenario.

The upper part of the view contains the following actions:

XPath version chooser drop-down menu

A drop-down menu that allows you to select the type of the expression you want to execute. You can choose between:

XPath 1.0 (Xerces-driven)
XPath 2.0, XPath 2.0 SA, XPath 3.1, XPath 3.1 SA, Saxon-HE XQuery, Saxon-PE XQuery, or Saxon-EE XQuery (all of them are Saxon-driven)
Custom connection to XML databases that can execute XQuery expressions
Note:
The results returned by XPath 2.0 SA and XPath 3.1 SA have a location limited to the line number of the start element (there are no column information and no end specified).
Note:
Oxygen XML uses Saxon to execute XPath 3.1 expressions. Since Saxon implements a part of the 3.1 functions, when using a function that is not implemented, Oxygen XML returns a compilation error.

Execute XPath button

Use this button to start the execution of the XPath or XQuery expression you are editing. The result of the execution is displayed in the Results view at the bottom of the application.

Favorites button

Allows you to save certain expressions that you can later reuse. To add an expression as a favorite, click this button and enter a name for it. The star turns yellow to confirm that the expression was saved. Expand the drop-down menu next to the star button to see all your favorites. Oxygen XML automatically groups favorites in folders named after the method of execution.

History drop-down menu

Keeps a list of the last 15 executed XPath or XQuery expressions. Use the

Clear history action from the bottom of the list to remove them.

Settings drop-down menu

Contains the following three options:

When you hover your cursor over the version icon (), a tooltip is displayed to let you know what engine Oxygen XML is currently using.

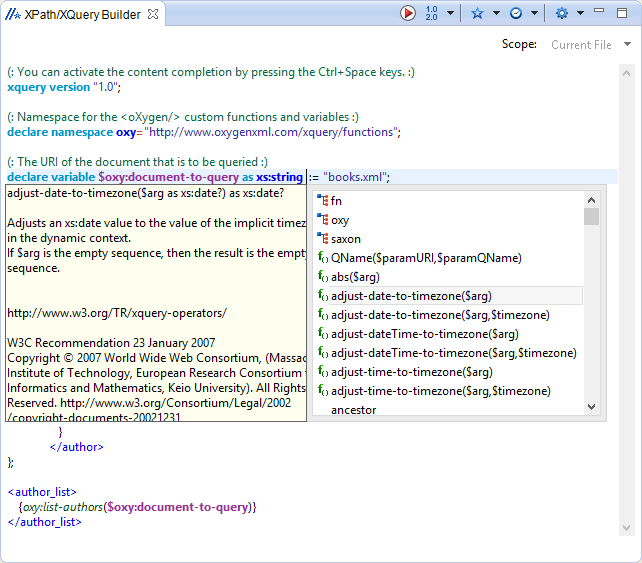

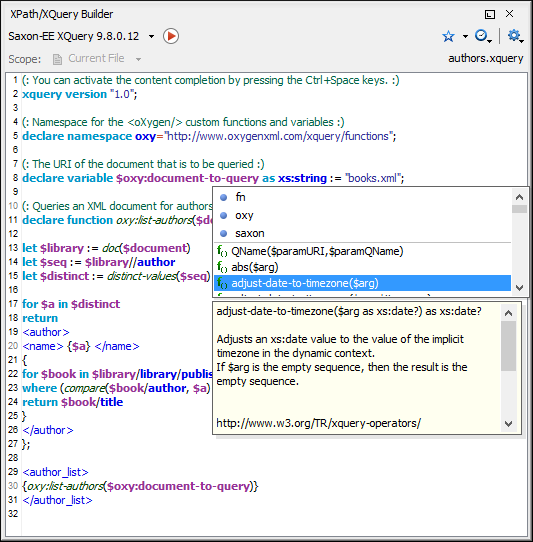

While you edit an XPath or XQuery expression, Oxygen XML assists you with the following features:

Content Completion Assistant - It offers context-dependent proposals and takes into account the cursor position in the document you are editing. The set of functions proposed by the Content Completion Assistant also depends on the engine version. Select the engine version from the drop-down menu available in the toolbar.
Syntax Highlighting - Allows you to identify the components of an expression. To customize the colors of the components of the expression, and go to Editor > Syntax Highlight.
Automatic validation of the expression as you type.
Note:
When you type invalid syntax, a red serrated line underlines the invalid fragments.
Function signature and documentation balloon, when the cursor is located inside a function.

The usual edit actions (Cut, Copy, Paste, Select All, Undo, Redo) are available in the contextual menu of the top editable part of the view.
