Reuse Content Dialog Box
The Reuse Content dialog box provides a mechanism for reusing content
fragments. DITA @conref, @conkeyref, and
@keyref attributes can be used to insert references to reusable content. The
@conref attribute stores a reference to another element and is processed to
replace the referencing element with the referenced element. The @conkeyref
attribute uses keys to locate the content to reuse
rather than direct references to the topic that contains the reusable content. The
@keyref attribute also uses keys
and can be used to indirectly reference metadata that may have different values in various
circumstances.
@id attribute assigned to it. The element
containing the content reference acts as a placeholder for the referenced element. For more
details about DITA @conref and @conkeyref attributes, go to
https://www.oxygenxml.com/dita/1.3/specs/archSpec/base/conref.html.@keyref, keys are defined at map level and
referenced afterward. For more information about the DITA @keyref
attribute, go to https://www.oxygenxml.com/dita/1.3/specs/langRef/attributes/thekeyrefattribute.html.Oxygen XML displays the referenced content of a DITA content reference if it can resolve it to a valid resource. If you use URIs instead of local paths in your XML documents and your DITA-OT transformation needs an XML Catalog to map the URIs to local paths, you need to add the catalog in Oxygen XML. If the URIs can be resolved, the referenced content is displayed in Author mode and in the transformation output.
@conref, @conkeyref, or @keyref) can easily
be inserted at the cursor position by using the Reuse Content dialog
box. It can be opened with any of the following methods:- Click the
Reuse
Content action on the main toolbar. - In the contextual menu of the editing area, go to Reuse >
Reuse
Content. - Go to DITA > Reuse
Content.

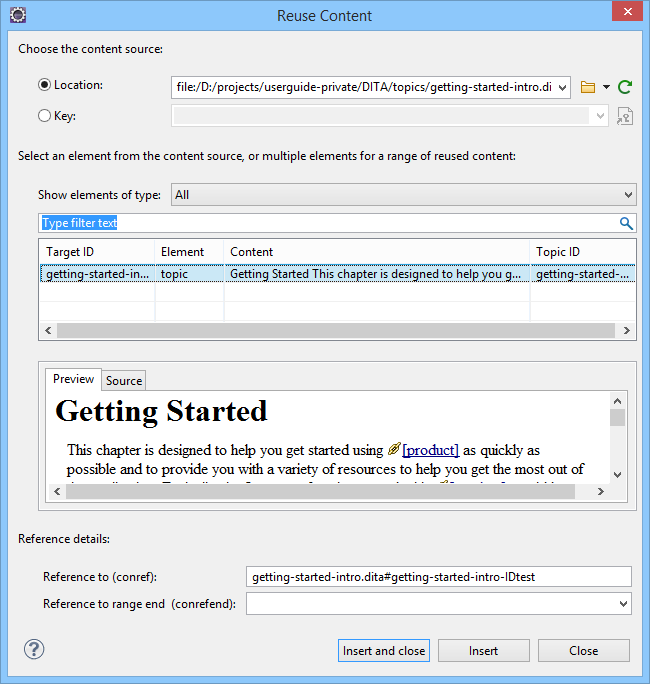

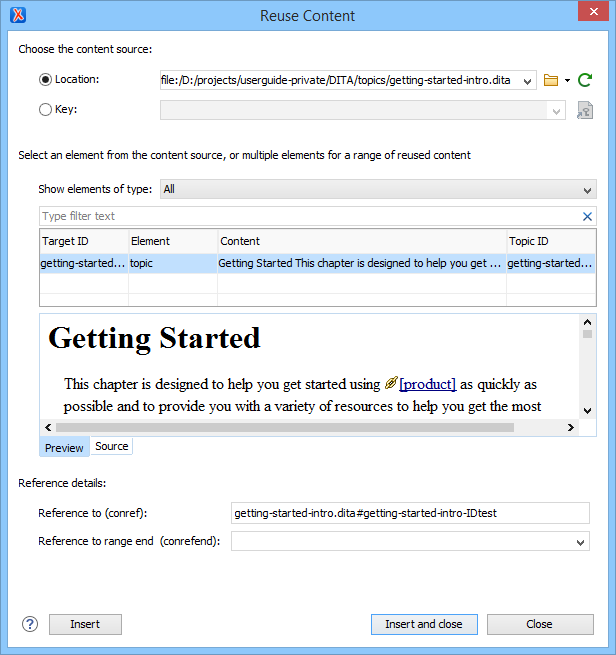

Your selection at the top of the dialog box for choosing the content source determines
whether Oxygen XML will insert a @conref,
@conkeyref, or @keyref.
If you select Location for the content source, a content
reference (@conref) will be inserted. If you select
Key for the content source, keys will be used to insert a content
key reference (@conkeyref) or a key reference
(@keyref).
Content Reference (@conref) Options Using the Reuse Content Dialog
Box
Choose the content source Section
When Location is selected for the content source, a content
reference (@conref) will be inserted. Here you can specify the path of
the topic that contains the content you want to reference.
- Reference details Section
-
- Reference to (conref)
- Oxygen XML automatically fills this text field with the value of
the
@conrefattribute to be inserted. However, you can edit this value if need be. - Reference to range end (conrefend)
- If you select multiple elements (of the same type) in the element table, Oxygen XML automatically fills this text field with the
@idvalue of the last element in your selection. This value will be inserted as a@conrefendattribute, defining the end of the conref range.
Content Key Reference (@conkeyref) Options Using the Reuse Content
Dialog Box
Choose the content source Section
To insert a content key reference (@conkeyref), select the key that
contains the content you want to reference. Notice that the file path is shown in the
Href column. Keys that do not have a value in the
Href column are for referencing metadata with a
@keyref attribute. Therefore, to insert a @conkeyref, you
need to select a key that does have a value (file path) in the Href
column.
After you select a key, click OK to return to the Reuse Content dialog box.

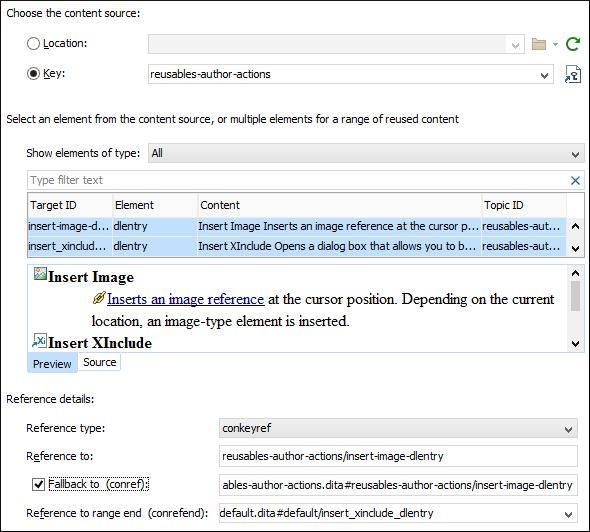

When a key that is defined as a content key reference has been selected, the
Reuse Content dialog box offers the following additional options
for inserting a @conkeyref:
- Reference details Section
-
- Reference type
- The type of reference that will be inserted. If you selected a key that references a DITA resource, you will notice that conkeyref value is automatically selected.
- Reference to
- Oxygen XML automatically fills this text field with the value of
the
@conkeyrefattribute to be inserted. However, you can edit this value if need be. - Fallback to (conref)
- You can select this option to define a
@conrefattribute to be used as a fallback to determine the content reference relationship if the specified conkeyref cannot be resolved. - Reference to range end (conrefend)
- If you select multiple elements (of the same type) in the element table, Oxygen XML automatically fills this text field with the
@idvalue of the last element in your selection. This value will be inserted as a@conrefendattribute, defining the end of the conkeyref range.
Key Reference to Metadata (@keyref) Options Using the Reuse Content
Dialog Box
Choose the content source Section
To insert a key reference to metadata (@keyref), select the key you
want to reference. Keys that do not have a value in the Href column
are for referencing metadata with a @keyref attribute. Therefore, to insert
a @keyref, you need to select a key that does not have a value (file path)
in the Href column.
After you select a key, click OK to return to the Reuse Content dialog box.

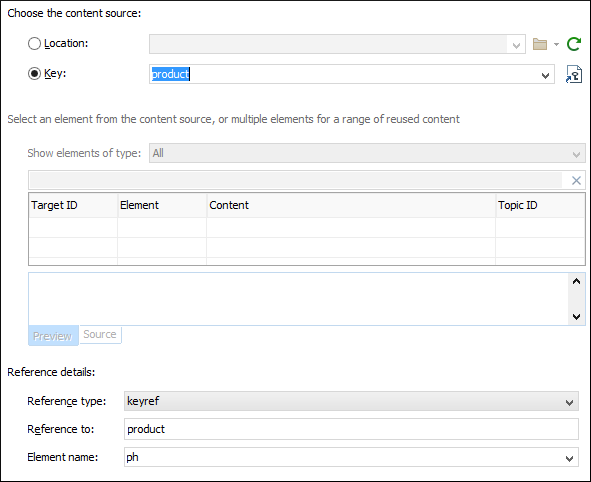

@keyref:- Select an element from the content source Section
- This section is not used when referencing metadata.
- Reference details Section
-
- Reference type
- The type of reference that will be inserted. If you selected a key that does not reference a DITA resource, you will notice that keyref value is automatically selected.
- Reference to
- Oxygen XML automatically fills this text field with the value of
the
@keyrefattribute to be inserted. - Element name
- Oxygen XML automatically selects the element that is most commonly used for the selected type of key reference, but you can use the drop-down list to choose another element to use for the reference.
