HTML Page Layout Files

The HTML page layout files define the default layout of the generated pages in the output for the built-in template. There are four types of pages (main, search, topic, index) and each type of page is a simple HTML file. Each page type has various components that appear by default and each component has a corresponding element and when that element is included in the HTML file, the corresponding components will appear in the output.

Warning:

It is no longer recommended for you to customize these files because if you upgrade to a newer version of Oxygen, those files may no longer produce the desired results and if new components have been added, you won't have access to them. Instead, use any of the other methods described in Publishing Template Package Contents for WebHelp Responsive Customizations.

If you do choose to customize these HTML files, each type of page is defined inside an <html-page-layout-files> element in the descriptor file.

<publishing-template>
      ...
      <webhelp>
      ...
      <!-- HTML page layout files -->
      <html-page-layout-files>
        <page-layout-file page="main" file="page-templates/wt_index.html"/>
        <page-layout-file page="search" file="page-templates/wt_search.html"/>
        <page-layout-file page="topic" file="page-templates/wt_topic.html"/>
        <page-layout-file page="index-terms" file="page-templates/wt_terms.html"/>
      </html-page-layout-files>

If you do use the html-page-layout-files element, you must specify all four types of pages (main, search, topic, index). When not specified, the files from the /plugins/com.oxygenxml.webhelp.responsive/oxygen-webhelp/page-templates folder will be used to define the layout of each type of page.

HTML Page Components

Each type of page contains various components that control the layout of that page. The rendering of each component depends on the context where it is placed and its content depends on the transformed DITA map.

Some of the components can be used in all four types of pages, while some are only available for certain pages. For instance, the Publication Title component can be used in all pages, but the Navigation Breadcrumb component can only be used in the Topic Page.

To include a component in the output of a particular type of page, you have to reference a specific element in that particular HTML file. All the elements associated with a component should belong to the http://www.oxygenxml.com/webhelp/components namespace.

Every component can contain custom content or reference another component. To specify where the component content will be located in the output, you can use the <whc:component_content> element as a descendant of the component element. It can specify the location as before, after, or it can wrap the component content. The following snippet contains an example of each:

<whc:webhelp_search_input class="navbar-form wh_main_page_search"
    role="form" >
    <div class="custom-content-before">Enter search terms here:</div>
    <div class="custom-wrapper">
        <whc:component_content/>
    </div>
    <div class="custom-content-after">Results will be displayed in a new window.</div>
</whc:webhelp_search_input>

Main Page

The Main Page is the home page generated in the WebHelp Responsive output. The name of the HTML file that defines this page is wt_index.html and it is located in the following directory: /plugins/com.oxygenxml.webhelp.responsive/oxygen-webhelp/page-templates.

The main function of the home page is to display top-level information and provide links that help you easily navigate to any of the top-level topics of the publication. These links can be rendered in either a Tiles or Tree style of layout. The HTML page produced for the home page also consists of various other components, such as a logo, title, menu, search field, or index link.

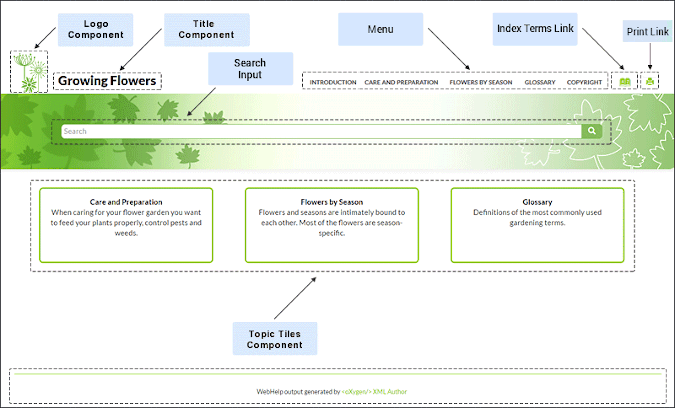

Figure 1. Examples of Main Page Components for a Tiles Style of Layout

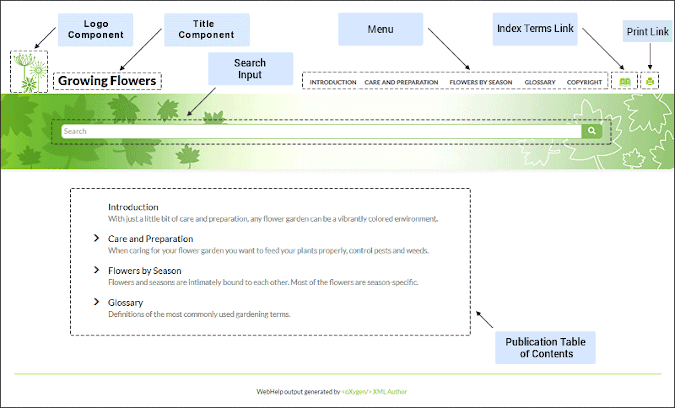

Figure 2. Examples of Main Page Components for a Tree Style of Layout

The following components can be referenced in the Main Page (wt_index.html) file:

Topic Page

The Topic Page is the page generated for each DITA topic in the WebHelp Responsive output. The name of the HTML file that defines this page is wt_topic.html and it is located in the following directory: /plugins/com.oxygenxml.webhelp.responsive/oxygen-webhelp/page-templates.

The HTML pages produced for each topic consist of the topic content along with various other additional components, such as a title, menu, navigation breadcrumb, print icon, or side table of contents.

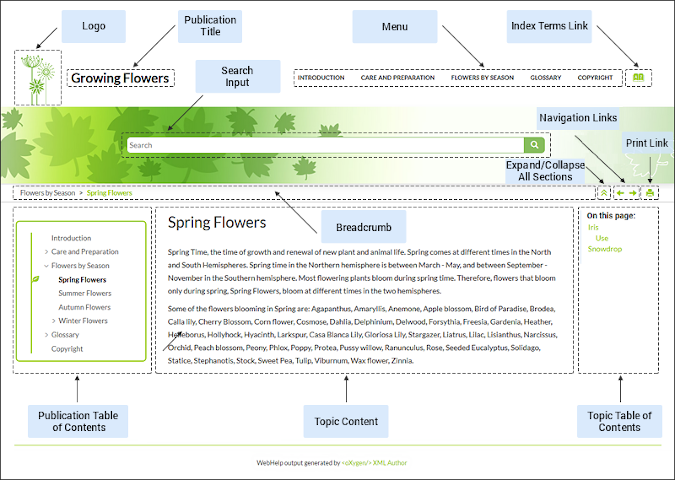

Figure 3. Examples of Topic Page Components

The following components can be referenced in the Topic Page (wt_topic.html) file:

Search Results Page

The Search Results Page is the page generated that presents search results in the WebHelp Responsive output. The name of the HTML file that defines this page is wt_search.html and it is located in the following directory: /plugins/com.oxygenxml.webhelp.responsive/oxygen-webhelp/page-templates.

The HTML page that is produced consists of a search results component along with various other additional components, such as a title, menu, or index link.

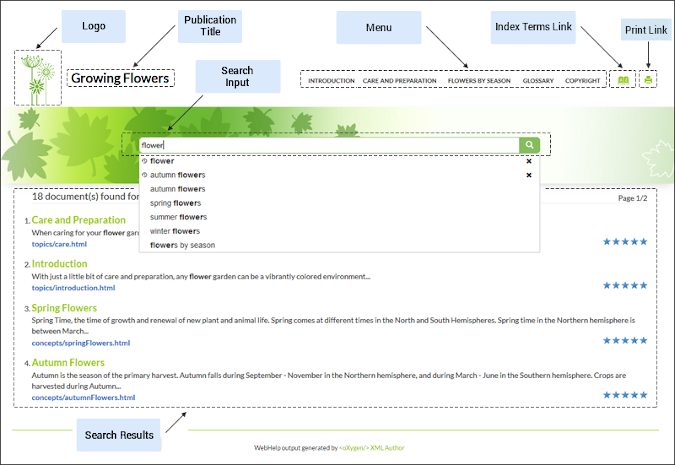

Figure 4. Examples of Search Results Page Components

The following components can be referenced in the Search Results Page (wt_search.html) file:

Index Terms Page

The Index Terms Page is the page generated that presents index terms in the WebHelp Responsive output. The name of the HTML file that defines this page is wt_terms.html and it is located in the following directory: /plugins/com.oxygenxml.webhelp.responsive/oxygen-webhelp/page-templates.

The HTML page that is produced consists of an index terms section along with various other additional components, such as a title, menu, or search field.

An alphabet that contains the first letter of the documentation index terms is generated at the top of the index page. Each letter represents a link to a specific indices section.

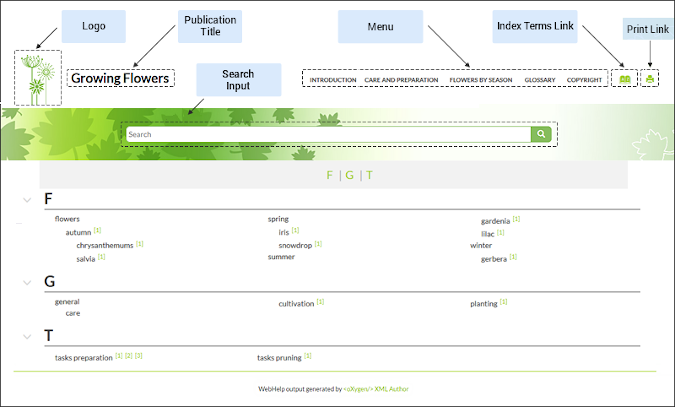

Figure 5. Example of Index Terms Page Components

The following components can be referenced in the Index Terms Page (wt_terms.html) file:
