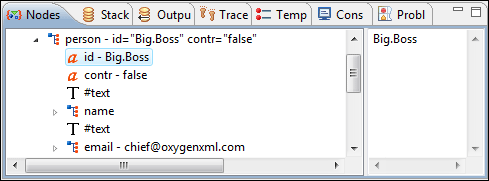

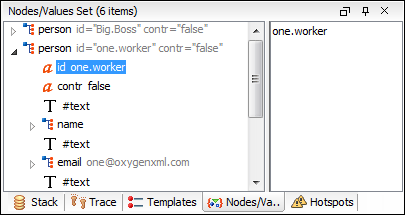

Nodes/Values Set View
The Nodes/Values Set view is always used in relation with the Variables view and XWatch view. It shows an XSLT node set value in a tree form. This view is updated as a response to the following events:
- You click a variable that has a node set value in the Variables or XWatch view.
- You click a tree fragment in the Variables or XWatch view.
- You click an XPath expression evaluated to a node set in the Variables or XWatch view.
The nodes / values set is presented in a tree-like fashion. The total number of items is presented in the title bar. Nodes from a defined namespace bound to a prefix are displayed using the qualified name. If the namespace is not bound to a prefix, the namespace URI is presented before the node name. The value of the selected attribute or node is displayed in the right side panel.
Important:
Remarks:
- For longer values in the right side panel, the interface displays it with an ellipsis (...) at the end. A more detailed value is available as a tooltip when hovering over it.
- Clicking a record highlights the location of that node in the source or stylesheet view.
