Annotations

This schema file is part of the aseXML schema set, and is subject to the terms and conditions that are detailed in the aseXML_r*.xsd schema file with which this file is used

Purpose - Define the contents of the aseXML message header
Detail - Every aseXML message carries a header. It is used to indicate information pertaining to the message as a whole.
Properties
attribute form default: unqualified
element form default: unqualified
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Element Header/From
Namespace No namespace
Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="From" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Element Header/To
Namespace No namespace

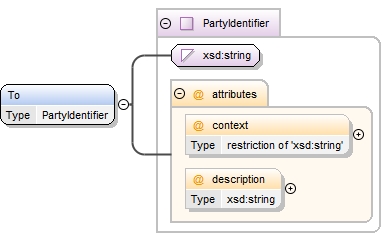

Diagram
Diagram asexml_r250.tmp#id39 asexml_r250.tmp#id40 asexml_r250.tmp#id38
Type PartyIdentifier
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
context restriction of xsd:string optional
description xsd:string optional
Source

<xsd:element name="To" type="PartyIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Element Header/MessageID
Namespace No namespace
Diagram
Diagram asexml_r2524.tmp#id43
Type MessageIdentifier
Properties
content: simple
Facets
minLength 1
maxLength 36
Source

<xsd:element name="MessageID" type="MessageIdentifier"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Element Header/MessageDate
Namespace No namespace
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source

<xsd:element name="MessageDate" type="xsd:dateTime"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Element Header/TransactionGroup
Namespace No namespace
Diagram
Diagram asexml_r2524.tmp#id46
Type TransactionGroup
Properties
content: simple
Facets
enumeration CATS, MDMT, MSGS, NMID, FLTS, SORD, NETB, MTRD, CUST, NOTF, SITE, FLDW, OUTG, BAR, NMIF, MKTW, HSMD, OWNP
Source

<xsd:element name="TransactionGroup" type="TransactionGroup"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Element Header/Priority
Namespace No namespace
Diagram
Diagram asexml_r2524.tmp#id48
Type TransactionPriority
Type hierarchy
Properties
content: simple
minOccurs: 0
Facets
enumeration High, Medium, Low
Source

<xsd:element name="Priority" type="TransactionPriority" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Element Header/SecurityContext
Namespace No namespace
Diagram
Diagram asexml_r2524.tmp#id51
Type MessageSecurityContext
Properties
content: simple
minOccurs: 0
Facets
maxLength 15
Source

<xsd:element name="SecurityContext" type="MessageSecurityContext" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Element Header/Market
Namespace No namespace
Diagram
Diagram asexml_r2524.tmp#id53
Type EnergyMarket
Properties
content: simple
minOccurs: 0
default: NEM
Facets
enumeration AATELEC, ACTELEC, NEM, NSWELEC, NTELEC, QLDELEC, SAELEC, TASELEC, VICELEC, WAELEC, AATGAS, ACTGAS, NSWGAS, NTGAS, QLDGAS, SAGAS, TASGAS, VICGAS, WAGAS
Source

<xsd:element name="Market" type="EnergyMarket" default="NEM" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Complex Type Header
Namespace urn:aseXML:r25
Annotations

Purpose - Define the contents of the aseXML message header
Detail - Every aseXML message carries a header. It is used to indicate information pertaining to the message as a whole.
When not provided, a default value of NEM will be assumed for the market.

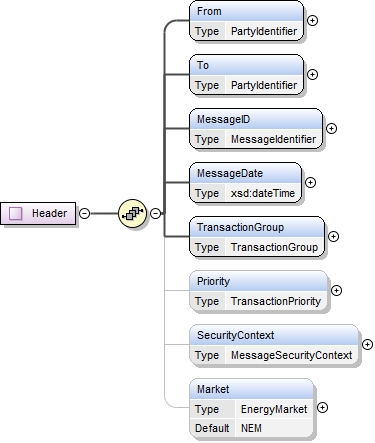

Diagram
Diagram asexml_r2524.tmp#id37 asexml_r2524.tmp#id41 asexml_r2524.tmp#id42 asexml_r2524.tmp#id44 asexml_r2524.tmp#id45 asexml_r2524.tmp#id47 asexml_r2524.tmp#id50 asexml_r2524.tmp#id52
Used by
Element Envelope/Header
Model From , To , MessageID , MessageDate , TransactionGroup , Priority{0,1} , SecurityContext{0,1} , Market{0,1}
Children From, Market, MessageDate, MessageID, Priority, SecurityContext, To, TransactionGroup
Source

<xsd:complexType name="Header">
  <xsd:annotation>
    <xsd:documentation>Purpose - Define the contents of the aseXML message header Detail - Every aseXML message carries a header. It is used to indicate information pertaining to the message as a whole. When not provided, a default value of NEM will be assumed for the market.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="From" type="PartyIdentifier"/>
    <xsd:element name="To" type="PartyIdentifier"/>
    <xsd:element name="MessageID" type="MessageIdentifier"/>
    <xsd:element name="MessageDate" type="xsd:dateTime"/>
    <xsd:element name="TransactionGroup" type="TransactionGroup"/>
    <xsd:element name="Priority" type="TransactionPriority" minOccurs="0"/>
    <xsd:element name="SecurityContext" type="MessageSecurityContext" minOccurs="0"/>
    <xsd:element name="Market" type="EnergyMarket" default="NEM" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Simple Type MessageIdentifier
Namespace urn:aseXML:r25
Annotations

Purpose - Uniquely identify every message generated by the message sender
Detail - Note that message identifiers do not have to be globally unique, only unique to a particular sender. However, the length has been chosen such that UUIDs can be used as message identifiers if considered appropriate, guaranteeing global uniqueness.

A message acknowledgement identifies which message it is acknowledging by providing the message identifier as an attribute.
Diagram
Diagram
Type restriction of xsd:string
Facets
minLength 1
maxLength 36
Used by
Source

<xsd:simpleType name="MessageIdentifier">
  <xsd:annotation>
    <xsd:documentation>Purpose - Uniquely identify every message generated by the message sender Detail - Note that message identifiers do not have to be globally unique, only unique to a particular sender. However, the length has been chosen such that UUIDs can be used as message identifiers if considered appropriate, guaranteeing global uniqueness. A message acknowledgement identifies which message it is acknowledging by providing the message identifier as an attribute.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:minLength value="1"/>
    <xsd:maxLength value="36"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Simple Type TransactionGroup
Namespace urn:aseXML:r25
Annotations

Purpose - Provide the transaction group to which all the contained transactions or transaction acknowledgments belong
Detail - The target application is at liberty to reject any transactions within the message that do not belong to the stated TransactionGroup. Where only message acknowledgements are carried, a transaction group of "MSGS" should be used.
The following groups are B2B process related:
FLTS - Faults and Outages
SORD - Service order, planned works
NETB - Network billing
MTRD - Meter data
CUST - Customer related
NOTF - Notifications (broadcast)
MKTW - Wholesale market operations
HSMD - High Speed Monitoring system
OWNP - Own Way Notification
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration CATS, MDMT, MSGS, NMID, FLTS, SORD, NETB, MTRD, CUST, NOTF, SITE, FLDW, OUTG, BAR, NMIF, MKTW, HSMD, OWNP
Used by
Source

<xsd:simpleType name="TransactionGroup">
  <xsd:annotation>
    <xsd:documentation>Purpose - Provide the transaction group to which all the contained transactions or transaction acknowledgments belong Detail - The target application is at liberty to reject any transactions within the message that do not belong to the stated TransactionGroup. Where only message acknowledgements are carried, a transaction group of "MSGS" should be used. The following groups are B2B process related: FLTS - Faults and Outages SORD - Service order, planned works NETB - Network billing MTRD - Meter data CUST - Customer related NOTF - Notifications (broadcast) MKTW - Wholesale market operations HSMD - High Speed Monitoring system OWNP - Own Way Notification</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="CATS"/>
    <xsd:enumeration value="MDMT"/>
    <xsd:enumeration value="MSGS"/>
    <xsd:enumeration value="NMID"/>
    <xsd:enumeration value="FLTS"/>
    <xsd:enumeration value="SORD"/>
    <xsd:enumeration value="NETB"/>
    <xsd:enumeration value="MTRD"/>
    <xsd:enumeration value="CUST"/>
    <xsd:enumeration value="NOTF"/>
    <xsd:enumeration value="SITE"/>
    <xsd:enumeration value="FLDW"/>
    <xsd:enumeration value="OUTG"/>
    <xsd:enumeration value="BAR"/>
    <xsd:enumeration value="NMIF"/>
    <xsd:enumeration value="MKTW"/>
    <xsd:enumeration value="HSMD"/>
    <xsd:enumeration value="OWNP"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Simple Type TransactionPriority
Namespace urn:aseXML:r25
Annotations

Purpose - Provide the processing priority desired by the sender
Detail - The sender can indicate their preference in terms of timeliness of processing for the payload. It is left to the discretion of the receiver to determine whether and how to honour the requested priority.
Diagram
Diagram asexml_r250.tmp#id49
Type restriction of Priority
Type hierarchy
Facets
enumeration High, Medium, Low
Used by
Element Header/Priority
Source

<xsd:simpleType name="TransactionPriority">
  <xsd:annotation>
    <xsd:documentation>Purpose - Provide the processing priority desired by the sender Detail - The sender can indicate their preference in terms of timeliness of processing for the payload. It is left to the discretion of the receiver to determine whether and how to honour the requested priority.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="Priority">
    <xsd:enumeration value="High"/>
    <xsd:enumeration value="Medium"/>
    <xsd:enumeration value="Low"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Simple Type MessageSecurityContext
Namespace urn:aseXML:r25
Annotations

Purpose - Provide the processing priority desired by the sender
Detail - The sender can indicate information needed by the receiver to determine whether or not the sender is authorised to submit the transactions within the message.

For the Market Settlement And Transfer System (MSATS), this will be used to hold the participant userid from which the context for transaction processing is determined.
Diagram
Diagram
Type restriction of xsd:string
Facets
maxLength 15
Used by
Source

<xsd:simpleType name="MessageSecurityContext">
  <xsd:annotation>
    <xsd:documentation>Purpose - Provide the processing priority desired by the sender Detail - The sender can indicate information needed by the receiver to determine whether or not the sender is authorised to submit the transactions within the message. For the Market Settlement And Transfer System (MSATS), this will be used to hold the participant userid from which the context for transaction processing is determined.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:maxLength value="15"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
Simple Type EnergyMarket
Namespace urn:aseXML:r25
Annotations

Purpose -Indicate the energy market to which the message belongs
Detail - Markets are currently defined for the National Electricity Market, the NSW Gas Market and the Victorian Gas Market.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration AATELEC, ACTELEC, NEM, NSWELEC, NTELEC, QLDELEC, SAELEC, TASELEC, VICELEC, WAELEC, AATGAS, ACTGAS, NSWGAS, NTGAS, QLDGAS, SAGAS, TASGAS, VICGAS, WAGAS
Used by
Element Header/Market
Source

<xsd:simpleType name="EnergyMarket">
  <xsd:annotation>
    <xsd:documentation>Purpose -Indicate the energy market to which the message belongs Detail - Markets are currently defined for the National Electricity Market, the NSW Gas Market and the Victorian Gas Market.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="AATELEC"/>
    <xsd:enumeration value="ACTELEC"/>
    <xsd:enumeration value="NEM"/>
    <xsd:enumeration value="NSWELEC"/>
    <xsd:enumeration value="NTELEC"/>
    <xsd:enumeration value="QLDELEC"/>
    <xsd:enumeration value="SAELEC"/>
    <xsd:enumeration value="TASELEC"/>
    <xsd:enumeration value="VICELEC"/>
    <xsd:enumeration value="WAELEC"/>
    <xsd:enumeration value="AATGAS"/>
    <xsd:enumeration value="ACTGAS"/>
    <xsd:enumeration value="NSWGAS"/>
    <xsd:enumeration value="NTGAS"/>
    <xsd:enumeration value="QLDGAS"/>
    <xsd:enumeration value="SAGAS"/>
    <xsd:enumeration value="TASGAS"/>
    <xsd:enumeration value="VICGAS"/>
    <xsd:enumeration value="WAGAS"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location file:/C:/Users/mihai/Desktop/asexml_r25/Header_r25.xsd
