Schema documentation for component part-name-text

Showing:

Attributes

Diagrams

Source

Used by

Attribute Group part-name-text

Namespace

No namespace

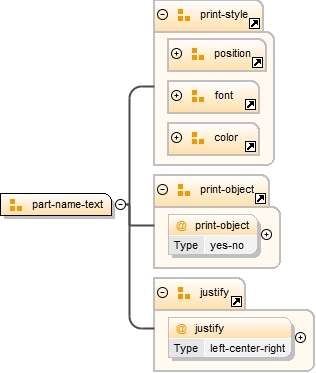

Diagram

Used by

Complex Type

part-name

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
font-family	comma-separated-text	optional
font-size	font-size	optional
font-style	font-style	optional
font-weight	font-weight	optional
justify	left-center-right	optional
print-object	yes-no	optional
relative-x	tenths	optional
relative-y	tenths	optional

Source

<xs:attributeGroup name="part-name-text">
  <xs:annotation>
    <xs:documentation>The part-name-text attribute group is used by the part-name and part-abbreviation elements. The print-style and justify attribute groups are deprecated in MusicXML 2.0 in favor of the new part-name-display and part-abbreviation-display elements.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="print-style"/>
  <xs:attributeGroup ref="print-object"/>
  <xs:attributeGroup ref="justify"/>
</xs:attributeGroup>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
