Schema documentation for component group-name

Showing:

Annotations

Attributes

Diagrams

Source

Used by

Complex Type group-name

Namespace

No namespace

Annotations

The group-name type describes the name or abbreviation of a part-group element. Formatting attributes in the group-name type are deprecated in Version 2.0 in favor of the new group-name-display and group-abbreviation-display elements.

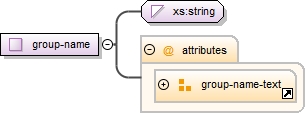

Diagram

Type

extension of xs:string

Used by

Elements

part-group/group-abbreviation, part-group/group-name

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
font-family	comma-separated-text	optional
font-size	font-size	optional
font-style	font-style	optional
font-weight	font-weight	optional
justify	left-center-right	optional
relative-x	tenths	optional
relative-y	tenths	optional

Source

<xs:complexType name="group-name">
  <xs:annotation>
    <xs:documentation>The group-name type describes the name or abbreviation of a part-group element. Formatting attributes in the group-name type are deprecated in Version 2.0 in favor of the new group-name-display and group-abbreviation-display elements.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="xs:string">
      <xs:attributeGroup ref="group-name-text"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
