Hi Ed,
The "Insert a DITA Content Key Reference" action is used to insert a
content key reference (the @conkeyref attribute).
What you actually need is to insert a simple <image> with a @keyref
attribute.
Basically if in the DITA Map you add a reference to an image:
> <topicref href="images/Gerbera.jpg" format="jpg" keys="gerbera"/>

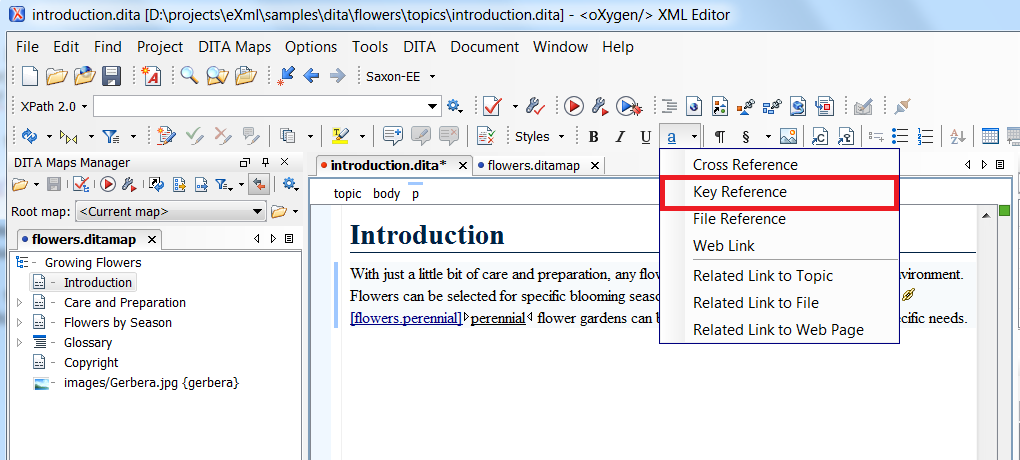

Then in a DITA topic you can use the "Key Reference" action (available
on the toolbar on a link drop down button) to insert an image with a
reference to that key and it worked for me.

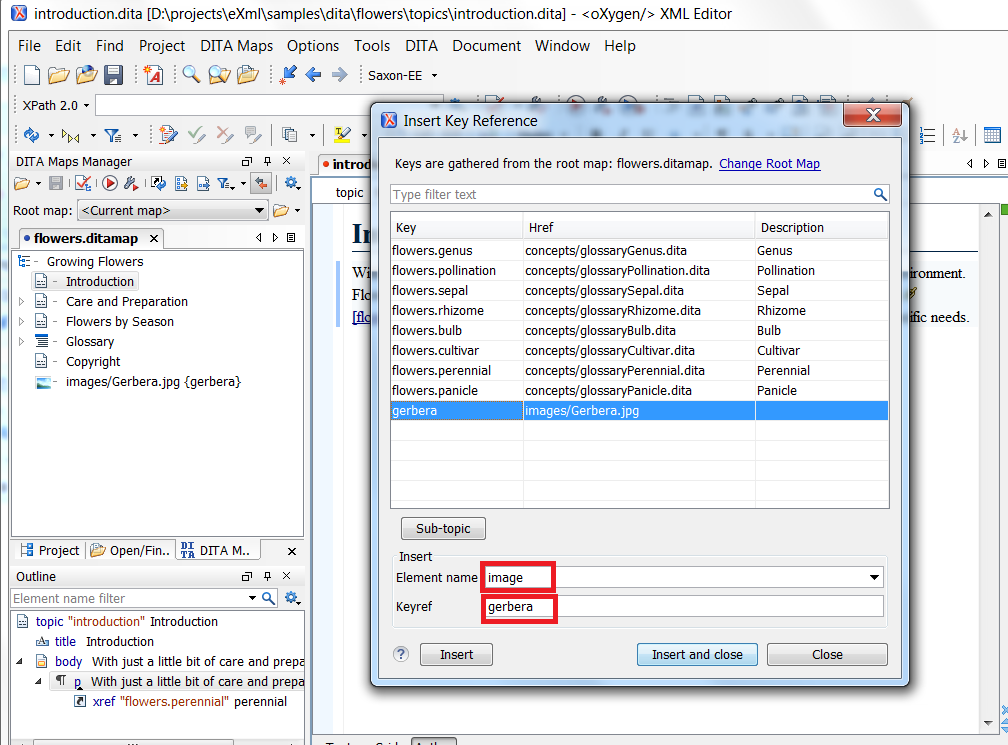

I chose the referenced key in the table, I chose the name of the element
which needs to be inserted (<image> in this case) and then pressed the
"Insert and close" button.
Please see the attached screenshot.
Regards,
Radu
Radu Coravu
<oXygen/> XML Editor, Schema Editor and XSLT Editor/Debugger
http://www.oxygenxml.com
On 5/13/2014 11:11 PM, Marsh, Ed wrote:
> Hi there,
>
> I’m fairly new to oXygen, using v15.2.
>
> I’m having an issue trying to insert images that are referenced by
> keyref in a ditamap. If I insert the keyref in code view, the image
> appears fine, i.e. <image keyref=”image-ref-keyname”>
>
> However, if I try to insert using the Insert Content Key Reference
> dialog, another dialog appears saying “Please select an element ID by
> pressing the Subtopic button”. When I click the Subtopic button, no IDs
> appear.
>
> Is this expected behavior, or am I missing something?
>
> Thanks,
>
> Ed.
>
>
>
> _______________________________________________
> oXygen-user mailing list
> oXygen-user at oxygenxml.com
> http://www.oxygenxml.com/mailman/listinfo/oxygen-user
>
