Hi Nathan,

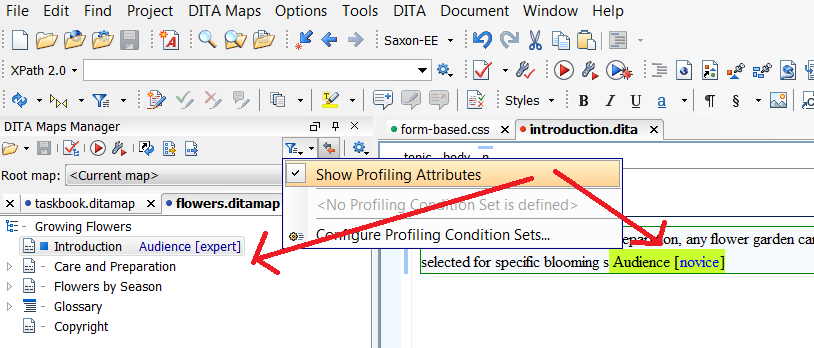

The "Show Profiling attributes" action does not gray-out filtered
sections. What it does is that it shows for each topicref in the DITA
Maps Manager and for each profiled DITA topic opened in the main editor
in the Author visual editing mode the profiling attributes for each
element which has them set. In order for you to understand better what
it does I'm attaching a screenshot.

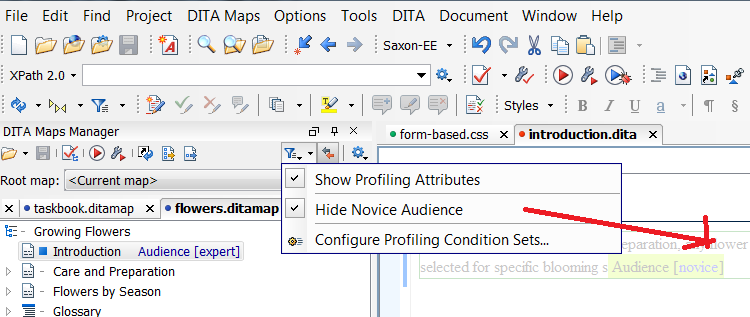

What you actually want (gray out topics which do not match a certain set
of condition) can be done by first configuring in the Oxygen
Preferences->"Editor / Edit modes / Author / Profiling/Conditional Text"
page a set of "Profiling Condition Sets" and then to choose one of those
profiling condition sets in the filter drop-down. I'm attaching another
screenshot with this.

A profiling condition set can be created by directly referencing a DITA
VAL File.

If I have not properly understood your request, please give me more
details, maybe also some screenshots.

Regards,
Radu

Radu Coravu
<oXygen/>  XML Editor, Schema Editor and XSLT Editor/Debugger
http://www.oxygenxml.com

On 3/7/2014 5:00 AM, Nathan wrote:
> Hi,
>    I am using the DITA framework in Oxygen Author 15.2 on Mac OS and am
> unable to get the excluded topics greyed out when profiling attributes
> have been applied. The profiling attributes are being distributed as
> part of a custom config file. They are being declared in ditaval files
> which are bundled along with the framework folder. The framework folder
> is being distributed via source control.
>    I am able to apply see the attributes and apply them on the concerned
> dita topics and text, but when I select the "Show Profiling attributes"
> icon on the DITA Maps manager, the excluded topics and text are not
> being grayed. Also, when I open the "Open Map in editor with resolved
> topics" icon in the Dita Maps manager window, the excluded topic is
> still shown as part of the content.
>
> I only notice this issue on the Mac, not on Windows or Linux.
>
> Is this a known bug in Oxygen 15.2? Could someone help me figure out
> whats happening here?
>
> Thanks a bunch,
> Nathan
>
>
> _______________________________________________
> oXygen-user mailing list
> oXygen-user at oxygenxml.com
> http://www.oxygenxml.com/mailman/listinfo/oxygen-user
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: showProfilingAttributes.png
Type: image/png
Size: 53511 bytes
Desc: not available
Url : http://www.oxygenxml.com/pipermail/oxygen-user/attachments/20140307/254066a0/attachment-0002.png
-------------- next part --------------
A non-text attachment was scrubbed...
Name: grayOutUsingProfilingConditionSet.png
Type: image/png
Size: 48288 bytes
Desc: not available
Url : http://www.oxygenxml.com/pipermail/oxygen-user/attachments/20140307/254066a0/attachment-0003.png
