Complex Type text-element-data
Namespace No namespace
Annotations

The text-element-data type represents a syllable or portion of a syllable for lyric text underlay. A hyphen in the string content should only be used for an actual hyphenated word. Language names for text elements come from ISO 639, with optional country subcodes from ISO 3166.

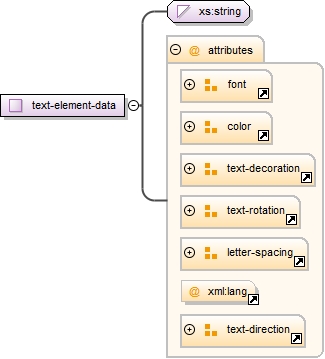

Diagram
Diagram musicxml1.tmp#id108 musicxml2.tmp#id102 musicxml13.tmp#id146 musicxml15.tmp#id155 musicxml72.tmp#id117 musicxml14.tmp#id150
Type extension of xs:string
Used by
Element lyric/text
Attributes
QName Type Fixed Default Use Annotation
color color optional
dir text-direction optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
lang optional
letter-spacing number-or-normal optional
line-through number-of-lines optional
overline number-of-lines optional
rotation rotation-degrees optional
underline number-of-lines optional
Source

<xs:complexType name="text-element-data">
  <xs:annotation>
    <xs:documentation>The text-element-data type represents a syllable or portion of a syllable for lyric text underlay. A hyphen in the string content should only be used for an actual hyphenated word. Language names for text elements come from ISO 639, with optional country subcodes from ISO 3166.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="xs:string">
      <xs:attributeGroup ref="font"/>
      <xs:attributeGroup ref="color"/>
      <xs:attributeGroup ref="text-decoration"/>
      <xs:attributeGroup ref="text-rotation"/>
      <xs:attributeGroup ref="letter-spacing"/>
      <xs:attribute ref="xml:lang"/>
      <xs:attributeGroup ref="text-direction"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
