[oXygen-user] Struggling with conkeyref/conaction=pushafter

Tue Mar 28 07:18:59 CDT 2023

Hi Radu,

Thank you for the link. Hm...

If the pushed content is not shown in the Oxygen Editor, then the
feature is not really useful for me. I need to see it to have control
over what I am doing.

The conref-push content does not appear in CHM output either. Perhaps
this has to do with the fact that I still use oXygen V21.1 to generate
CHM output. (I made some XSL customizations which are not easy for me to
apply to V25, a bit difficult and lengthy to explain...).

It appears much simpler for me to filter the contents out. But owing to
the way my process is set up, I would need to apply a second ditaval file.

Can I specify two ditaval files for the "args.filter" argument? This
would be the best.

And I would need a second attribute in addition to "product", otherwise
I would have to edit each and every element that uses a "product"
attribute. There are not so many attributes available. Perhaps I could
(mis)use "platform"... (for indicating the project).

I heard of ditvalref branch filtering and I tested this. It does not
create the desired result as duplicates of every reused topic are
created. This is not what I want and it messes up many topic references.
Can I set up branch filtering differently so that no topic duplicates
are created? Probably not...

The reason is that my ditaval files contain conditions for creating
variants (oem1, oem2, etc. -- no condition stands for the base product)
of a product group (project1, project 2). The same ditaval conditions
(oem1, oem2, etc.) are used across different product groups. It never
occurred to me to filter on product groups (projects) because I use root
ditamaps stored in different folders to create output for different
product groups.

Regards,

Frank

------------------------------------------------------------------------
Am 27.03.2023 um 18:50 schrieb Oxygen XML Editor Support (Radu Coravu):
>
> Hi Frank,
>
>
> Maybe this will help:
>
> https://blog.oxygenxml.com/presentation-reuse/conref_push.html
>
>
> One remark, Oxygen will not show the pushed content in place but
> publishing should work.
>
>
> Regards,
>
> Radu
>
> Radu Coravu
> Oxygen XML Editor
> On 3/27/23 18:05, Frank Dissinger wrote:
>>
>> Hi all,
>>
>>
>> I have tested the "DITA > Push Current element" feature, but cannot
>> get it to work.
>>
>>
>> I want to inject a <dlentry> element into a shared topic which is
>> used in two projects. The element to be injected is stored in a
>> warehouse topic for project 1. What I want is to inject this element
>> only when project 1 is built. When project 2 is built, the key to the
>> warehouse topic resolves to a different file which doese not include
>> the element. So what I hope is that the element is only injected when
>> I build project 1 and that it is left out when I build project 2 --
>> without any error or warning generated in the log file or in Oxygen's
>> editor window.
>>
>>
>> However, the element does not appear in project 1 and in Oxygen it is
>> shown as an empty <dt><p> struture. In a previous attempt the element
>> was shown in the editor window, but not in output either. I can't
>> remember what I did differently...
>>
>>
>> I may not have undestood this feature correctly. Can someone
>> enlighten me? Thank you.
>>
>>
>> Regards,
>>
>> Frank
>>
>>
>> The dita code:
>>
>> *
>> *
>>
>> *file.dita*
>>
>>         <dlentry conaction="mark" conkeyref="lib_ref/my_id">
>>           <dt/>
>>           <dd>
>>             <p/>
>>           </dd>
>>         </dlentry>
>>         <dlentry conaction="pushafter">
>>           <dt>A term. The term in lib_ref.dita should be injected
>> after that.</dt>
>>           <dd>
>>             <p>Explanation</p>
>>           </dd>
>>         </dlentry>
>>
>>
>> *lib_ref.dita
>> *
>>
>>       <dl>
>>         <dlentry id="my_id">
>>           <dt>The term to inject after the term in file.dita</dt>
>>           <dd>
>>             <p>Explanation</p>
>>           </dd>
>>         </dlentry>
>>       </dl>
>>
>>
>> *variables.ditamap*
>>     <keydef href="reuse/lib_ref.dita" keys="lib_ref"/>
>>

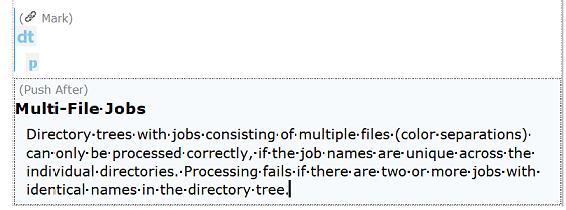

>> Appearance in oXygen.
>> --
>>
>> *Frank Dissinger*
>>
>> Documentation Manager
>>
>> ....................................................................
>>
>> *CGS Publishing Technologies International GmbH*
>>
>> *Email *frank.dissinger at cgs-oris.com | *Web* www.cgs-oris.com
>> <http://www.cgs-oris.com/>
>>
>> *Address* Kettelerstr. 24 | D-63512 Hainburg | Germany
>>
>> *Phone* +49 6182 9626-27 | *Fax* +49 6182 9626-99
>>
>> *Commercial register* Offenbach, HRB no. 21495
>>
>> *Managing directors* Bernd Rückert, Christoph Thommessen
>>
>>
