[oXygen-user] Understanding @colsep and @rowsep

[Frank Dissinger]

Hi all,


Can someone shed some light on how the *@colsep* and*@rowsep* attributes
are used for CALS tables? The information I found is not clear and
detailed enough for me.


I understand that these attributes create separator lines for colums and
rows. Do I only need these attributes when I do not set *@frame="all"*
to create lines for particular rows or columns only?


For a normal CALS table with lines for all rows and columns (i.e. like a
grid), is enough to set *@frame="all"* or do I additionally need these

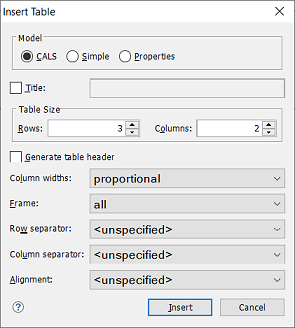

attributes? The code that Oxygen creates (see below) with these settings
(i.e. without these attributes) ...

does not have these *@colsep* and*@rowsep* attributes, only
*@frame="all"*, and is rendered as desired with my CHM and PDF
transformations.


I have several tables with *@colsep*/*@rowsep="0" *or*="1"*. These
attributes may have been added by FrameMaker when I converted
unstructured content to DITA. Can I safely remove all of these
attributes when I just want a CALS table with row and line separators
every (like a grid)?


Regards,

Frank


--

*Frank Dissinger*

Documentation Manager

....................................................................

*CGS Publishing Technologies International GmbH*

*Email *frank.dissinger at cgs-oris.com | *Web* www.cgs-oris.com
<http://www.cgs-oris.com/>

*Address* Kettelerstr. 24 | D-63512 Hainburg | Germany

*Phone* +49 6182 9626-27 | *Fax* +49 6182 9626-99

*Commercial register* Offenbach, HRB no. 21495

*Managing directors* Bernd Rückert, Christoph Thommessen


https://www.cgs-oris.com/Signatur.png <https://www.cgs-oris.com/signatur>
