[oXygen-user] Feature request: Validation for linked images in SVG paths
Alex Jitianu
alex_jitianu at sync.ro
Tue Jul 30 09:35:20 CDT 2013
Hello Matt,
1. The odd line is related to the fact that when validating with a
Schematron file under the hood the Schematron is transformed in XSLT and
that XSLT is applied on the document. The reported error line is inside
that intermediate XSLT and unfortunately I don't think there is a round
trip to get the real location in the Schematron file.
2. I believe the NullPointerException is a side effect of the fact that
I didn't consider the fact that the SVG file is also referred relatively
in the DITA document. As a result the SVG will not get located and
parsed by the document() function and later on exists() function will
break. In the example below I've added the resolve-uri() function to
compute the SVG document location.
3. In the example below I've changed a bit the assert XPath to ignore
the href values that start with 'data'. You should also take into
account the fact that the SVG can contain multiple image elements.
Perhaps you could assert it more elegantly than this but here a possible
solution:
<schema
xmlns="http://purl.oclc.org/dsdl/schematron"
queryBinding="xslt2"
xmlns:exslt="http://expath.org/ns/file">
<ns uri="http://expath.org/ns/file" prefix="exslt"/>
<pattern>
<rule context="image">
<let name="svgDocument" value="document(resolve-uri(@href,
base-uri()))" />
<let name="svgExists" value="exists($svgDocument)"/>
<assert test="$svgExists">The SVG file can't be loaded
<value-of select="resolve-uri(@href, base-uri())"/></assert>
<let name="realImages" value="$svgDocument//*:image/@*:href"/>
<!-- If the SVG file can't be loaded or the SVG points to
an embeded image SKIP IT. -->
<let name="testImages" value="for $realImage in $realImages
return if (not($svgExists) or starts-with($realImage, 'data')) then
true() else exslt:exists(resolve-uri($realImage, base-uri($svgDocument)))"/>
<assert test="empty(index-of($testImages, false()))">The
image file must exist</assert>
</rule>
</pattern>
</schema>
Best regards,
Alex
On 30-Jul-13 3:33 PM, KAATMAN Matthew wrote:
>
> Hey Alex,
>
> This looks really promising!
>
> When I run validate with this schematron I get the following:
>
> System ID: C:\svn\scripts\svgCheck.sch
>
> Engine name: ISO Schematron (XSLT 2.0)
>
> Severity: fatal
>
> Type: XML validation
>
> Start location: 149:0 (Odd because the schematron is only 14 lines)
>
> System ID: C:\dita\pt\products\vitek2systems\pi\Appendix_A.dita (This
> is the first file with an SVG for the document I checked.)
>
> Engine name: ISO Schematron (XSLT 2.0)
>
> Severity: error
>
> Description: Exception thrown by extension function {public static
> boolean
> com.saxonica.functions.extfn.EXPathFile.exists(java.lang.String)}:
> java.lang.NullPointerException
>
> Type: XML validation
>
> Even if I delete all SVG references, I receive the above two errors.
>
> I then tried it on a map with more SVGs and some that were verified to
> be broken. It is properly detecting the errors but I see false
> positives when the SVG contains embedded images instead of linked. I
> believe it's trying to verify the binary data as the uri.
>
> System ID: C:\dita\en\products\simon\service\Attachments.dita
>
> Engine name: ISO Schematron (XSLT 2.0)
>
> Severity: error
>
> Description: A sequence of more than one item is not allowed as the
>
> Type: XML validation
>
> Is there a way for me to adjust the schematron to ignore href values
> that start with "data"?
>
> I had previously attended a webinar Oxygen presented on schematron.
> I'm finally starting to understand how powerful it can be!
>
> Thank you,
> Matt
>
> *From:*oxygen-user-bounces at oxygenxml.com
> [mailto:oxygen-user-bounces at oxygenxml.com] *On Behalf Of *Alex Jitianu
> *Sent:* Tuesday, July 30, 2013 2:25 AM
> *To:* oxygen-user at oxygenxml.com
> *Subject:* Re: [oXygen-user] Feature request: Validation for linked
> images in SVG paths
>
> Hello Matt,
>
> In Oxygen v15.0 we've added in the "Validate and check for
> Completeness" dialog a new entry called "Additional schematron checks"
> in which you can specify additional Schematron checks that should be
> be executed on the topics. You can perform the check you've described
> using a Schematron file with the following content:
>
> <?xml version="1.0" encoding="UTF-8"?>
> <schema
> xmlns="http://purl.oclc.org/dsdl/schematron"
> <http://purl.oclc.org/dsdl/schematron>
> queryBinding="xslt2"
> xmlns:exslt="http://expath.org/ns/file" <http://expath.org/ns/file>>
> <ns uri="http://expath.org/ns/file" <http://expath.org/ns/file>
> prefix="exslt"/>
> <pattern>
> <rule context="image[ends-with(@href, '.svg')]"
> <mailto:image[ends-with%28 at href,%27.svg%27%29]>>
> <let name="svgDocument" value="document(@href)" />
> <assert
> test="exslt:exists(resolve-uri($svgDocument//*:image/@*:href,
> base-uri($svgDocument)))">
> The image file from the following SVG doesn't exist:
> <value-of select="base-uri($svgDocument)"/></assert>
> </rule>
> </pattern>
> </schema>
>
> Best regards,
> Alex
> --
> Alex Jitianu
> <oXygen/> XML Editor, Schema Editor and XSLT Editor/Debugger
> http://www.oxygenxml.com
>
>
> On 29-Jul-13 9:38 PM, KAATMAN Matthew wrote:
>
> Hey Guys,
>
> This is a feature request that's not extremely crucial, but it
> would be helpful for us.
>
> I'm having our authors create SVG overlays and link to the
> background image (jpeg or png).
>
> Sometimes they accidentally link to an image that isn't in our
> repository path.
>
> Within the SVG, I'll end up with something like:
>
> <image width="1200" height="1807"
> xlink:href="../../../../../../../Users/Username/Pictures/PREVI
> PAV/PAV_printer_cover_open.jpg" >
>
> When it should be:
>
> <image width="1200" height="1807"
> xlink:href="images/PAV_printer_cover_open.jpg" >
>
> Although, the validate/check for completeness wouldn't catch this
> on their workstation as the image exists and is valid, it would
> find it quickly on mine since it's outside the path that gets
> checked in and I'd be missing that image.
>
> It doesn't seem like the OT throws any errors either. The only way
> I find out is when I'm viewing the PDF and notice that antenna
> house has substituted a broken image.
>

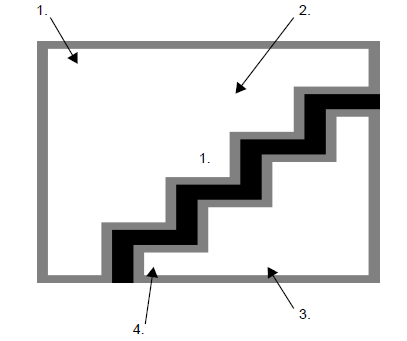

> Example:
>
> Thanks!
> Matt
>
